Description

Mighty Comet 500P Vertical Machining Center
  • Mighty Comet 500P Vertical Machining Center Features:

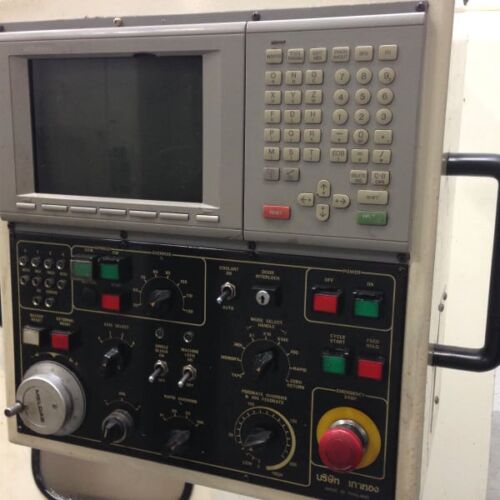

  •  Mitsubishi Meldas Control
  •   BT40 Spindle Taper.

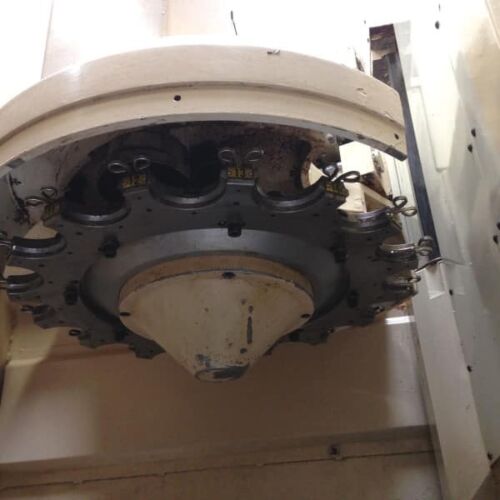

  • 16-Station Automatic Tool Changer.
  • Coolant System.
  • Mighty Comet 500P Vertical Machining Center Specifications:
  • Travel:
  • X-Axis: 20″
  • Y-Axis: 15-3/4″
  • Z-Axis: 15-3/4″

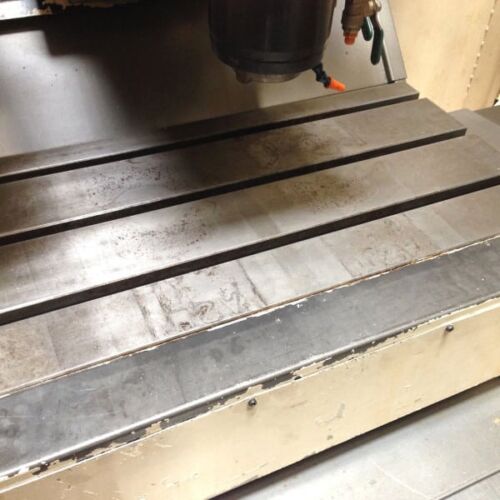

  • Table:
  • Table Dimensions: 32″ x 16″
  • T-Slots (number x width x distance between centers): 3 x 0.71″ x 5″
  • Maximum Weight on Table: 750 lbs.
  • Spindle:
  • Taper: BT40
  • Speed: 60 to 8,000 RPM
  • Spindle Center to Column: 15-15/16″
  • Spindle Nose to Table Top: 4-3/4″ to 20-1/2″
  • Feed Rates:
  • Cutting Feed Rate (X, Y, Z,): 0.039 to 275 in/min
  • Rapid Traverse Rate (X, Y, Z,): 629 in/min
  • Automatic Tool Changer:
  • Tool Capacity: 16
  • Maximum Tool Diameter: 3.3″
  • Maximum Tool Length: 7-7/8″
  • Maximum Tool Weight: 13 lbs.
  • Tool Change Time: 8 seconds
  • General:>
  • Machine Weight: 8,500 lbs.

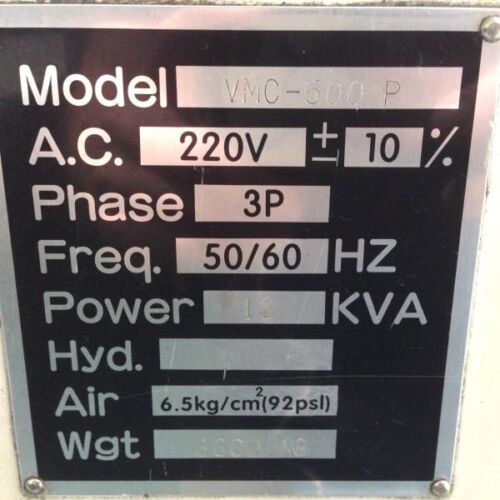

  • Electrial: 220 Volt, Three Phase, 50 / 60 Hz
  • Overall Dimensions: 72″ x 95″ x 100″ tall

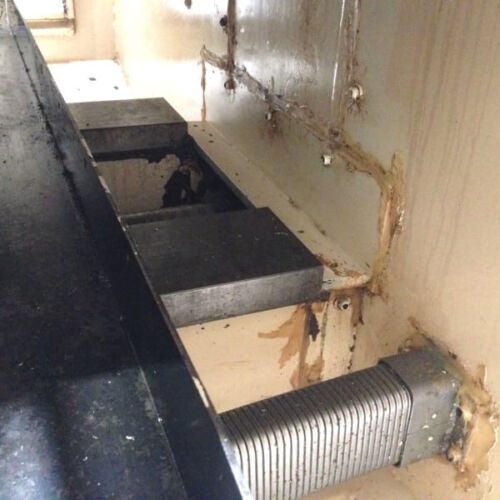

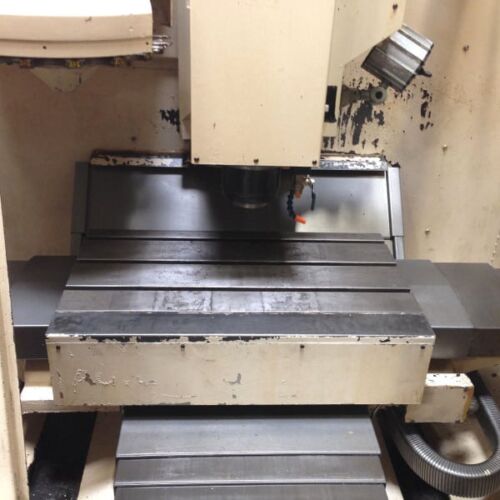

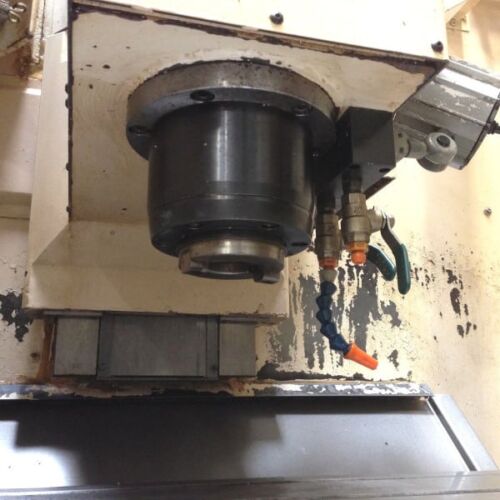

Mighty Comet 500P Vertical Machining Center Comes as shown in pictures.
