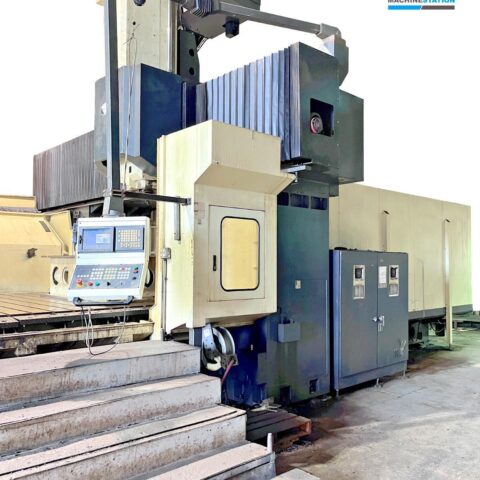

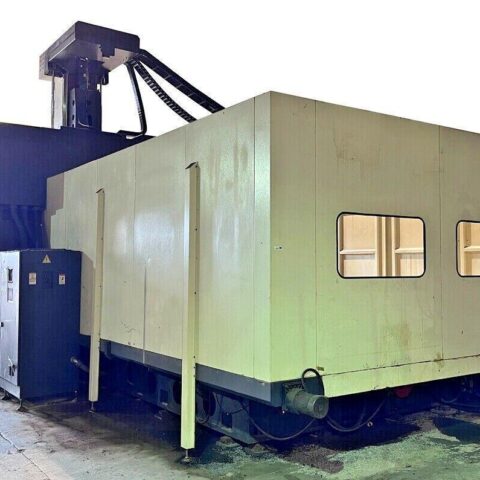

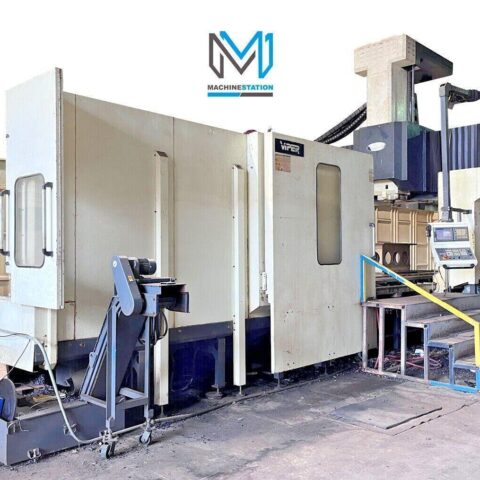

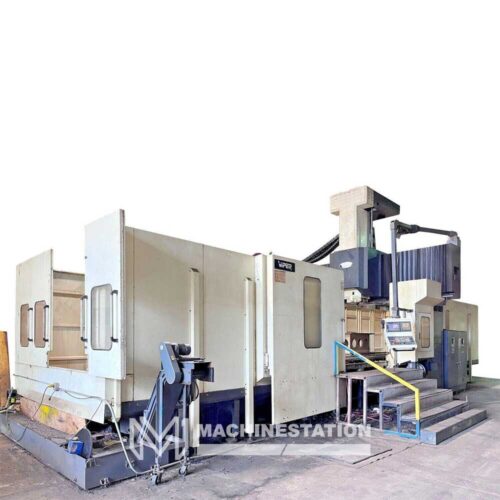

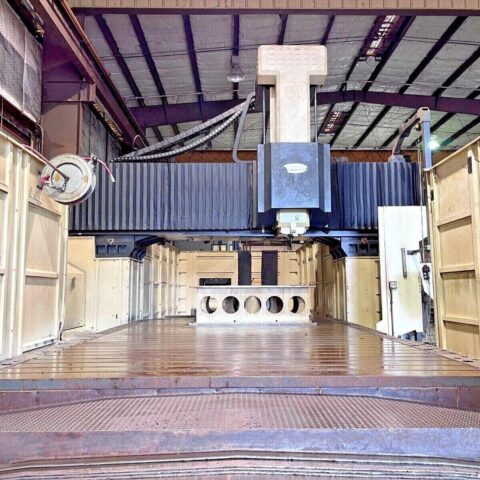

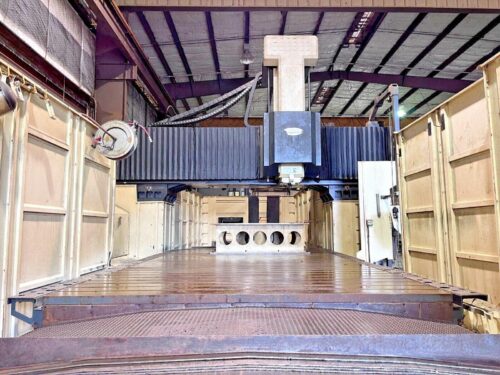

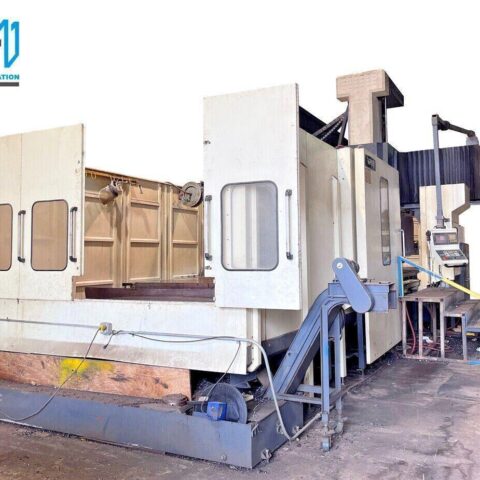

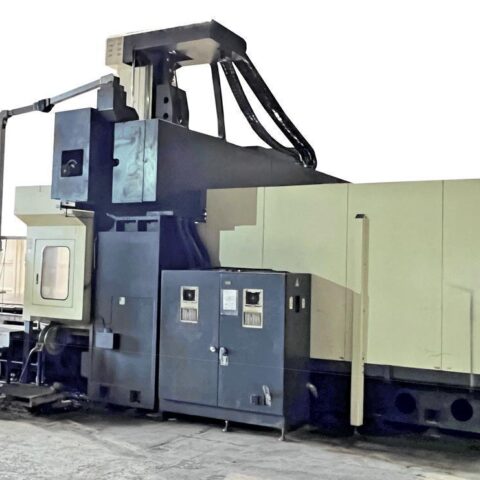

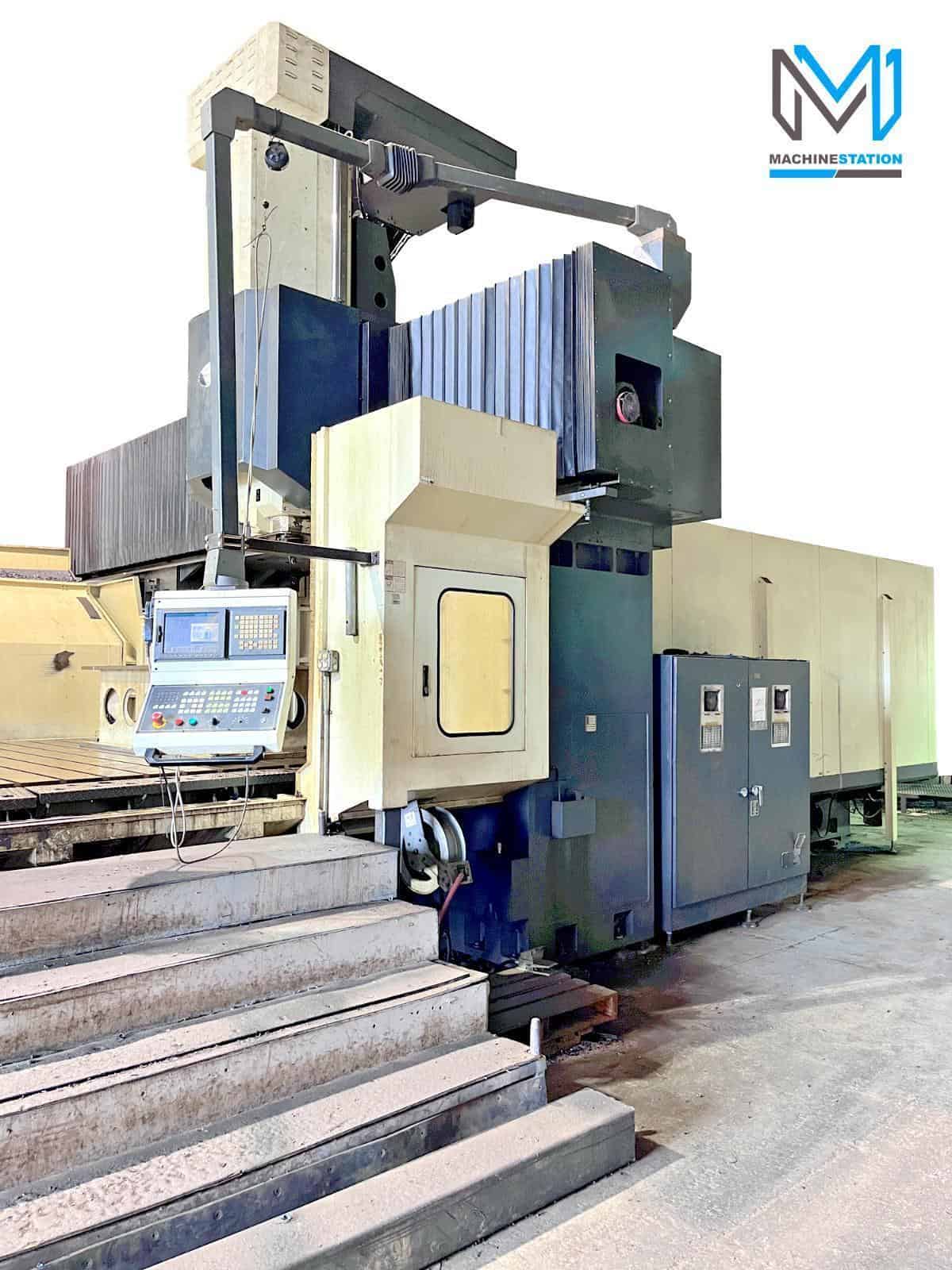

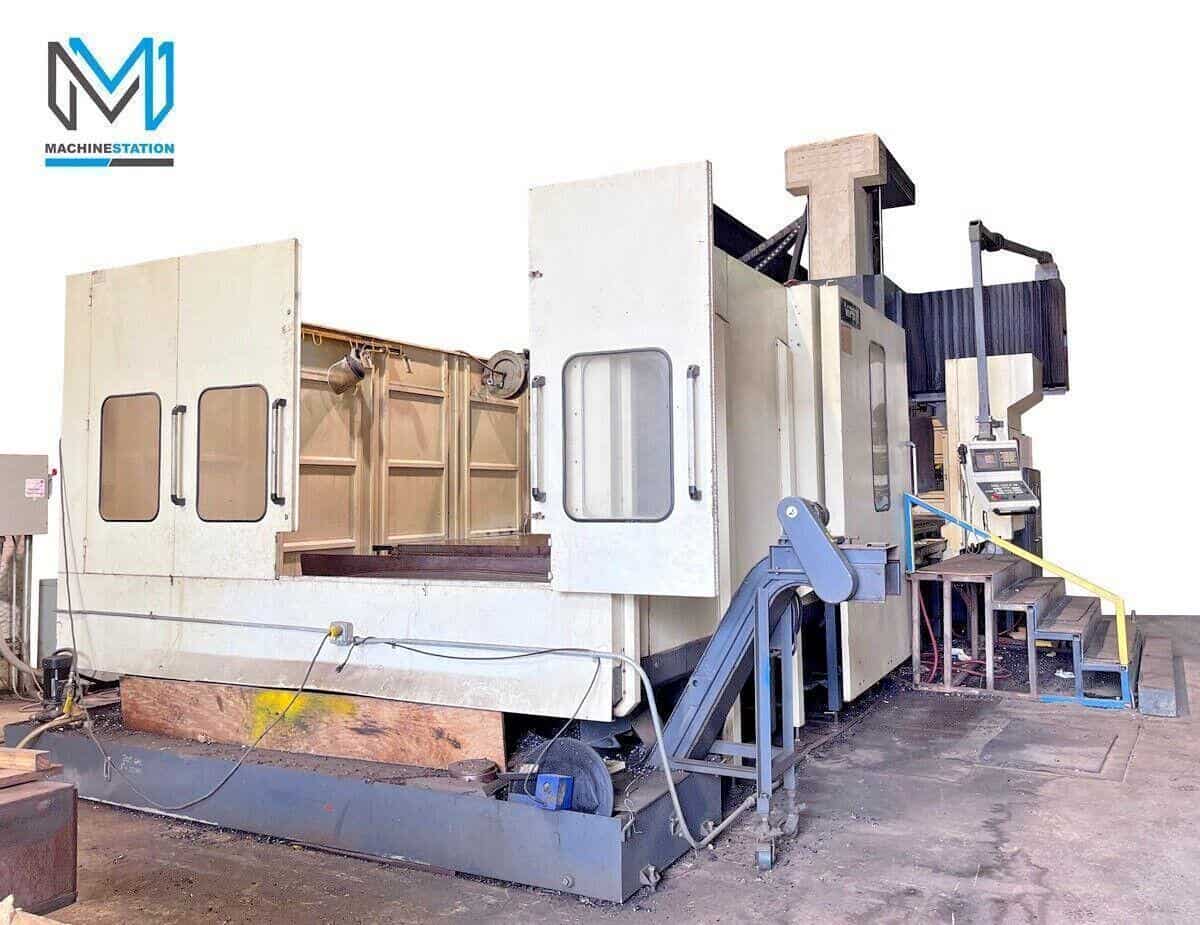

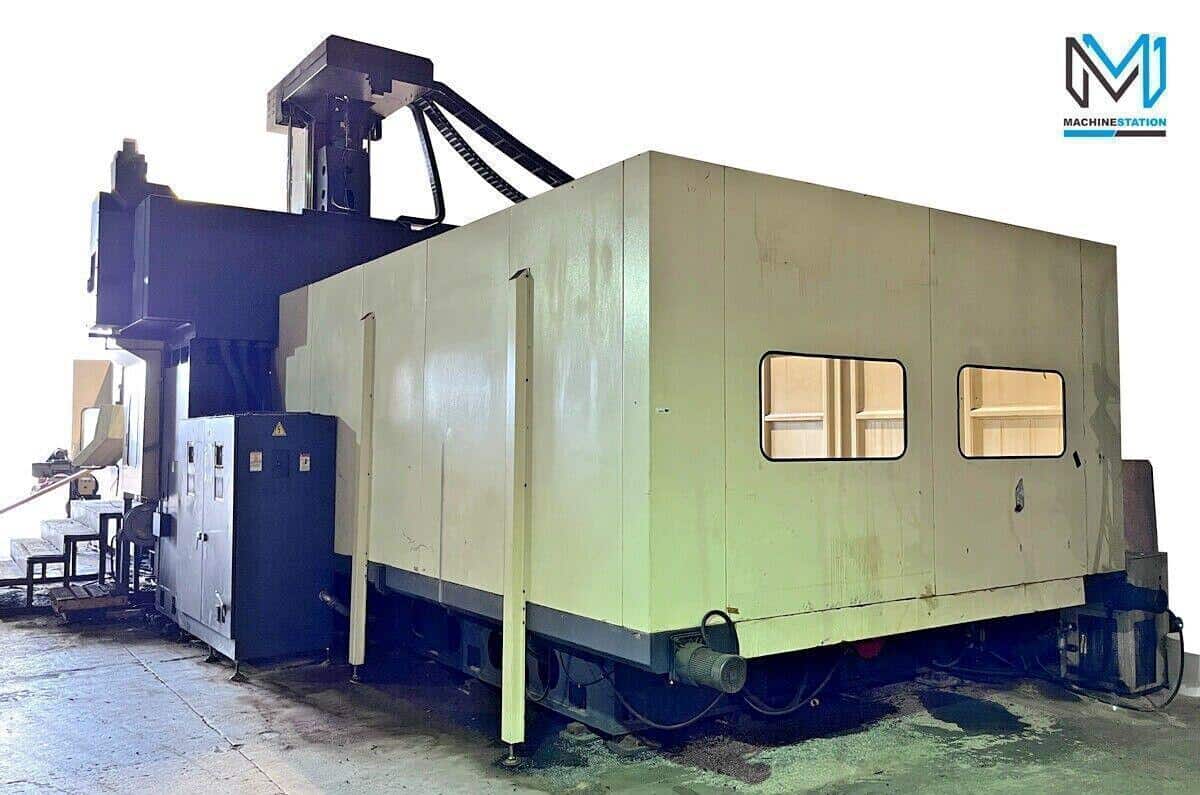

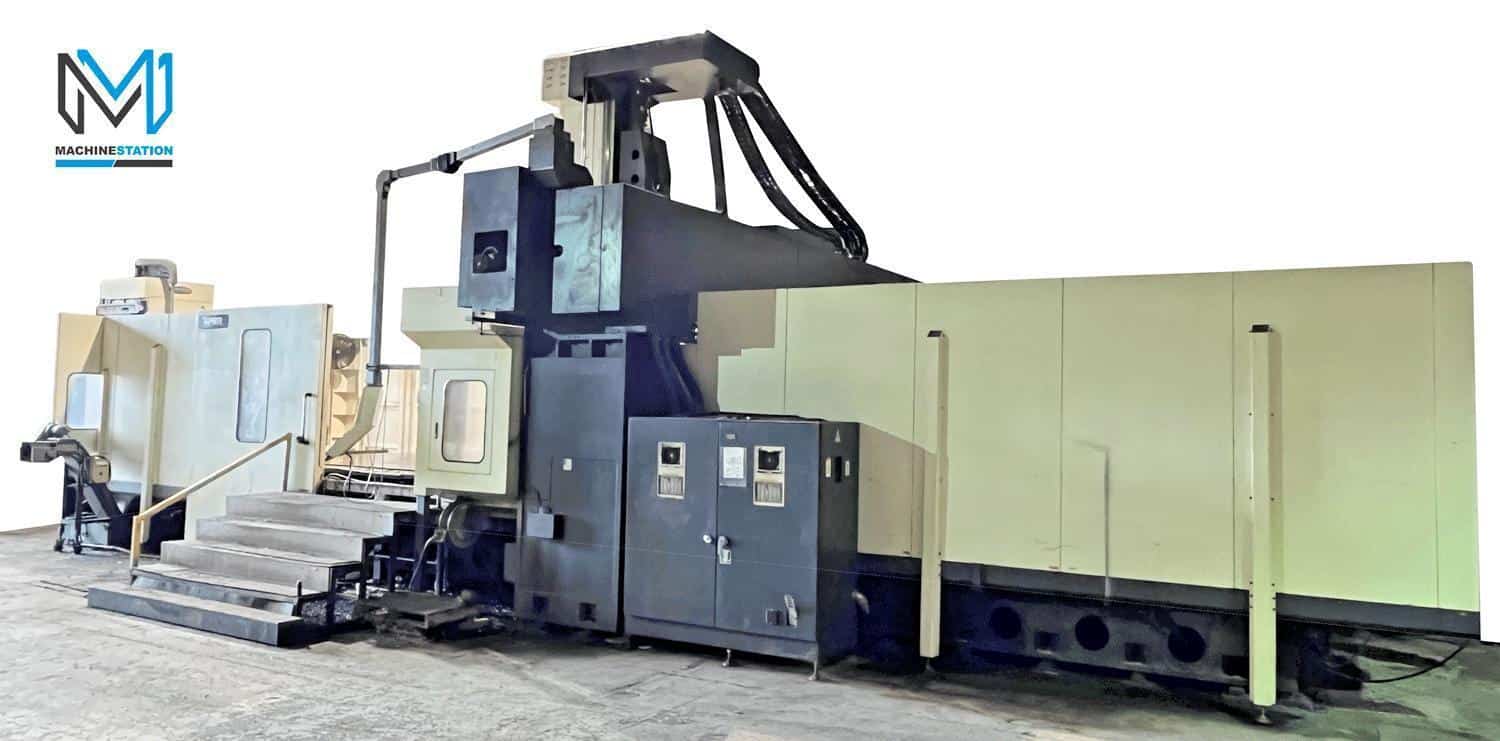

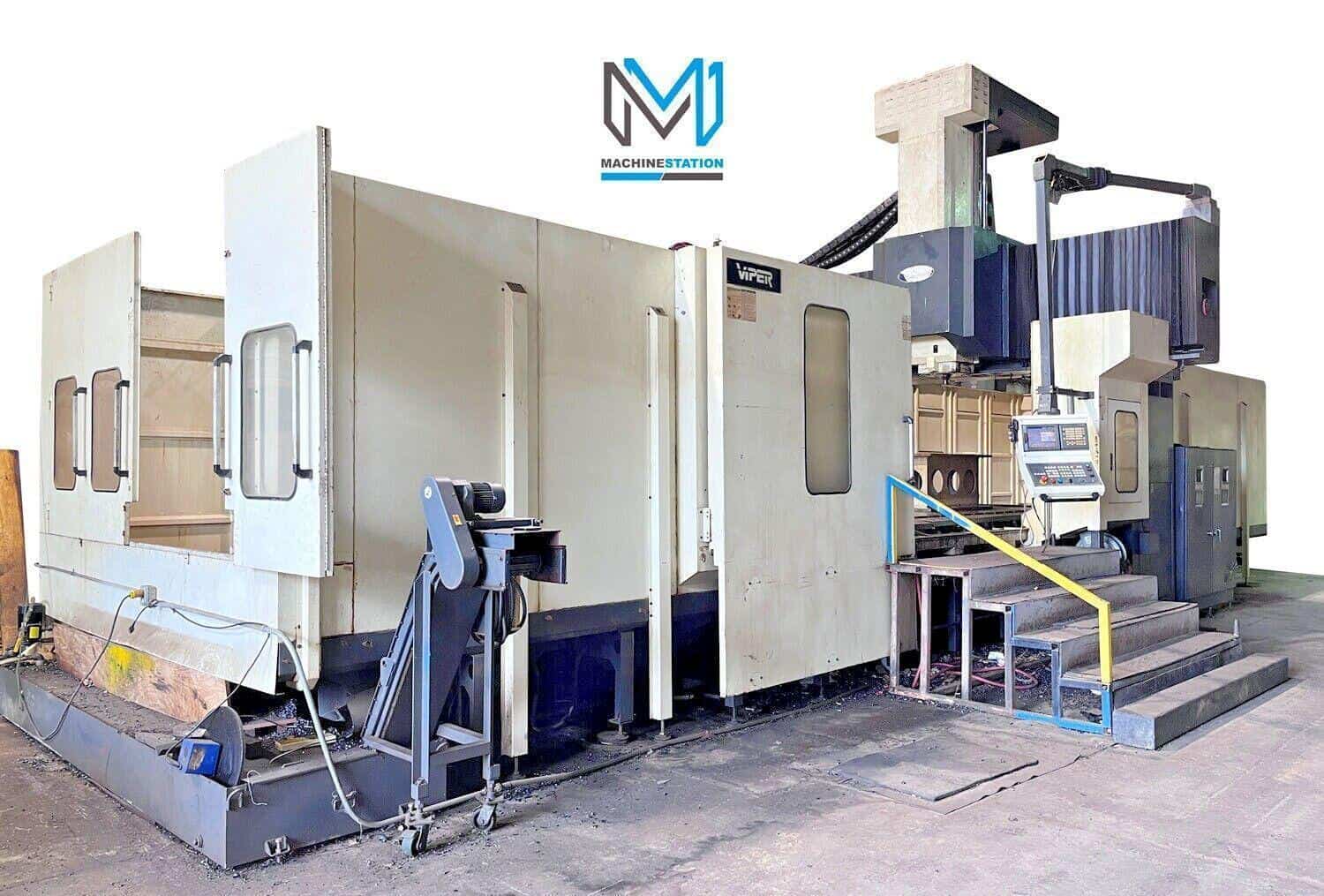

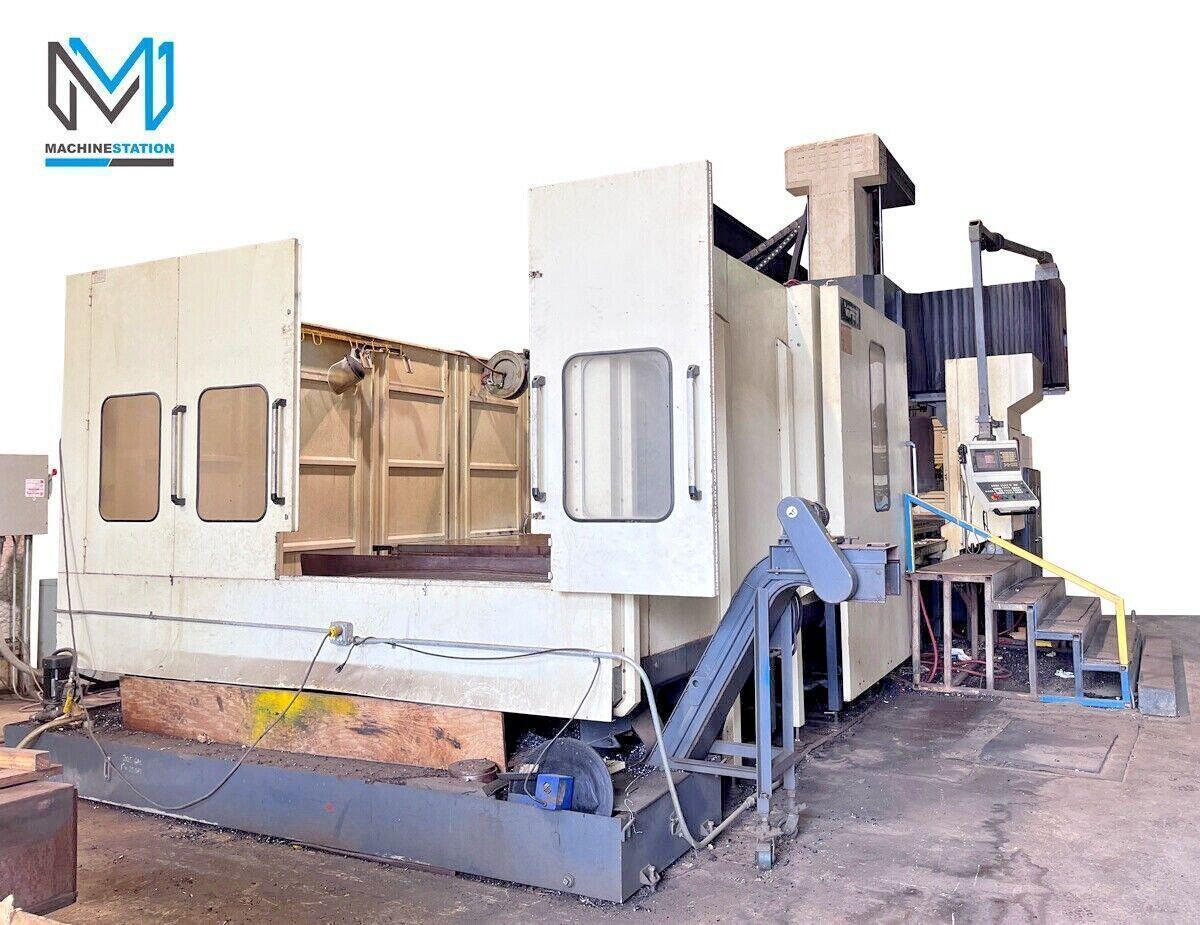

Mighty Viper 6350 Vertical Bridge Mill

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	MIGHTY VIPER

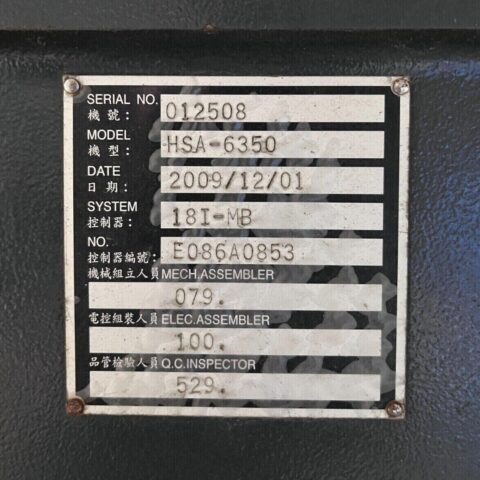

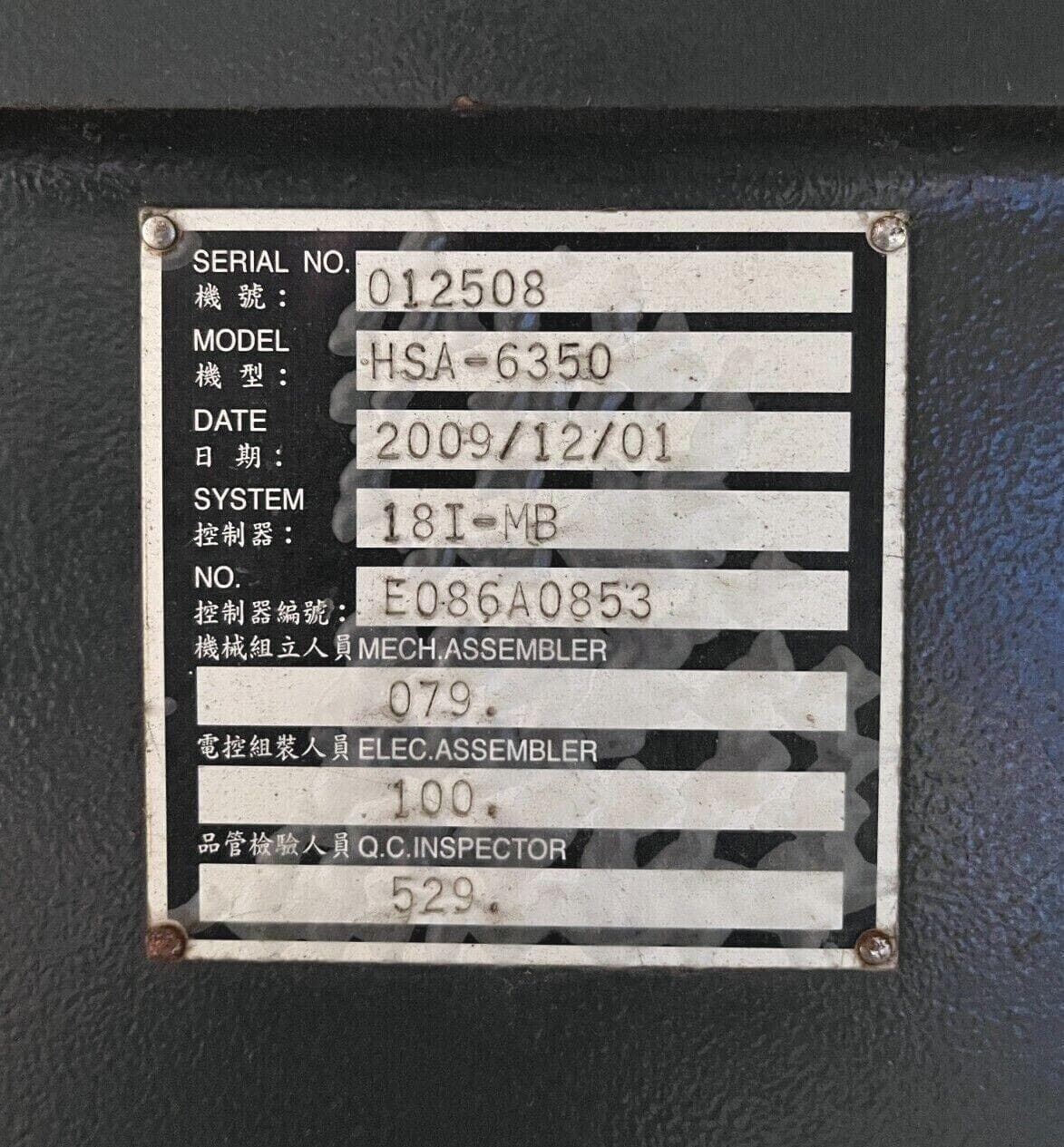

Model:	HSA-6350
Year:	2009
Condition:	Used – Good

Mighty Viper HSA-6350 Equipped With:

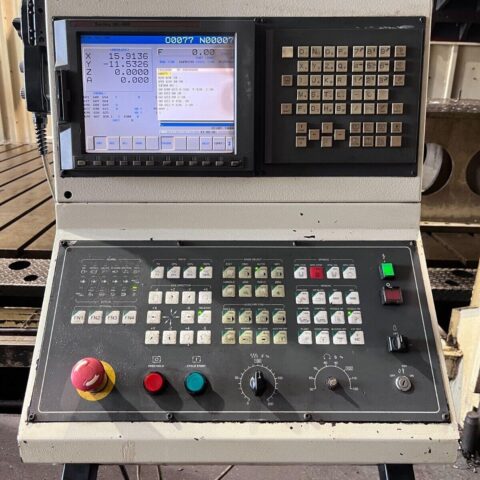

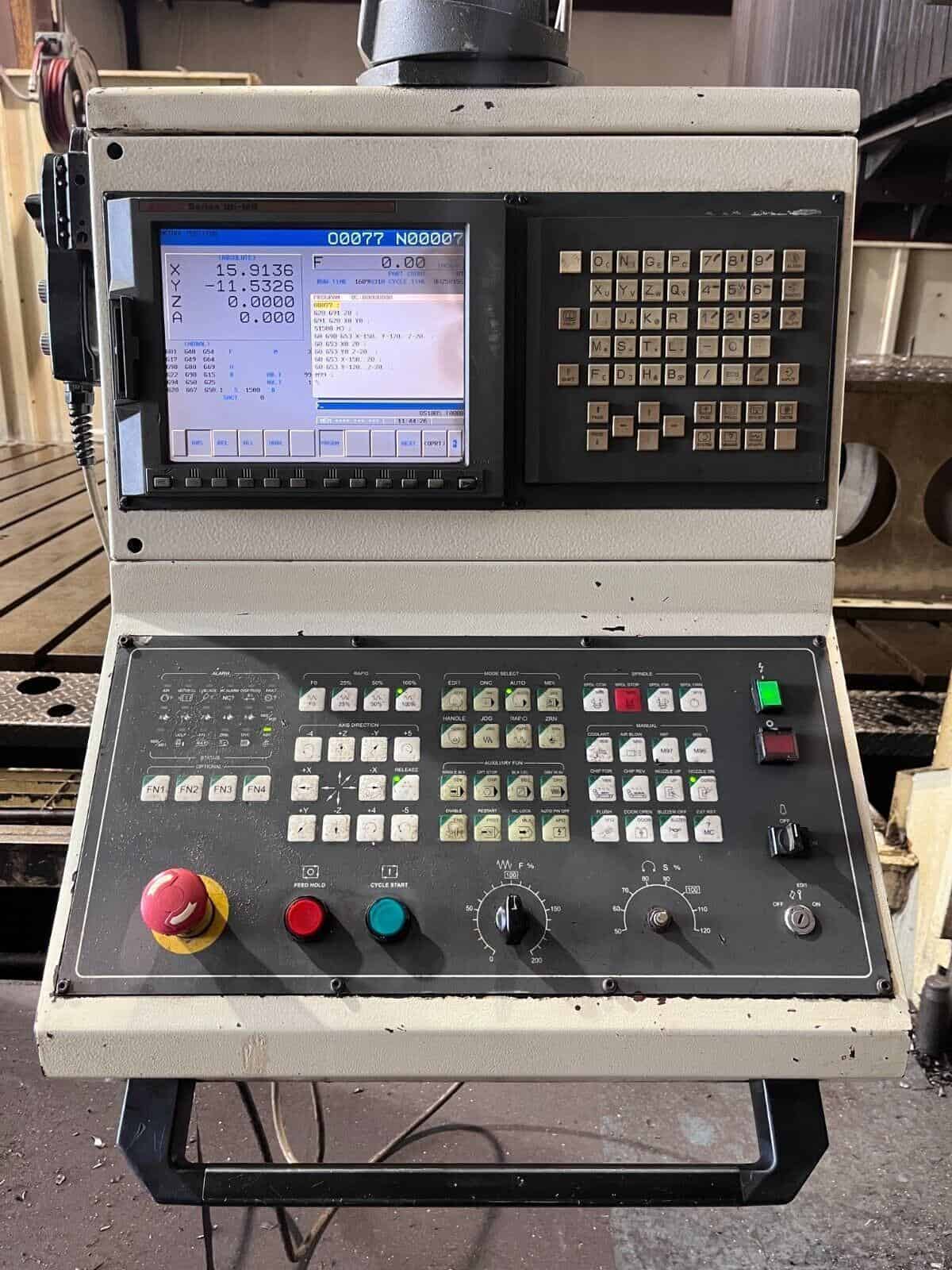

Fanuc 18iMB CNC Control
4th Axis for the Indexing Head
236″ X 118″ Table
Glass Scales For All Three Axis

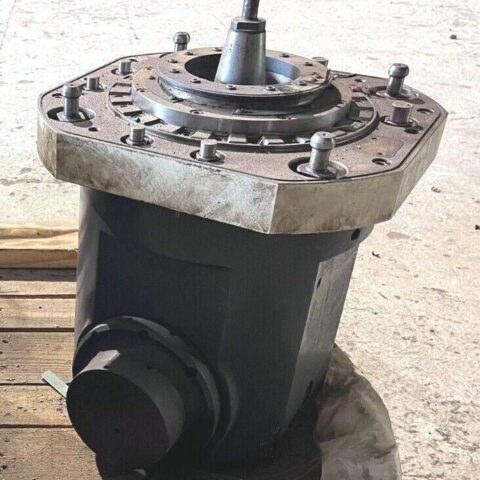

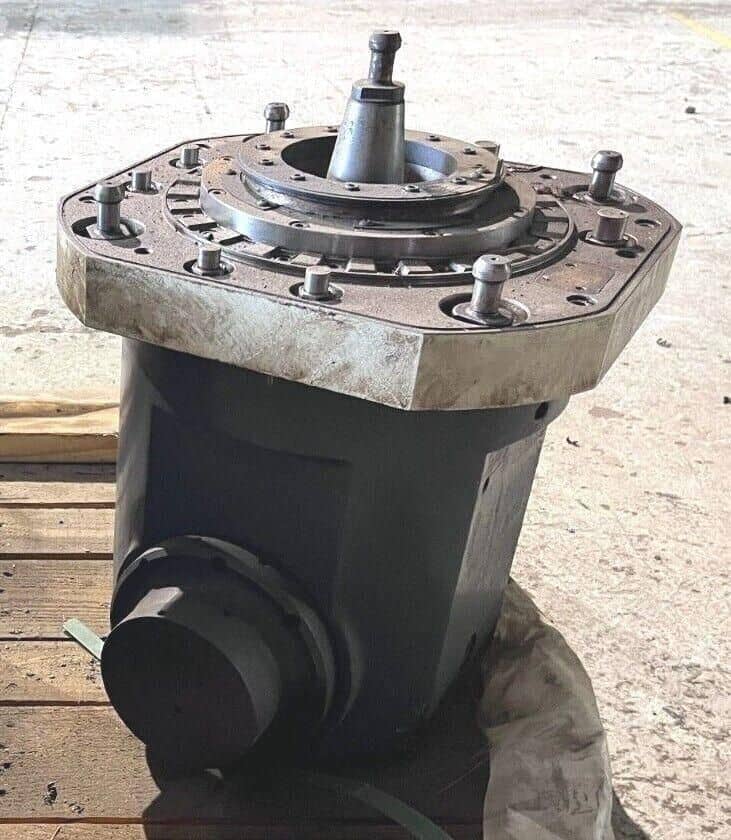

90 Degree Angle Head With AHC (Auto Indexing) Auto Tool Change
40 Station Side Mount Tool Changer

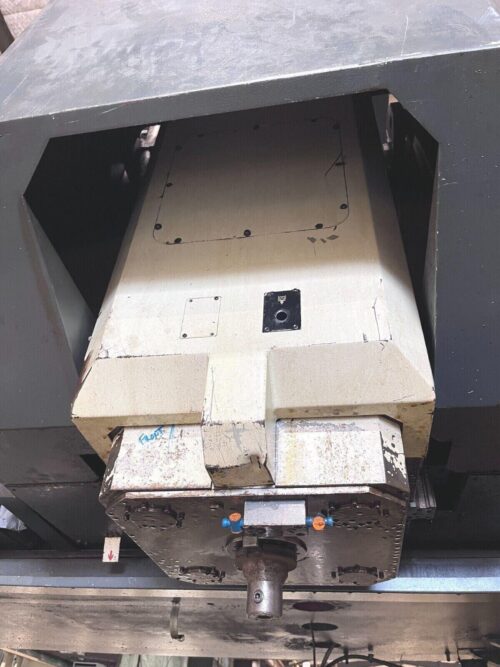

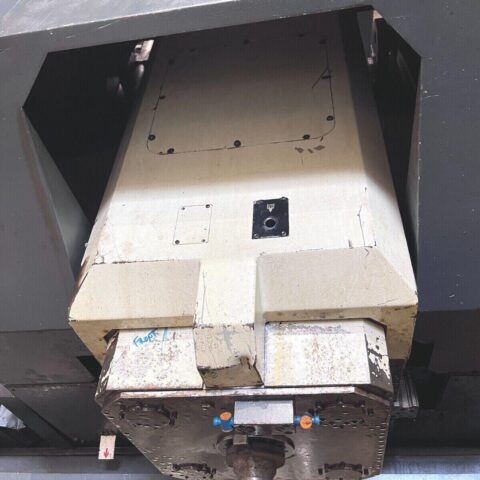

50 Taper Geared Head 6000 RPM Spindle
Powerful 50 HP high torque spindle motor

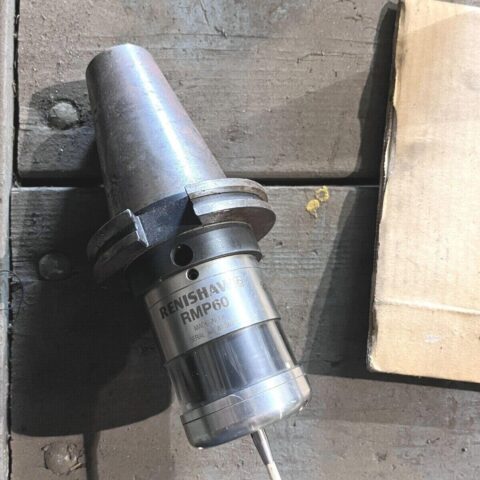

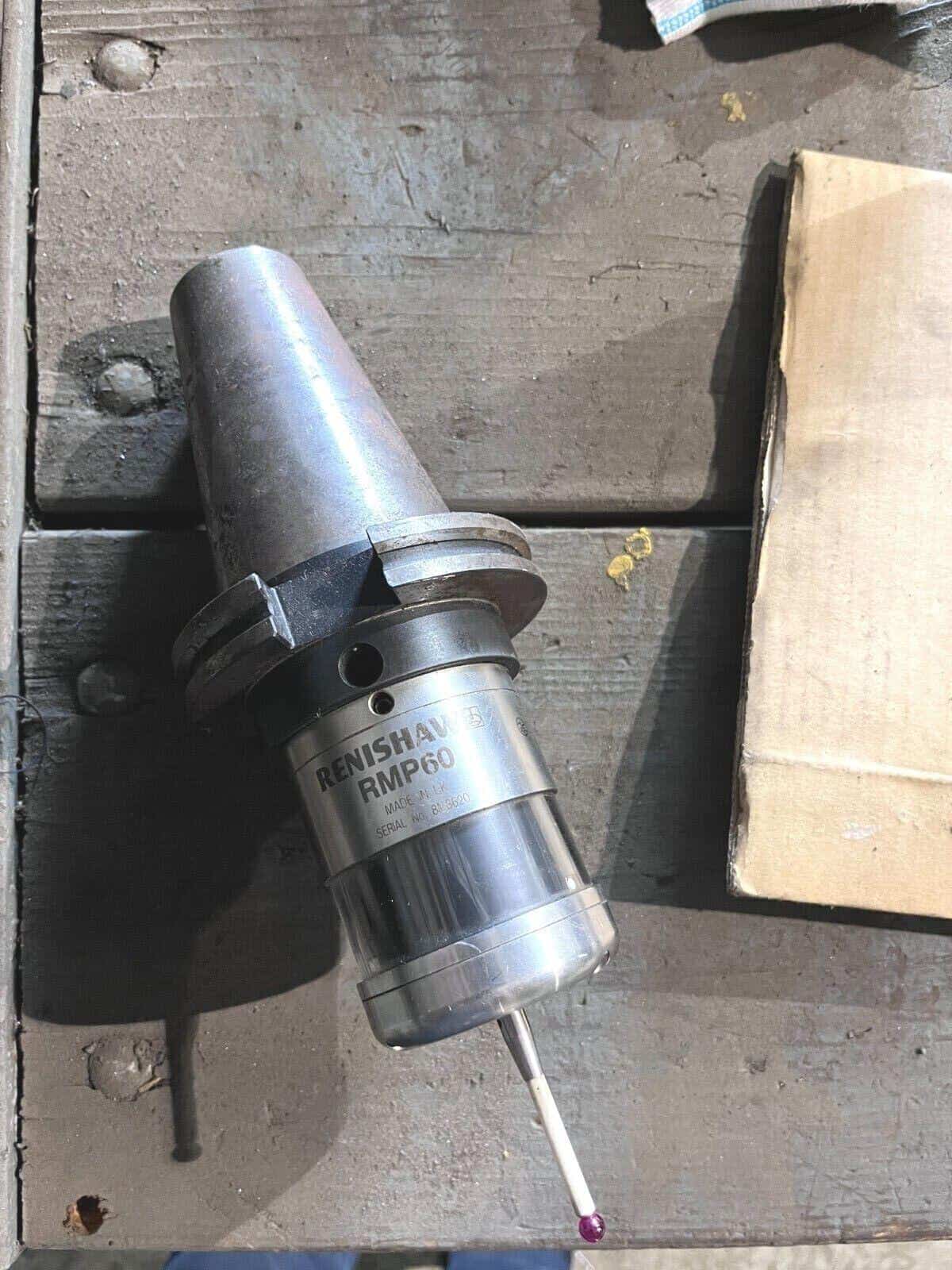

Renishaw Probing System with 50 Taper Probe
High Pressure Through Spindle Coolant System
Chip Blaster
Spindle Oil Cooler With Bracket
3D Coordination System
Rigid Tapping
Ethernet Interface
2GB Memory Card
PCMCIA Card Slot
RS-232 Port
Spindle Orientation
Coolant System
Auto Lubrication System

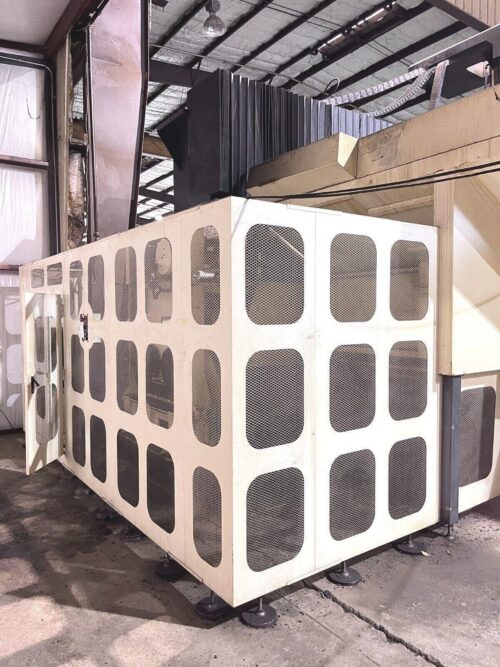

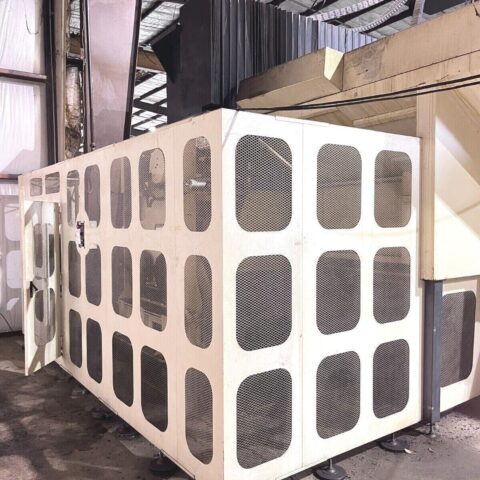

Full Splash Guards
Chip Conveyor
Chiller Unit
Levelling Pads
Work Light
Heat Exchanger In Control Cabinet
Foot Pad Switch For Tool Clamp & Unclamp
Screw Type Chip Conveyor
Link Type Chip Conveyor
Books & Manuals

Travels:
X-Axis: 246.06″
Y-Axis: 173.22″
Z-Axis: 42.12″
A-Axis: 90 Degree
Distance Between Columns: 141.73″
Spindle Nose to Table (Min.- Max.): 11.83″- 53.93″
Column Height: 94.48″

Table:
Length: 236″
Width: 118″
T-Slot: 1.1″ Wide X 20 X 7.9″
Max Weight on Table: 55115 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 50 HP

Feed rates:
Rapid X: 315″ IPM
Rapid Y Z: 394″ IPM
Cutting Feedrate: 1″ – 197″ IPM

Automatic Arm Type Tool Changer:
50 Taper
Capacity: 40
Max Tool Weight: 44 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 7.87″

General:
Air Required: 100 psi 4 scfm
Power: 205-235v / 66FLA / 3-Phase 61 Kva
Overall Shipping Dimensions: 600″ x 324″ x 216″ High
Hydraulic Unit Chip Conveyor Chiller unit Extra.
Weight: 176370 lbs.

“No Charges for loading at list Price”
