*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

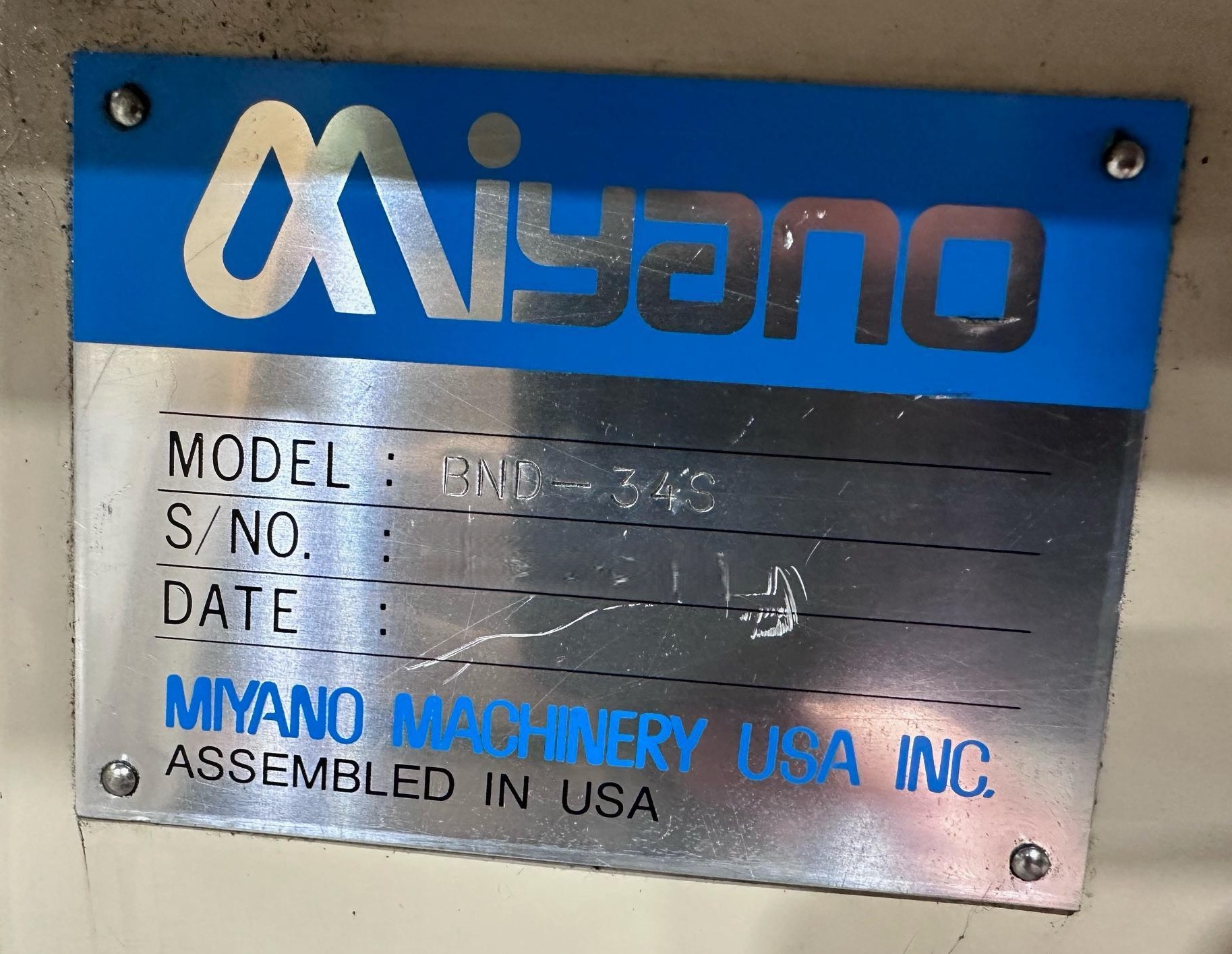

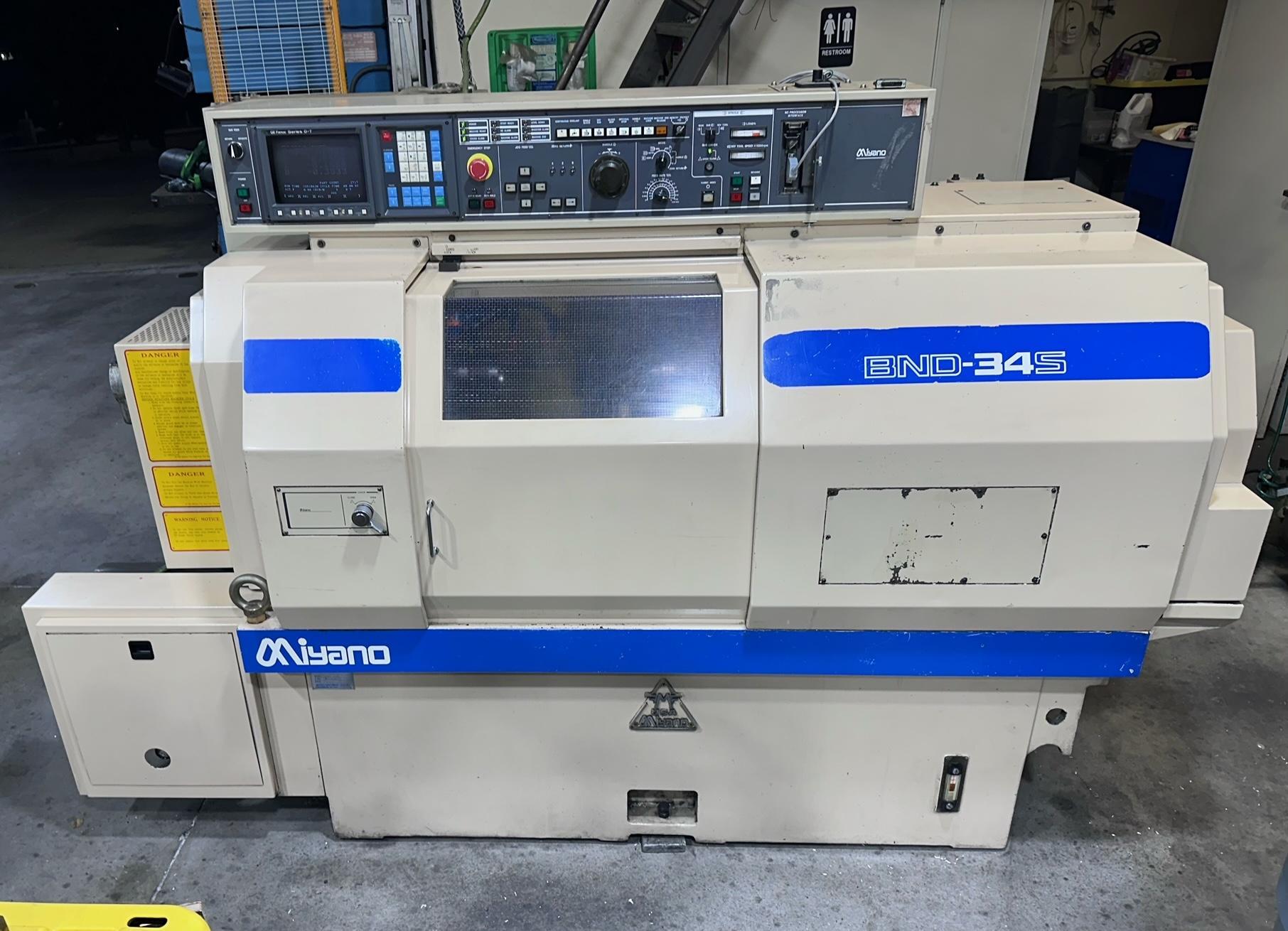

| Make: | Miyano |
| Model: | BND-34S |

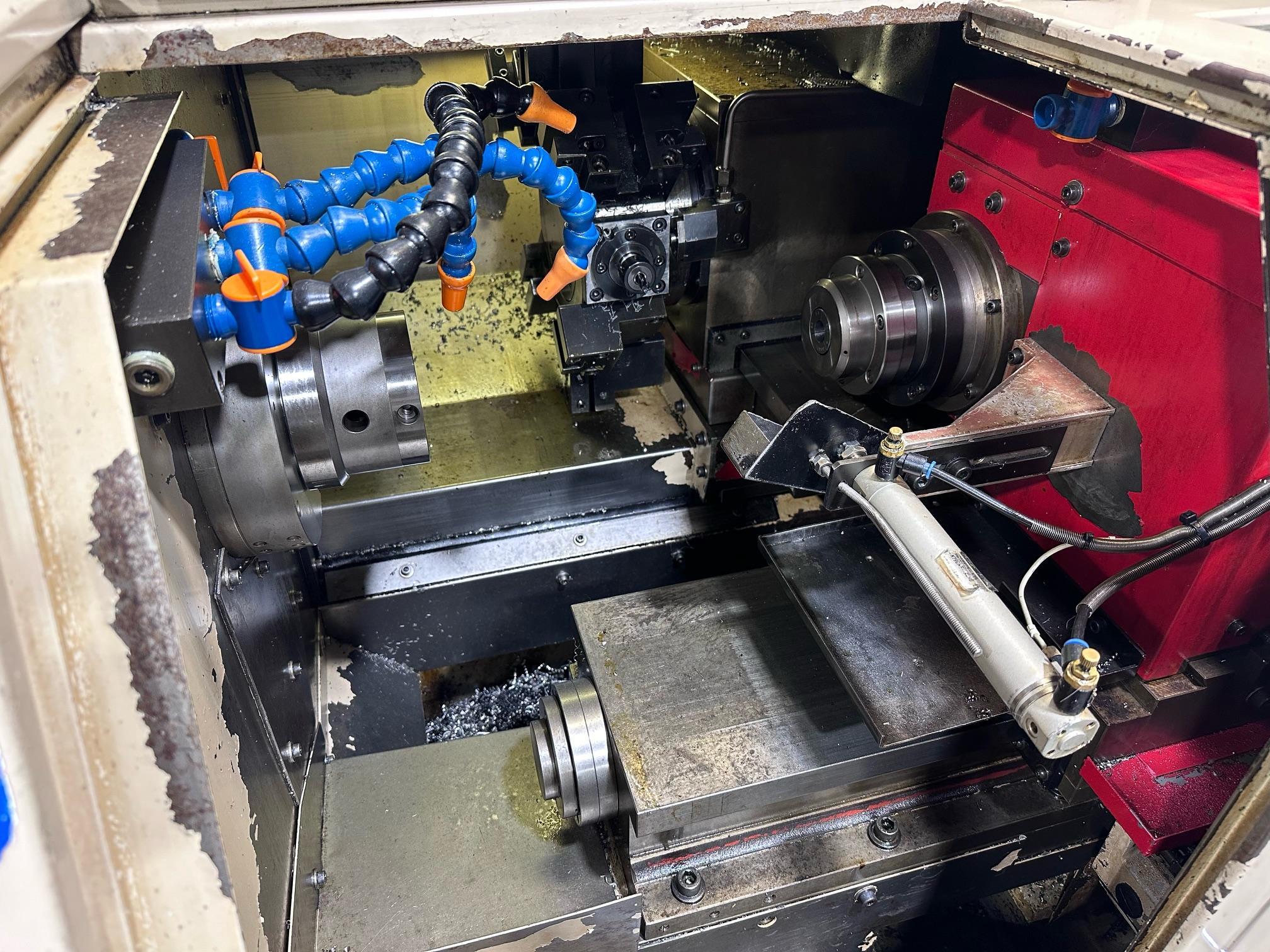

| Equipped With: |
|---|
| Through-Spindle Coolant |
| Live Tooling |
| Main Spindle Collet Chuck |
| Sub Spindle Collet Chuck |
| S15 Main Spindle Collet |
| #22 Sub Spindle Collet |
| Tool Posts |
| 32 Tool Offsets |
| Parts Catcher |
| Full C-Axis on Main & Sub Spindles |
| Enclosed Safety Guarding |
| Coolant System |
| Foot-Operated Chuck Control |
| Capacity: |
|---|
| Main Spindle Bore: 1.34″ |
| Main Spindle Collet: S15 |
| Sub Spindle Collet: 22 |
| Maximum Bar Capacity – Main Spindle: 1.34″ |
| Maximum Bar Capacity – Sub Spindle: 1.34″ |
| Maximum Turning Diameter: 2.95″ |
| Work Length Capacity: 4.92″ |
| Travels: |
|---|
| X-Axis Travel: 5.5″ |
| Z-Axis Travel: 11.02″ |
| B-Axis Travel – Sub Spindle: 12.8″ |
| Rapid Traverse: |
|---|
| X-Axis Rapid: 472 IPM |
| Z-Axis Rapid: 472 IPM |
| Main Spindle: |
|---|
| Spindle Speed: 170–5,000 RPM |
| Spindle Nose: Flat Nose |
| Motor: 10 HP AC |
| Bore: 1.34″ |
| Sub Spindle: |
|---|
| Spindle Speed: 170–5,000 RPM |
| Motor: 5 HP AC |
| Collet: 22 |
| Maximum Bar Capacity: 1.34″ |
| B-Axis Travel: 12.8″ |
| Live Tooling: |
|---|
| Live Tool Motor: 3 HP |
| Live Tool Speed: 203–4,050 RPM |
| Turret Capacity: 8 Stations |
| General: |
|---|
| Machine Weight (Approx.): 7,800 lb |
| Machine Dimensions (Approx.): 100″ L × 59″ W × 69″ H |
| Electrical: 230V / 3 Phase |
