*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

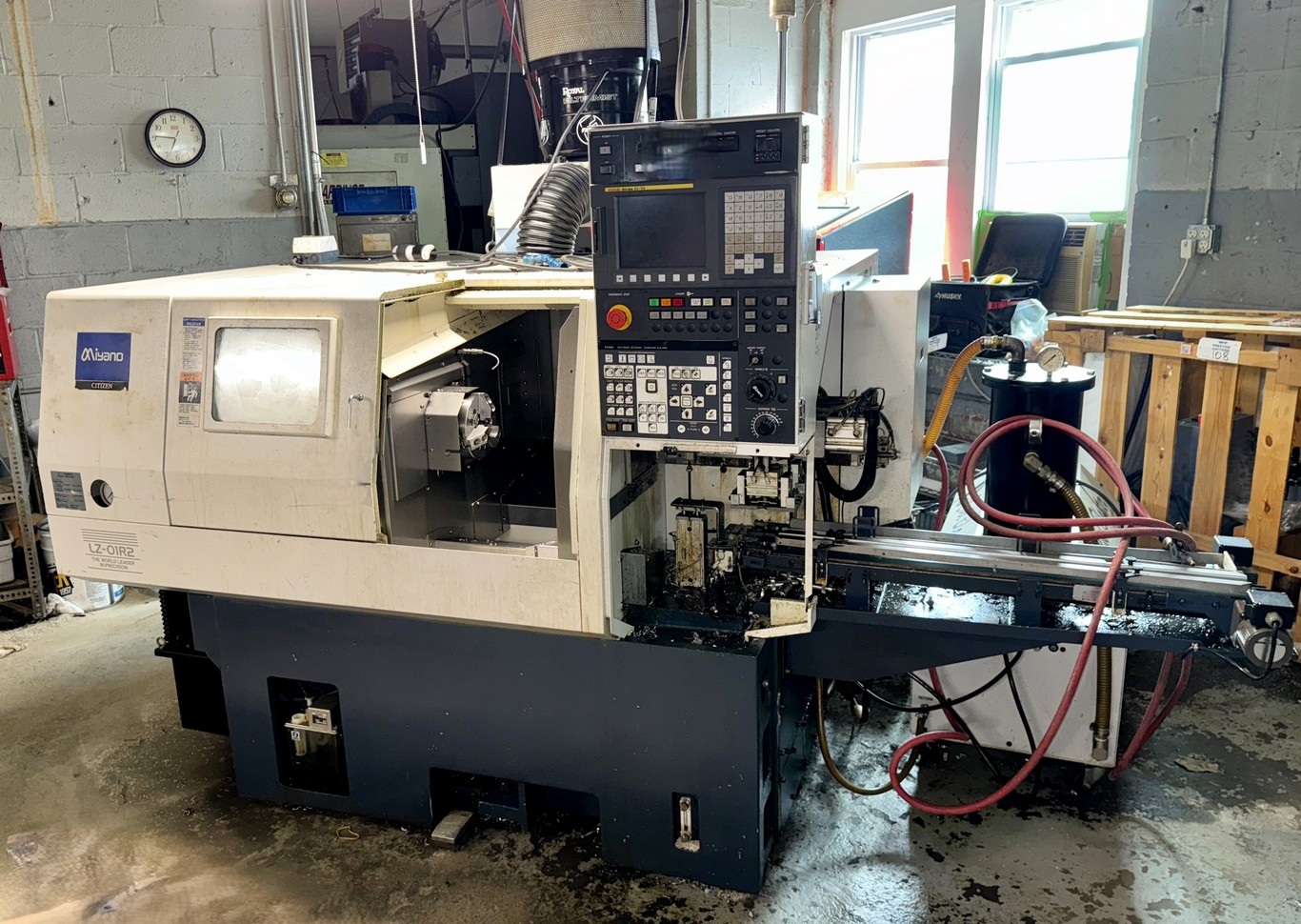

| Make: | Miyano-Citizen |
| Model: | LZ-01R2 |
| Year: | 2012 |
| Equipped With: |
|---|

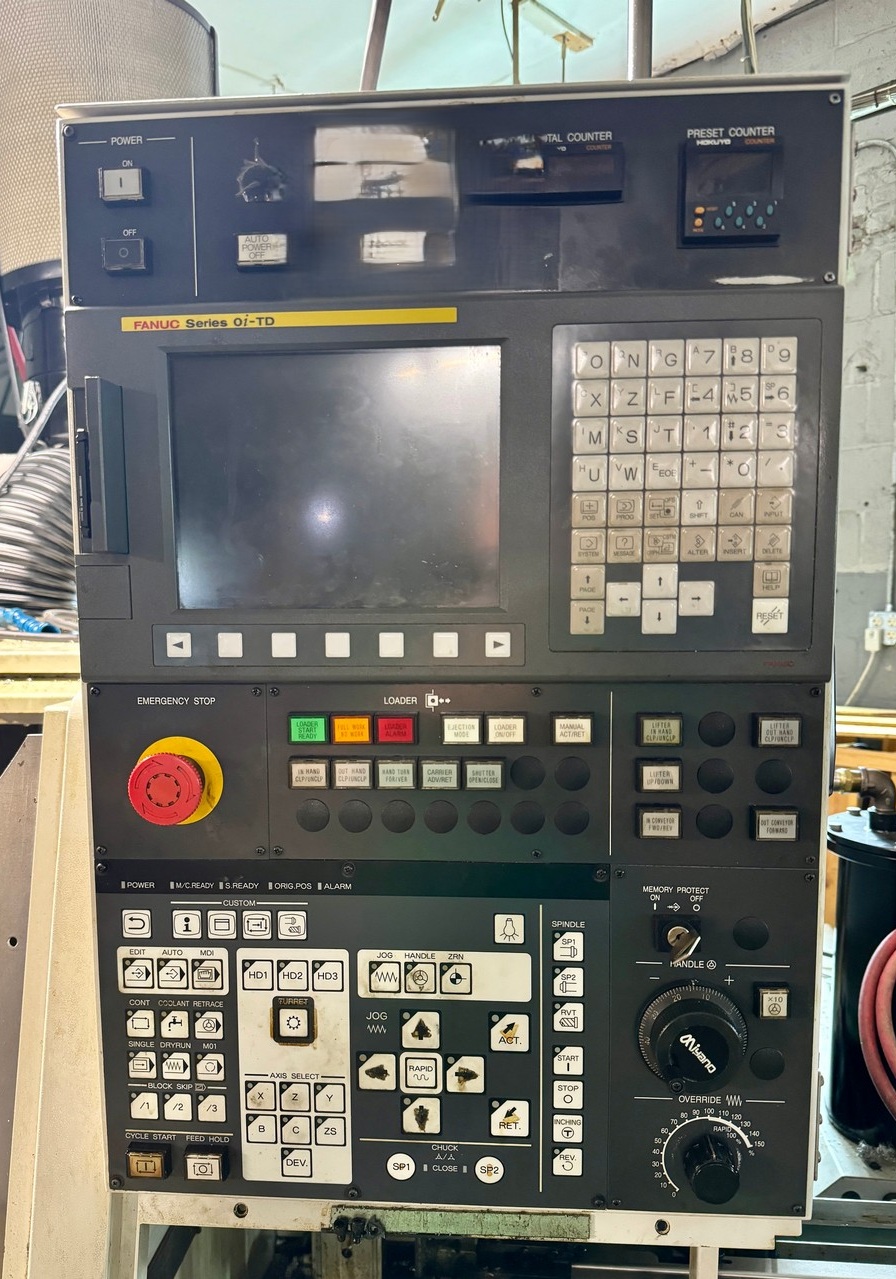

| FANUC 0i-TD CNC Control |
| 6.5″ Kitagawa 3-Jaw Chuck |
| 12-Position Turret |
| Live / Driven Tool Capability |
| Parts Conveyor |
| Yoshida Chip Conveyor |
| Cool Blaster Coolant System |
| Royal Filtermist FX300 Mist Extractor |
| Hydraulic Chuck System |
| C-Axis Control |

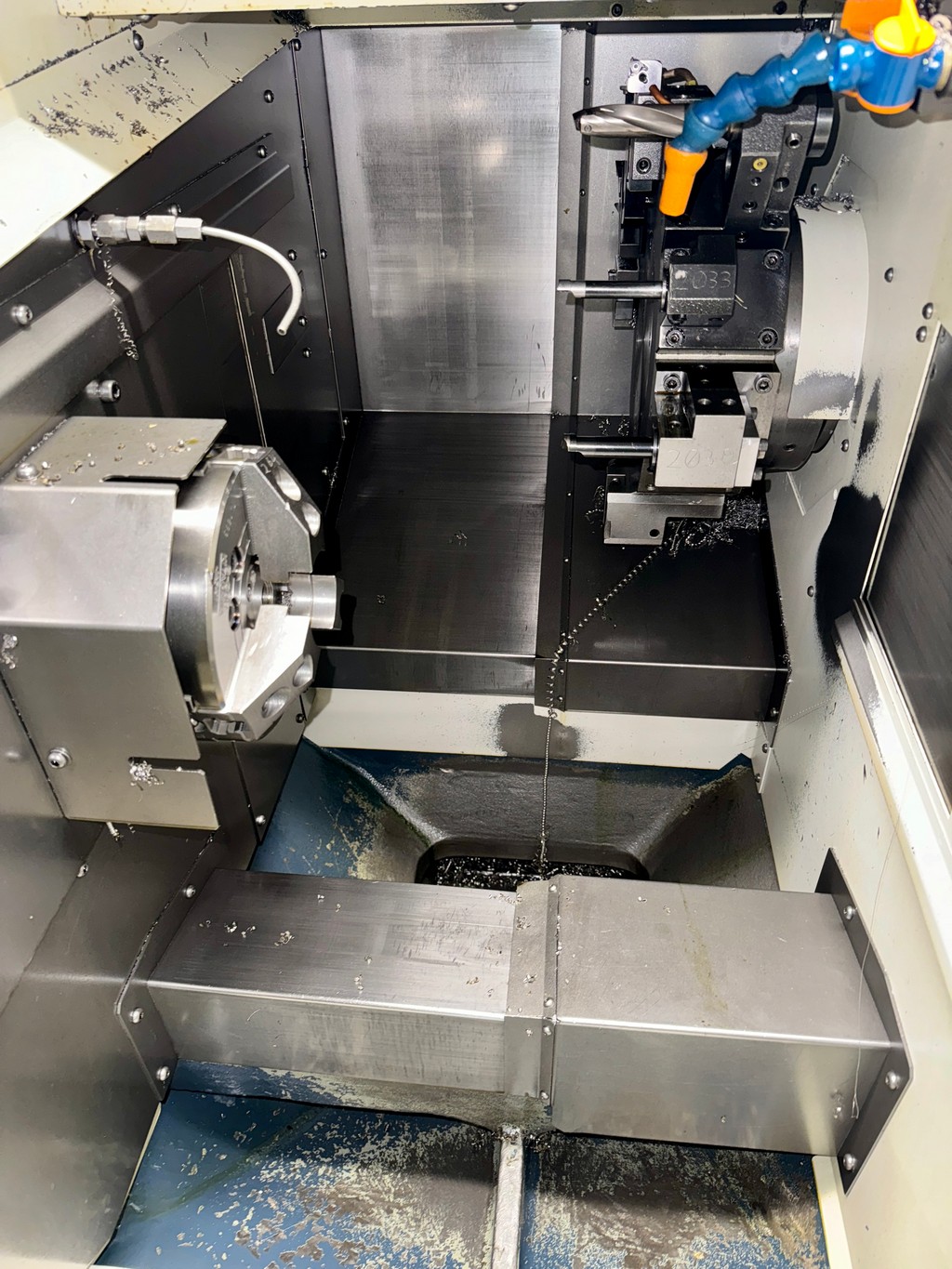

| Enclosed Work Area |
| Automatic Central Lubrication |
| Tooling as Pictured |
| Capacity: |
|---|
| Maximum Turning Diameter: 2.76″ |
| Maximum Machining Length: 3.15″ |
| Maximum Collet Chuck Diameter: 1.97″ |
| Maximum Workpiece Size: 2.76″ Dia. × 3.15″ Long |
| Maximum Workpiece Weight: 1.54 lbs × 2 |
| Travels: |
|---|
| X-Axis Travel: 9.65″ |
| Z-Axis Travel: 9.45″ |
| Spindle: |
|---|
| Spindle Speed: 60–6,000 RPM |
| Spindle Motor: 10.1 HP |
| Spindle Bore: 1.26″ |
| Turret: |
|---|
| Turret Type: 12-Station Turret |
| Number of Turrets: 1 |
| General: |
|---|

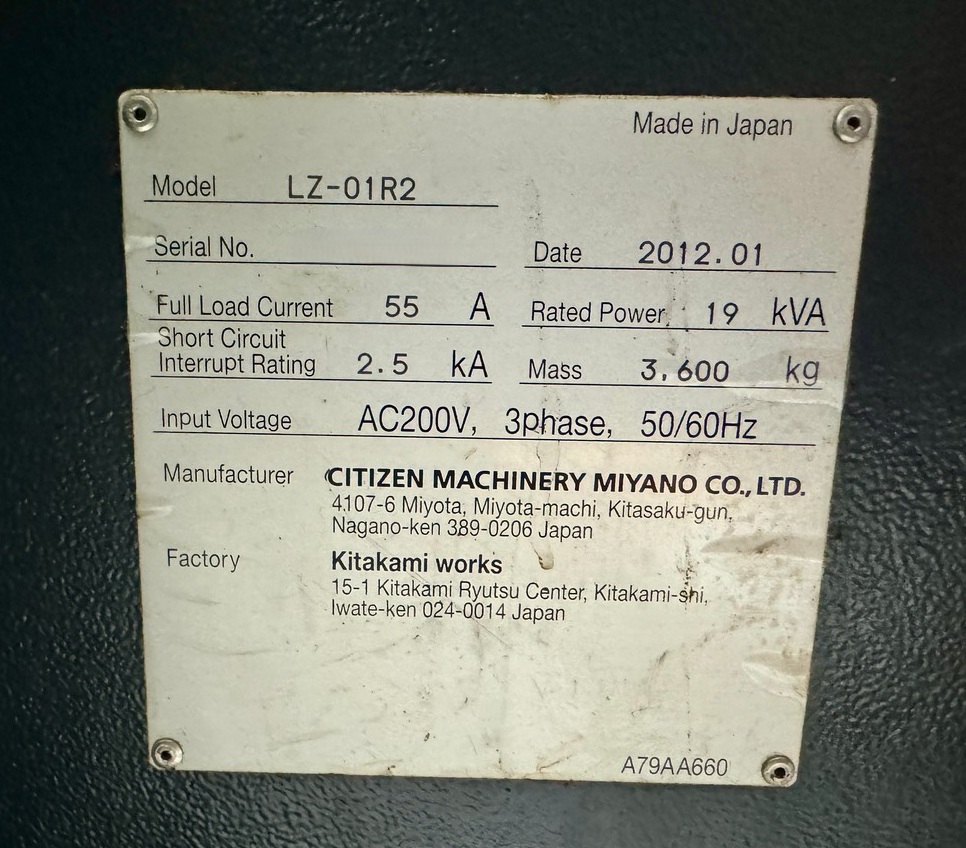

| Power Source: 200V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 82.7″ L × 61.2″ W × 66.1″ H |
| Machine Weight (Approx.): 7,937 lbs |
