*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

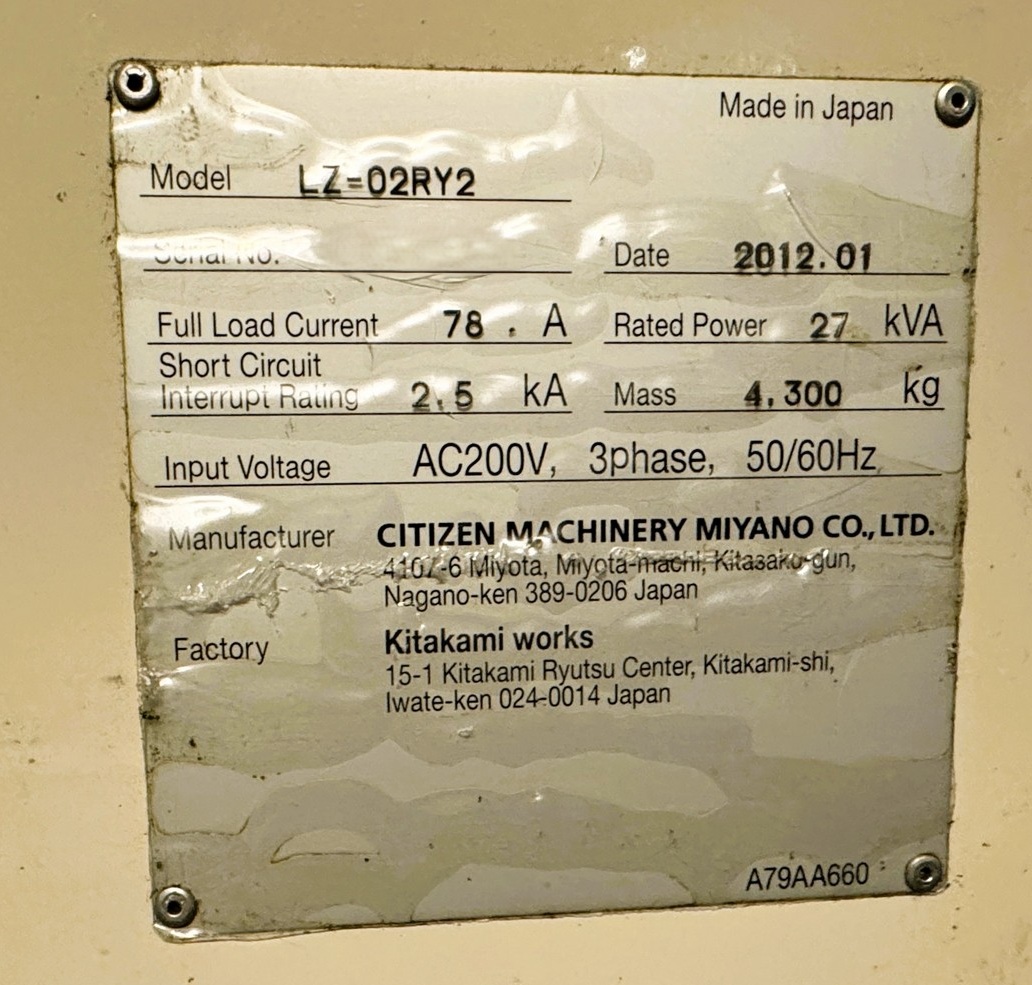

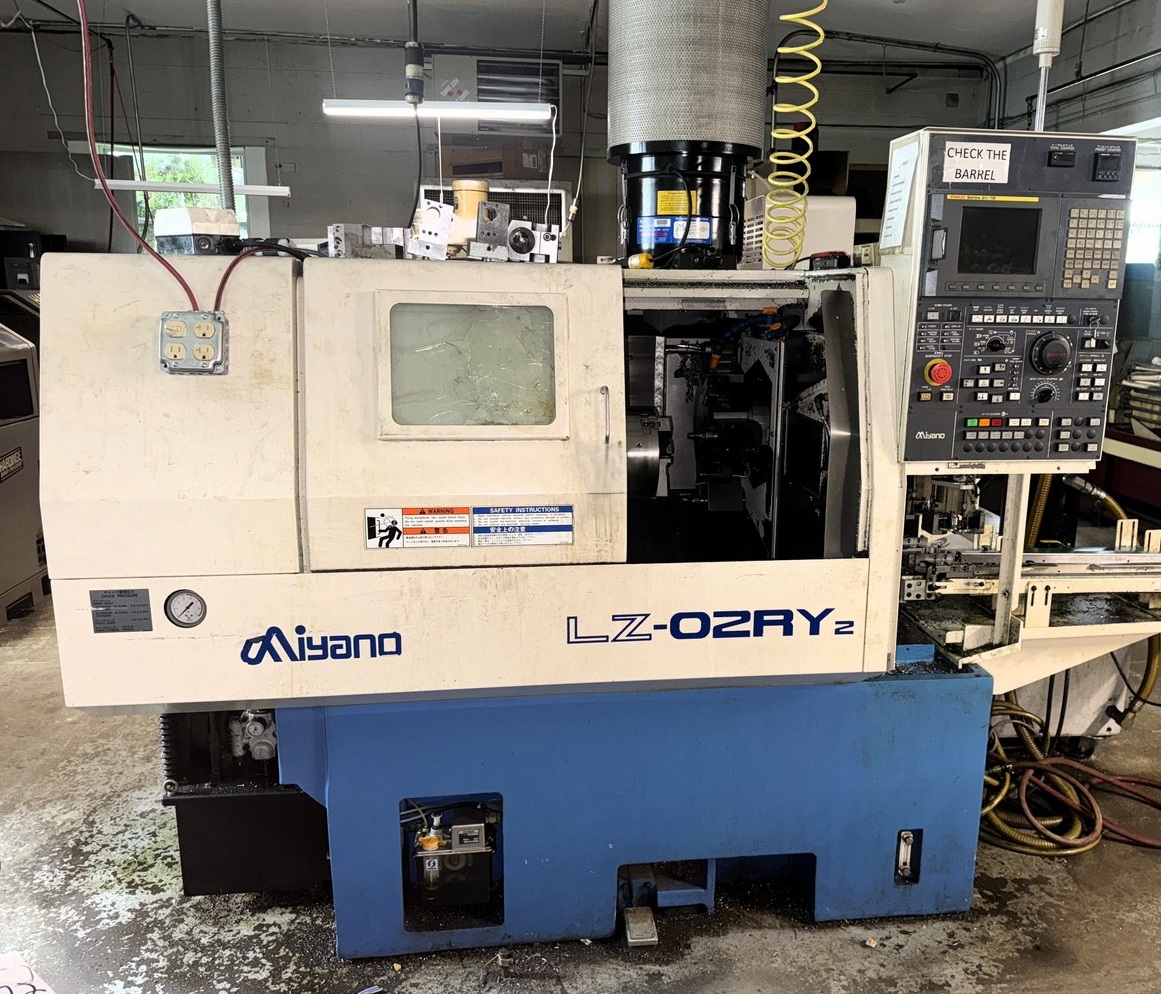

| Make: | Miyano |
| Model: | LZ-02RY2 |
| Year: | 2012 |
| Equipped With: |
|---|

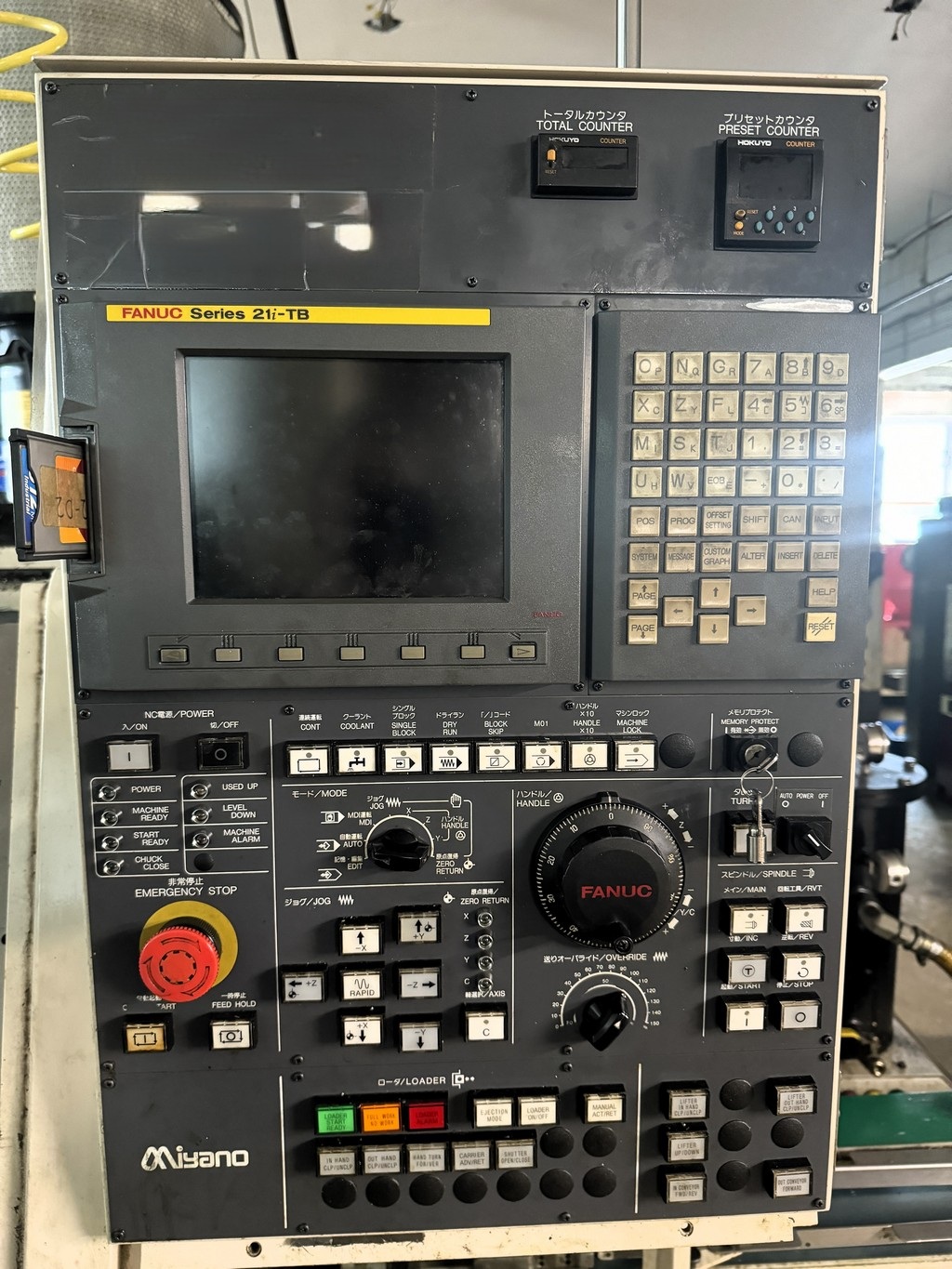

| FANUC Series 21i-TB CNC Control |

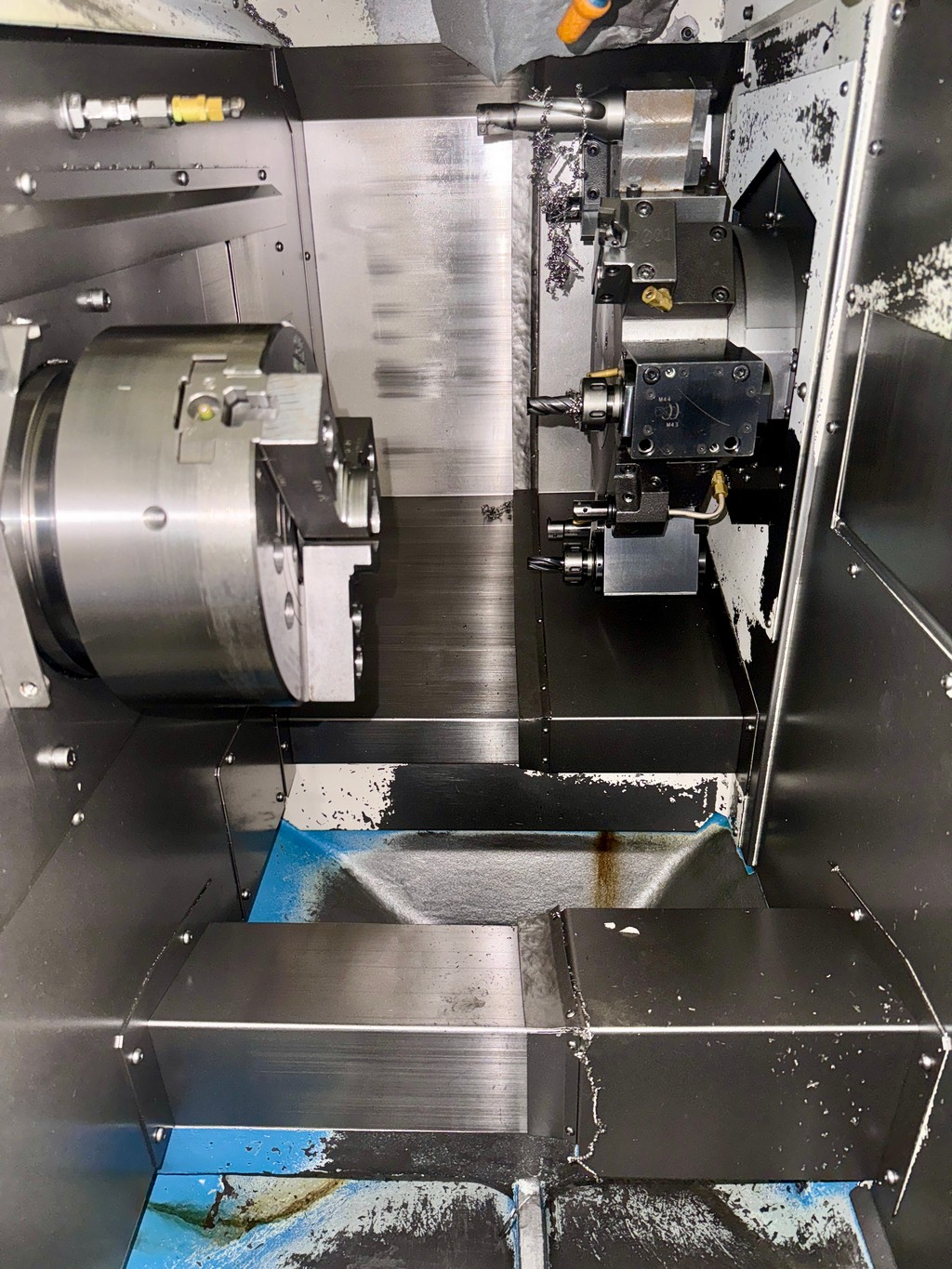

| 8″ Kitagawa Hydraulic Chuck |
| 10-Position Servo Turret |
| Live Milling / Revolving Tool Attachment |
| Y-Axis Turret |
| C-Axis Spindle Control |
| 5 Live Tool Stations |
| Parts Conveyor / Infeed-Outfeed Conveyor |
| Built-In General Purpose Loader |
| Cool Blaster Coolant System |
| Chip Conveyor |
| Royal Filtermist FX Mist Extractor |
| High-Pressure Coolant System |
| Spindle Air Blow |
| Total & Preset Counters |
| Automatic Lubrication System |
| Enclosed Splash Guard with Safety Interlock |
| Signal Tower Light |
| Tool Holders / Tooling |
| Capacity: |
|---|
| Maximum Turning Diameter: 3.93″ |
| Maximum Turning Length: 3.15″ |
| Maximum Swing Diameter: 20.07″ |
| Loader Capacity: 3.93″ Dia. × 3.15″ Length |
| Maximum Loader Workpiece Weight: 3.3 lbs. × 2 |
| Chuck Size: 8″ |
| Spindle Nose: A2-6 |
| Travels: |
|---|
| X-Axis Travel: 11.8″ |
| Z-Axis Travel: 9.4″ |
| Y-Axis Travel: 1.37″ |
| X-Axis Rapid Traverse: 628 IPM |
| Z-Axis Rapid Traverse: 628 IPM |
| Y-Axis Rapid Traverse: 490 IPM |
| Main Spindle: |
|---|
| Spindle Speed Range: 40–5,000 RPM |
| Spindle Motor: 15 HP AC |
| Spindle Nose: A2-6 |
| Turret: |
|---|
| Type: Servo-Driven Curvic-Coupled Turret |
| Number of Stations: 10 |
| Double-Tooling Capability: Up to 19 Tool Stations |
| Tool Hole Diameter: 1″ |
| Tool Shank Size: 3/4″ |
| General: |
|---|
| Power Source: 200V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 113.8″ L × 63″ W × 82.3″ H |
| Machine Weight (Approx.): 9,480 lbs. |
