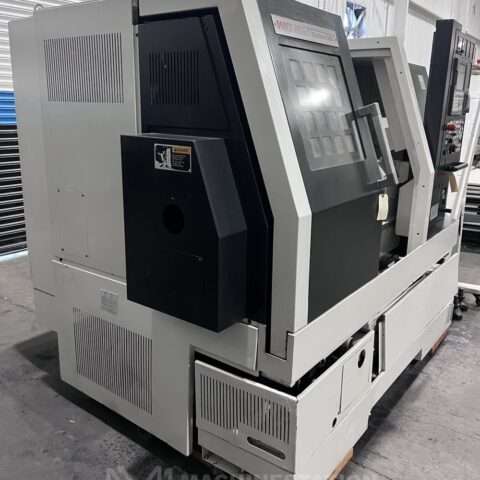

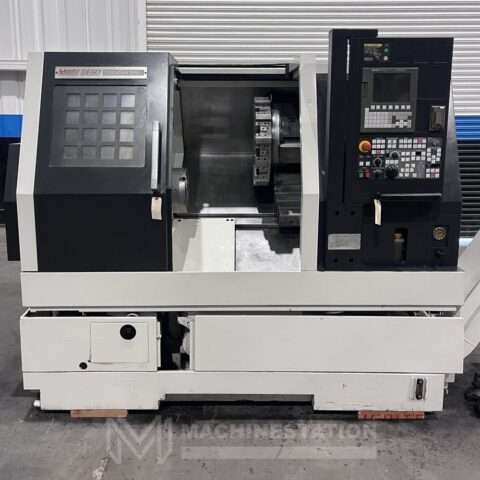

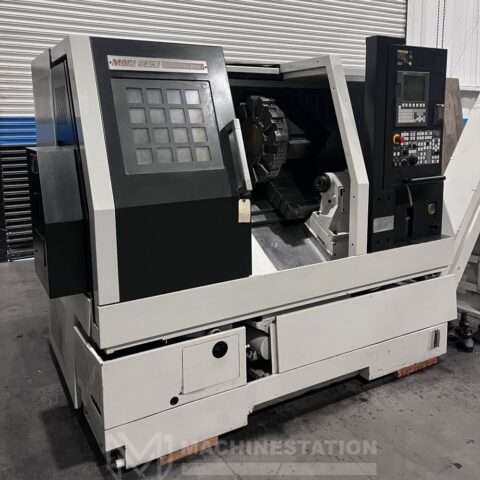

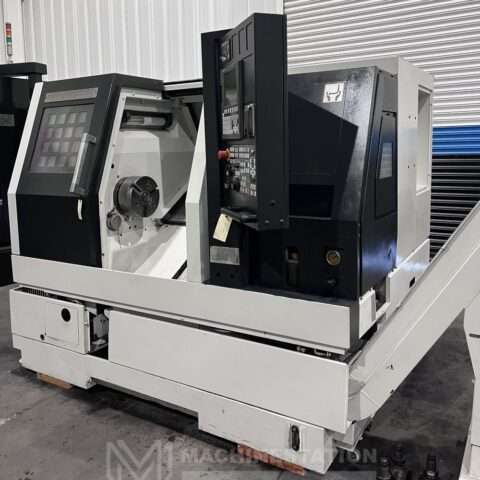

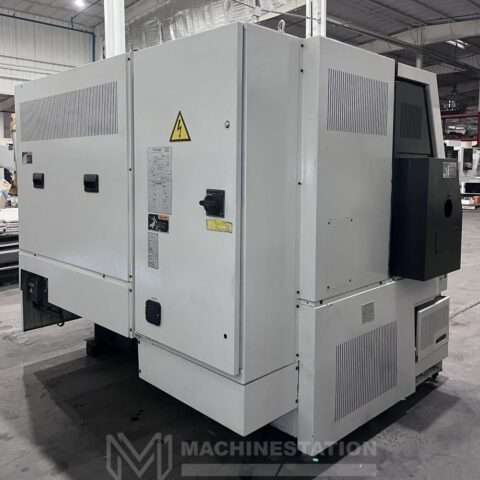

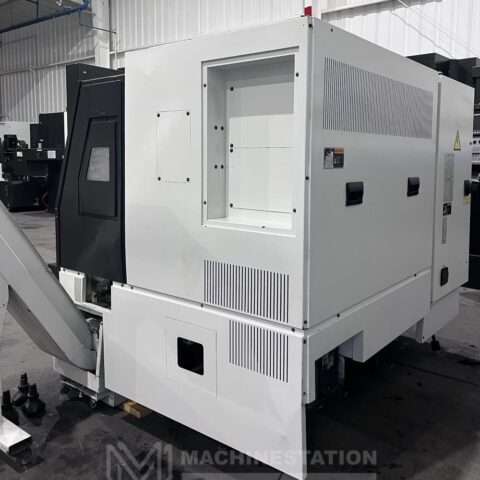

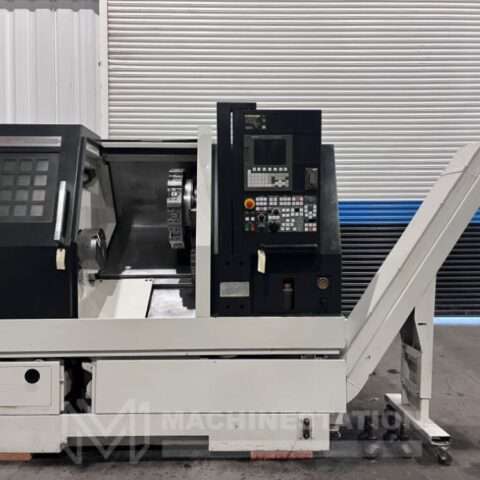

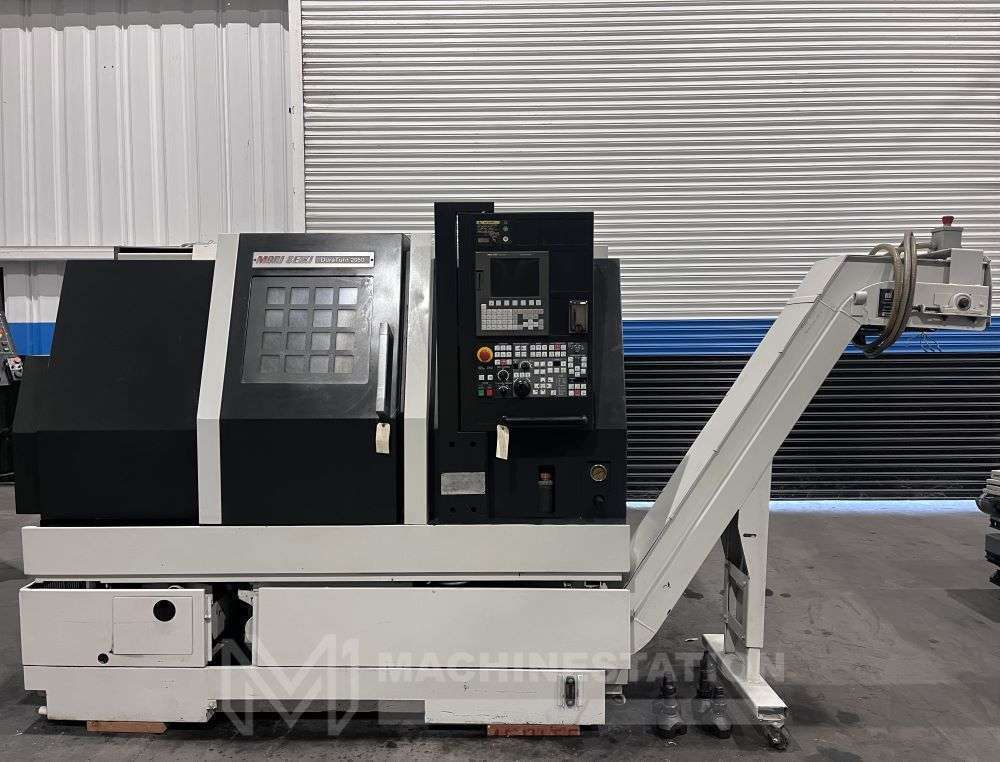

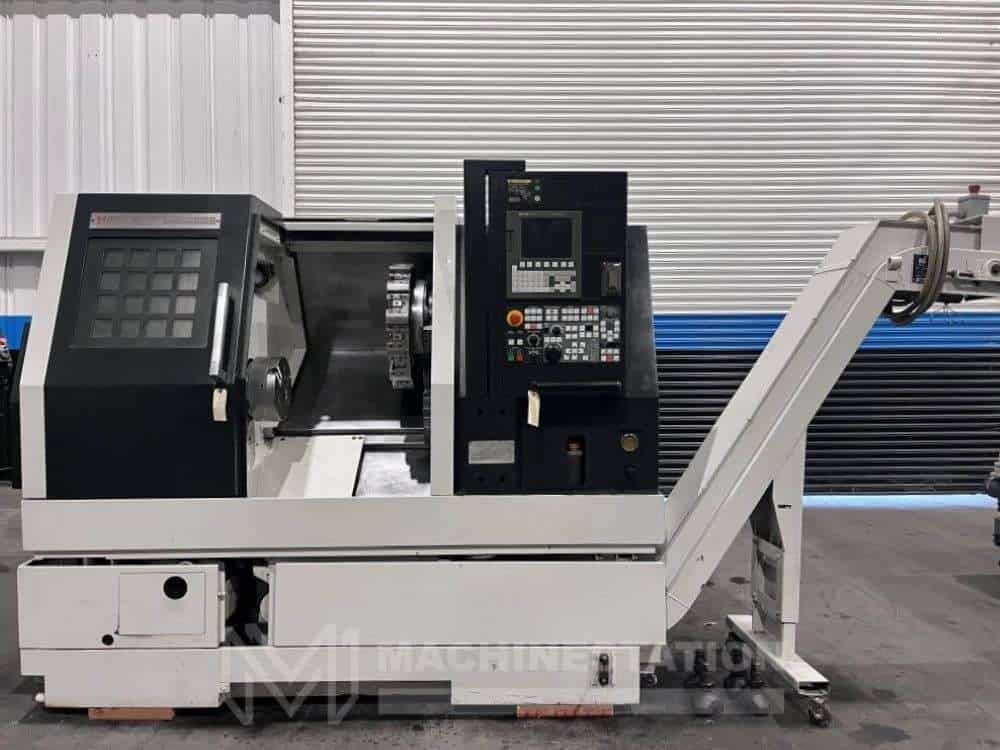

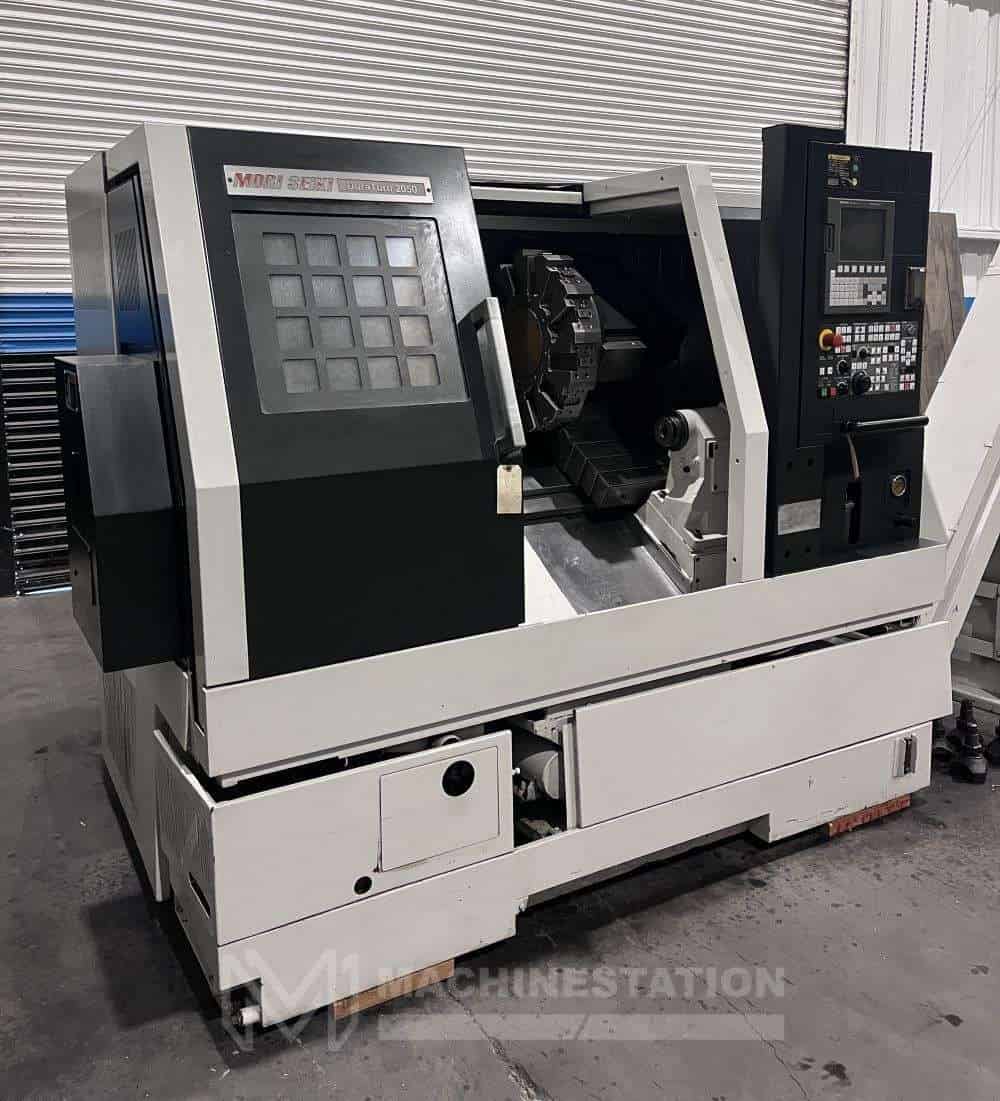

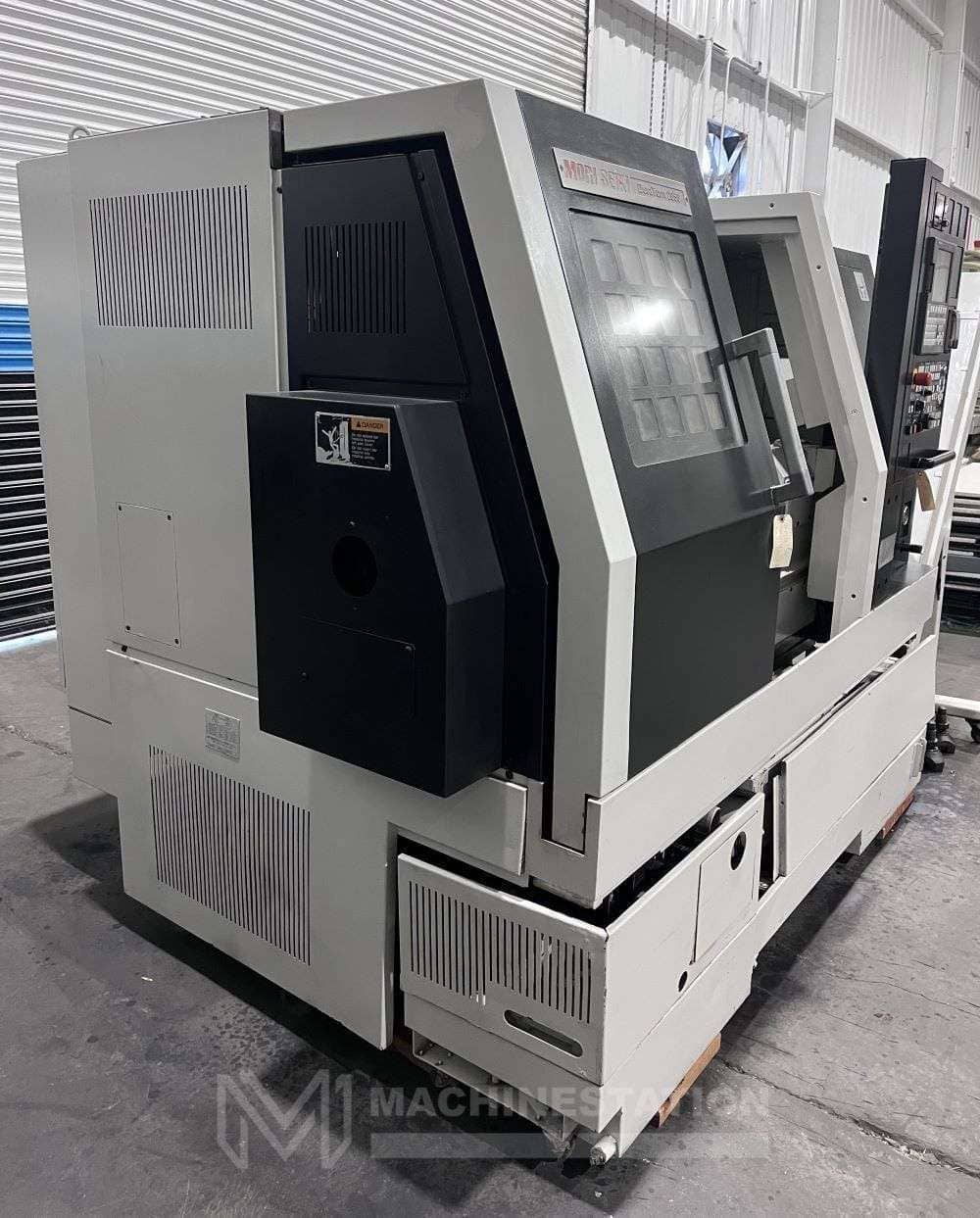

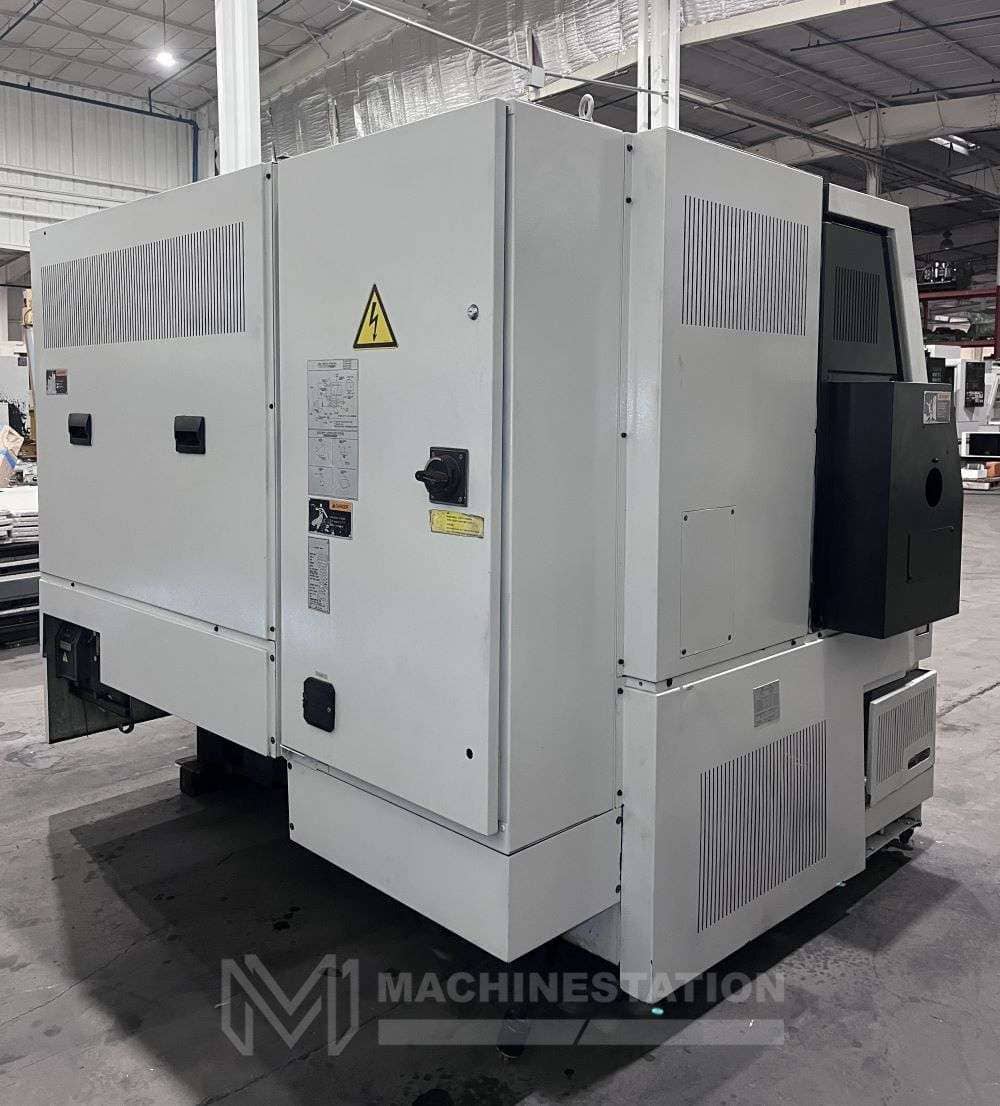

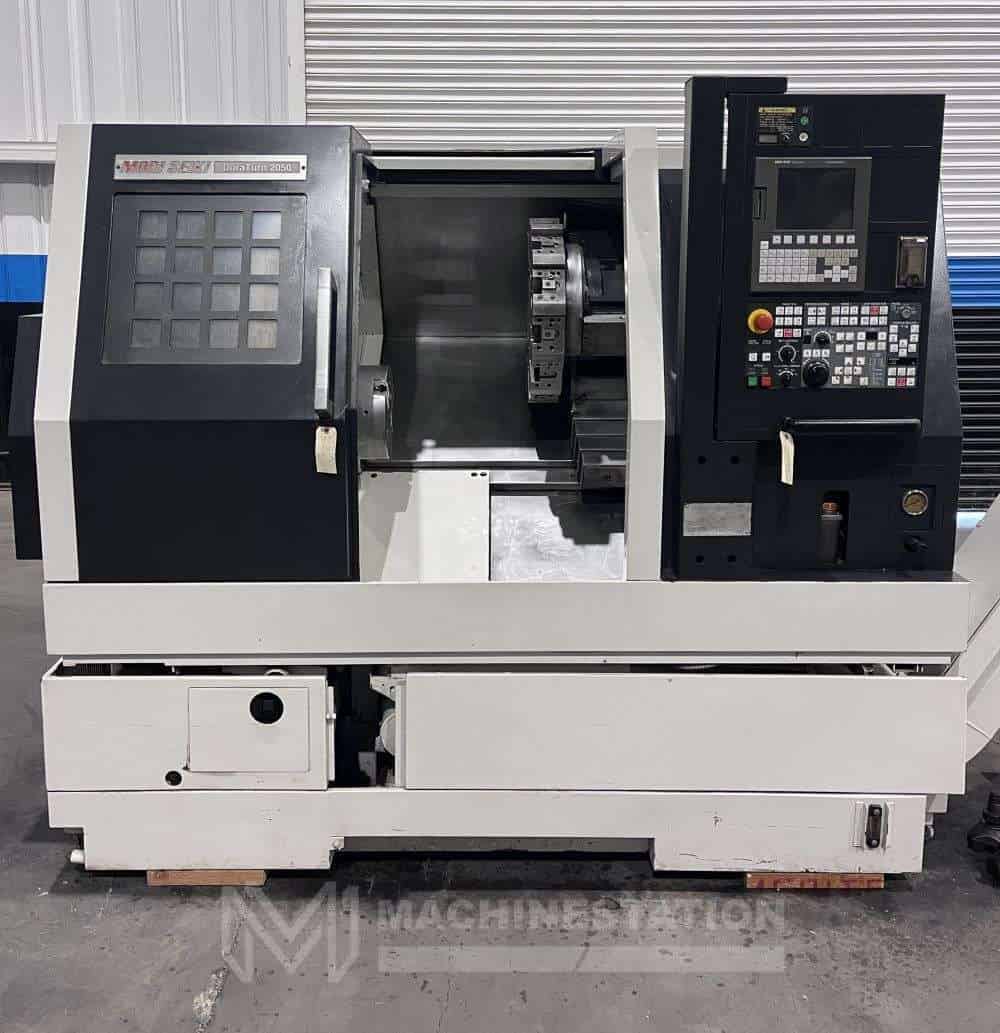

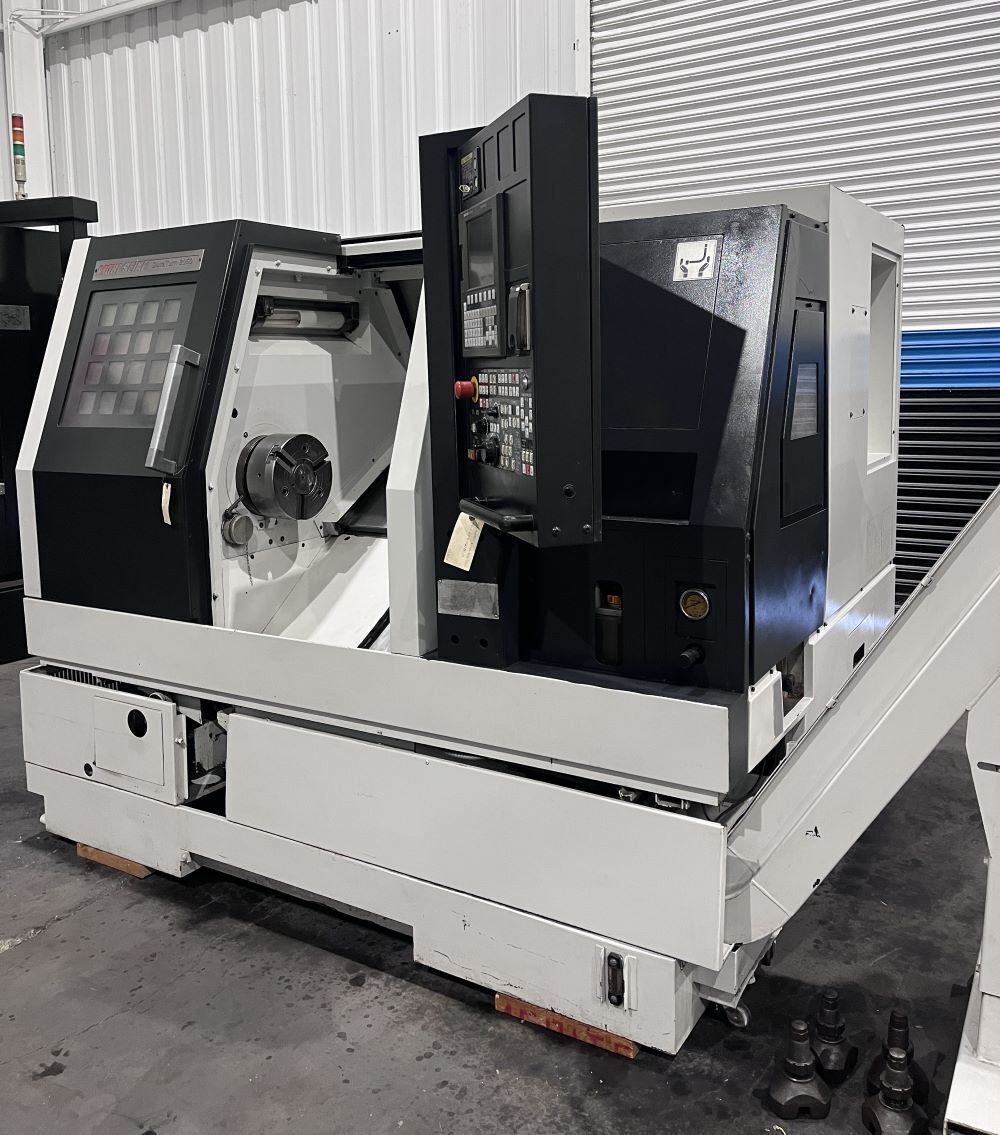

Mori Seiki DuraTurn 2050 CNC Turning Center

$36,000.00

1 in stock
Location: Lake Elsinore, CA
SKU: 2282
Make/Model: Mori Seiki DuraTurn 2050

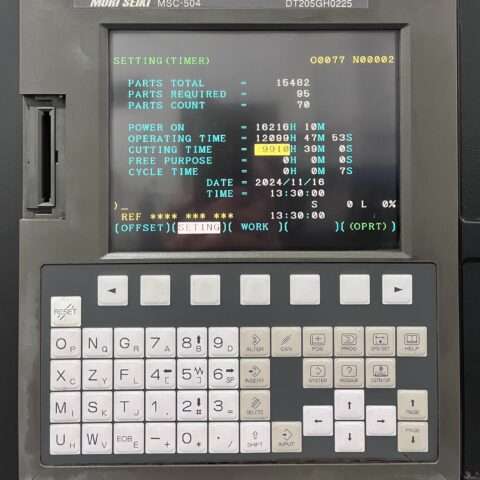

Cutting Time: 9,910 Hours
Video: No Video
SKU: 2282

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: DuraTurn 2050
Year: 2007
Condition: Used – Good



Equipped With:

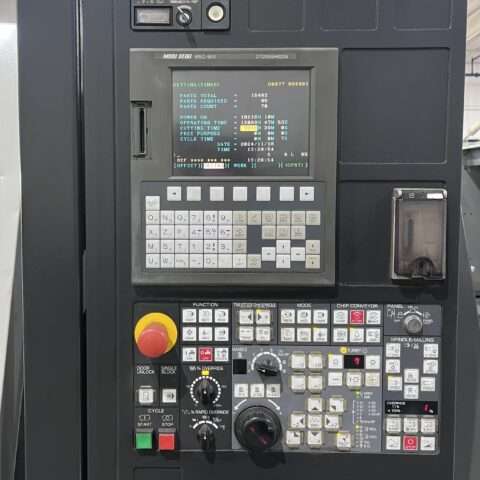

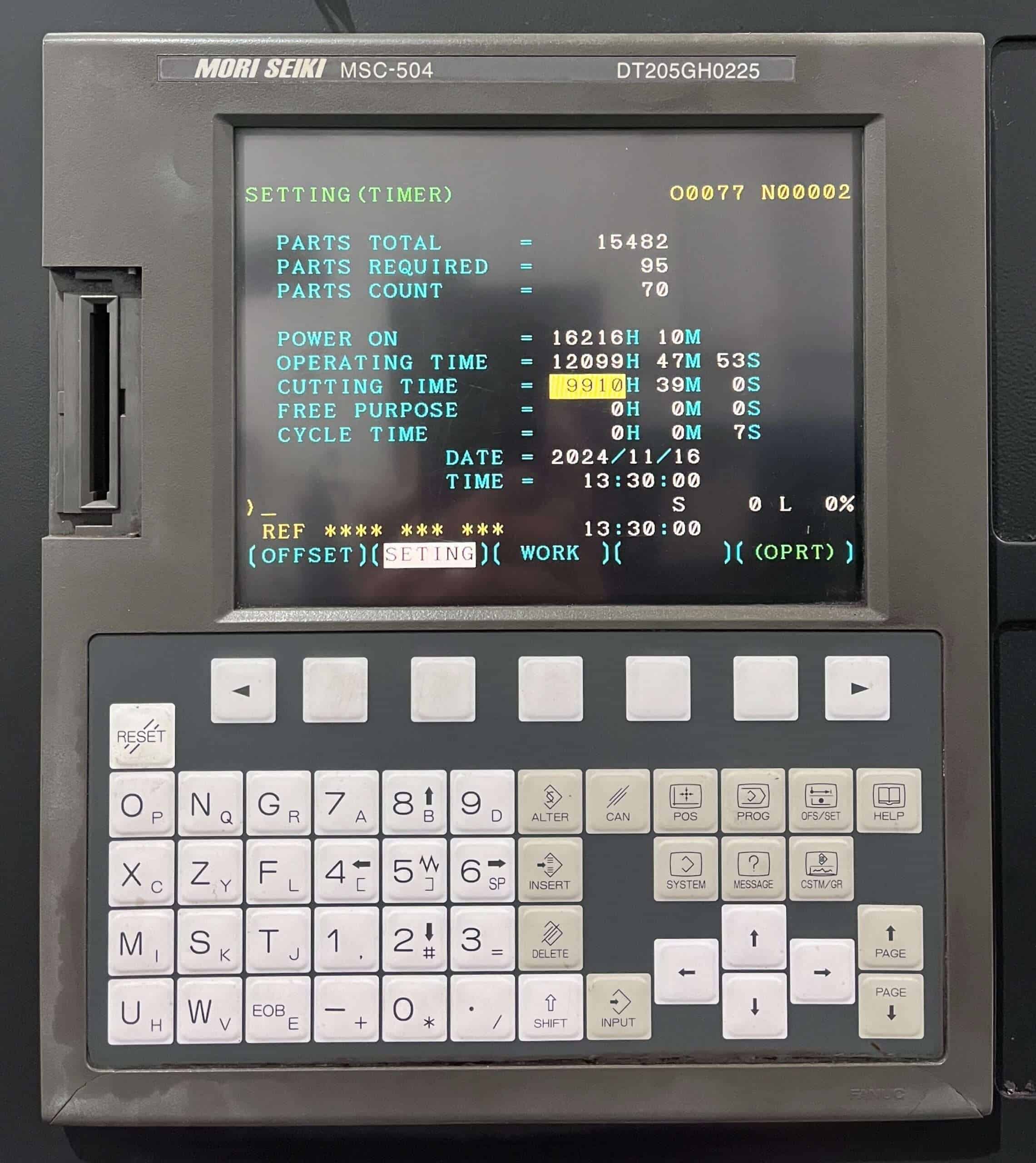

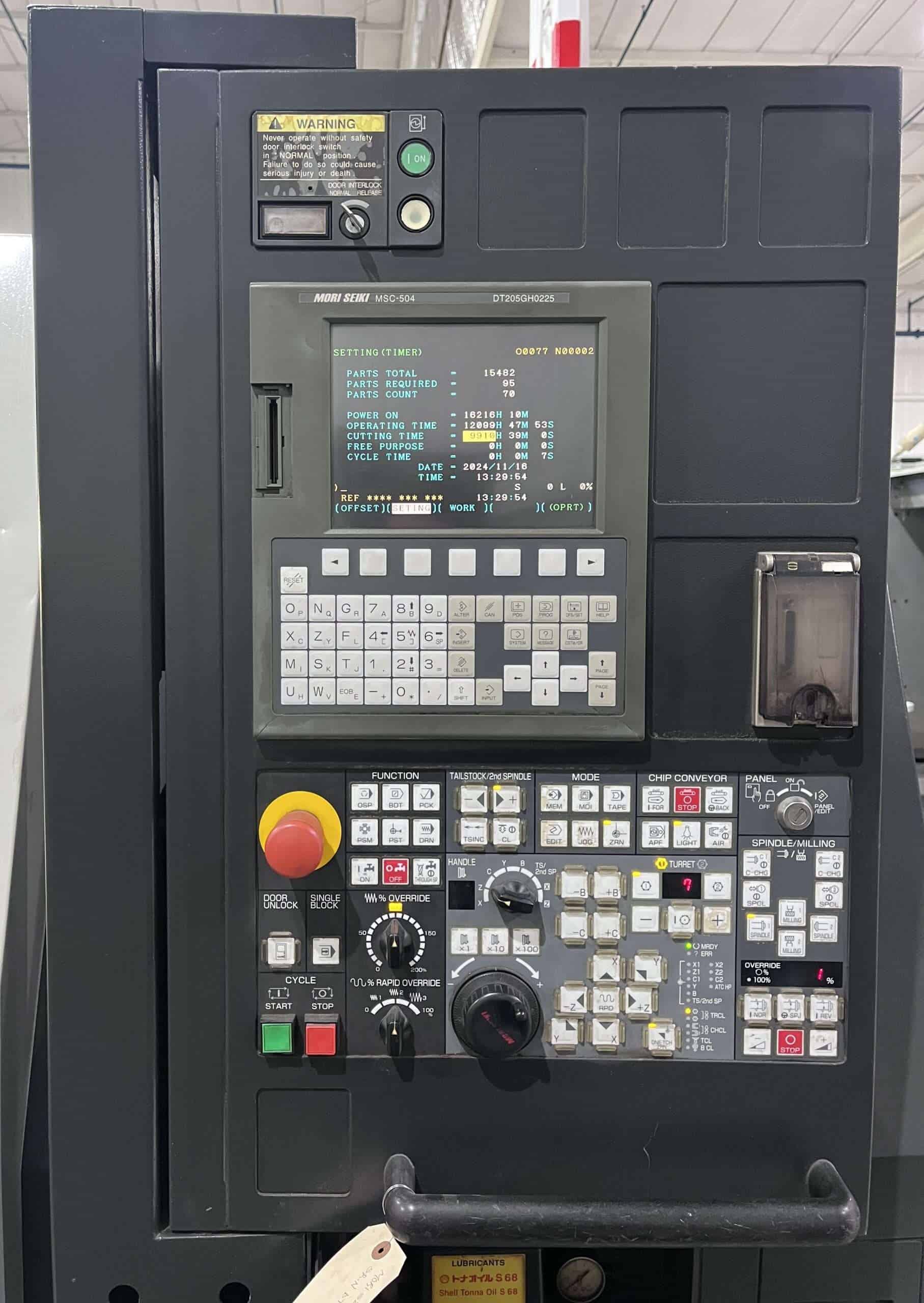

Mori Seiki MSC-504 CNC Control

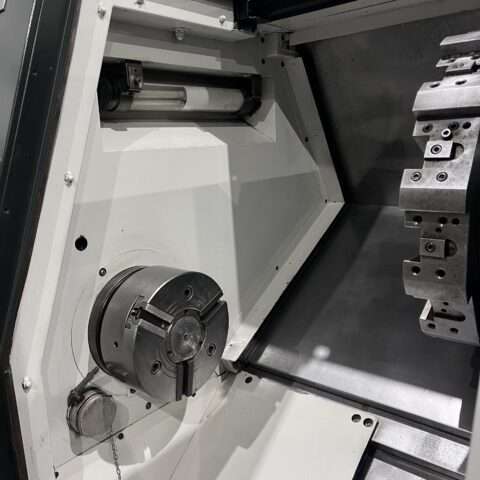

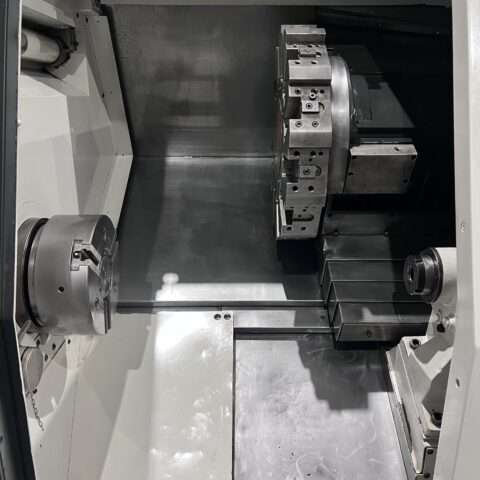

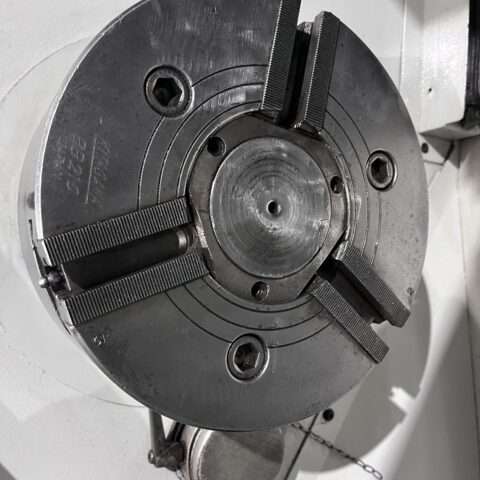

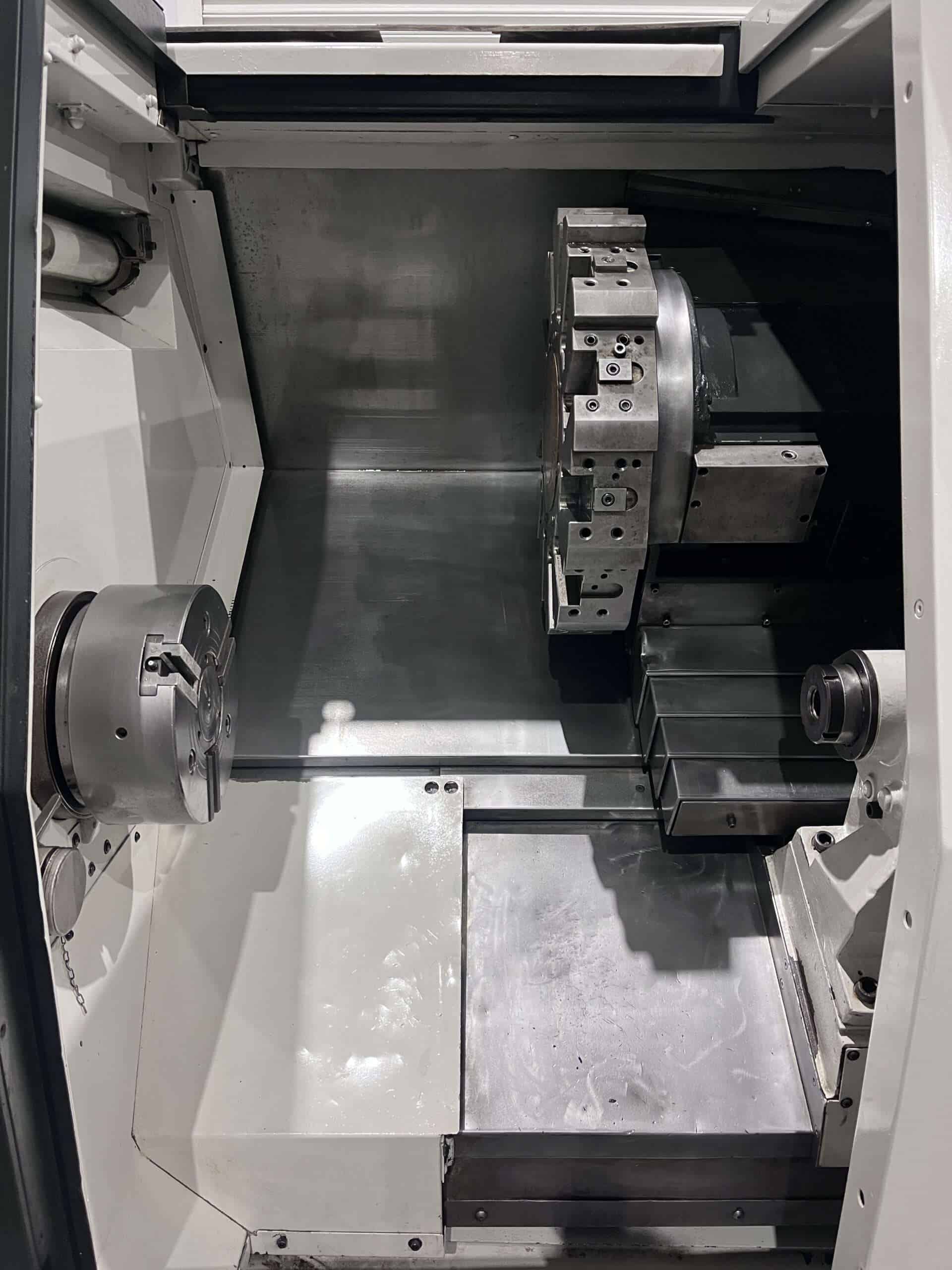

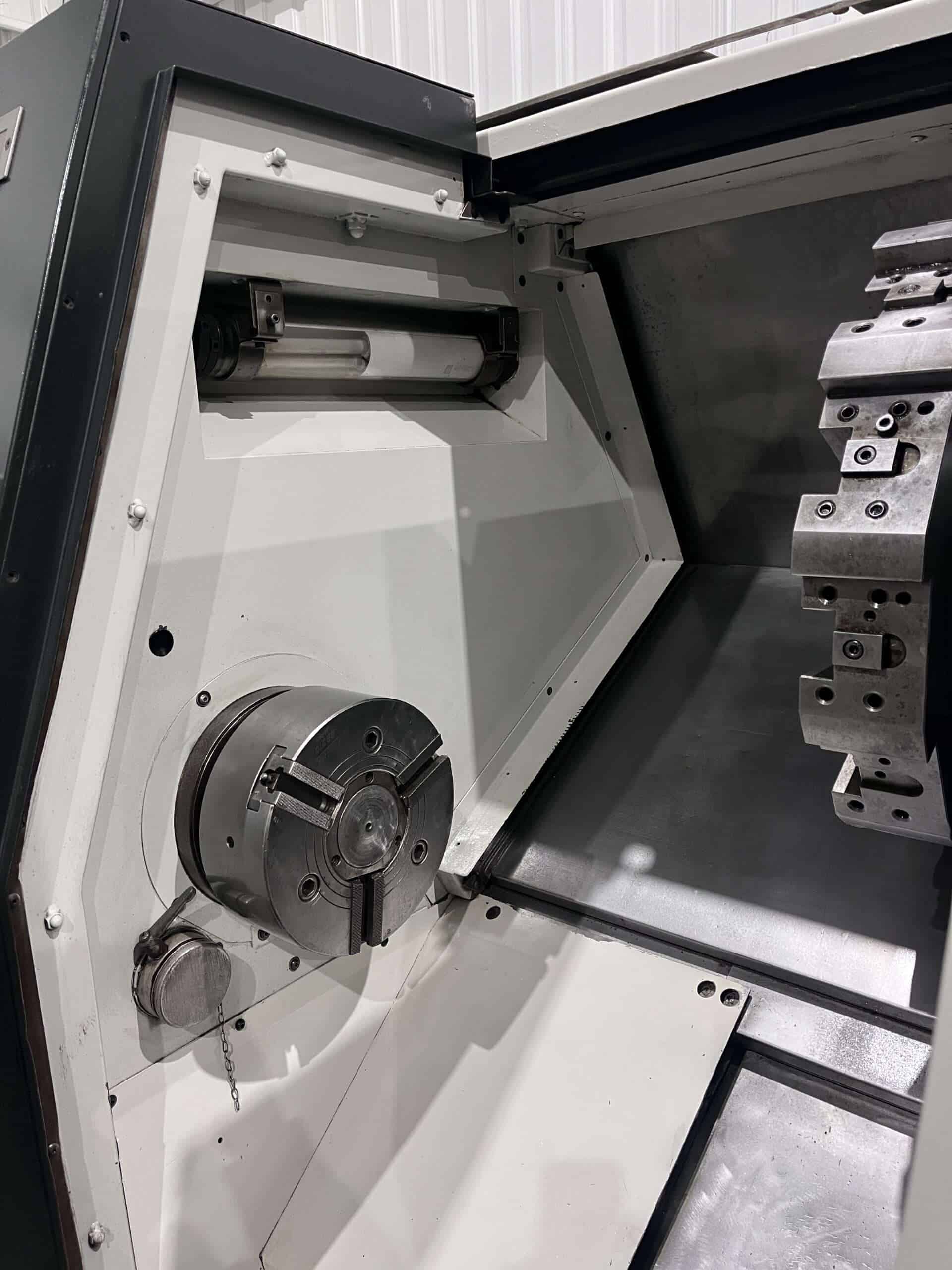

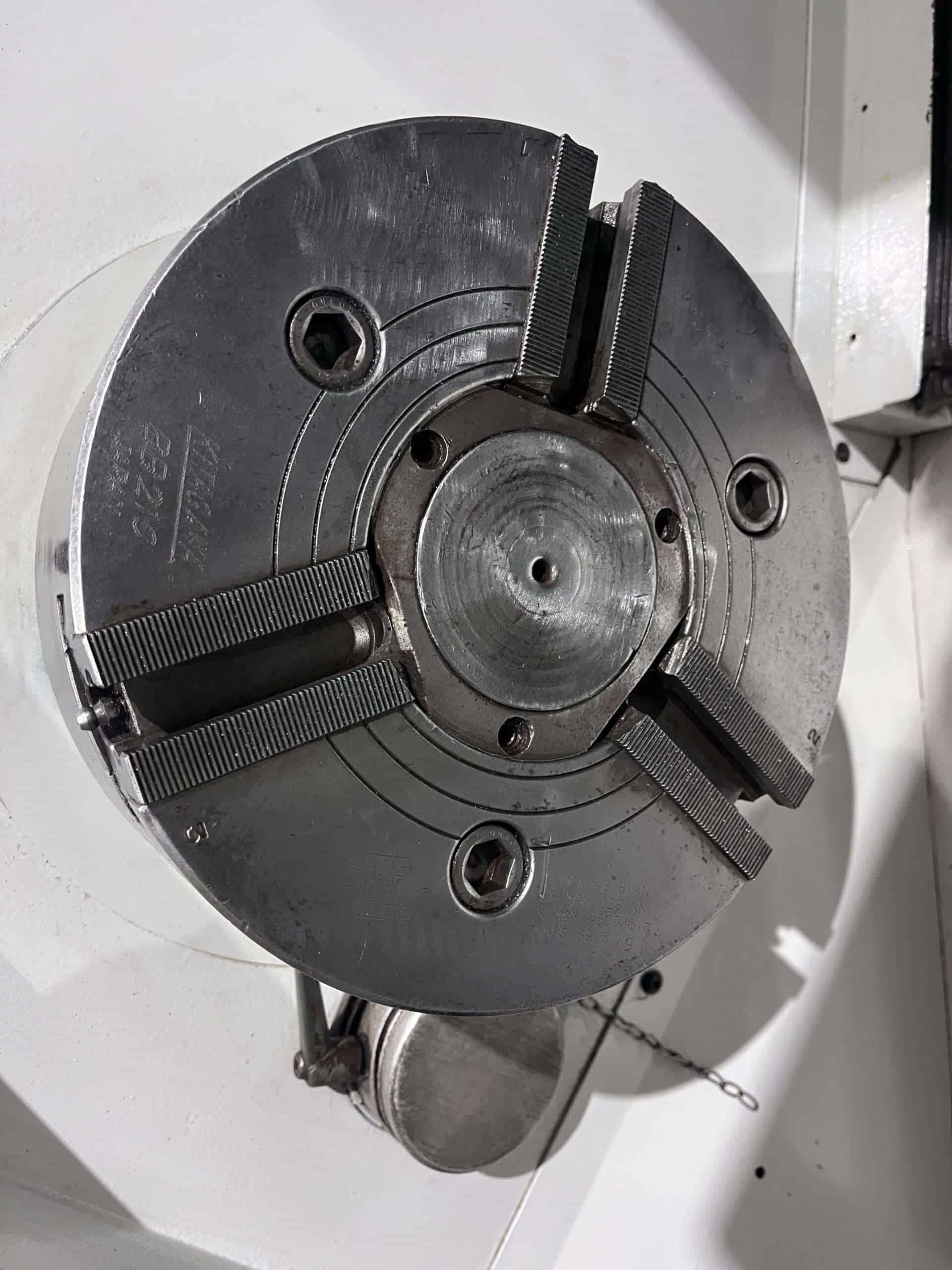

10″ 3-Jaw Kitagawa Chuck

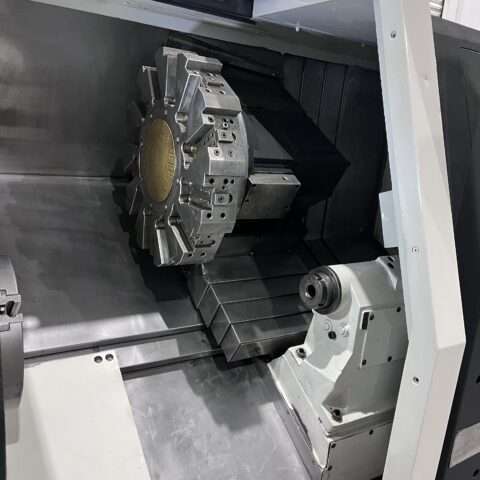

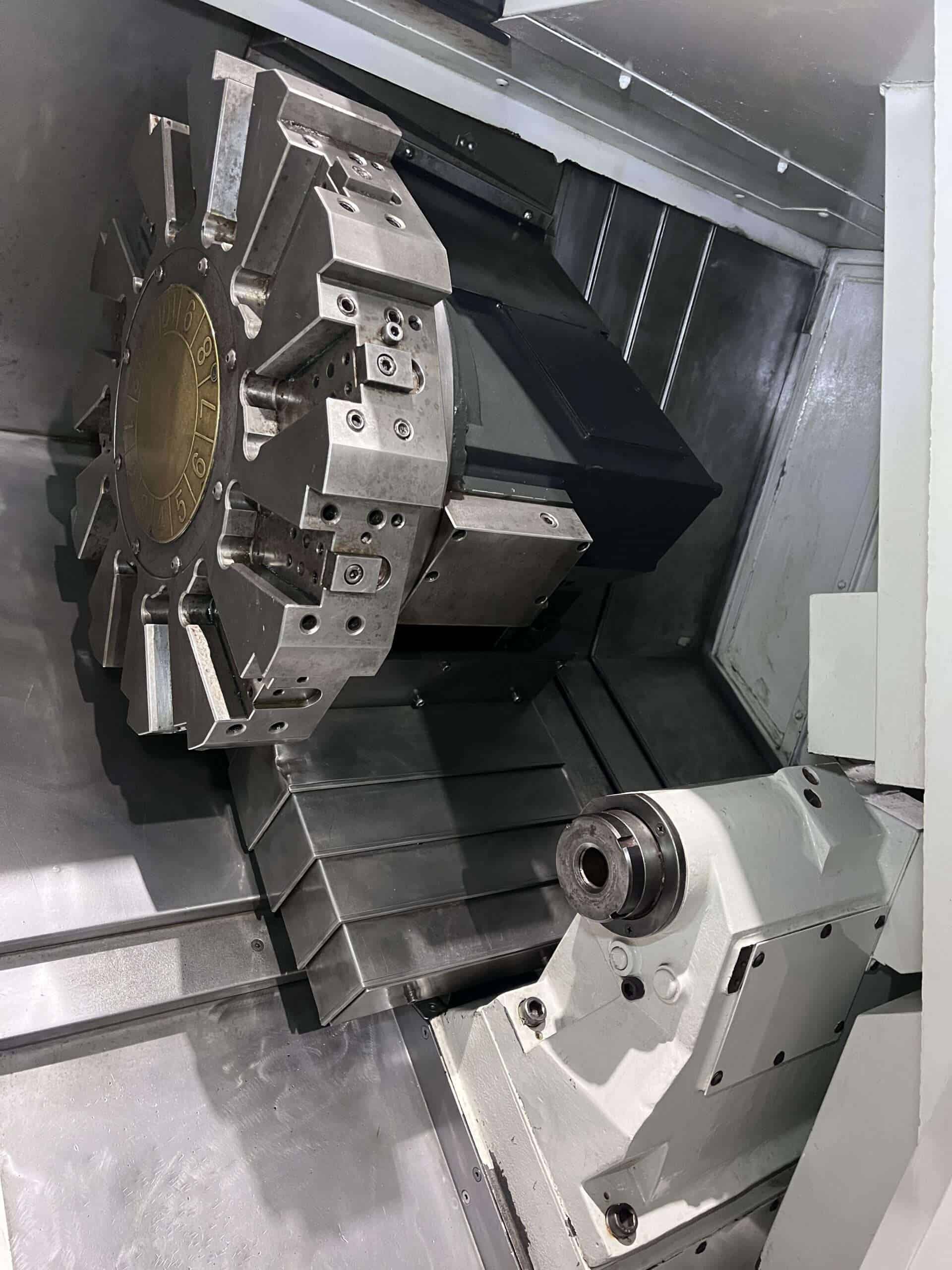

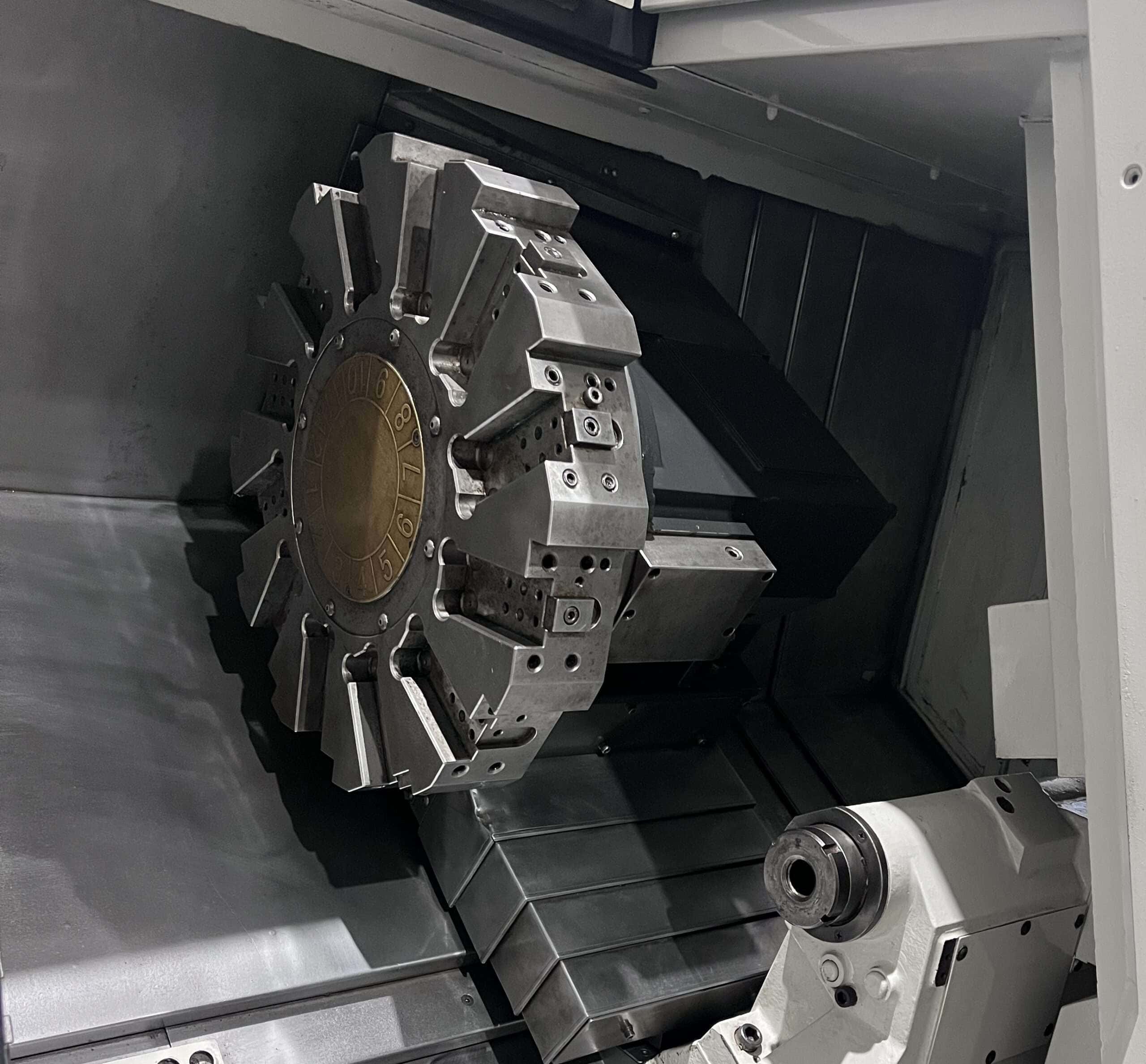

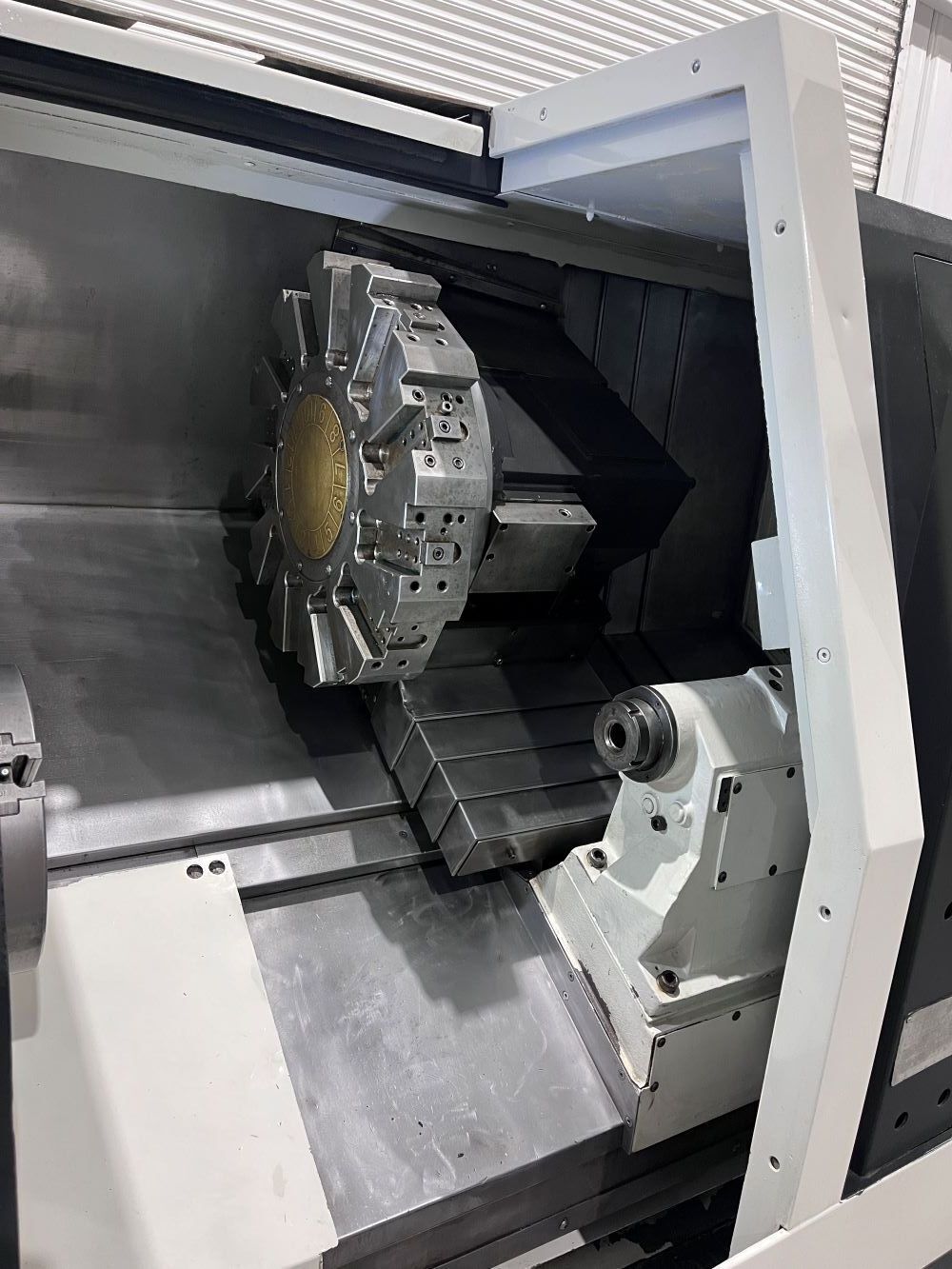

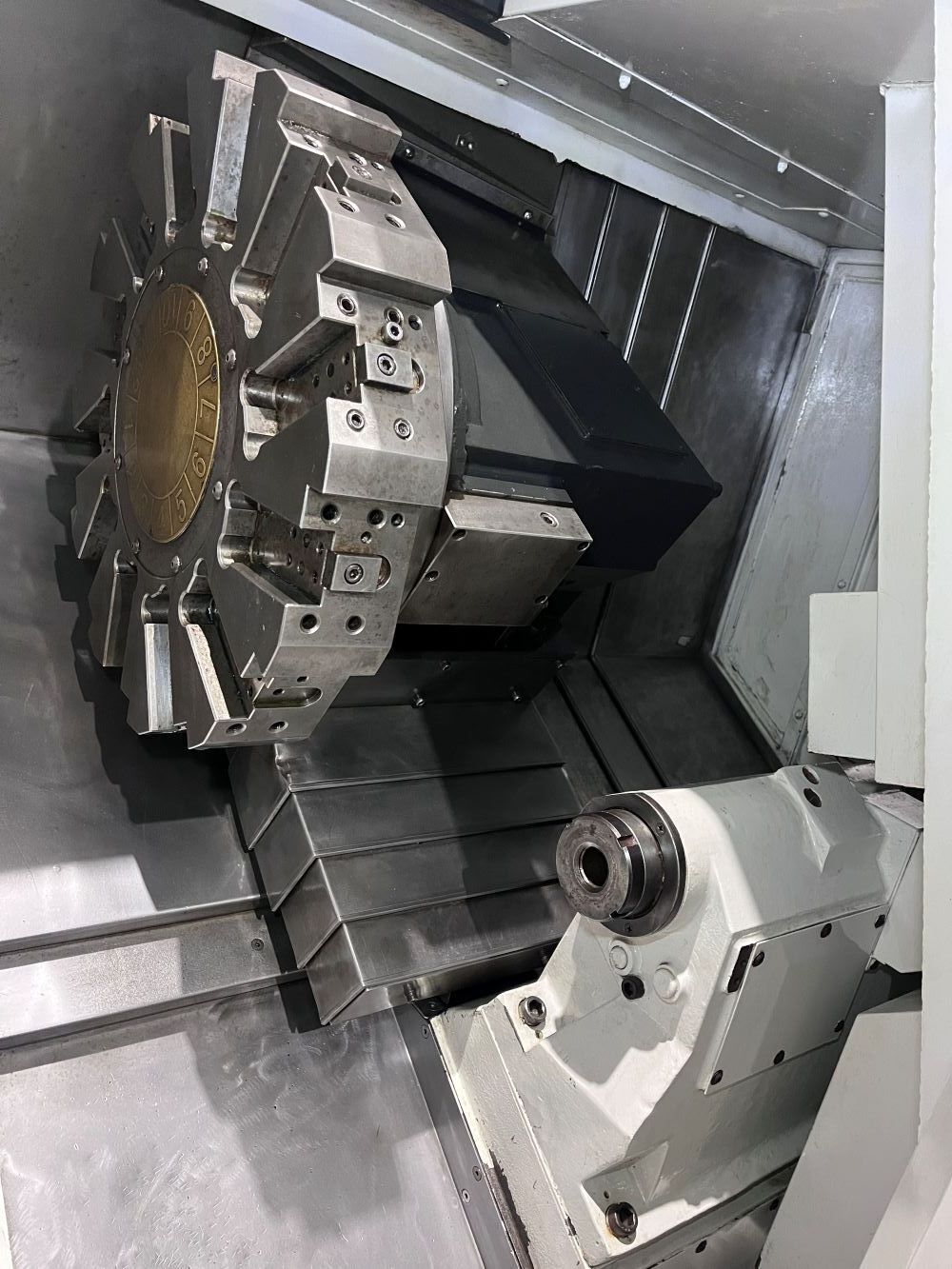

12 Station High Speed Turret
Programmable Tailstock

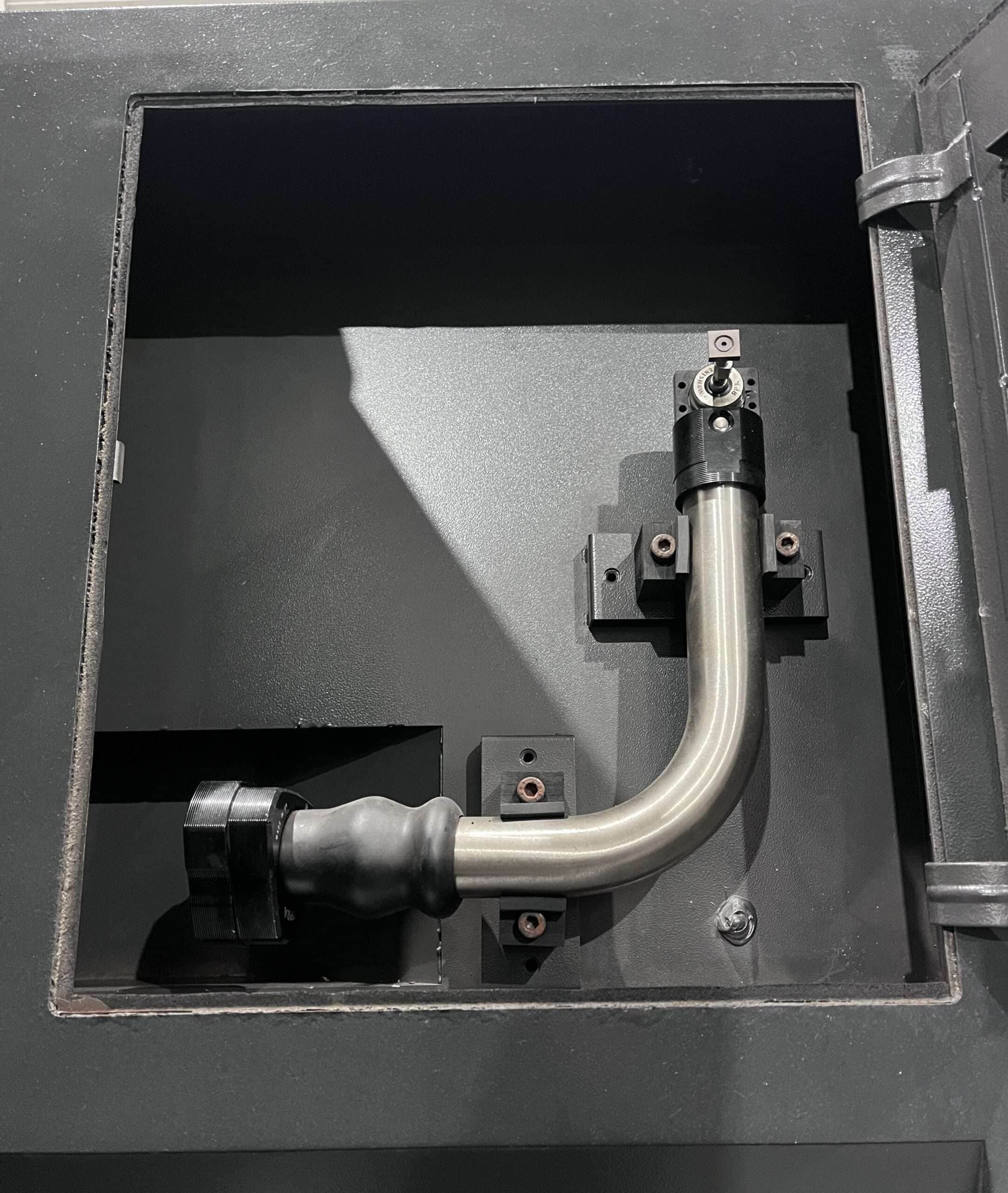

Automatic Tool Presetter
PCMCIA Card Slot & RS-232
Rigid Tapping
Coolant System

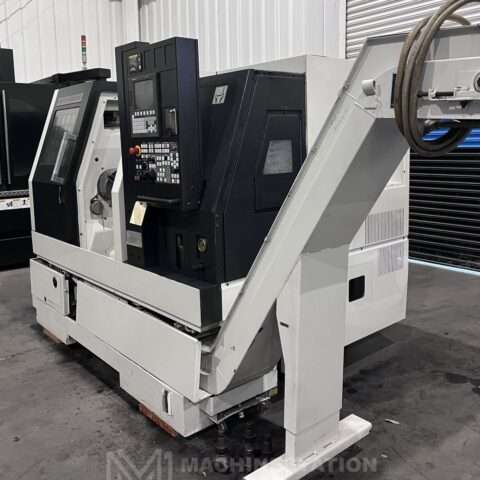

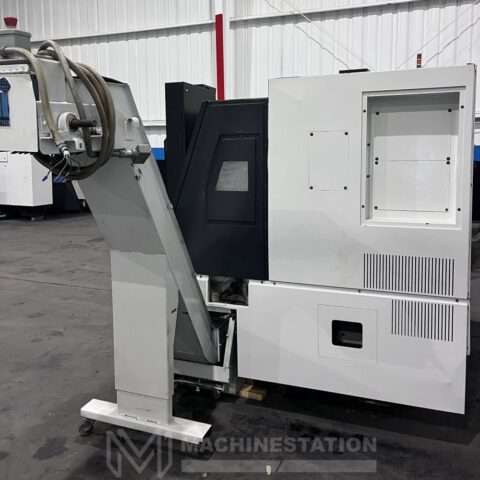

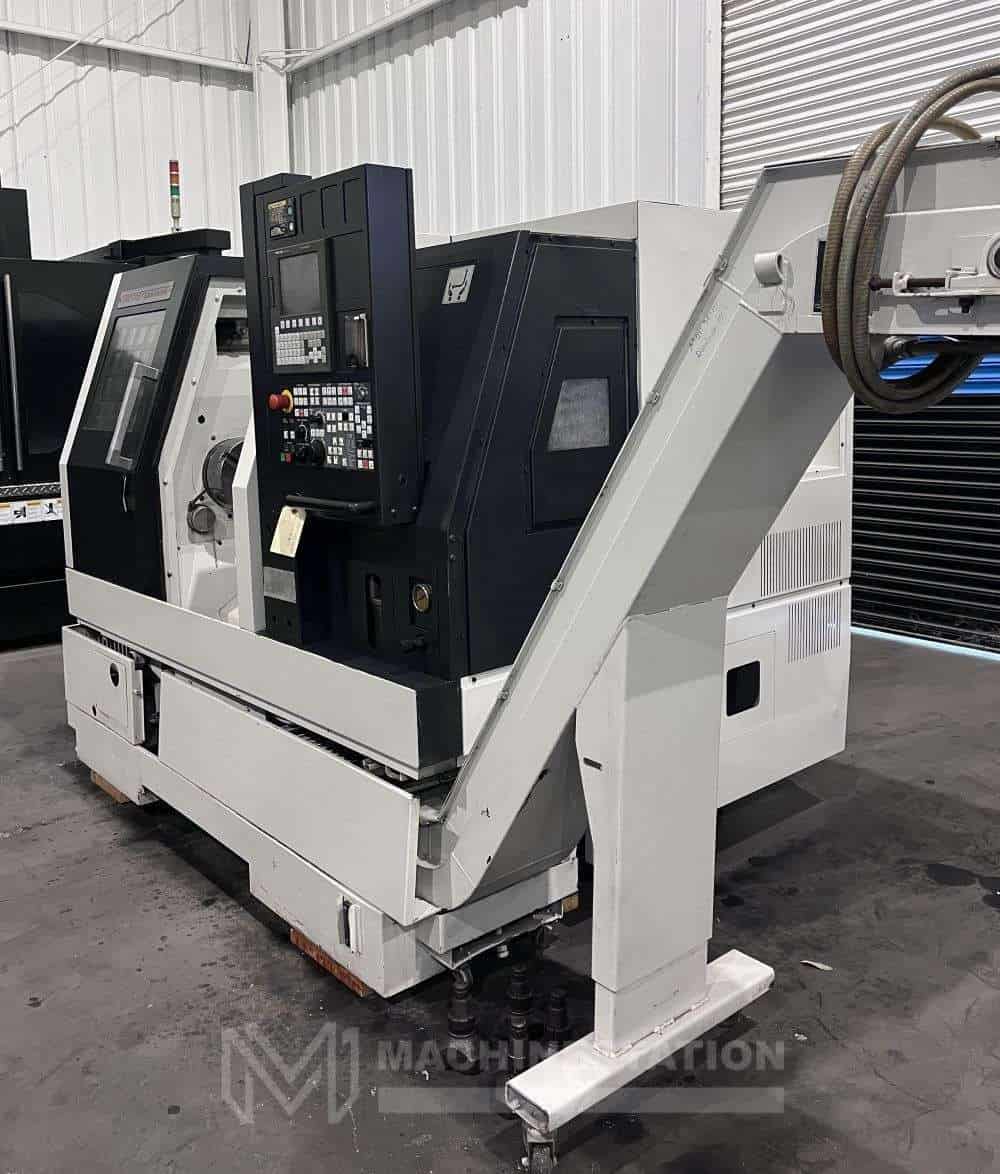

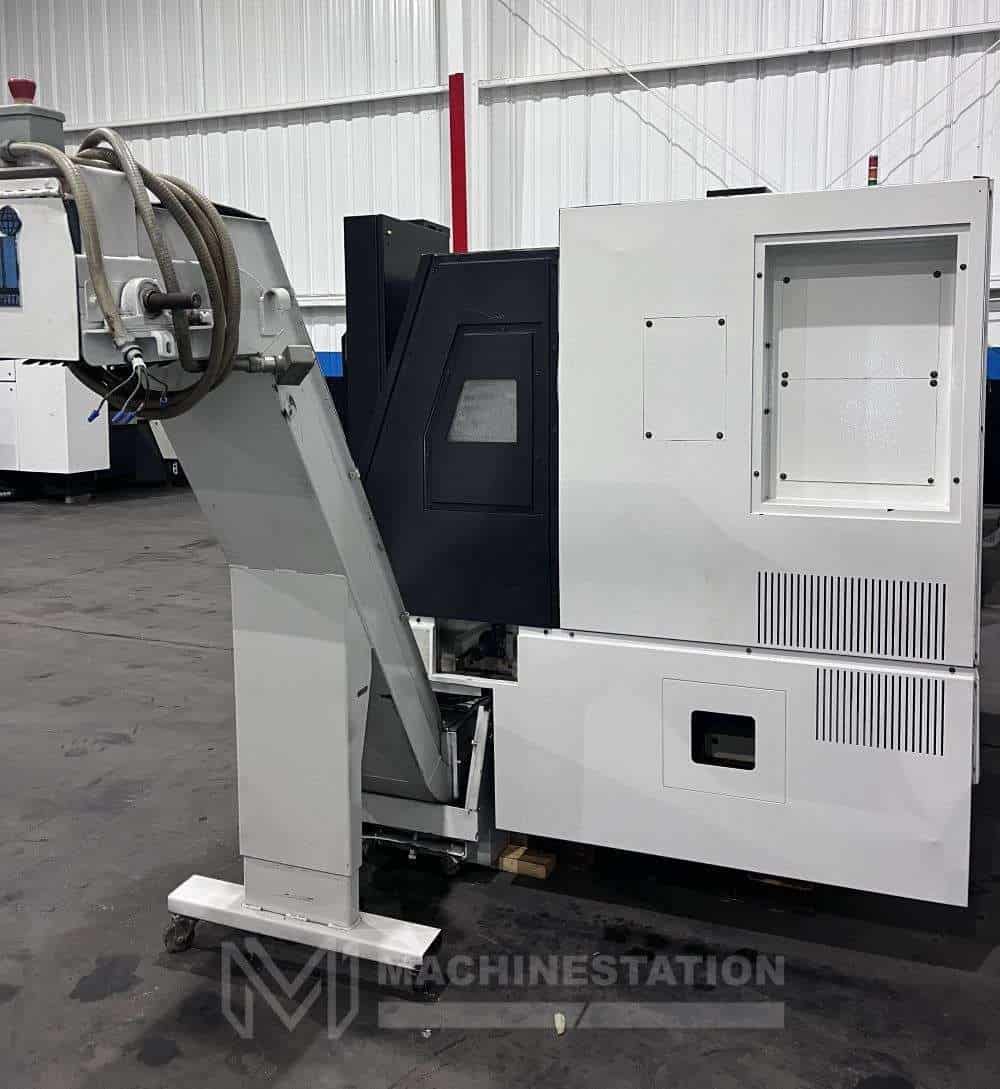

Chip Conveyor
Levelling Pads



Capacity:
Max Turning Diameter: 14.50″
Max Turning Length: 20.80″
Max Bar Capacity: 2.56″
Swing Over Bed: 24″
Swing Over Cross Slide: 18.90″



Travels:
X Axis Travel: 8.3″
Z Axis Travel: 22.4″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.9″
Spindle Speed: 4000 RPM
Spindle Motor: 18 HP

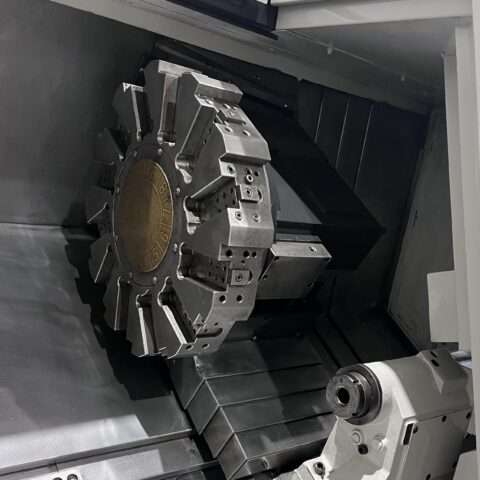

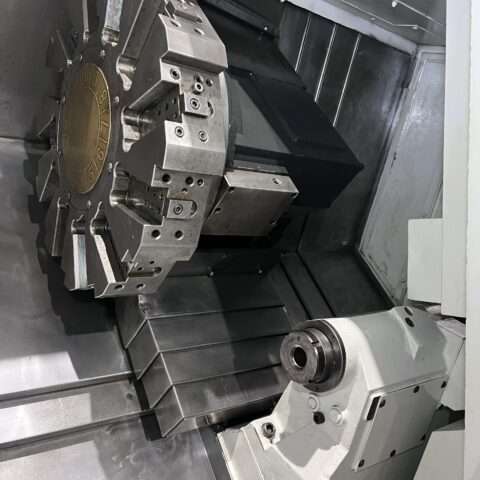

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second



Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.1″
Tailstock Quill Travel: 3.14″



General:

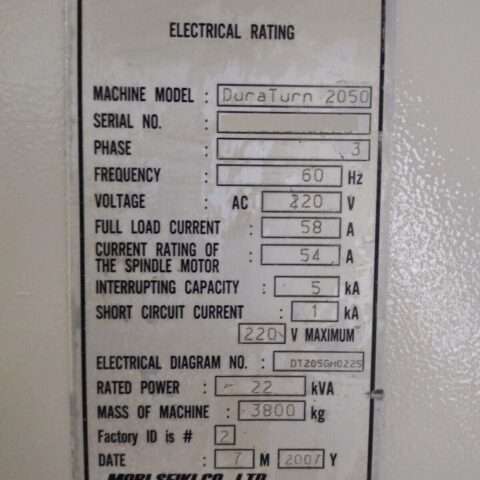

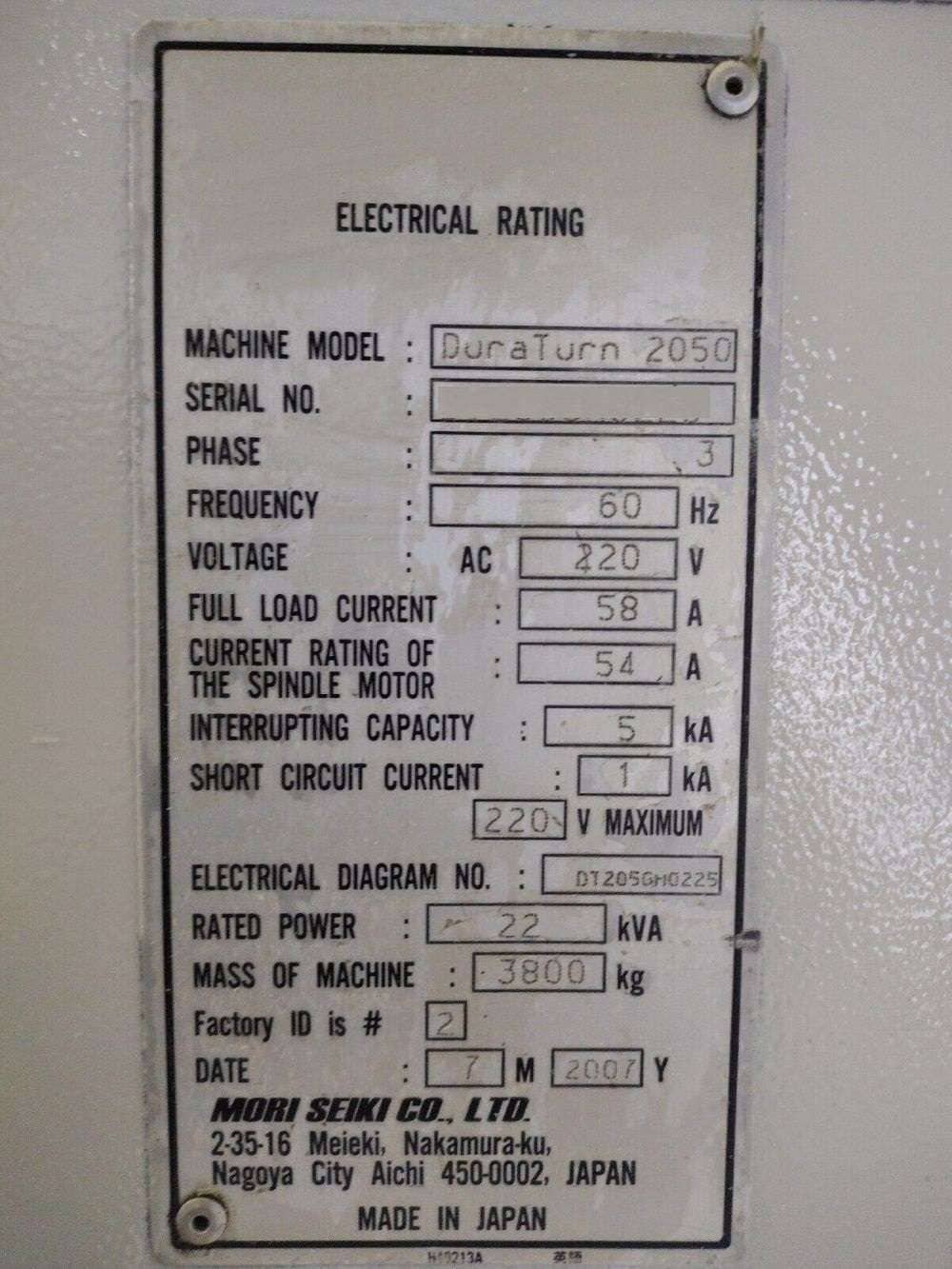

Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 22 kva
Machine Dimensions: 86″ x 72″ x 69″ High
Machine Weight: 8378 lbs Approx.
Make

Model

DURA TURN 2050
