*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | SL-200/500 |
| Year: | 1999 |
| Equipped With: |
|---|
| Mori Seiki MSC-500 CNC Control |
| 12-Position Tool Turret |
| 8″ 3-Jaw Hydraulic Chuck |
| Tailstock |
| Bullnose |
| Associated Static Tooling |
| Hydraulic Chucking System |
| Fully Enclosed Work Area |
| Coolant System |
| Capacity: |
|---|
| Swing Over Bed: 26.77″ |
| Swing Over Cross Slide: 20.08″ |
| Maximum Turning Diameter: Approx. 15.35″ |
| Maximum Turning Length: Approx. 18.90″ |
| Bar Capacity: 2.01″ |
| Travels: |
|---|
| X-Axis Travel: 9.25″ |
| Z-Axis Travel: Approx. 20.47″ |
| X-Axis Rapid Traverse: 709 IPM |
| Z-Axis Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 4,000 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: Approx. 2.87″ |
| Spindle Motor: 15 HP / 11 kW |
| Turret: |
|---|
| Turret Capacity: 12 Positions |
| Turret Type: Disc-Type Tool Turret |
| OD Tool Shank: Approx. 1″ Square |
| Boring Bar Capacity: Approx. 1.57″ |
| Tailstock: |
|---|
| Tailstock: Equipped |
| Tailstock Quill Diameter: Approx. 3.35″ |
| Tailstock Quill Stroke: Approx. 4.72″ |
| Tailstock Taper: MT -4 |

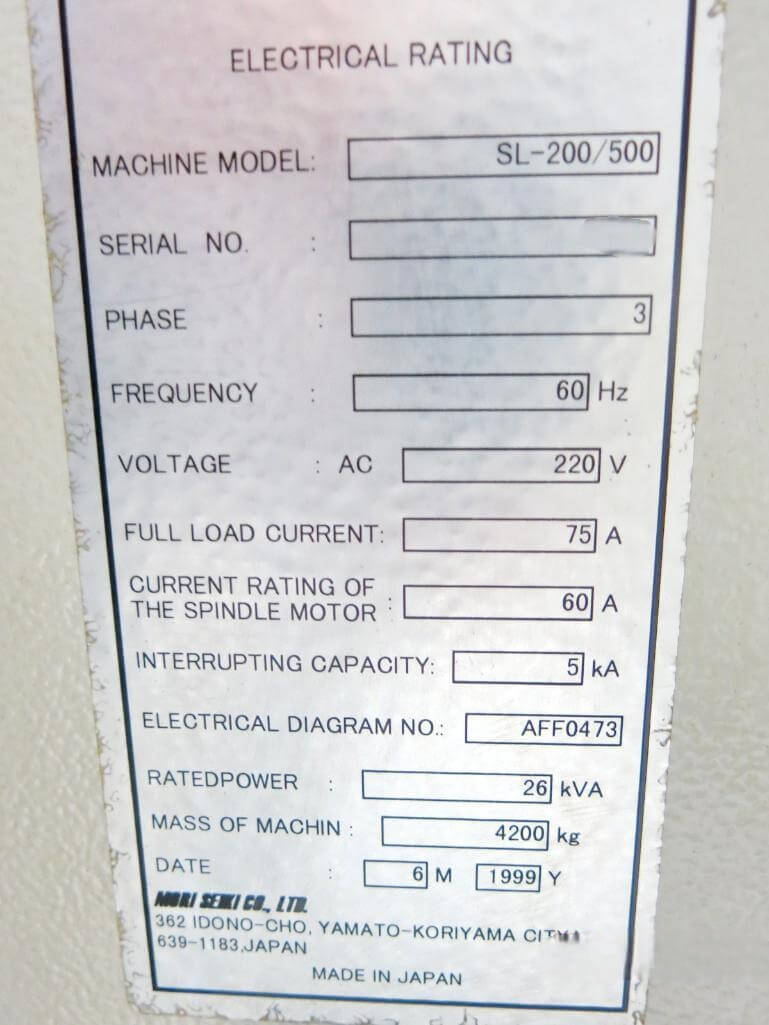

| Electrical: |
|---|
| Supply Voltage: 220 V AC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 26 kVA |
| General: |
|---|
| Country of Manufacture: Japan |
| Machine Dimensions (Approx.): 91″ L × 68″ W × 71″ H |
| Machine Weight (Approx.): 9,260 lbs |
