Description

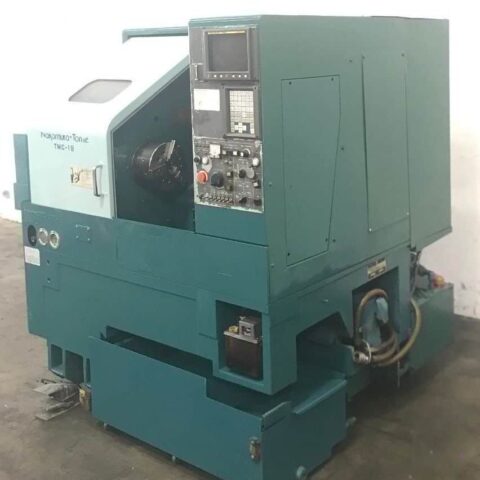

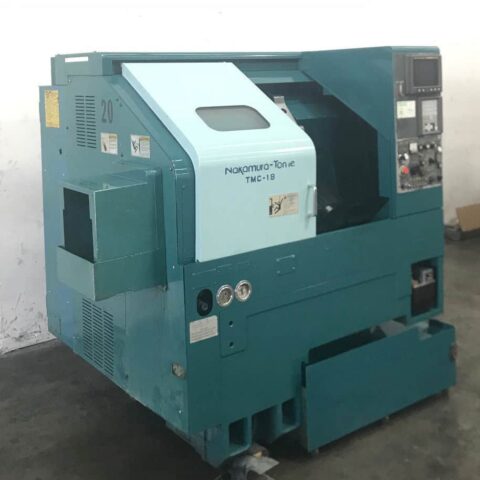

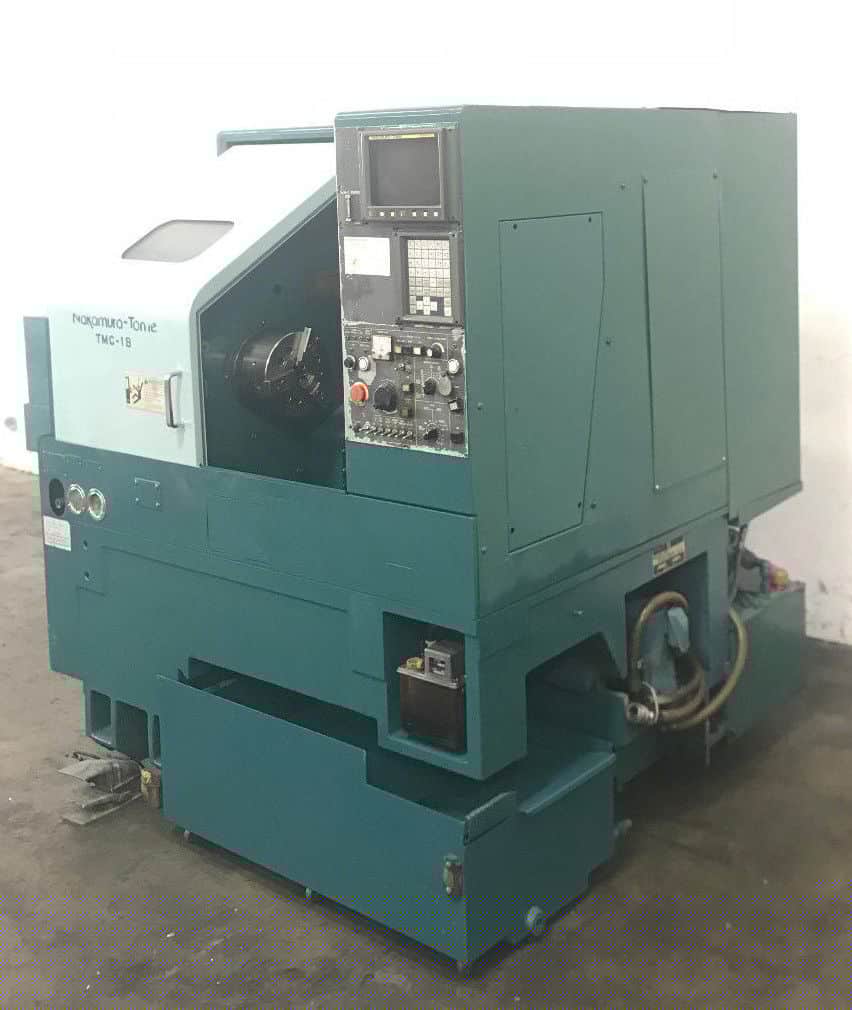

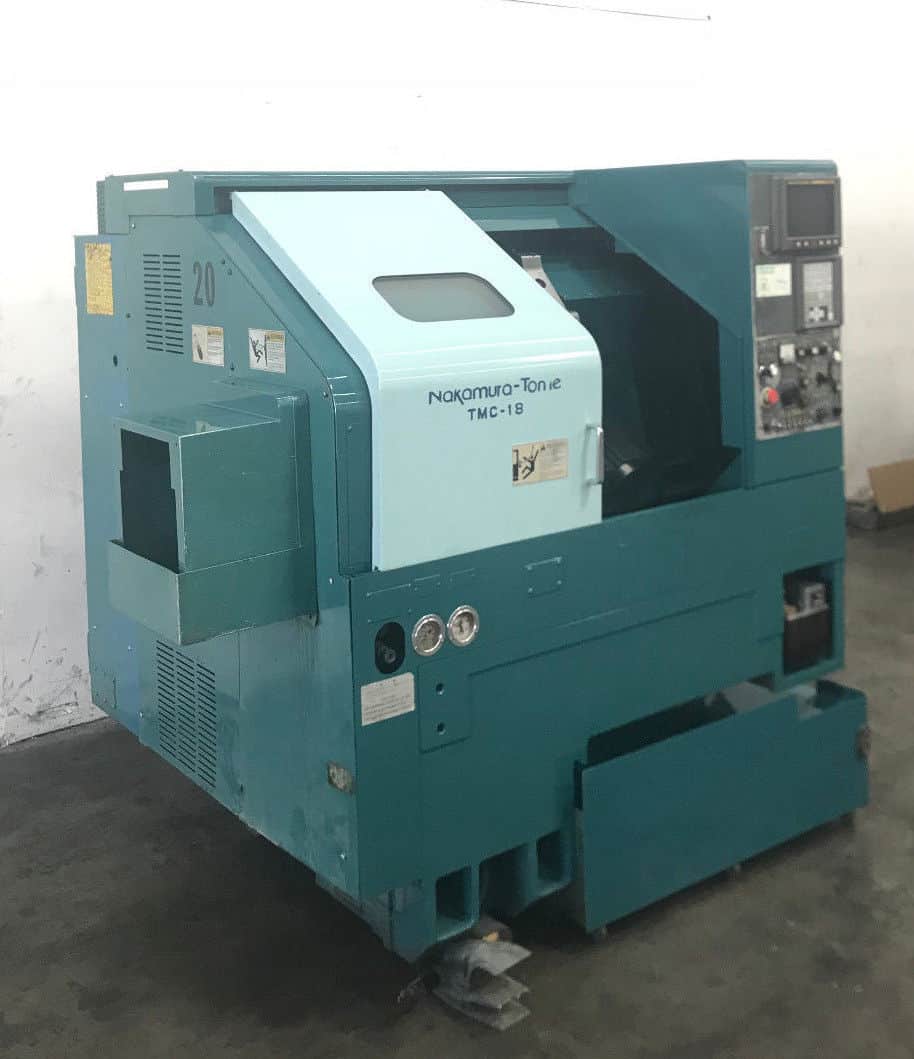

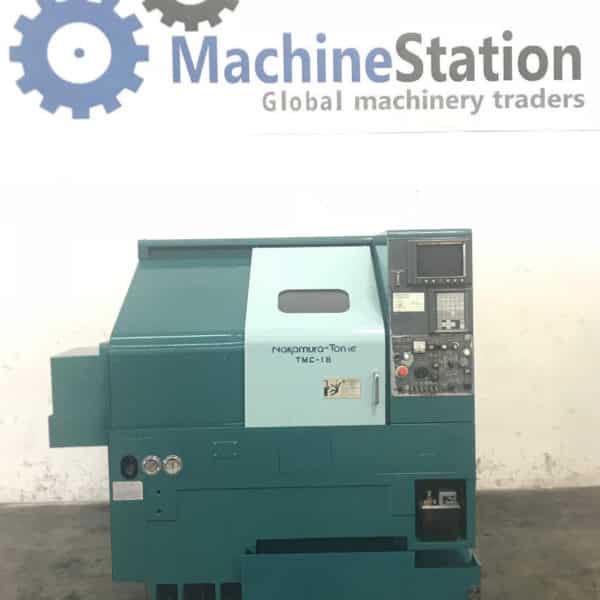

NAKAMURA TMC-18 CNC TURNING CENTER
MakeNakamura
Model No.TMC-18
Serial #A183102
ConditionVery Good
  • NAKAMURA TMC-18 Equipped With:
  • Fanuc 21T CNC Control

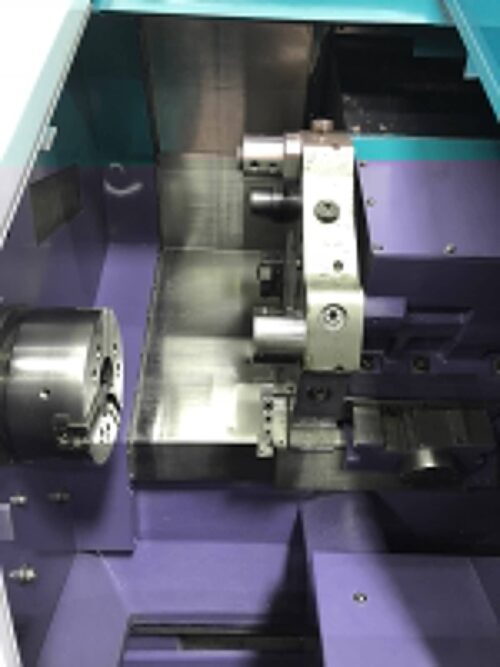

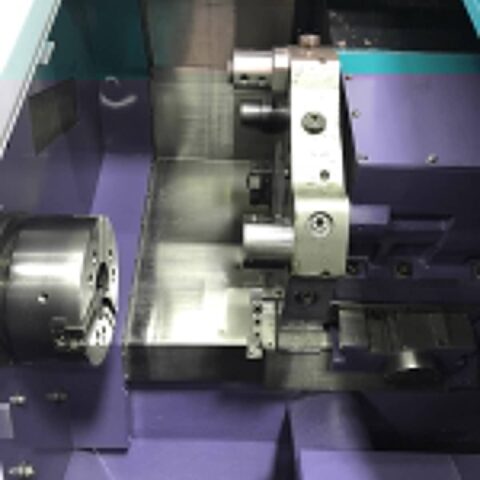

  • 8″ 3 Jaw Hydraulic Chuck
  • A2-6 Spindle
  • Coolant System
  • Barfeed Interface
  • RS-232 port
  • 10 Station Automatic Turret
  • Foot Switch
  • Manuals
  • General:
  • Power:  220v / 3-Phase
  • Overall Dimensions: 70″ x 66″ x 70″ High
  • Weight: 6000 lbs
  • NAKAMURA TMC-18 Specifications:
  • Capacity:
  • Max Turning Diameter: 11.02″
  • Max Turning Length: 11.22″
  • Max Bar Capacity: 2.05″
  • Swing Over Bed: 15.75″
  • X Axis Travel: 6.3″
  • Z Axis Travel: 12.5″
  • Rapid Traverse X Axis: 630 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.3″
  • Spindle Speed: 0 – 4500 RPM
  • Spindle Motor: 15 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
