Nakamura TW10 Multi Axis CNC Turning Center

Out of stock

Product Description

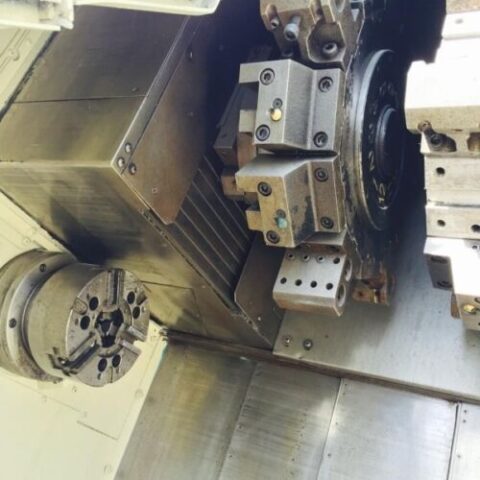

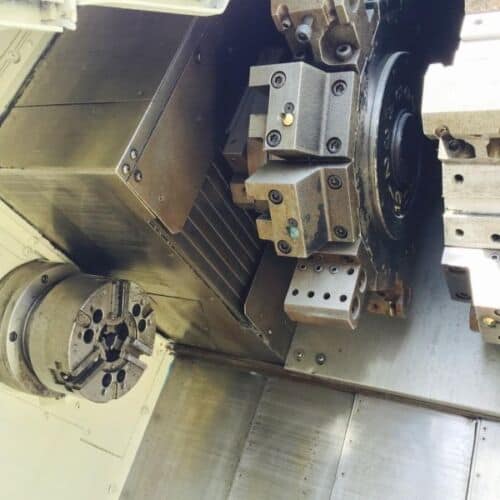

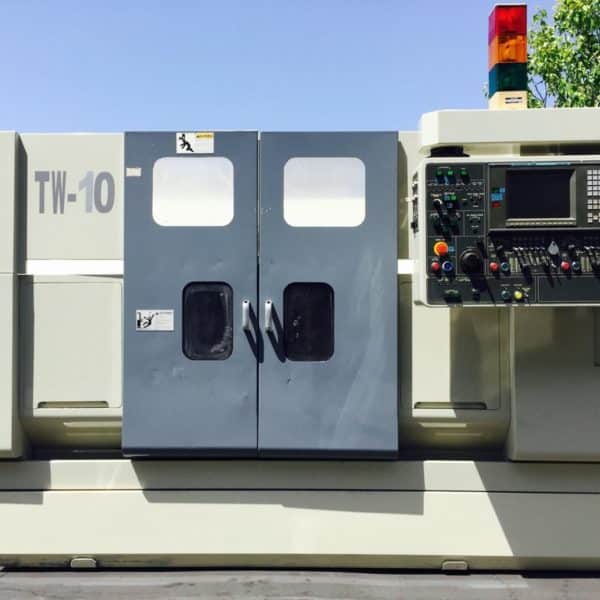

Nakamura TW10 Multi Axis CNC Turning Center

Make: Nakamura-Tome
Model #: TW-10
Serial #: W102206
Date of Manufacture: 1996
Country of Origin: Japan
Condition: Excellent


Nakamura TW10 Multi Axis CNC Turning Center Features:

  • Fanuc System-16TTA / Nakamura-Tome LUCK-BEI Control.
  • Dual SMW 6″ Power Chucks.
  • Sub Spindle.
  • Opposed two-spindle, 2-turret construction.
  • Chip Conveyor.
  • Includes manuals and tooling shown in photos.

Nakamura TW10 Multi Axis CNC Turning Center Specifications:

Capacities:
Maximum Swing Over Bed: 8.27″
Maximum Turning Diameter: 8.26″
Maximum Turning Length: 6.10″
Distance Between Spindles: 30.12″

Spindles:
Bar Capacity (spindle 1 & 2) 1.65″
Spindle Speeds: 55 to 6,000 RPM

Travels:
X-Axis: 7.28″
Z-Axis: 7.87″ / 24.41″

Turrets:
Number of Stations (each turret): 12

General:
Electrical: 220 / 440 Volt, Three Phase
Overall Dimensions: 130″ x 90″ x 95″ tall

Nakamura TW10 Multi Axis CNC Turning Center  and Comes as shown in pictures.


GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

We advertise our machinery on several other publications, so please contact us to verify the machines availability.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
