“This One Owner Machine has low cutting hours. Its a Heavy Duty Big Bore machine equipped with 10″ Chuck, 3.15″ Spindle Bore, Hydraulic Tailstock. On Our Floor now, Fully powered / tested & is in Good working condition. check *VIDEO*”

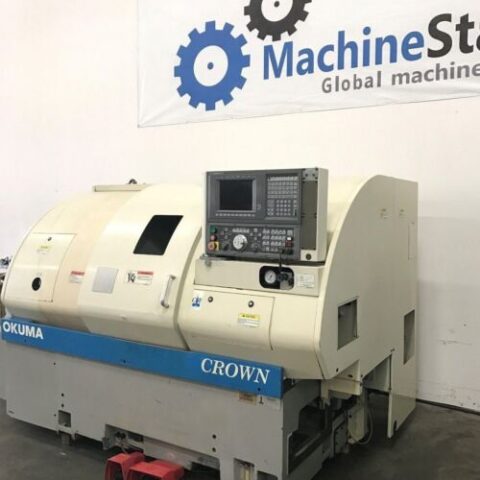

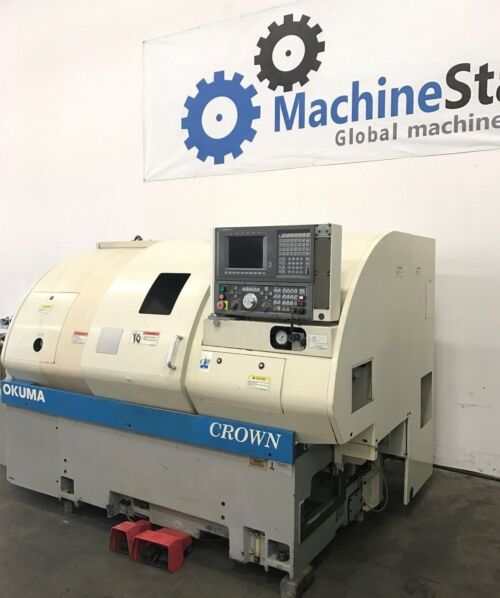

Okuma Crown 762S BB CNC Turning Center
Out of stock
Description
| OKUMA CROWN 762S BB CNC TURNING CENTER BIG BORE 10″ LATHE | |
|---|---|
| Make | Okuma |
| Model No. | Crown 762S-BB |

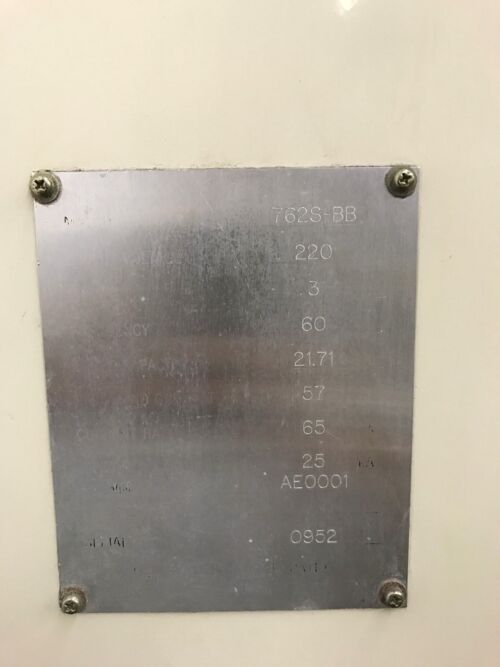

| Year of Manufacture: | 1998.06 |

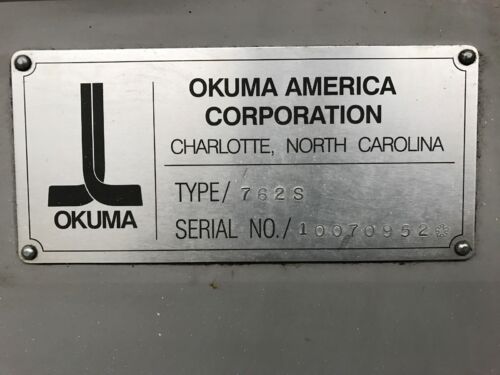

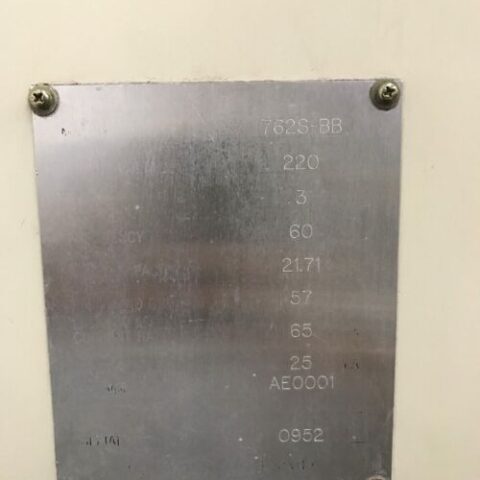

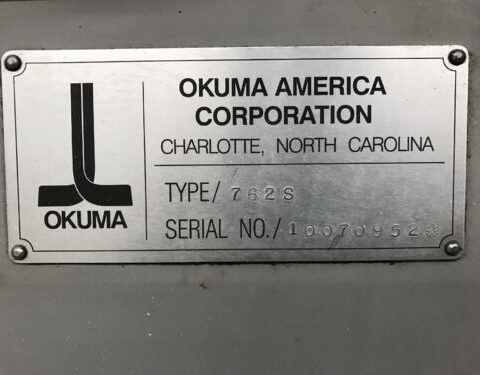

| Serial # | 00952 |
| Condition | Very Good |
Comes with 10″ Chuck, Tool Holders, Chip Conveyor and All Manuals.
All specifications are approximations and are subject to verification.
“This One Owner Machine has low cutting hours. Its a Heavy Duty Big Bore machine equipped with 10″ Chuck, 3.15″ Spindle Bore, Hydraulic Tailstock. On Our Floor now, Fully powered / tested & is in Good working condition. check *VIDEO*”
- OKUMA CROWN 762S BB Equipped With:

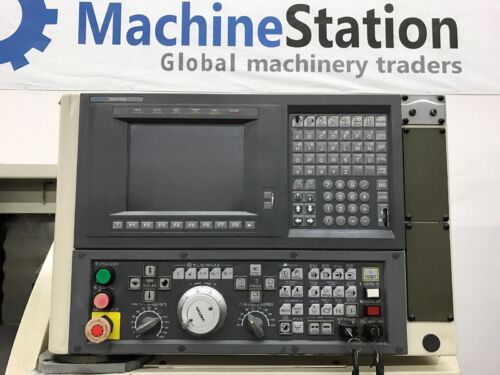

- Okuma OSP700L CNC Control

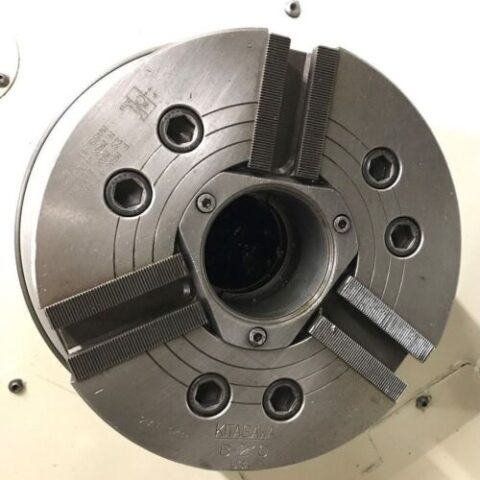

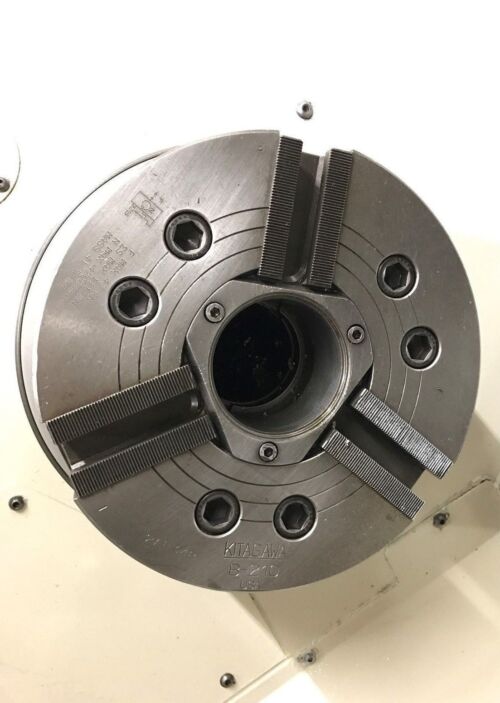

- 10″ Kitagawa B-210 Hydraulic Chuck
- Floppy Disk Drive
- Hydraulic Tailstock with Programmable Quill
- 12 Station Automatic Turret
- Coolant System & Tank
- Barfeed Interface
- RS-232 Interface
- Chip Conveyor
- All Original Manuals & Floppy Disks Available
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 104″ x 74″ x 72″ High
- Weight: 10,000 lbs
- OKUMA CROWN 762S BB Specifications:
- Capacity:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Distance Between Centers: 22.29″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 21.65″
- Swing Over Cross Slide: 15.75″
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.15″
- Spindle Diameter: 4.72″
- Spindle Speed: 65 – 3500 RPM
- Spindle Motor: 22 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Travel: 4.72″
OKUMA CROWN 762S BB Comes as shown in pictures..
