*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

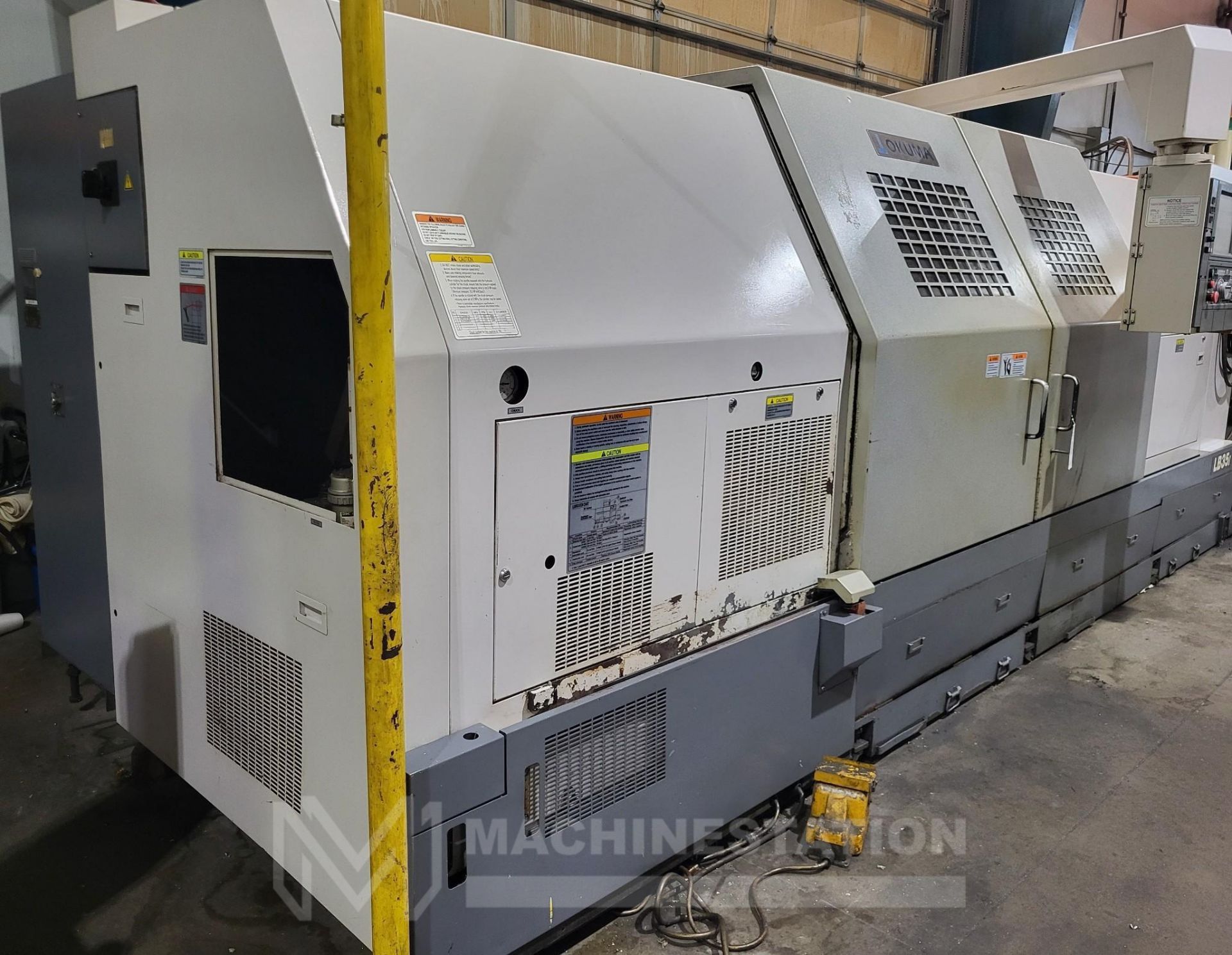

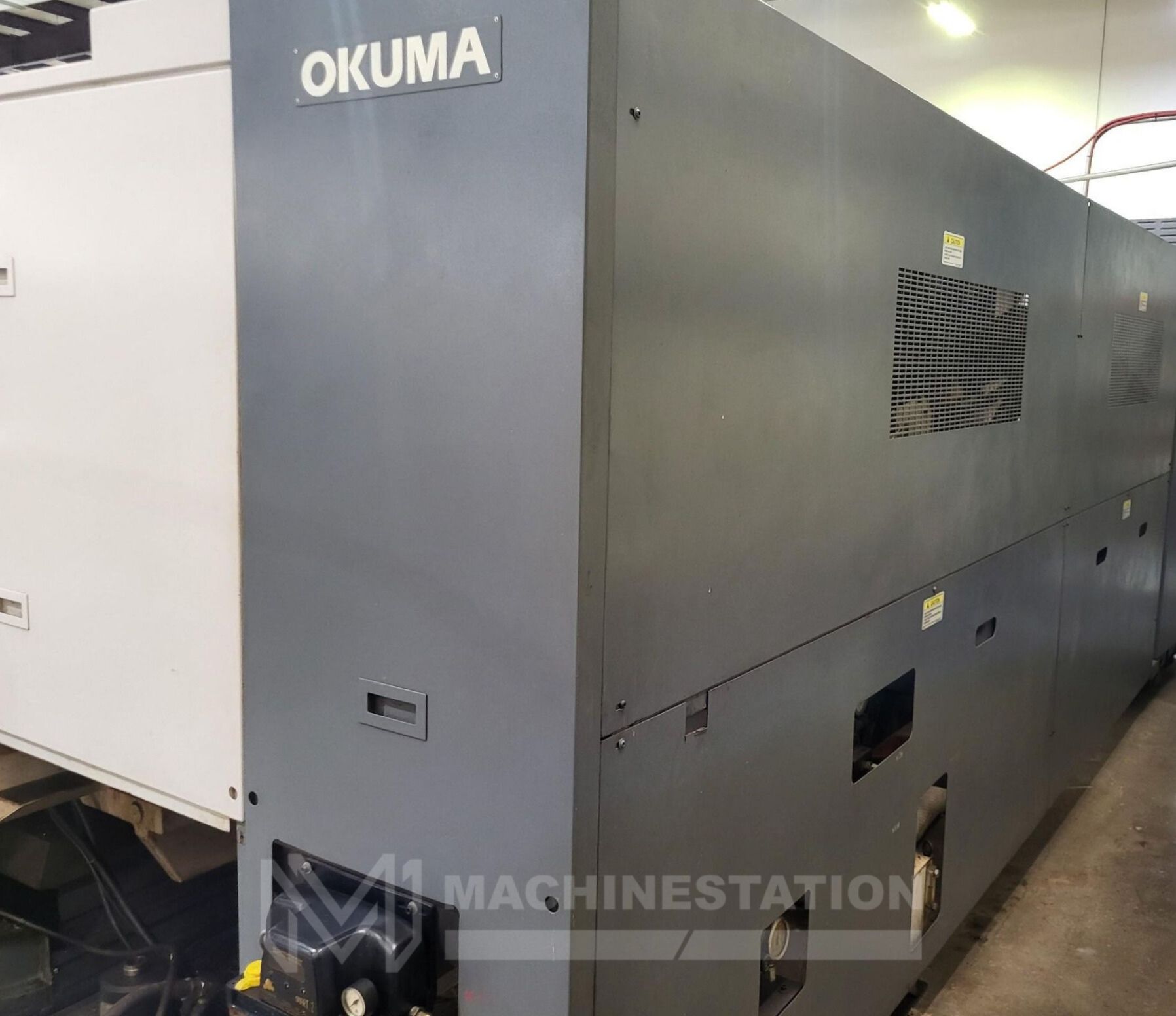

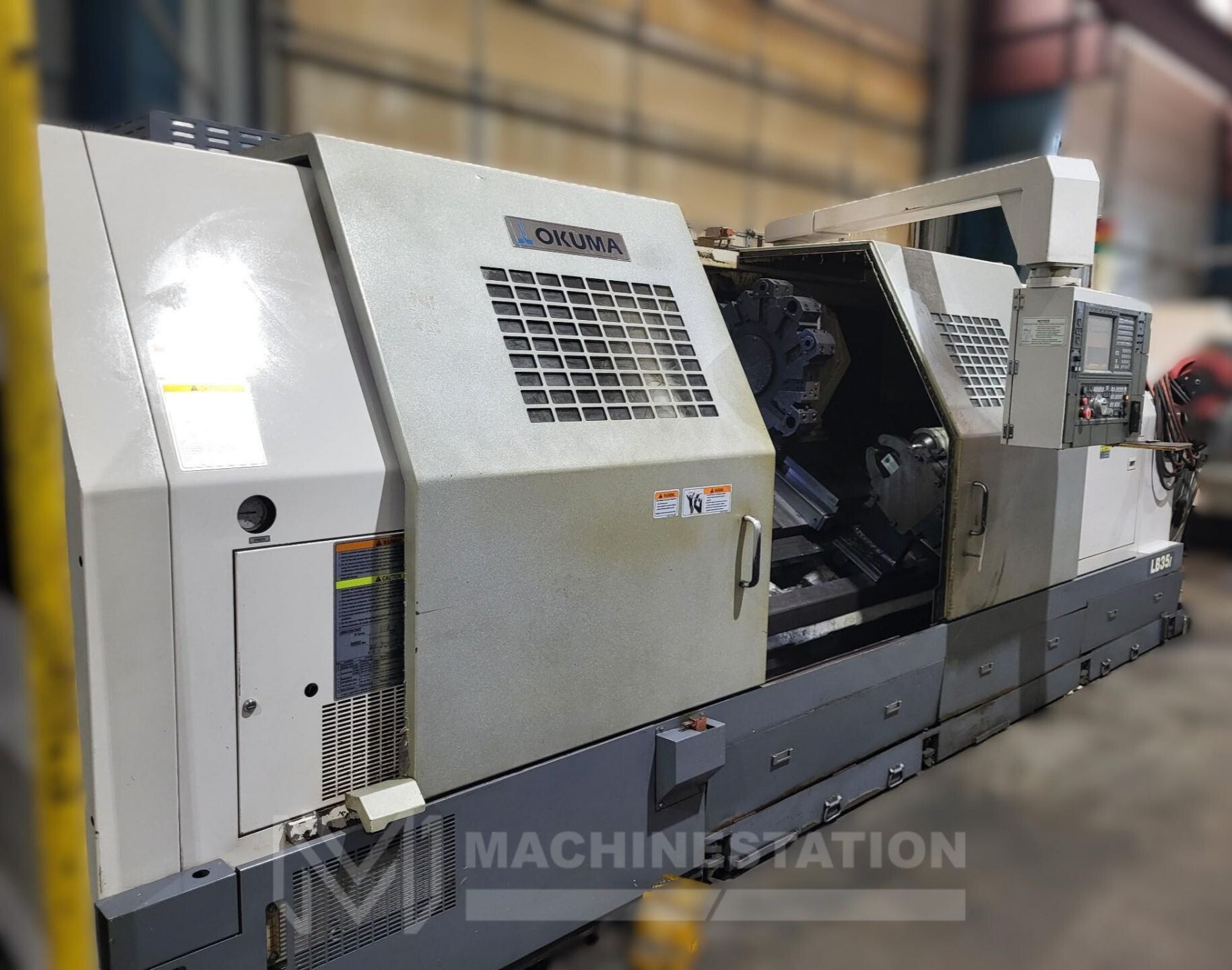

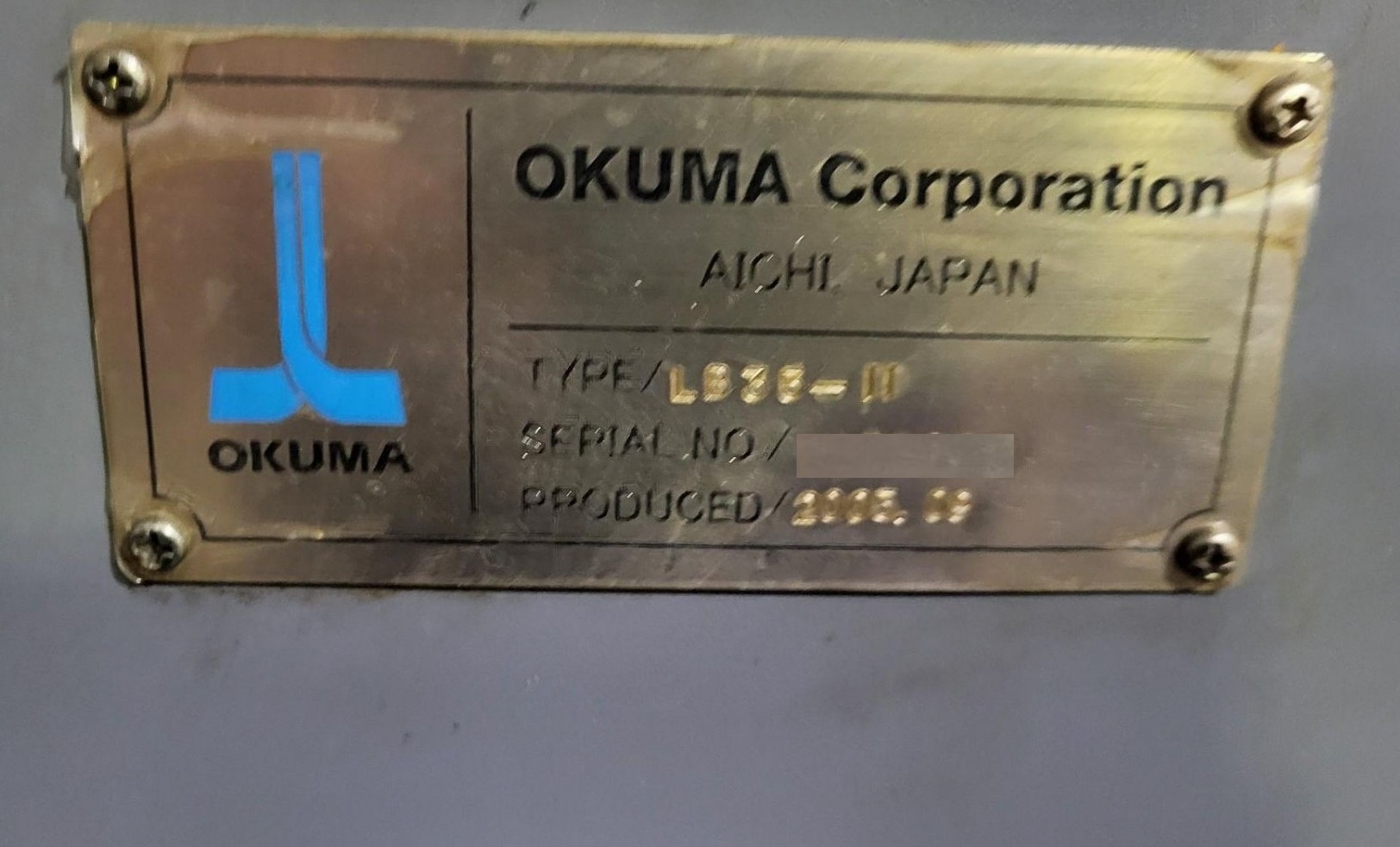

| Make: | Okuma |
| Model: | LB-35II |
| Year: | 2005 |
| Equipped With: |
|---|

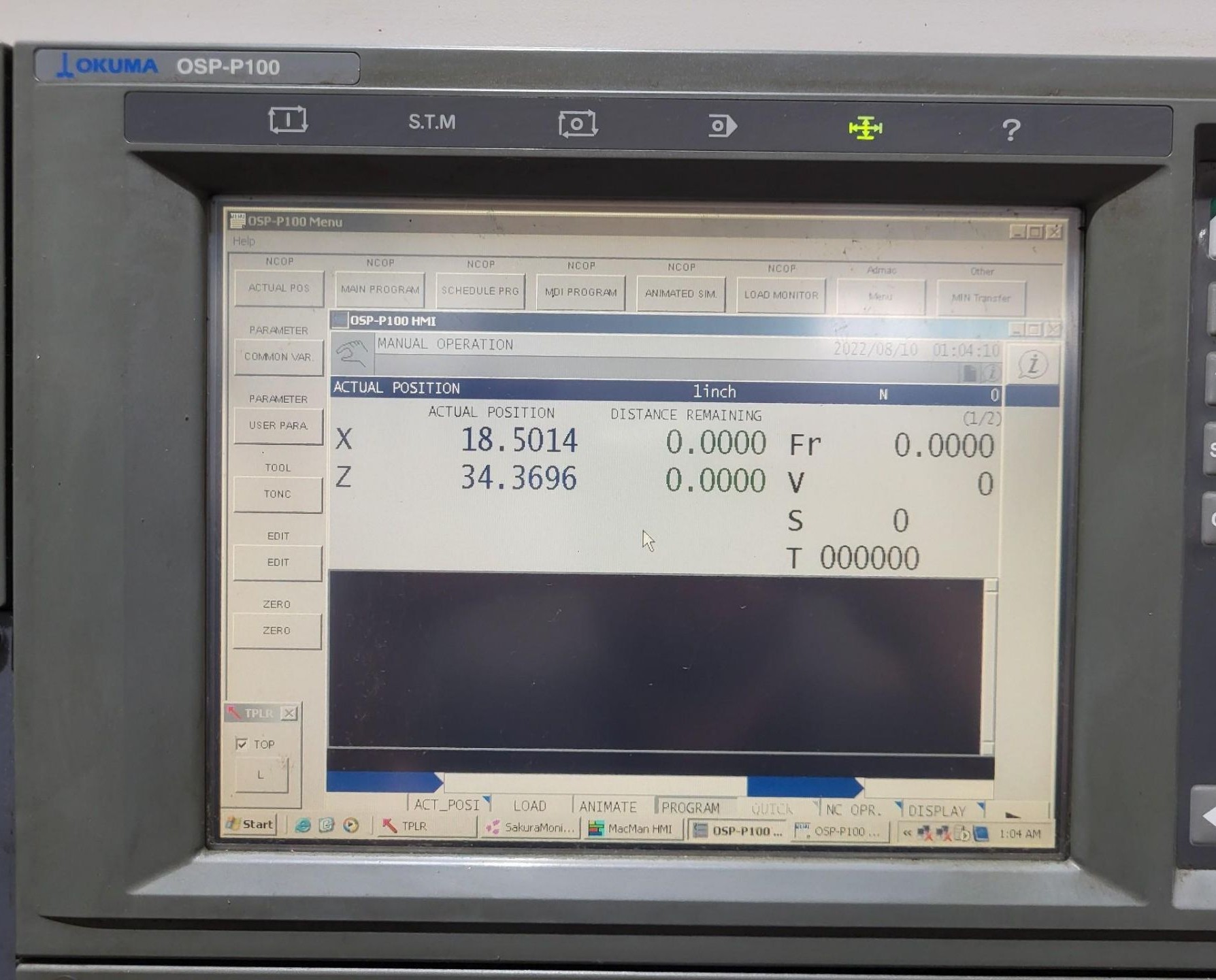

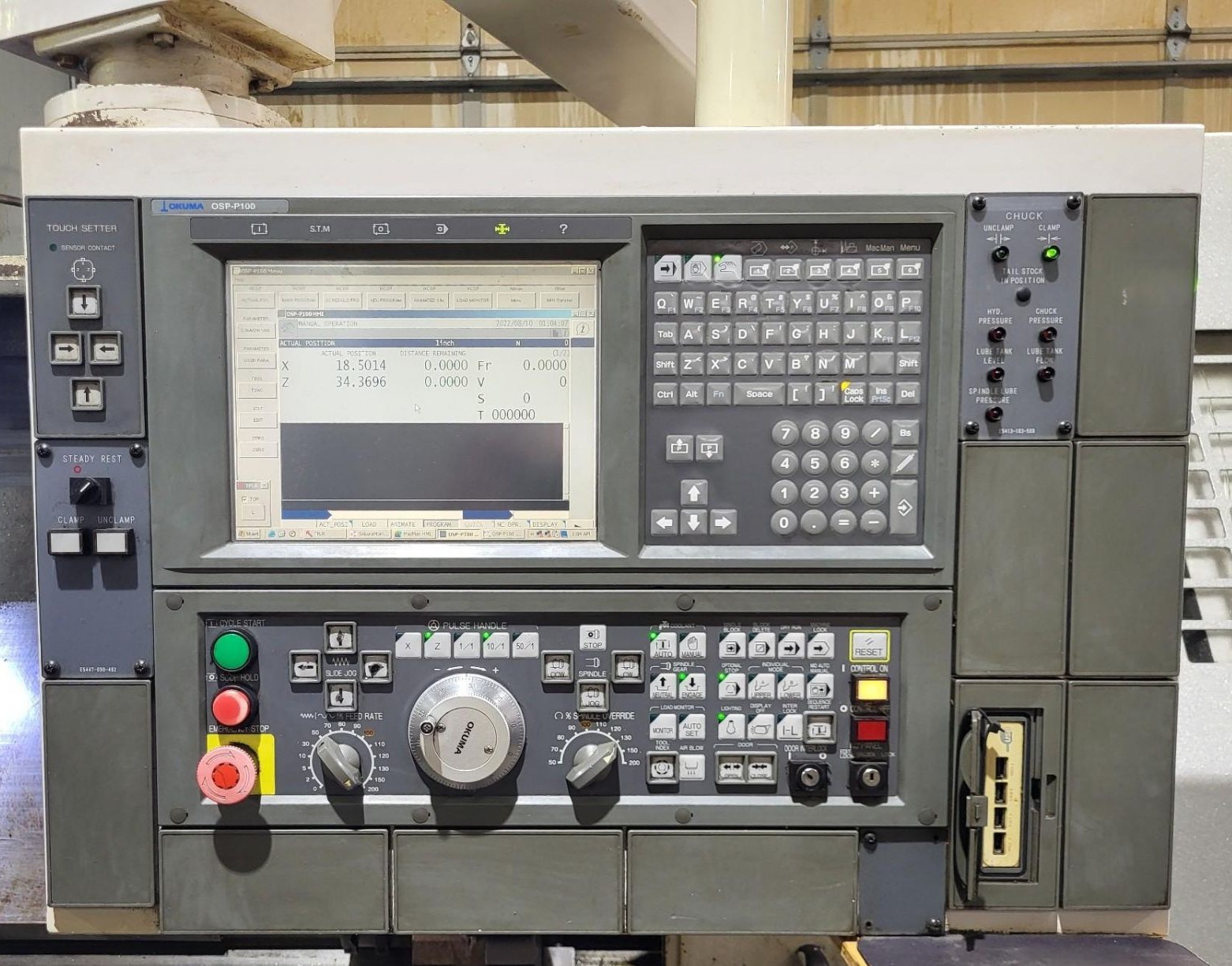

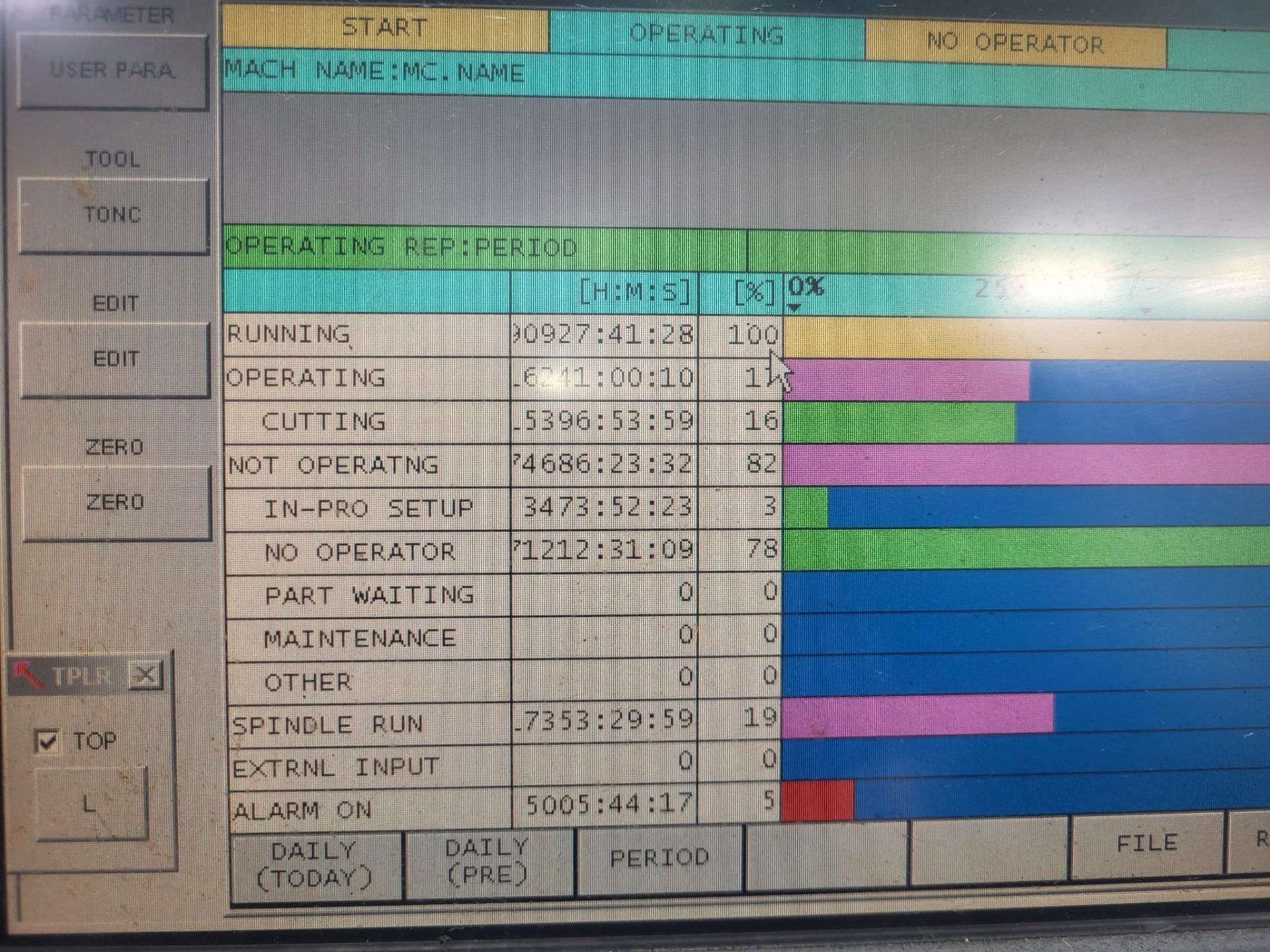

| Okuma OSP-P100 CNC Control |
| Long Bed Box Way Machine |

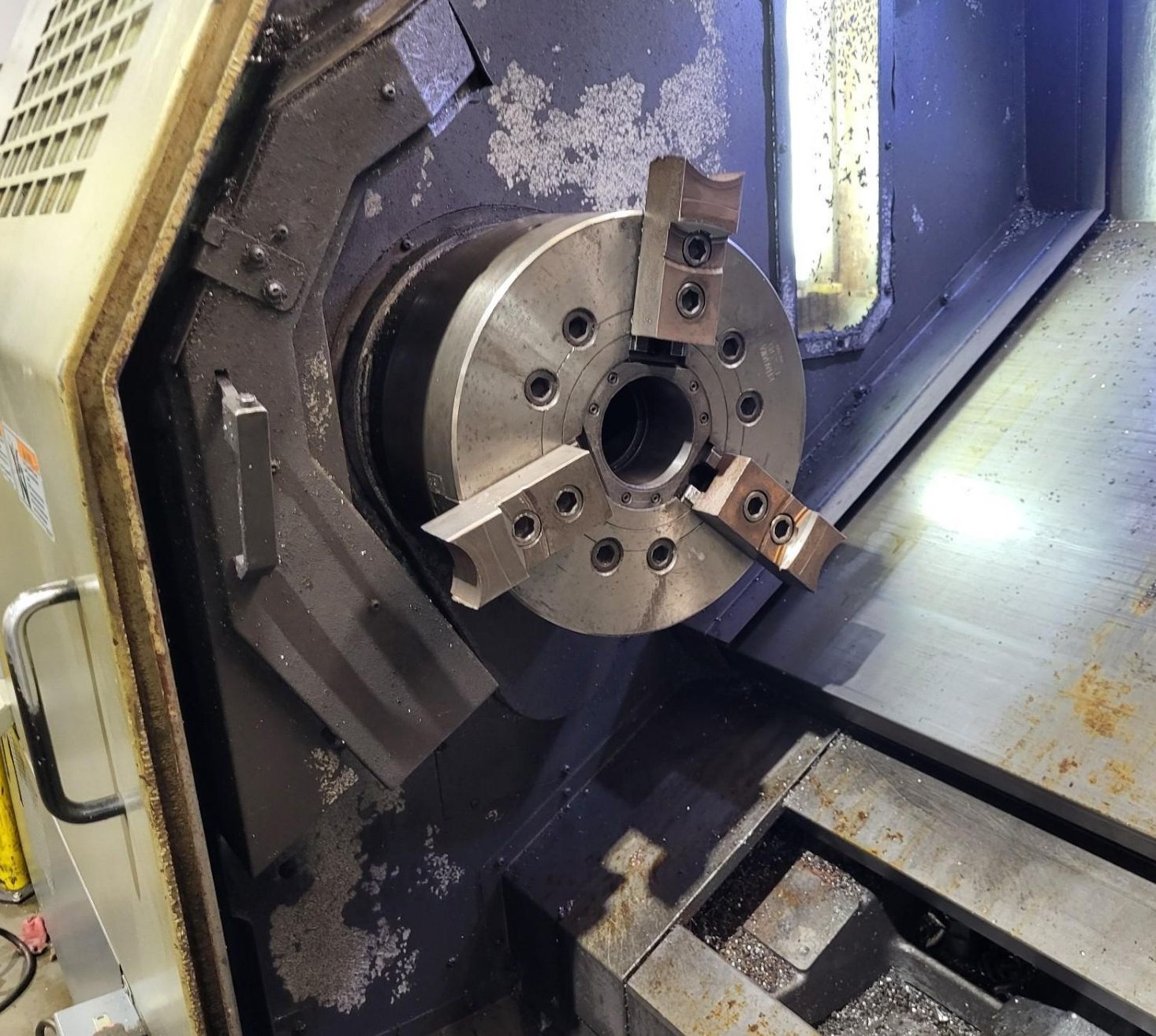

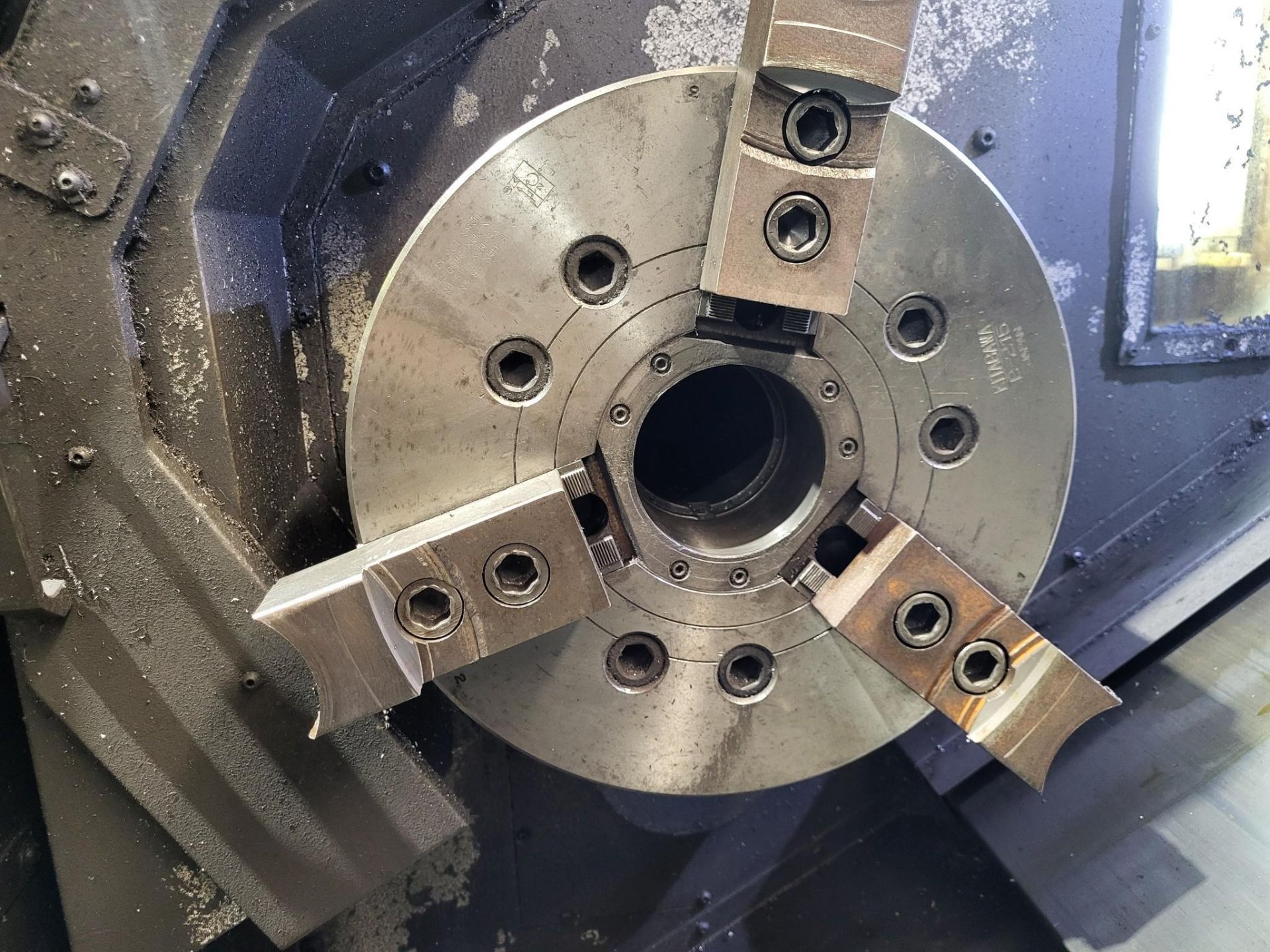

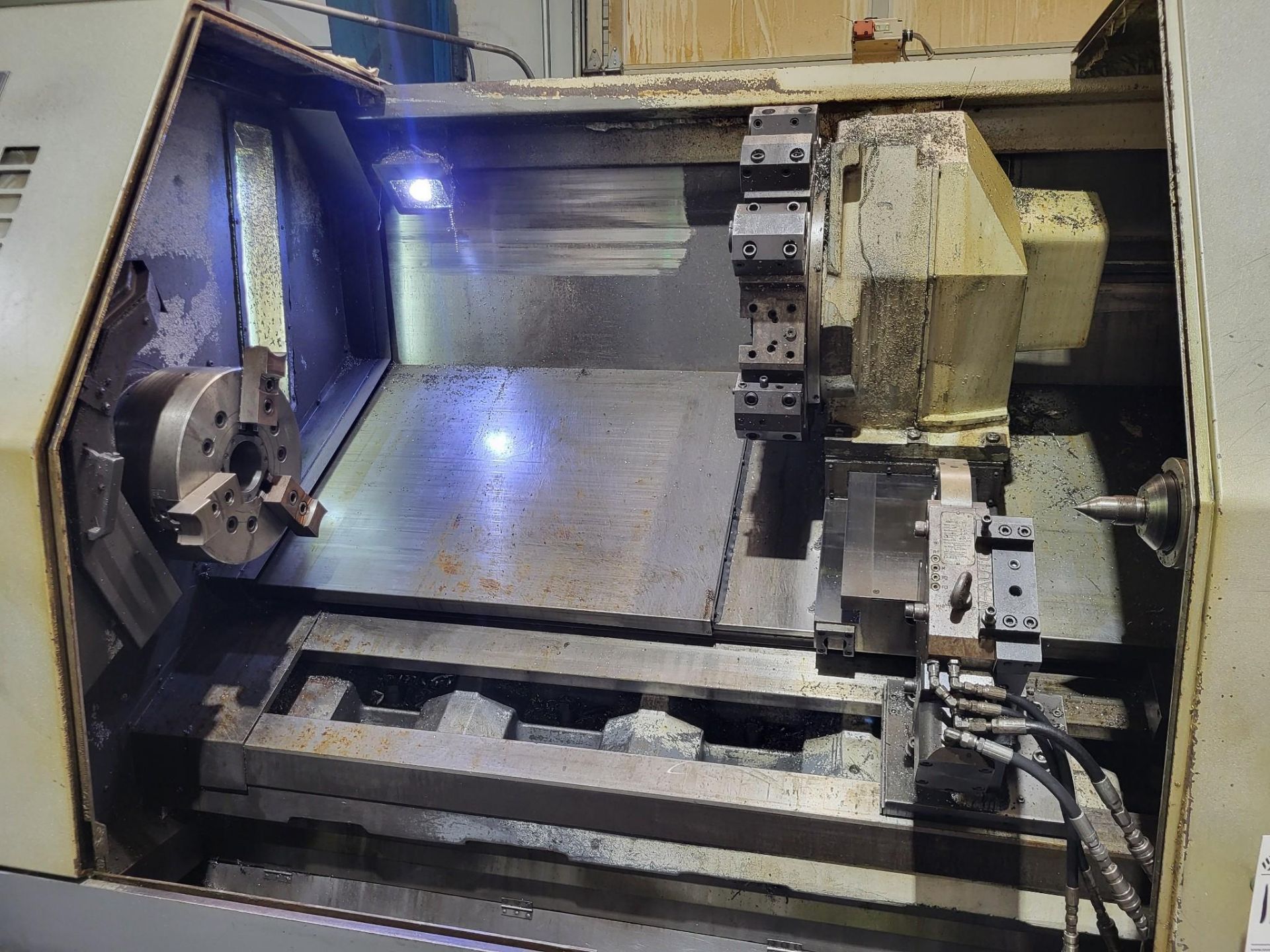

| 15″ 3-Jaw B-215 Kitagawa Hydraulic Chuck |
| 4.33″ Big Bore, A2-11 Spindle |

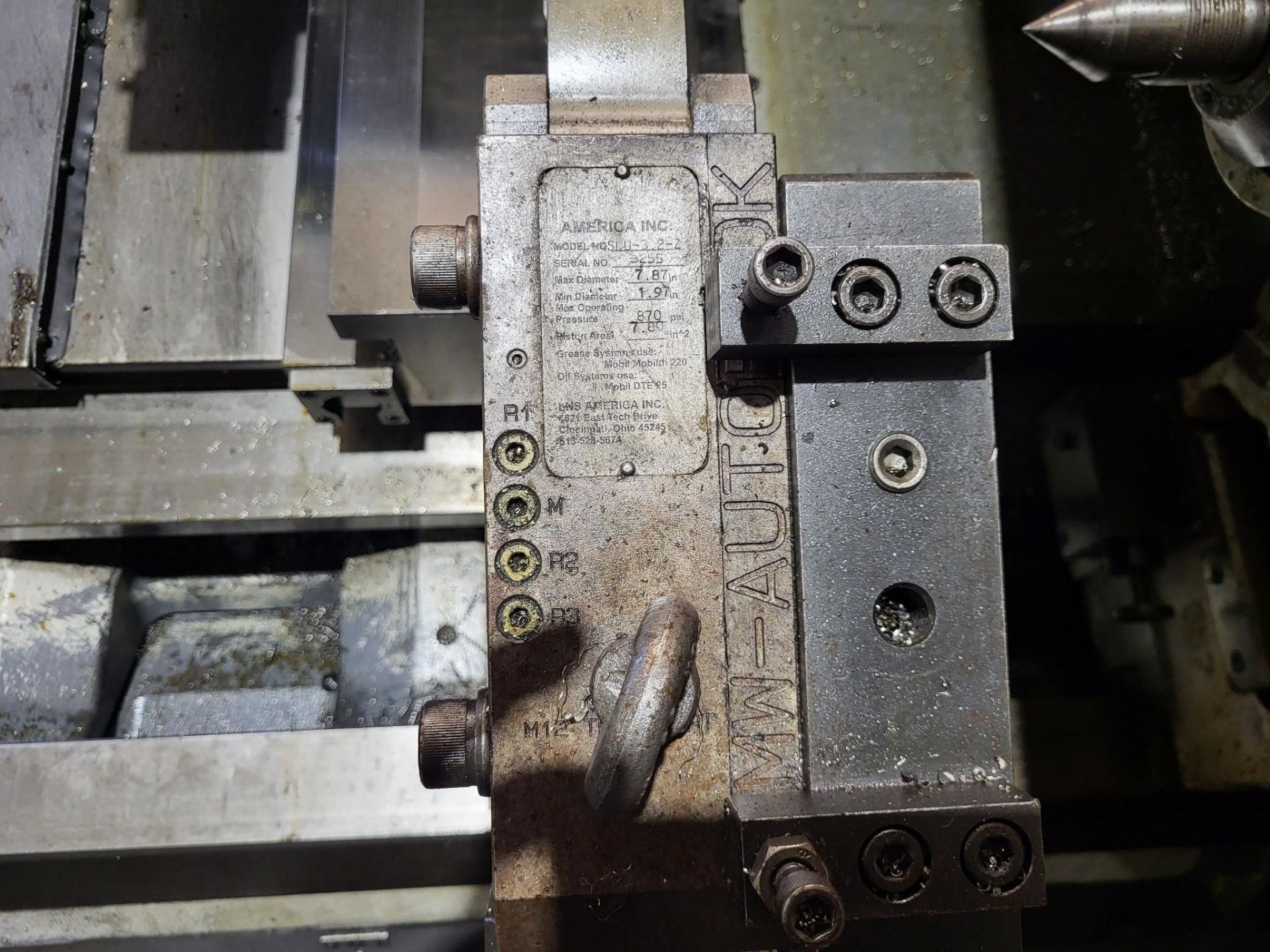

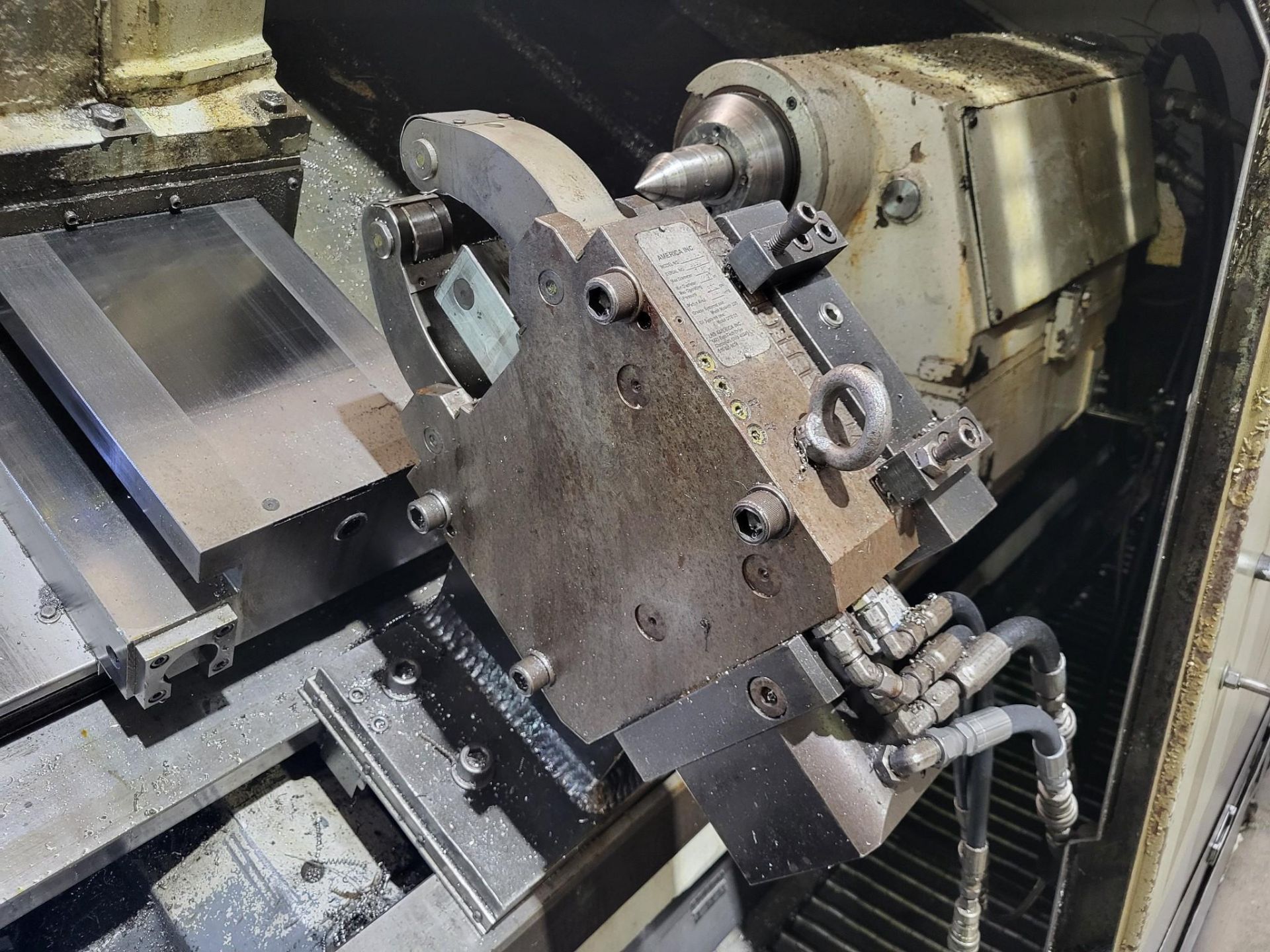

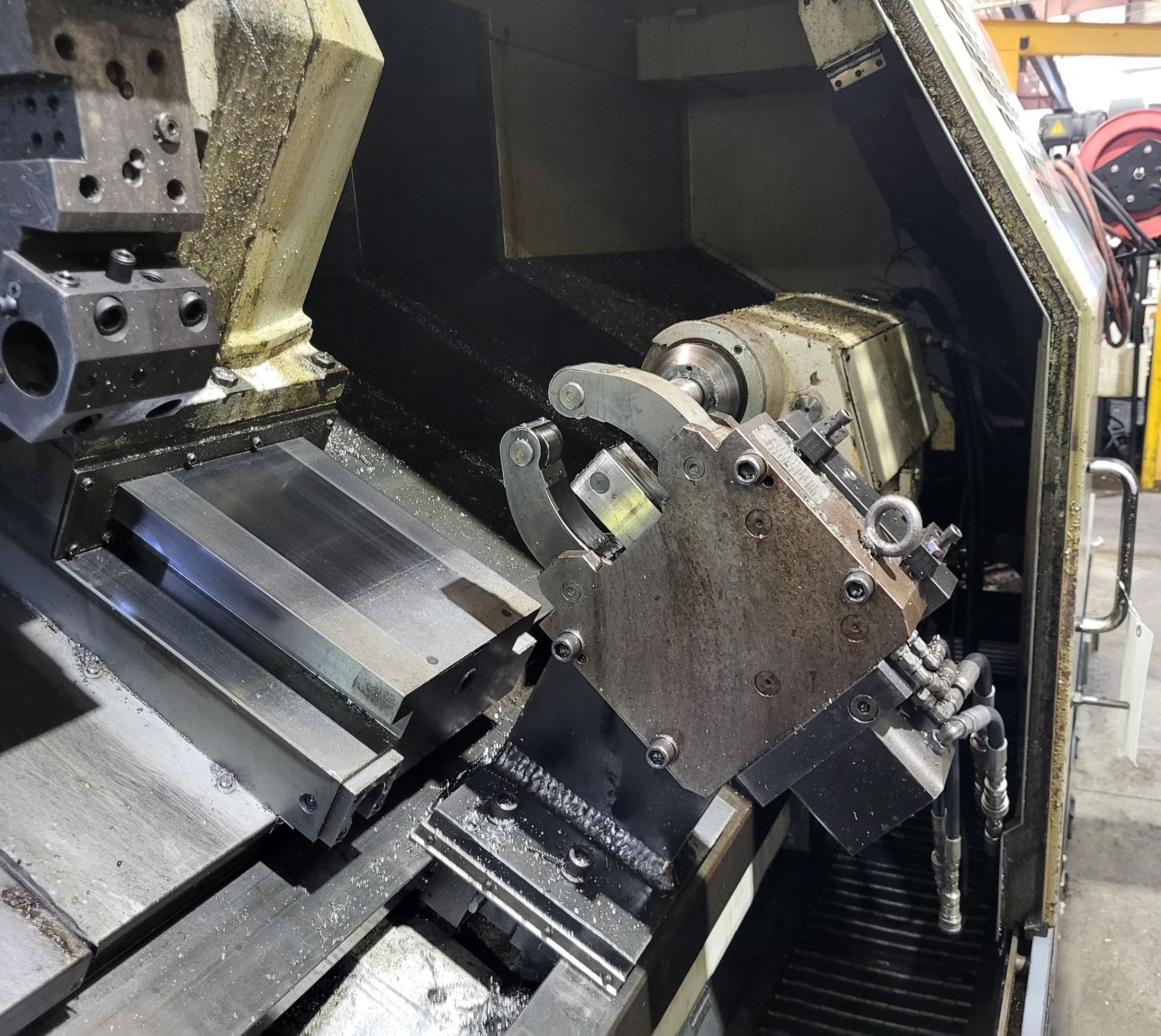

| 1.97″ – 7.87″ (Min – Max) Diameter SMW Autoblok Hydraulic Steady Rest |
| 40 HP High Torque Spindle |
| 12 Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| USB Ports |
| Coolant System |

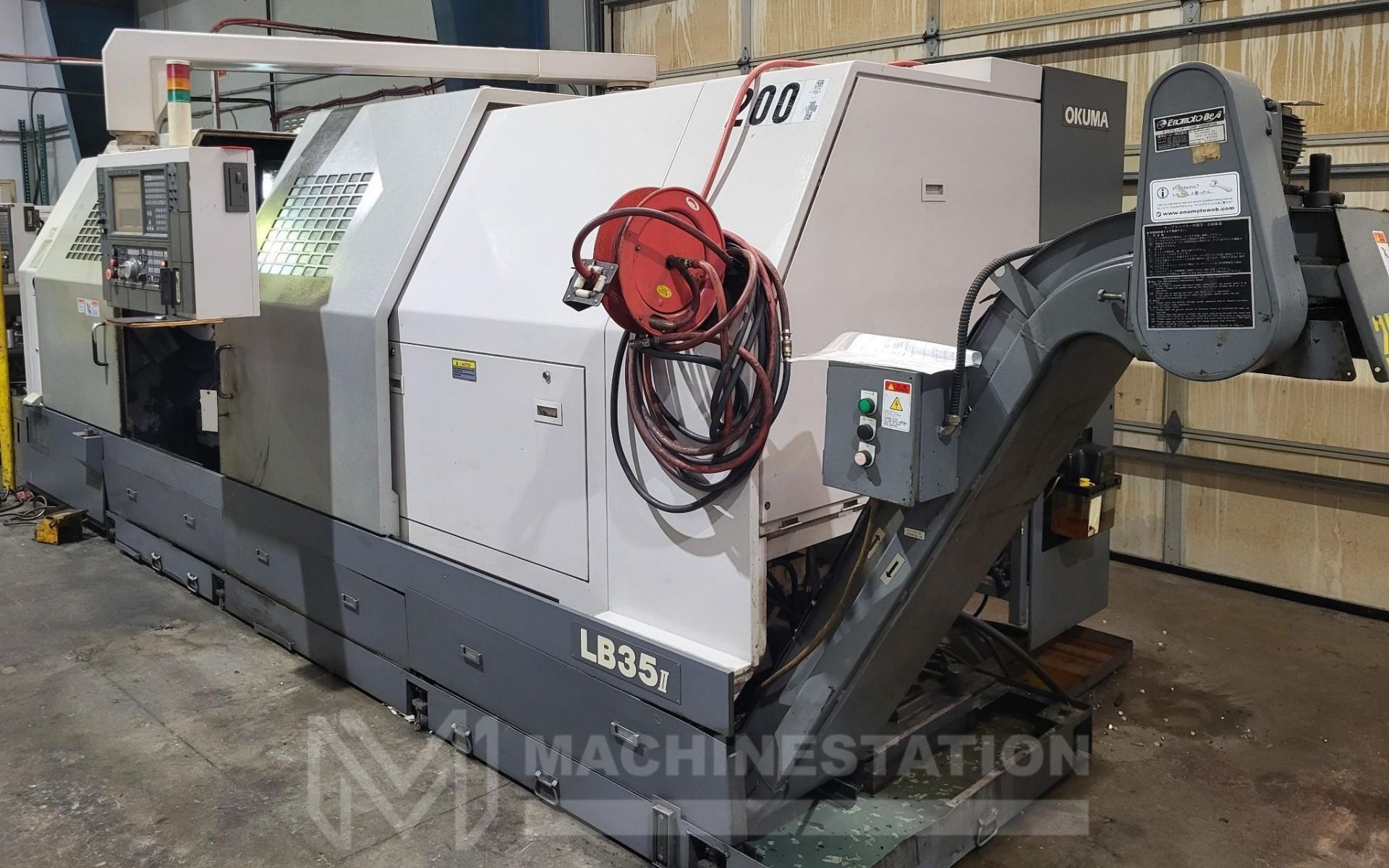

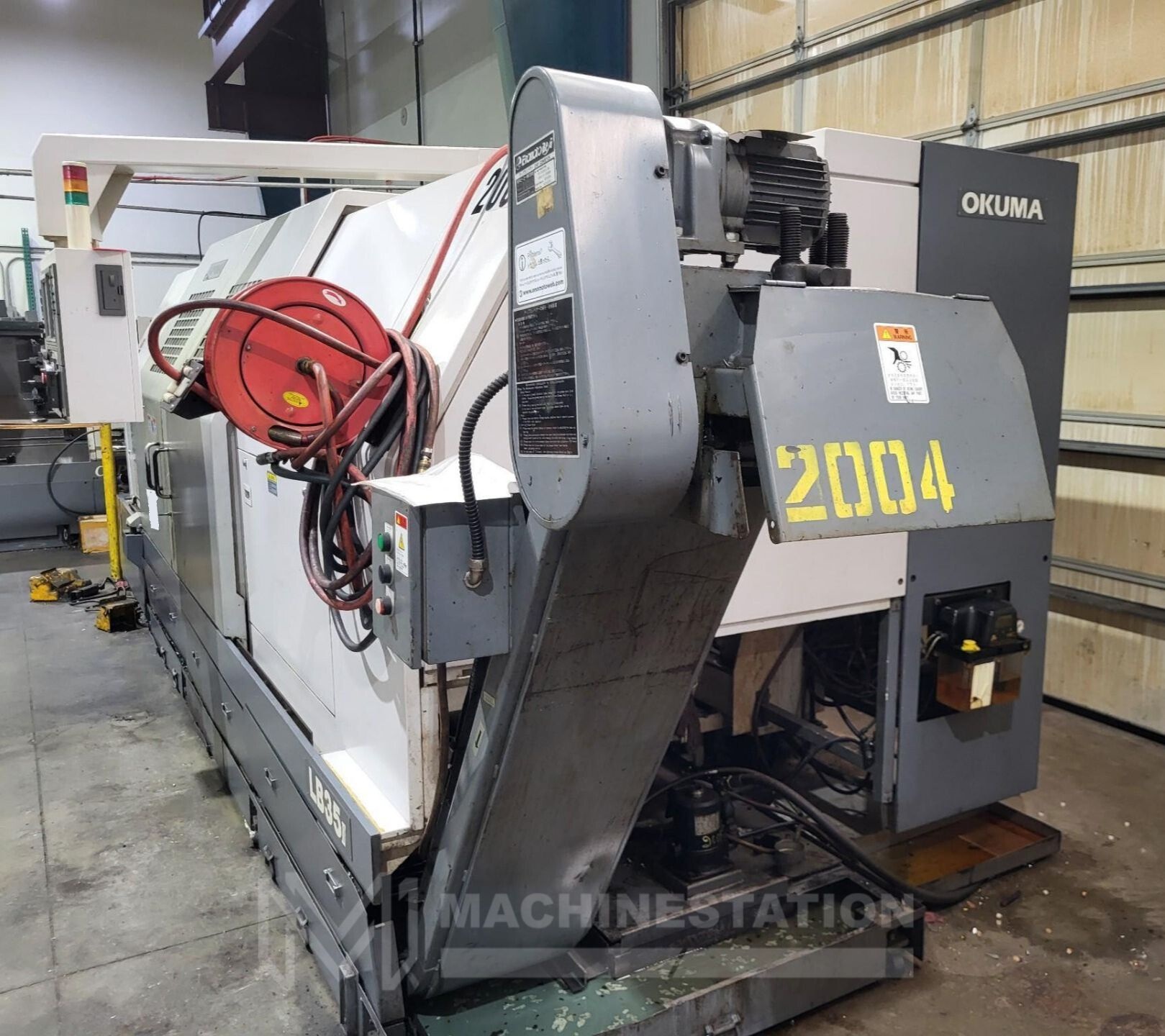

| Chip conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 19.29″ |
| Max Turning Length: 78.74″ |
| Swing Over Bed: 28.38″ |
| Max Over Saddle: 16.93″ |
| Max Bar Capacity: 3.54″ |
| Travel: |
|---|
| X Axis Travel: 13.0″ |
| Z Axis Travel: 81.49″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.33″ |
| Spindle Speed: 2800 RPM |
| Spindle Motor: 40 HP |

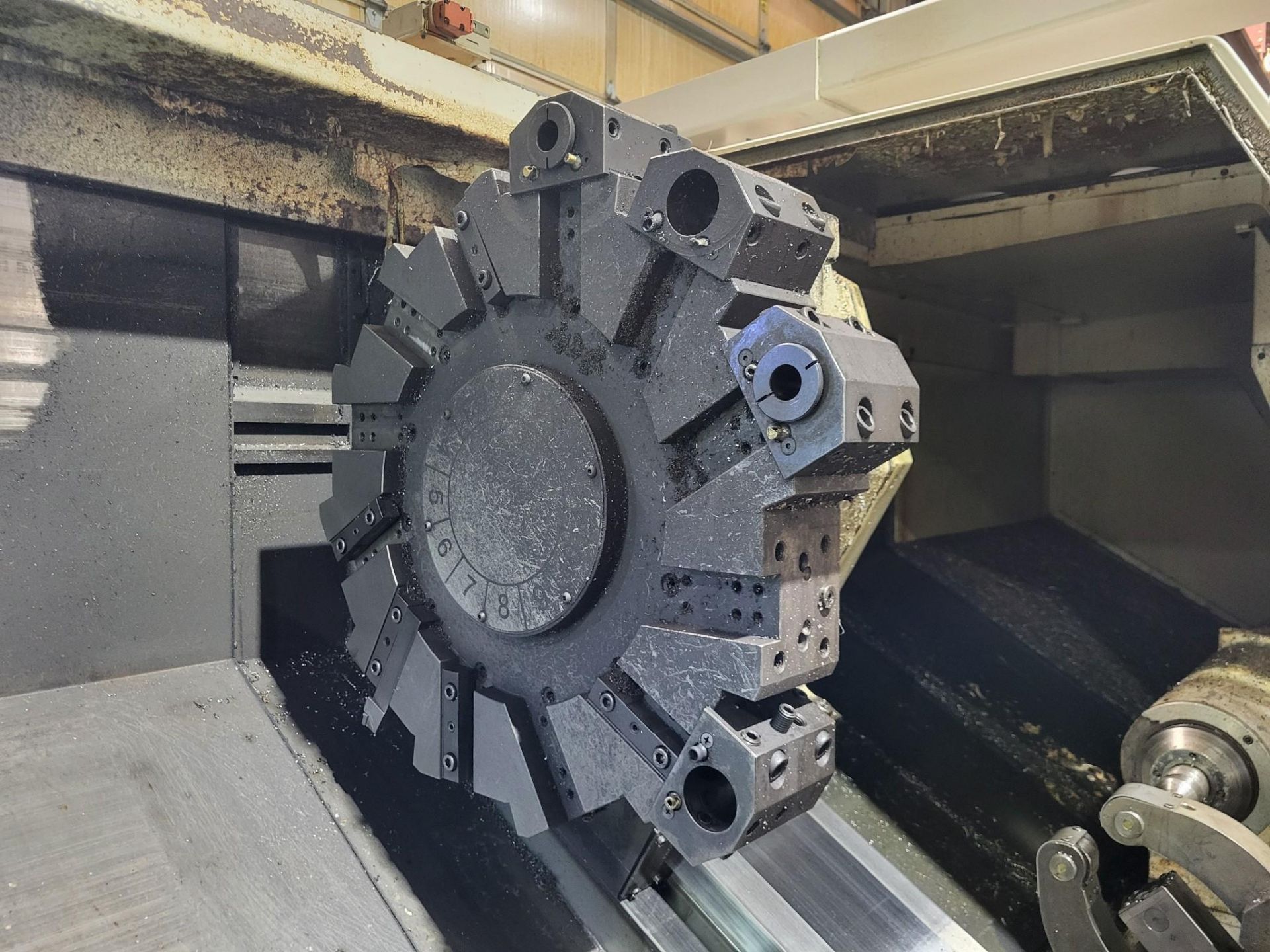

| Turret: |
|---|
| Capacity: 12 Station Turret |
| Turning Tool Shank: 1.0″ |
| Boring Bar Shank Diameter: 2.0″ |
| Tool Holders Type: BMT |

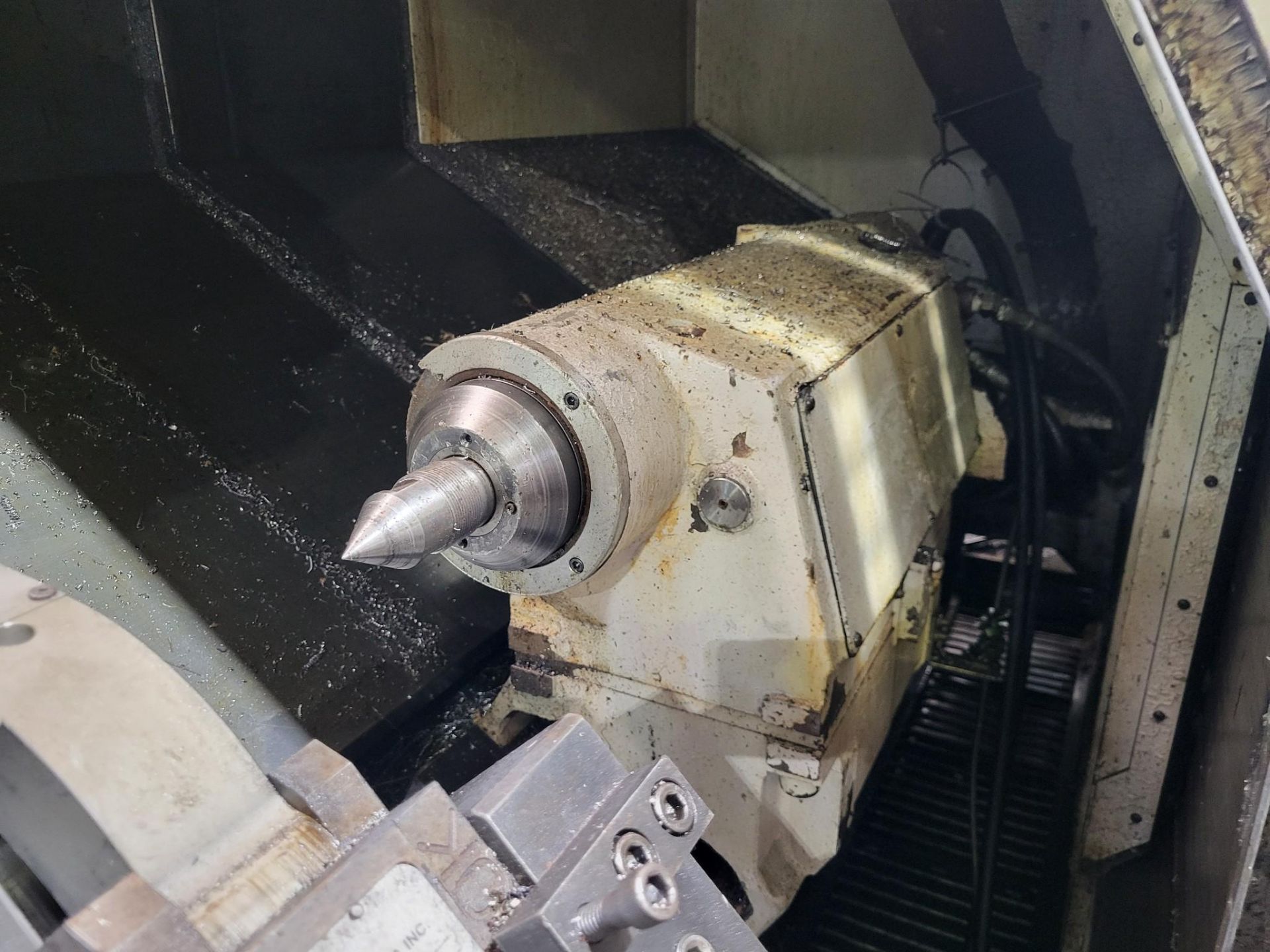

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 4.72″ |
| Tailstock Quill Travel: 5.91″ |
| General: |
|---|

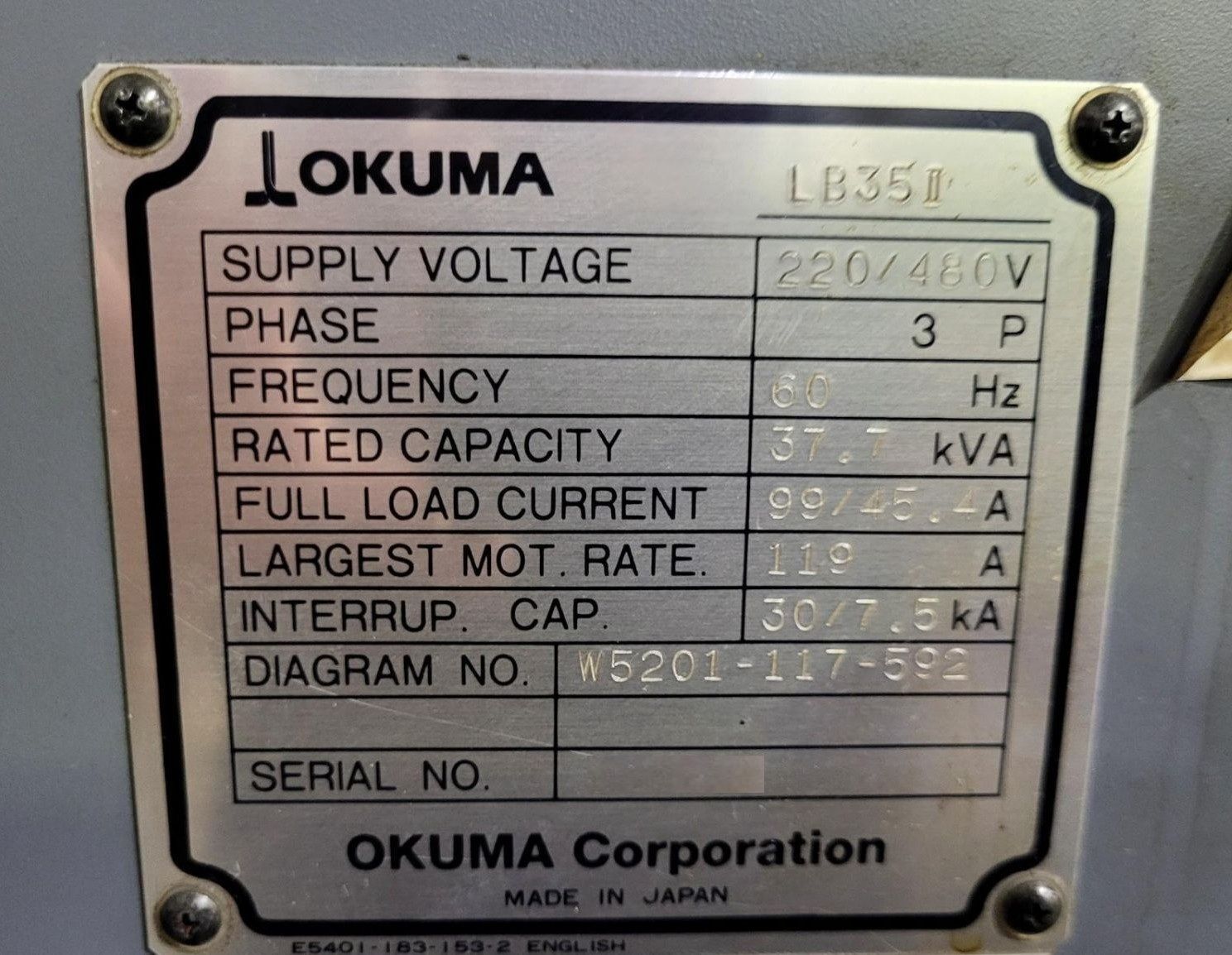

| Power: 220/480v / 37.7kva / 3-Phase |
| Overall Dimensions: 221″ x 102″ x 90″ High Approx. |
| Weight: 28,380 lbs. Approx. |
