*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

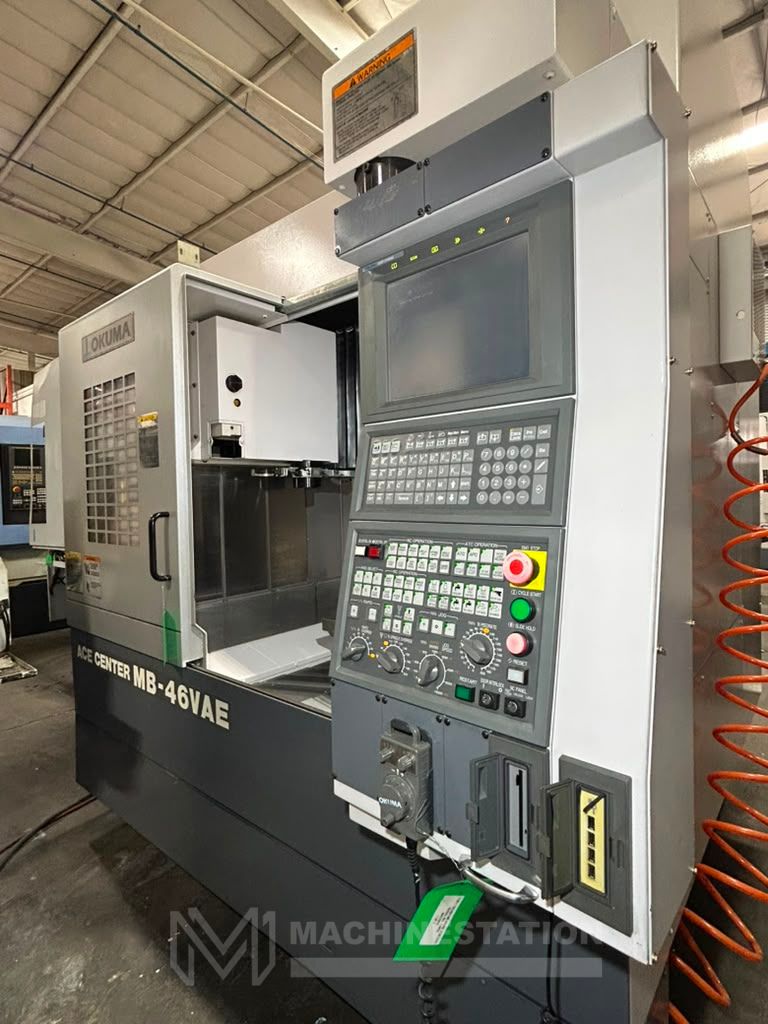

| Make: | Okuma |
| Model: | MB-46VAE |
| Year: | 2005 |
| Condition: | Used – Good |
| Features: |
|---|

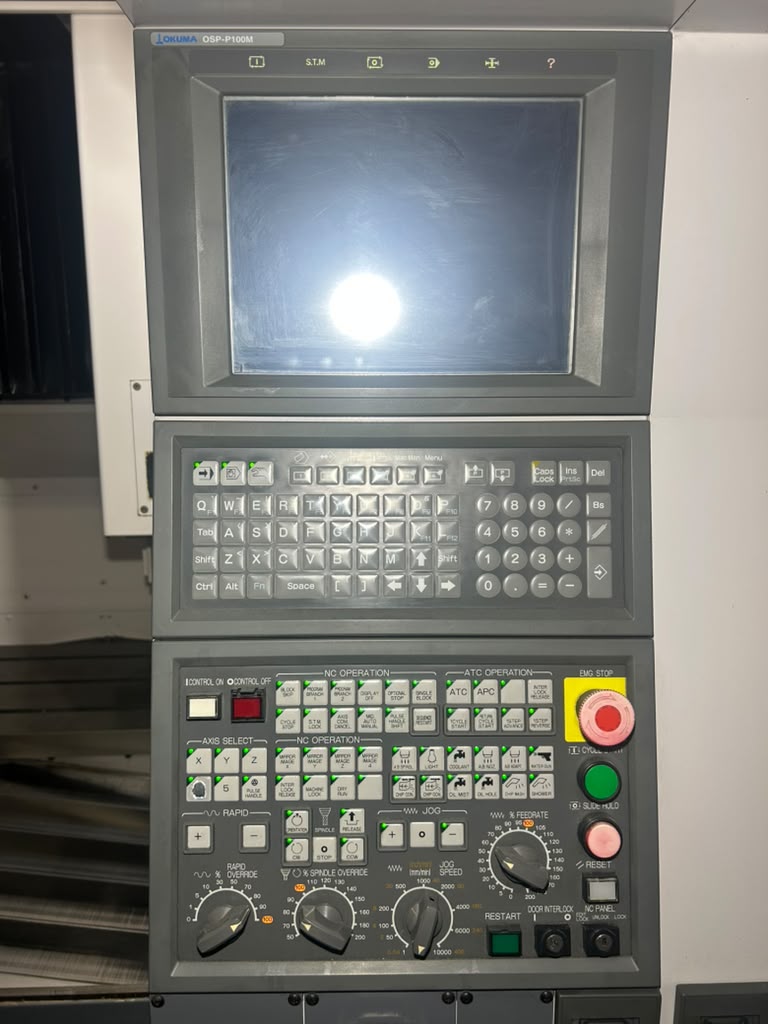

| Okuma OSP-P100M CNC Control |
| 15,000 RPM High Speed Spindle |

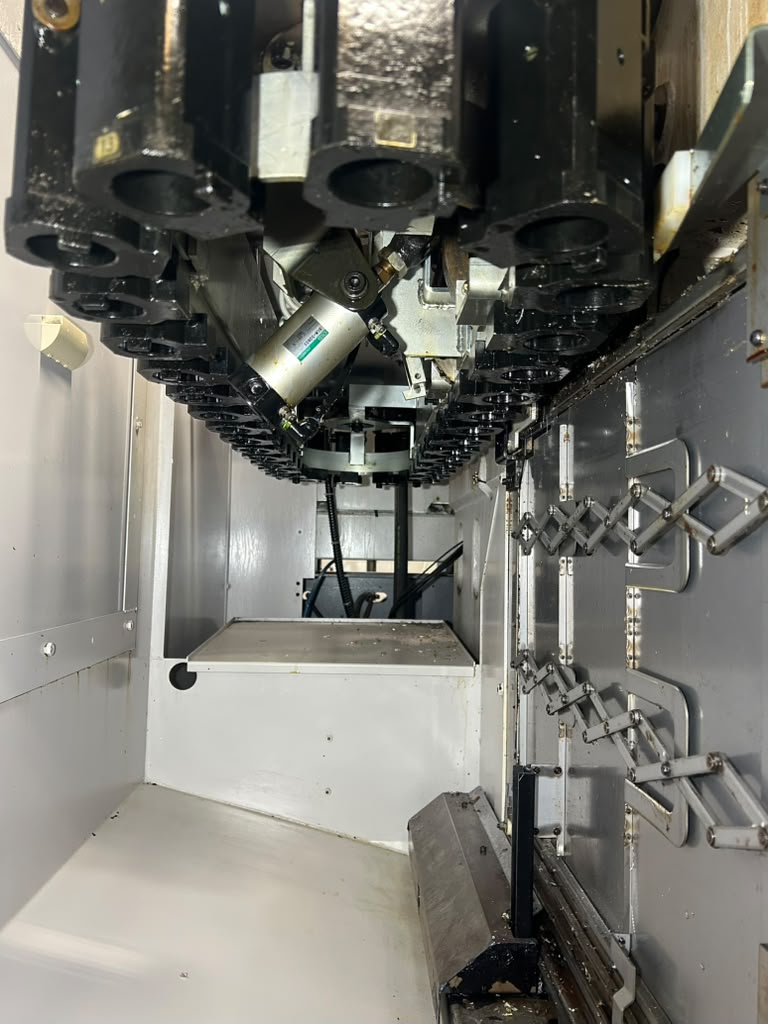

| 32 Station Automatic tool changer |
| CAT40 Taper Spindle |

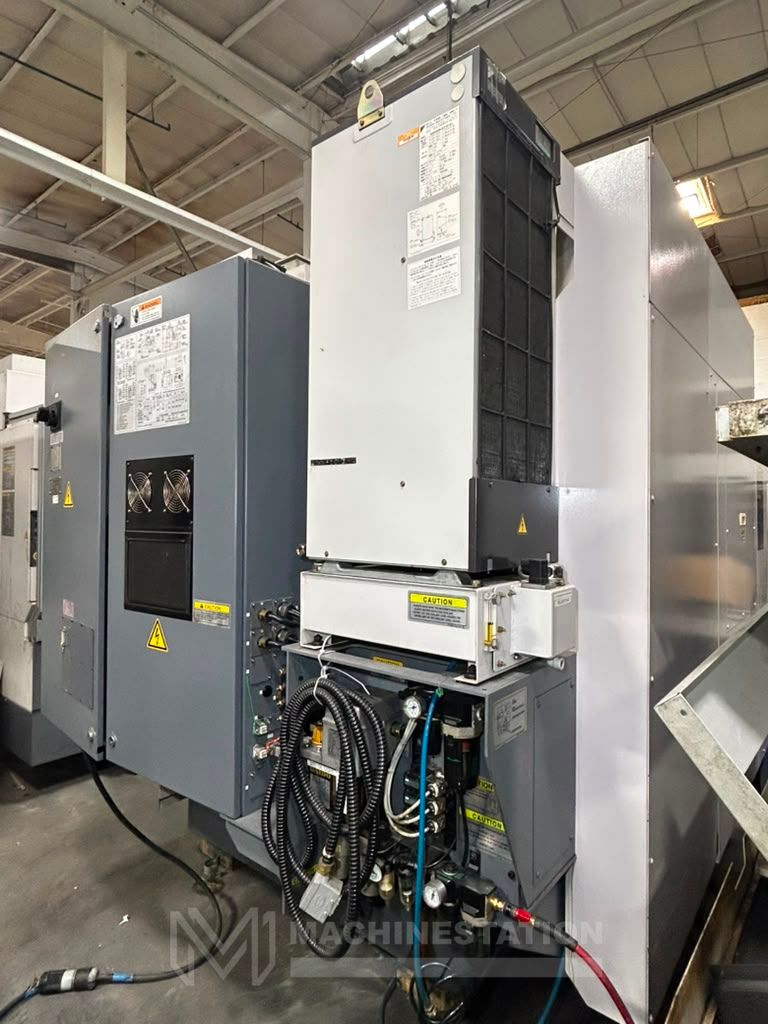

| Spindle Chiller Unit |
| Tool Presetter |
| PCMCIA Card Slot & USB Port |
| MPG Control |
| Coolant Tank |
| Travels: |
|---|
| X-Axis: 30.00″ |
| Y-Axis: 18.11″ |
| Z-Axis: 18.11″ |
| X, Y Axis Rapid Traverse rates: 1575 IPM |
| Z Axis Rapid Traverse rates: 1260 IPM |
| Cutting Feedrate: 1260 IPM |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 24.02″ |

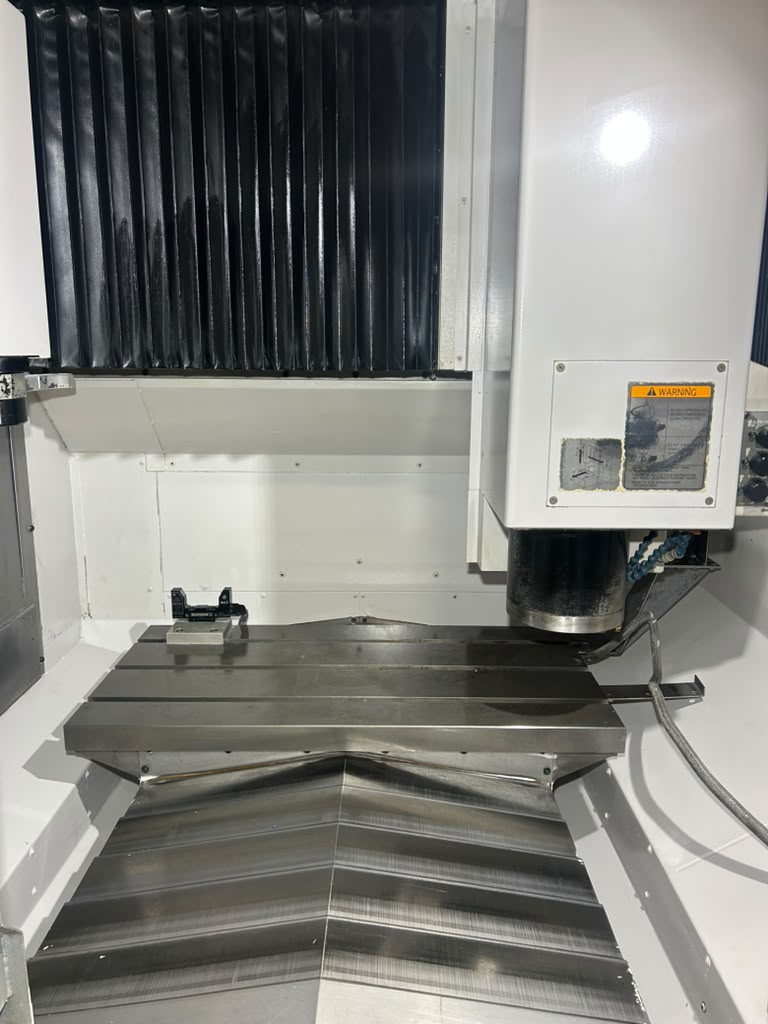

| Table: |
|---|
| Length: 39.37″ |
| Width: 18.11″ |
| T-Slot no.: 3 |
| Max Weight on Table: 1540 lbs |

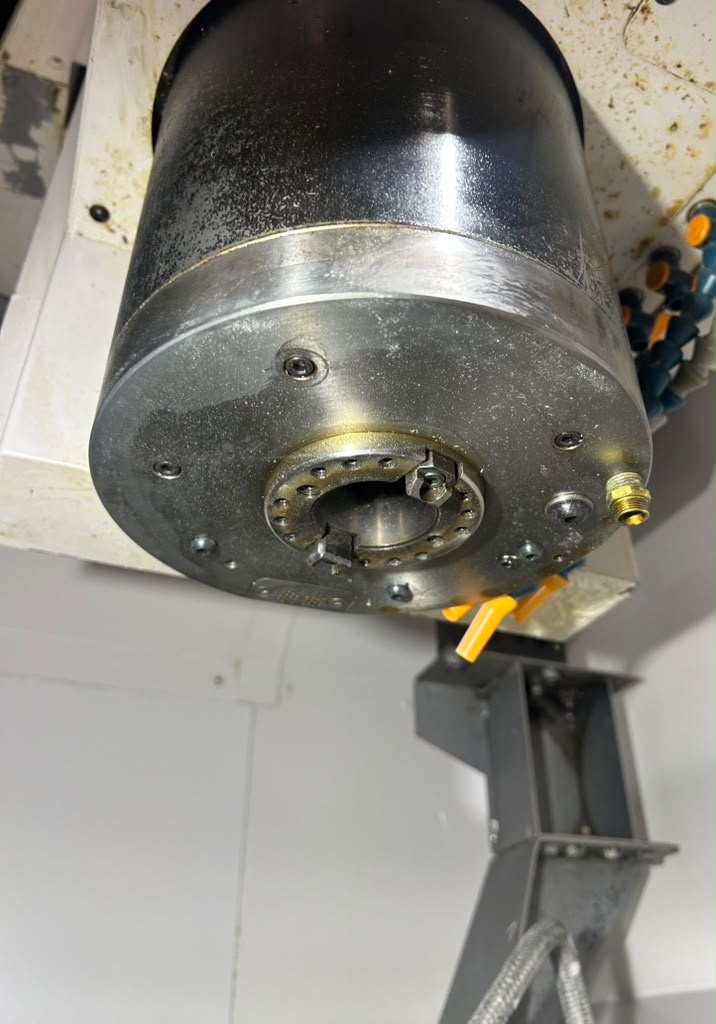

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 18 lbs |
| Max Tool Length: 11.81″ |
| Max Tool Diameter: 3.54″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

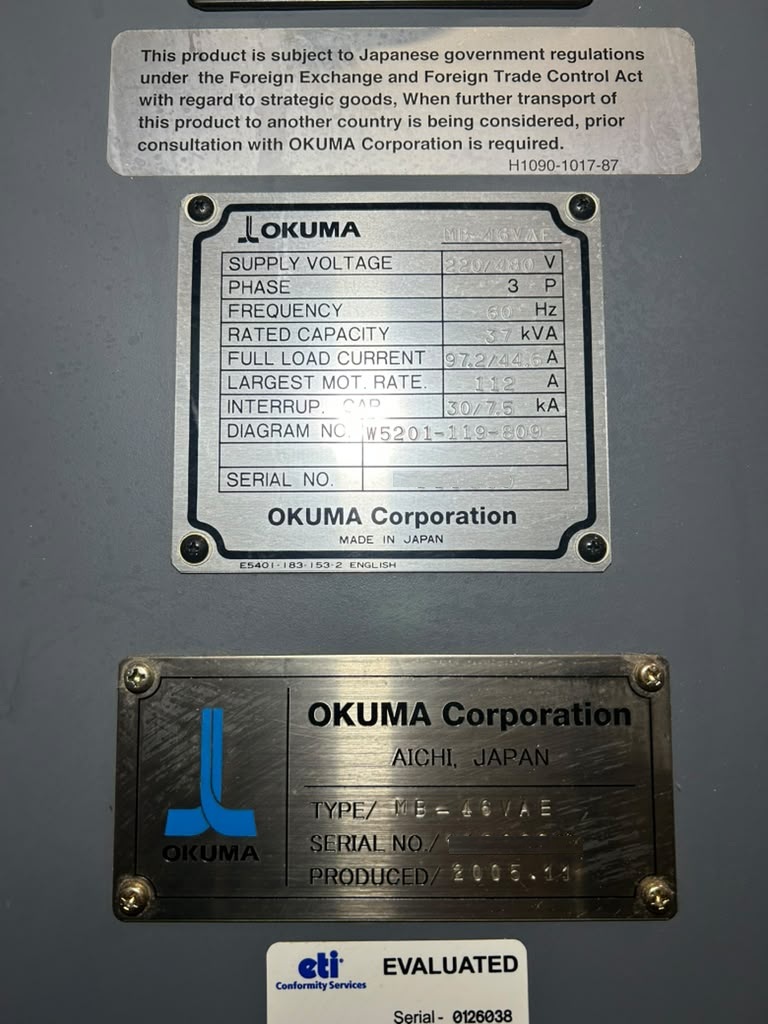

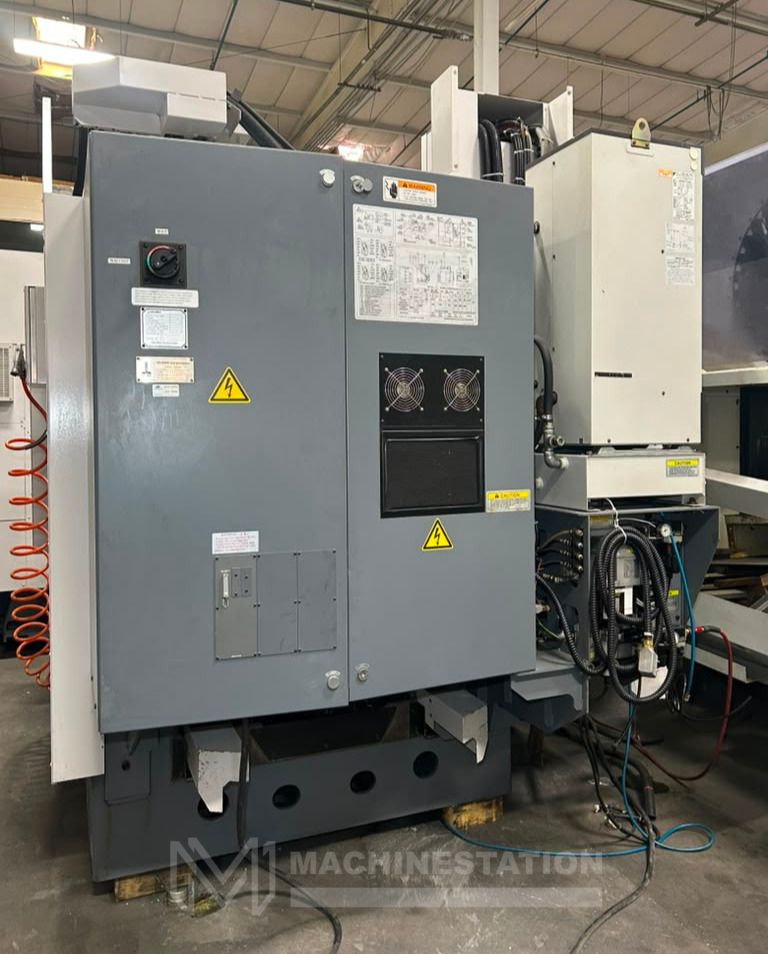

| Power: 220v/480v / 37kva / 3-Phase |
| Overall Dimensions: 88″ x 111″ x 108″ High Approx. |
| Weight: 15,120 lbs. Approx. |
