Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

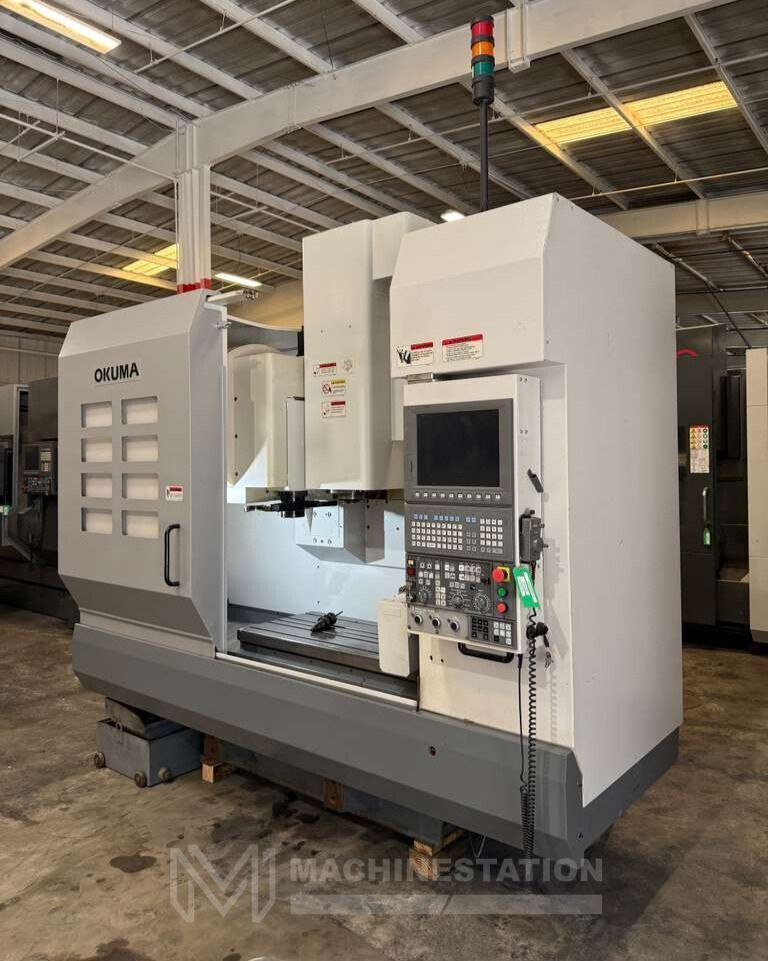

| Make: | Okuma |

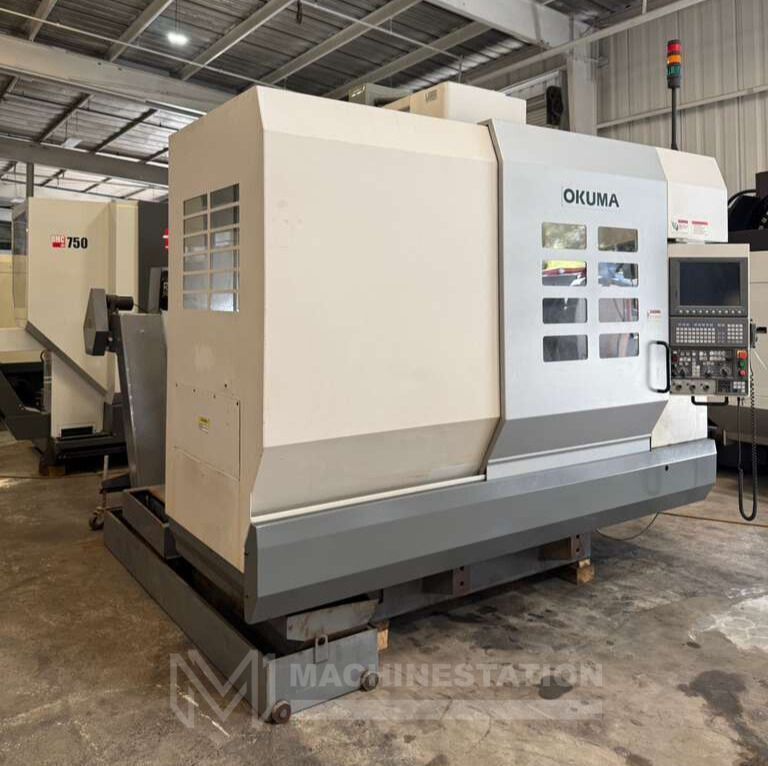

| Model: | MC-V4020 |
| Year: | 2007 |
| Features: |
|---|

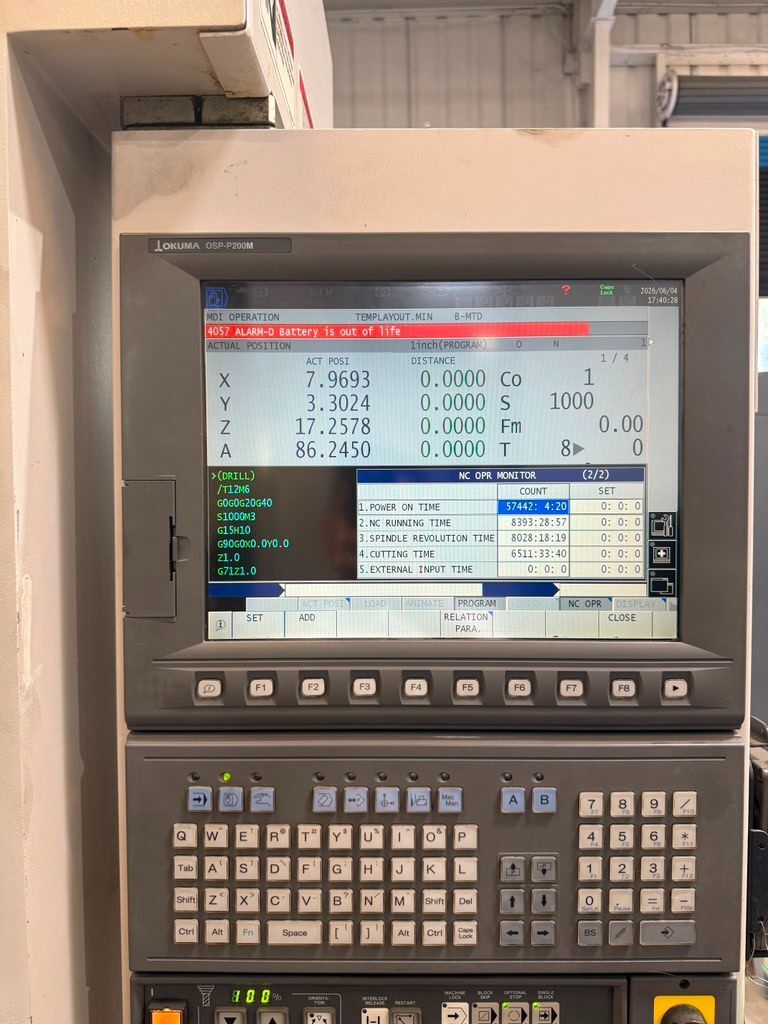

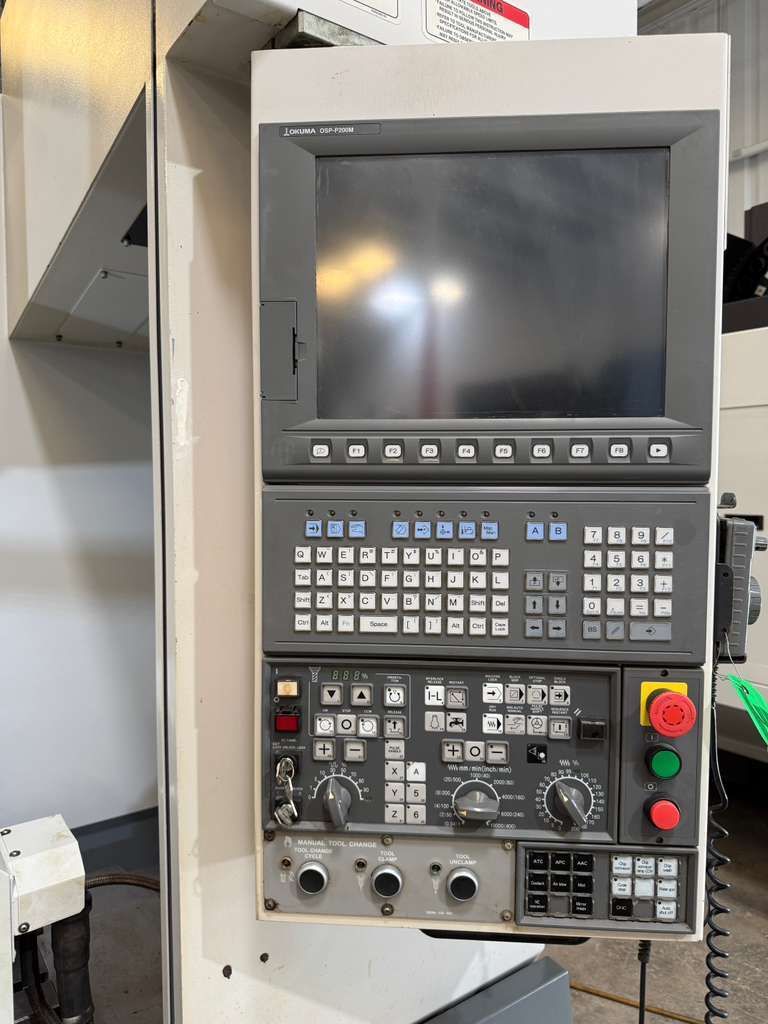

| Okuma OSP-P200M CNC Control |

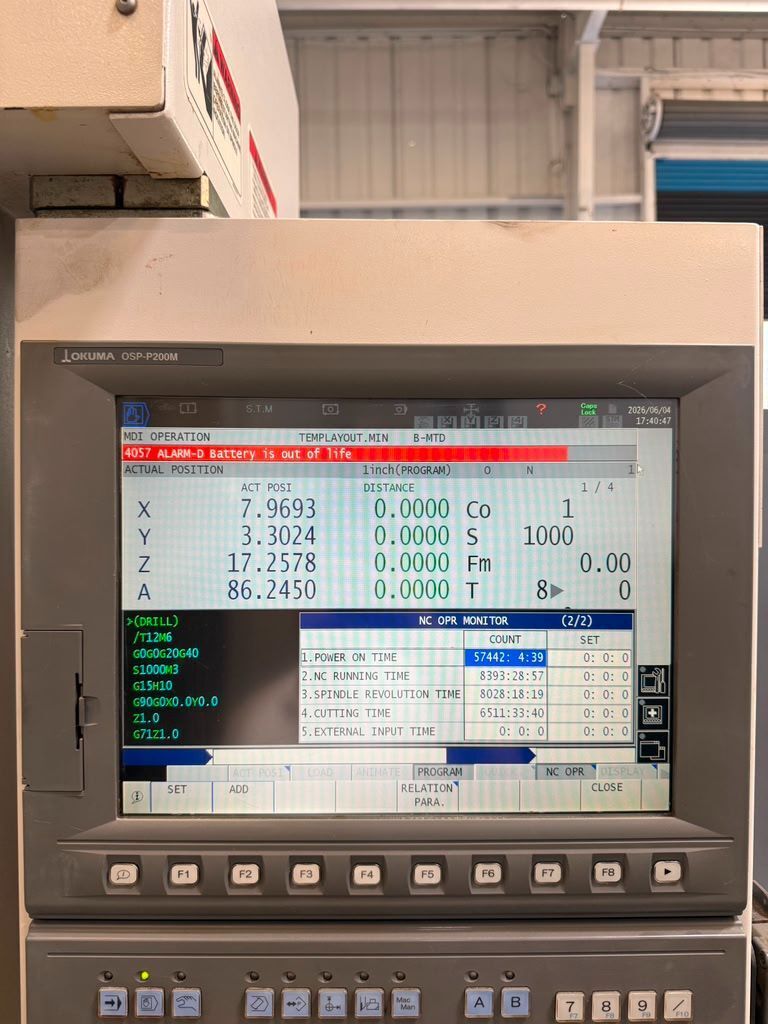

| 6,511 Hours Cutting Time |

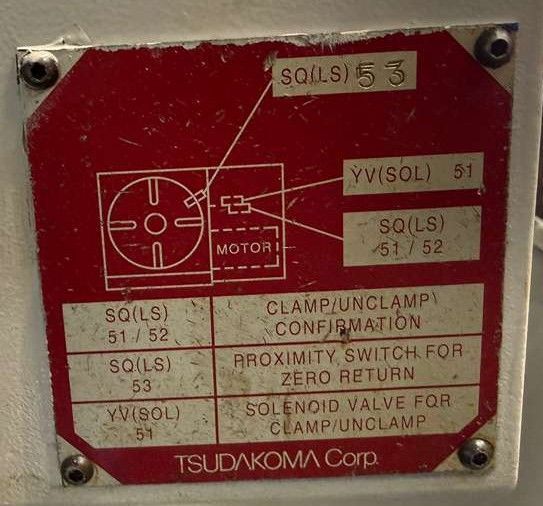

| Tsudakoma 4th Axis Rotary Table |
| 8,000 RPM Precision Spindle |

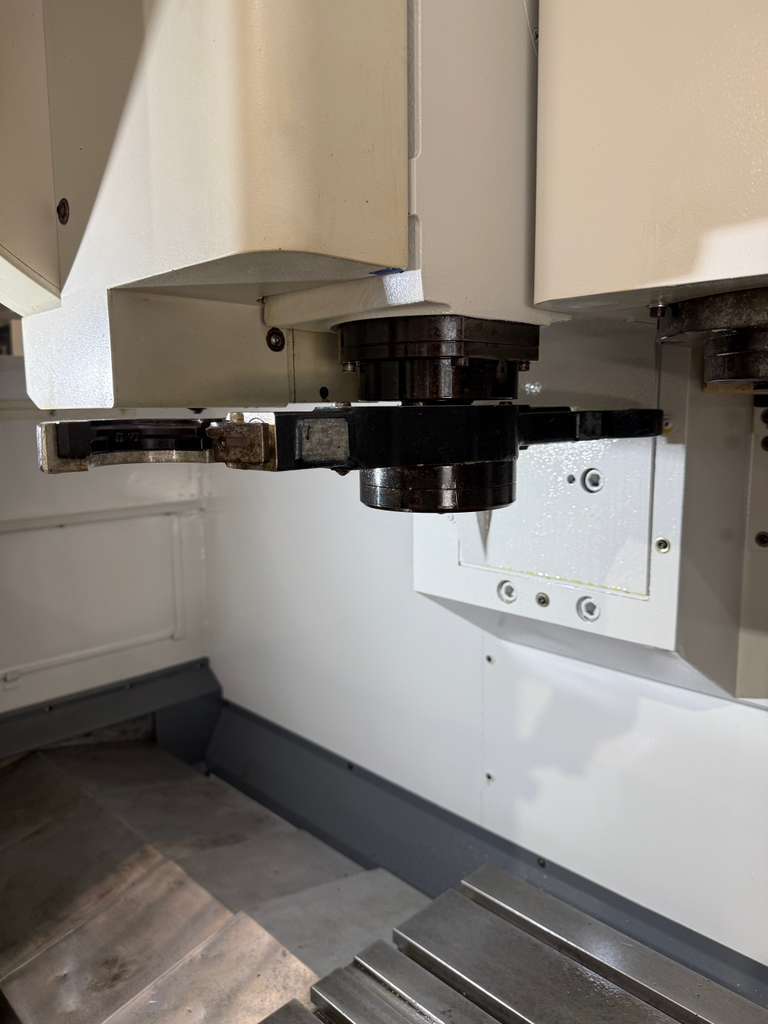

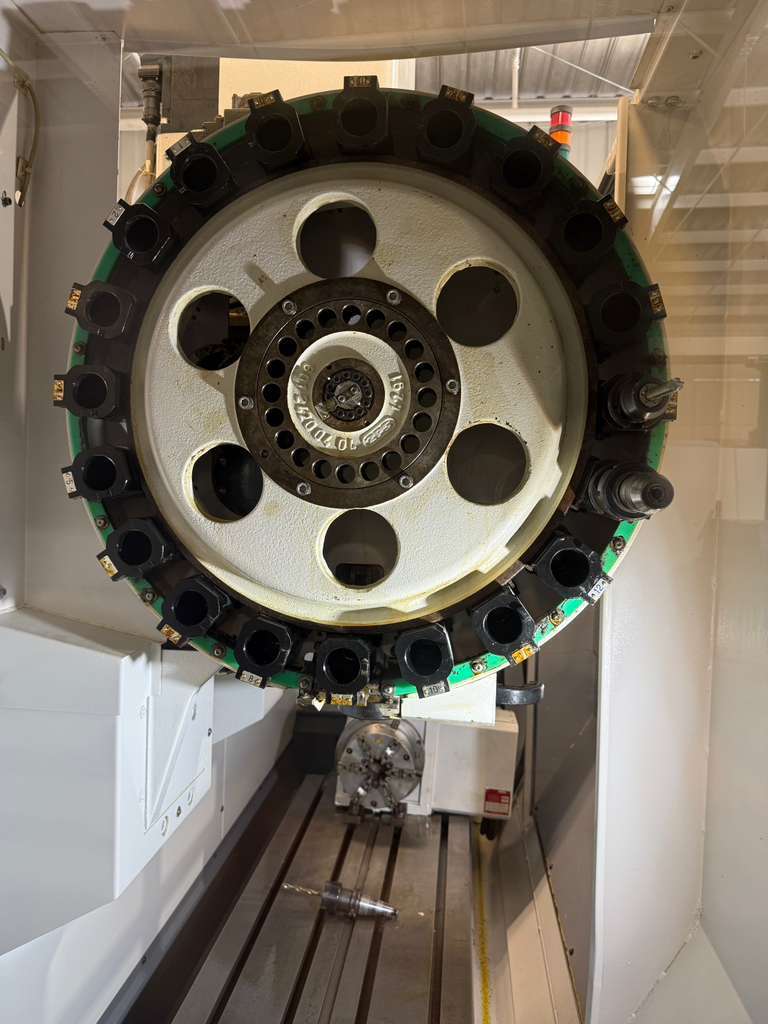

| 20 Station Automatic Tool Changer |

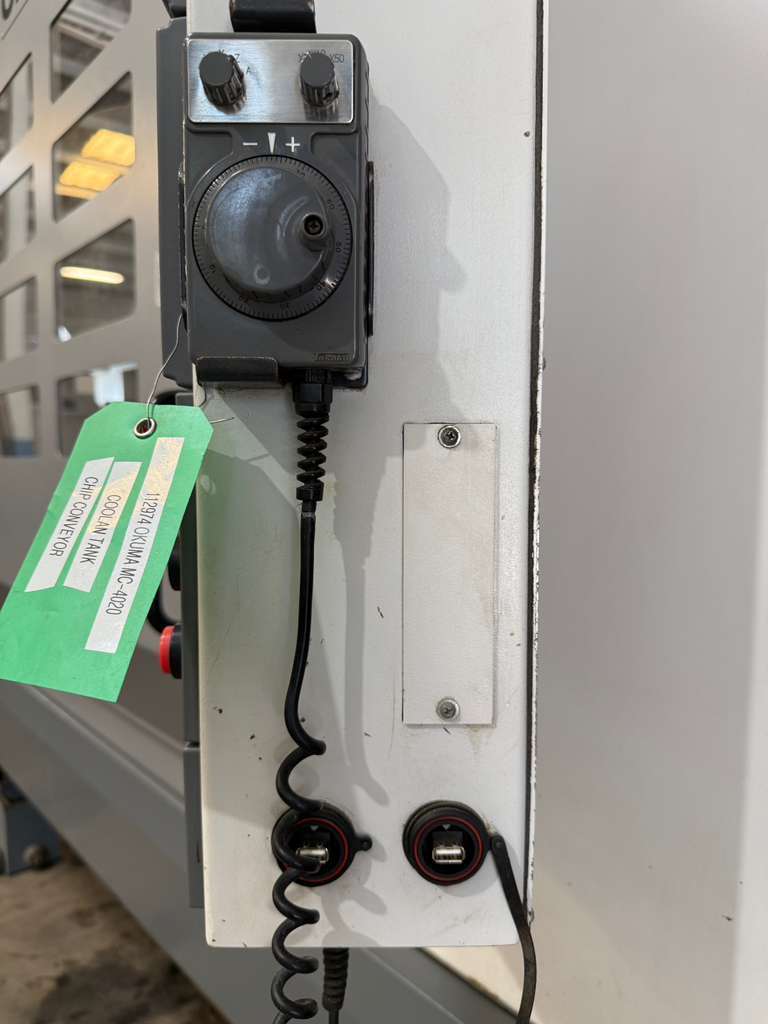

| MPG Handwheel Control |
| 20 HP High Torque Spindle |
| Rigid Tapping |
| Coolant System |

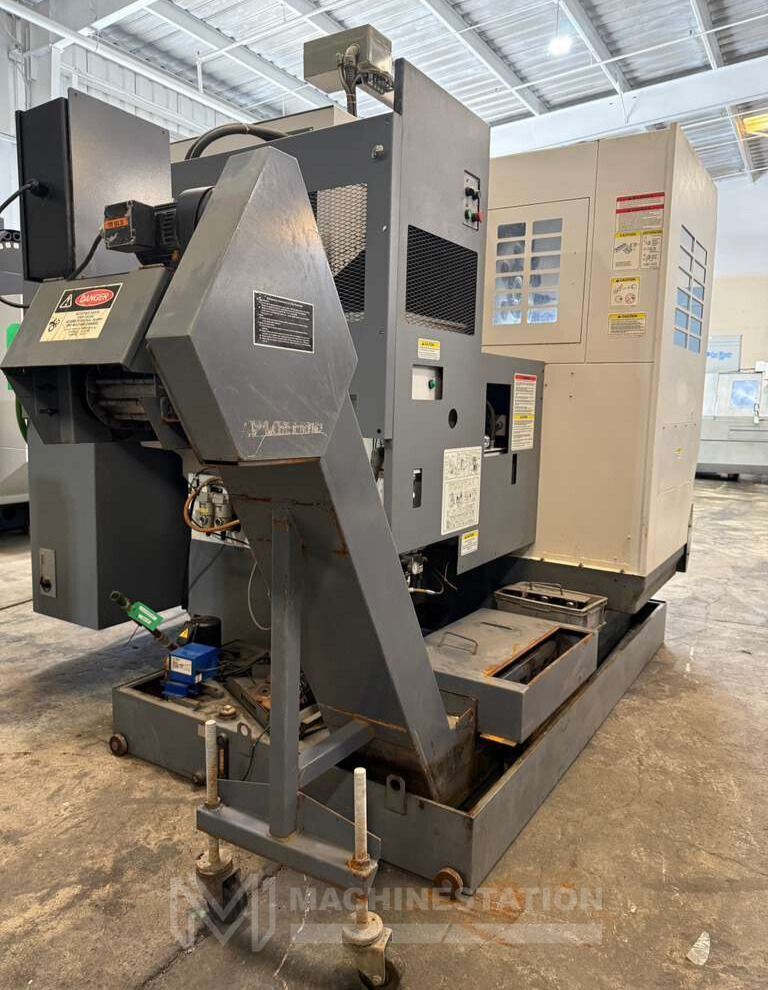

| Chip Conveyor |

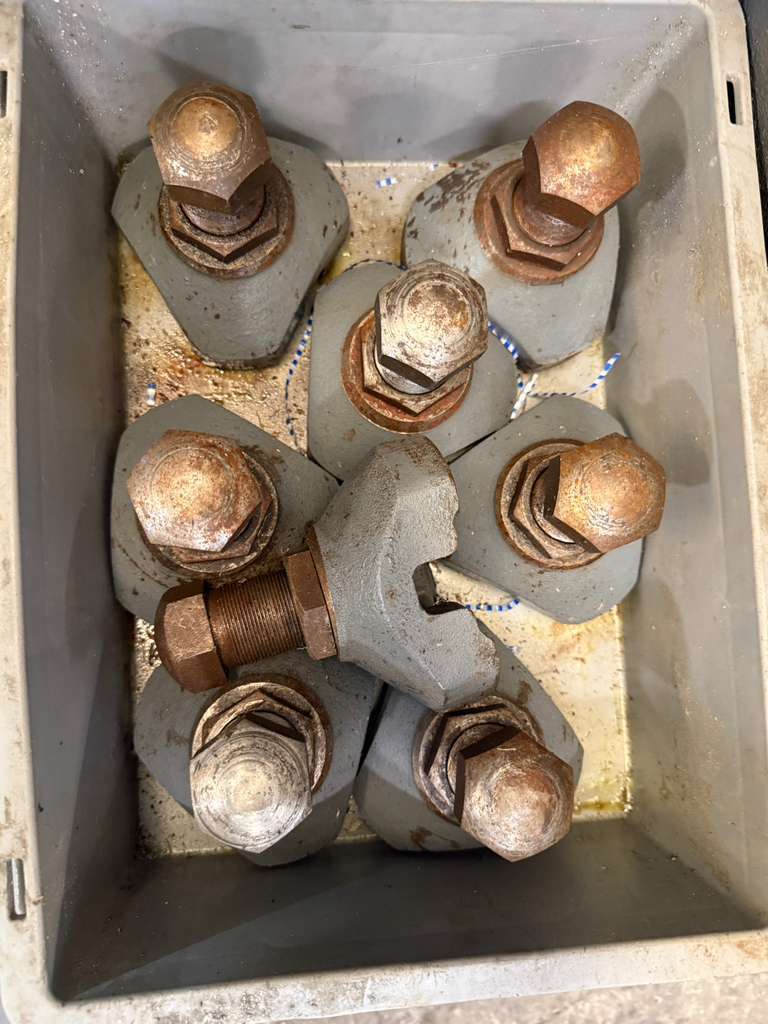

| Levelling Pads |
| Books & Manuals |
| Travel: |
|---|
| X-Axis: 40.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 17.7″ |
| Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1181 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6.3″ – 24″ |
| Table: |
|---|
| Length: 48″ |
| Width: 20″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Spindle: |
|---|

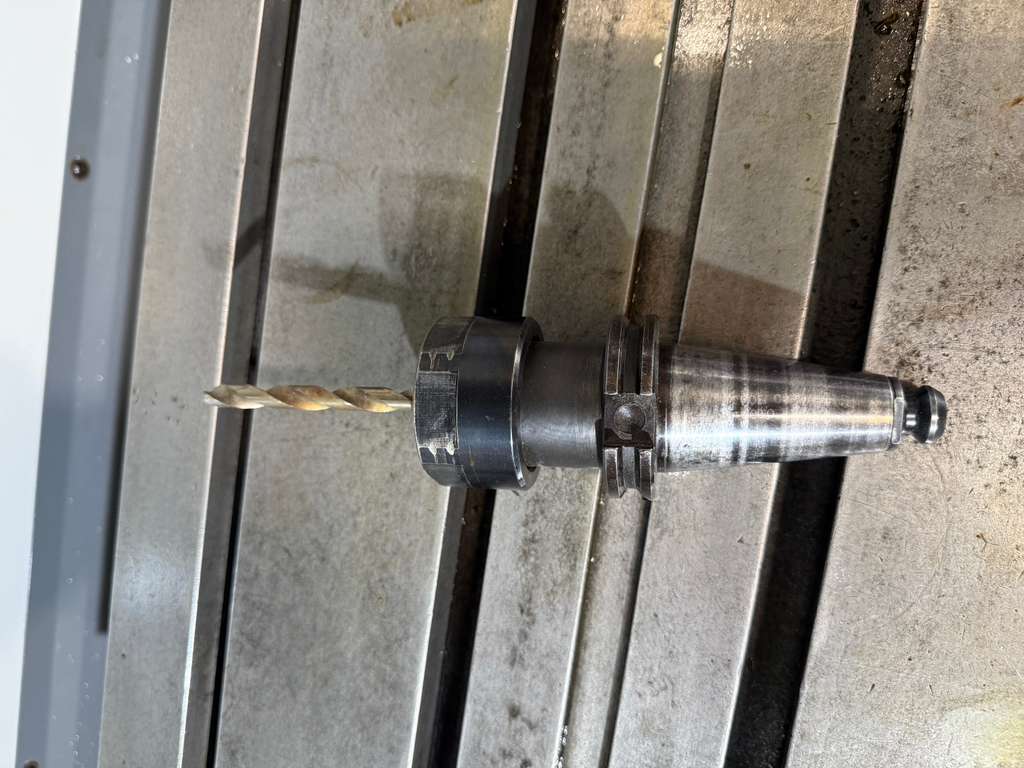

| Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ – 4.92 |
| Max Tool Length: 15.75″ |
| Tool Changing Time (Tool to Tool): 1.5 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

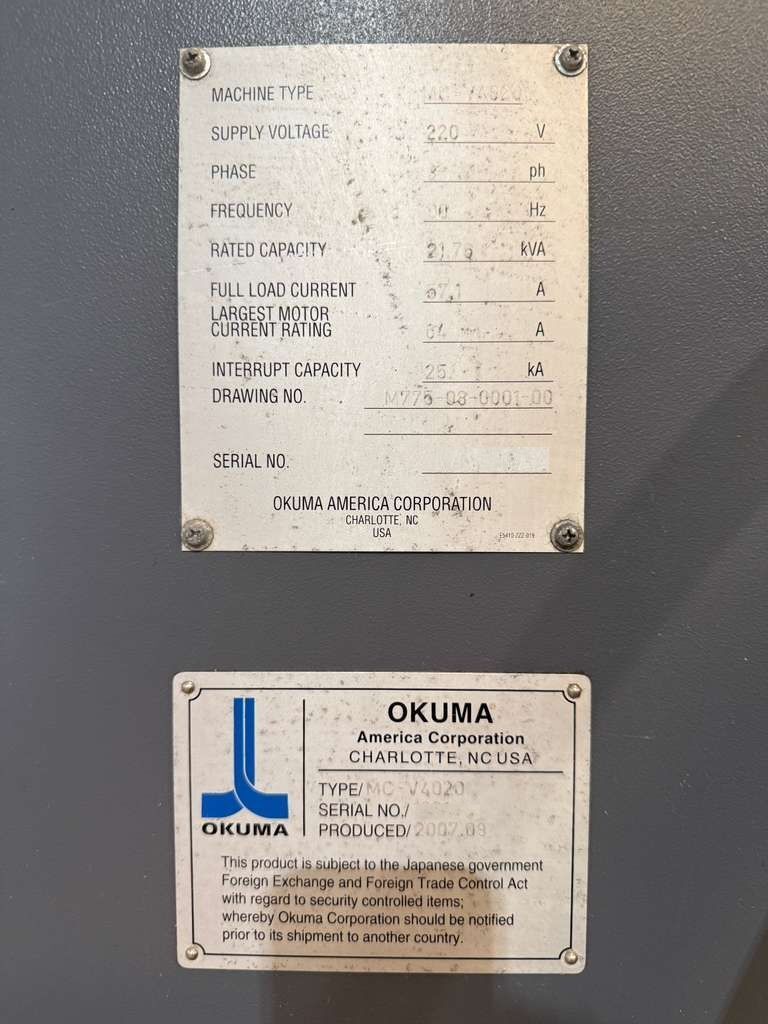

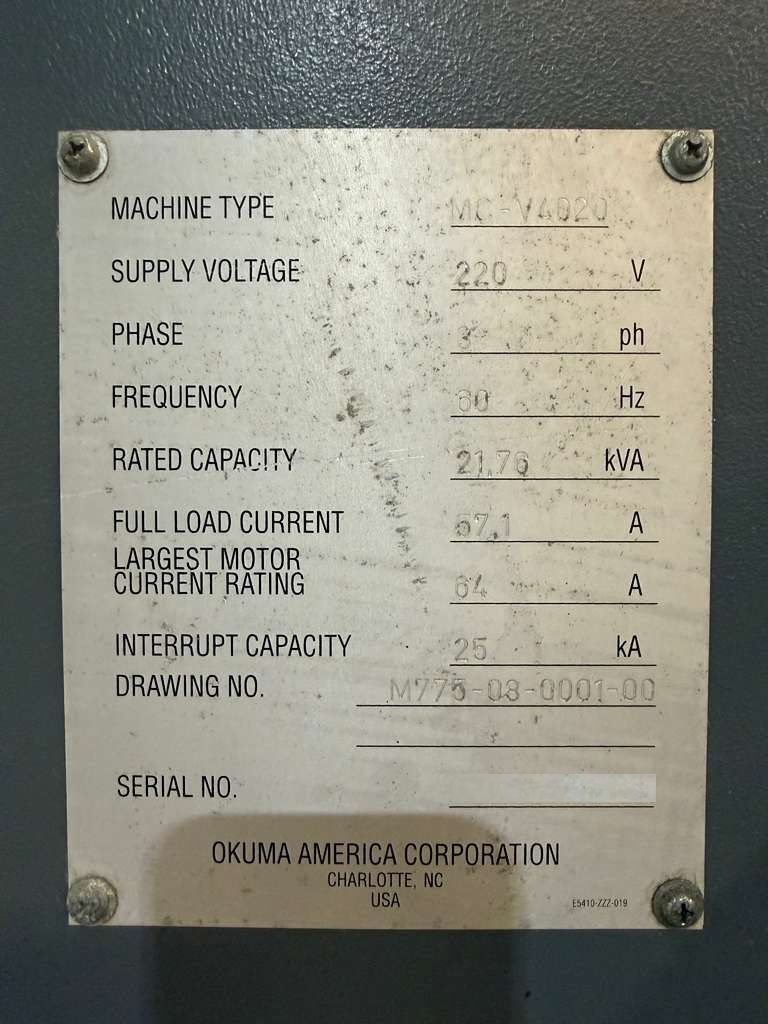

| Power: 220v / 3-Phase / 60 Hz / 21.76 kva |
| Overall Dimensions: 114″ x 111″ x 104″ High Approx. |
| Weight: 16,000 lbs Approx. |
