*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |

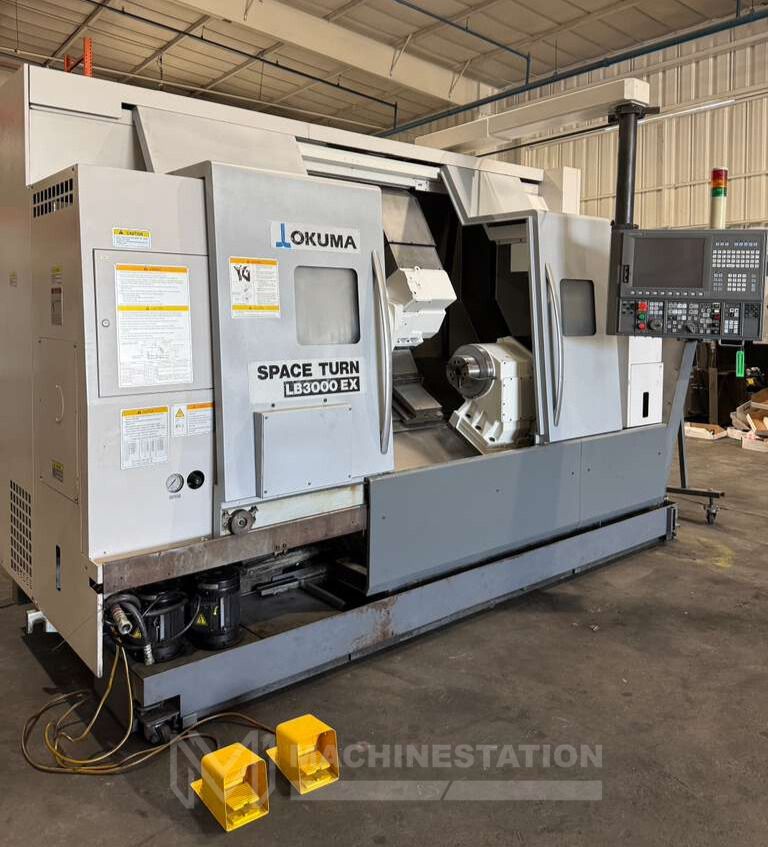

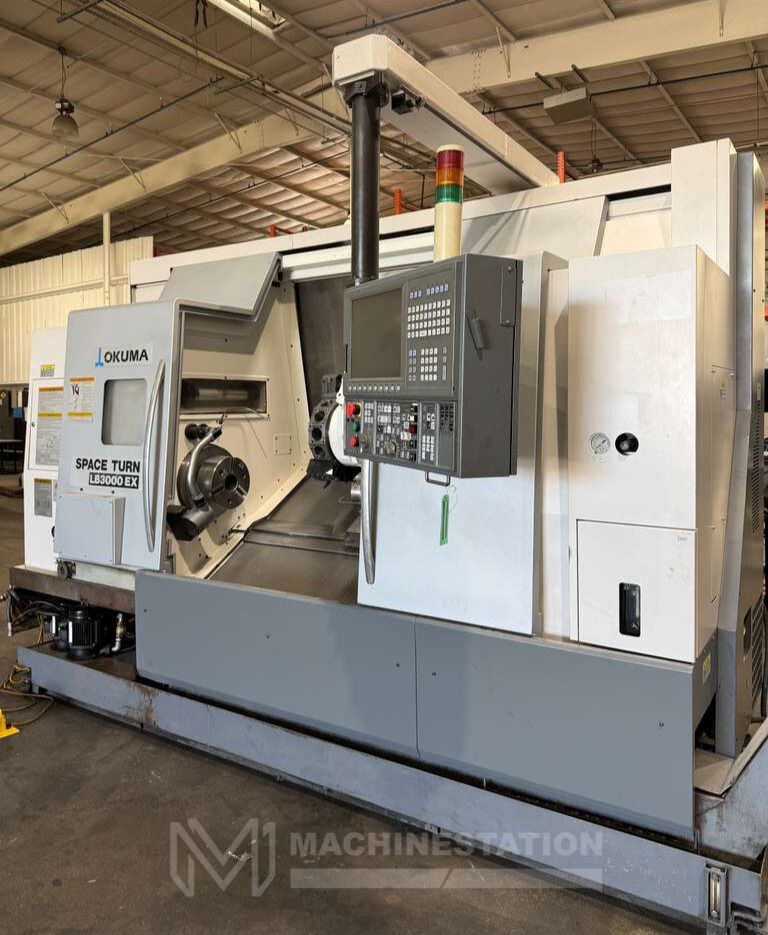

| Model: | Space Turn LB3000EX-MYW 800 |
| Year: | 2011 |
| Condition: | Used – Good |
| Equipped With: |
|---|

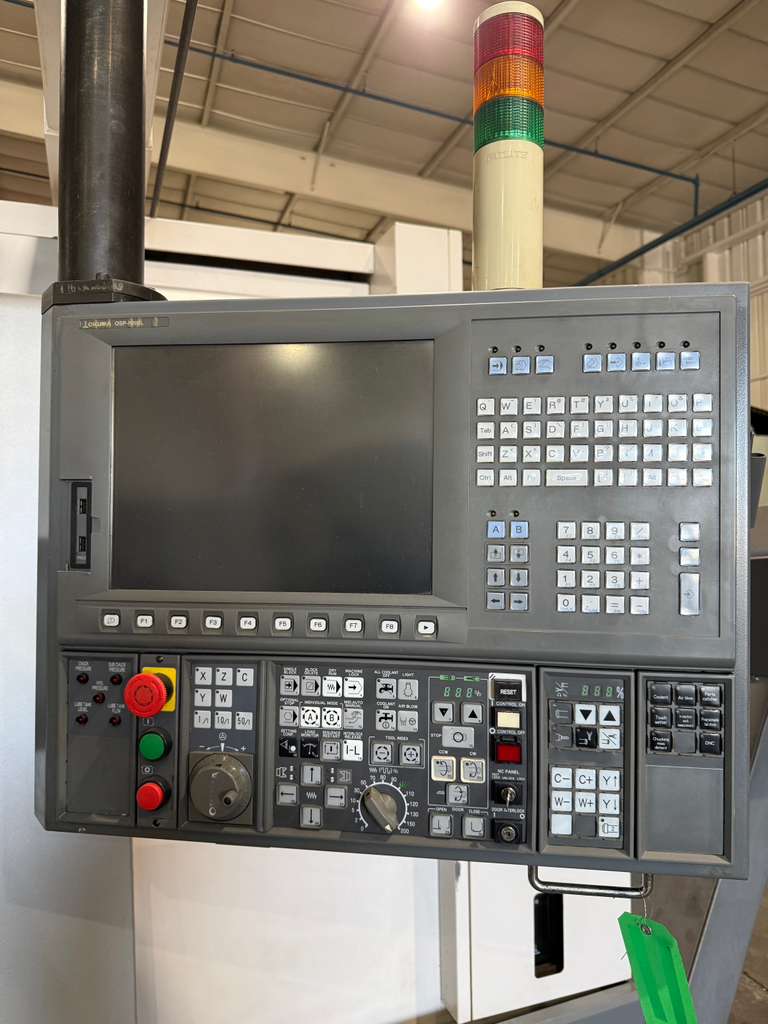

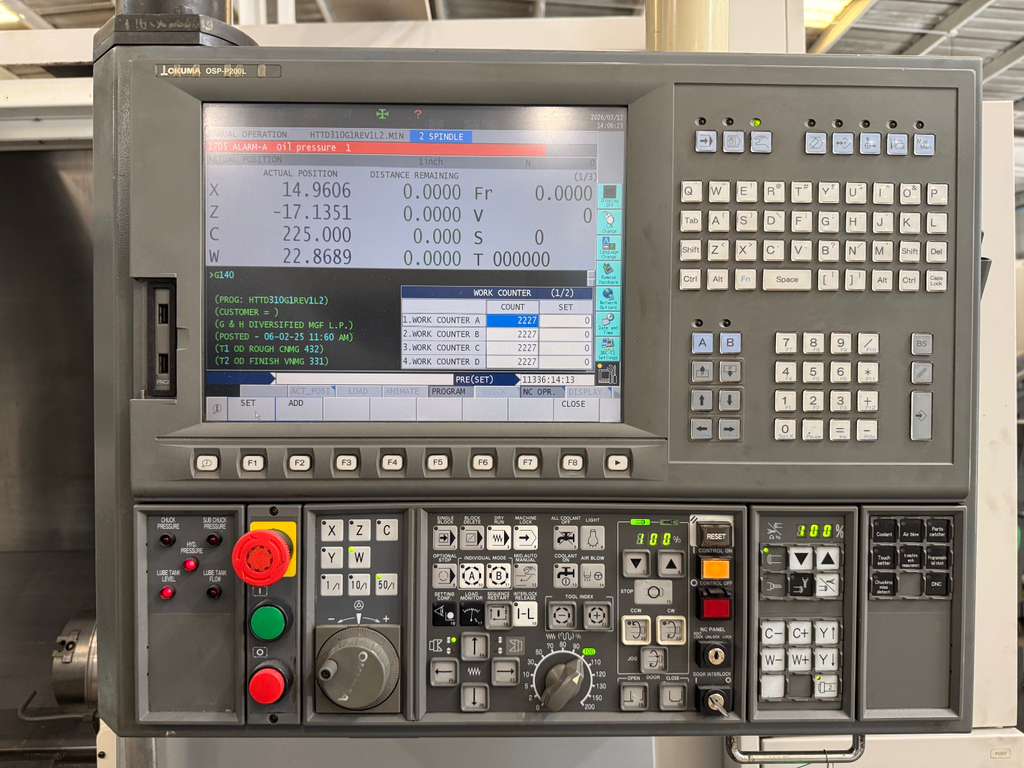

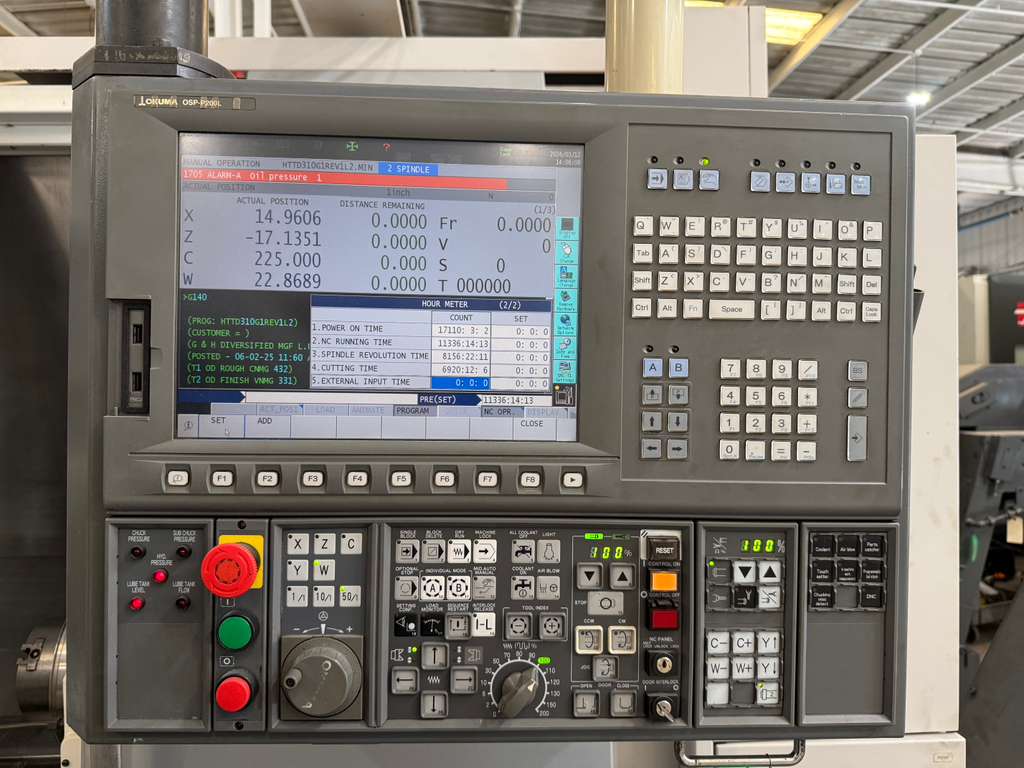

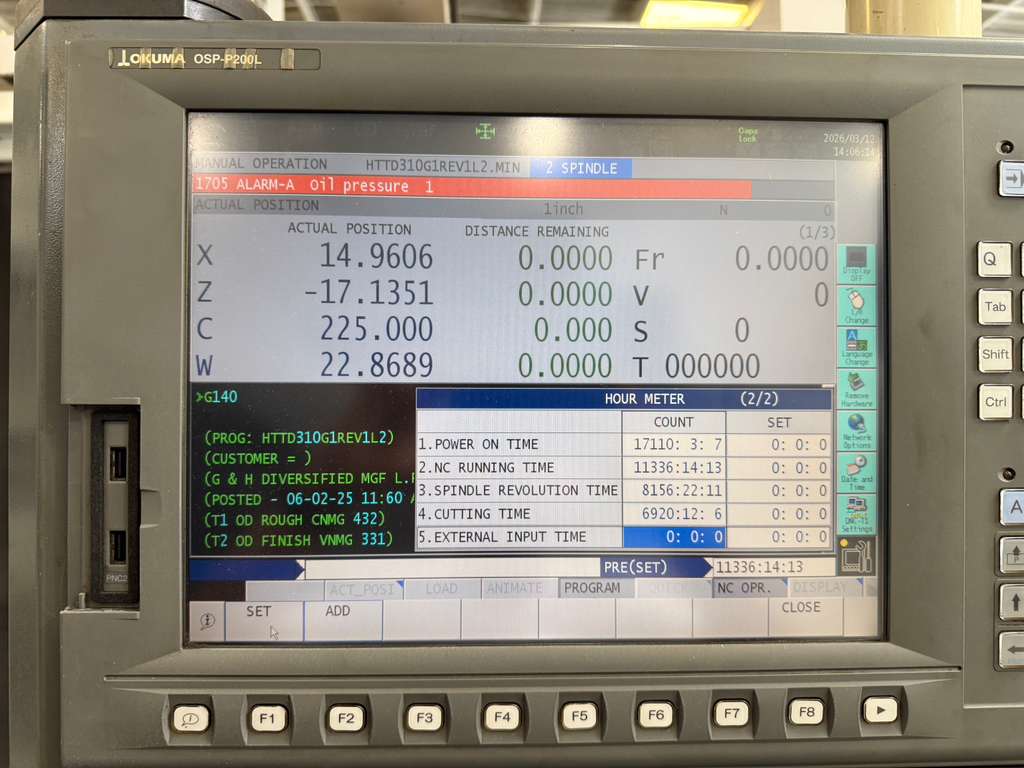

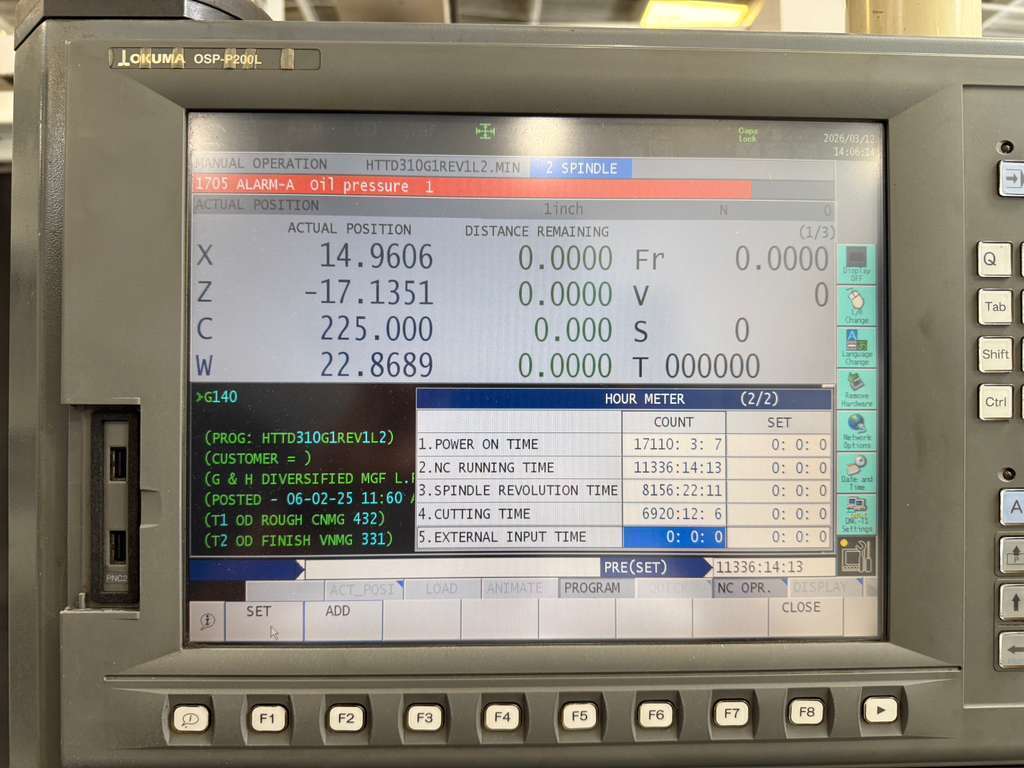

| Okuma OSP-P200L CNC Control |

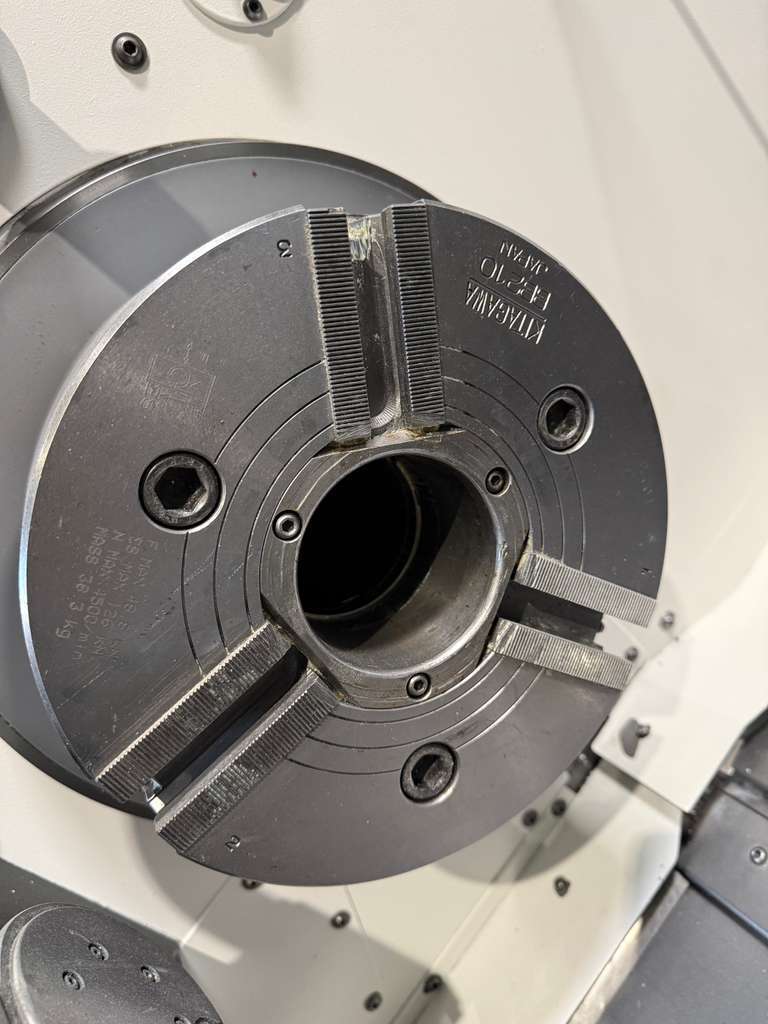

| 10″ 3-Jaw Kitagawa BB210 Chuck On Main Spindle |

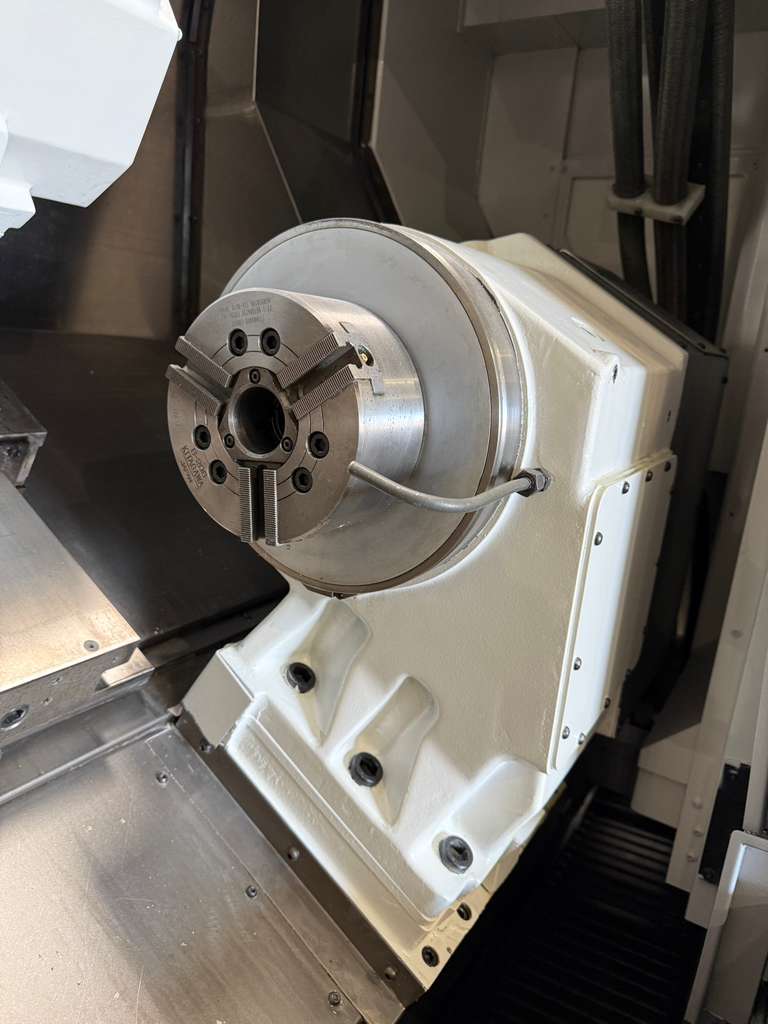

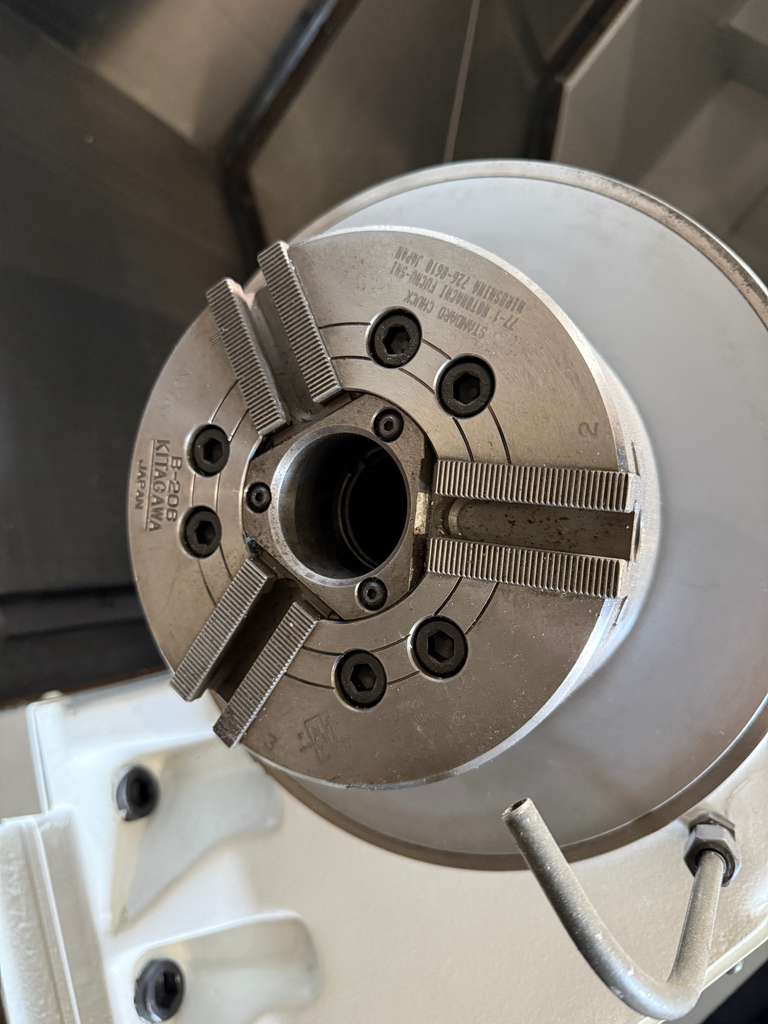

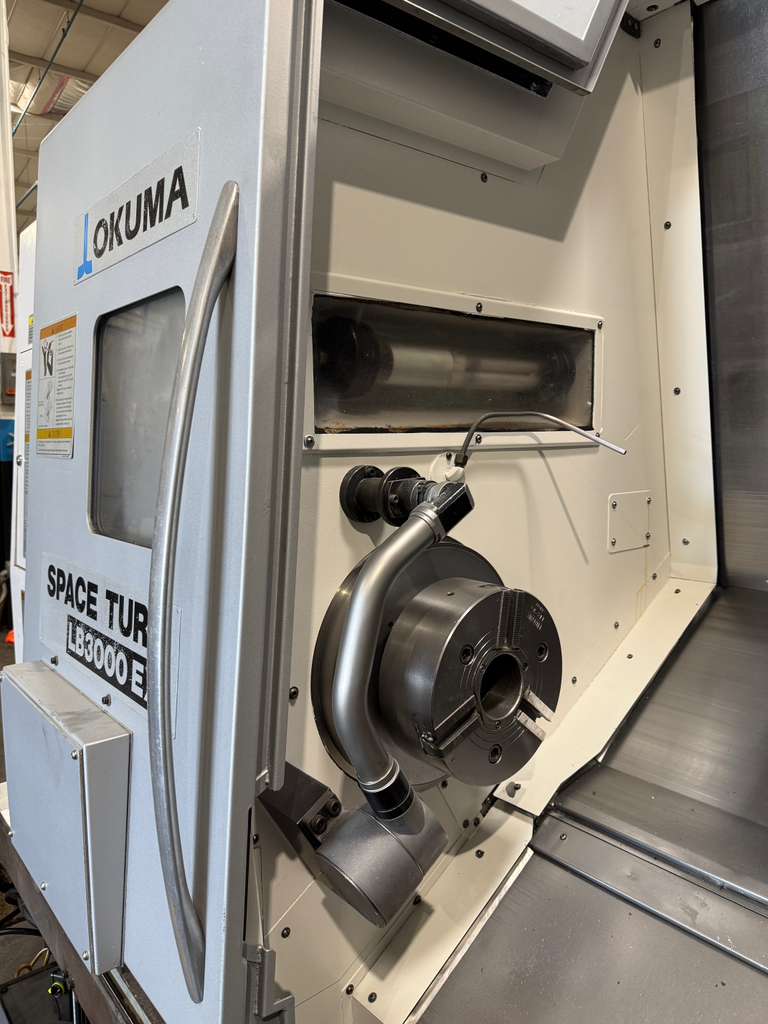

| 6″ 3-Jaw B-206 Chuck on Sub-Spindle |
| Servo Controlled C Axis on Both Spindles |
| 12-Station Live Tool Turret |
| Y-Axis on Turret |
| W Axis (Sub Spindle Travel) |
| Tool Presetter |
| Rigid Tapping |
| USB Ports |

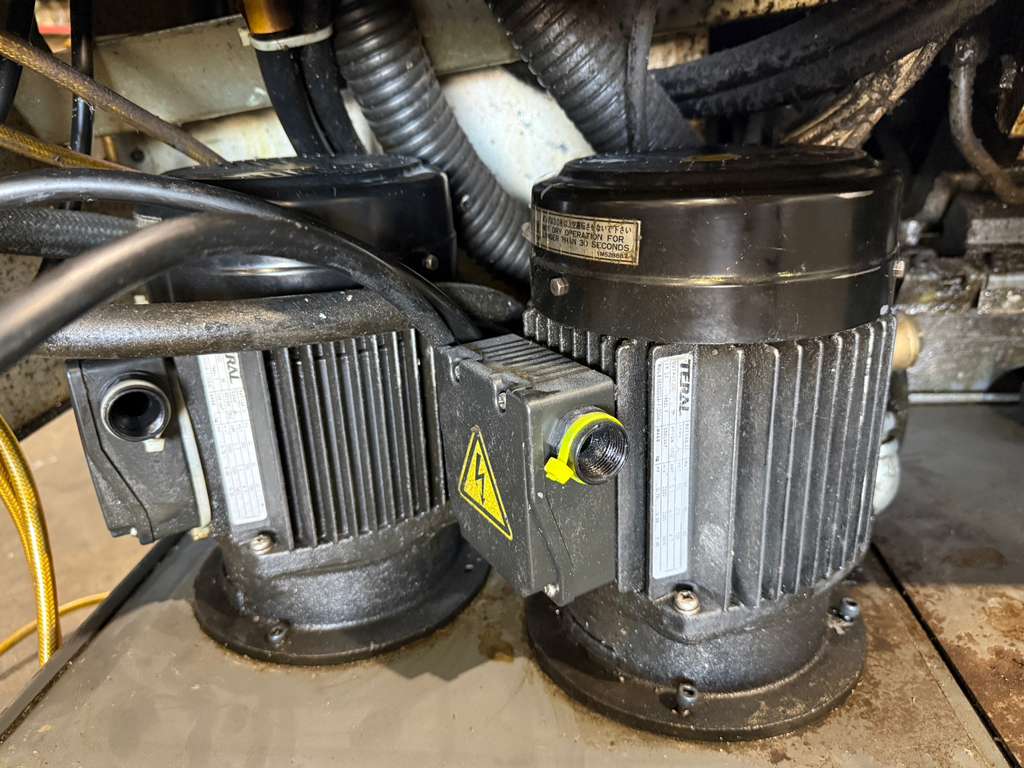

| Coolant System |
| Mayfran International Chip Conveyor |

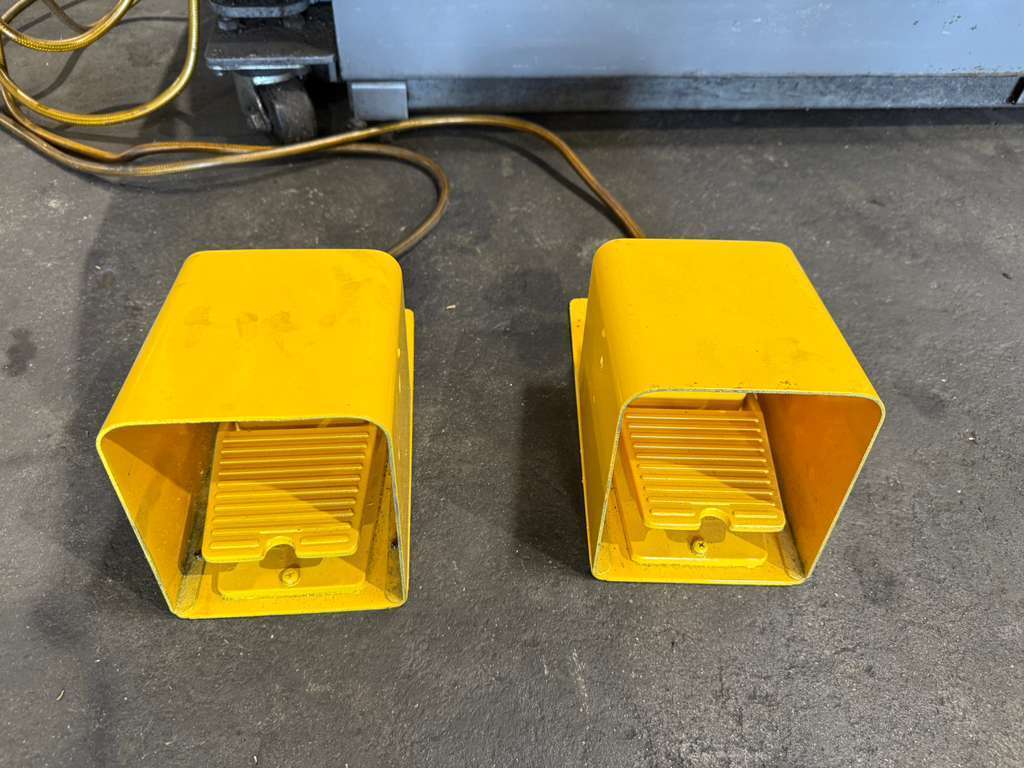

| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 13.4″ |
| Max Turning Length: 31.5″ |
| Swing Over Bed: 22.83″ |
| Swing Over Saddle: 18.5″ |
| Max Bar Capacity: 2.6″ |
| Travels: |
|---|
| X Axis Travel: 10.4″ |
| Z Axis Travel: 39.76″ |
| Y Axis Travel: 4.53″ (+2.76″ to –1.77″) |
| W Axis Travel: 32.48″ |
| C Axis: 0.001 Degree |
| Rapid Traverse (X): 984 IPM |
| Rapid Traverse (Z): 1,181 IPM |
| Rapid Traverse (Y): 492 IPM |
| Rapid Traverse (W): 1,181 IPM |
| Main Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 4,200 RPM |
| Spindle Motor Power: 30 HP |
| Sub Spindle: |
|---|
| Spindle Nose: Flat 140 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Capacity: 12 Stations |
| OD Tool Size: 1.0″ |
| ID Tool Size: 1.57″ |
| Turret Index Time: 0.1 Sec. |
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 10 HP |
| General: |
|---|

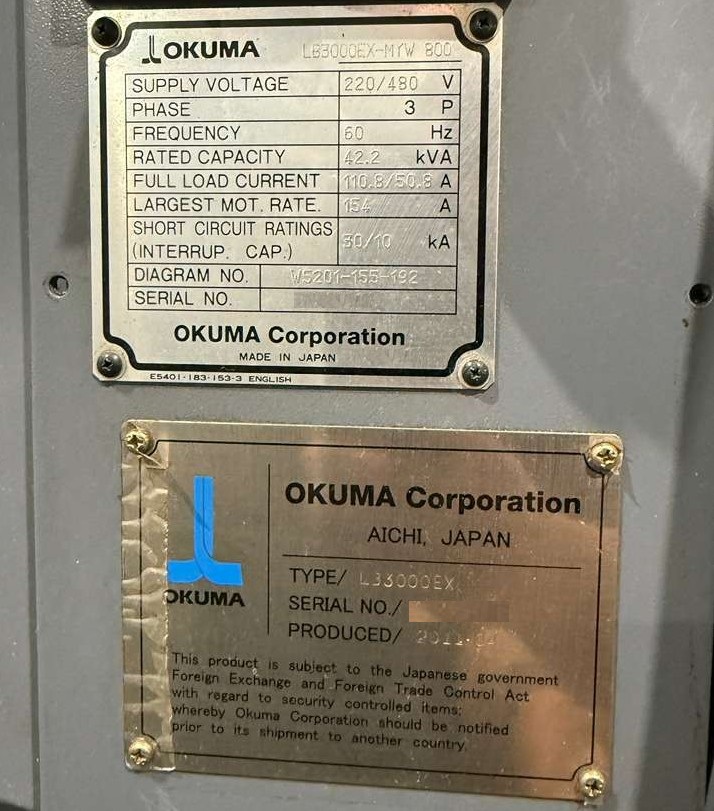

| Power Requirement: 42.2 kVA / 220 / 480V / 3-Phase / 60 Hz |
| Overall Dimensions: 150″ x 90″ x 86″ High approx. |
| Machine Weight: 16,800 lbs approx. |
