Omniturn GT 75 CNC Gang Lathe Turning Center

Out of stock

Product Description


Omniturn GT 75 CNC Gang Lathe Turning Center

Make: OmniTurn
Model #: GT-75
Year of Manufacture: 1996

Condition: Machine powers up, but we are unable to fully test this unit.


Omniturn GT 75 CNC Gang Lathe Turning Center Features:

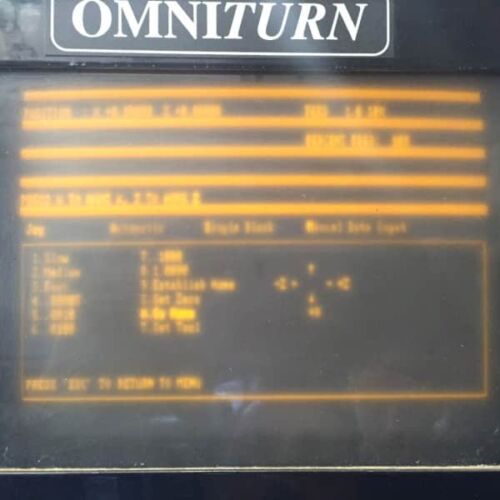

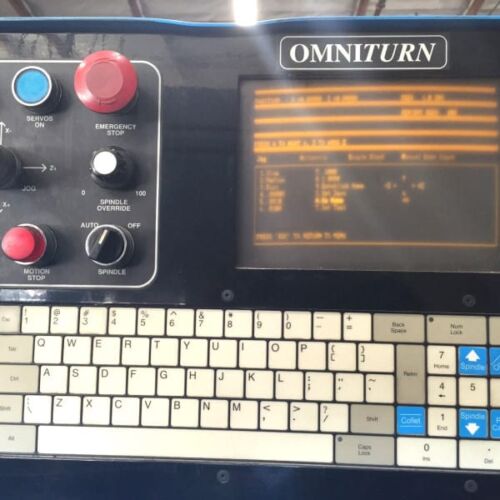

  • Omniturn OT-CNC Control.
  • Hardinge Taperlock Spindle.

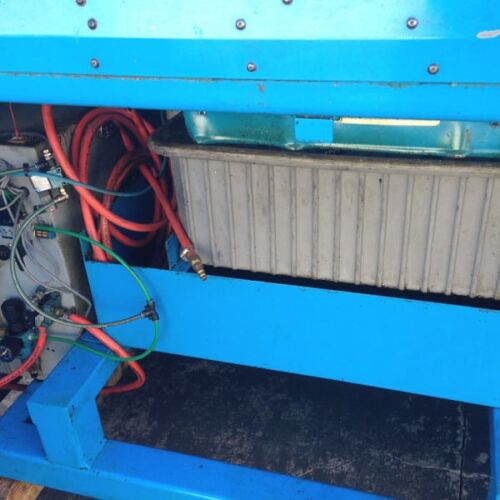

  • Coolant System.
  • Gang-tooled for fastest tool changes.
  • 75 degrees slant-bed lets chips fall away quickly.
  • Highest quality ground ballscrews and linear guides for precision and reliabilty.
  • Barfeed ready.

Omniturn GT 75 CNC Gang Lathe Turning Center Specifications:

Capacities:

Maximum Cutting Diameter: 6″
Maximum Bar Diameter: 1.06″
Tooling Plate: 6″ x 14″ with 3/8″ T-Slot

Spindle:

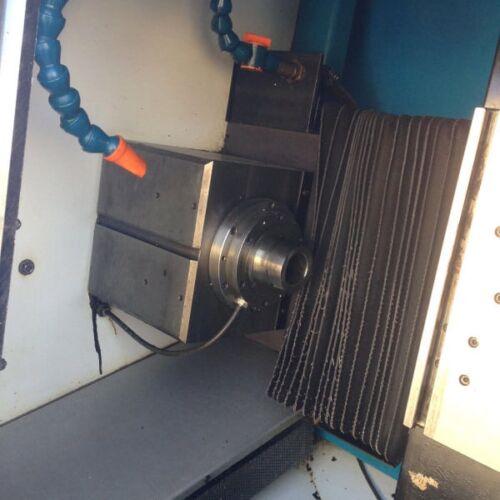

Spindle Nose: 5C w/ 4 degree Camlock (Hardinge Taperlock)
Maximum Speed: 4,000 RPM
Drawtube Bore: 1.125″
Motor: 5 Horsepower

Travels & Feedrates:

X-Axis: 12″
Y-Axis: 9″
Resolution of Slide Travel: 0.00005″
Threading: 240 TPI to 0.5 TPI (2″ pitch)
Maximum Rapid: 300 IPM
Maximum Cutting: 300 IPM

Construction:

Ways: Precision Linear Guides
Ballscrews: Precision-Ground
Base Billet MJ7 COmposite Casting
Headstock: Meehanite

General:

Machine Weight: 1,700 lbs.
Electrial: 220 Volt, Three Phase
Overall Dimensions: 67″ x 38″ x 73″ tall

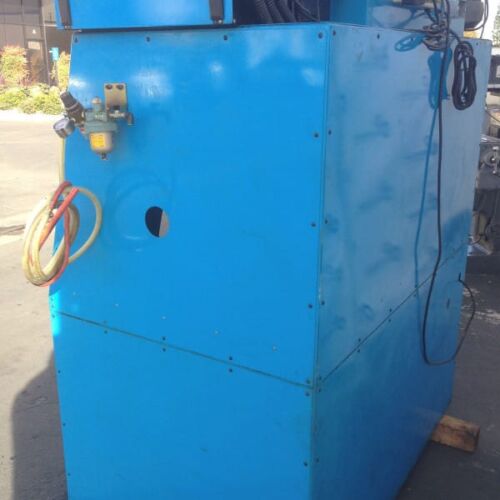

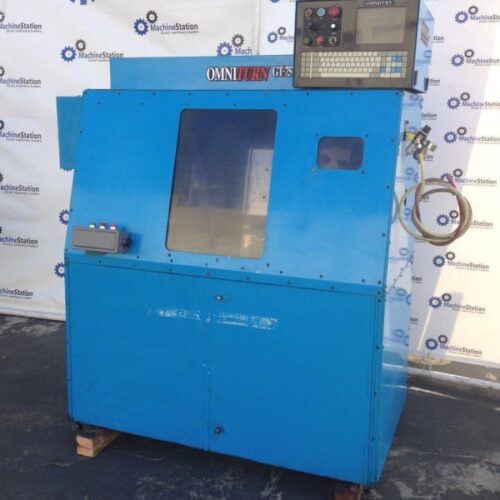

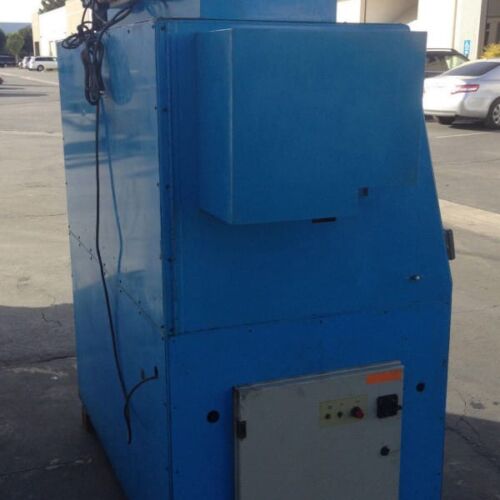

Omniturn GT 75 CNC Gang Lathe Turning Center Comes as shown in pictures.


GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
