*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112536 |

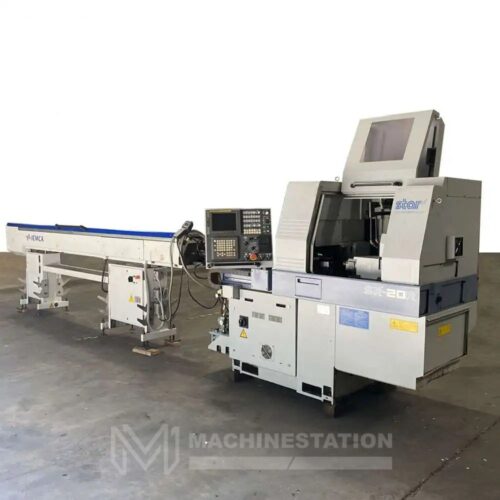

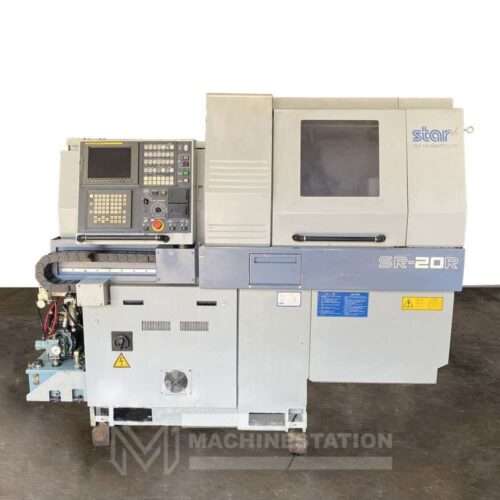

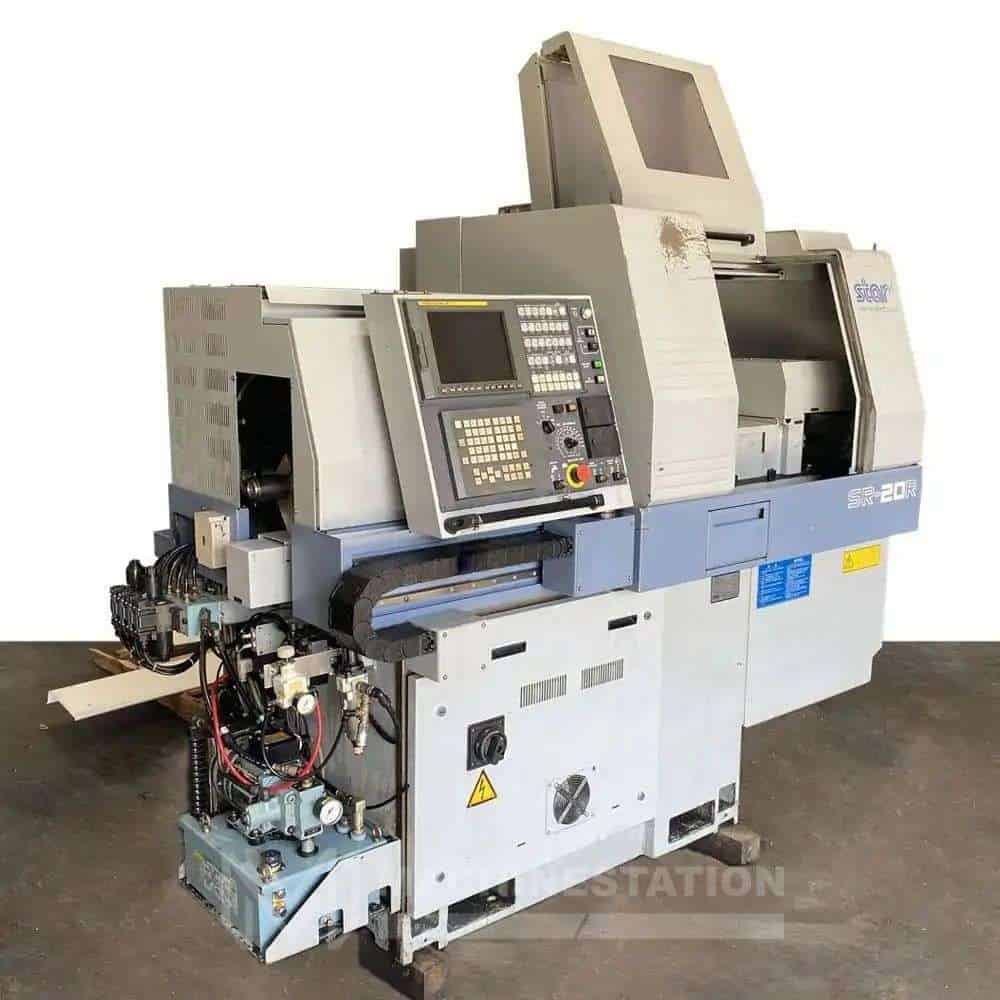

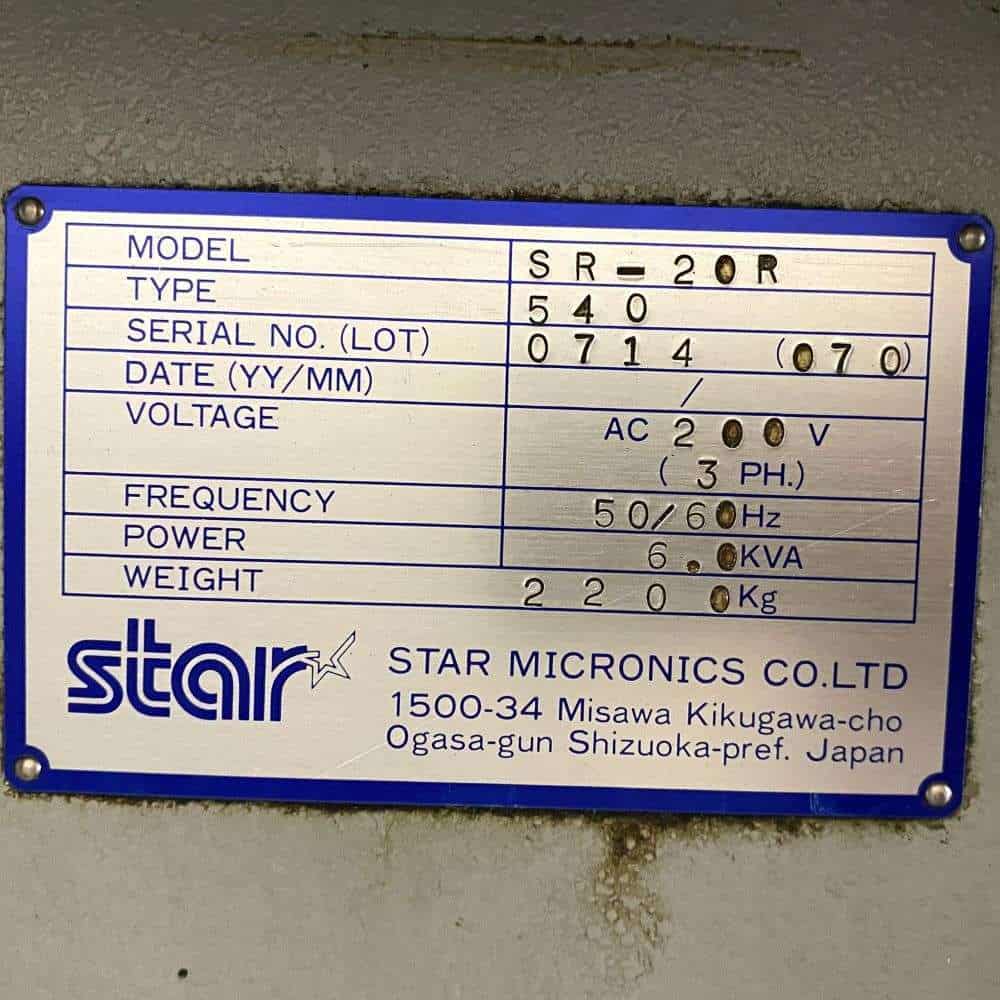

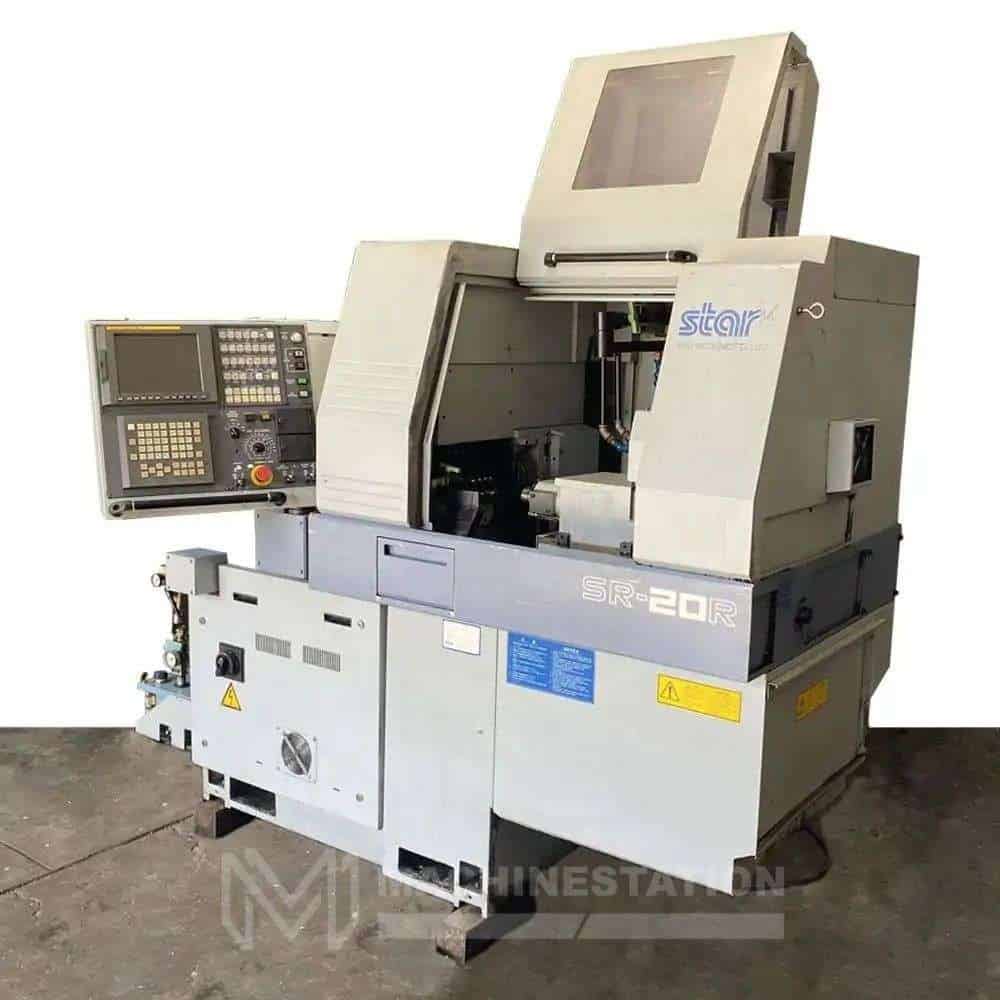

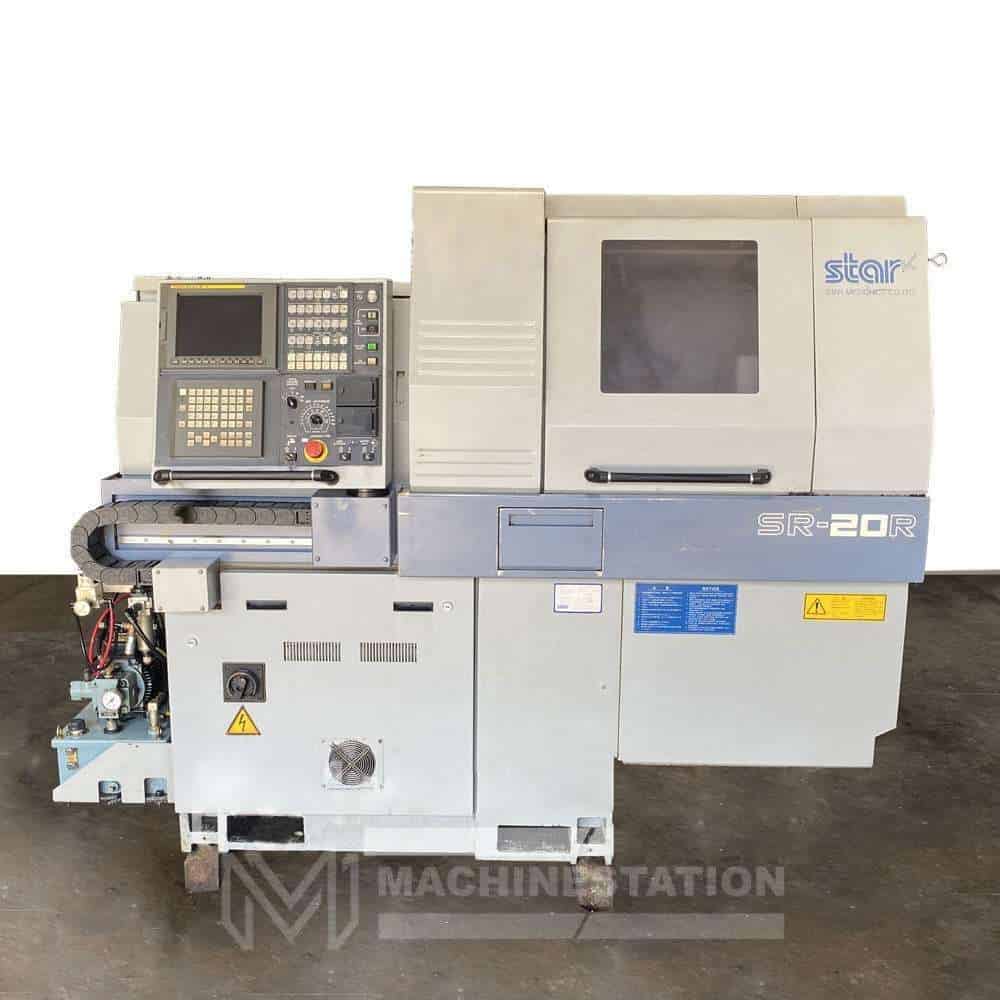

| Make: | STAR |
| Model: | SR-20R |
| Year: | 2004 |
| Equipped With: |
|---|

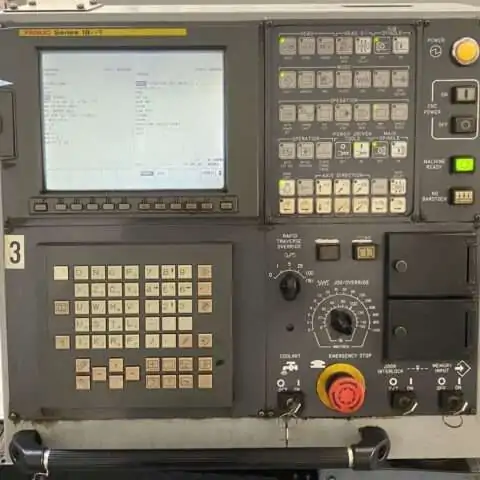

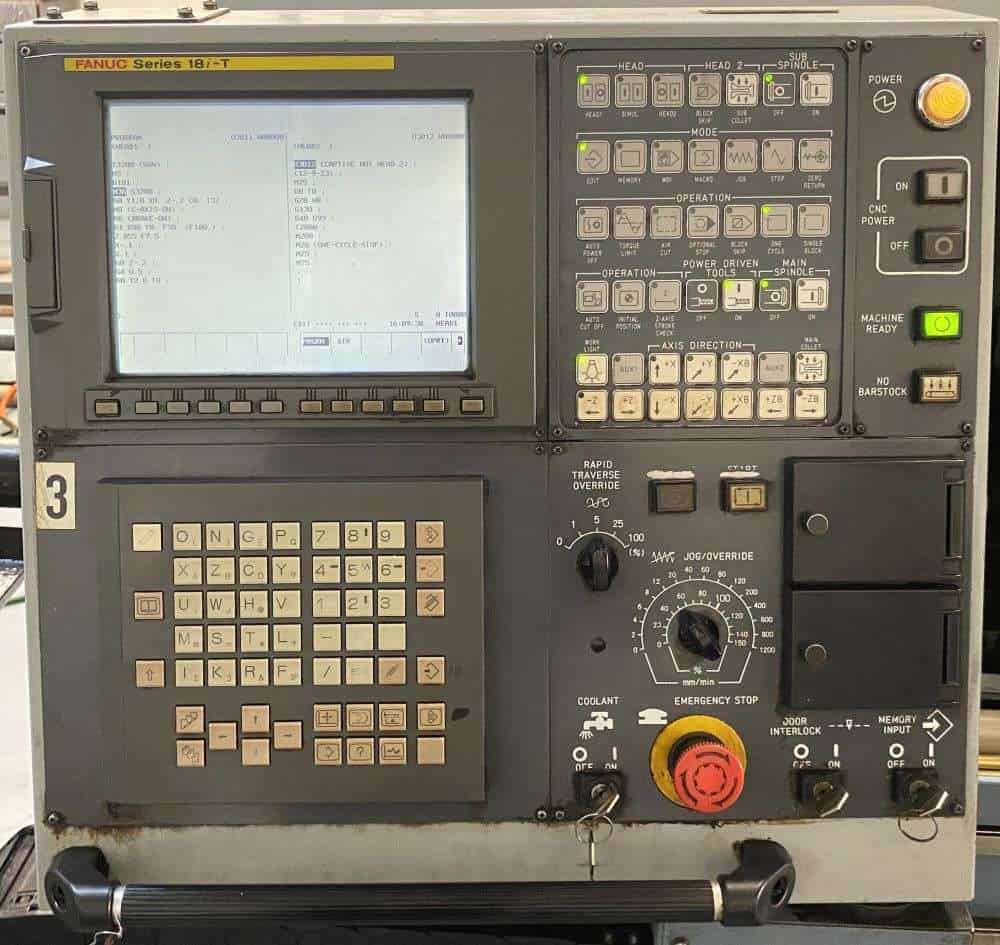

| Fanuc 18i-T CNC Control |

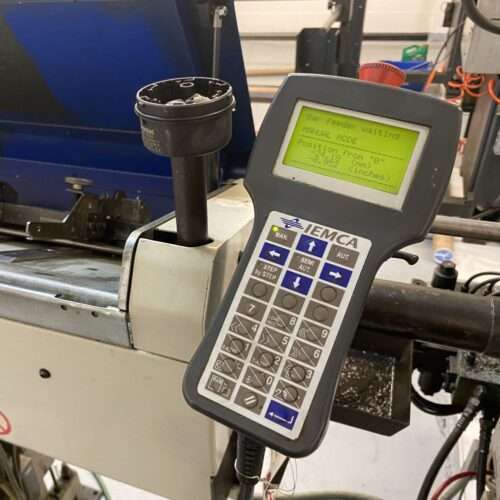

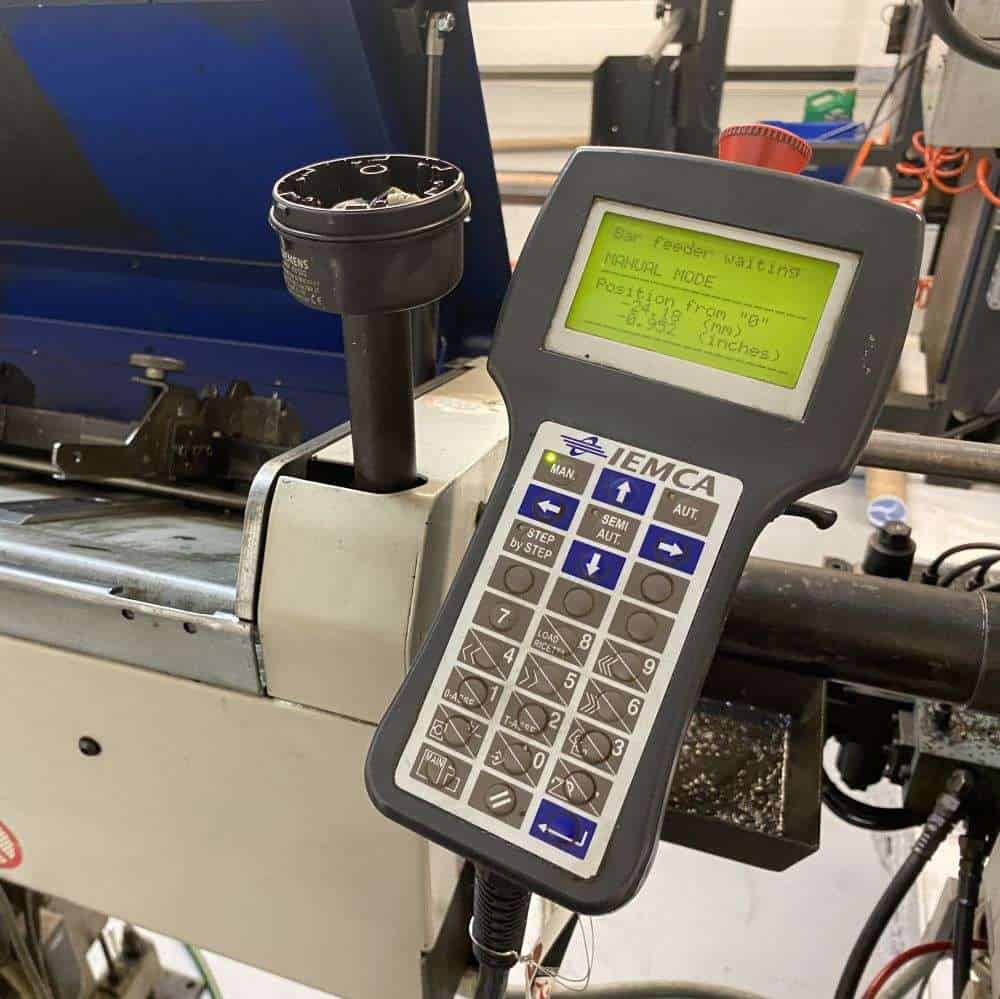

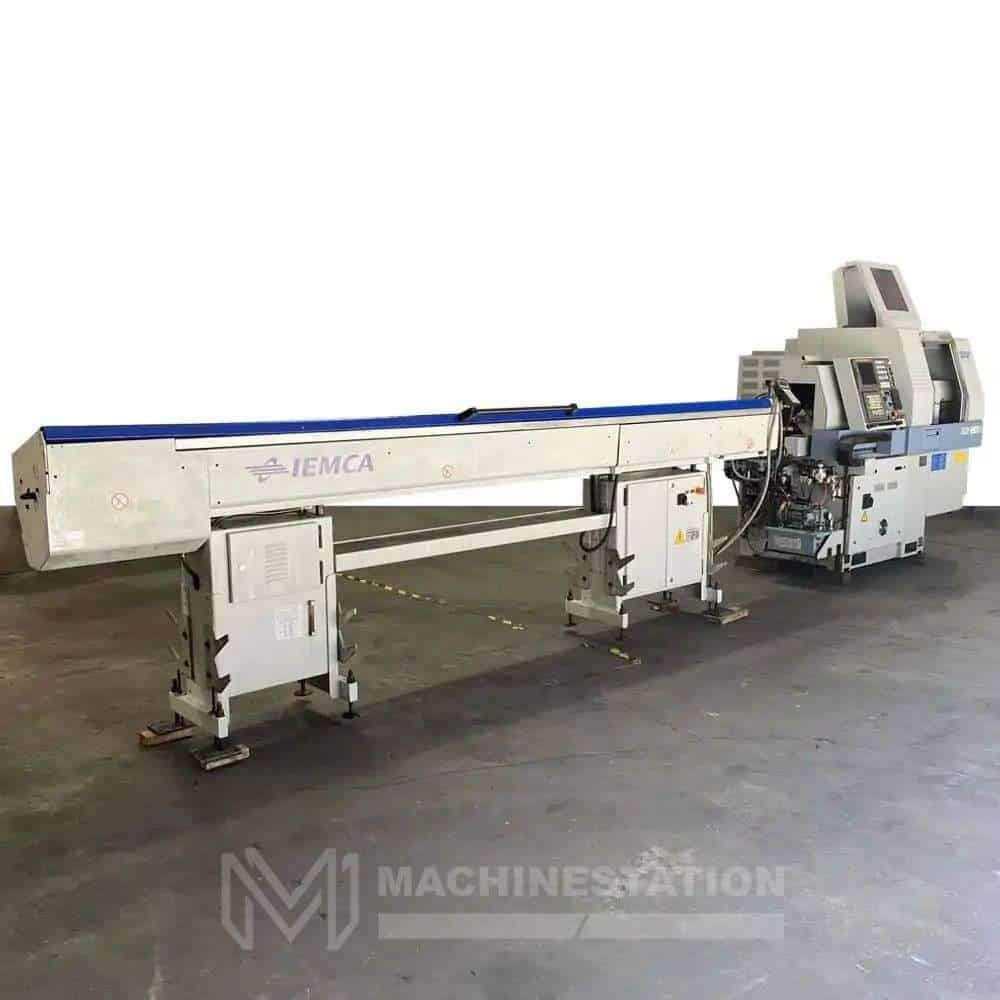

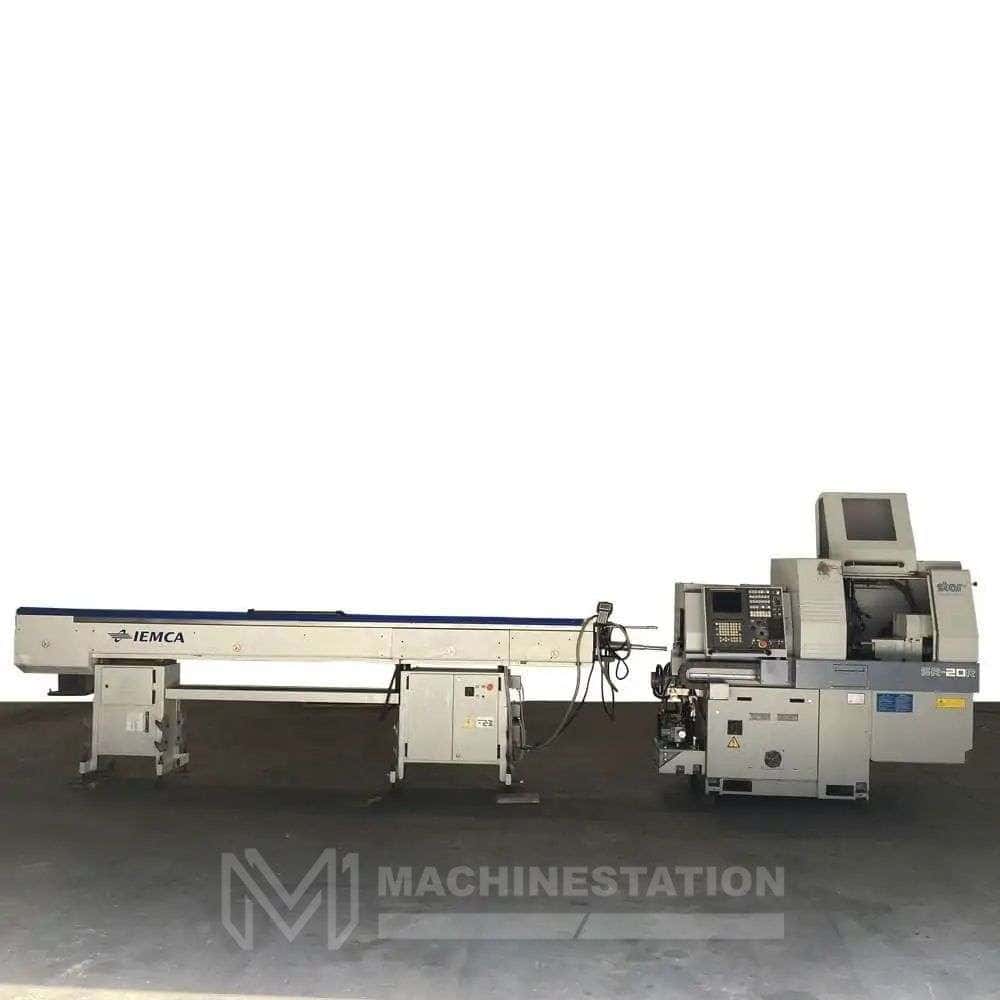

| IEMCA Bar Feeder |
| Full C Axis and Live Tools Capable |
| Y Axis Capable |
| Long Parts Capable |
| Main & Back Spindle Synchronization |
| Absolute Position Detection |
| Automatic Lubrication System |
| Coolant System |
| Part Catcher |
| *Machine Ran on Oil only* |
| Capacity: |
|---|
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 8.07″ (205 mm) |
| Max Turning Length with Gripping Unit: 7.67″ (195 mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Tool Capacity: 18 |
| Spindle: |
|---|
| Main Spindle Index: 0.01 Degree (C-axis control) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 8,000 RPM |
| Mian Spindle Motor: 3.7 kw |

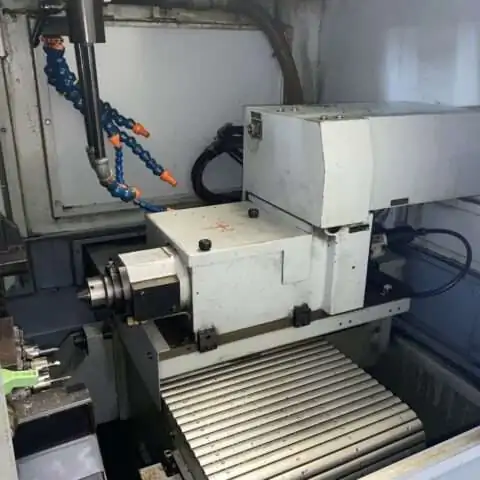

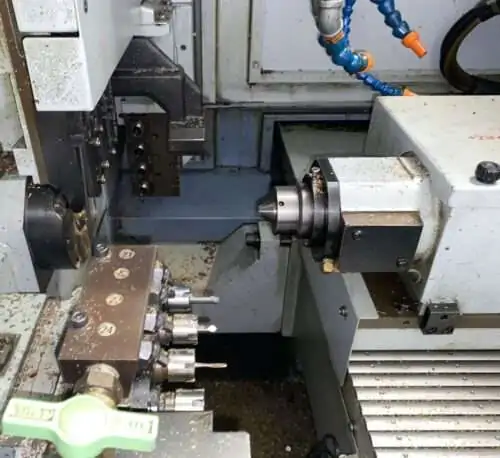

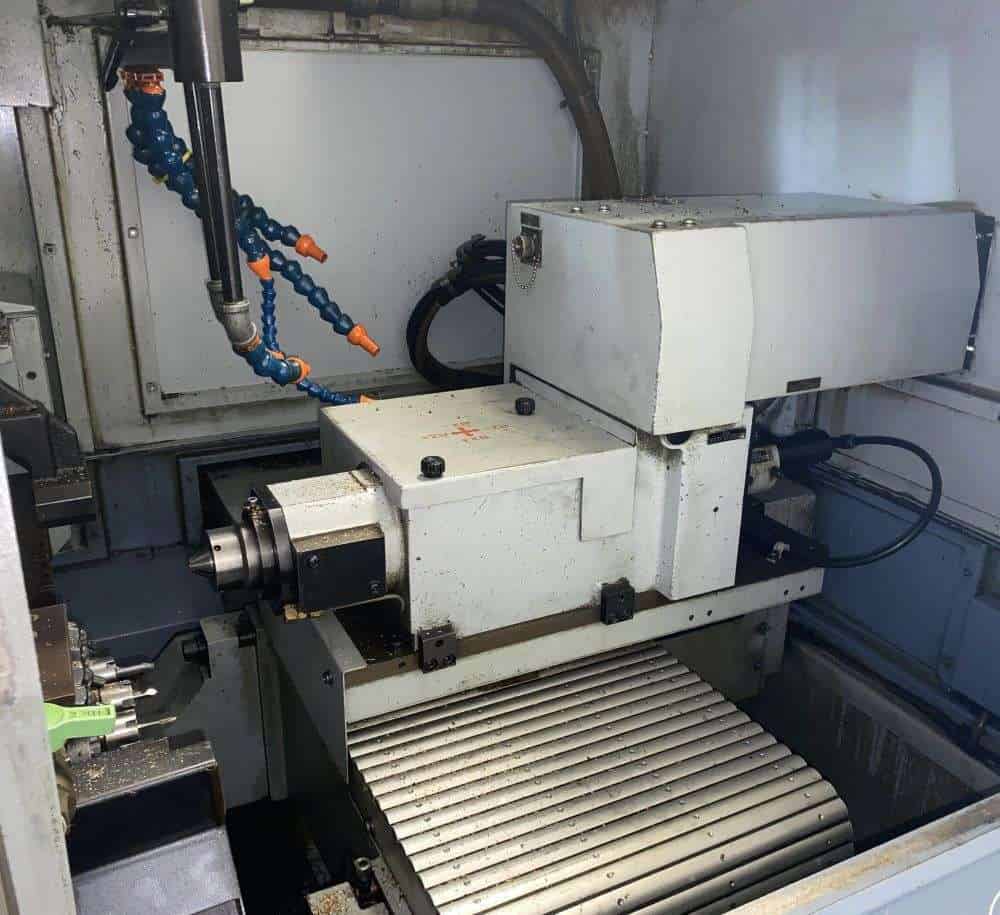

| Back Spindle Index: 0.01 Degree (C-axis control) |
| Back Spindle Speed: 10,000 RPM |
| Back Spindle Motor: 2.2 kw |

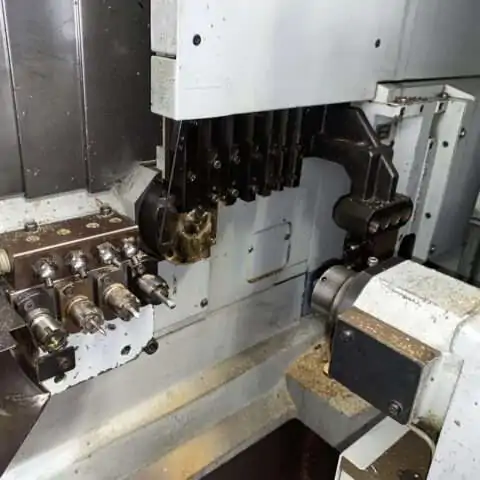

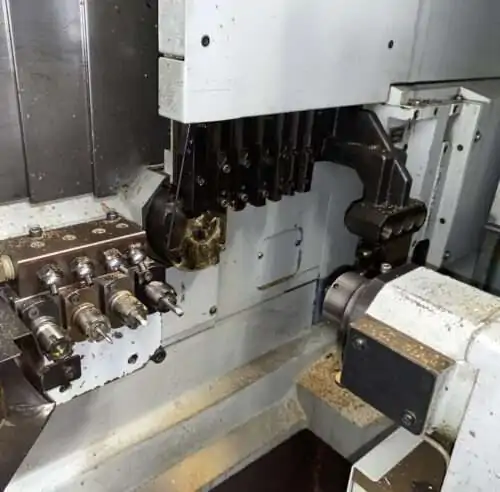

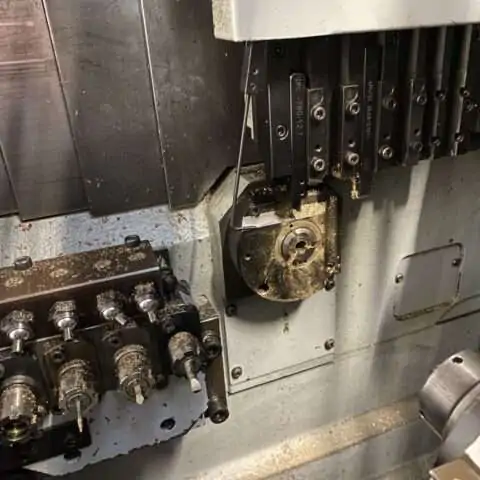

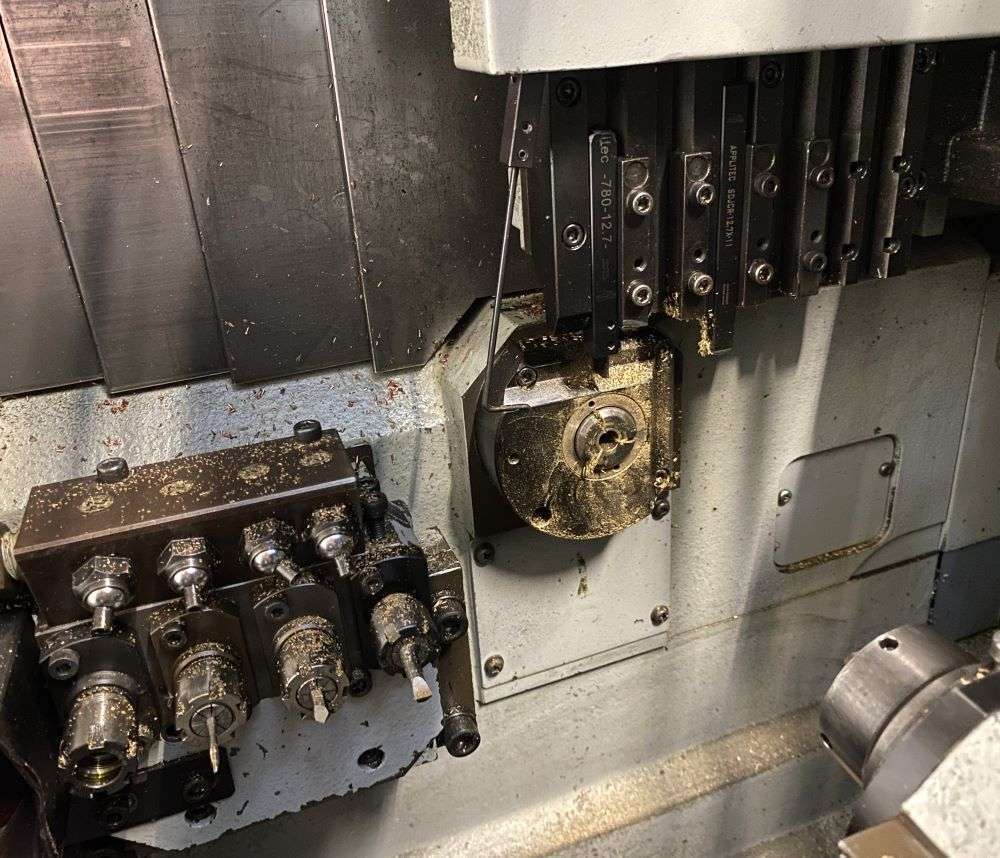

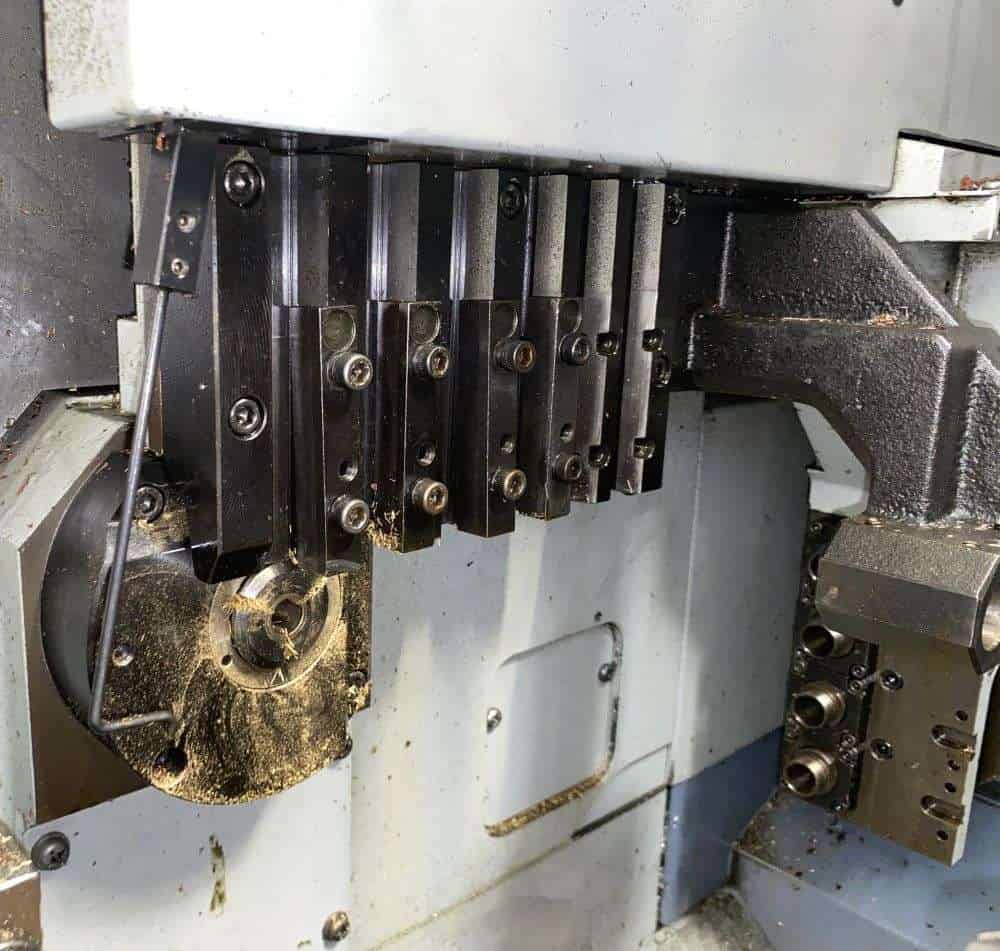

| Standard Tools: |
|---|

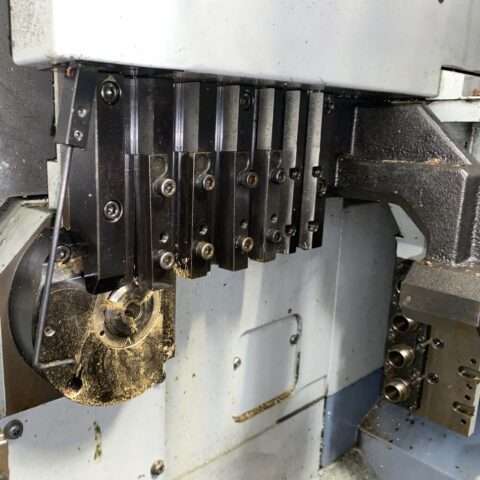

| Turning Tools: 6 |
| Stationary Tools: 4 |
| Max Drilling Capability: 25/64″ (10 mm) |
| Max Tapping Capability: M8 x P1.25 |
| Die Cutting Capability: M8 x P1.25 |

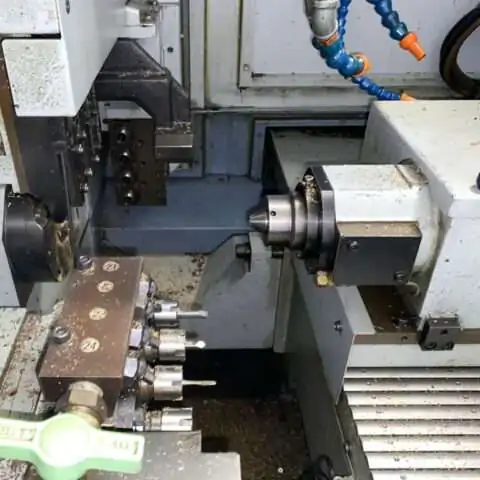

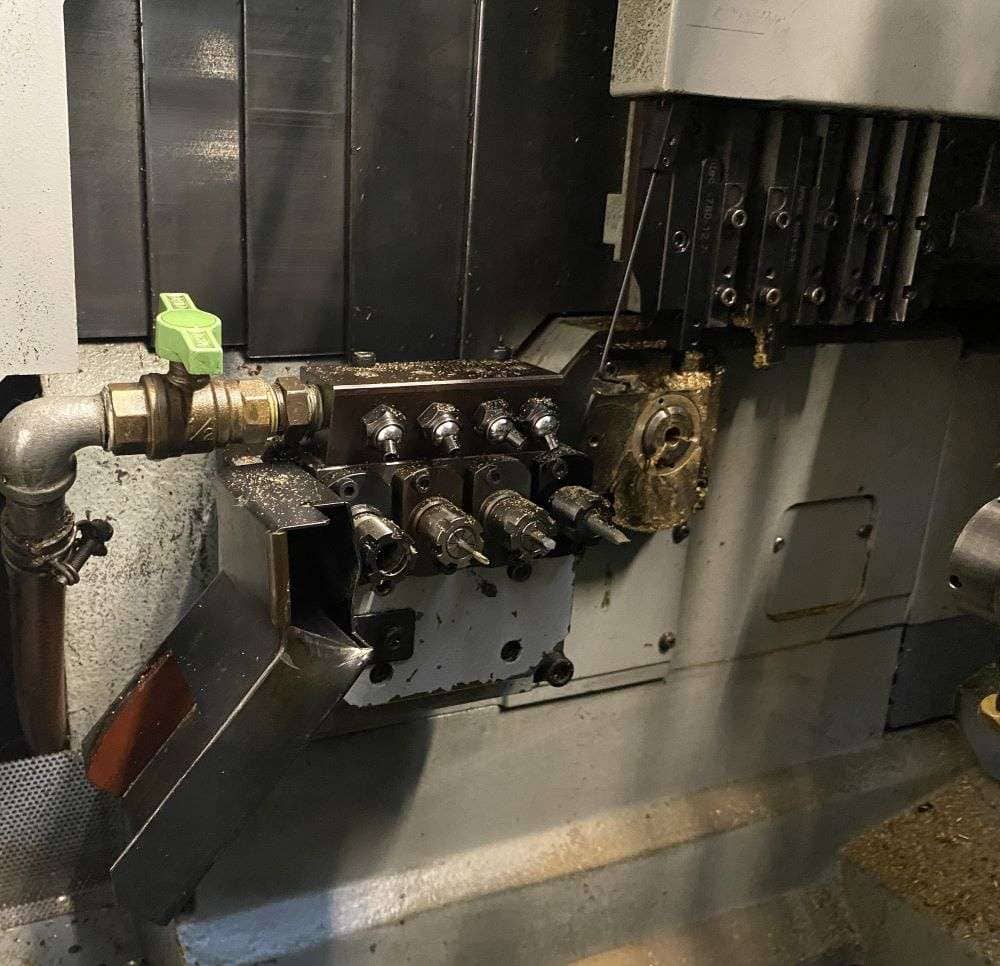

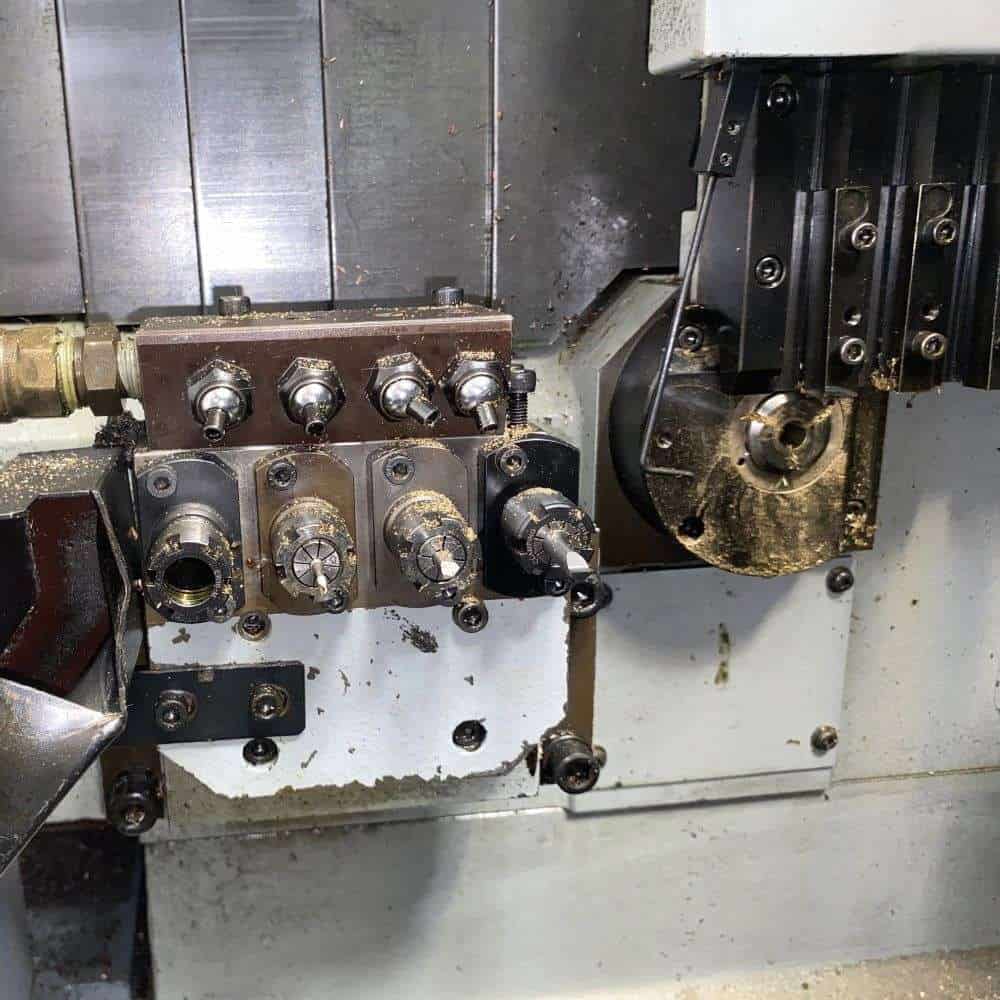

| Power Driven Tools Attachment: |
|---|
| Front Working Power Driven Tools: 4 |
| Cross Working Power Driven Tools: 4 |
| Max Front Drilling: 25/64″ (10 mm) |
| Max Front Milling: M8 x P1.25 |
| Max Front Tapping: M8 x P1.25 |
| Driven Tool Speed: 8,000 RPM |
| Driven Tool Motor: 1 kw |

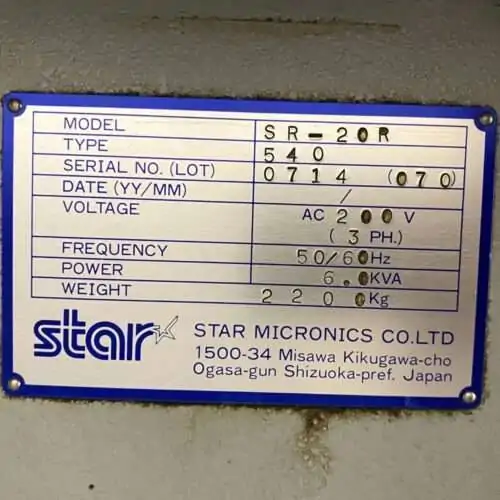

| General: |
|---|
| Power Source: AC 220 V/ Three Phase/ 60 Hz |
| Overall Dimensions: 87″ x 43″ x 67″ High |
| Weight: 4,850 lbs Approx. |
