Specifications:
- Round Bar Diameter Capacity: 1/4″ to 4″ Range
- Max. Feed Length for Bars: 60″
- Floor to Feed Guide: 28″ – 58″
- Tray Capacity (1″): 42 bars
- Tray Capacity (4″): 10 bars
- Tray Capacity Weight: 3,500 lbs
- Bar Stock: Round, Hex

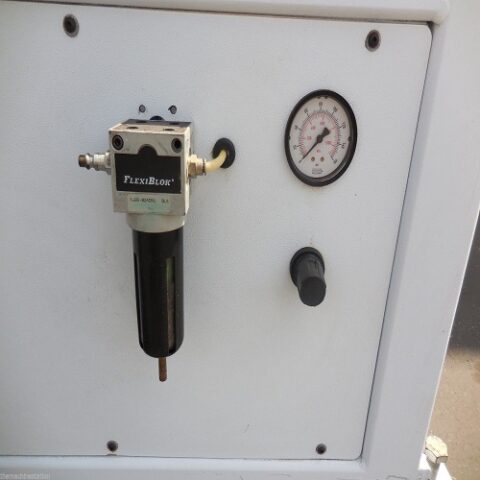

- Air Requirement: 80 PSI
- Drive Motor: 1/2 HP
- Air Requirements: 80 PSI

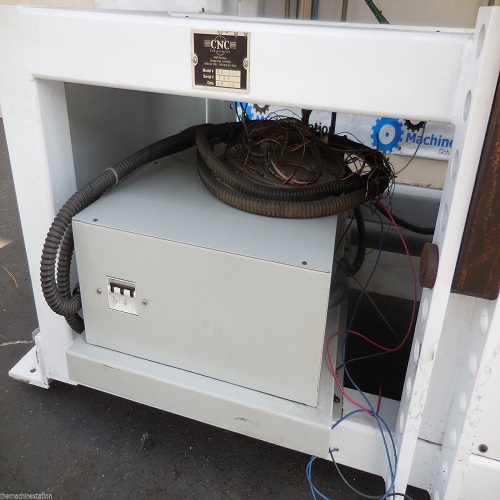

- Electrical Requirements: 220 Volt, 3 Phase, 7 Amps, 220 Volts, 1 Phase, 10 Amps
- Overall Dimensions: 83″ x 51″ x 66″
- Weight: 1,500 lbs approx
-
Technical Information: Control: Mitsubishi PLC and Drive
- Control Signals: Standard bar loader configuration
- Positioning systems: Full closed loop encoder feed back

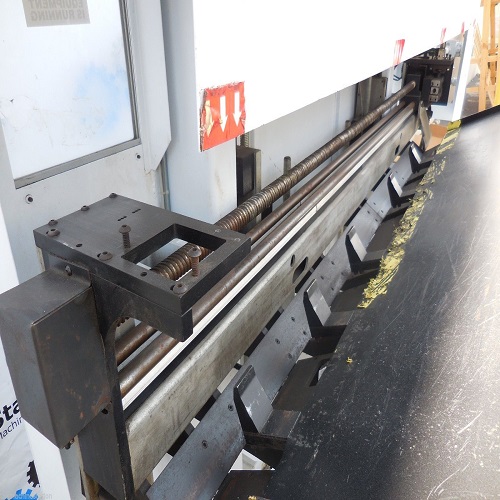

- Power Transmission: Ball screw
- Motor: 3/4 HP, Vector AC Inverter Drive
- Linear Motion Slides: All heavy duty rails and bearings
- Pushers: 3 standard sizes: 5/16″, 1/2″ & 1″
- Height Adjustment: Easy crank handle
- Material Tray Adjustment: Easy crank adjustment
- Material Tray Capacity: (42) 1″ Diameter Bars, (10) 4″ Diameter bars
