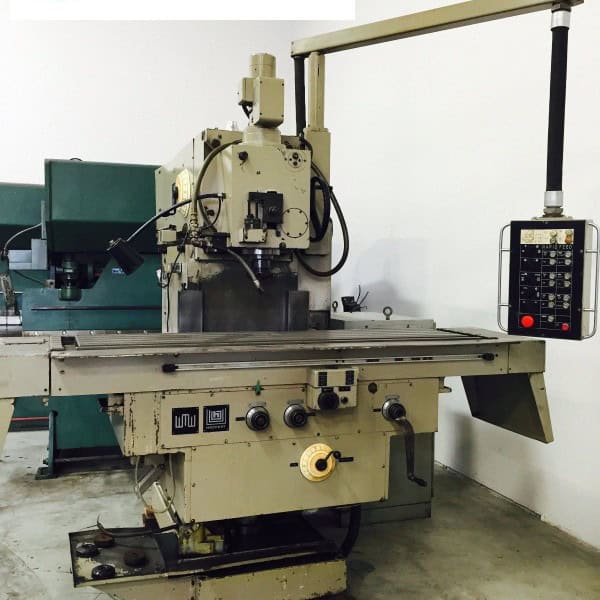

WMW FQ 400 Vertical Milling
Model #: FQ-400
Serial #: 342602-44
Country of Origin: Germany
WMW FQ 400 Vertical Milling Features:
- Pendant Control.
- 3-Axis Power Feed.
- Coolant System.
WMW FQ 400 Vertical Milling Specifications:
Surface Area: 78.75″ x 19″
T-Slot Center Distance: 5 @ 3.25″ centers
T-Slot Sizes: 0.710″
Maximum Work Load: 3,000 lbs.
X-Axis Table Travel: 46.85″
Y-Axis Table Travel: 17.71″
Z-Axis Table Travel (knee): 16.3″
Quill Travel: 6″
Spindle Taper: SK50
Quill Diameter: 5″
Number of Speeds: 18
Speeds: 35.5 to 1,800 RPM
Head Tilt: 45 degrees
Electrical: 460 Volt, Three Phase
Overall Dimensions: 125″ x 115″ x 115″ tall
WMW FQ 400 Vertical Milling and Comes as shown in pictures.
