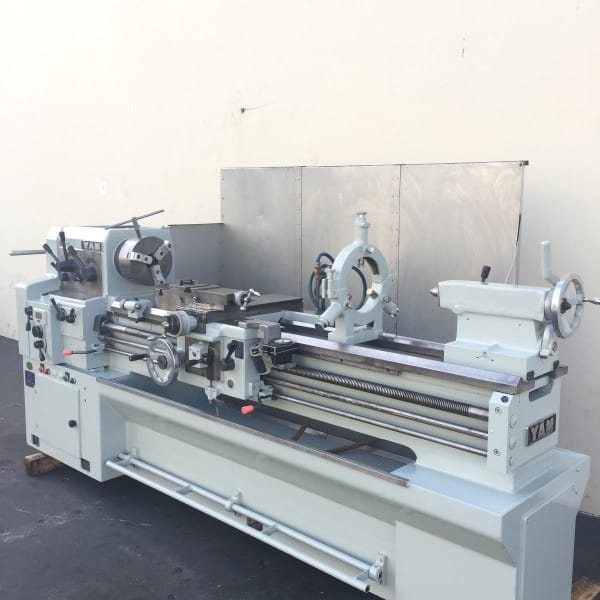

YAM 1500G Geared Head Engine Lathe

This machine has been tested & is in Good working condition. Check Video.

Out of stock

SKU:
1235
Categories: , ,

Product Description

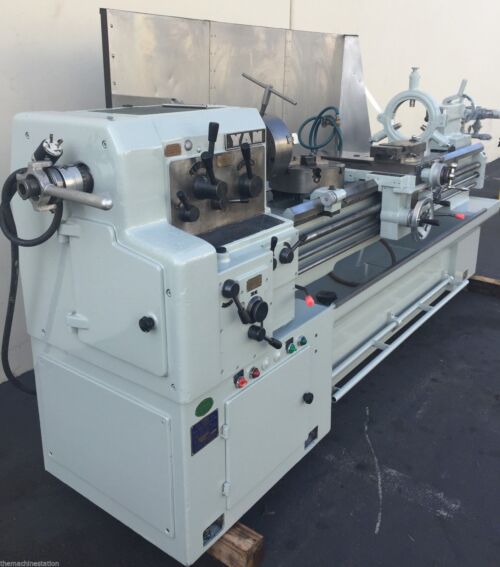

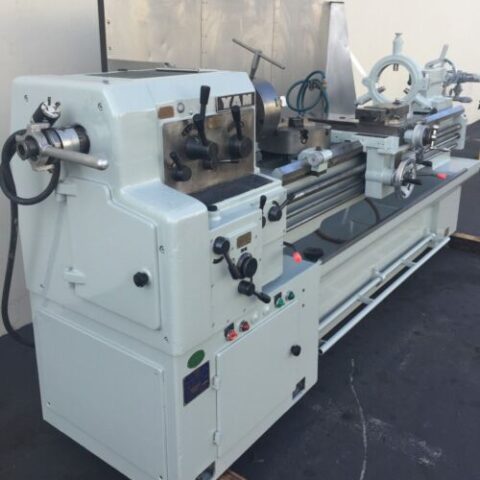

YAM 1500G GAP BED GEARED HEAD ENGINE LATHE

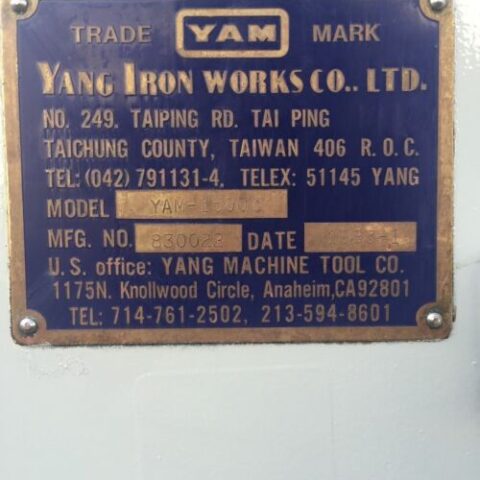

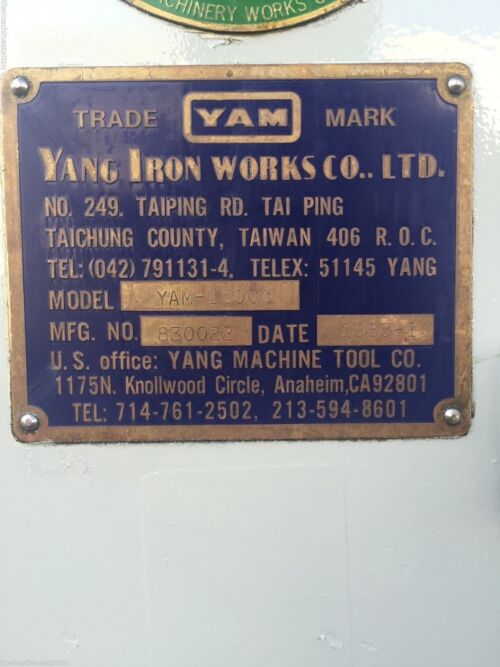

Make: YAM
Country of Origin: Taiwan
Model: 1500G
Serial #:  830022
Condition: Great

This machine has been tested & is in Good working condition. Check Video.


YAM 1500G Features:

Gap Bed Lathe
Hardened Bed

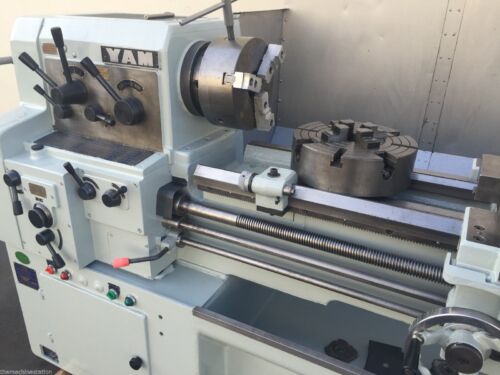

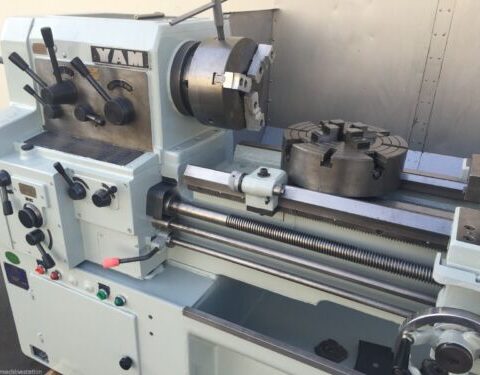

8″ Bison Three-Jaw Chuck

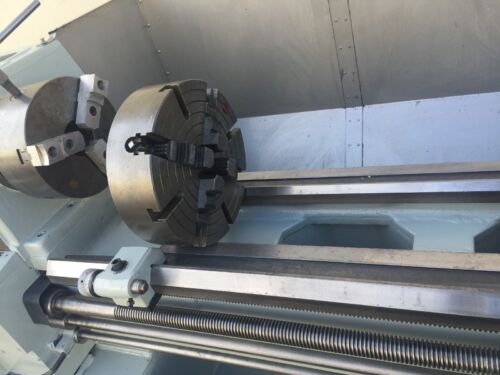

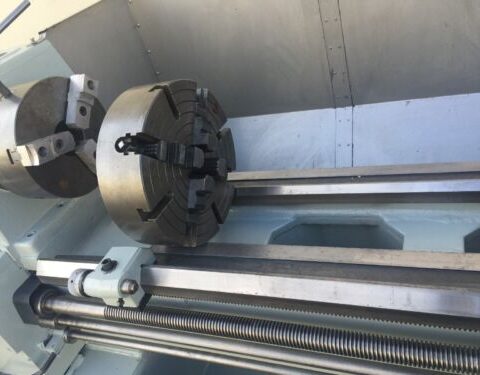

10″ ROHM Four Jaw Chuck
Royal Collet Closer

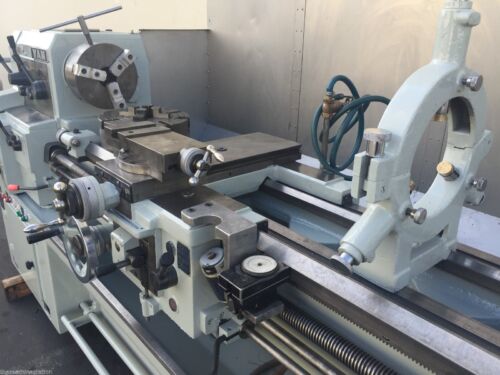

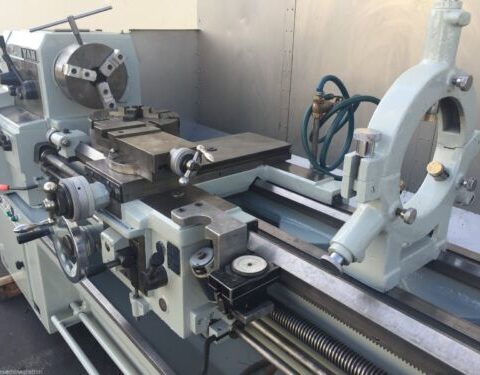

3 Point Steady Rest
Carriage Stops
Foot Brake
Coolant System


YAM 1500G Specifications:

Capacities:
Swing Over Bed: 17″
Swing Over Cross Slide: 10″
Swing Over Compount Slide: 5.5″
Distance Between Centers: 70″

Spindle:
Mount: D1-6
Thru Hole: 2 1/4″
Number of Speeds: 12
Speed Range: 45 to 1,800 RPM

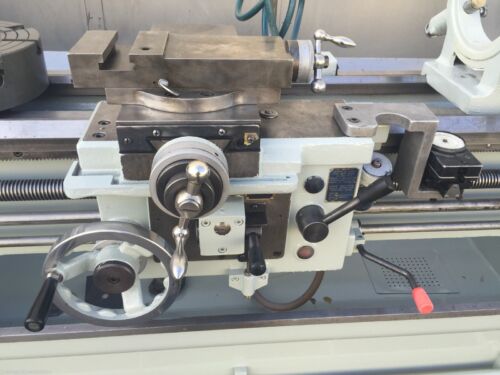

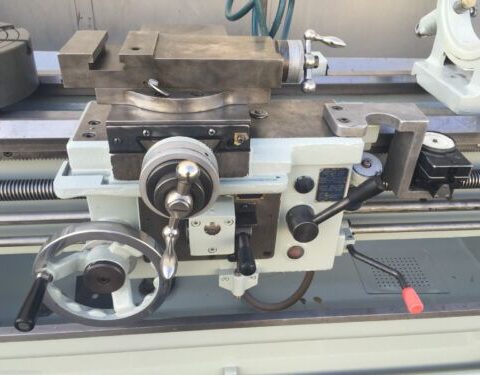

Carriage:
Cross Slide Travel: 10″
Compount Slide Travel: 6″
T-Slot Dimensions: 1-3/16″ x 1-55/64″ (approx.)

Threads:
Inch: 4 to 224

Tailstock:
Spindle Taper: #4 Morse Taper
Spindle Diameter: 2.56″
Spindle Travel: 6-3/4″

Bed:
Width: 14″
Length: 88″

General:
Motor: 7.5 Horsepower, 220 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz
Electrical: 220/440 Volt, Three Phase
Overall Dimensions: 94″ x 36″ x 73″ tall, Weighs: 5500 Lbs

YAM 1500G Comes as shown in pictures.  Sold As-is
