*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

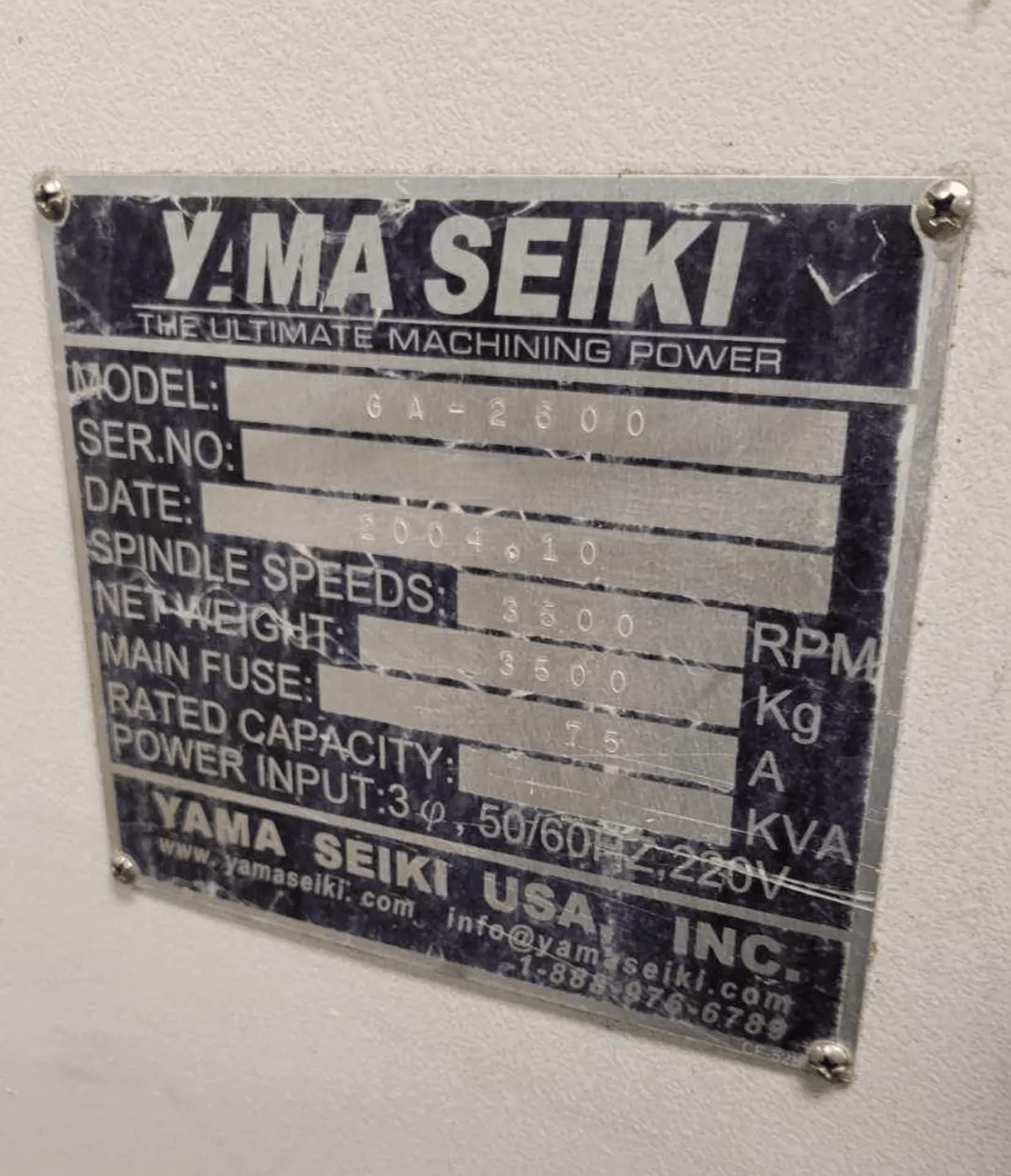

| Make: | Yama Seiki |
| Model: | GA-2600 |
| Year: | 2004 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

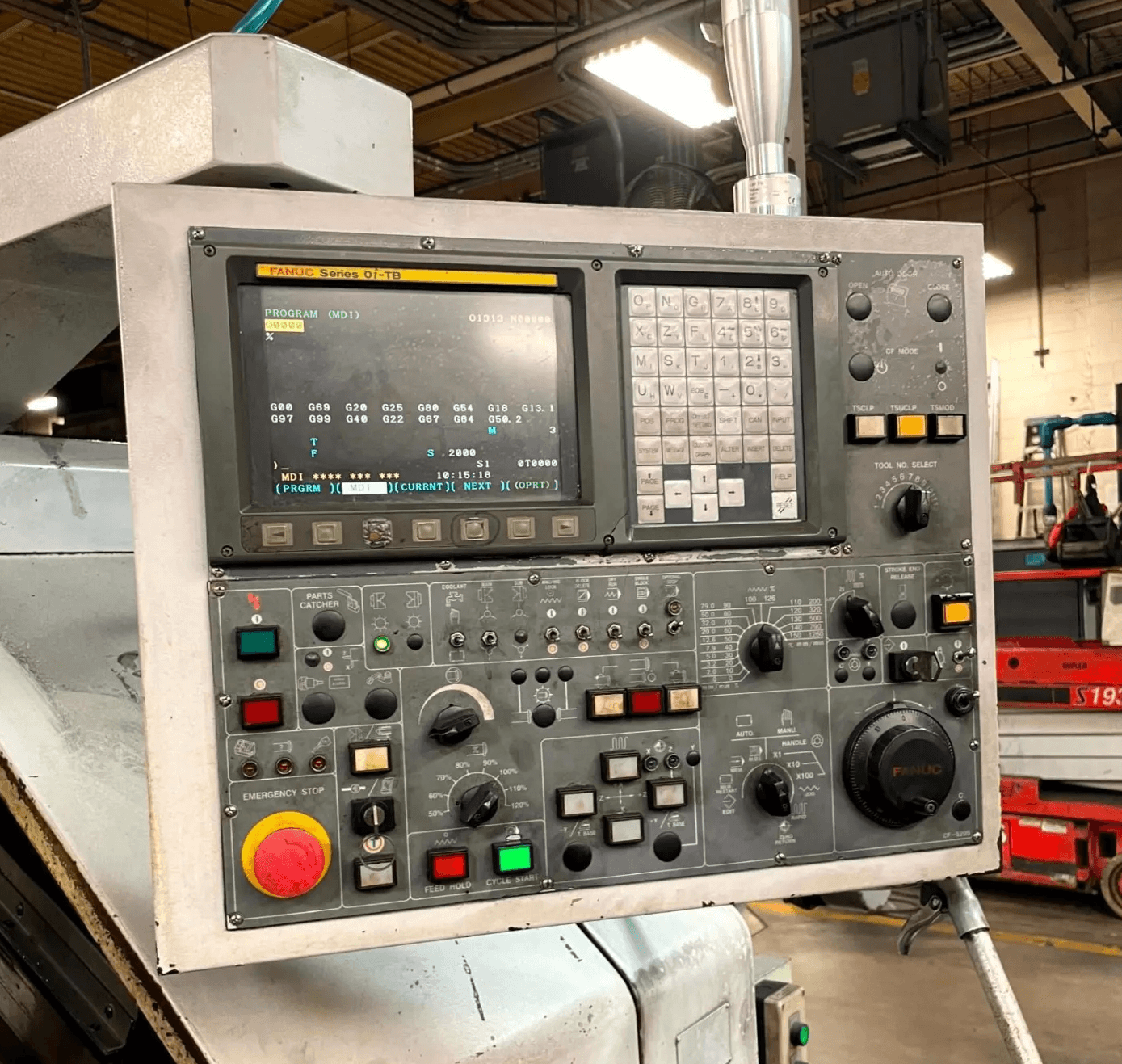

| Control: | Fanuc Series Oi-TC CNC Control |
| Country of Origin: | Taiwan |
| EQUIPPED WITH: |
|---|
| Fanuc Series Oi-TC CNC Control |

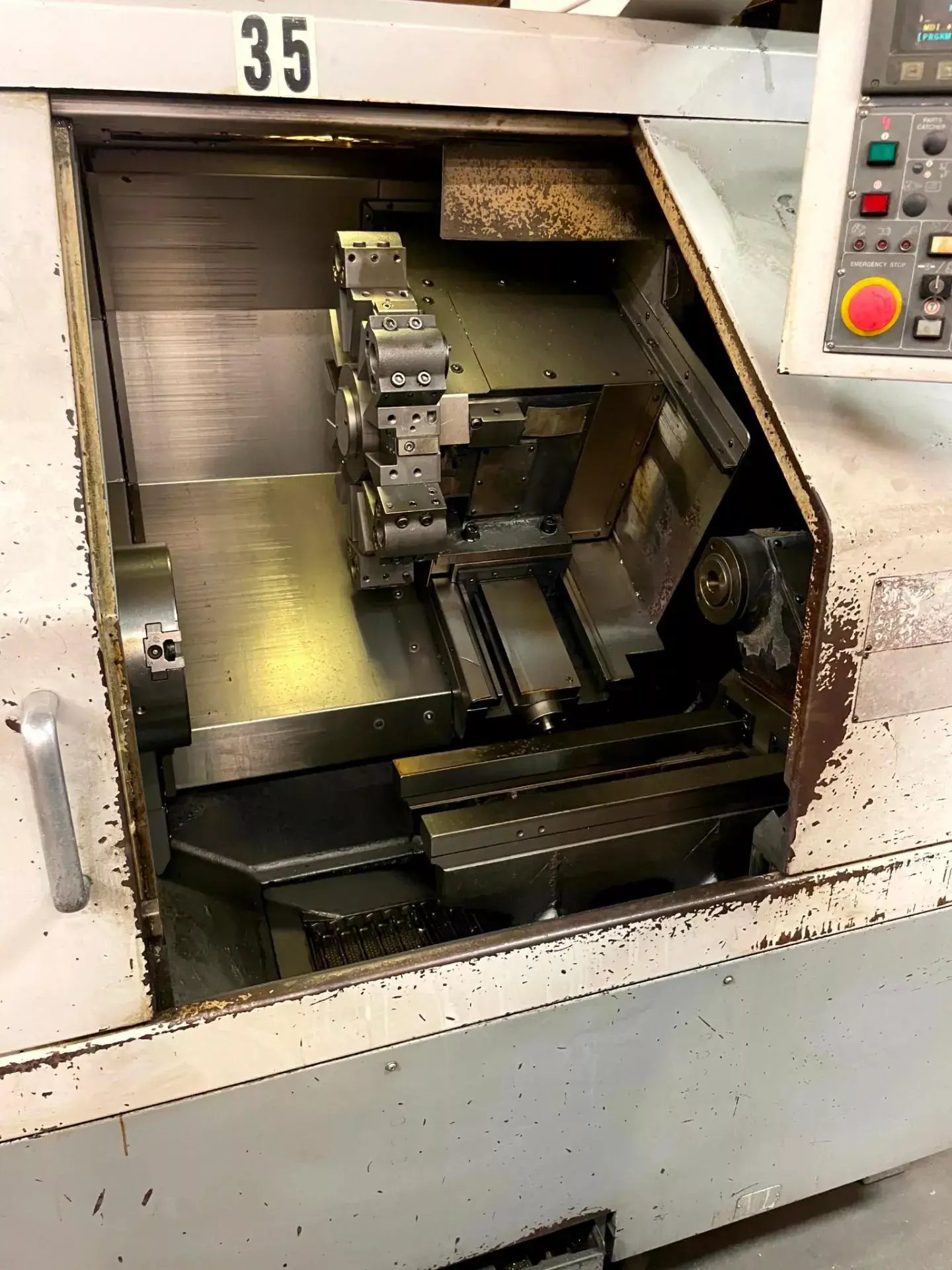

| 12-Station Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Hardened & Ground Box Ways |
| 10″ Hydraulic Chuck |
| Direct Belt Drive Spindle |
| Coolant System |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Maximum Swing Diameter: 22.83″ |
| Swing Over Saddle: 15.74″ |
| Maximum Turning Diameter: 13.77″ |
| Maximum Turning Length: 23.86″ |
| Maximum Workpiece Weight: 506 Lbs |
| Chuck Size: 10″ |
| Bar Capacity: 2.55″ |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Through Hole: 2.99″ |
| Spindle Bearing Diameter: 4.72″ |
| Spindle Drive: Direct Belt Drive |
| Spindle Motor: 15 HP |
| Spindle Speed Range: 20 – 4,000 RPM |
| Travels: |
|---|
| X-Axis Travel: 8.07″ |
| Z-Axis Travel: 23.77″ |
| Turret: |
|---|
| Turret Capacity: 12 Tools |
| Turret Type: Bidirectional |
| Tool Size: Approx. 1″ |
| Boring Bar Capacity: Approx. 1.5″ |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic |
| Tailstock Quill Taper: MT #4 |
| Quill Diameter: 2.75″ |
| Quill Travel: 5.90″ |
| Electrical: |
|---|
| Power Requirement: 220V / 3 Phase / 60 Hz |
| Main Fuse Capacity: 75 Amps |
| Power Input: 30 KVA |
| General: |
|---|
| Machine Weight: 8,800 Lbs |
| Overall Dimensions: Approx. 120″ x 72″ x 72″ |
