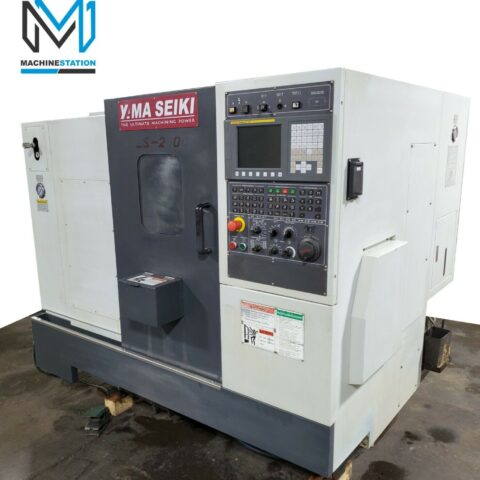

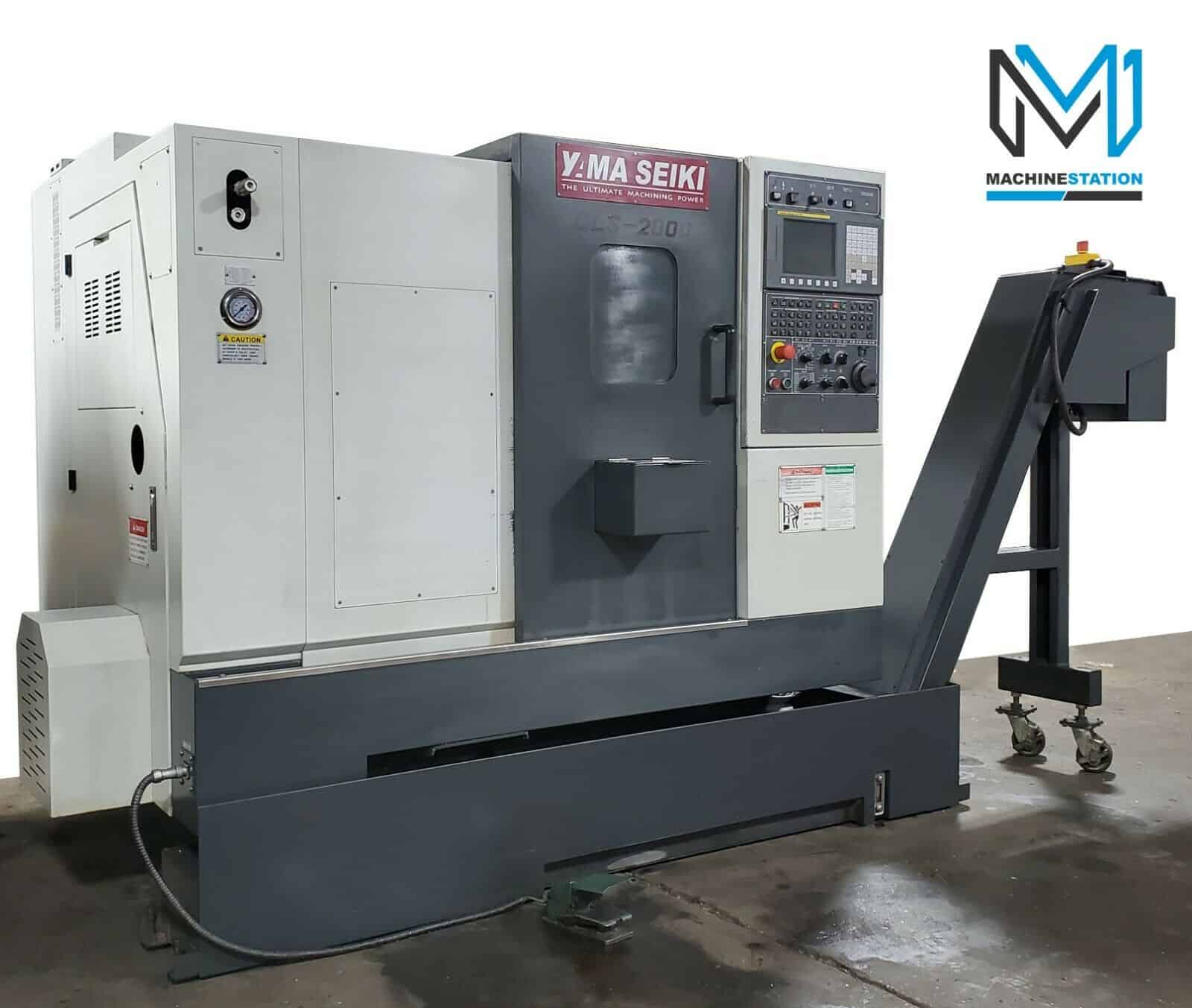

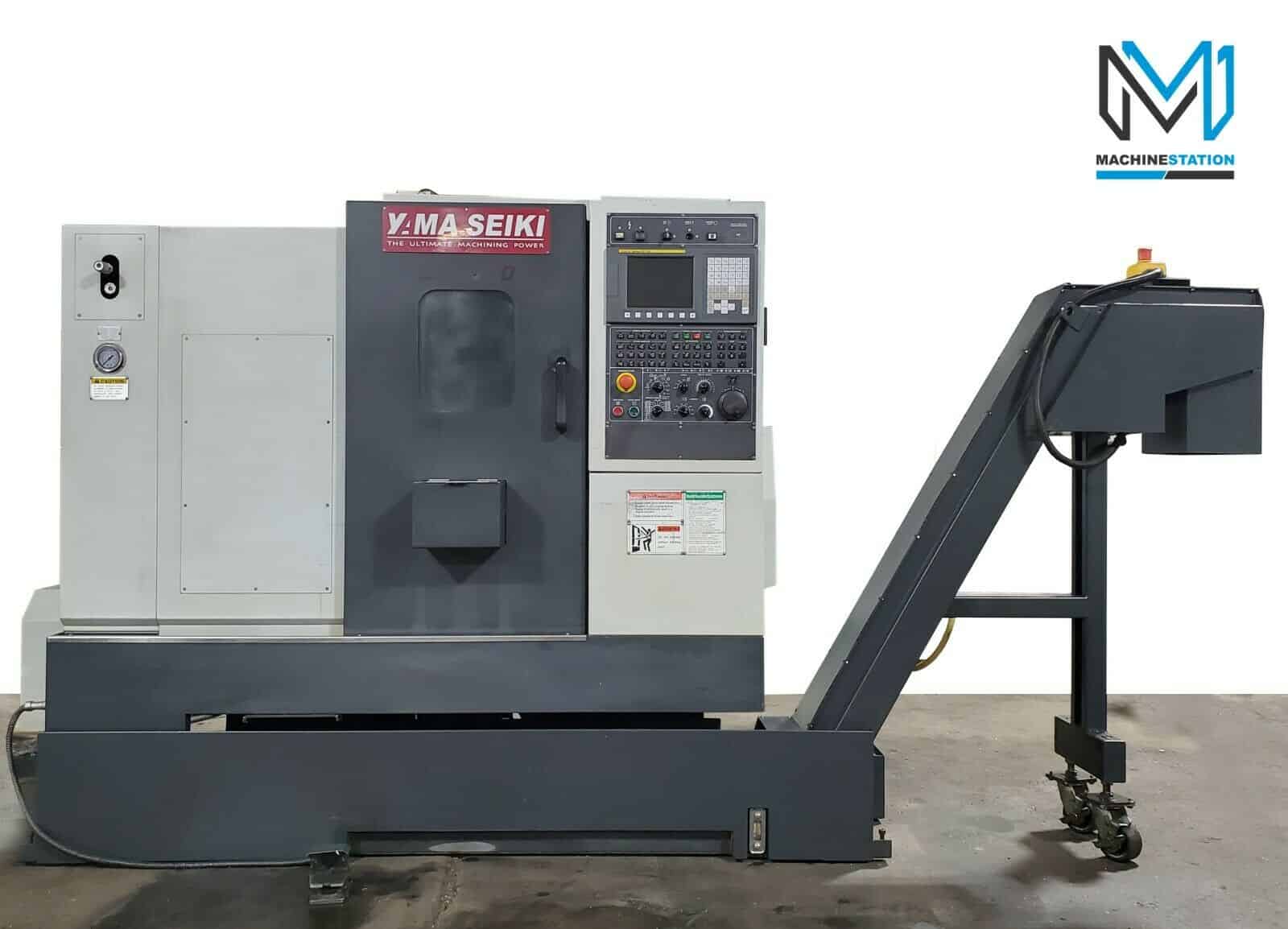

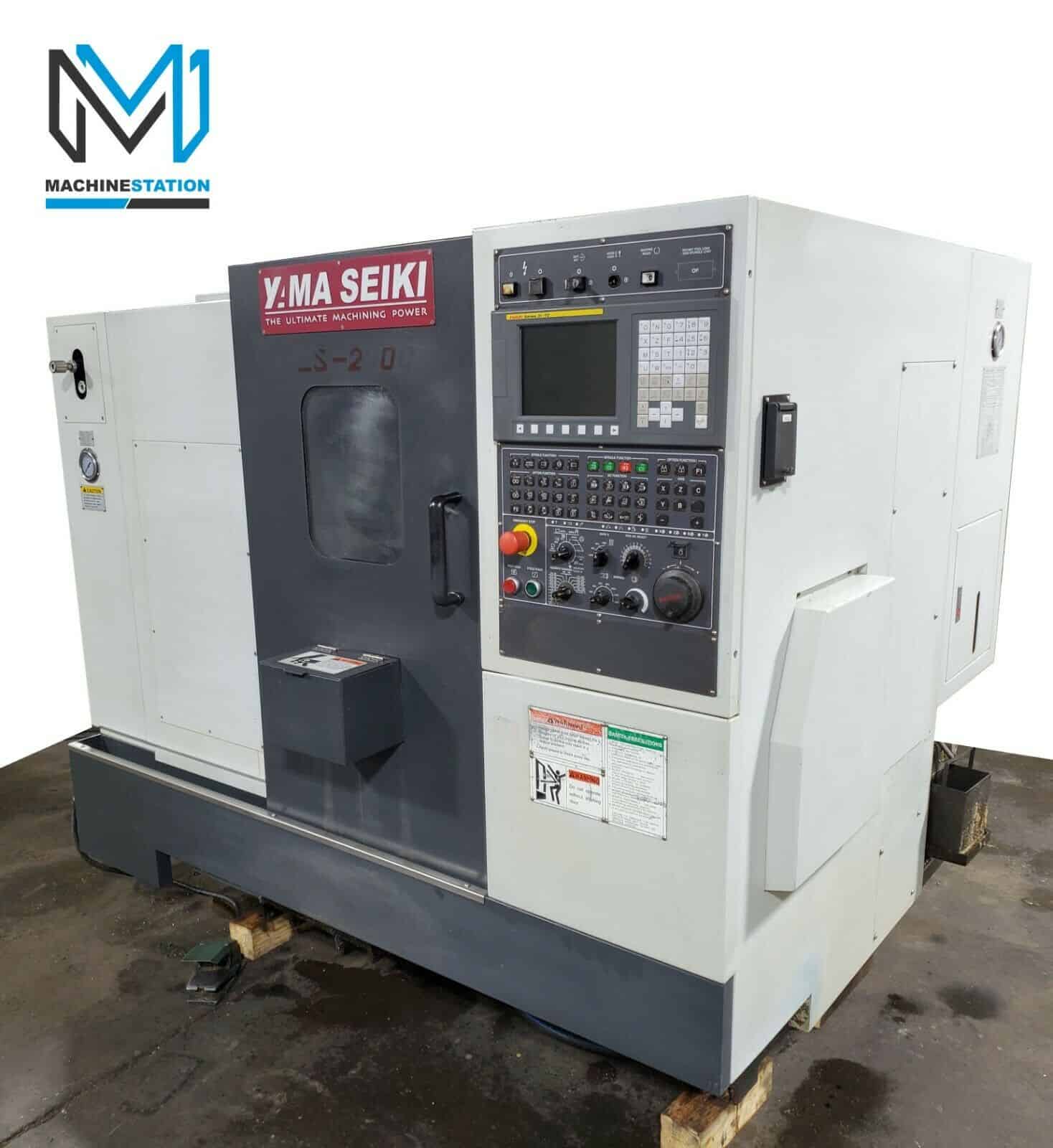

Used Yama Seiki GLS-2000 CNC Turning Center

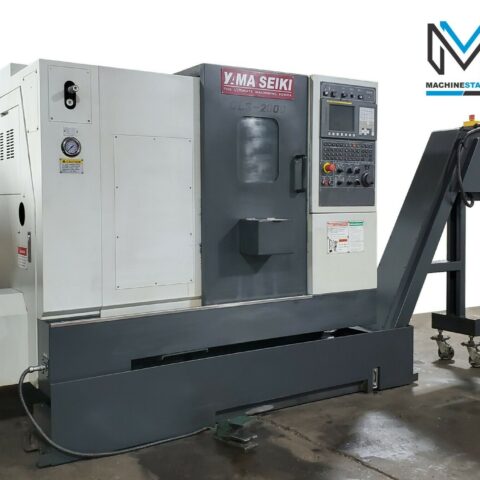

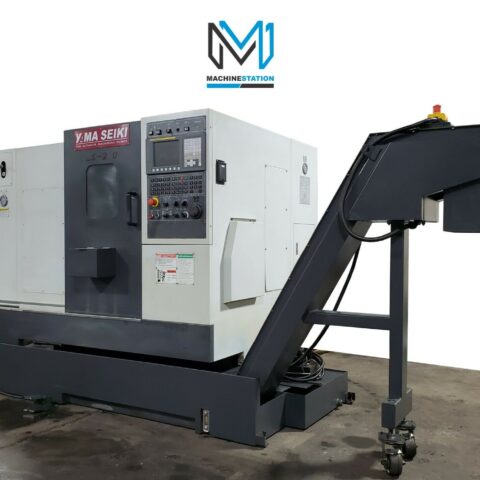

Yama Seiki GLS-2000 CNC Turning Center

Location Lake Elsinore, CA

SKU 105131

Make YAMA SEIKI

Model No. GLS-2000

Year 2012

Condition Used-Good

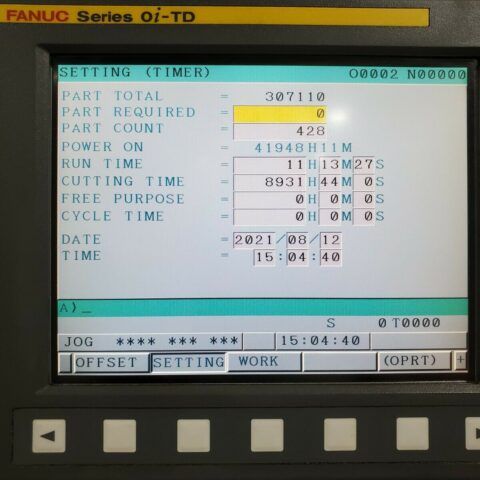

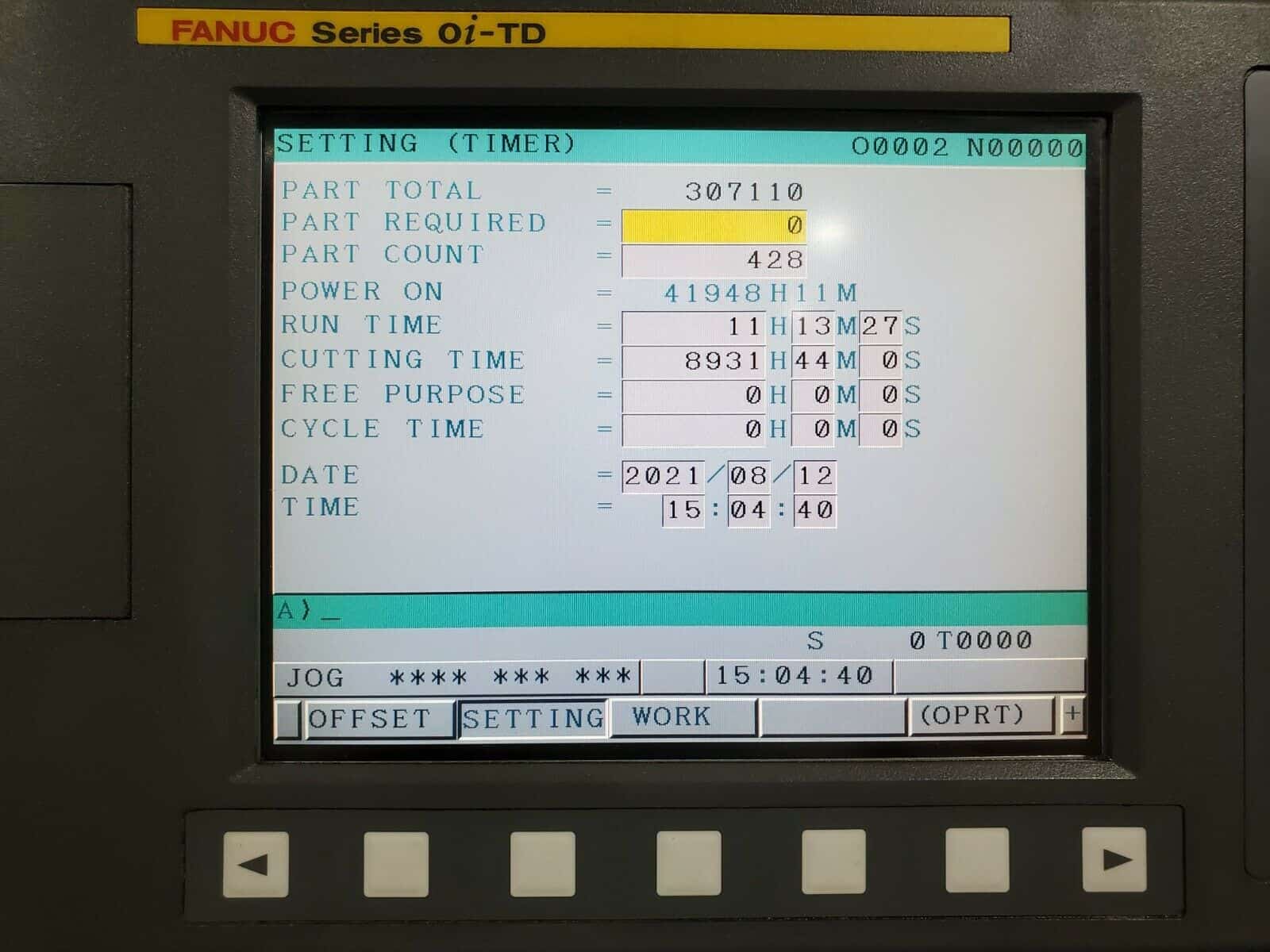

Cutting Hours 8931 Hours

Out of stock

Location	Lake Elsinore, CA
SKU	105131
Make	YAMA SEIKI
Model No.	GLS-2000
Year	2012
Condition	Used-Good
Cutting Hours:	8931 Hours

SKU: 105131

All specifications are approximations and are subject to verification.

Equipped With

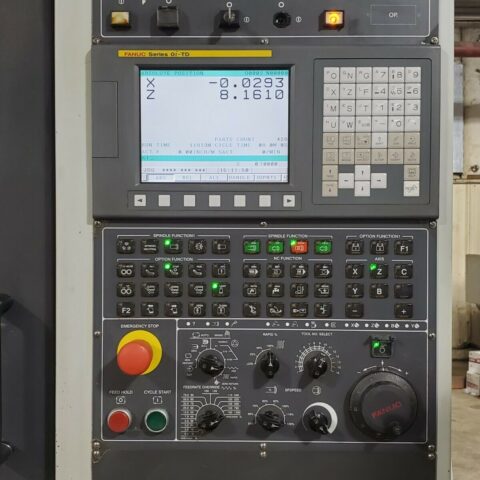

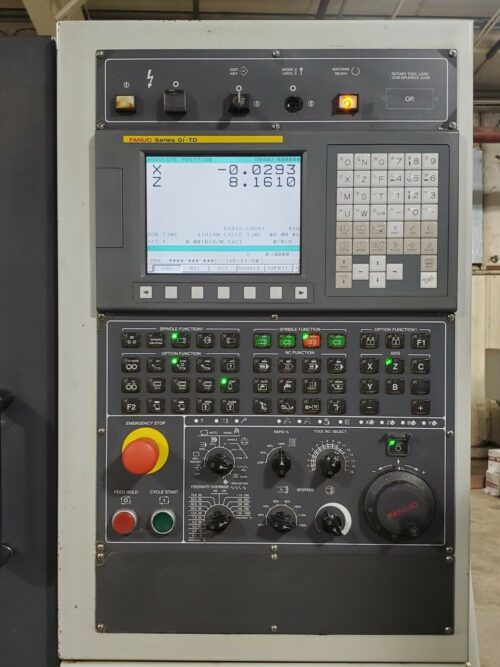

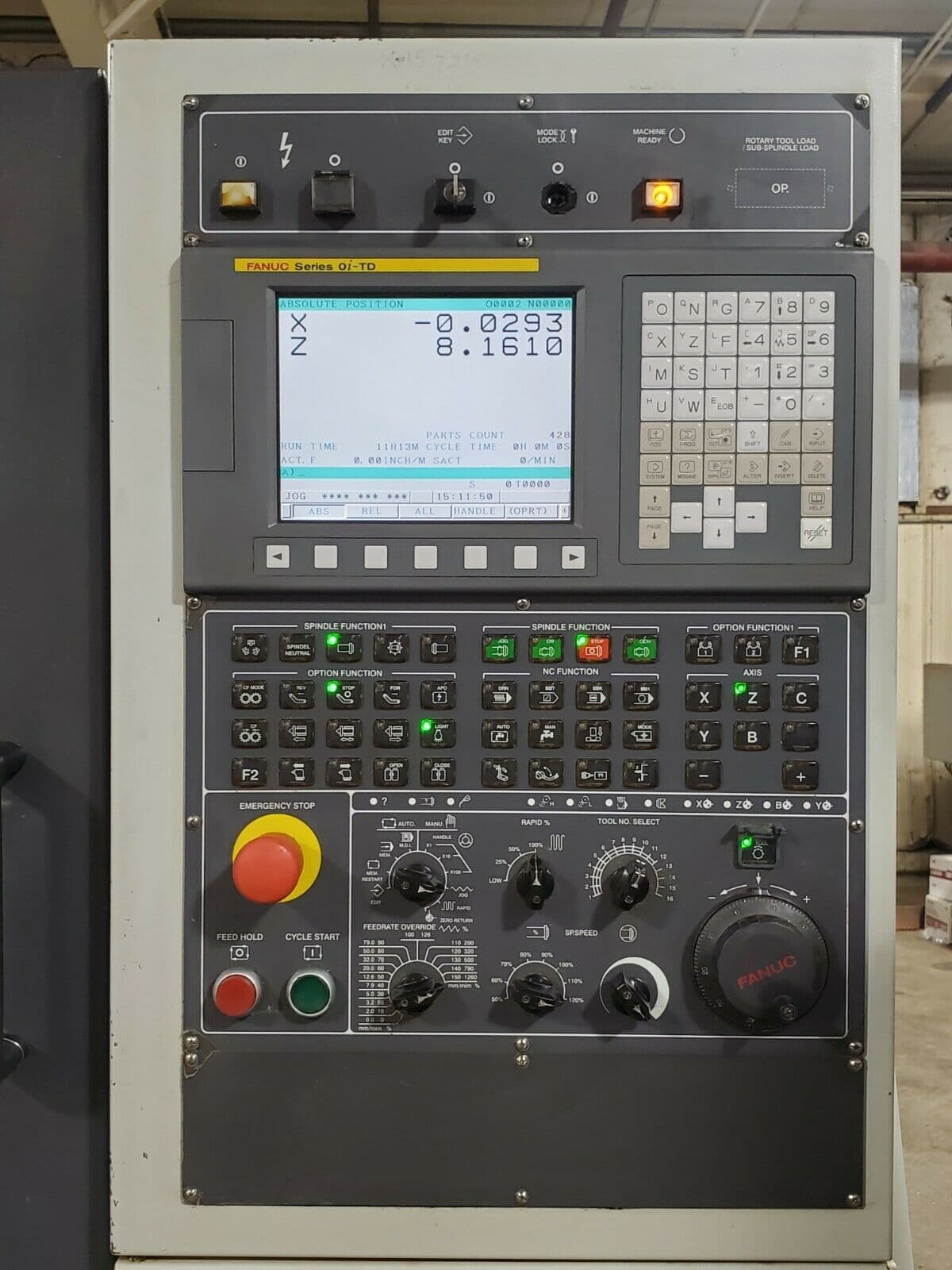

Fanuc 0i-TD CNC Control

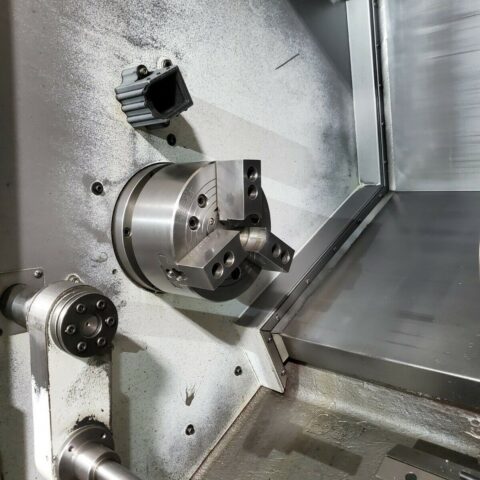

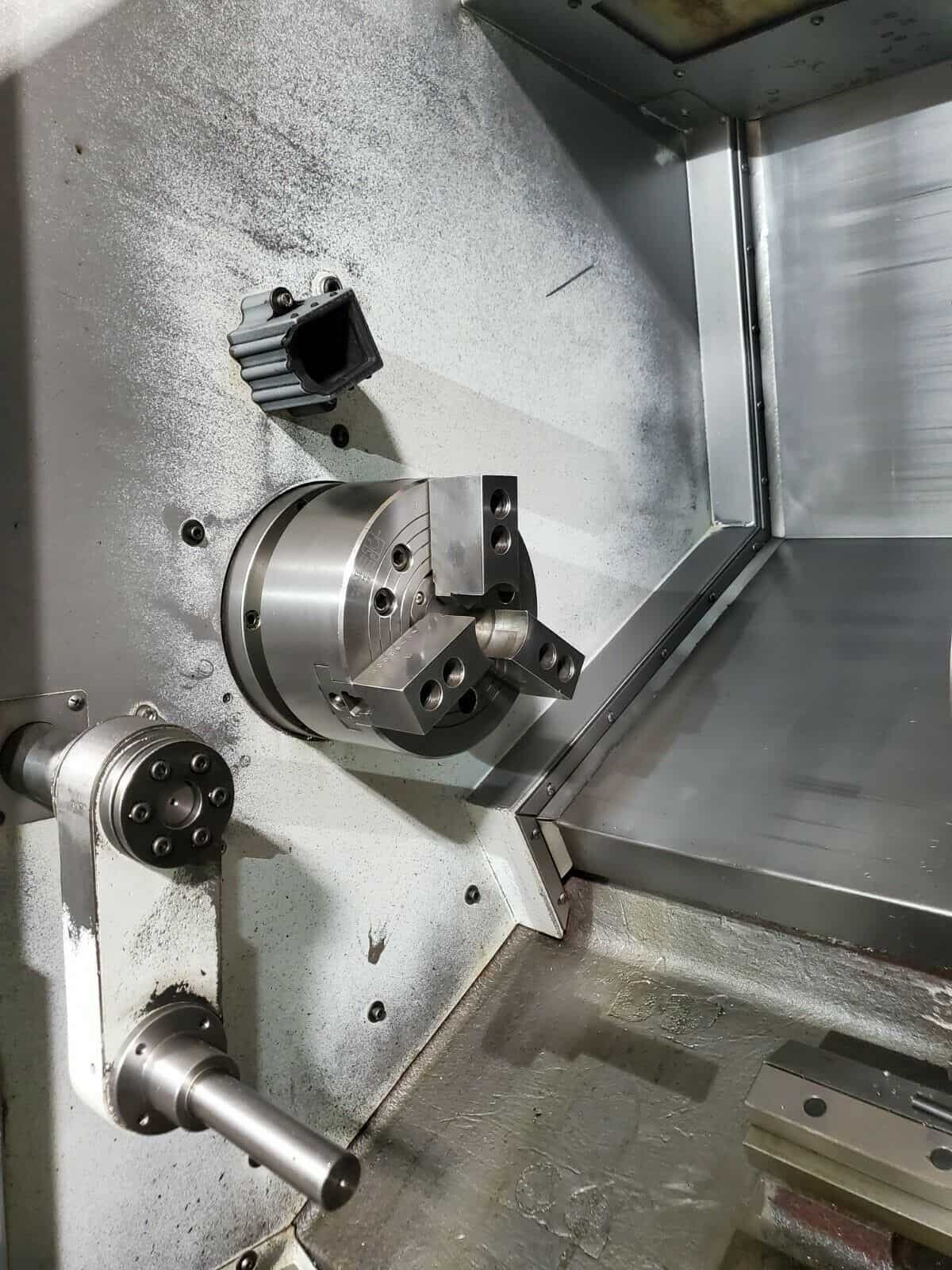

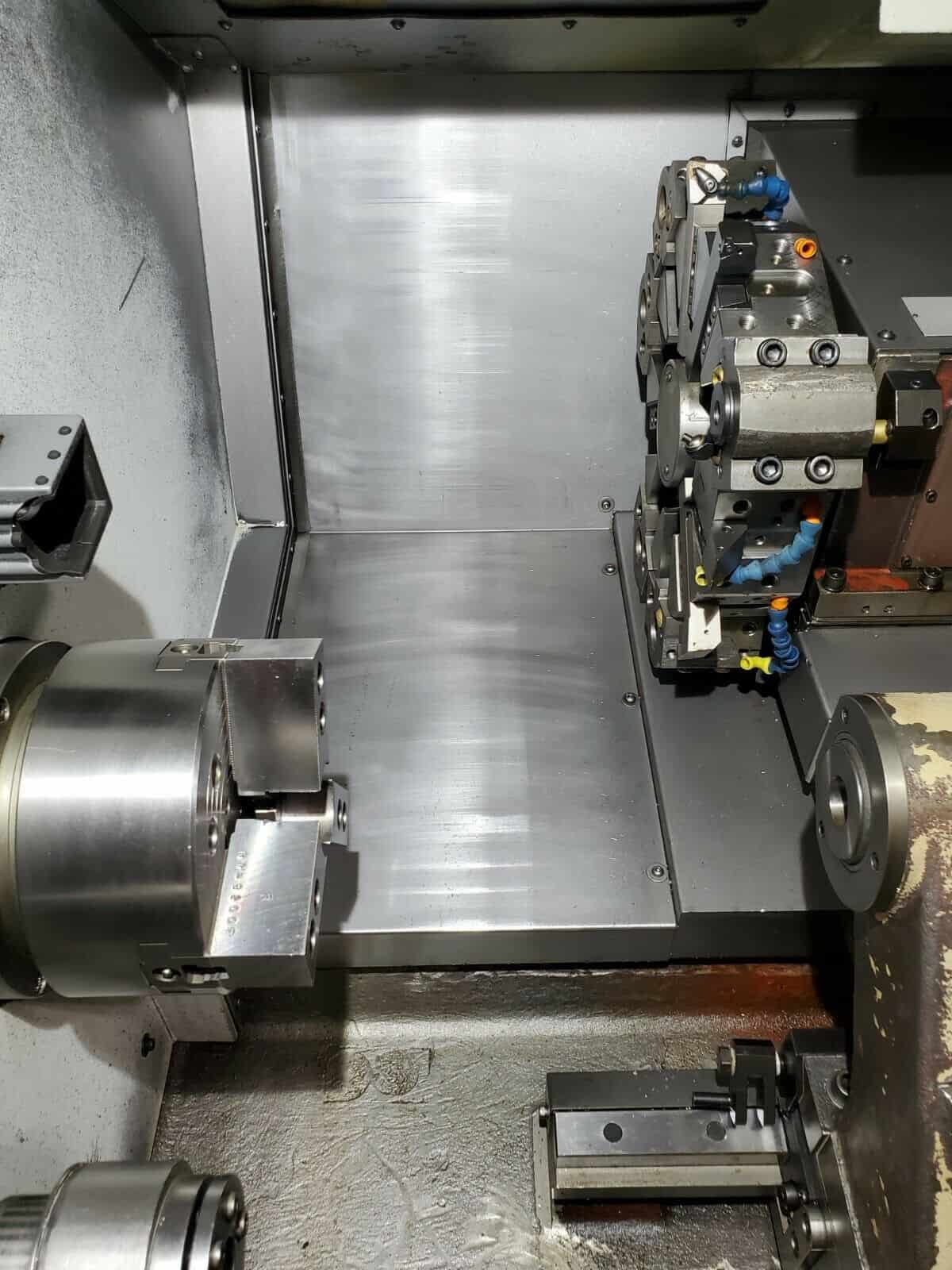

8″ 3 Jaw Chuck
A2-8, 3500 RPM Spindle
Rigid Tapping
Spindle Orientation
Hydraulic Tailstock and Quill
PCMCIA Card Interface
USB Port

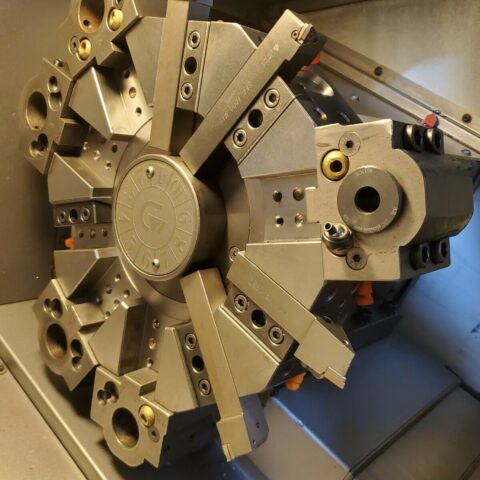

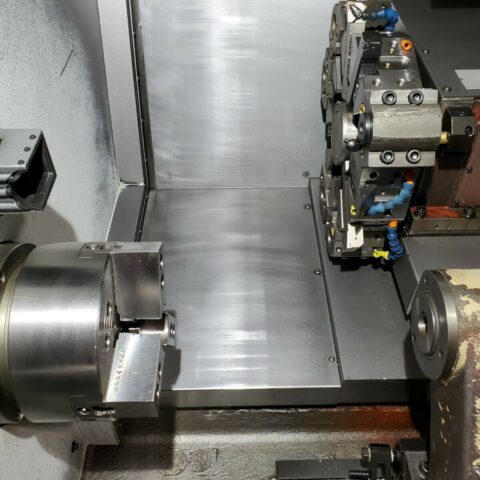

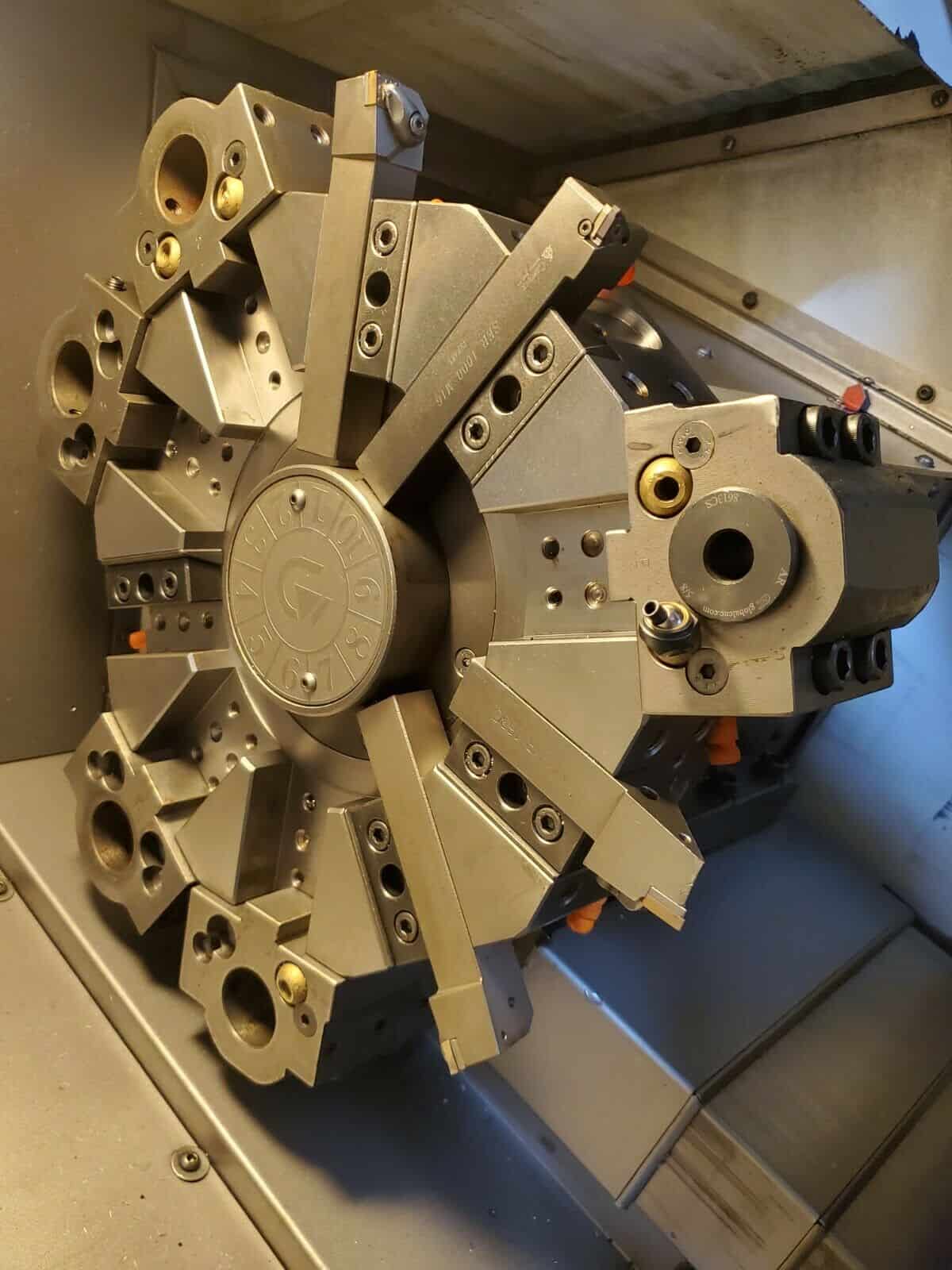

10 Station Automatic Turret
Foot Switch
Coolant System

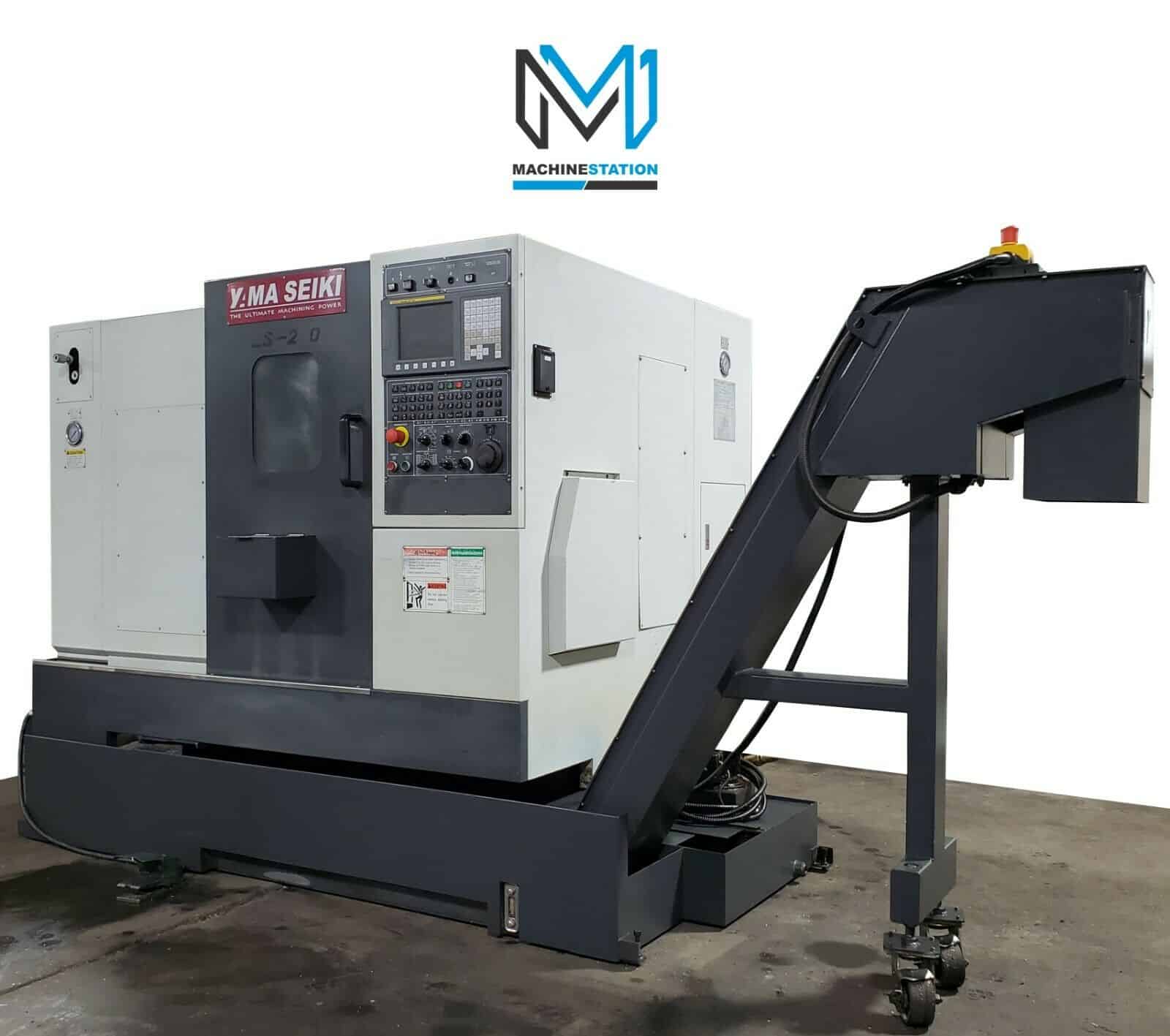

Chip conveyor

Specifications:
Capacity:
Max Turning Diameter: 16.9″
Max Turning Length: 13.0″
Max Bar Capacity: 2.56″
Swing Over Bed: 22.05″
Distance Between Centers: 22.6”

Travels:
X Axis Travel: 9.1″
Z Axis Travel: 13.2″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.99″
Spindle Speed: 4200 RPM
Spindle Motor: 20 hp

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.15 Second
Tool Size: 1″

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 11.77″
Tailstock Quill Dia.: 2.75″
Tailstock Quill Travel: 5.94″

General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 100″ x 70″ x 80″ High
Weight: 7,000 lbs
