Chiron DZ15 W Magnum HS Twin Spindle 4-Axis CNC Vertical Machining Center

SKU 11733

Make/Model Chiron DZ15 W Magnum HS

Year 2016

Video On Request

Out of stock

SKU:	11733
Make/Model:	Chiron DZ15 W Magnum HS
Year:	2016
Video:	On Request

SKU: 11733

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Chiron
Model:	DZ15 W Magnum HS
Year:	2016

Features:
Siemens Sinumerik CNC Control
Twin High-Speed Spindles
4th Axis Capability
(2) 24-Station Automatic Tool Changers
Burener KA m TPF305 High Pressure Coolant & Filtration System
Deltatherm RKV 2-3DK Cooler
Burener KF38/32-450 Swarf Conveyor with Tipping Skip
FMB Blickle Hydraulic Unit

Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 15.7″
Z-Axis Travel: 16.5″

Table:
Table Size: 41.3″ × 15.7″

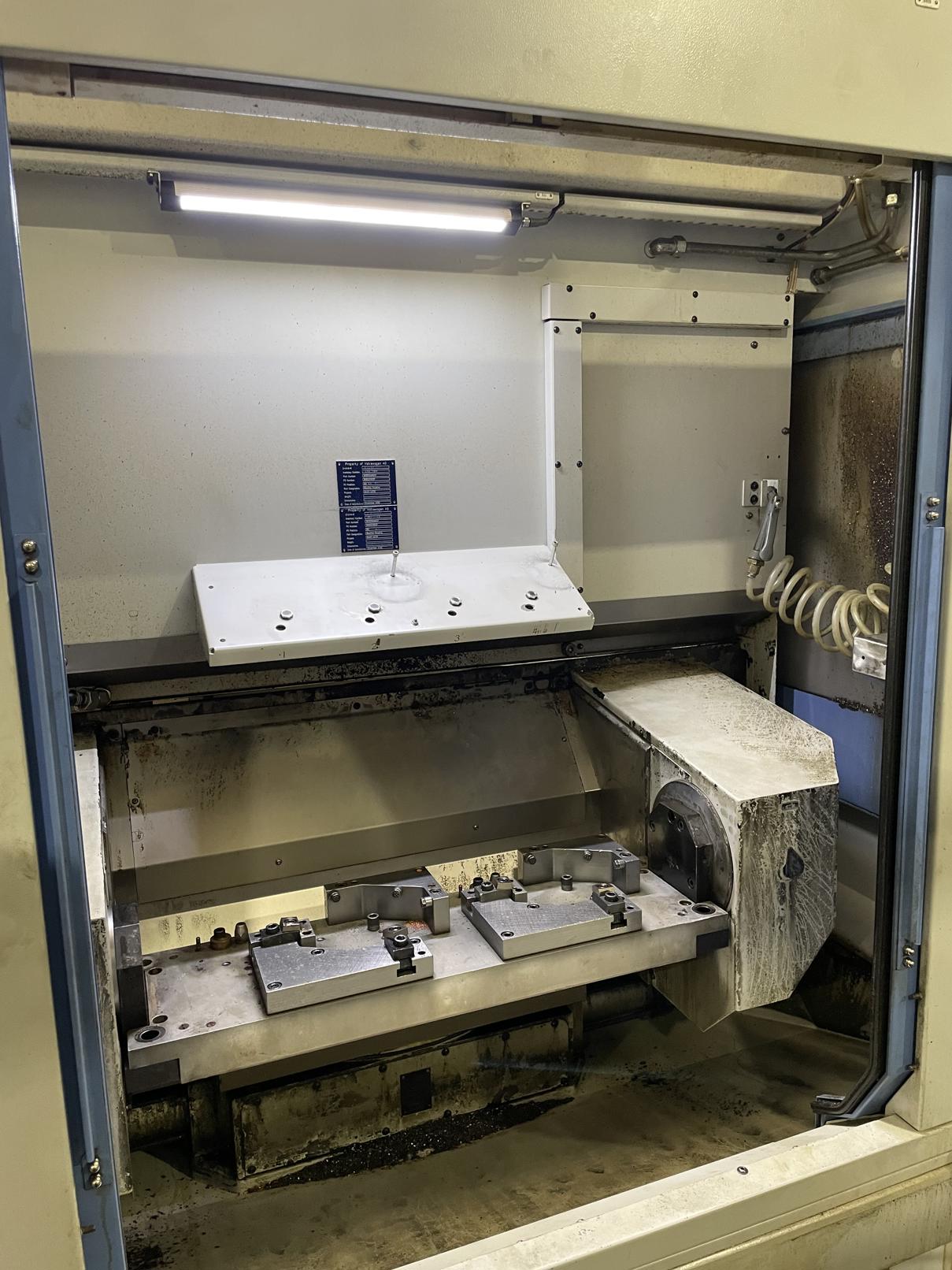

Pallet Configuration: Twin Work Zones

Spindle:
Number of Spindles: 2
Spindle Speed: 12,000 RPM
Spindle Taper: HSK-A63

Automatic Tool Changer:
Tool Capacity: (2) 24 Stations

General:

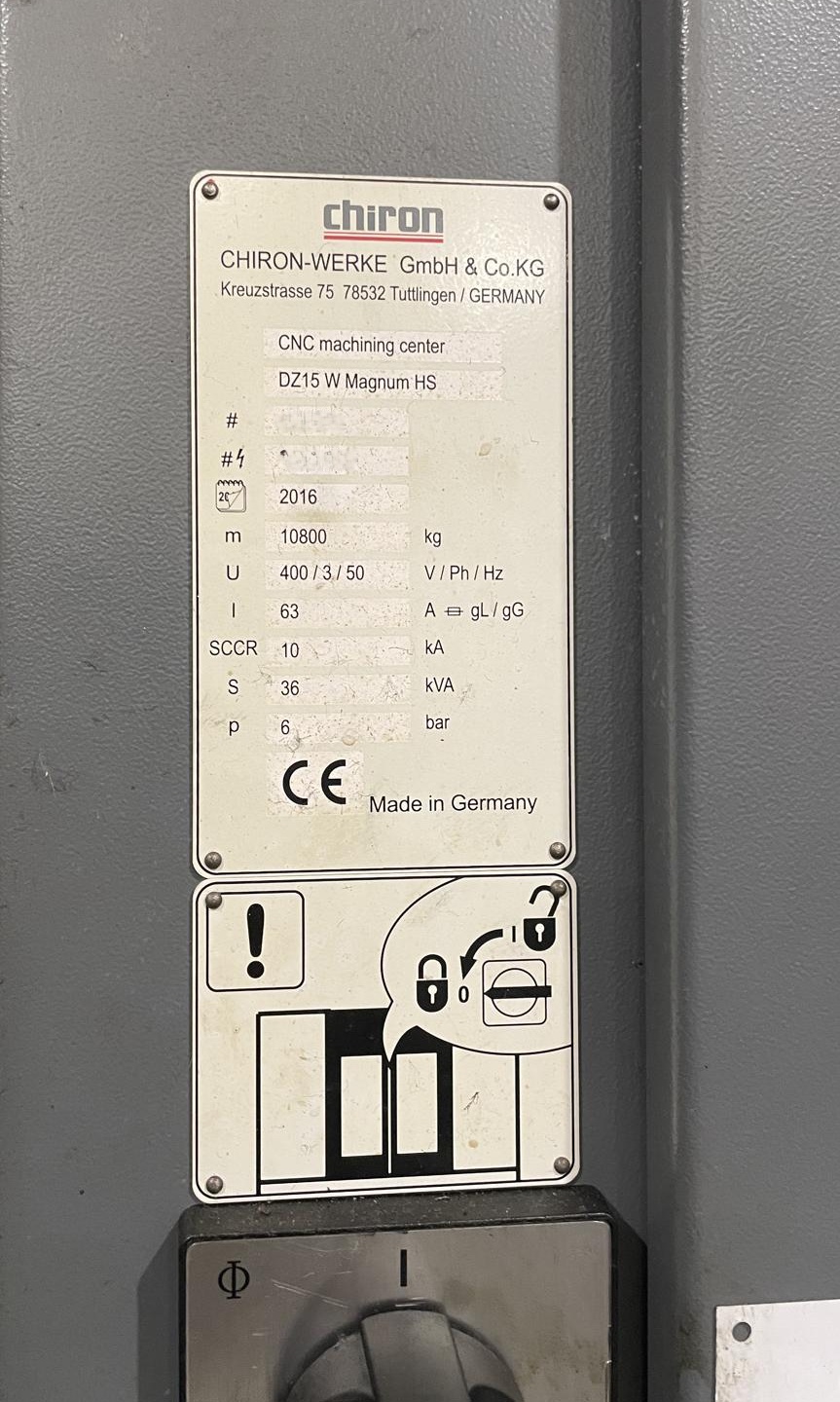

Power Requirement: 400 V / 3 Phase / 50 Hz
Rated Capacity: 36 kVA
Indicated Hours: 22,892 Hours
Machine Dimensions (Approx.): 150″ × 122″ × 118″
Machine Weight (Approx.): 23,810 lbs

Travels:
X-Axis Travel: 800 mm
Y-Axis Travel: 399 mm
Z-Axis Travel: 419 mm

Table:
Table Size: 1,049 mm × 399 mm
Pallet Configuration: Twin Work Zones

Spindle:
Number of Spindles: 2
Spindle Speed: 12,000 RPM
Spindle Taper: HSK-A63

Automatic Tool Changer:
Tool Capacity: (2) 24 Stations

General:
Power Requirement: 400 V / 3 Phase / 50 Hz
Rated Capacity: 36 kVA
Indicated Hours: 22,892 Hours
Machine Dimensions (Approx.): 3,810 mm × 3,099 mm × 2,997 mm
Machine Weight (Approx.): 23,810 lbs

Categories	CNC Vertical Machining Centers
Make	Chiron
Model	DZ15 W Magnum HS

Siemens Sinumerik CNC Control
Twin High-Speed Spindles
4th Axis Capability
(2) 24-Station Automatic Tool Changers
Burener KA m TPF305 High Pressure Coolant & Filtration System
Deltatherm RKV 2-3DK Cooler
Burener KF38/32-450 Swarf Conveyor with Tipping Skip
FMB Blickle Hydraulic Unit

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
