All specifications are approximations and are subject to verification.
-

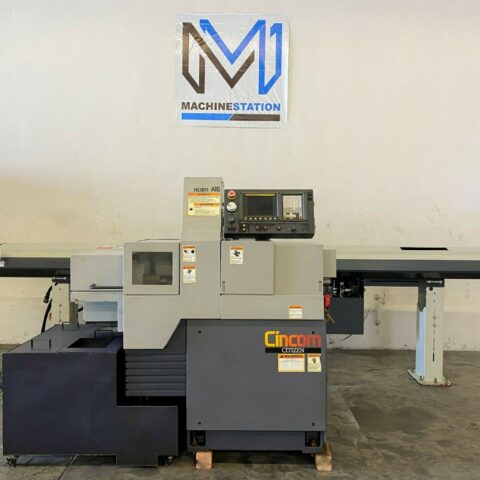

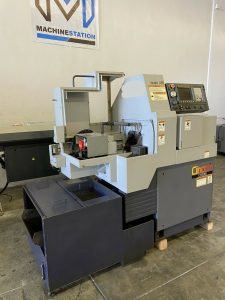

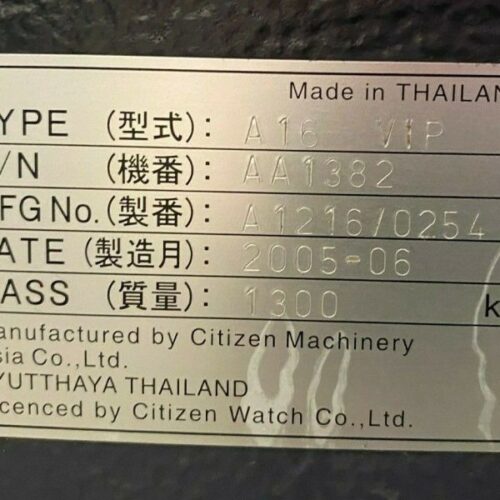

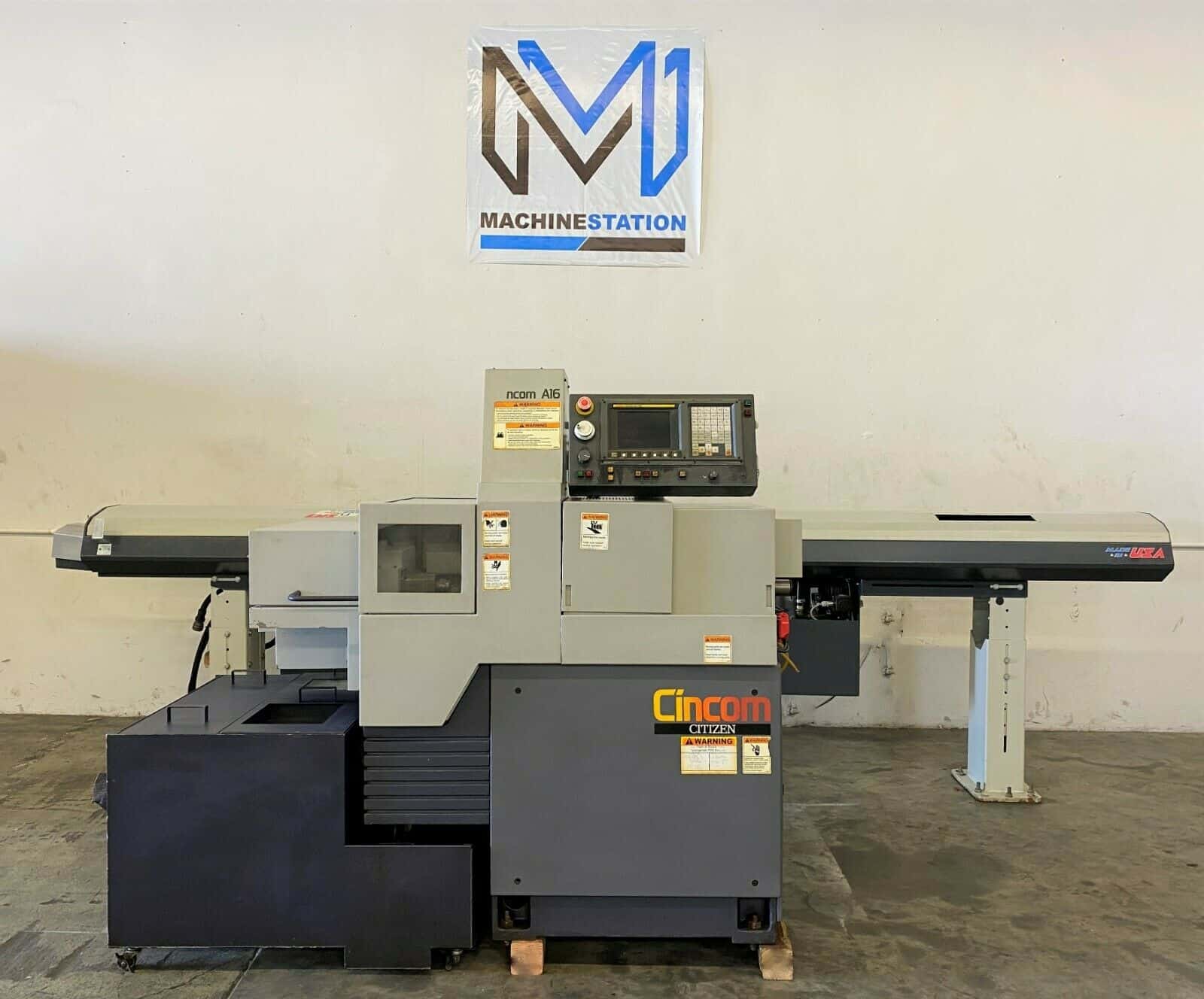

Citizen Cincom A-16 VIP CNC Swiss Screw Equipped With:

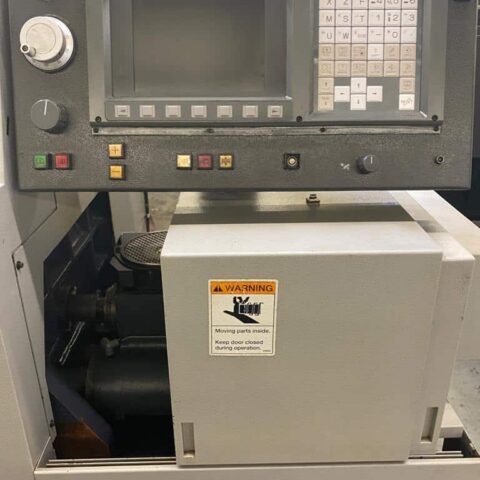

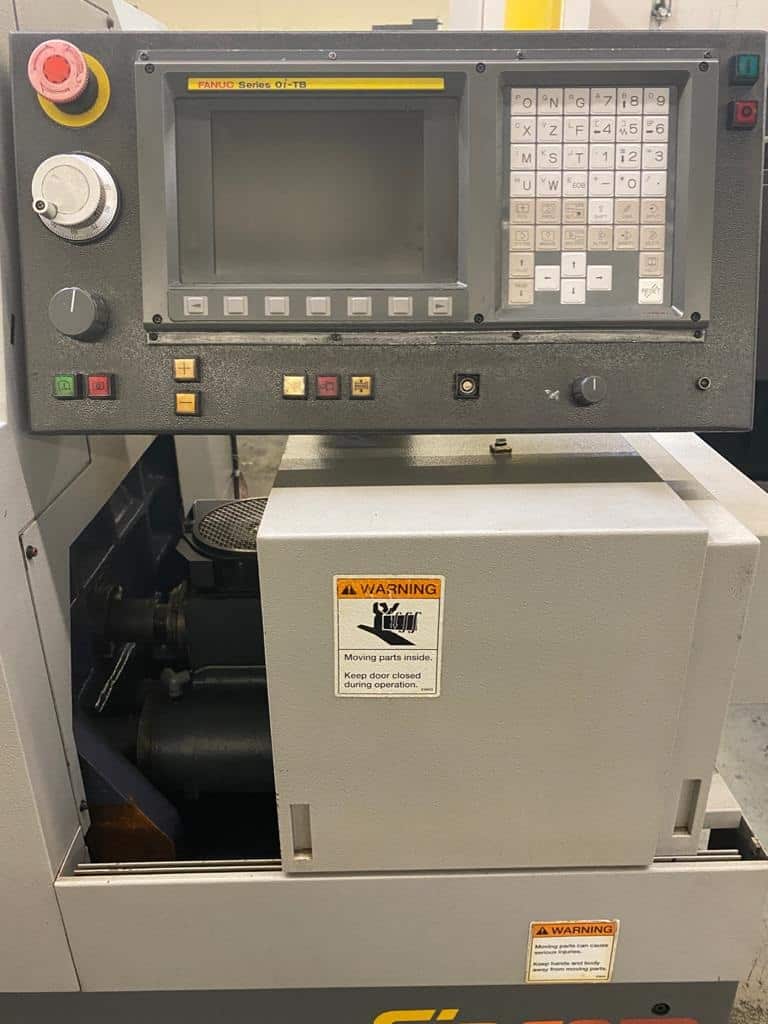

- Fanuc 0i-TB CNC Control

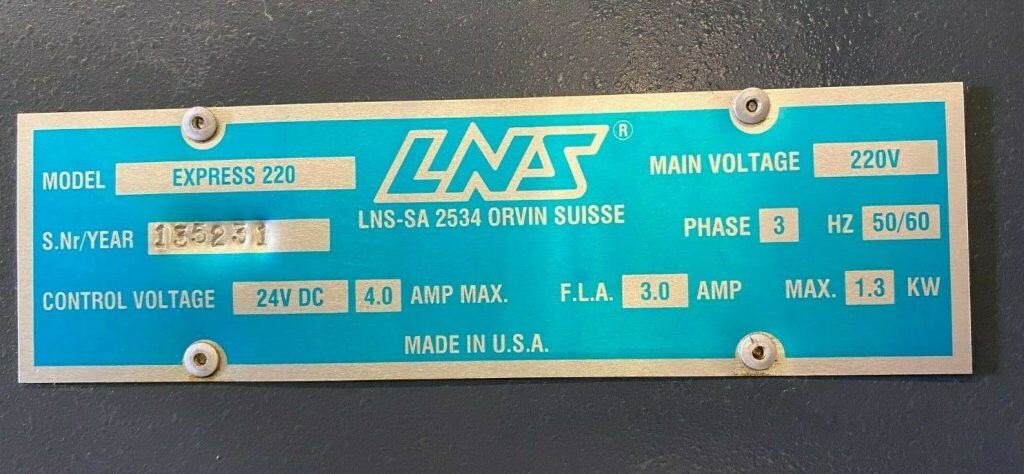

- LNS Express 220 Barfeeder
- Full C Axis & Live Tool Capable
- Long Parts Capable
- Main & Back Spindle Synchronization
- Automatic Lubrication system
- Coolant Tank
-
Citizen Cincom A-16 VIP CNC Swiss Screw Specifications:
- Capacity:
- Max Turning Diameter: 0.63″ (16 mm)
- Max Turning Length:5.31″/2.24″ ( 135 mm)
- Max Bar Capacity: 0.79″ (20 mm)
-

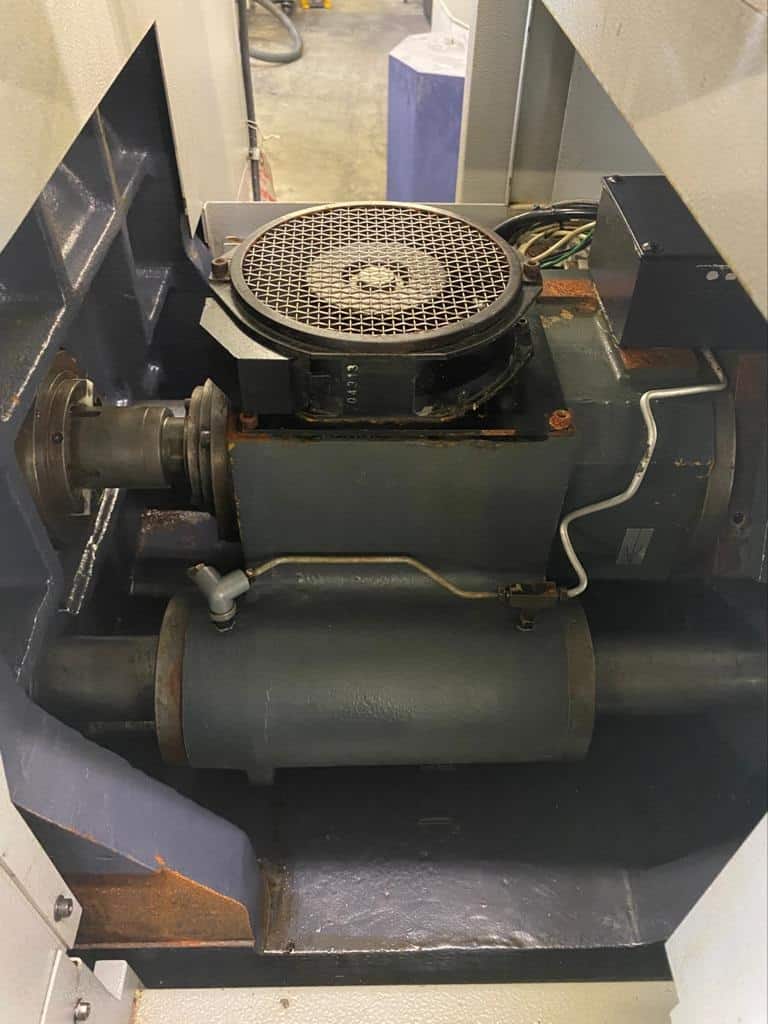

Spindle:
- Main Spindle Index: 1 Degree
- Main Spindle C Axis: 1 Degree
- Main Spindle Bore: 0.79″
- Main Spindle Speed: 200 – 10,000 RPM
- Back Spindle Index: 1 Degree
- Back Spindle Speed: 180 – 6000 RPM

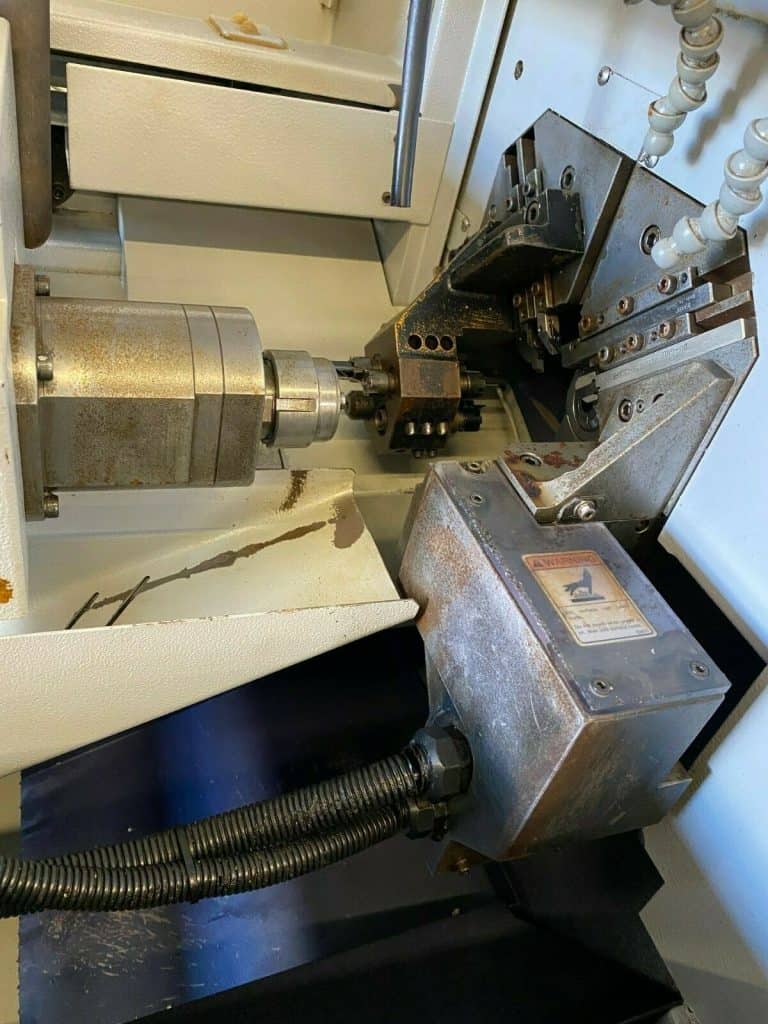

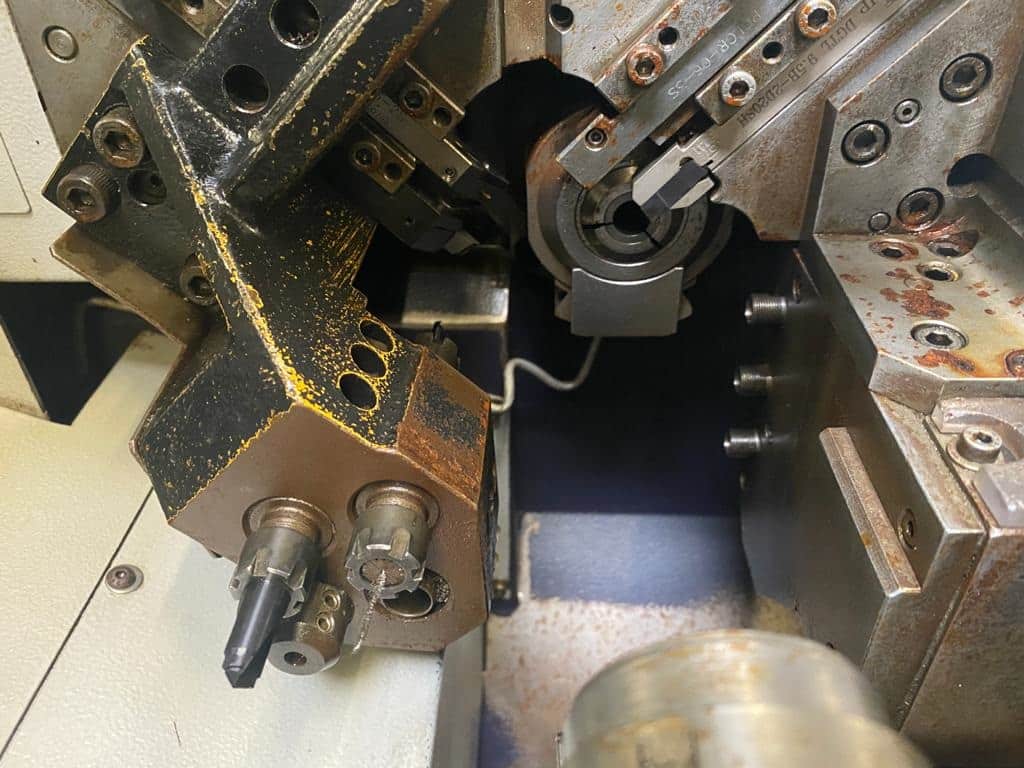

- Tool Capacity: 16
- Turning Tools: 5
- Rotary Tools: 3
- Tools for Front Spindle: 4
- Tools for Back Spindle : 4
- Speed: 200-4500 RPM
- Max Front Rotary Drilling/Tapping Dia.: 0.27″
- Max Front Drilling/Tapping Dia.: M6
- Max Back Drilling/Tapping Dia.: M3
-
General:
- Power Source: AC 220 V, Three Phase, 60 Hz Overall
- Dimensions: 80″ x 50″ x 69″ High without Barfeeder
- Weight : 4900 lbs Approx.
