*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Citizen Cincom |
| Model: | A20-3F7 |
| Year: | 2019 |
| Features: |
|---|

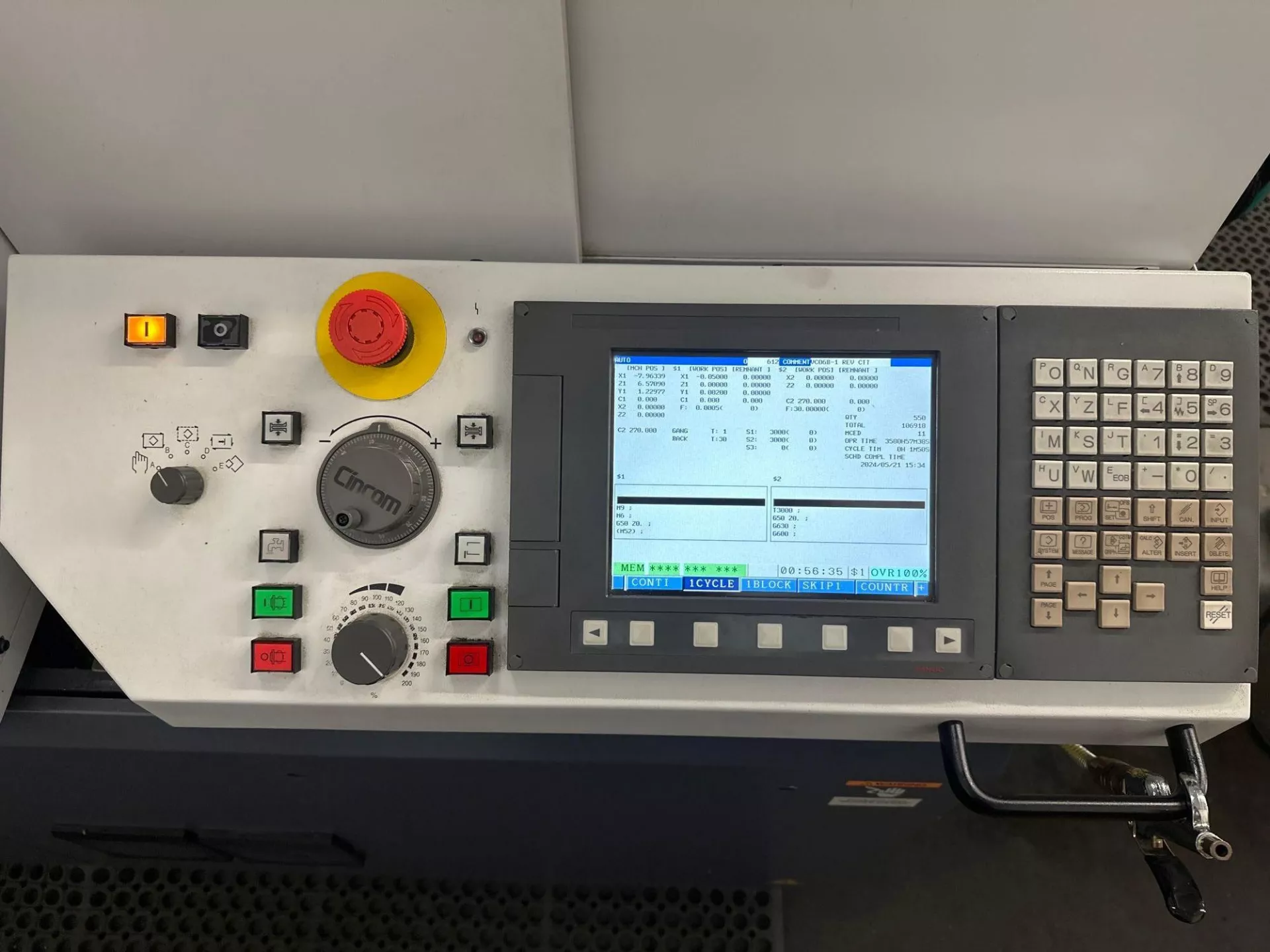

| Fanuc 32i-Model B CNC Control |
| 7-Axis Configuration |
| Main Spindle & Back Spindle |
| Live Tooling & Gang Tooling |
| HSK Tooling System |
| Guide Bushing System |
| Sub Spindle |
| Cross Drilling & Milling Capability |
| Front End & Back End Working Capability |
| High Pressure Coolant Nozzles |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Work Light |
| Servo Bar Feeder |
| Capacity: |
|---|
| Max Bar Capacity: 0.79″ |
| Max Machining Diameter: 0.79″ |
| Max Machining Length: 7.87″ |
| Travels: |
|---|
| X1 Axis Travel: 2.40″ |
| Y1 Axis Travel: 1.30″ |
| Z1 Axis Travel: 7.87″ |
| X2 Axis Travel: 2.40″ |
| Z2 Axis Travel: 7.87″ |
| Main Spindle: |
|---|
| Max Spindle Speed: 10,000 RPM |
| Spindle Bore: 0.83″ |
| Max Bar Capacity: 0.79″ |
| Back Spindle: |
|---|
| Max Spindle Speed: 8,000 RPM |
| Max Work Diameter: 0.79″ |
| Live Tooling: |
|---|
| Max Live Tool Speed: 6,000 RPM |
| Tool Holder Style: HSK |

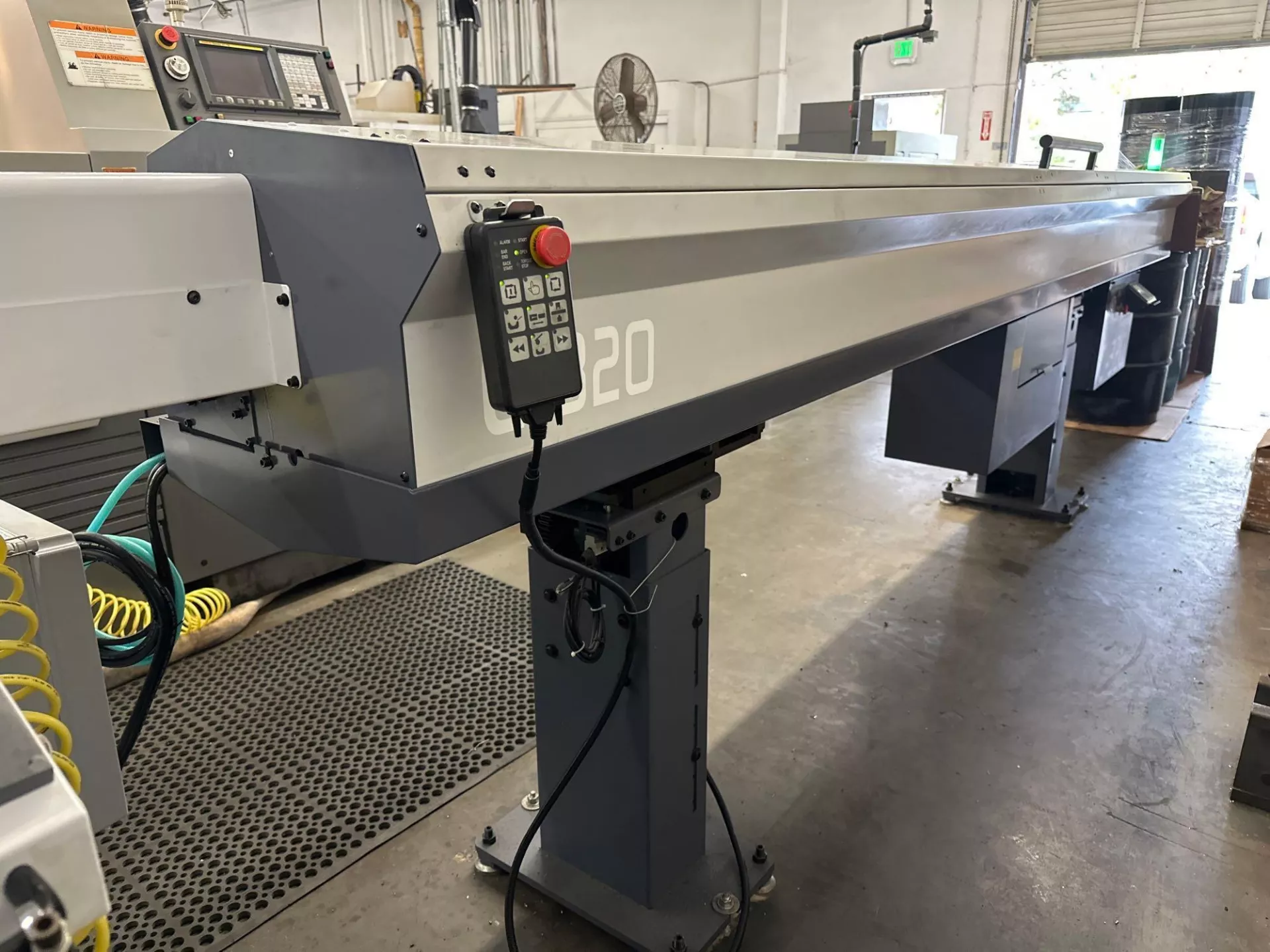

| Bar Feeder: |
|---|
| Model: C-320 |
| Length: 14′ |
| Year: 2019 |

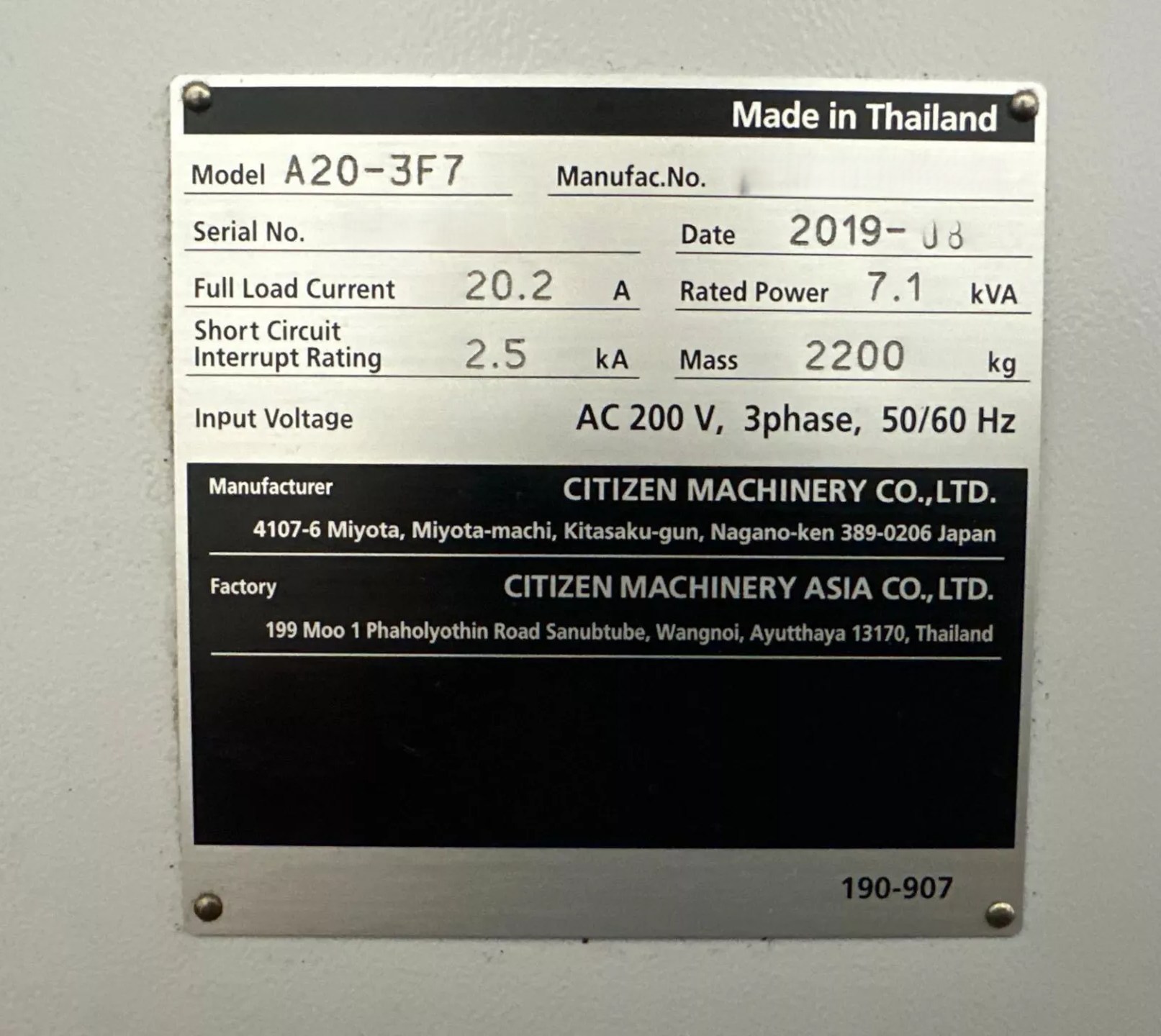

| Electrical: |
|---|
| Power Requirement: AC 200V, 3-Phase, 50/60 Hz |
| Rated Power: 7.1 kVA |
| General: |
|---|
| Cutting Time: 3,146 Hours |
| Machine Dimensions (Approx.): 190″ × 55″ × 78″ |
| Machine Weight (Approx.): 4,850 lbs |
