*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Citizen |
| Model: | L20 |
| Year: | 2015 |
| EQUIPPED WITH: |
|---|
| Mitsubishi MELDA CNC Control |

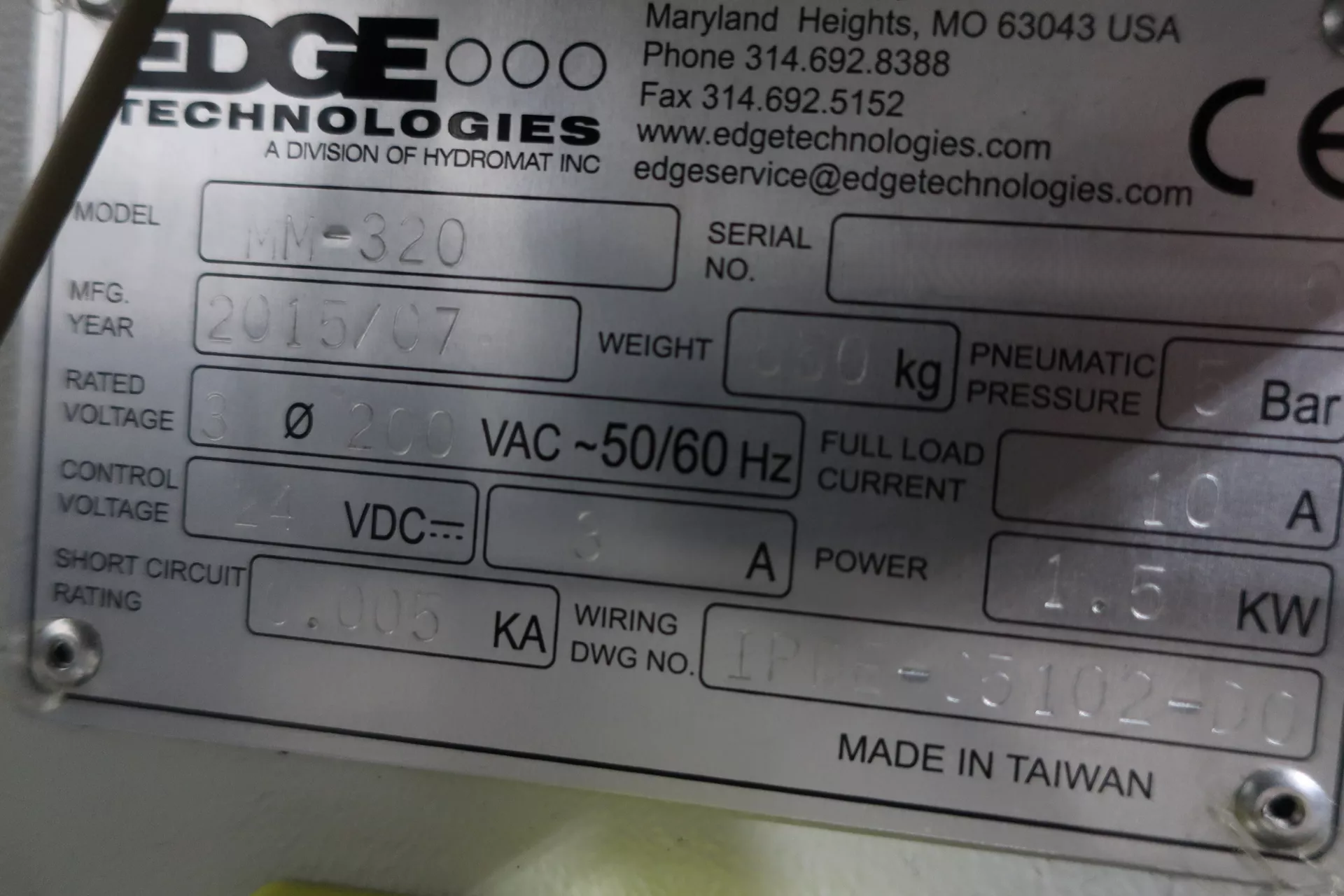

| Edge Technologies Minuteman MM-320 SE Servo Barfeed |
| High Pressure Coolant System |
| Part Conveyor |
| 21 Tool Positions |
| 5 Cross Live Tool Stations |
| 6 Front End-Face Drilling Spindles |
| Front U120B 3-Axis Tool Holder |
| GDF1207 3 Vertical Sleeve Holder |
| Rear 4-Axis Tool Holder |
| Tooling as Pictured Included |
| CAPACITY: |
|---|
| Maximum Turning Diameter: 0.787″ |
| Maximum Turning Length: 7.874″ |
| Maximum Drilling Diameter (Main Spindle): 0.394″ |
| Maximum Threading Capacity (Main Spindle): M8 |
| Sub Spindle Gripping Diameter: 0.787″ |
| Maximum Drilling Diameter (Sub Spindle): 0.315″ |
| Maximum Threading Capacity (Sub Spindle): M6 |
| MAIN SPINDLE: |
|---|
| Main Spindle Speed: 10,000 RPM |
| Main Spindle Motor: 2.95 / 4.96 HP |
| C-Axis Main Spindle |
| Synchronous Tapping |

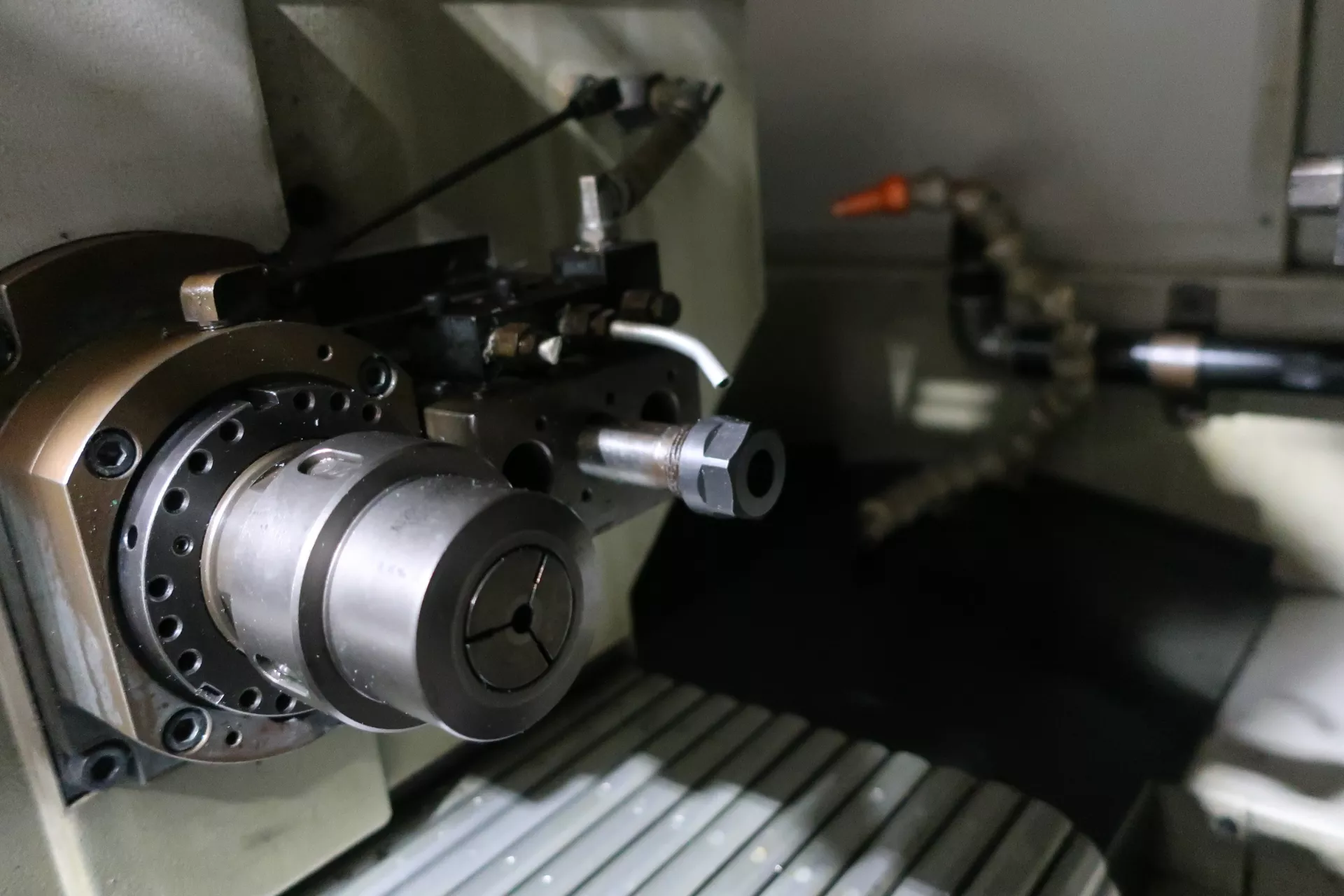

| SUB SPINDLE: |
|---|
| Sub Spindle Speed: 8,000 RPM |
| Sub Spindle Motor: 1.01 / 2.01 HP (Continuous / 15 Minute) |
| C-Axis Sub Spindle |
| Independent Sub Spindle |

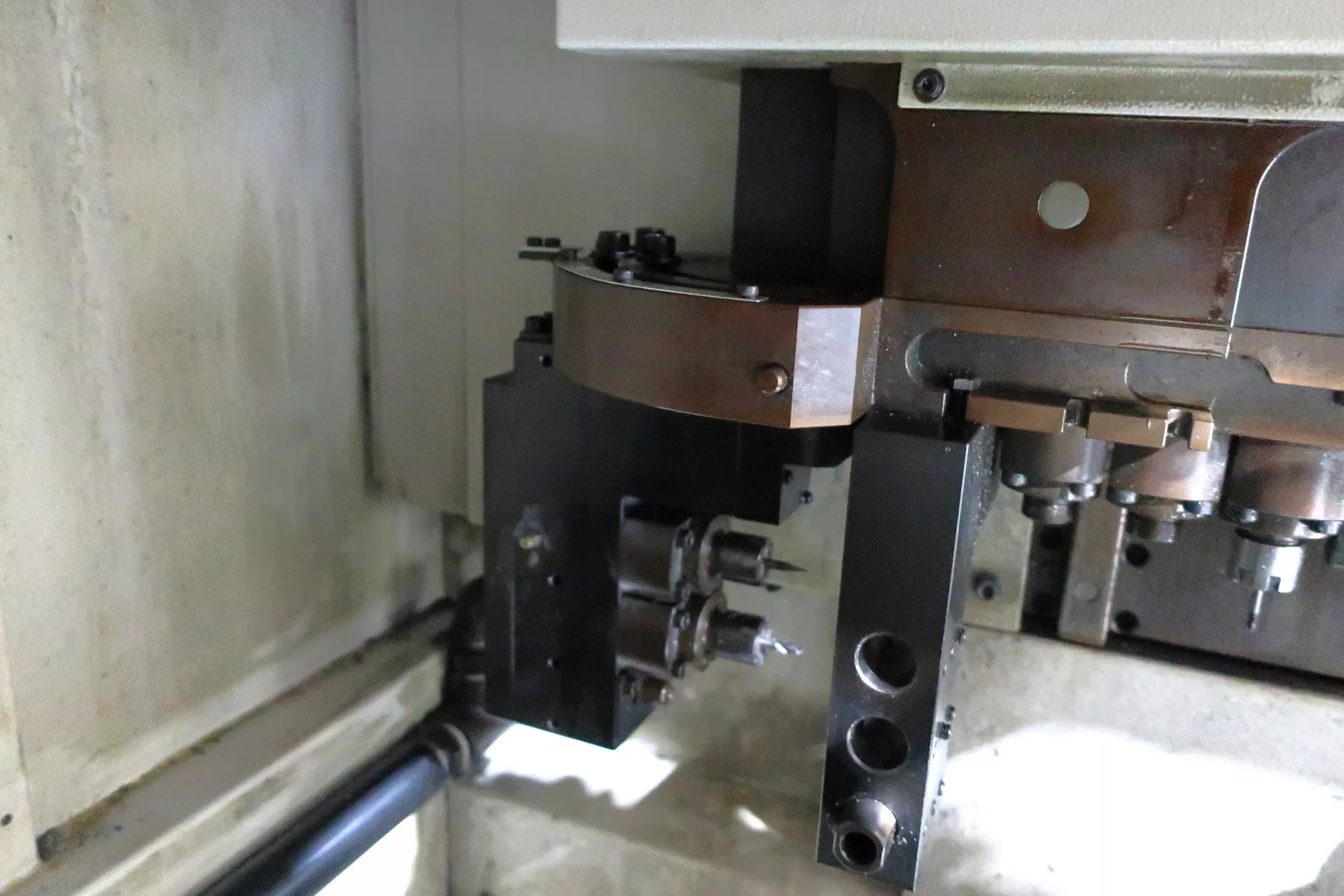

| TOOLING: |
|---|
| 21 Tool Positions |
| 5 Cross Live Tool Stations |
| 6 Front End-Face Drilling Spindles |
| Front U120B 3-Axis Tool Holder |
| GDF1207 3 Vertical Sleeve Holders |
| Rear 4-Axis Tool Holder |
| 4 Rear Drilling Stations |
| Tooling as Pictured Included |
| GENERAL: |
|---|
| Power Requirement: 200V / 3 Phase / 50/60 Hz |
| Machine Dimensions (L × W × H): 83.5″ × 48.0″ × 72.2″ |
| Machine Weight: Approx. 5,181 lbs |
