All specifications are approximations and are subject to verification.

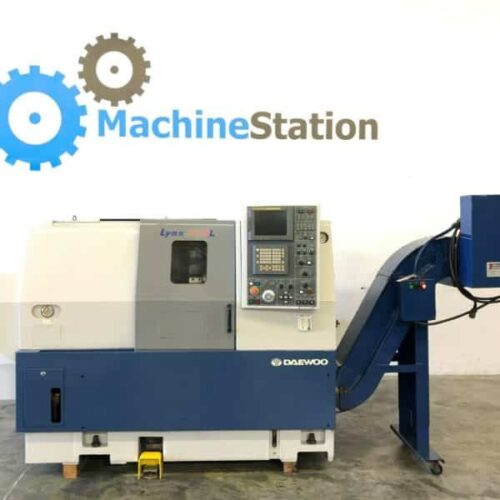

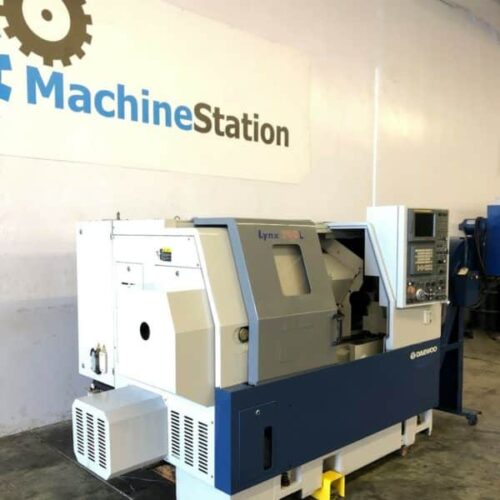

“One Owner machine excellent running condition, only 11884 cutting hours. It is equipped with 8″ Big Bore Chuck, 12 tool turret & Programmable Hydraulic Tailstock, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

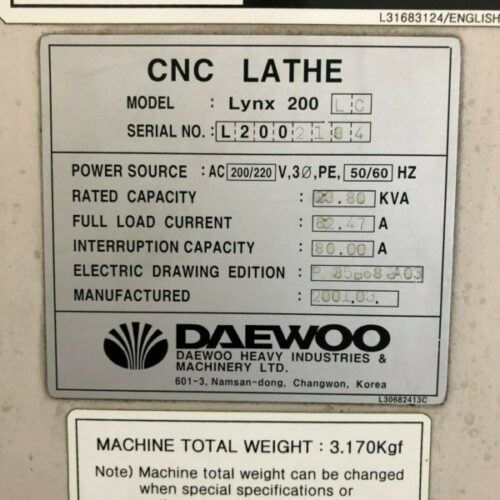

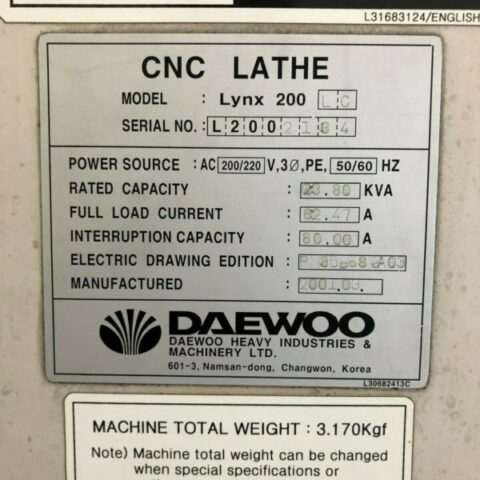

| Make | Daewoo |
| Model No. | Lynx 200LC |
| Year | 2001 |
| Serial # | L2002184 |
| Condition | Very Good |
-

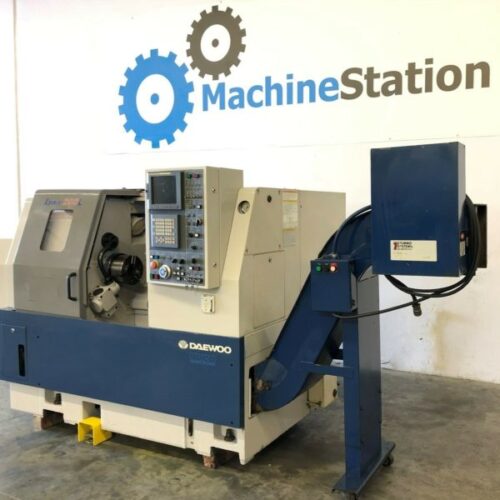

Daewoo Doosan Lynx 200LC Equipped With:

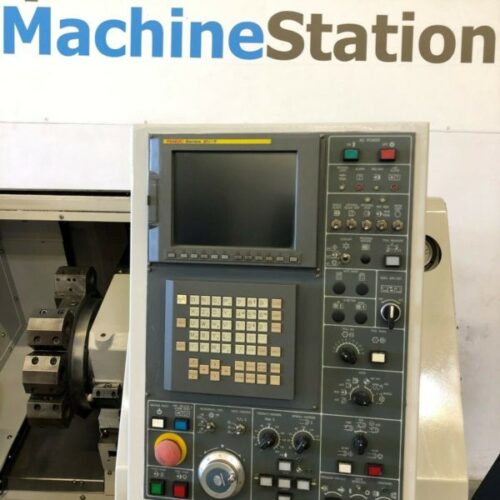

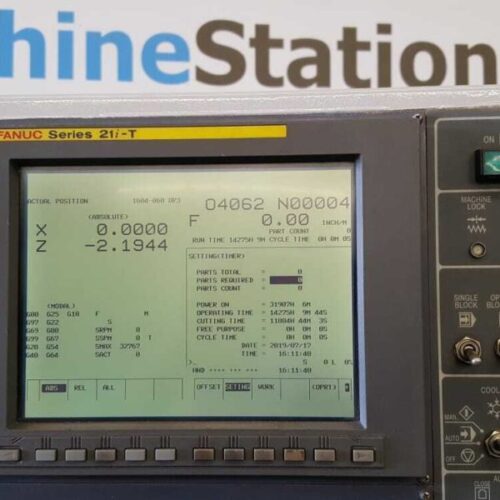

- Fanuc 21iT series CNC Control

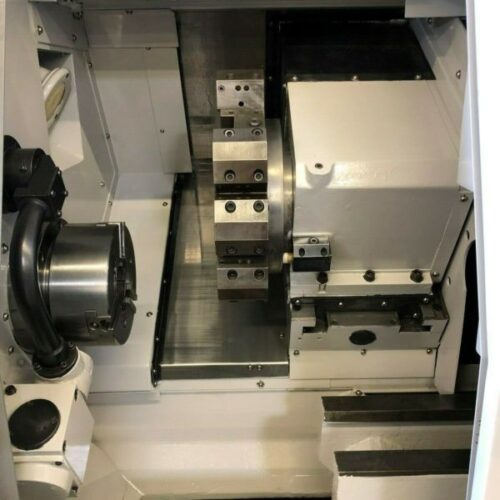

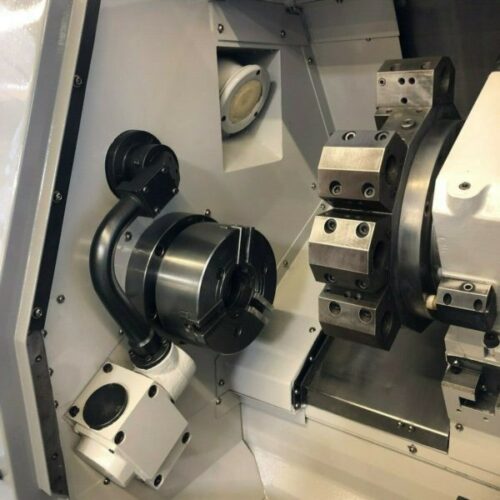

- 8″ Kitagawa BB-08 Hydraulic Chuck
- A2-6 Gear Head Spindle
- ToolPresetter
- Hydraulic Tailstock and Quill
- PCMCIA Card
- RS-232 & LAN connectivity
- Coolant System
- Barfeed Interface

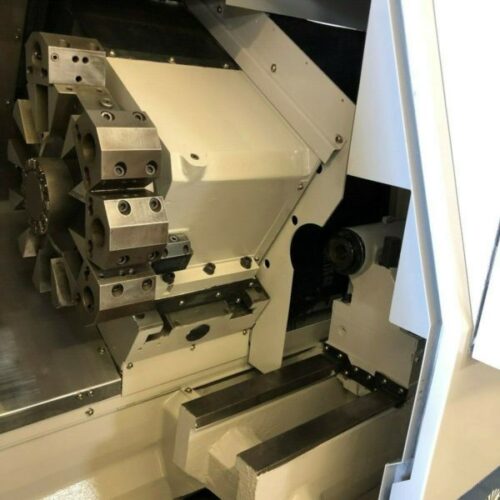

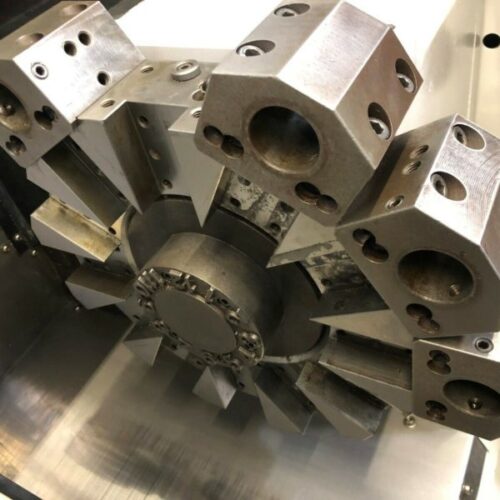

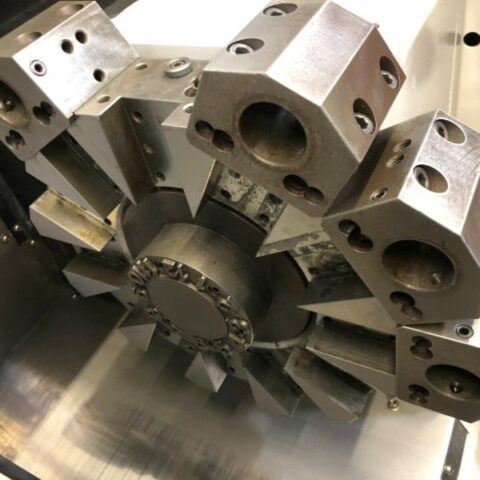

- 12 Station Automatic Turret
- Foot Switch

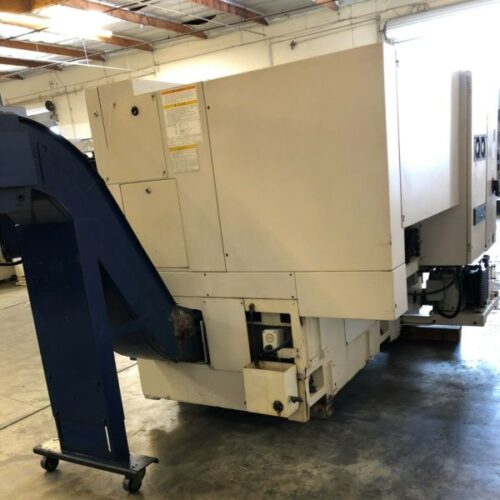

- Turbo Chip Conveyor
-
Daewoo Doosan Lynx 200LC Specifications:
- Capacity:
- Max Turning Diameter: 11.02″
- Max Turning Length: 19.68″
- Max Bar Capacity: 2.59″
- Swing Over Bed: 18.11″
- Swing Over Carriage: 13.7″
- Distance Between Centers: 24.8″
- X Axis Travel: 6.53″
- Z Axis Travel: 20.86″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.05″
- Spindle Speed: 0 – 4500 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-3
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 4.7″
-
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 100″ x 67″ x 68″ High
- Overall Dimensions: 148″ x 67″ x 68″ High with Chip Conveyor
- Weight: 7600 lbs
Daewoo Doosan Lynx 200LC Comes as shown in pictures..
