Daewoo Doosan Mynx 540 Vertical Machining Center

Daewoo Doosan Mynx 540 Vertical Machining Center

Out of stock

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

10,000 RPM Machine on our Floor now, fully powered / tested & is in Great working condition.”

SKU: 1837
Make/Model: Daewoo Mynx 540
Video:



SKU: 1837 Category:

Description

DAEWOO DOOSAN MYNX 540 VERTICAL MACHINING CENTER
MakeDaewoo
Model No.Mynx 540
Year2002
Serial #AV5E01029
ConditionVery Good

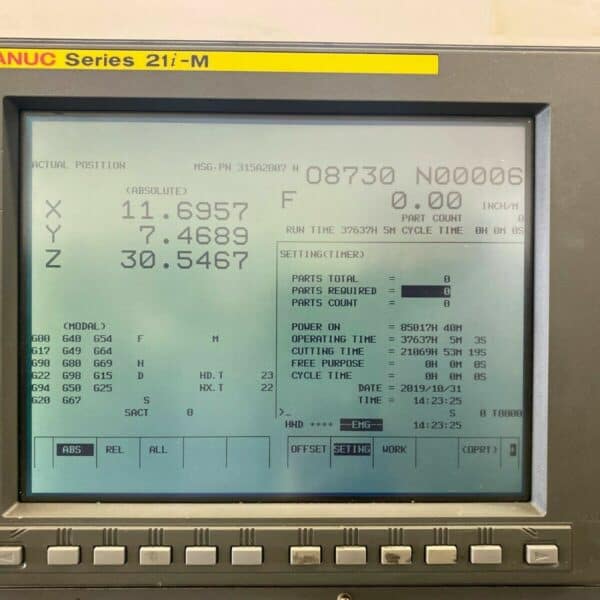

Cutting Hours:21069

“10,000 RPM Machine on our Floor now, fully powered / tested & is in Great working condition.”

  • Daewoo Doosan Mynx 540 Features:

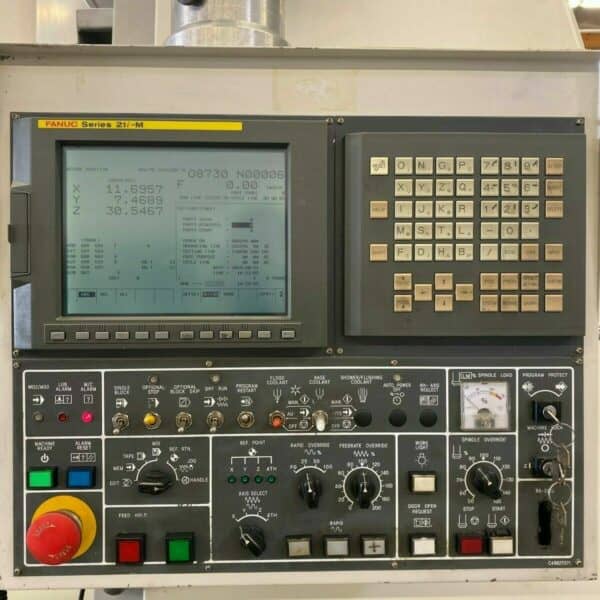

  • Fanuc 21iM CNC Control
  • 8,000 RPM Precision Spindle
  • Through Spindle coolant
  • 4th Axis Wired
  • PCMCIA Card Slot
  • MPG Control
  • Rigid Tapping
  • Spindle Orientation
  • Brushless servo drive motors on all axis
  • 30 Automatic high speed tool changer
  • Telescopic way covers
  • Spindle Chiller Unit
  • Flood Coolant system
  • Chip Conveyor
  • Manuals & Books
  • Daewoo Doosan Mynx 540 Specifications:
  • Travels:
  • X-Axis: 40.2″
  • Y-Axis: 20.0″
  • Z-Axis: 20.2″
  • Rapid Traverse Rates: 1181″ Per Minute
  • Feed Rates: 593″ Per Minute
  • Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″
  • Table:
  • Length: 47.2″
  • Width: 19.7″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1800 lbs
  • Spindle:
  • Spindle: Taper Size:  40
  • Speed Range: 0 – 8,000 RPM
  • Spindle Type: Direct Drive
  • Spindle Power: 20 HP
  • Automatic Tool Changer:
  • Capacity: 30
  • Tool Weight: 17.6 lbs
  • Max Tool Dia: 5.9″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 1.5 Seconds
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 140″ x 100″ x 110″ High
  • Overall Dimensions: 170″ x 100″ x 110″ High W/Chip Conveyor
  • Weight: 16500 lbs

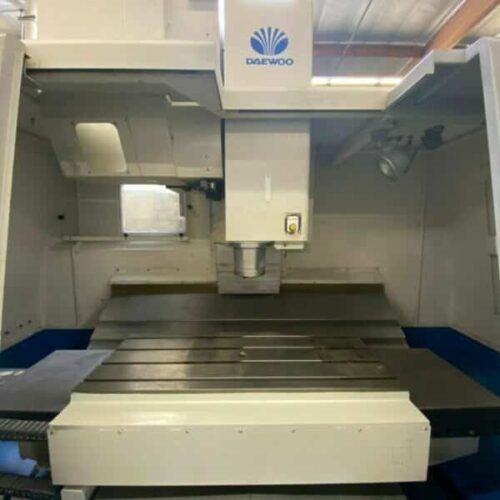

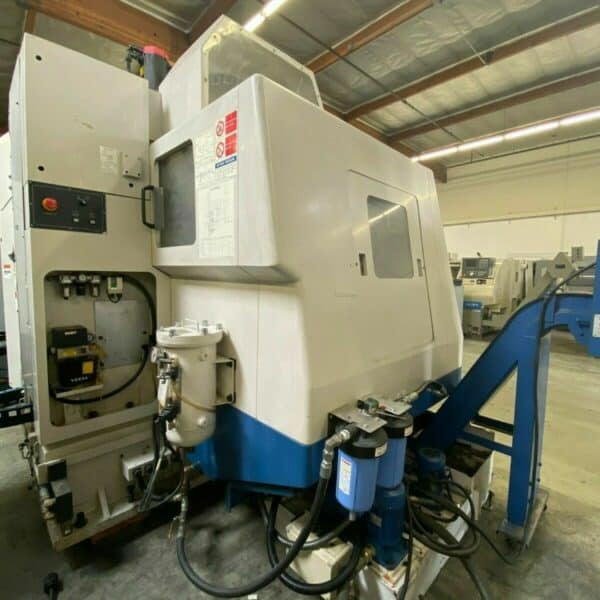

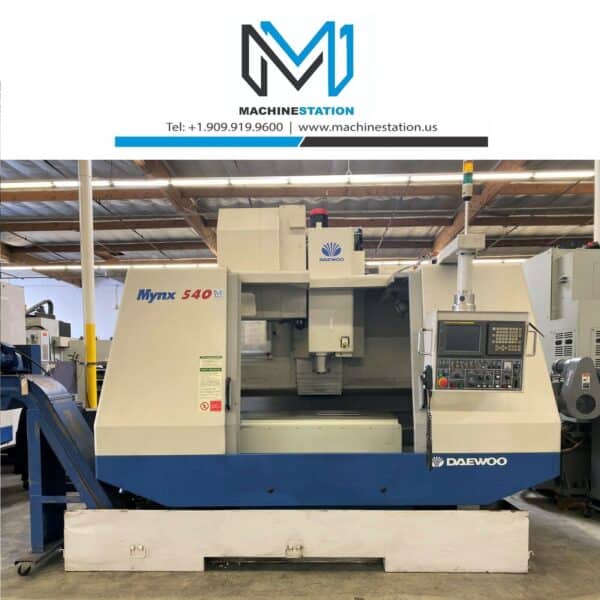

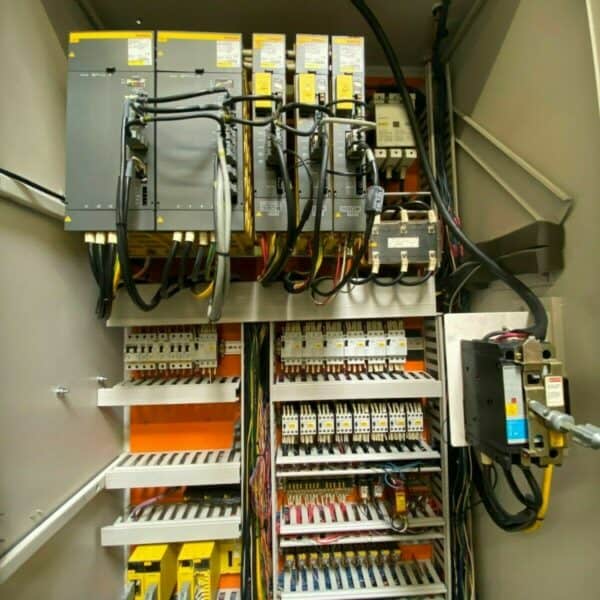

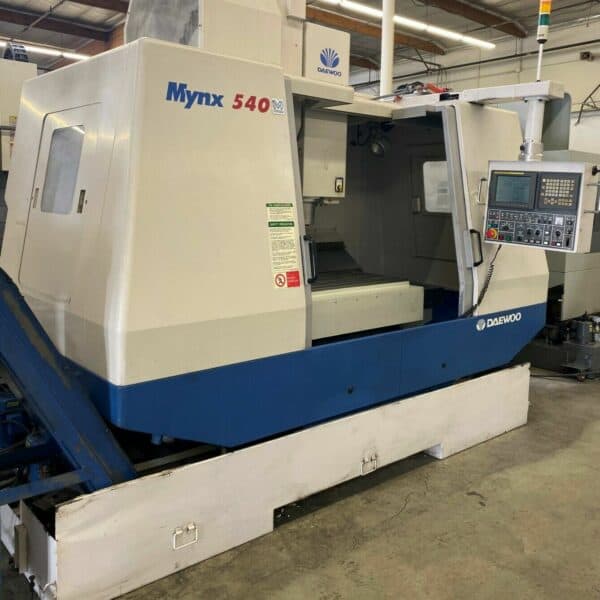

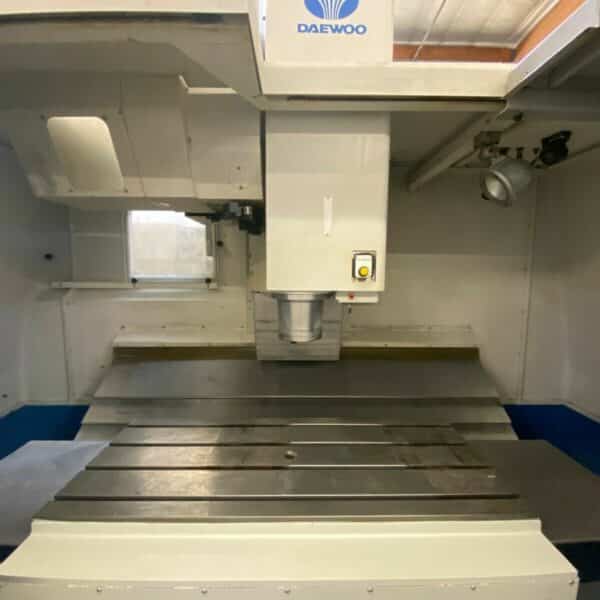

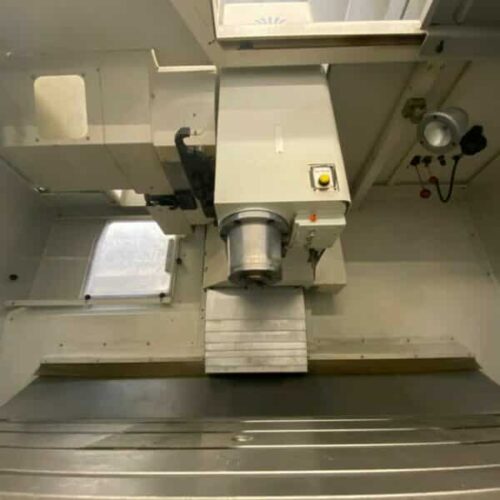

Daewoo Doosan Mynx 540 Comes as shown in Pictures….
