All specifications are approximations and are subject to verification.
“This machine is in good running condition. It is equipped with 12″ Chuck & Programmable Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
Watch *VIDEO* in Spanish
Watch *VIDEO* in Spanish
-

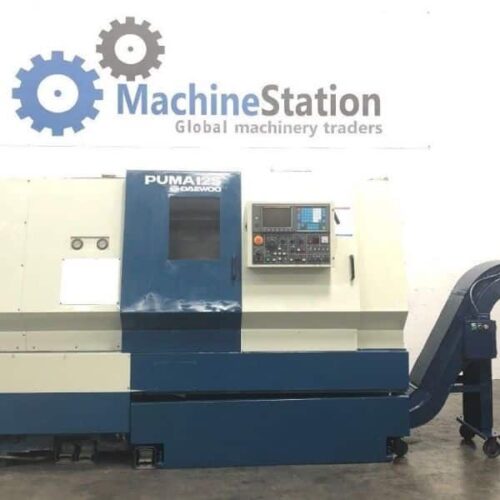

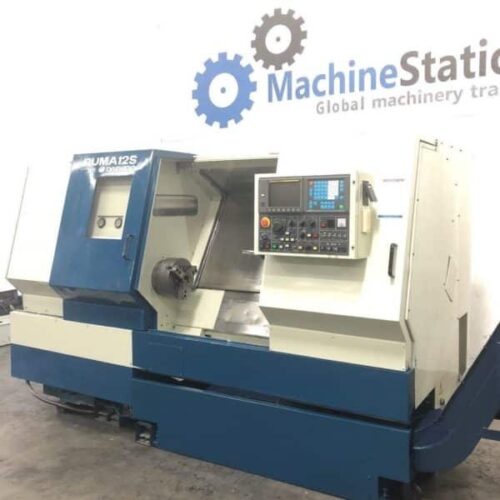

DAEWOO PUMA 12S Equipped With:

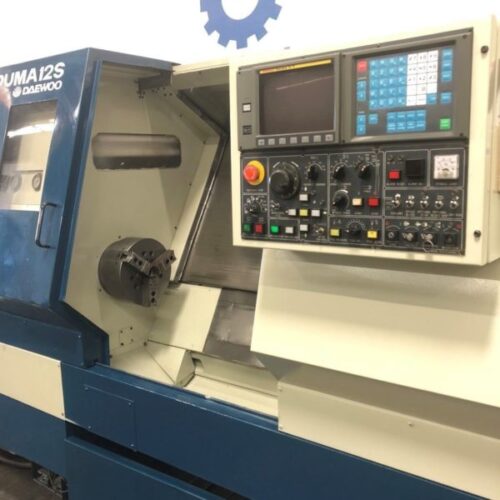

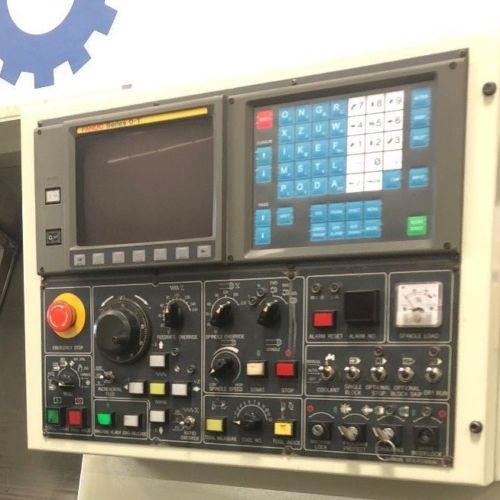

- Fanuc OT-C 32 Bit CNC Control
- 12″ 3 Jaw Kitagawa Hydraulic Chuck
- A2-8 Spindle
- Hydraulic Programmable Tailstock Quill
- Coolant System
- Barfeed Interface
- RS-232 ports

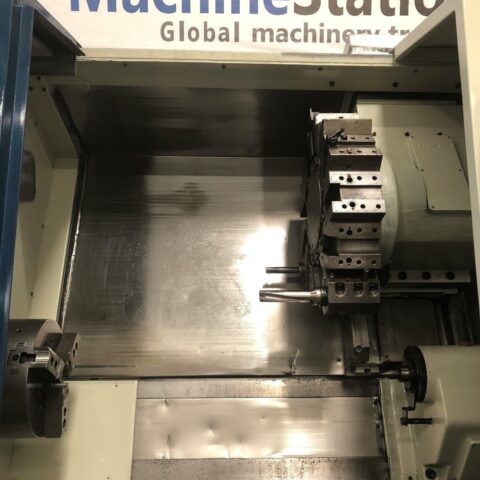

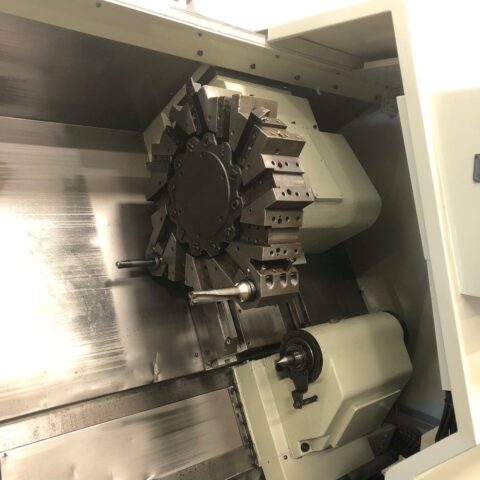

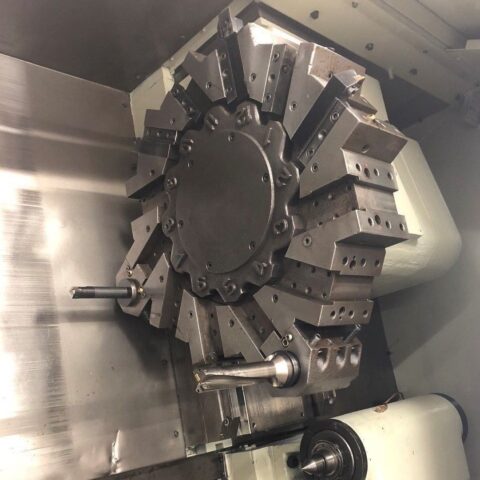

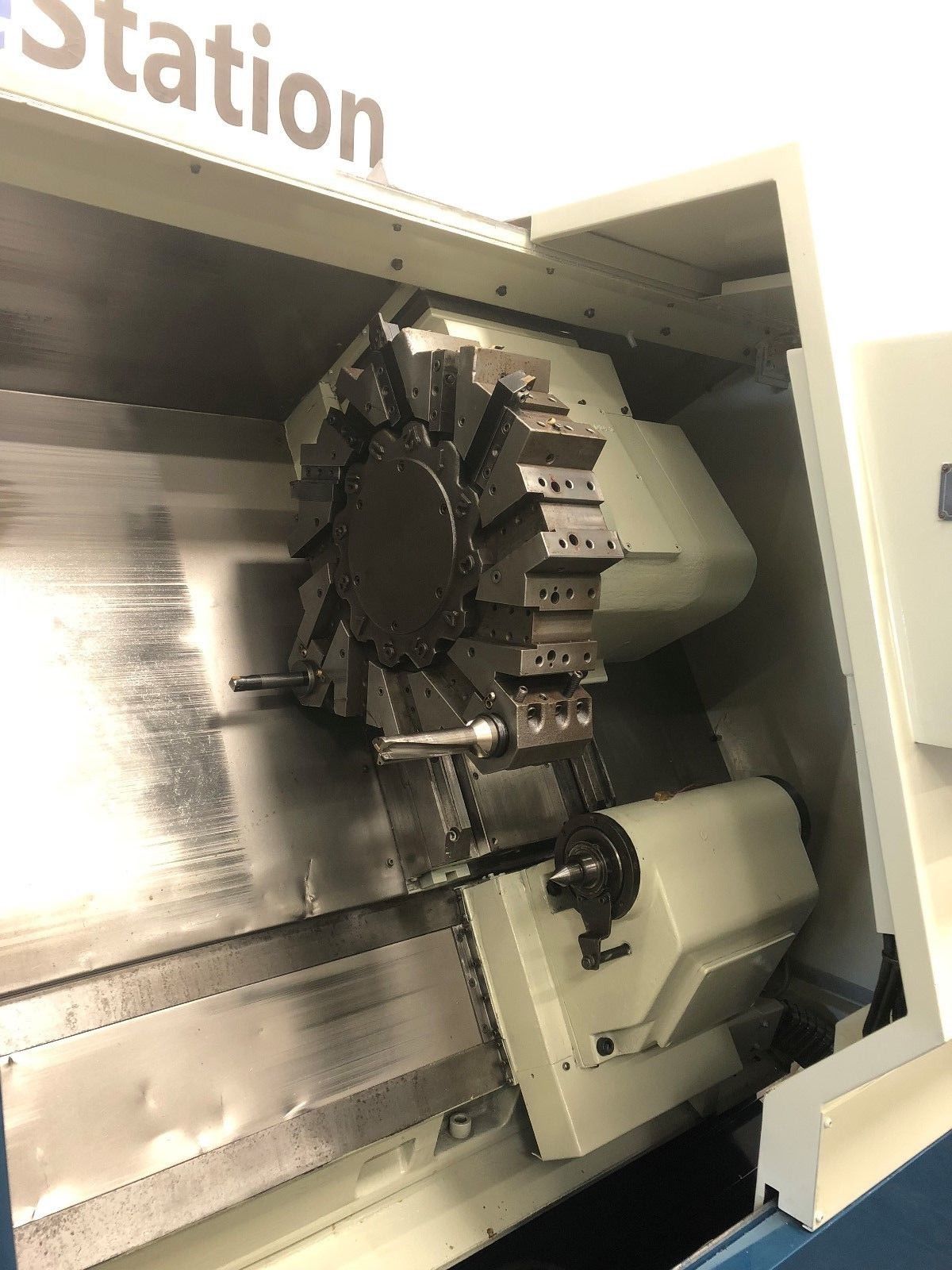

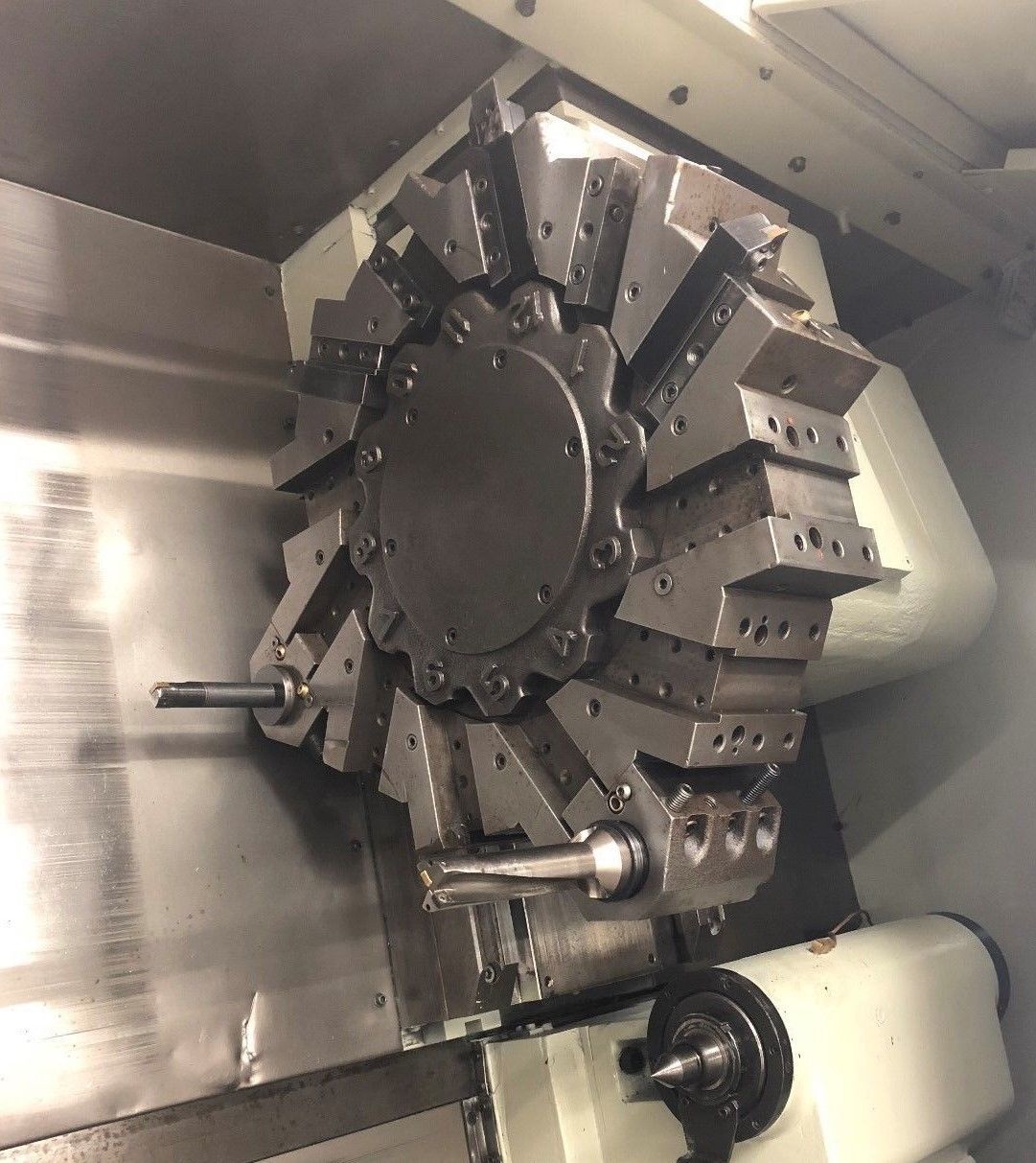

- 12 Station Bi-Directional Automatic Turret
- Foot Switch
- Turbo Chip Conveyor
-
DAEWOO PUMA 12S Specifications:
- Capacity:
- Max Turning Diameter: 14.96″
- Max Turning Length: 30.31″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 22.4″
- Distance Between Centers: 36.0″
- X Axis Travel: 7.9″
- Z Axis Travel: 31.49″
- Rapid Traverse X Axis: 480 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.58″
- Spindle Speed: 15 – 3000 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Travel: 4.0″
-
General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 125″ X 82″ X 79″ High
- Overall Dimensions: 175″ X 82″ X 79″ High with Chip Conveyor
- Weight: 15,500 lbs
