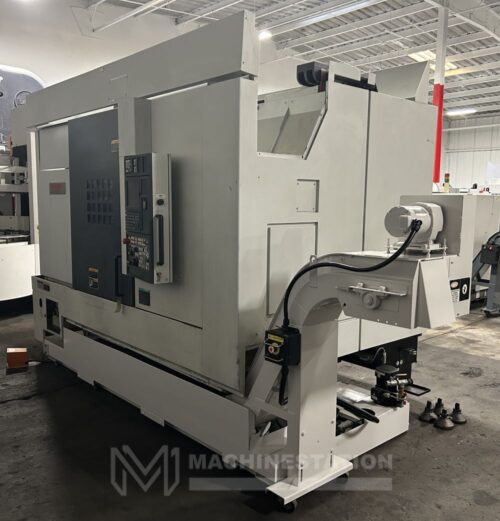

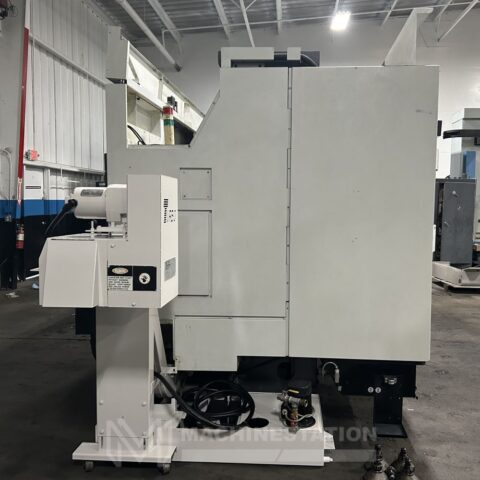

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

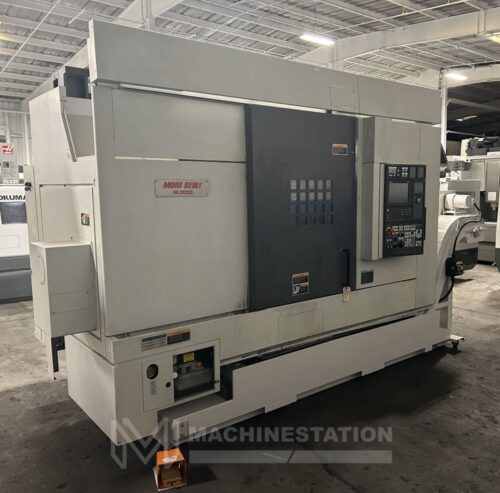

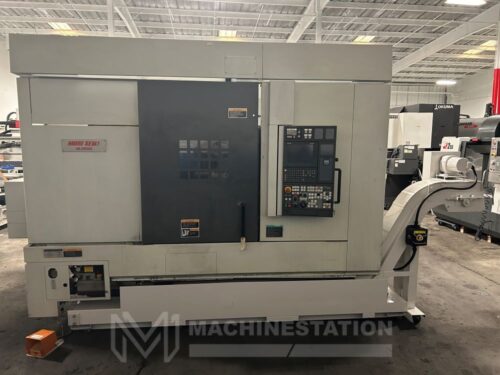

| Make: | DMG Mori Seiki |
| Model: | NL-3000/700 |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

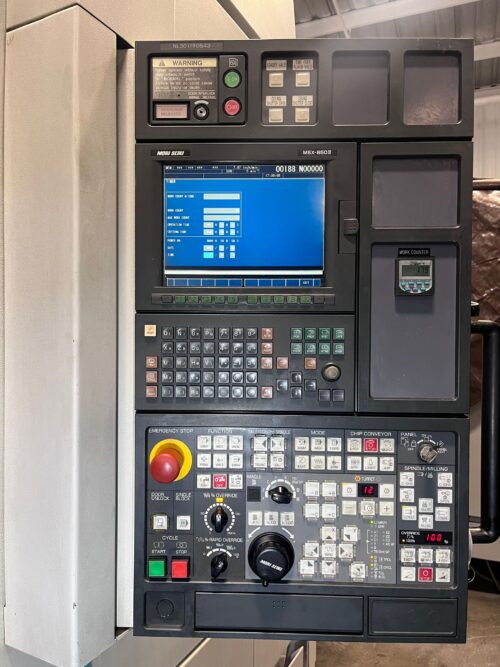

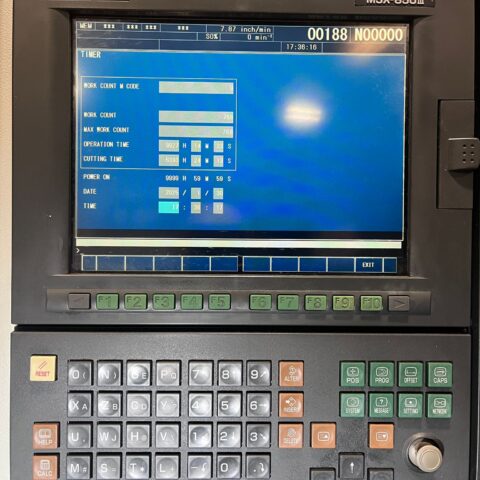

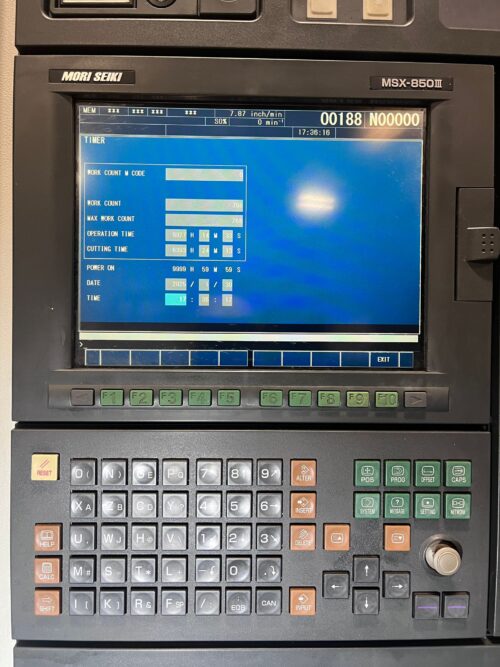

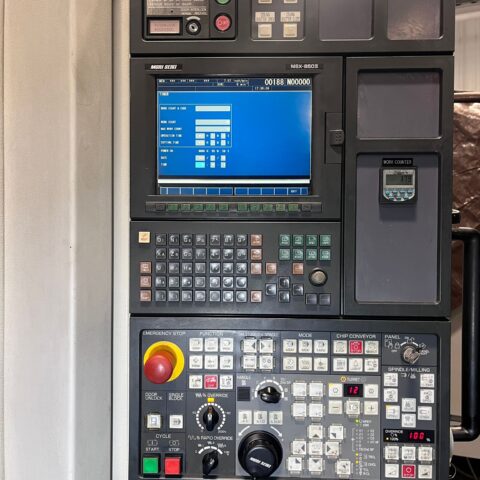

| Mori Seiki MSX-850III CNC Control |

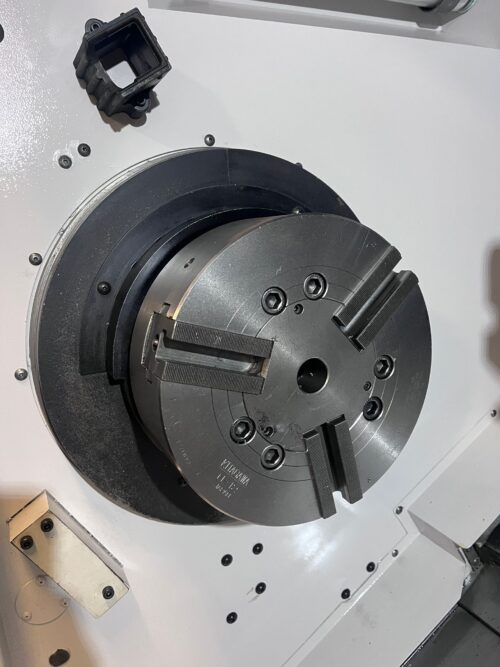

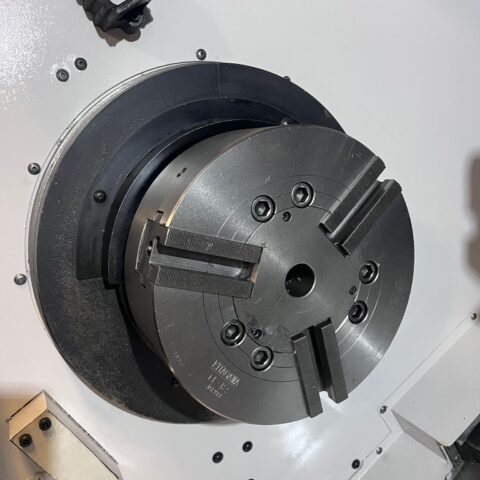

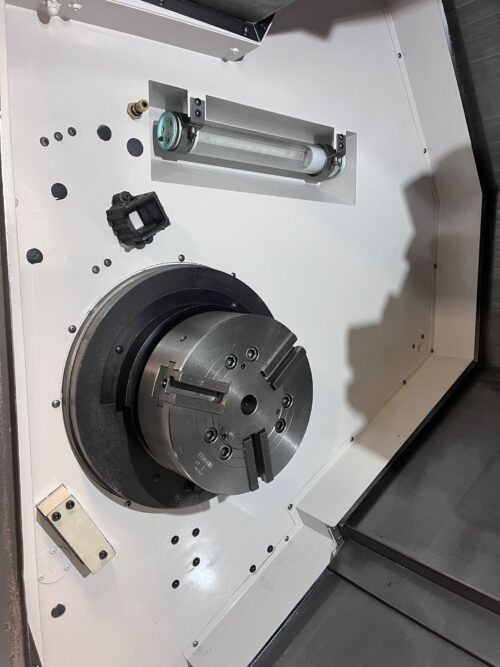

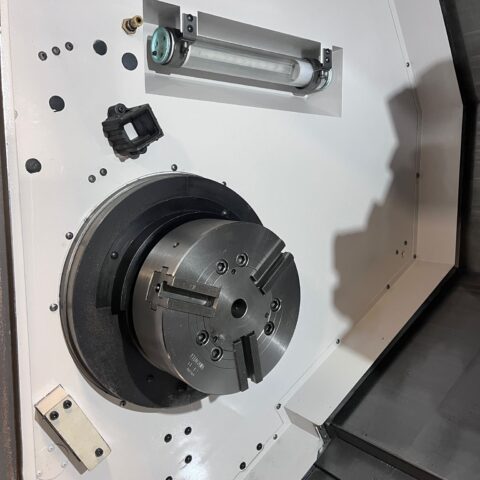

| 12″ 3-Jaw Hydraulic Chuck |

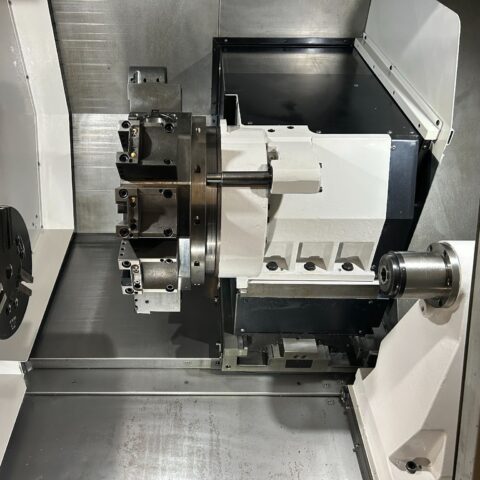

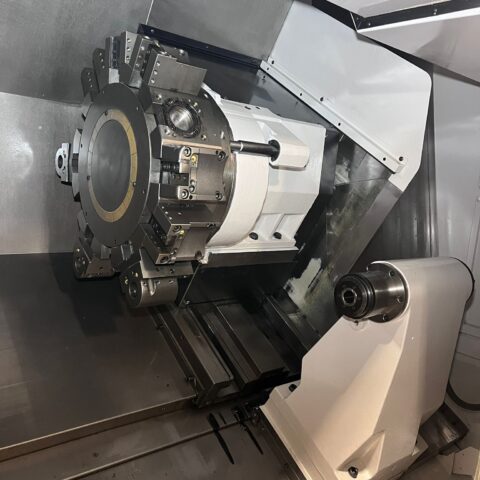

| 12 Station High Speed Turret |
| 30 HP Gearbox Spindle |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |

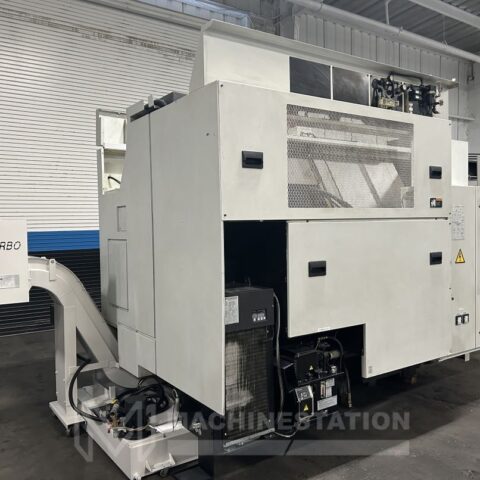

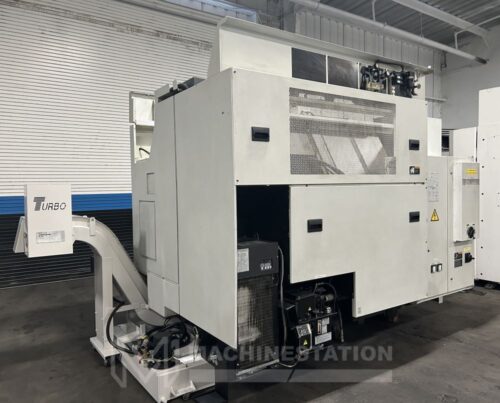

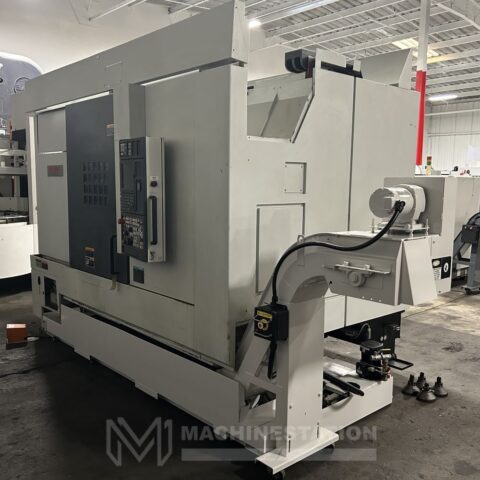

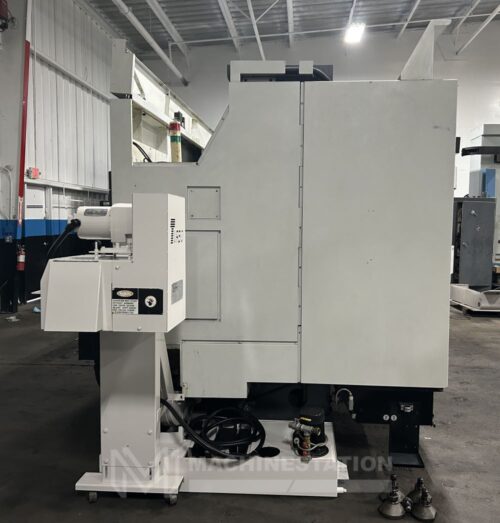

| Turbo Chip Conveyor |
| Foot Switch |
| Levelling Pads |

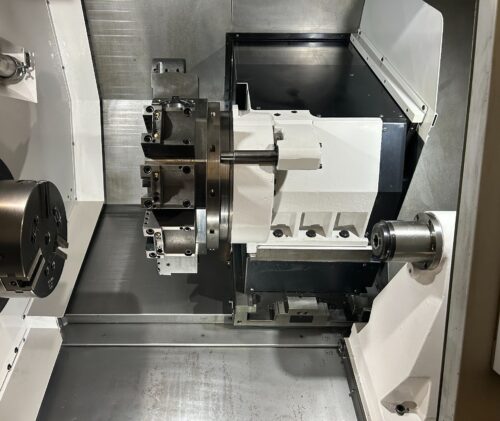

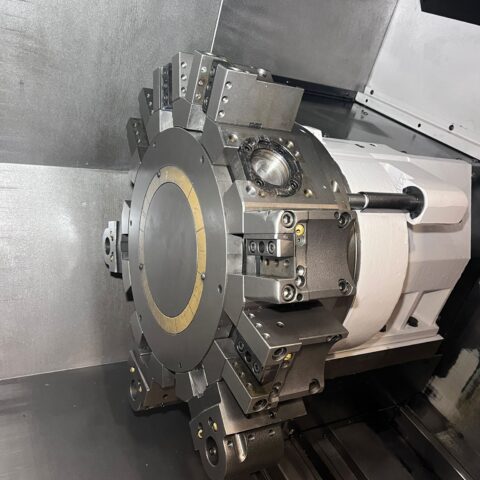

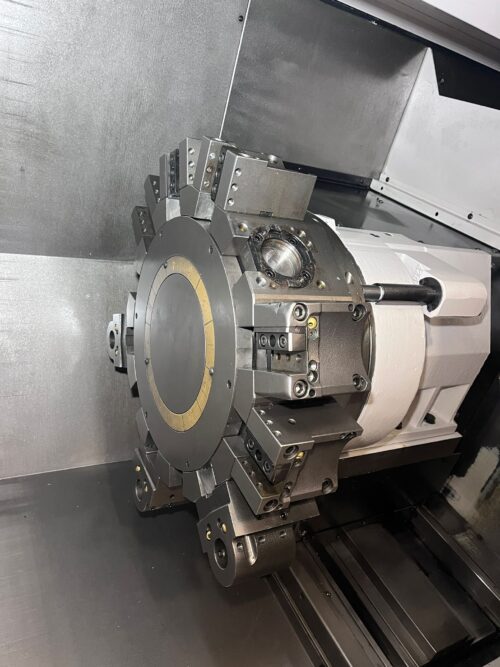

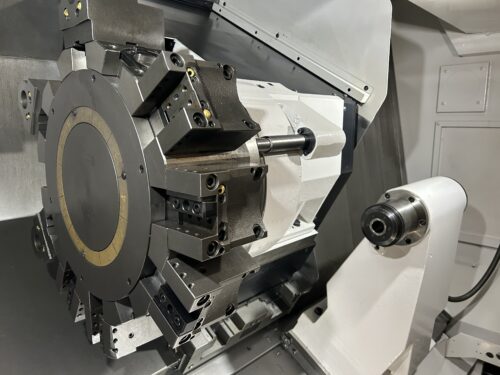

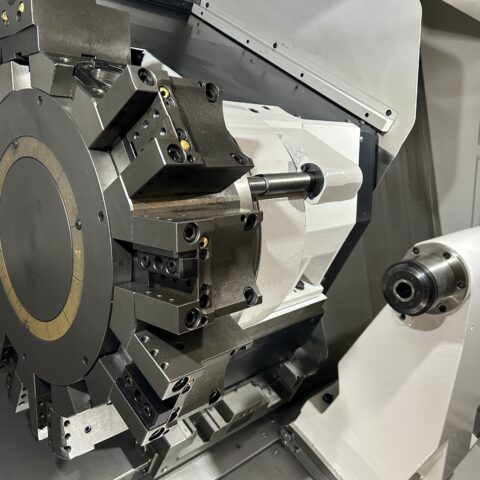

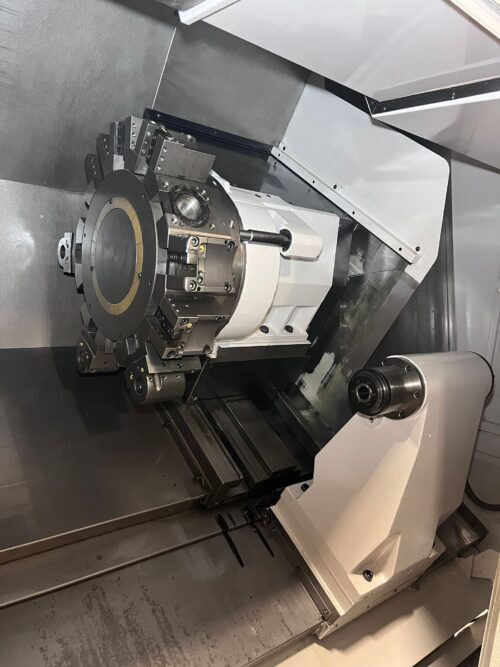

| (8) Turning & (3) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 16.9″ |
| Max Turning Length: 28.0″ |
| Max Bar Capacity: 3.50″ |
| Swing Over Cross Slide: 26.4″ |
| Distance Between Centers: 28.0″ |
| Travel: |
|---|
| X Axis Travel: 11.0″ |
| Z Axis Travel: 32.3″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.1″ |
| Spindle Speed: 3000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tooling Type: BMT |
| Shank Height For Square Tool: 1.0″ |
| Shank Diameter For Boring Bar: 2.0″ |
| Turret Index Time: 0.3 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 28.9″ |
| Tailstock Quill Dia.: 4.1″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 33.3 kva |
| Overall Dimensions: 134″ X 82″ X 89″ High |
| Weight : 13,200 lbs. Approx. |
