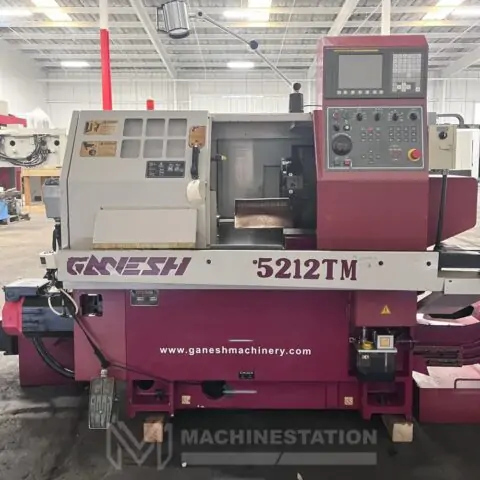

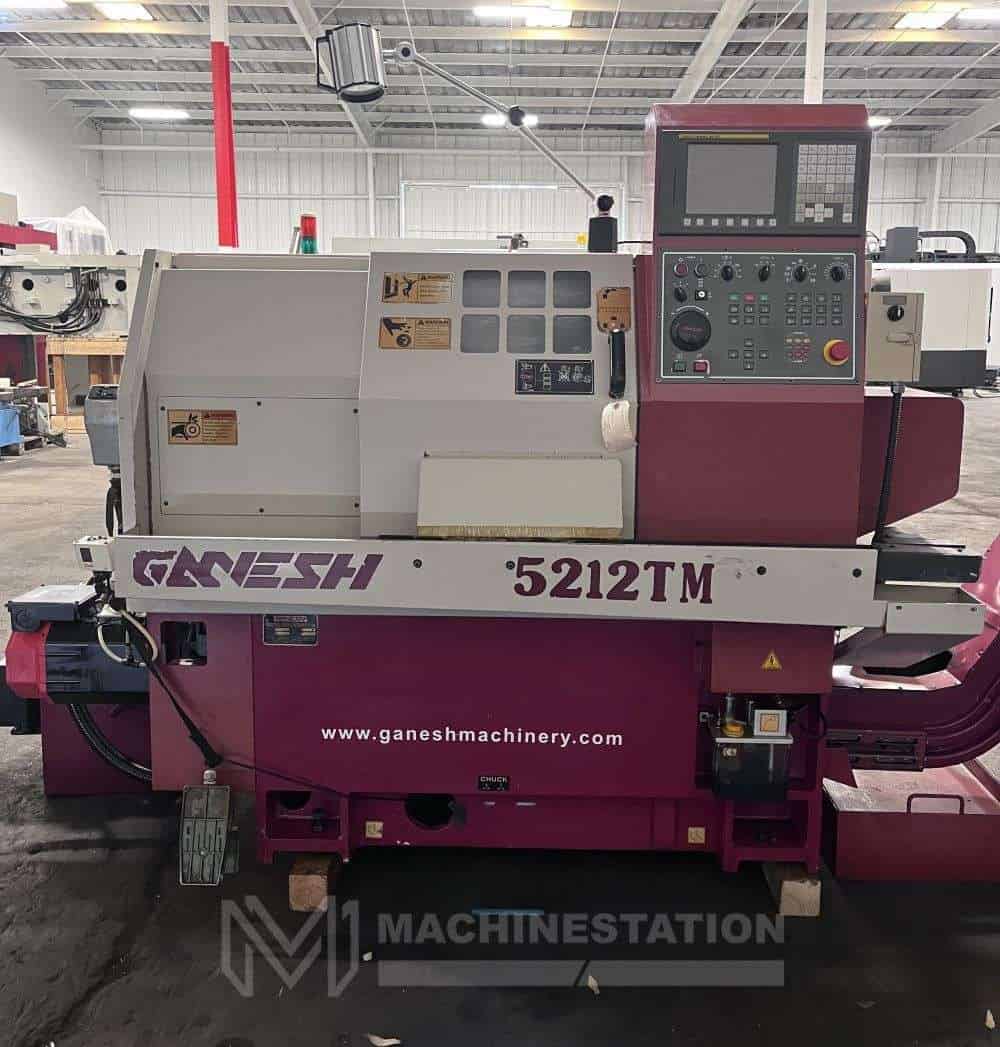

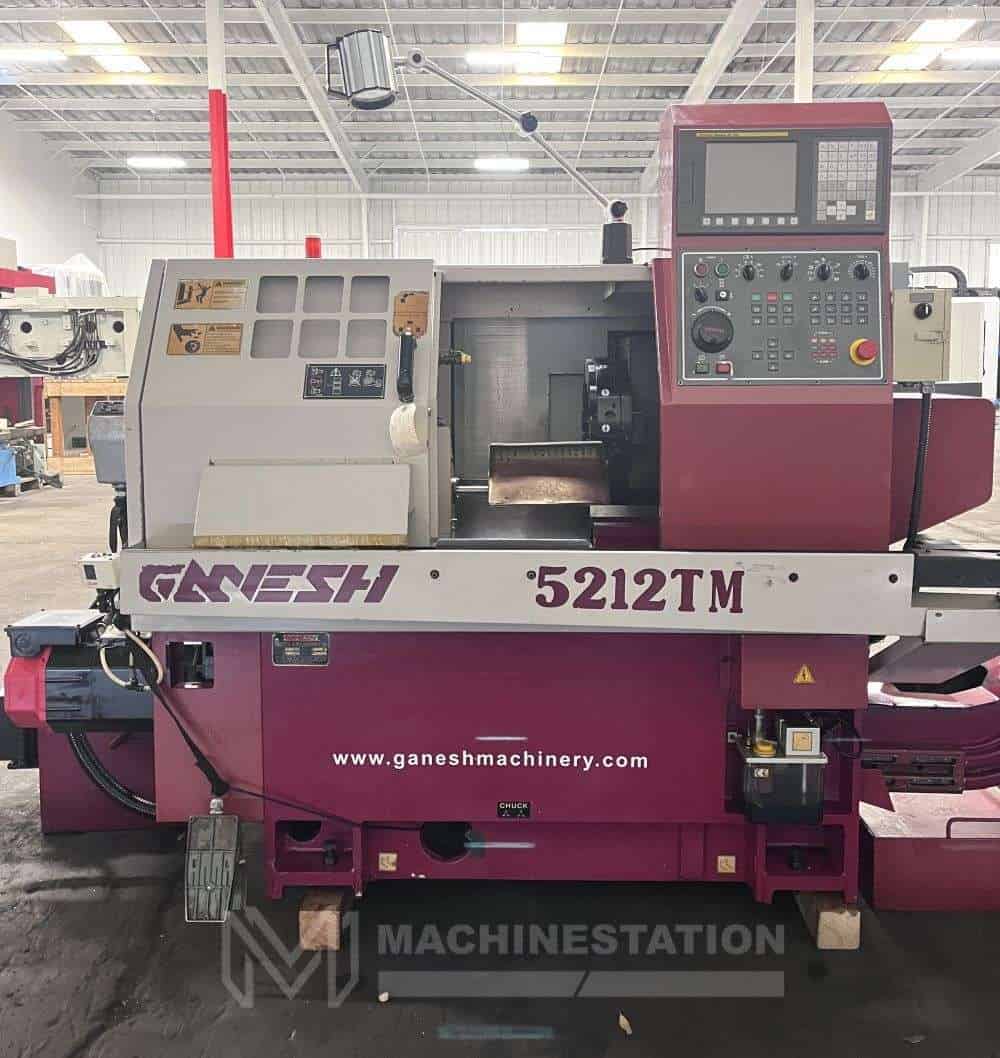

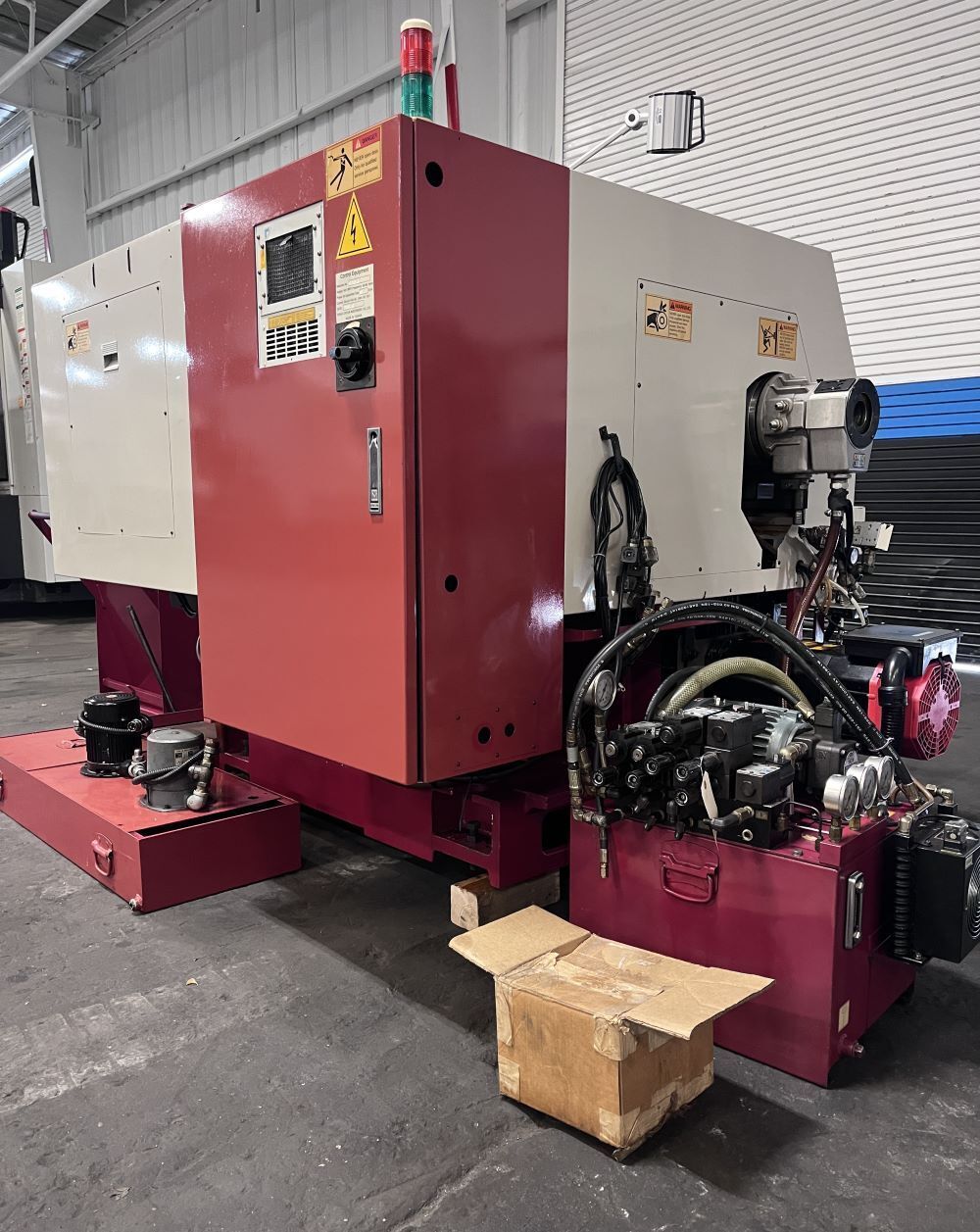

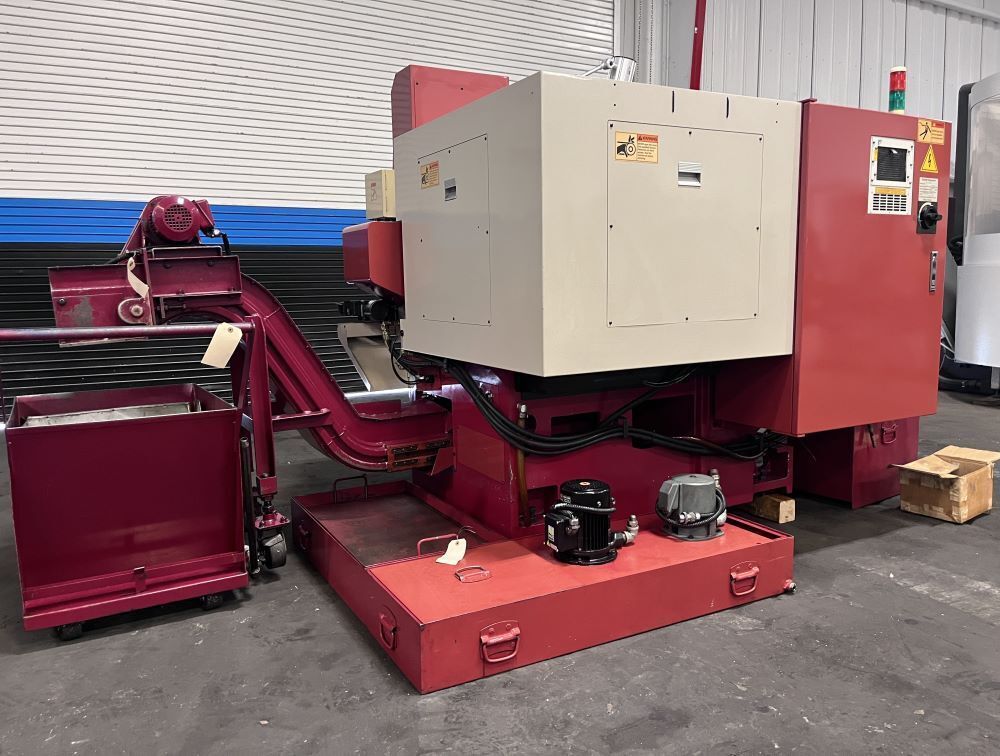

Ganesh 5212TM CNC Turn Mill Center

$22,500.00

1 in stock

Used Ganesh 5212TM CNC Turn Mill Center for Sale.

Location: Lake Elsinore, CA
SKU: 2595
Make & Model: Ganesh 5212TM
Year: 2005
Video: No Video
SKU: 2595

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Ganesh
Model: 5212TM
Condition: Used – Good



Equipped With:

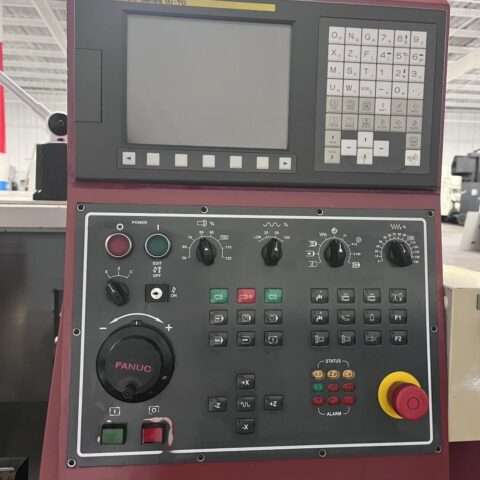

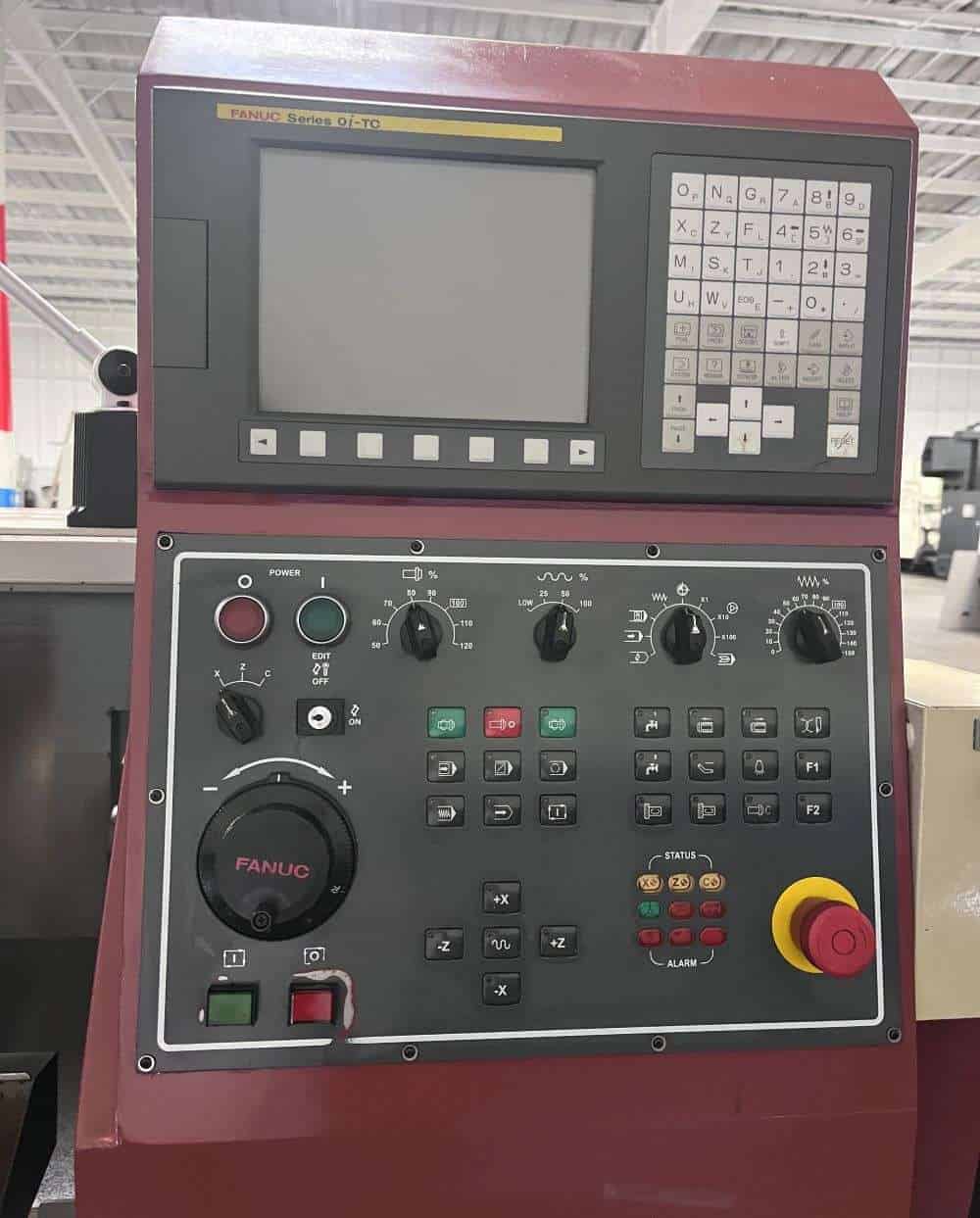

Fanuc Oi-TC Series CNC Control

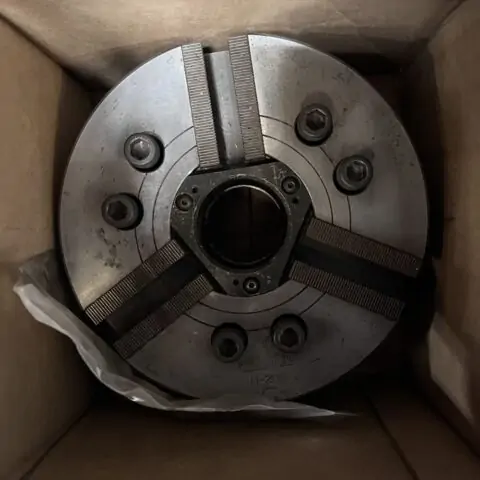

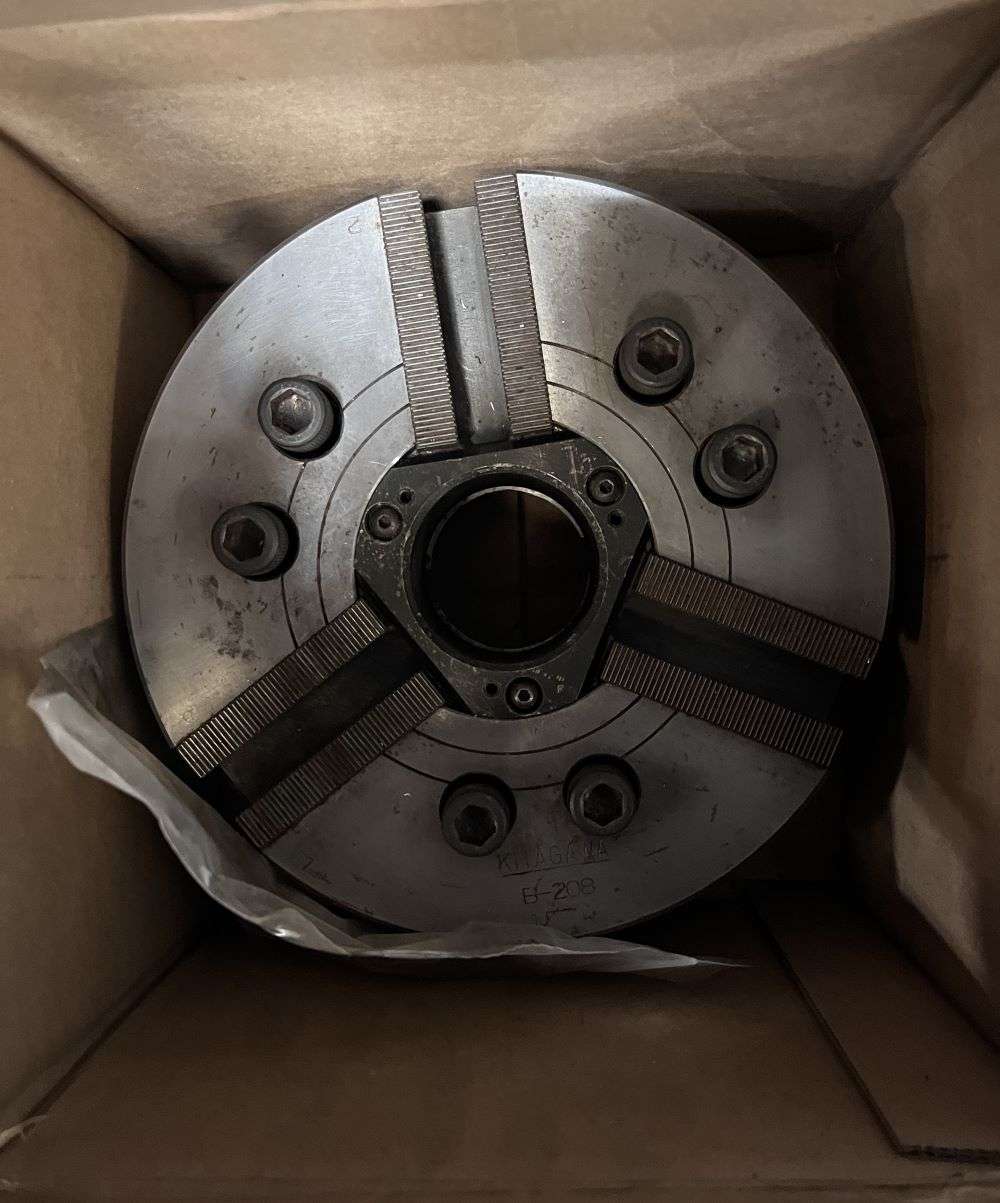

8″ Kitagawa 3-Jaw Chuck
Servo Controlled Full C-Axis Spindle

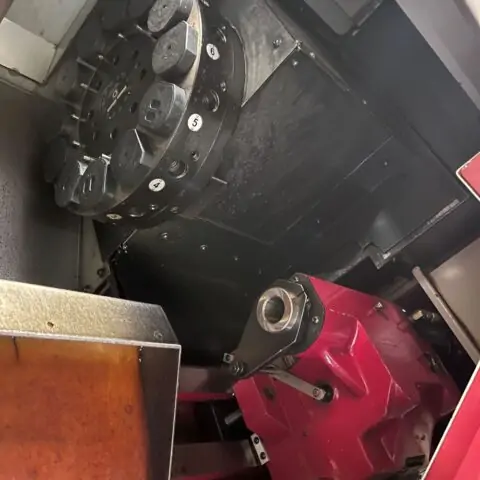

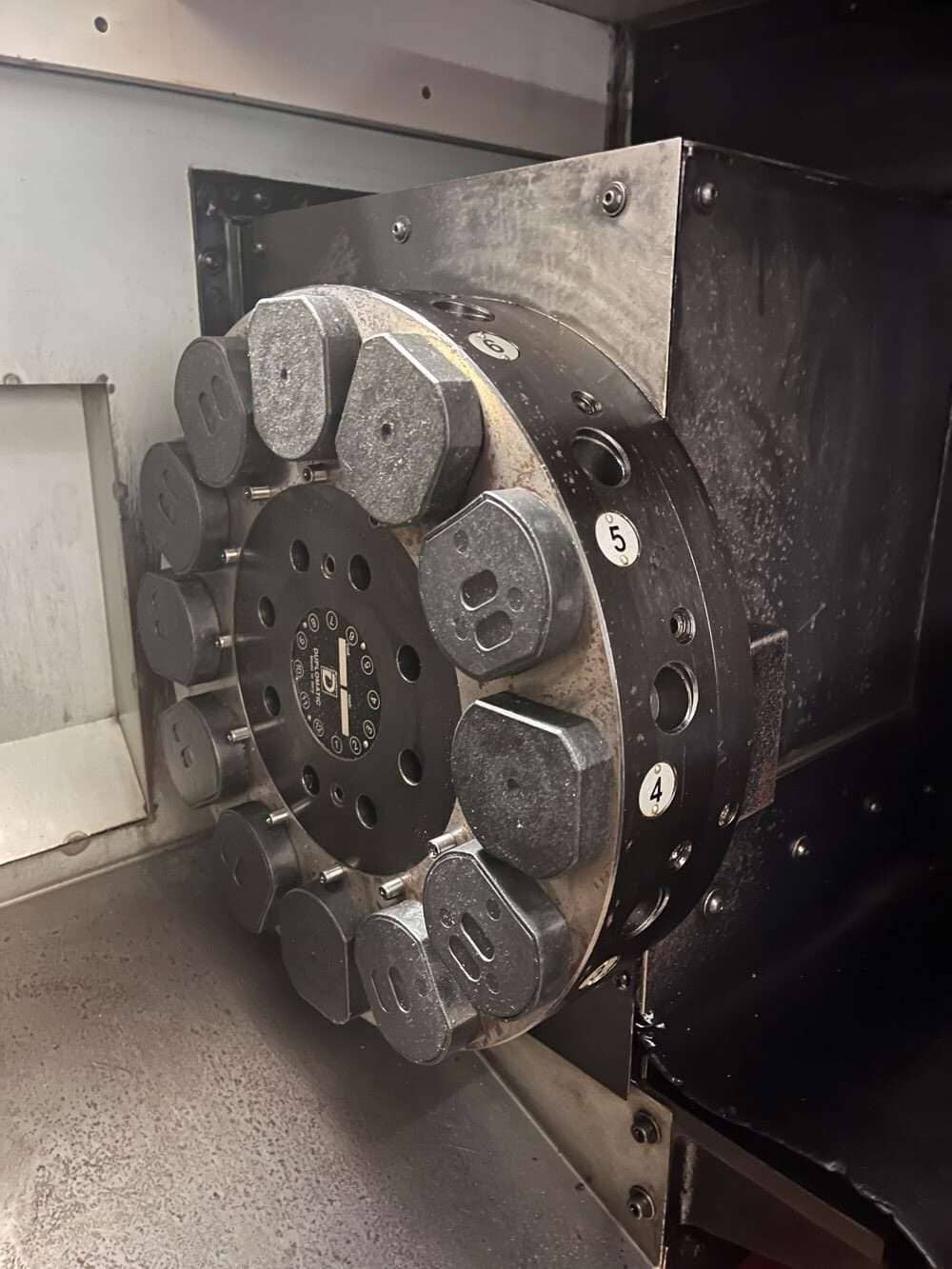

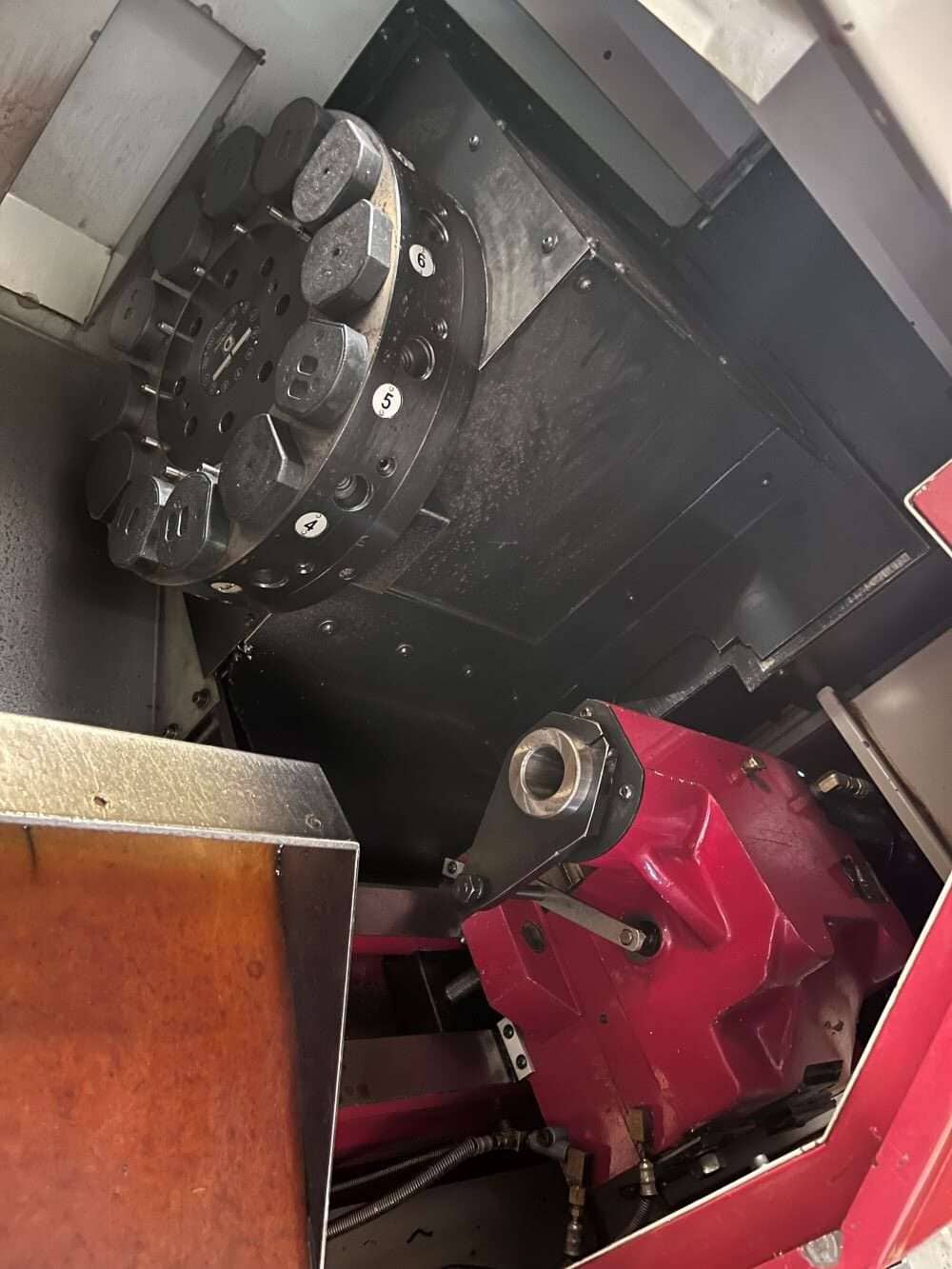

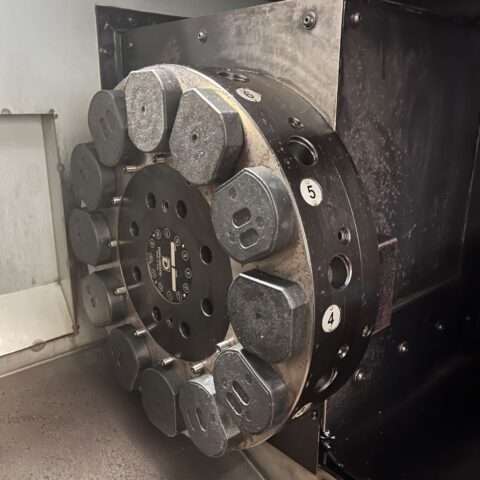

12 Station Live Tool Turret
PCMCIA Card Slot
Rigid Tapping

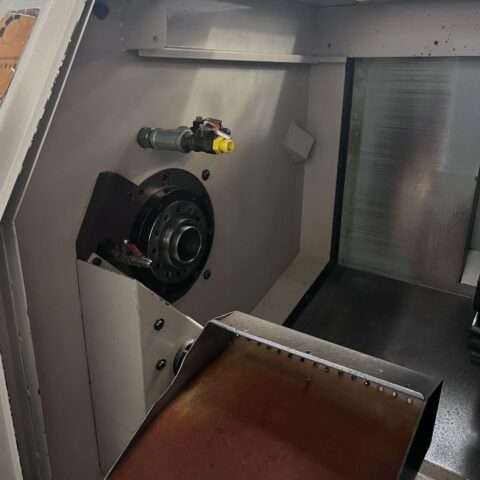

Part Catcher

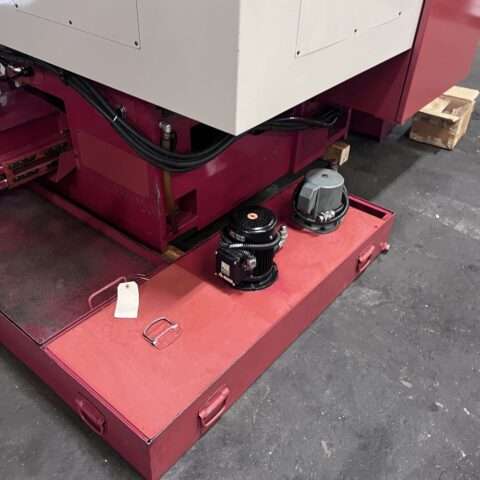

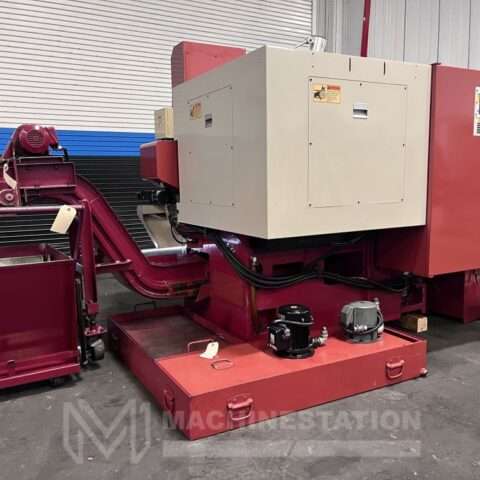

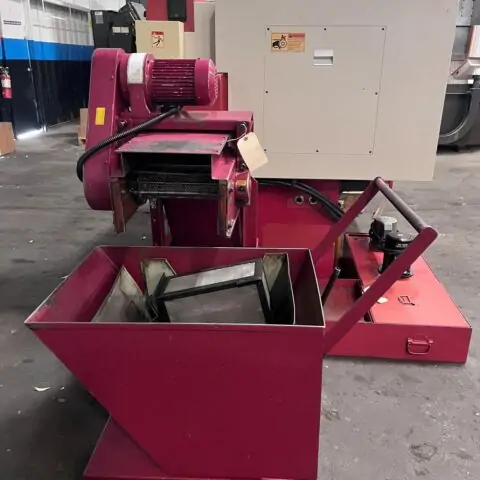

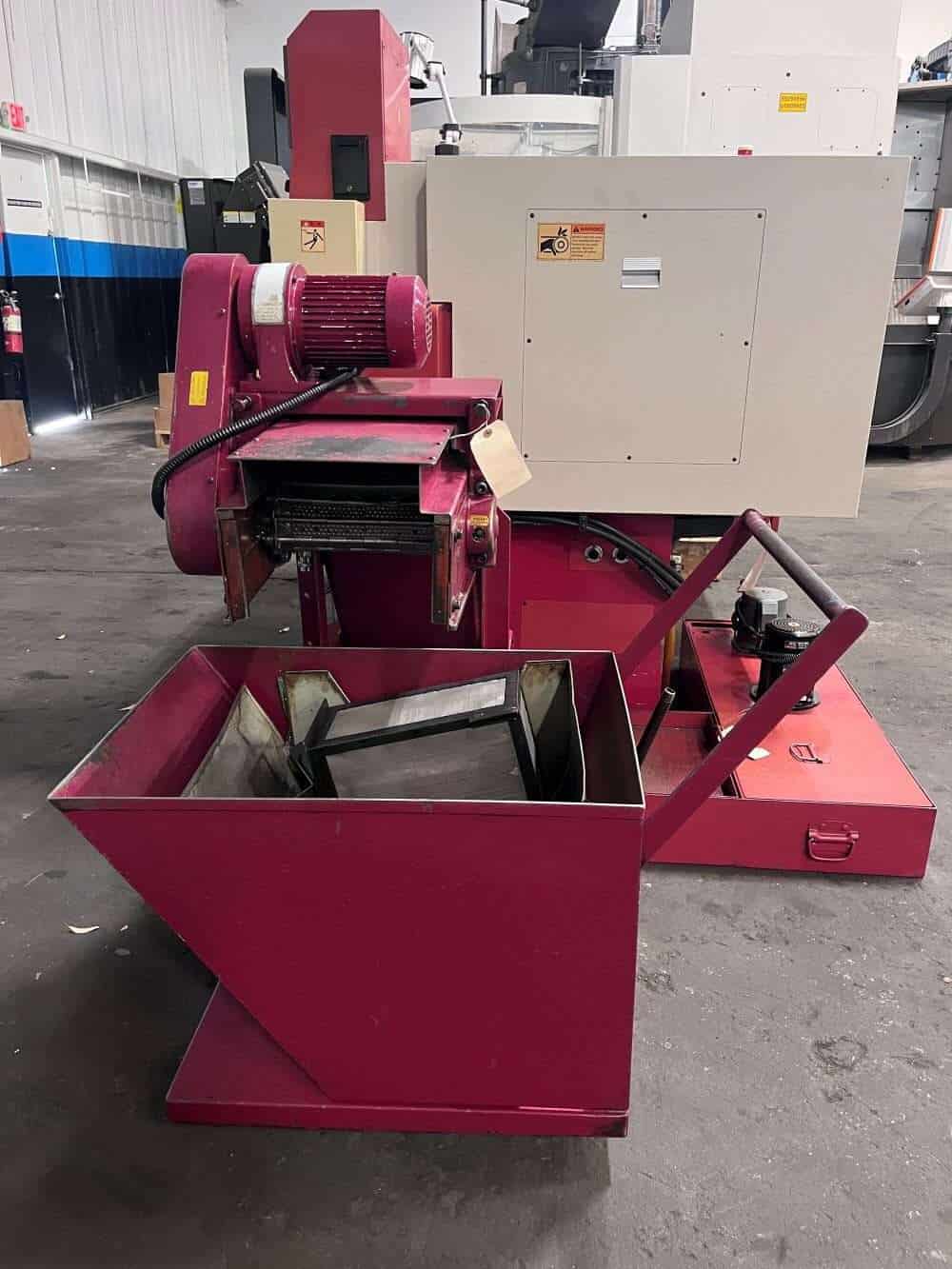

Part Conveyor

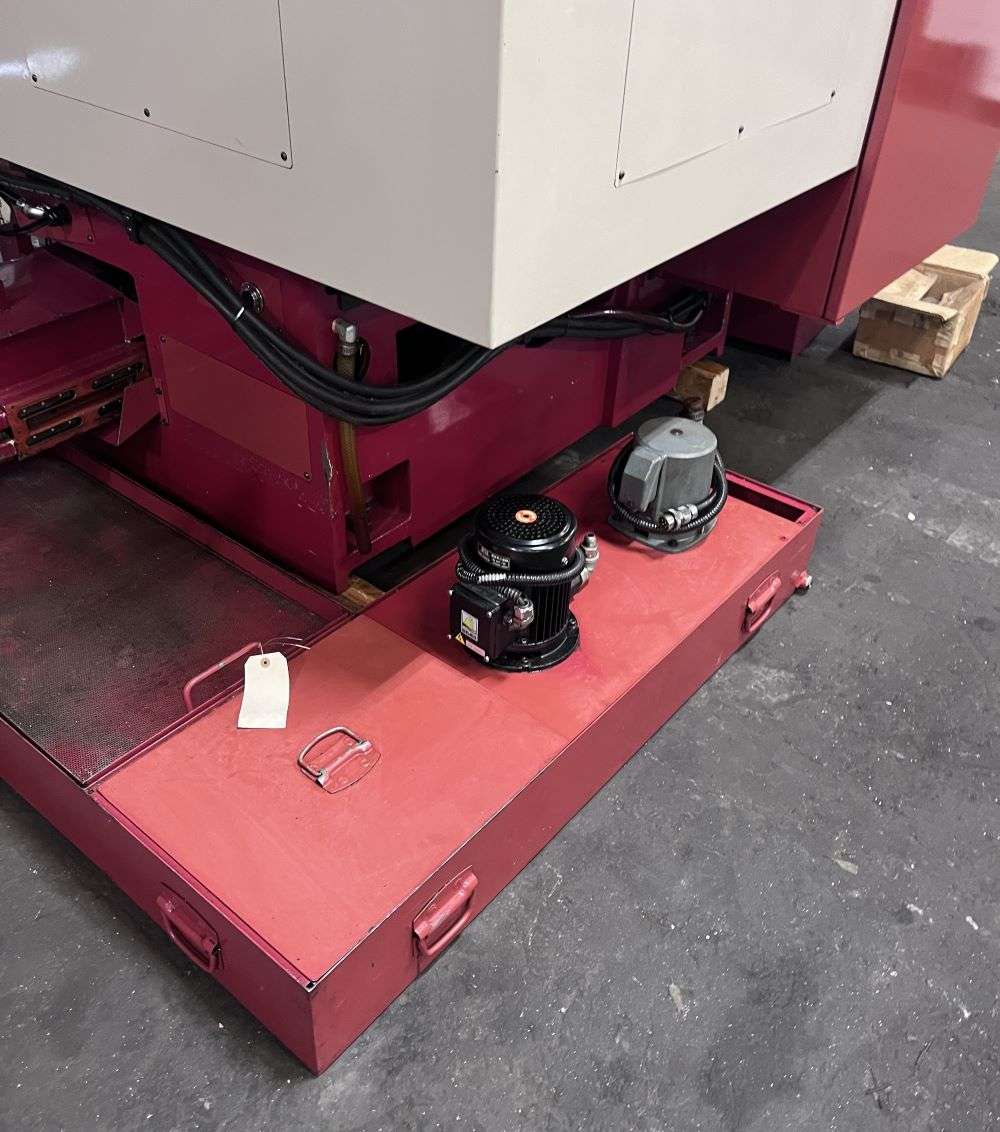

Coolant Tank

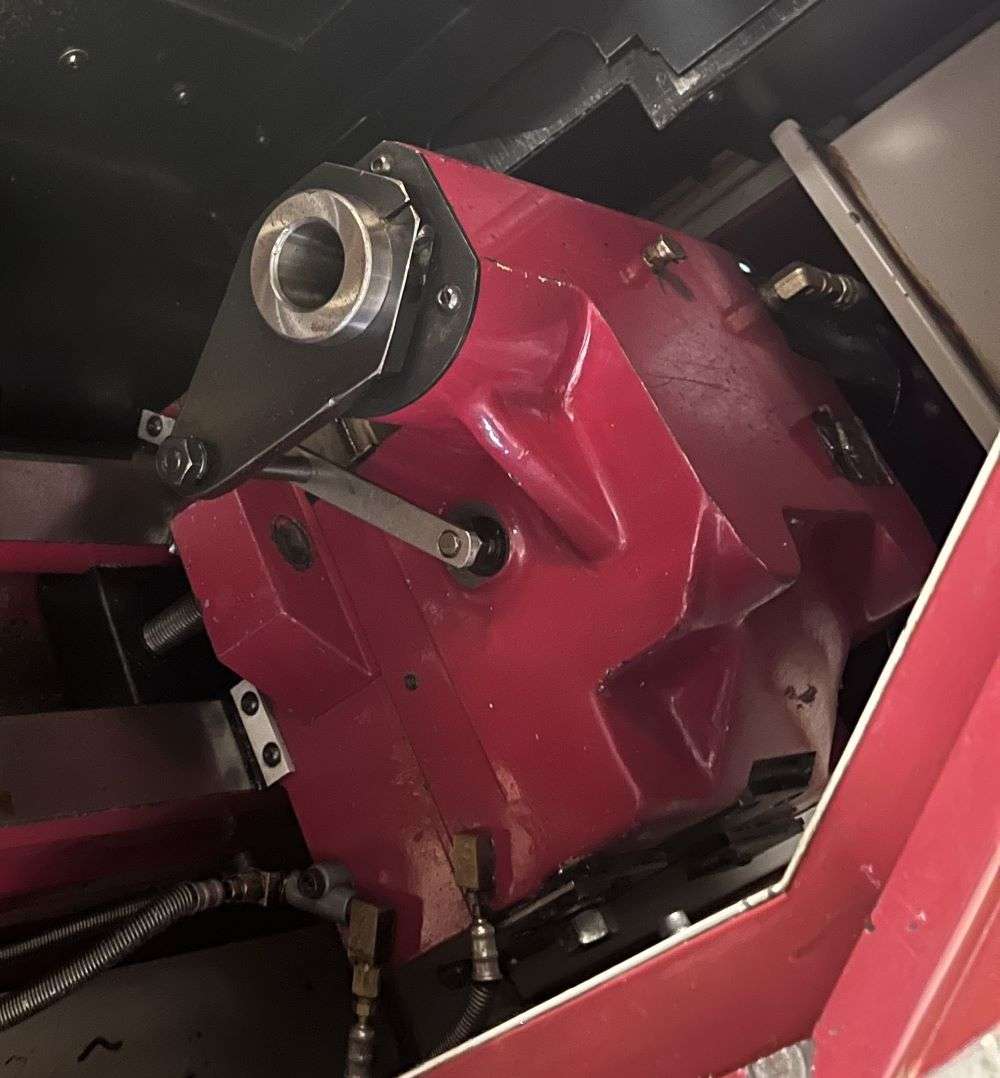

Tailstock
Foot Switch



Capacity:
Max Turning Diameter : 5.51″
Max Swing Over Bed : 16.0″
Max Turning Length: 10.0″
Max Bar Capacity : 1.63″
Distance Between Spindle Nose and Tailstock Nose: 24.0″



Travels:
X Axis Travel : 4.7″
Z Axis Travel : 13.78″
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 708 IPM



Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.15″
Spindle Speed: 4000 RPM
Spindle Motor: 15 HP



Turret:
Turret Capacity: 12 Station
Turret Index Time: 0.1 Second
Live Tool Speed: 5000 RPM

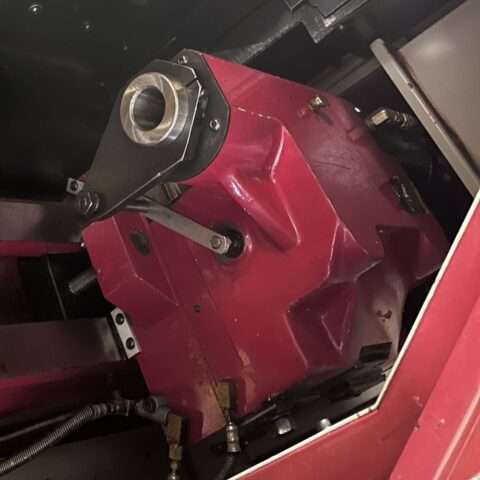

Tailstock:
Tailstock Quill Stroke: 3.0″
Tailstock Taper: MT-4



General:

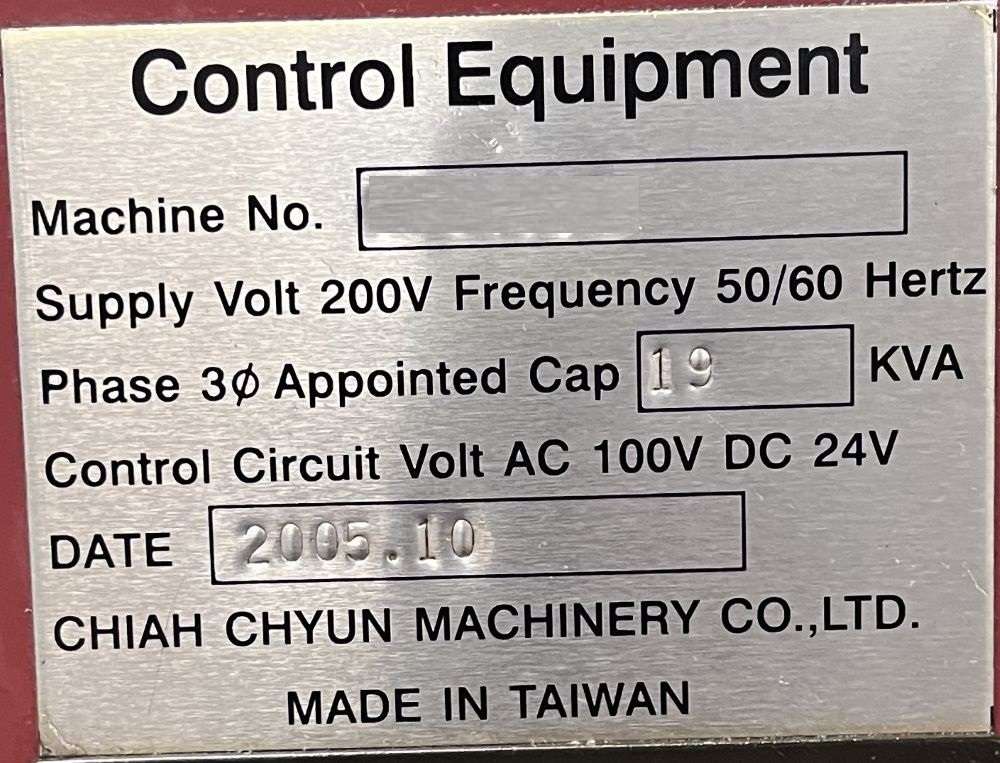

Power Source: AC 220v / 3-Phase / 60 Hz / 19 kva
Overall Dimensions: 83″ x 51″ x 65″ High
Machine Weight: 5075 lbs Approx.
