*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Giddings & Lewis |
| Model: |
72″ |
| Year of Manufacture: |
2015 |
| Machine Type: |
CNC Vertical Turret Lathe (VTL) |
| CNC Control: |

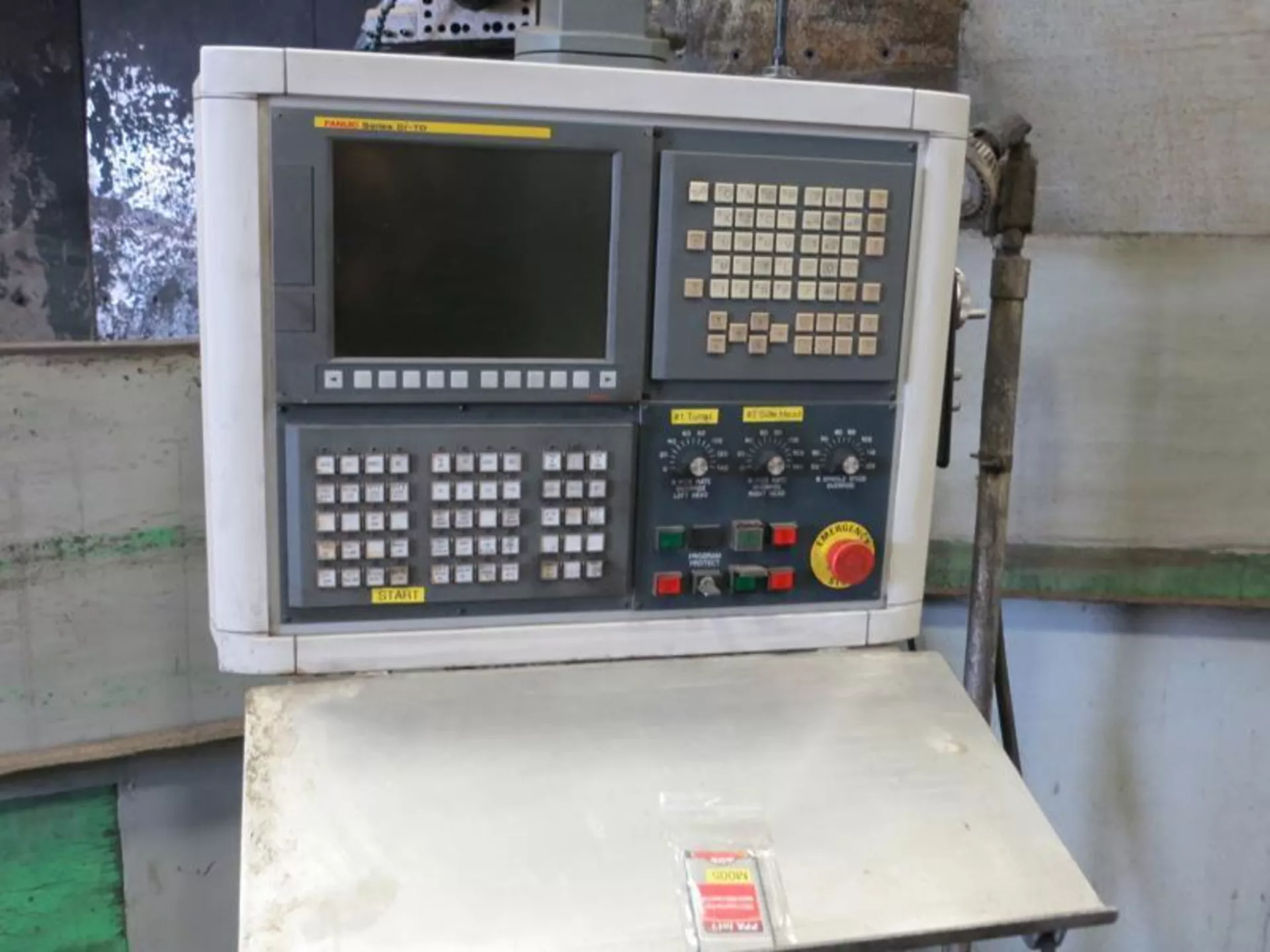

Fanuc Oi-TD CNC Control |
| Country of Origin: |
USA |
| Equipped With: |
| Fanuc Oi-TD CNC Control |
| 72″ 4-Jaw Independent Chuck |
| 4-Axis CNC Capability |
| 5-Position Power Indexing Turret |
| Side Head Attachment |
| Heavy-Duty Table Drive |
| Full Guarding |

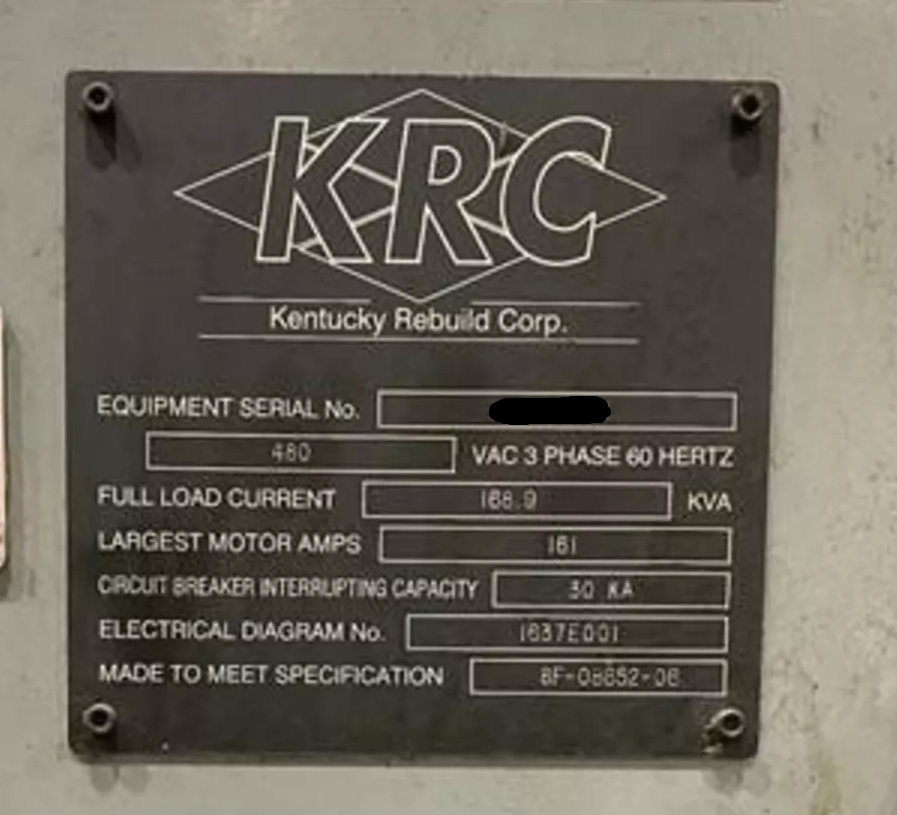

| Electrical Cabinet (KRC Retrofit) |
| Capacity: |
| Chuck Size: 72″ 4-Jaw Independent Chuck |
| Max Swing: 84″ |
| Max Turning Diameter: 84″ |
| Max Turning Height (Under Rail): 72″ |
| Table Type: Vertical Table |
| Axes: |
| Number of Axes: 4-Axis |
| Axis Configuration: X, Z, C + Side Head |
| Spindle / Table: |
| Table Speed: Up to 200 RPM |
| Main Motor: 75 HP |
| Drive Type: Gear Driven Table |
| Turret & Heads: |
| Turret Type: 5-Sided Power Indexing Turret |
| Side Head: Included |
| Ram Type: Vertical Ram |
| Feed Rates: |
| Feed Rate: Programmable (CNC Controlled) |
| Rapid Traverse: Heavy-duty axis drives |
| Electrical: |
| Voltage: 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load Current: 188.9 A |
| Largest Motor: 161 A |
| Breaker Capacity: 30 kA |
| Dimensions: |
| Floor Space (L x W x H): 240″ x 220″ x 260″ H (approx.) |
| Machine Weight: 90,000 – 110,000 lbs |
| Additional Requirements: |
| Operator Access: 36″ – 48″ recommended |
| Maintenance Clearance: 48″ recommended |
| Chip/Coolant Access: 48″ – 60″ |
| General: |
| Air Required: 80 PSI (approx.) |
| Power Requirement: 480V / High kVA Industrial Supply |
