*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

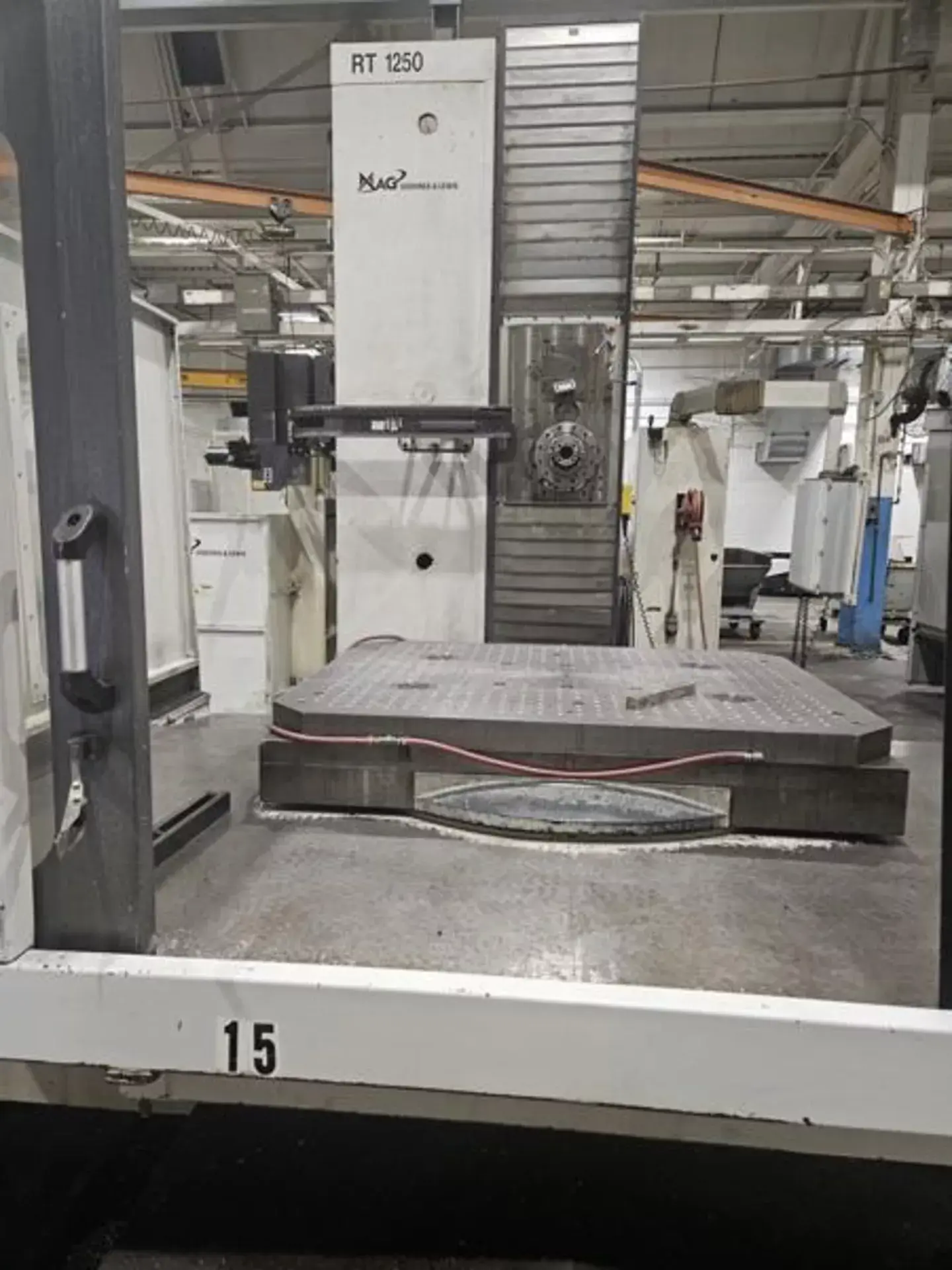

| Make: |
Giddings & Lewis |
| Model No.: |
RT 1250 |
| Year of Manufacture: |
2008 |
| Machine Type: |
CNC Horizontal Boring Mill (Table Type) |

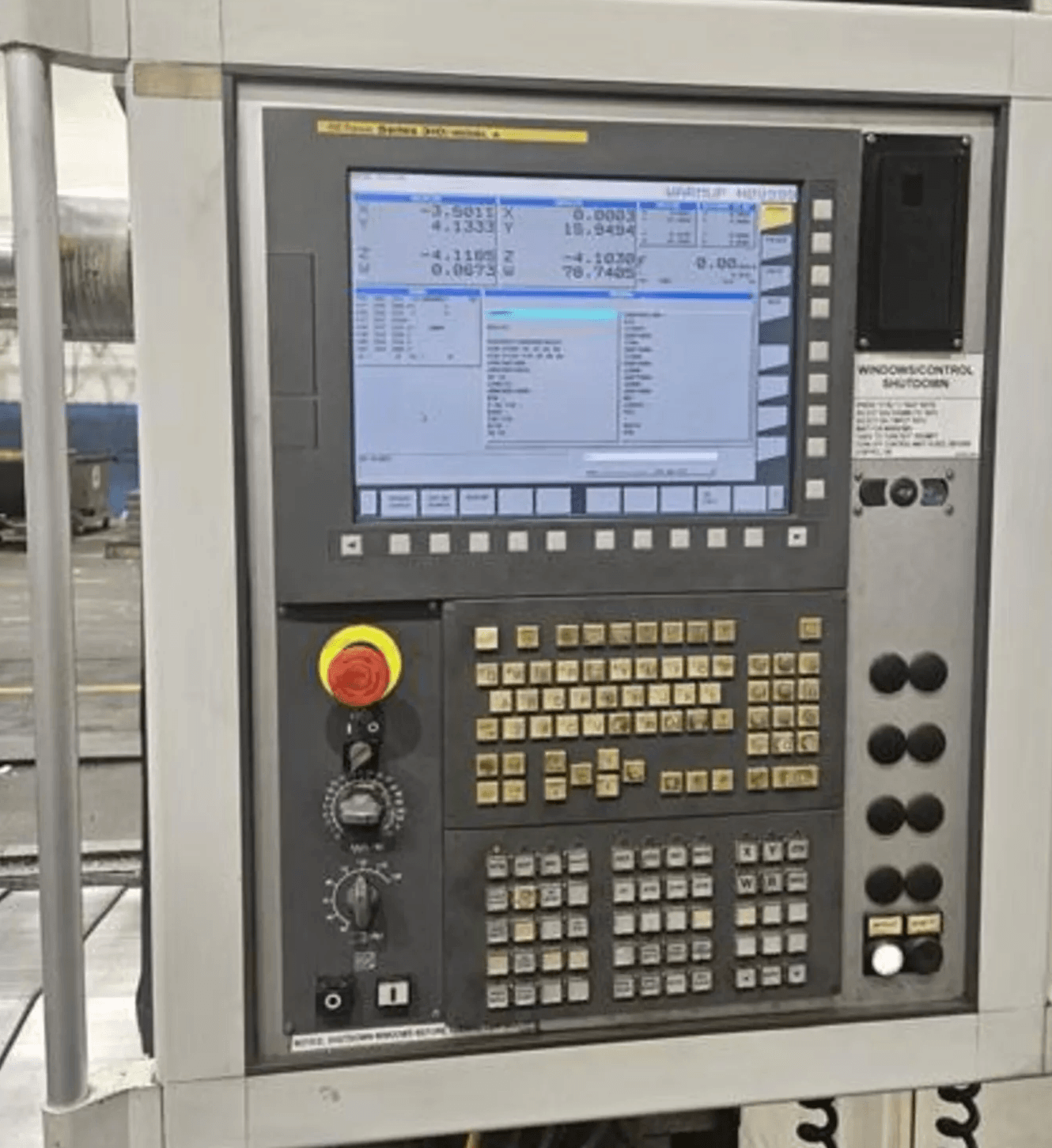

| CNC Control: |
Fanuc CNC |
| Country of Origin: |
USA |
| Equipped With: |
| Fanuc CNC Control |
| Full 4th Axis Rotary Table (B-Axis) |
| High-Capacity Automatic Tool Changer |
| Through-Spindle Coolant |
| Chip Conveyor |
| Renishaw Probe System |
| Full Enclosure |
| Heavy Duty Box Way Construction |
| Capacity: |
| Table Size: 63″ × 49.2″ |
| Max Table Load: 33,000 lbs |
| Table Type: Full Contouring Rotary Table (B-Axis) |
| Table Indexing: 0.001° |
| Travels: |
| X-Axis Travel: 144″ |
| Y-Axis Travel: 82.7″ |
| Z-Axis Travel (Spindle): 49.2″ |
| W-Axis Travel (Column): 59″ |
| Rapid Traverse: ~787 IPM |
| Spindle: |
| Spindle Diameter: 6.1″ (155 mm) |
| Spindle Speed: Up to 3,500 – 4,000 RPM |
| Spindle Motor: 50 – 70 HP |
| Spindle Taper: CAT 50 |
| Tool Changer: |
| Tool Capacity: 60 – 90 Tools |
| Type: Automatic Tool Changer (ATC) |
| Feed Rates: |
| Feed Range: Programmable (CNC Controlled) |

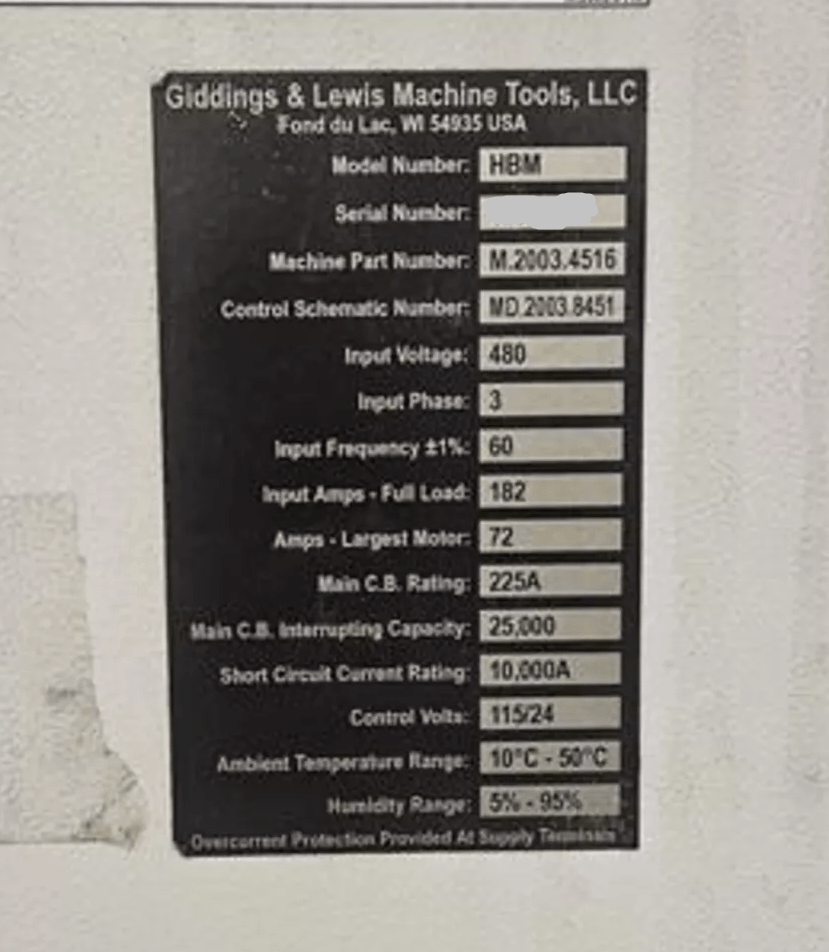

| Electrical: |
| Voltage: 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load Current: 182 Amps |
| Largest Motor: 72 Amps |
| Main Breaker: 225 Amps |
| Control Voltage: 115V / 24V |
| General: |
| Machine Dimensions: ~25.3′ × 22.3′ × 14.1′ |
| Machine Weight: ~77,000 lbs |
