*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Fives Giddings & Lewis |
| Model No.: |
VTC 1000FX |
| Year of Manufacture: |
2015 |
| Machine Type: |
Vertical CNC Boring Mill / Vertical Turning Center |

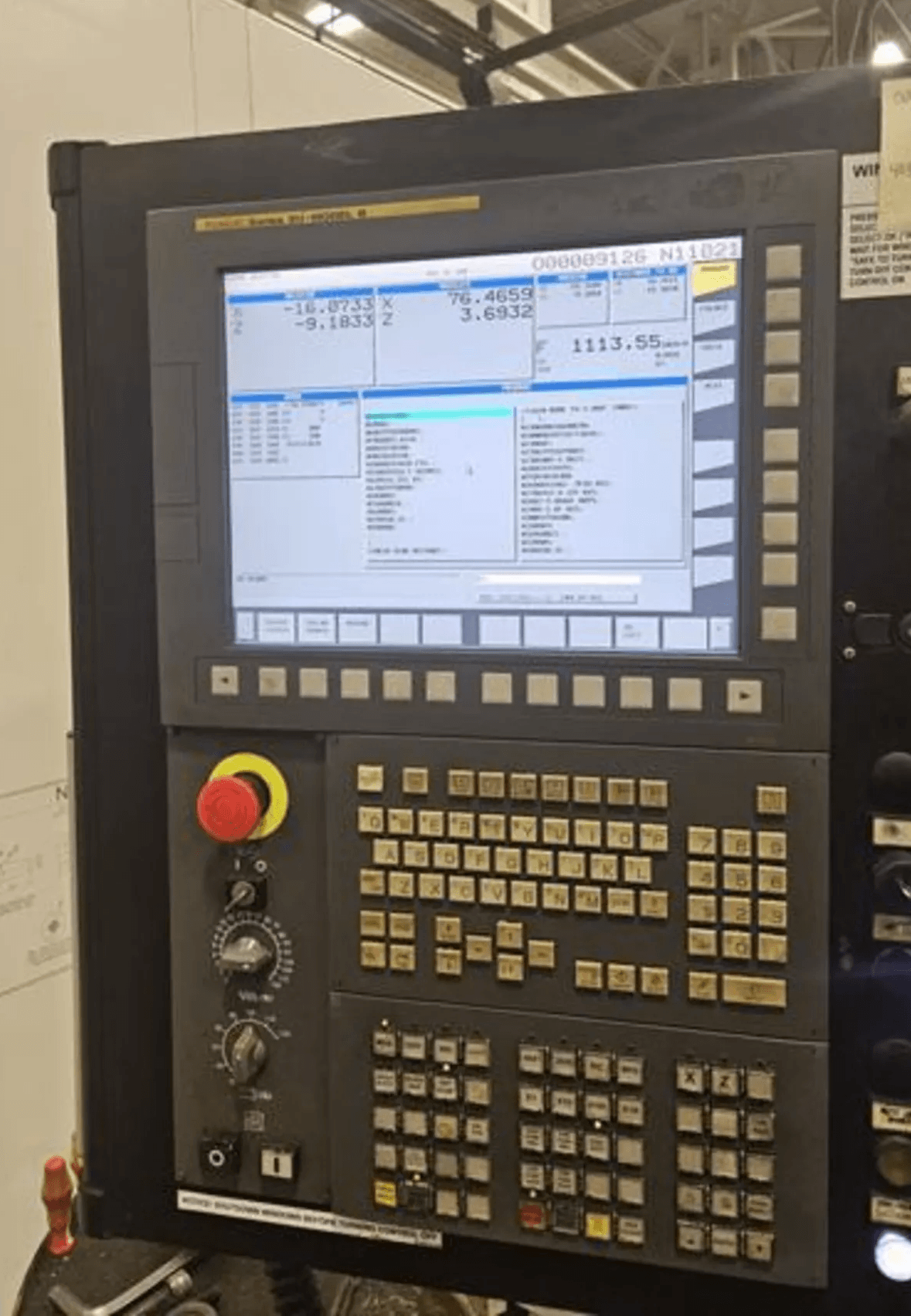

| CNC Control: |
Fanuc 31i-B |
| Country of Origin: |
USA |
| Equipped With: |
| Fanuc 31i-B CNC Control |
| Disk Type Automatic Tool Changer |
| Hydrostatic Ram |

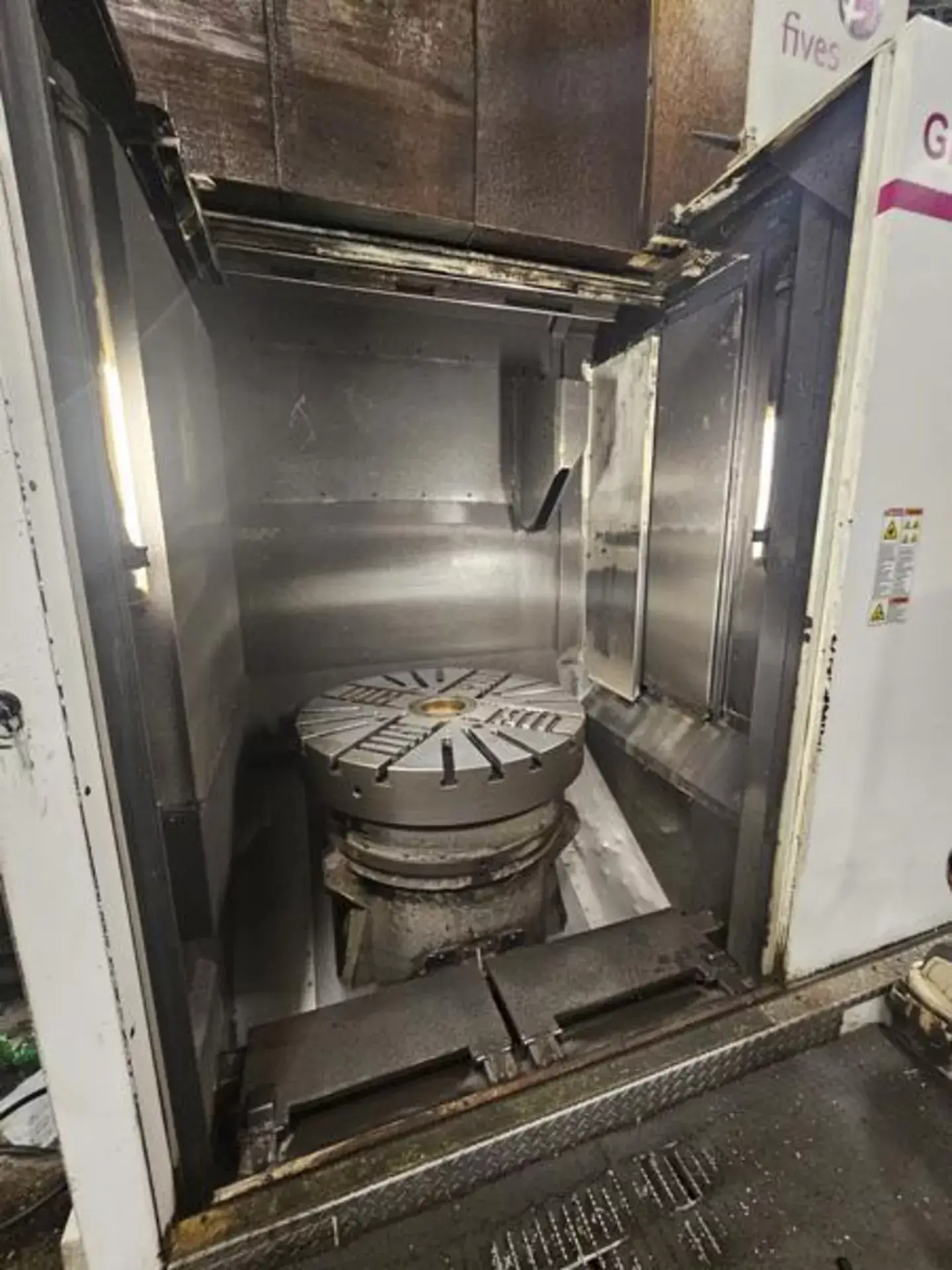

| C-Axis Table |
| Live Tooling Capability |
| High Pressure Coolant System (14 bar / 200 psi) |
| Chip Management System |
| Full Enclosure |
| Heavy Duty Vertical Turning Platform |
| Capacity: |
| Table Diameter: 39.4″ (1000 mm) |
| Maximum Swing: 47.2″ |
| Maximum Turning Height: 40.8″ |
| Max Table Load Capacity: ~16,500 lbs (7,500 kg) |
| Travels: |
| X-Axis Travel: +33.0″ / -14.6″ |
| Z-Axis Travel (Ram): ~29.5″ (750 mm) |
| W-Axis / Rail Travel: ~49.2″ |
| Rapid Traverse (X/Z): ~787 IPM |
| Table: |
| Table Speed Range: 1 – 500 RPM |
| C-Axis Speed: Up to 20 RPM |
| Table Drive Power: ~50 – 75 HP |
| Spindle / Ram: |
| Spindle Speed: Up to 4,000 RPM (Live Tooling) |
| Spindle Motor: ~44 HP (33 kW) |
| Ram Type: Hydrostatic Ram |
| Ram Size: ~250 mm Square |
| Tool Changer: |
| Type: Disk Type ATC |
| Tool Capacity: ~25 Tools |
| Max Tool Length: 27.5″ (700 mm) |
| Max Tool Weight: 250 lbs (115 kg) |
| Max Tool Diameter (Adjacent Full): 200 mm |
| Max Tool Diameter (Adjacent Empty): 250 mm |
| Max Magazine Load: 3,300 lbs (1,500 kg) |
| Feed Rates: |
| Feed Rate Range: 0.004″ – 787 IPM |

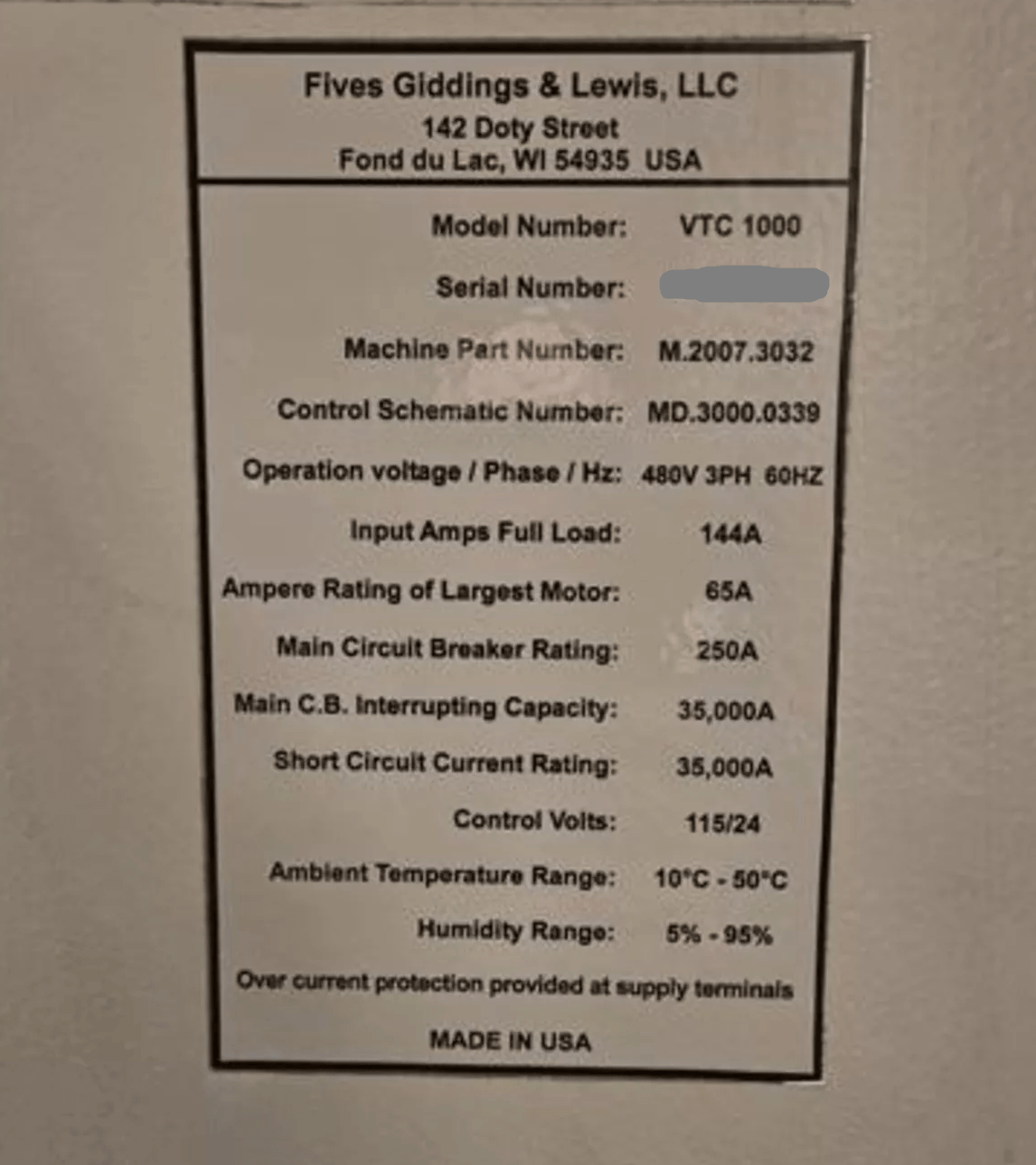

| Electrical: |
| Voltage: 480V / 3 Phase / 60 Hz |
| Full Load Current: 144 Amps |
| Largest Motor: 65 Amps |
| Main Breaker: 250 Amps |
| Interrupt Capacity: 35,000A |
| Control Voltage: 115V / 24V |
| General: |
| Machine Dimensions: ~180″ × 160″ × 200″ |
| Machine Weight: ~45,000 – 55,000 lbs |
