*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Giddings & Lewis |
| Model: | VTC-1600 |
| Year: | 2005 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Boring Mill |

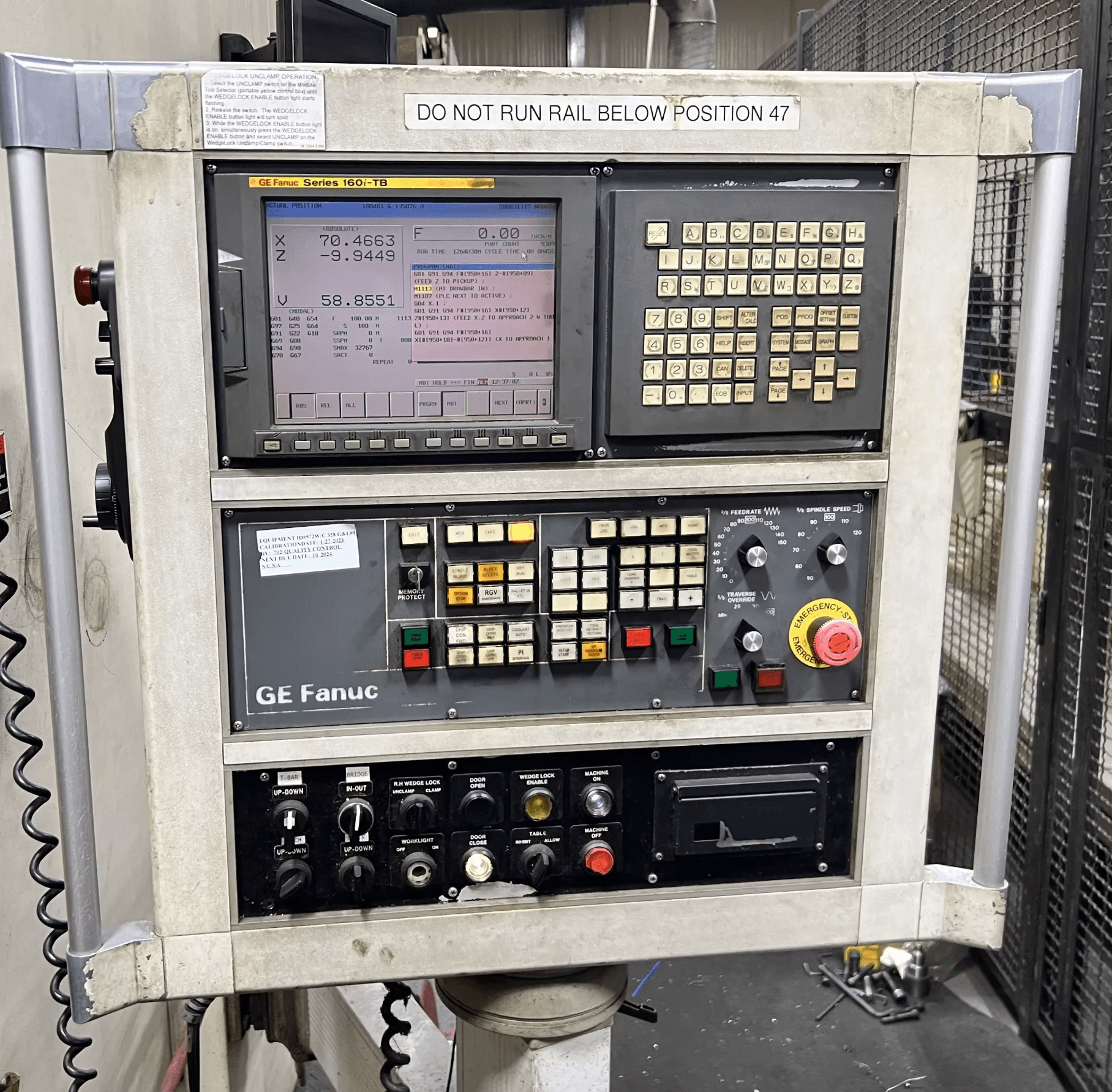

| Control: | Fanuc Series 160i-TB CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| Fanuc Series 160i-TB CNC Control |
| 63” Table Capacity |
| 26-Position Automatic Tool Changer |
| Coolant Thru Spindle |
| Linear Scales |
| Renishaw Probe |
| Chip Conveyor |
| Miscellaneous Tool Holders |
| Miscellaneous Tooling |
| Full Enclosure |
| Capacity: |
|---|
| Table Diameter: 63″ |
| Max Swing Diameter: 78″ |
| Max Height Under Ram Face: 85″ |
| Max Workpiece Weight: Approx. 22,000 LBS |
| Travels: |
|---|

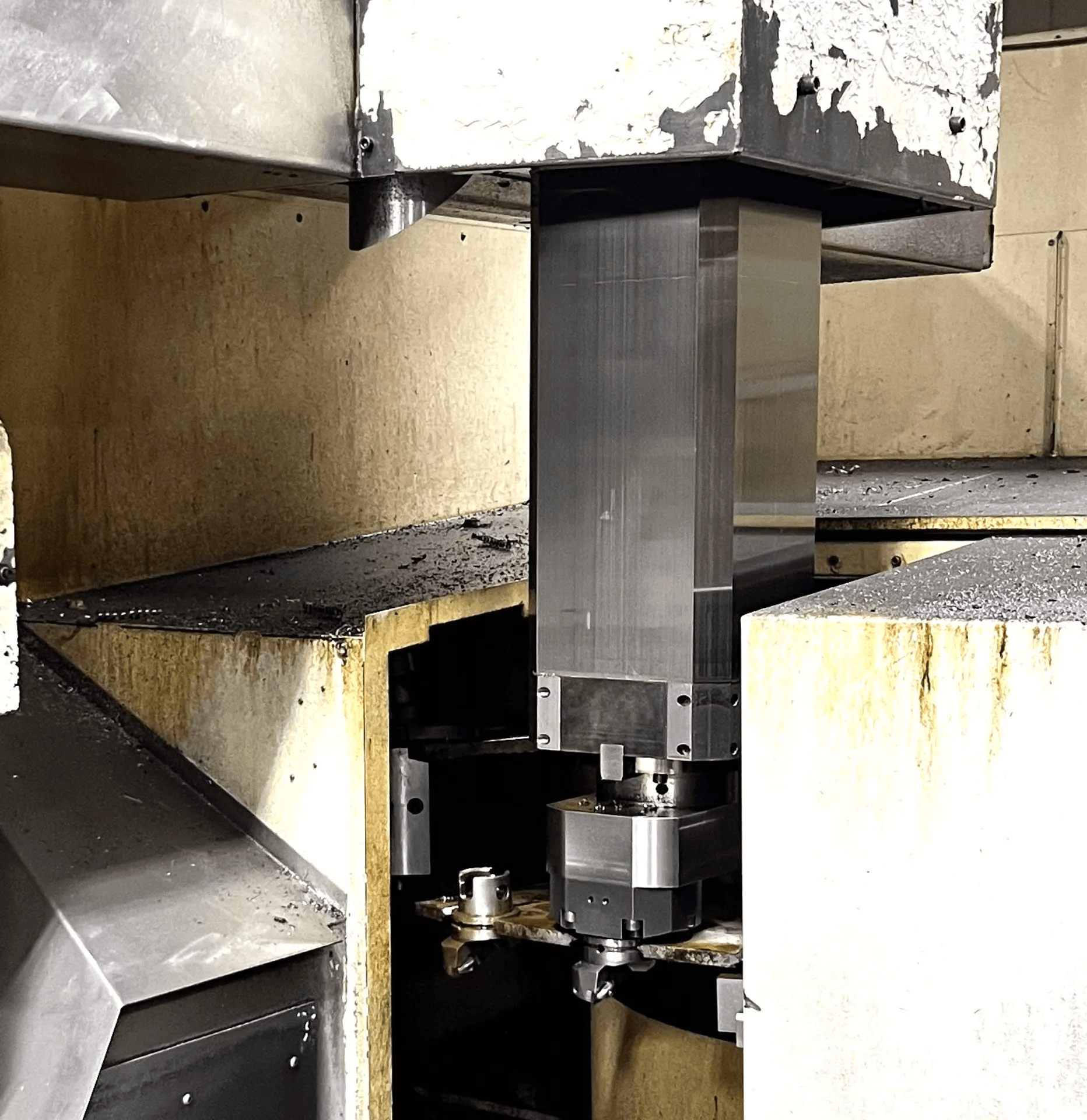

| Ram Stroke: 68″ |
| X-Axis Travel: Approx. 86″ |
| Z-Axis Travel: Approx. 68″ |
| Cross Rail Travel: Programmable |
| Table & Spindle: |
|---|
| Table Speed Range: 1 – 400 RPM |
| Table Motor: 100 HP |
| Table Type: Heavy-Duty Precision Rotary Table |
| Spindle Cooling: Coolant Thru Spindle |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 26 Positions |
| Tool Change Type: Automatic |
| Tool Holders Included: Yes |
| Probe System: Renishaw Probe |
| Feed Rates: |
|---|
| Rapid Traverse Rate: High-Speed Programmable |
| Cutting Feed Rate: Programmable |
| Position Feedback: Linear Scales |

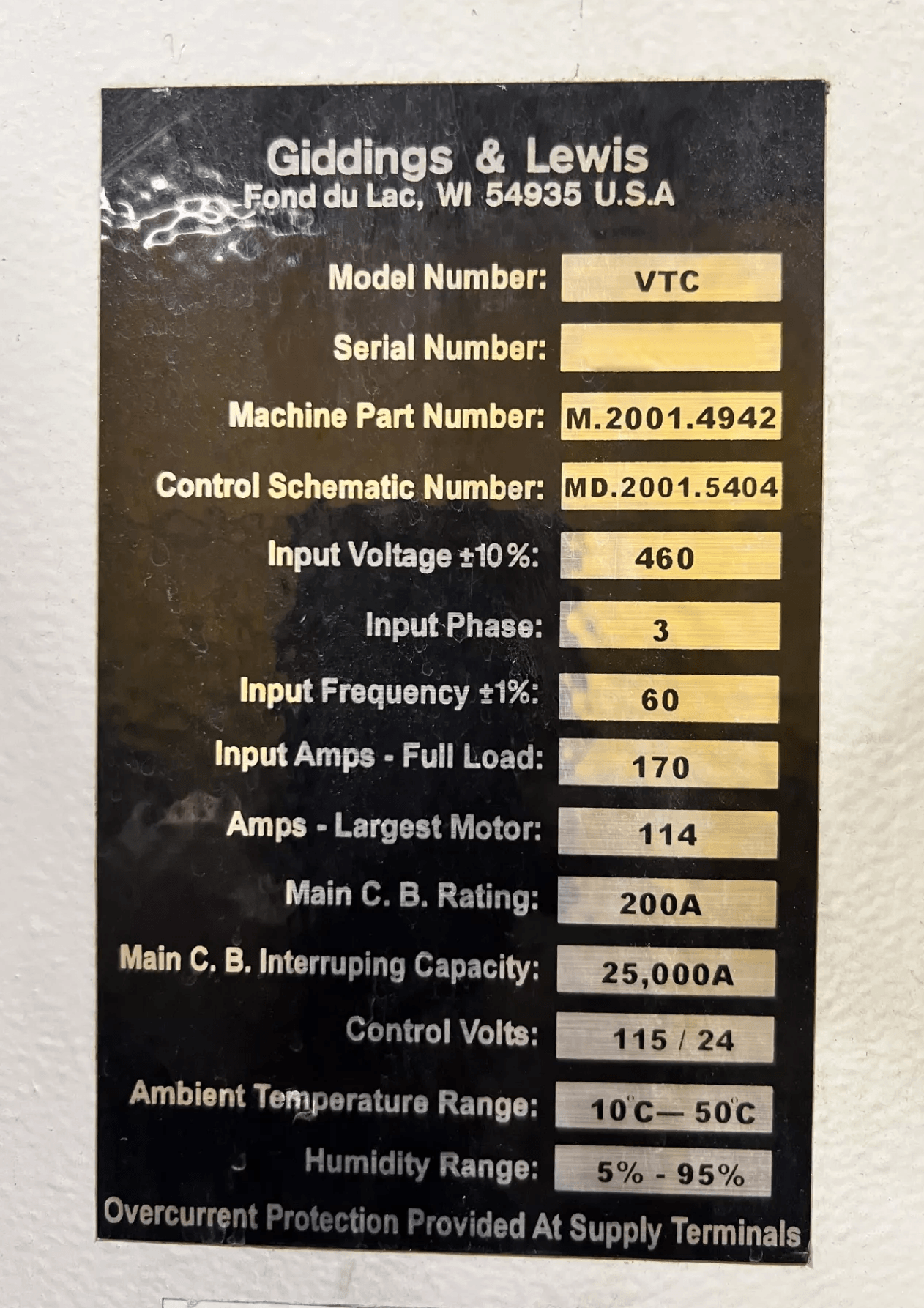

| Electrical: |
|---|
| Input Voltage: 460V |
| Input Phase: 3-Phase |
| Input Frequency: 60 Hz |
| Main Circuit Breaker Rating: 200A |
| General: |
|---|
| Machine Weight: Approx. 60,000 LBS |
| Machine Dimensions: Approx. 240″ x 220″ x 240″ |
