*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Giddings & Lewis |
| Model No.: |
HMC 1600 |
| Year of Manufacture: |
2014 |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |
Fanuc 31i-B |
| Country of Origin: |
USA |
| Equipped With: |

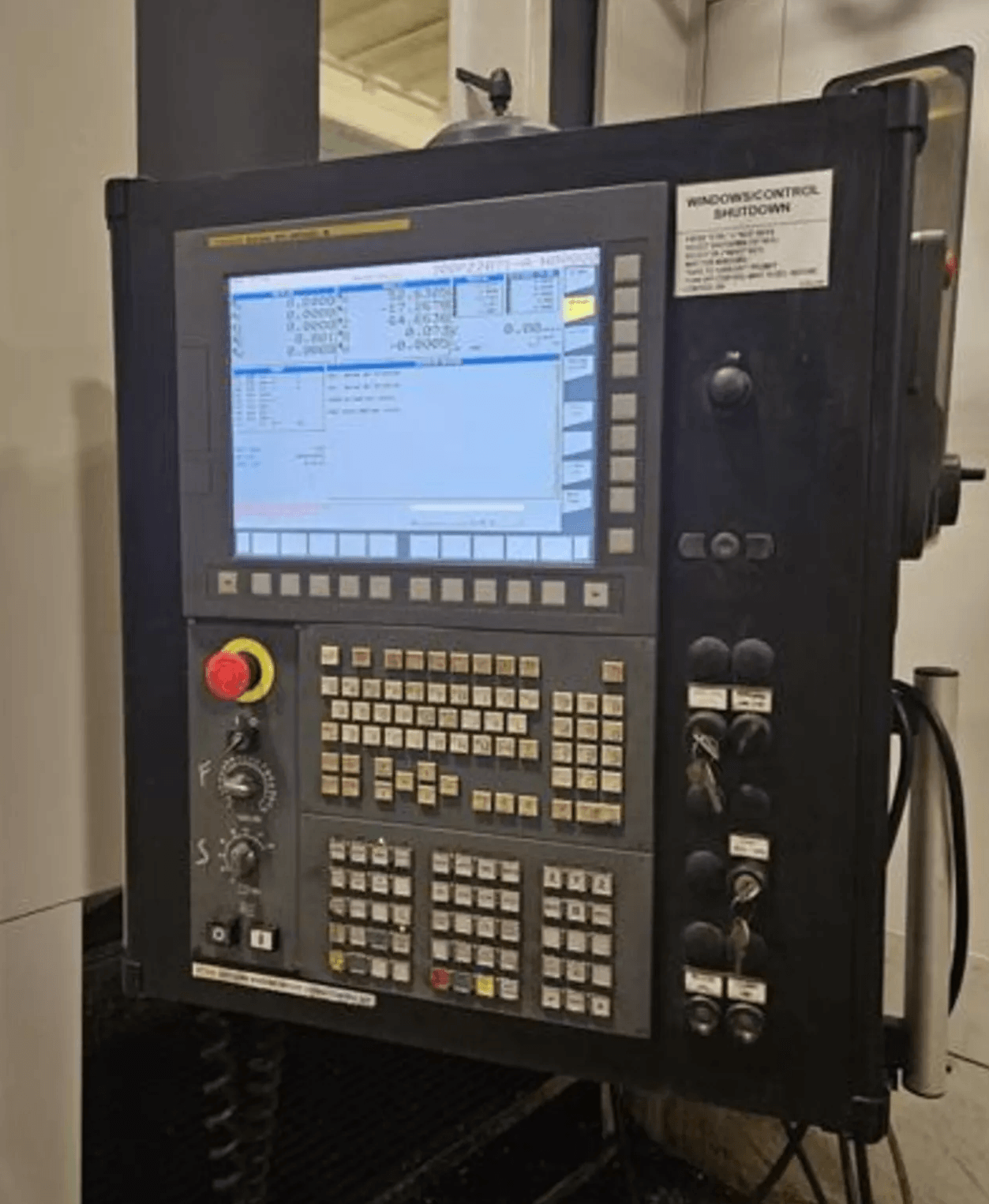

| Fanuc 31i-B CNC Control |
| 60 Station Automatic Tool Changer |
| 2-Pallet Automatic Pallet Changer |

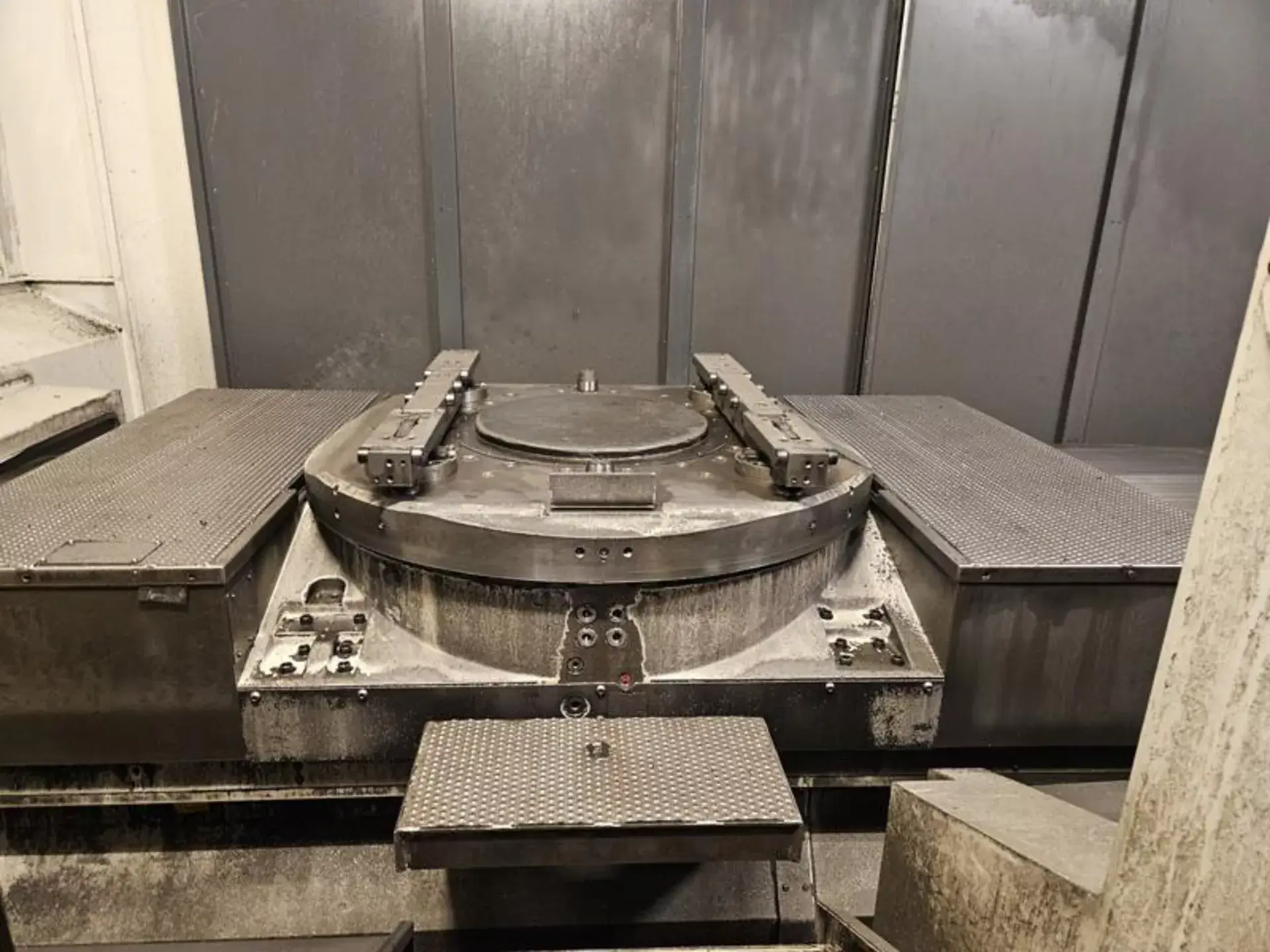

| Full 4th Axis Rotary Table |
| High-Pressure Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Heavy Duty Cast Iron Construction |
| Capacity: |
| Pallet Size: 63″ × 63″ (1600 × 1600 mm) |
| Max Workpiece Weight: ~15,400 lbs |
| Max Workpiece Swing: ~118″ |
| Travels: |
| X-Axis Travel: 106.3″ |
| Y-Axis Travel: 70.9″ |
| Z-Axis Travel: 80.7″ |
| Rapid Traverse: Up to 1,575 IPM |

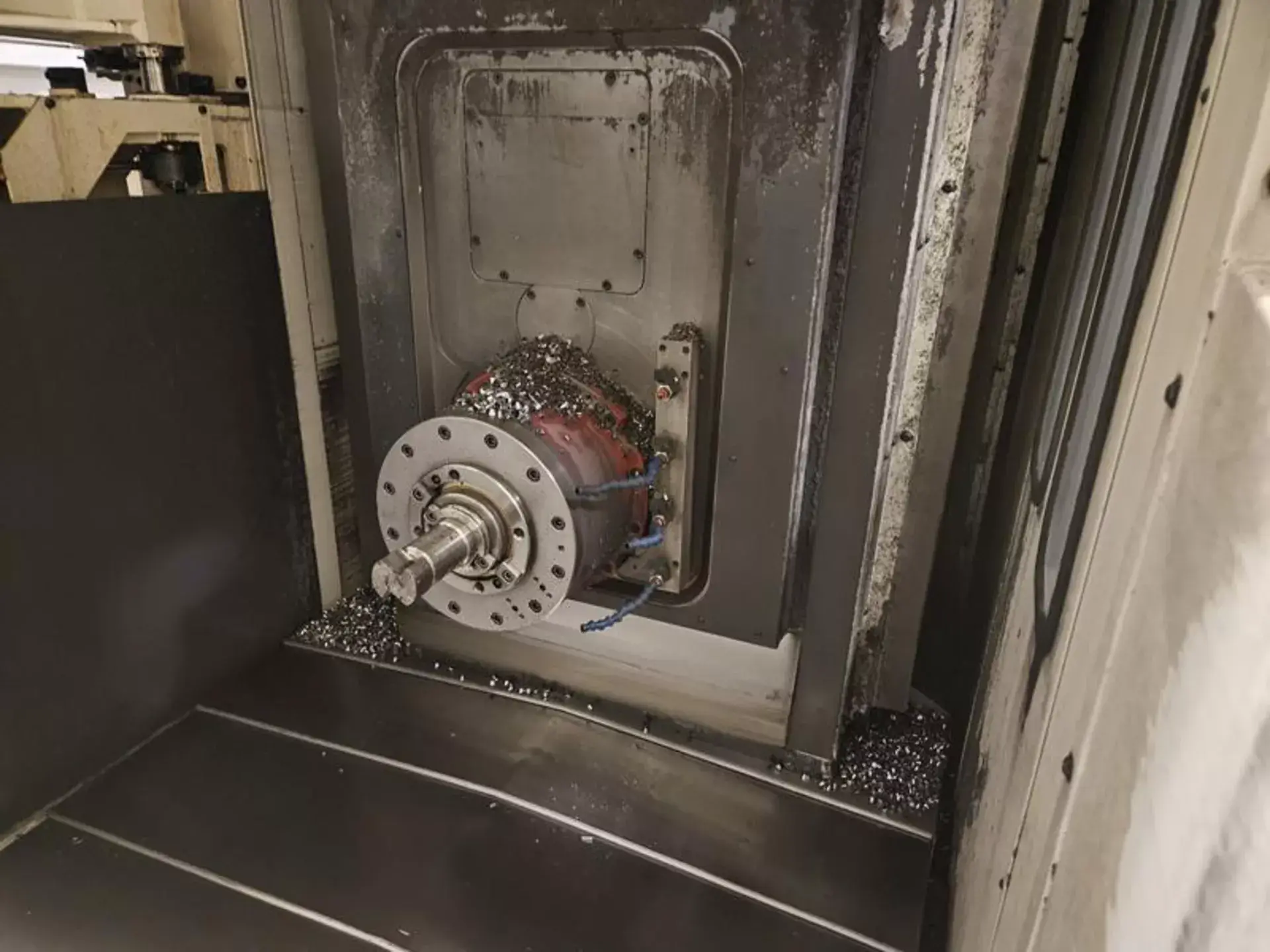

| Spindle: |
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: 60 – 62 HP |
| Tool Changer: |
| Tool Capacity: 60 Tools |
| Tool Type: CAT 50 |
| Pallet System: |
| Number of Pallets: 2 |
| Automatic Pallet Changer (APC) |
| Pallet Indexing: Full 4th Axis (B-Axis) |
| Accuracy: |
| Positioning Accuracy: ±0.0003″ |
| Repeatability: ±0.0002″ |

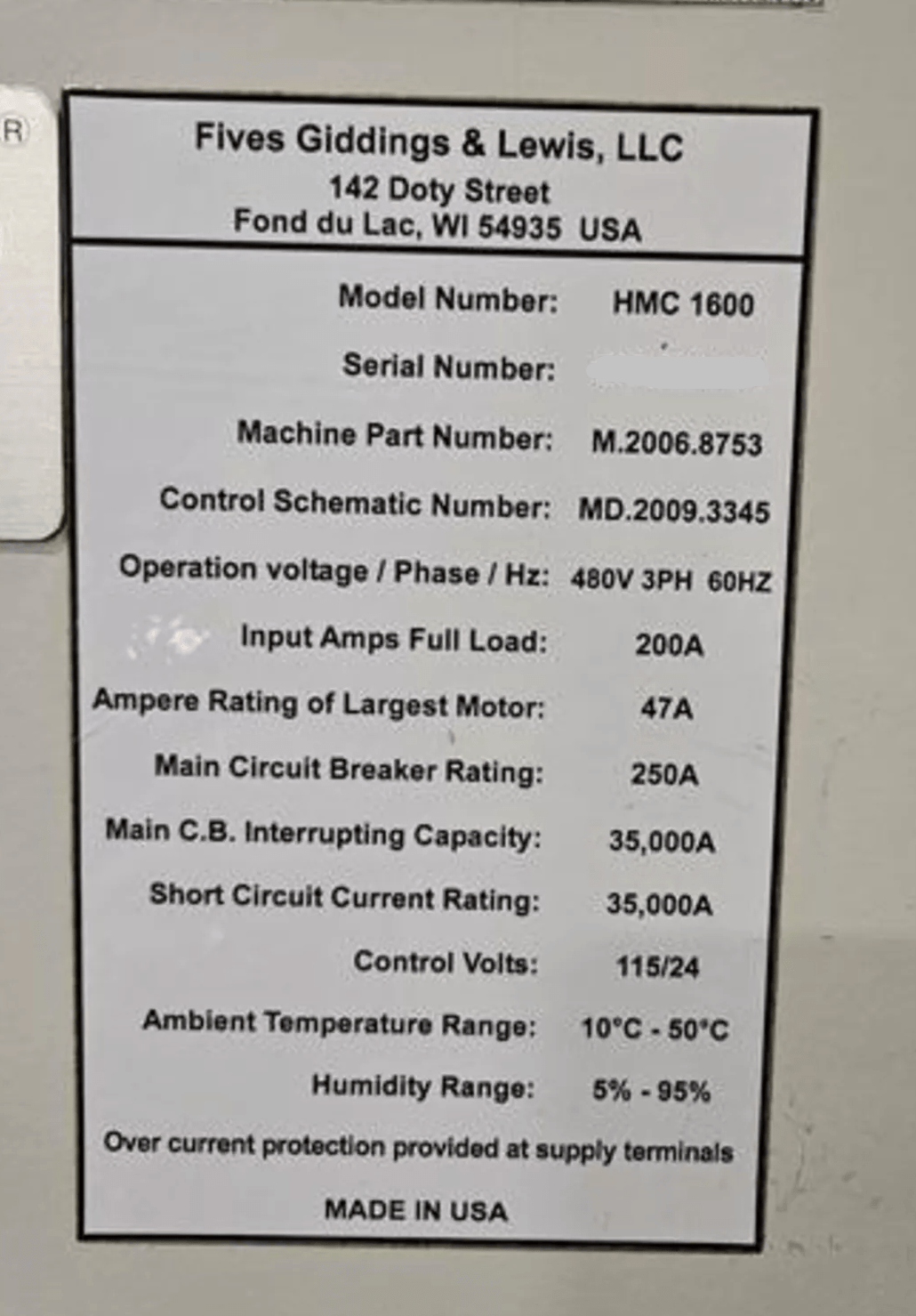

| Electrical: |
| Voltage: 480V / 3 Phase / 60 Hz |
| Full Load Current: 200 Amps |
| Main Breaker: 250 Amps |
| Interrupt Capacity: 35,000A |
| Control Voltage: 115V / 24V |
| General: |
| Machine Dimensions: 488″ × 338″ × 212″ |
| Machine Weight: 115,000 lbs |
