Haas DT-1 Drill Tap Vertical Machining Center

$708.00

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

Qty =

Product Description

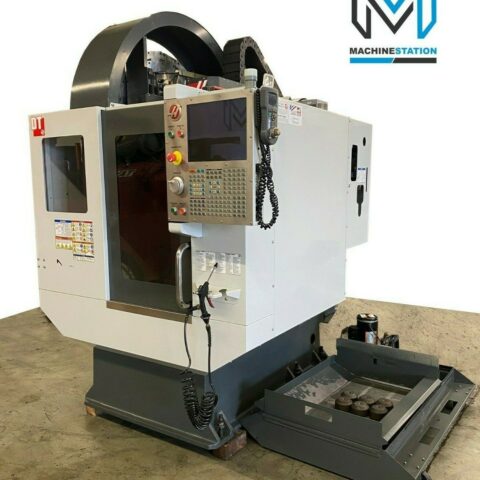

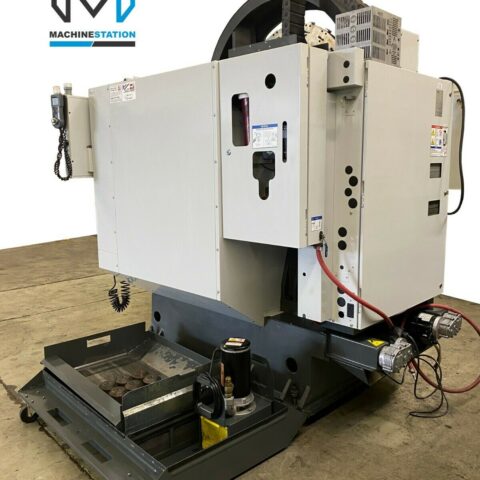

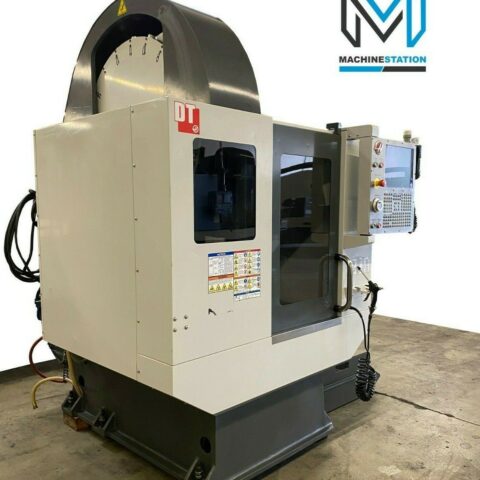

HAAS DT-1 DRILL TAP VERTICAL MACHINING CENTER
SKU # 2118
Make: Haas
Model No.: DT-1
Serial No.: 1089791
Year: 10.2011/2012
Condition: Immaculate
Operating Hours:

All specifications are approximations, and are subject to verification.

Haas DT-1 Drill Tap Features:

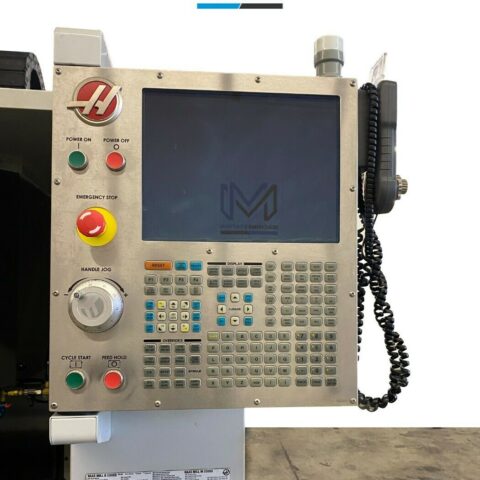

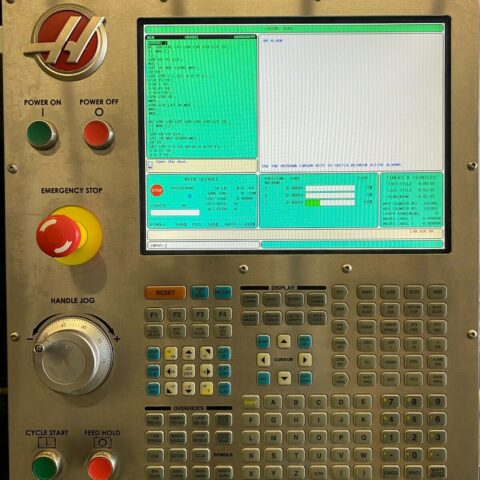

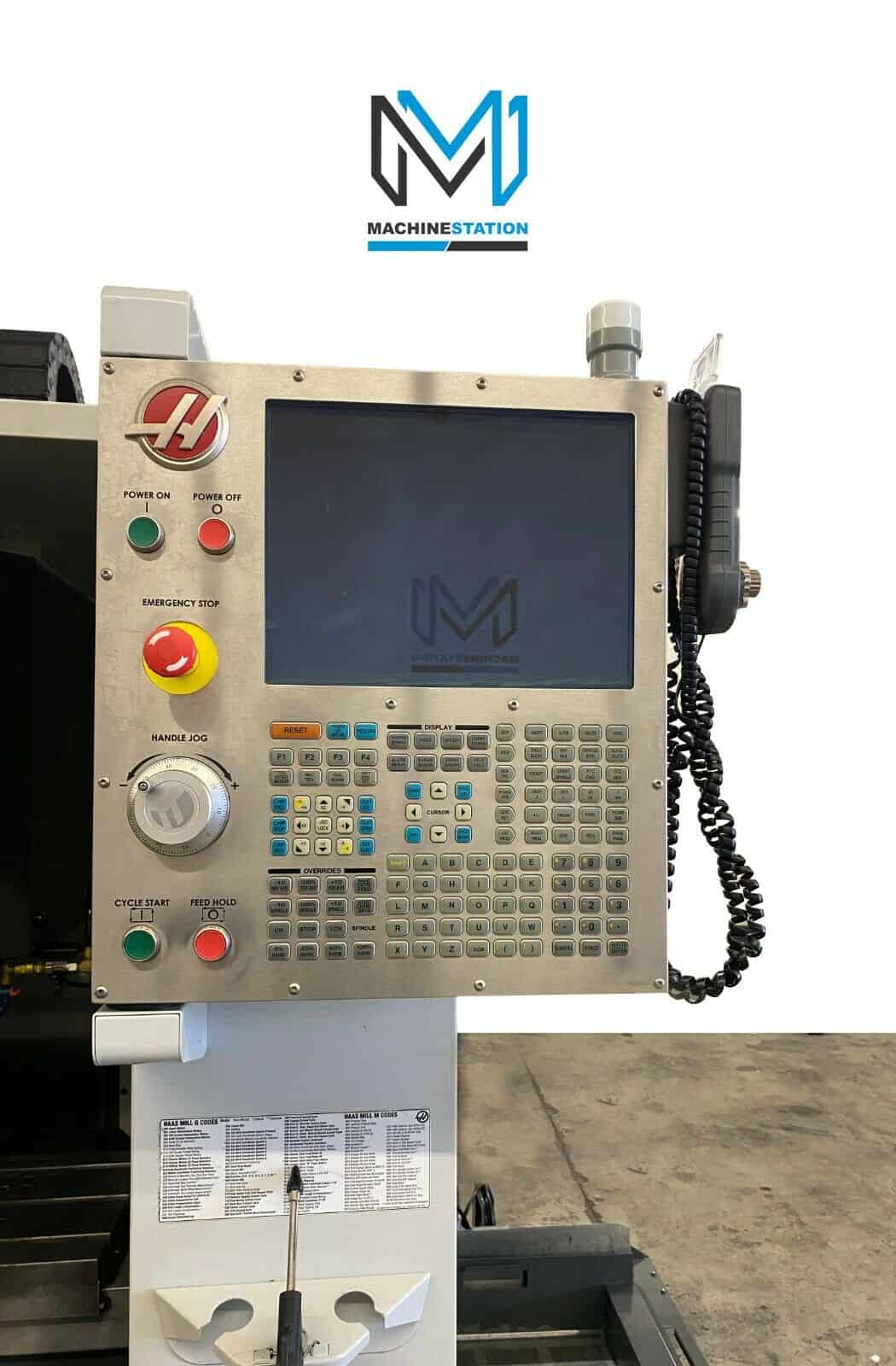

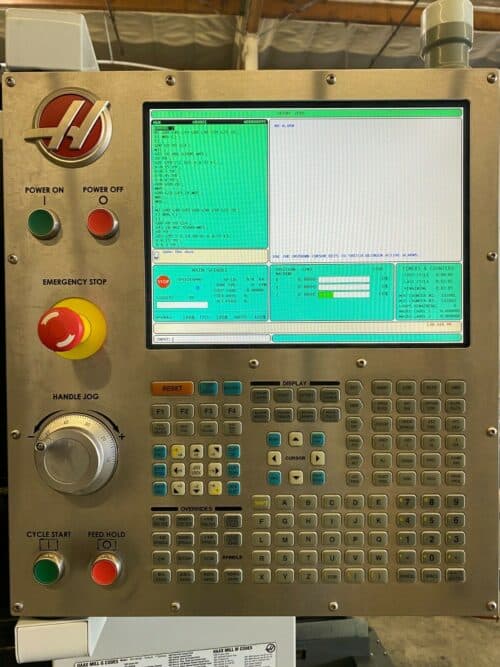

Haas CNC Control
15 HP High Torque Spindle Motor
12,000 RPM Inline Direct Spindle ($8700 Value)
20 Side Mount Automatic tool changer

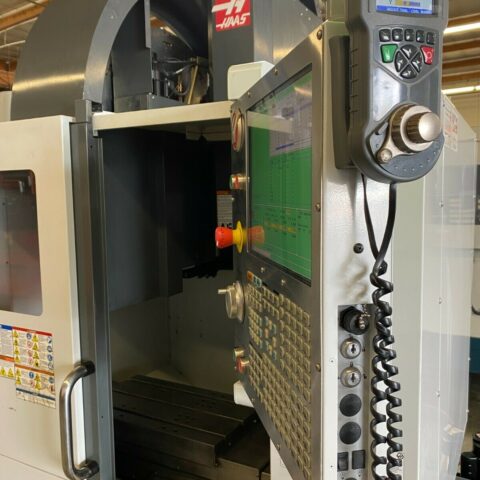

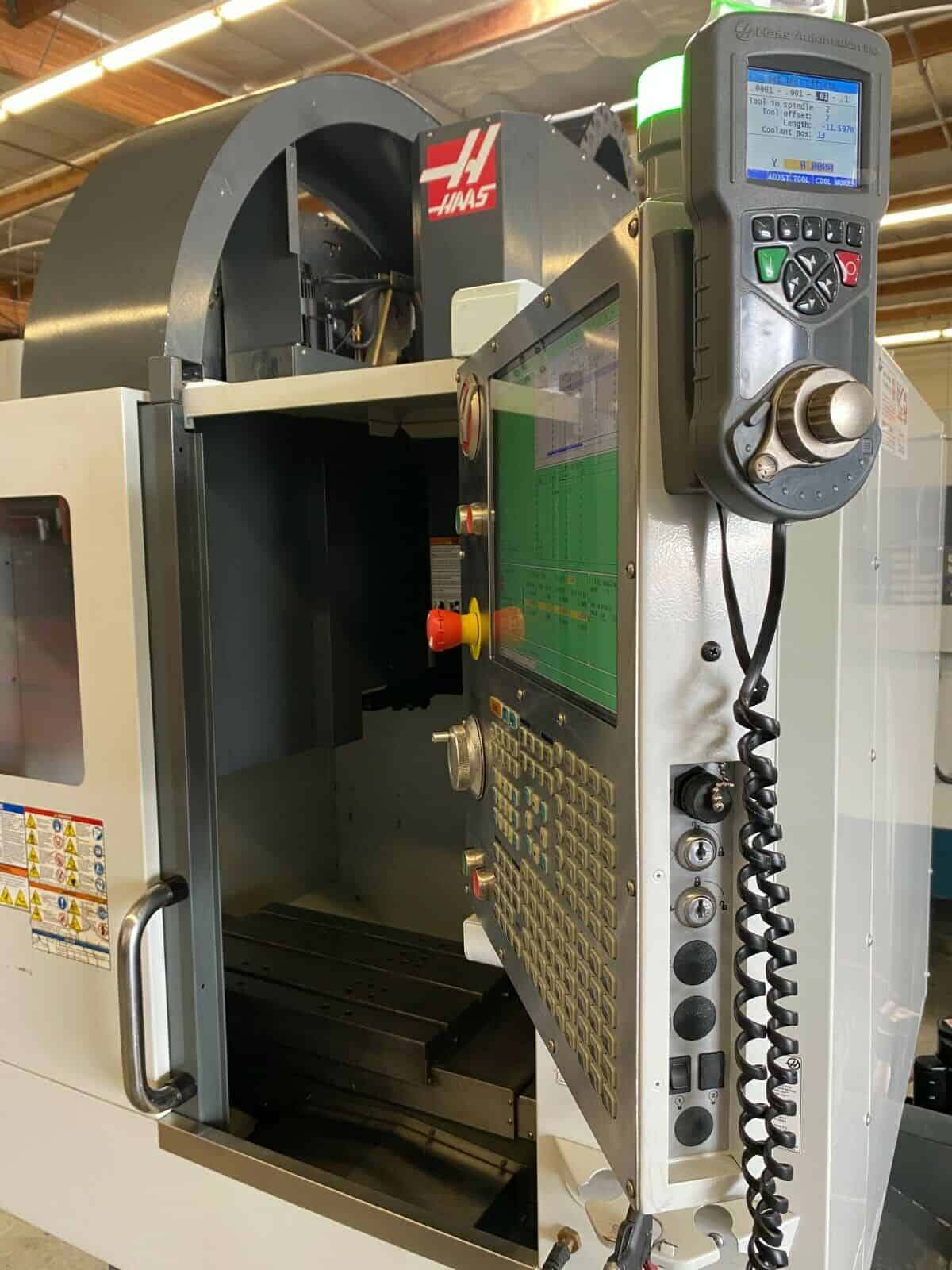

MPG Control with Display (S1100 Value)
1400 inch per minute rapids
TSC Prepped
Rigid Tapping
Programmable Coolant
USB Drive
Telescopic way covers
Dual Chip auger
Work Lights
Coolant Tank and Pump

Haas DT-1 Drill Tap Specifications:

Travels:
X-Axis: 20.0″
Y-Axis: 16.0″
Z-Axis: 15.5″
Rapid Traverse Rates: 1817 Inch Per Minute
Cutting Feed Rates: 1200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6″ – 21.5″

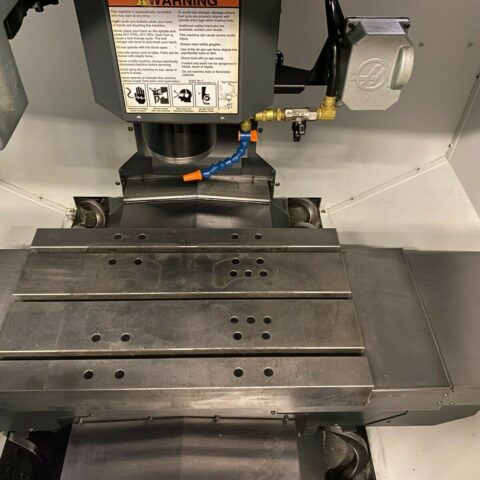

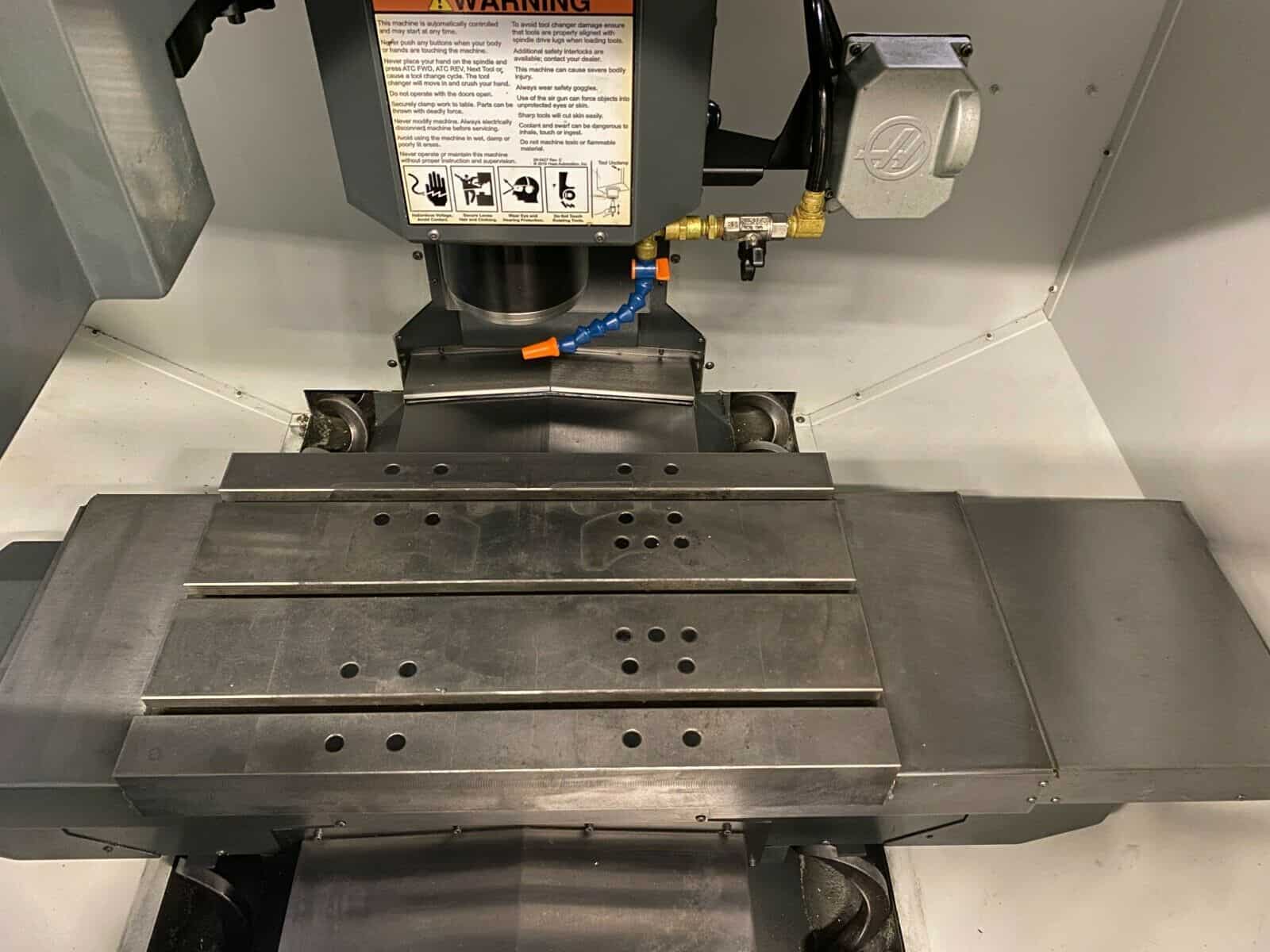

Table:
Length: 26″
Width: 15″
Number of Std T-Slots:3
T-Slot Width: 5/8″
Max Weight on Table: 250 lbs

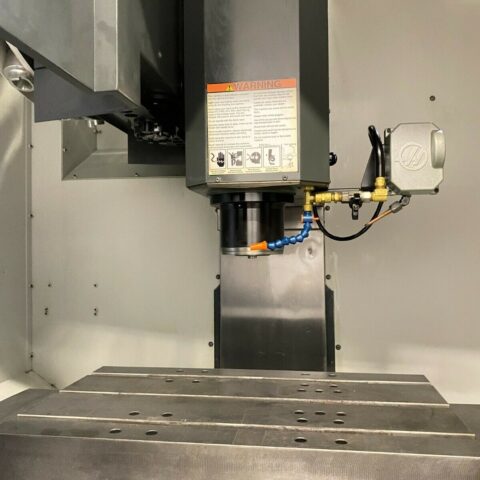

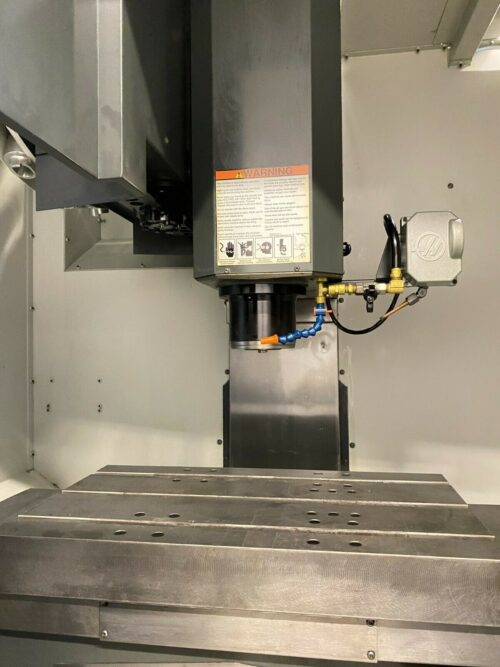

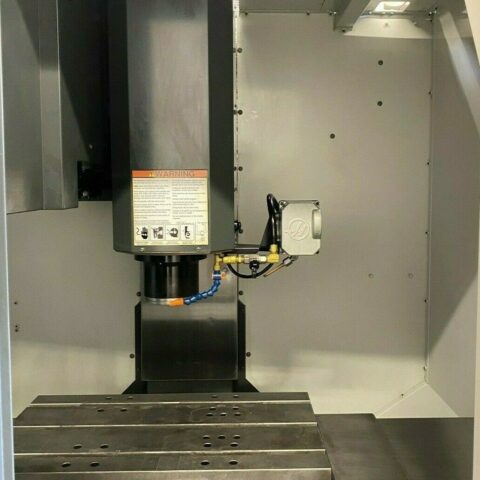

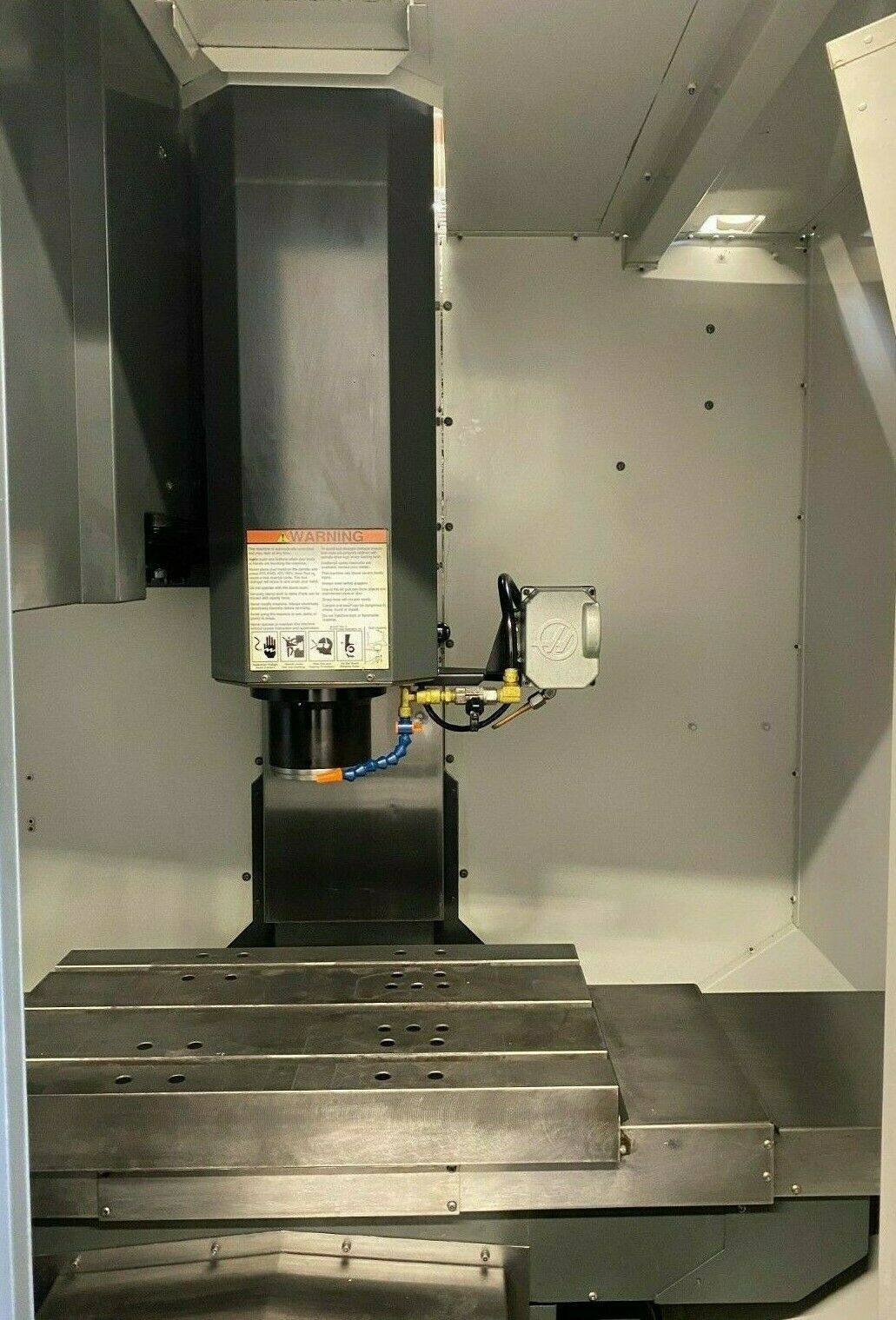

Spindle:
Taper Size: 30
Speed Range: 12,000 RPM
Tapping Speed: 5000 RPM
Spindle Power: 30 HP
Vector Dual Drive Max Torque: 75ft-lb @ 1400RPM

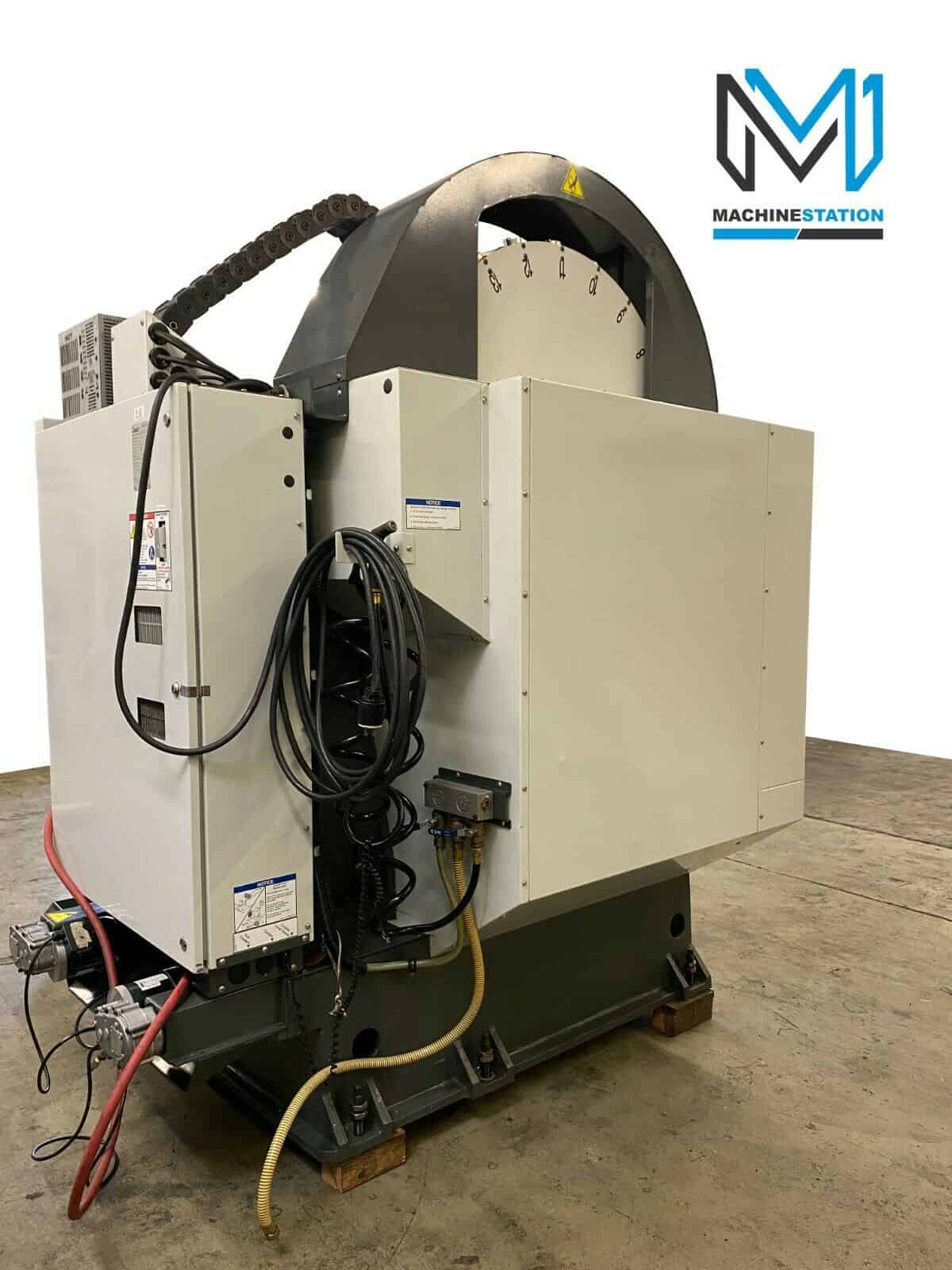

Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 12 lbs
Max Tool Dia: 2.0″Max Tool Length: 7″

Tool Changing Time: 1.6 Seconds

General:

Air Required: 100 psi, 4 scfm

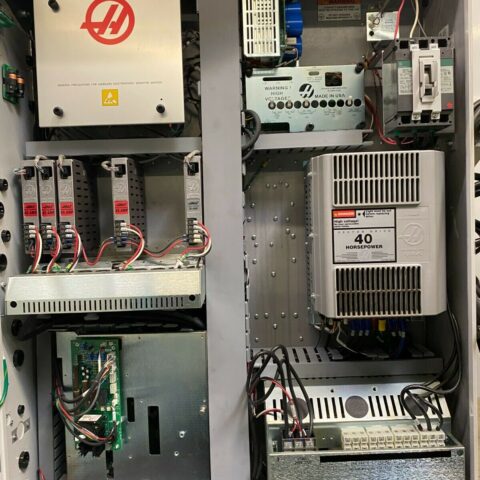

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 80″ x 80″ x 98″ High
Weight: 5500 lbs
“No Charges for loading at list Price”

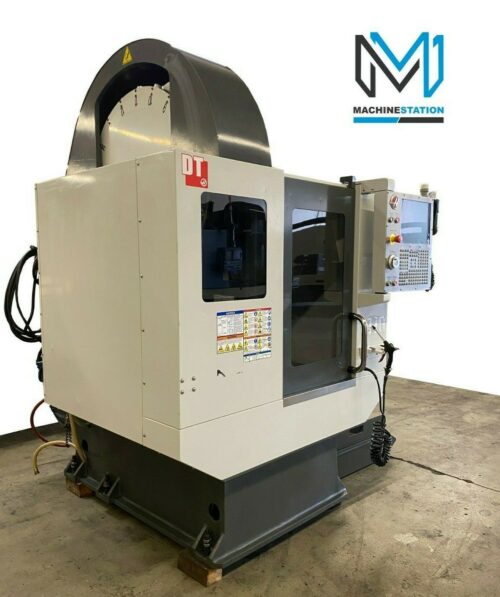

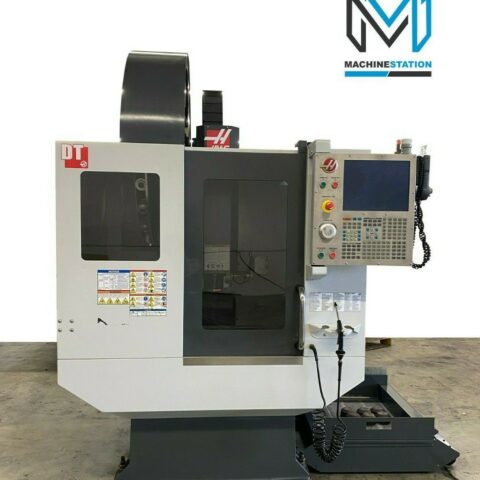

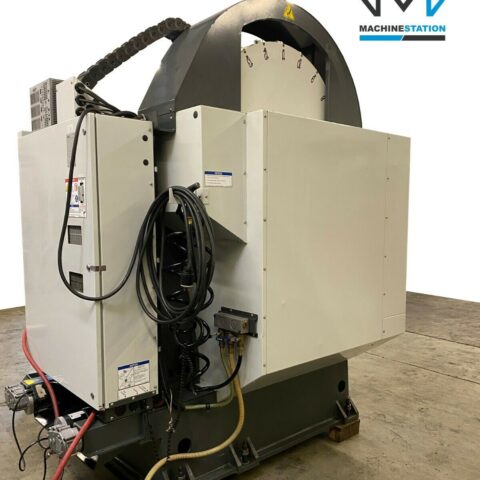

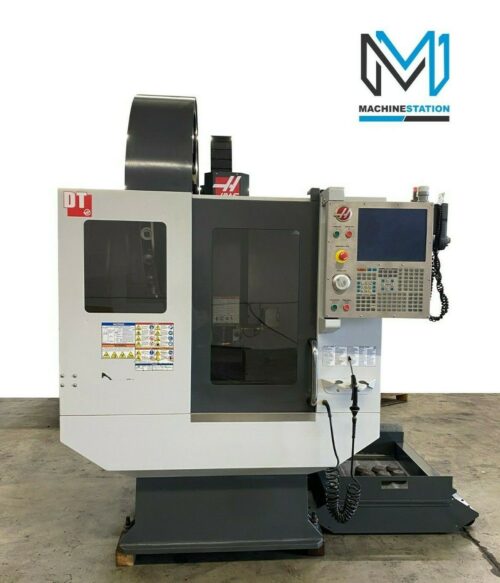

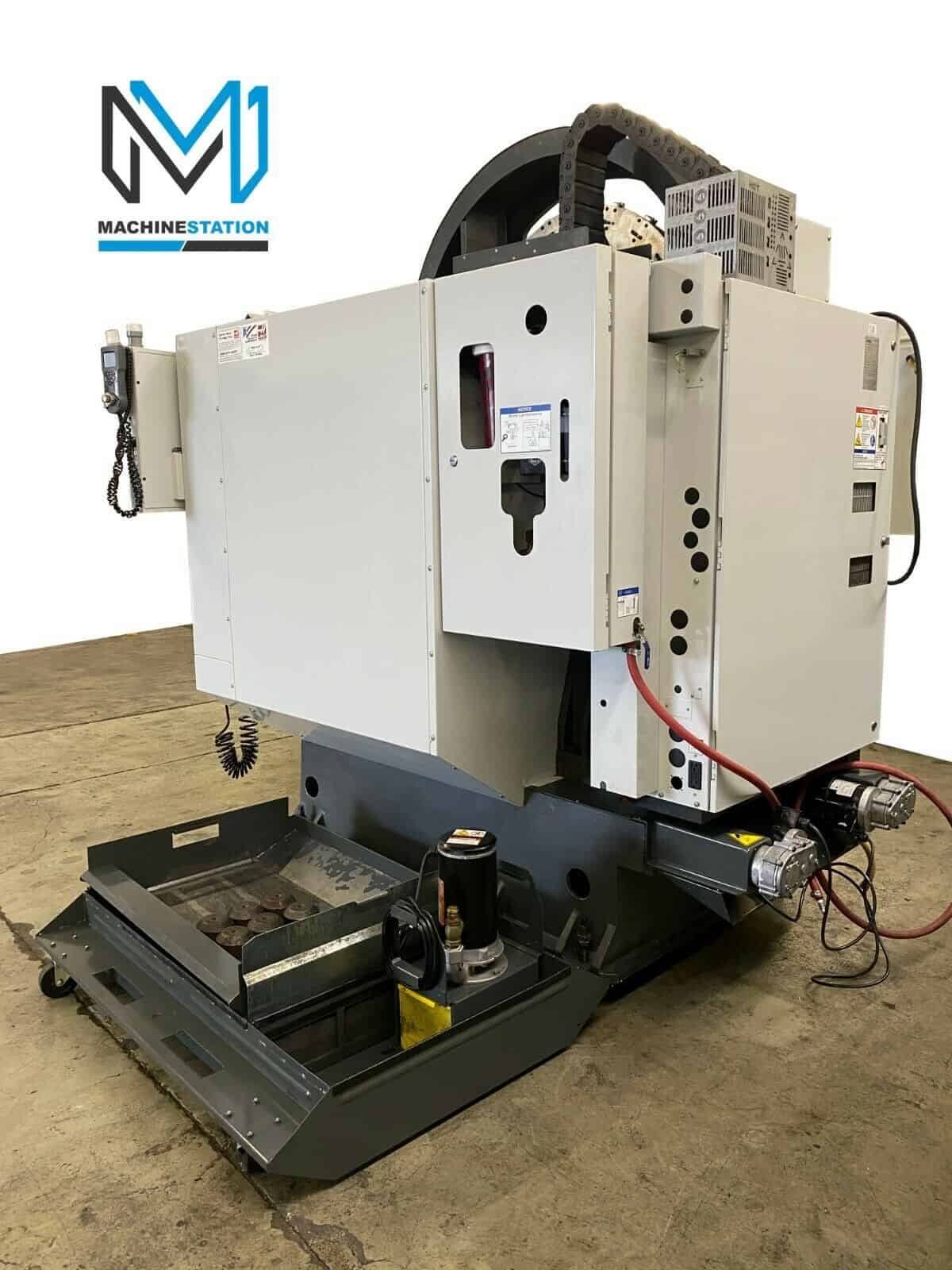

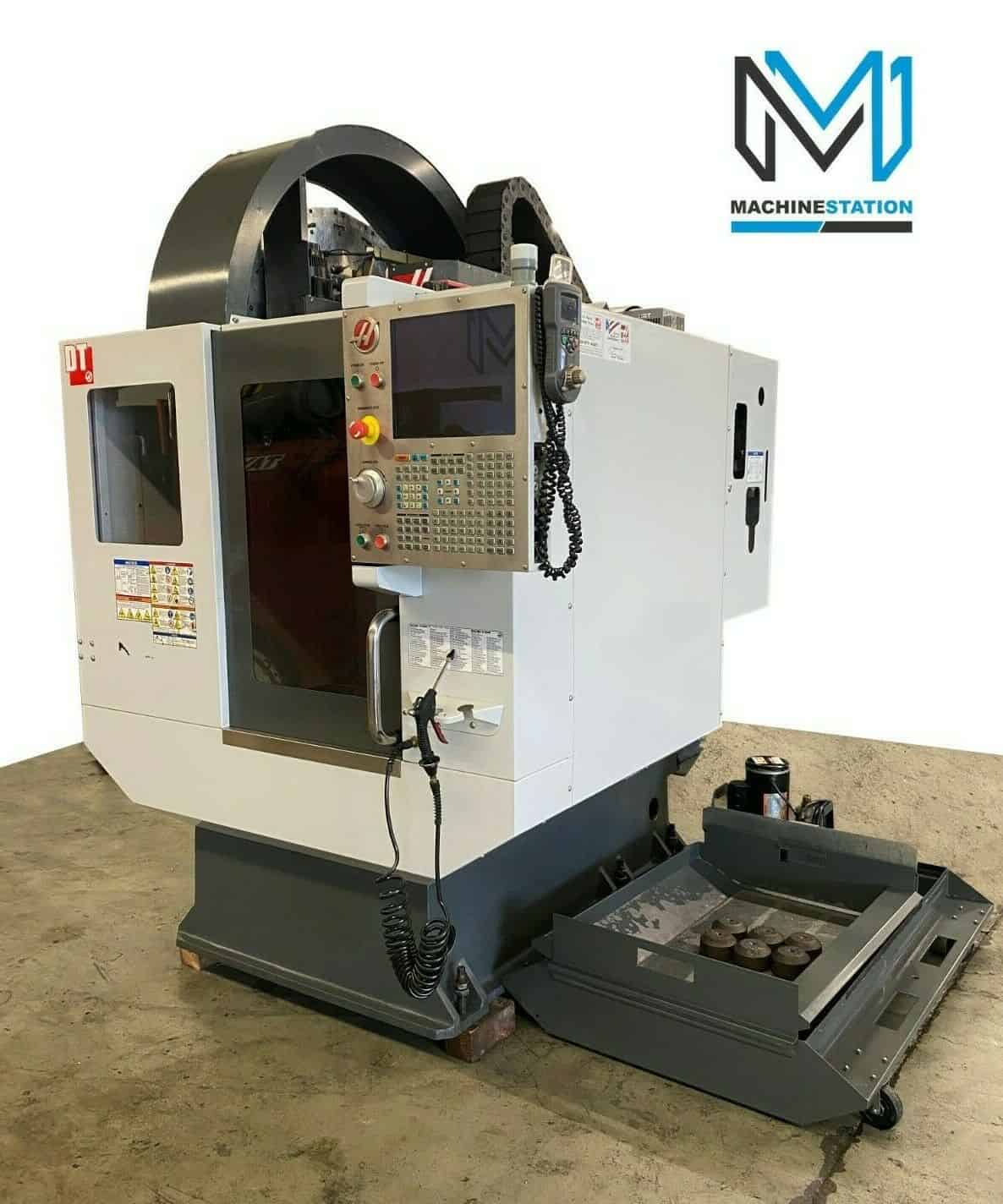

Comes as shown in pictures..
