*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

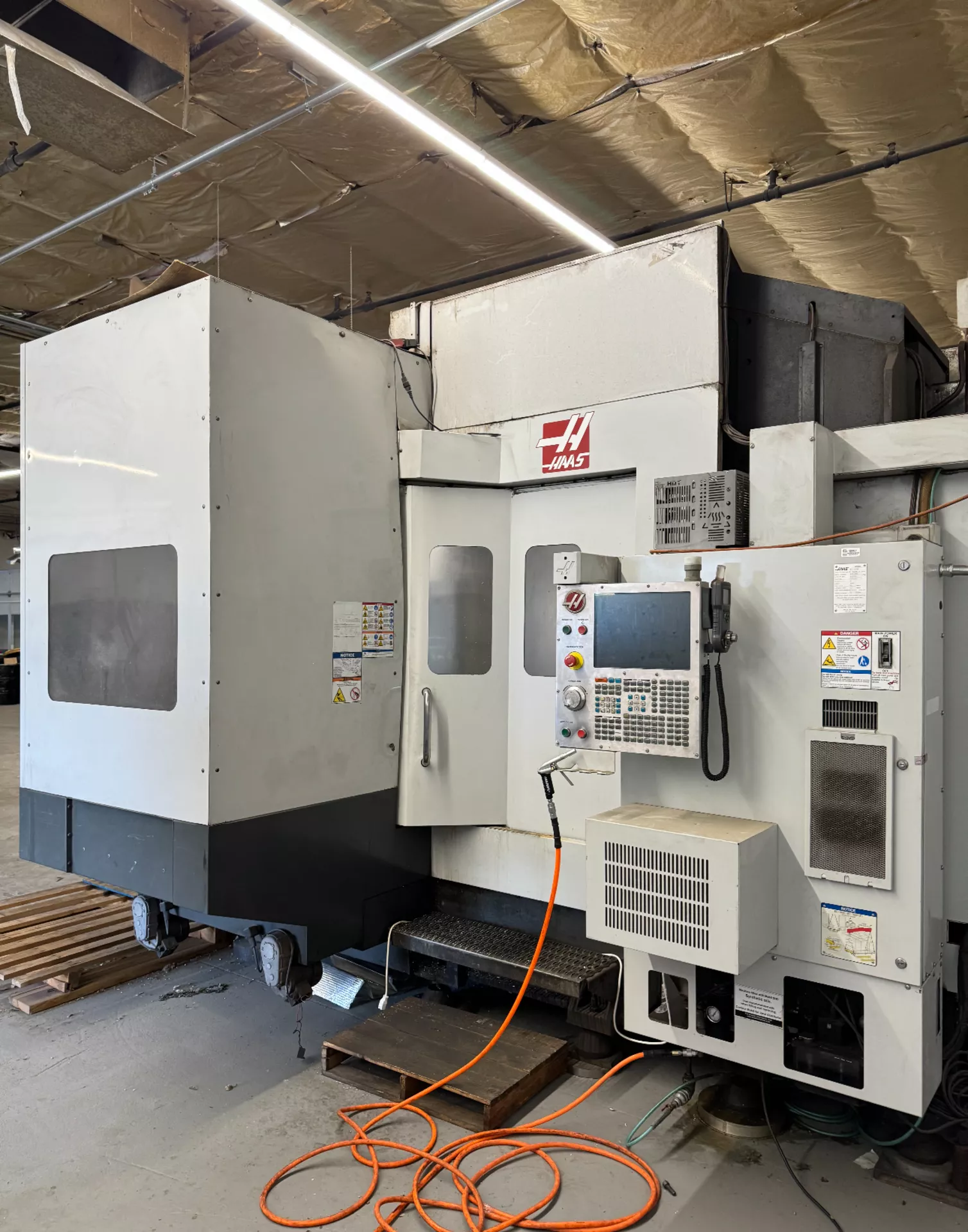

| Make: | Haas |
| Model: | EC-1600 |
| Year: | 2014 |
| Features: |
|---|
| Haas CNC Control |
| Full 4th Axis Rotary Table (B-Axis) |
| 8,000 RPM Spindle |
| 50 Taper Spindle |
| Automatic Tool Changer |
| Through-Spindle Coolant Ready |
| Programmable Coolant Nozzle |
| Chip Conveyor |
| Rigid Tapping |
| High-Speed Machining |
| USB Port |
| Ethernet Interface |
| Work Light |
| Coolant System |
| Capacity: |
|---|
| Pallet Size: 63″ × 50″ |
| Max Diameter: 80″ |
| Max Height: 55″ |
| Max Weight: 10,000 lbs |
| Travels: |
|---|
| X-Axis Travel: 64″ |
| Y-Axis Travel: 50″ |
| Z-Axis Travel: 40″ |
| B-Axis Rotation: 360° Continuous |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: Approx. 50 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 50 Tools |
| Tool Changer Type: Automatic Tool Changer |
| Max Tool Diameter: 5″ |
| Max Tool Length: 16″ |
| Max Weight: 30 lbs |
| Feedrates: |
|---|
| Rapid Traverse (X/Y/Z): 600 IPM |
| Cutting Feedrate: Programmable |
| Electrical: |
|---|
| Power Requirement: 220 Volt |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Hours: Approx. 1,105 Hours |
| Machine Dimensions (Approx.): 235″ × 180″ × 145″ |
| Machine Weight (Approx.): 45,000 lbs |
