*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

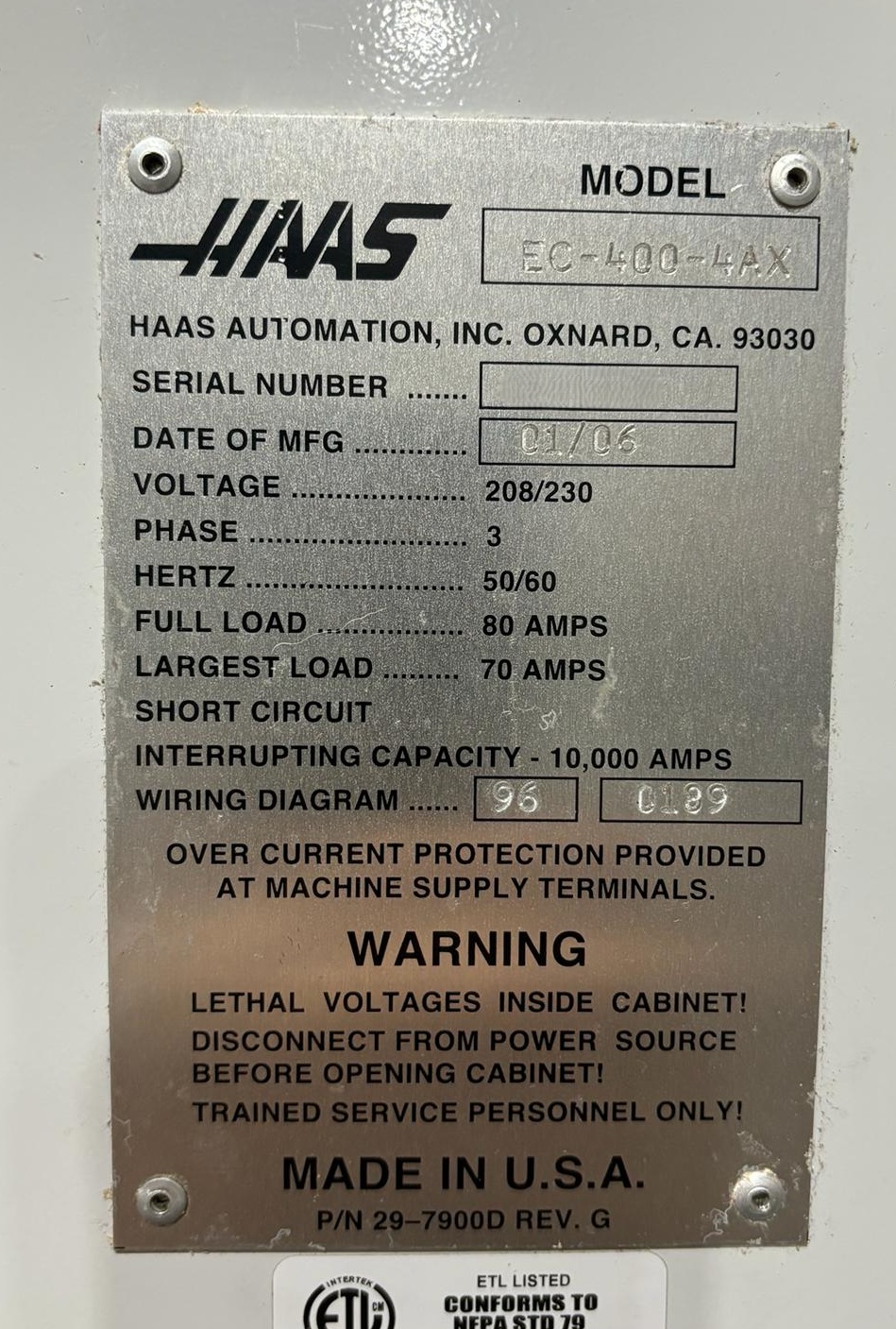

| Make: | Haas |
| Model: | EC-400-4AX |
| Year: | 2006 |
| Machine Type: | Horizontal Machining Center |
| CNC Control: | Haas CNC Control |
| Features: |
|---|
| Haas CNC Control |
| 4-Axis Rotary System |
| 40-Position Automatic Tool Changer |
| Through-Spindle Coolant (TSC) |
| Chip Conveyor |
| Pallet Changer |
| 40 Taper Spindle |
| Capacity: |
|---|
| Pallet Size: 15.75″ W × 15.75″ L |
| Pallet Configuration: 2 Pallets |
| Spindle Taper: 40 Taper |
| Number of Axes: 4 |
| Travels: |
|---|
| X-Axis Travel: 22″ |
| Y-Axis Travel: 25″ |
| Z-Axis Travel: 22″ |
| Spindle: |
|---|
| Spindle Motor: 30 HP |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Taper: 40 Taper |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Automatic Tool Changer |
| Tool Capacity: 40 Positions |
| Pallet: |
|---|
| Pallet Size: 15.75″ × 15.75″ |
| Pallet Changer: Yes |
| Configuration: Dual Pallet |
| General: |
|---|
| Machine Dimensions (Approx.): 150″ L × 102″ W × 95″ H |
| Machine Weight (Approx.): 20,000 lbs. |
