*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

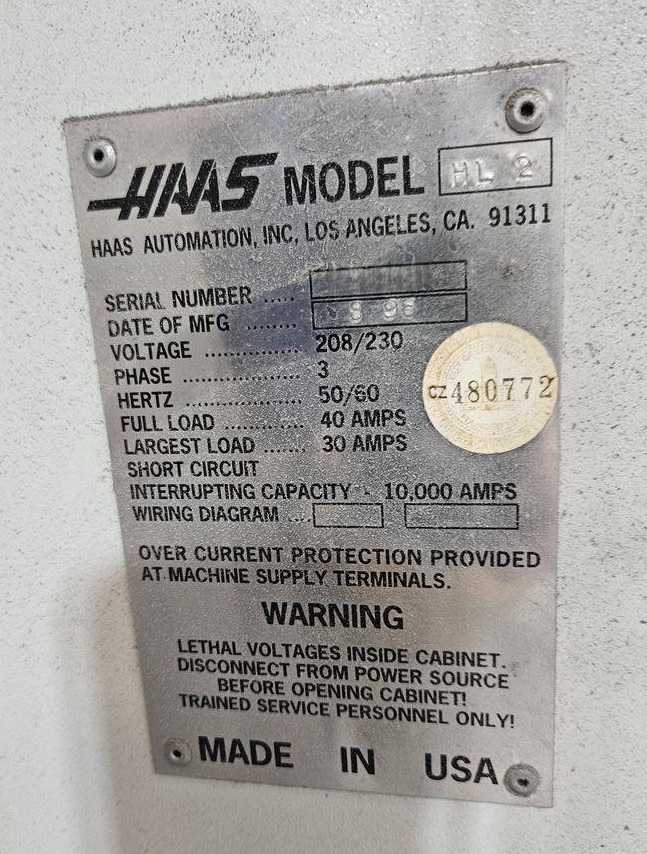

| Make: | Haas |
| Model: | HL-2 |
| Year: | 1996 |
| Equipped With: |
|---|
| Haas CNC Control |
| 8″ Collet Chuck |
| 10-Station Turret |
| Tailstock |
| Coolant Pump & Tank |
| Enclosed Machine Guarding |
| Manual Pulse Generator / Handwheel |
| Spindle Load Meter |
| Emergency Stop |
| Tooling as Shown |
| Capacity: |
|---|
| Swing Over Bed: 20″ |
| Swing Over Cross Slide: 9.5″ |
| Maximum Turning Diameter: 10″ |
| Maximum Machining Length: 24″ |
| Distance Between Centers: 24″ |
| Bar Capacity: 2″ |
| Spindle Bore: 3″ |
| Travels: |
|---|
| X-Axis Travel: 8.6″ |
| Z-Axis Travel: 20″ |
| Spindle: |
|---|
| Spindle Speed: 30–3,750 RPM |
| Maximum Spindle Speed: 3,750 RPM |
| Spindle Motor: 15 HP |
| Spindle Nose: A2-6 |
| Spindle Bore: 3″ |
| Bar Capacity: 2″ |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Turret Capacity: 10 Stations |
| Turret Indexing Time: 1 Second per Station |
| Tailstock: |
|---|
| Tailstock: Equipped |
| Tailstock Taper: MT-4 |
| Tailstock Travel: 20″ |
| General: |
|---|
| Power Source: 208/230V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 98″ L × 71″ W × 78″ H |
| Machine Weight (Approx.): 9,000 lbs. |
