*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

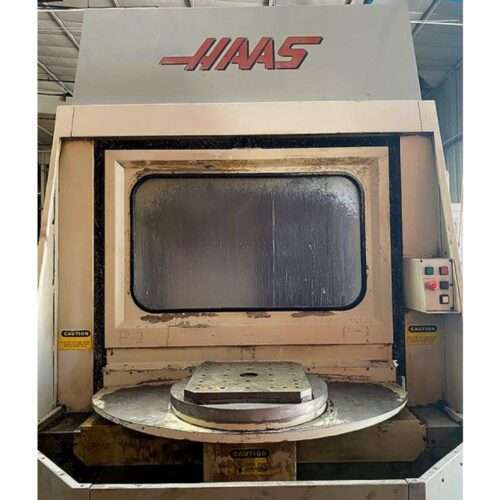

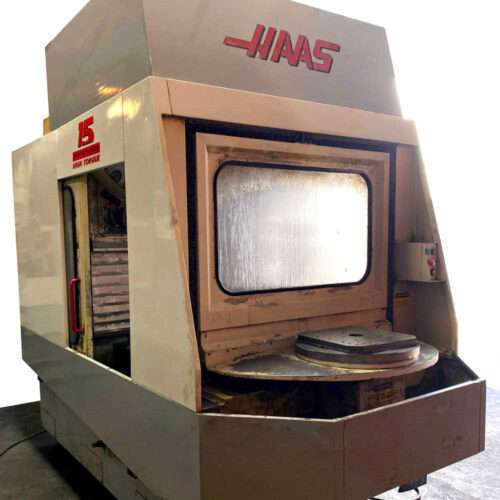

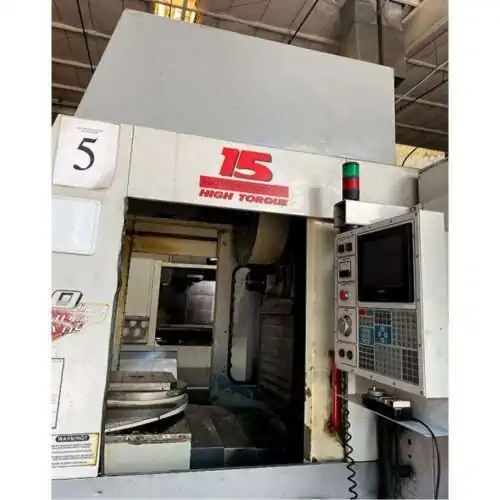

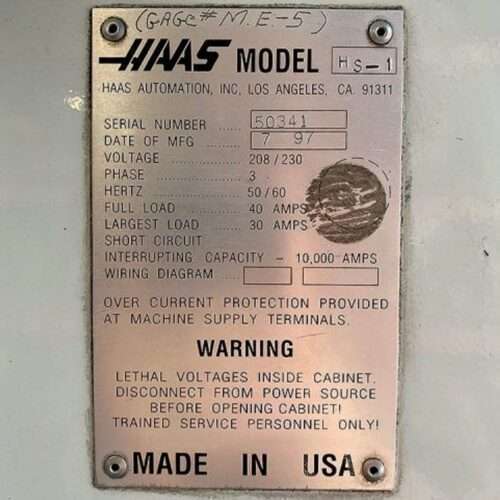

| Make: | Haas |
| Model: | HS-1 |
| Year: | 1997 |
| Equipped With: |
|---|

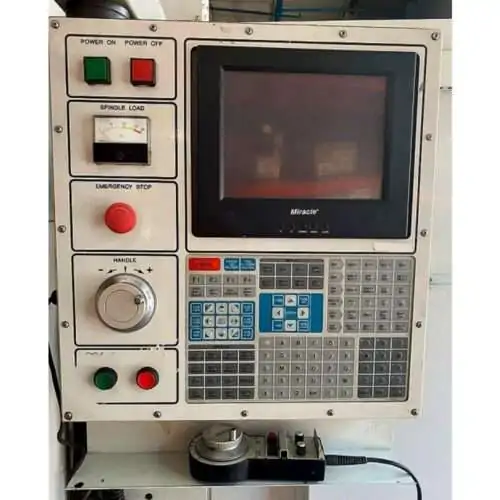

| Haas CNC Control |
| Full 4th Axis |
| 7,500 RPM Spindle |

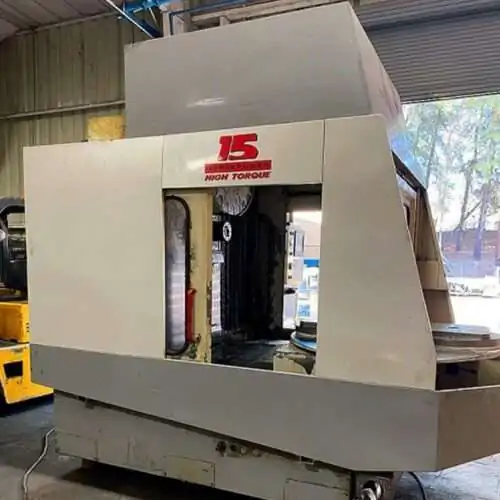

| 15 HP High Torque Spindle |

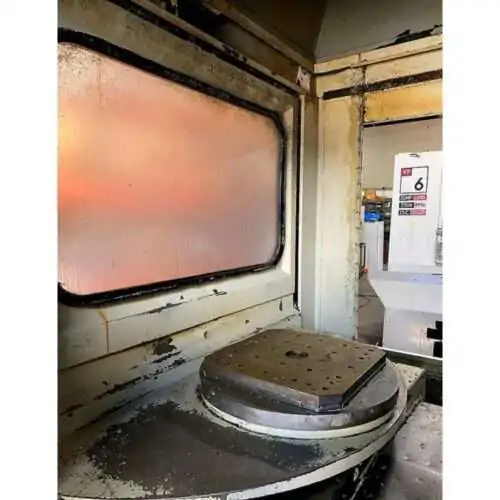

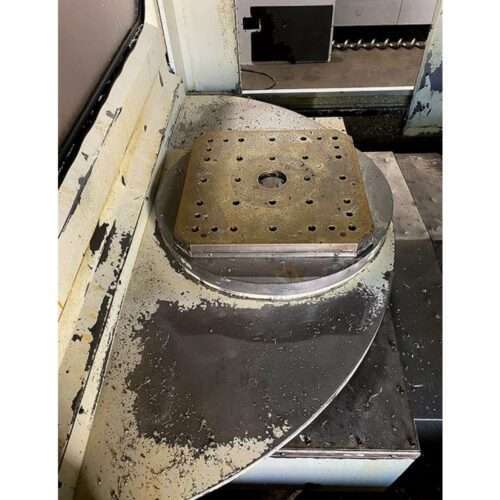

| Twin Pallet Changer |

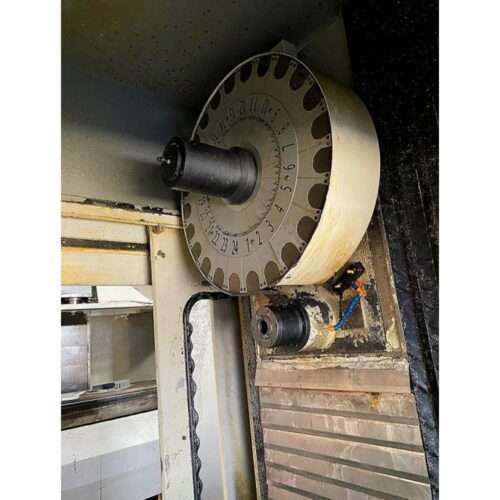

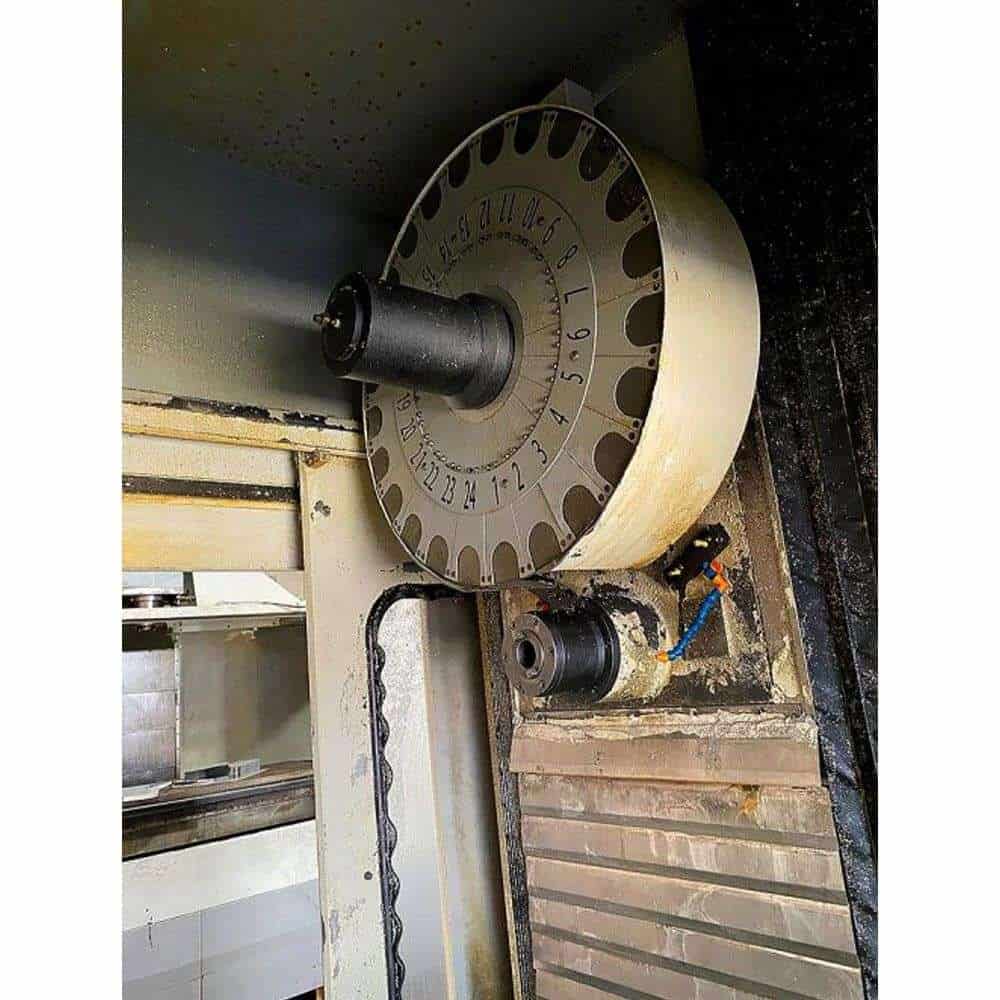

| 24 Station Tool Changer |
| MPG Control |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System |

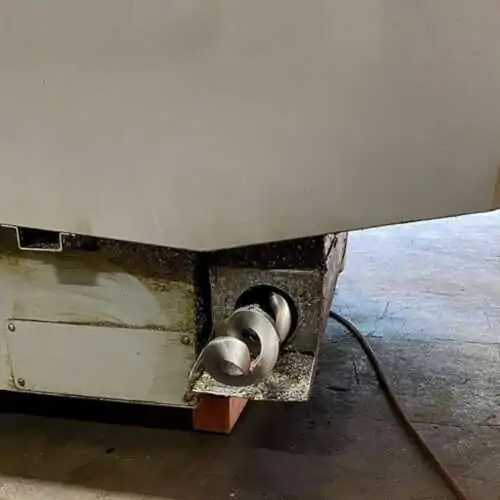

| Chip Auger |
| Travels: |
|---|
| X-Axis: 24″ |
| Y-Axis: 20″ |
| Z-Axis: 22″ |
| B Axis: 0.001° (Full 4th) |
| Table: |
|---|
| Length: 16″ |
| Width: 16″ |
| Max Weight on Table: 800 lbs |
| Spindle: |
|---|
| Taper Size: CAT 40 |
| Max. Speed: 7,500 RPM |
| Power: 15 HP |
| Feed Rates: |
|---|
| Rapid X, Y & Z: 710 Inch Per Minute |
| Cutting Feedrate: 310 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 24 Tools |
| Taper: 40 |
| Max Tool Size: 5.9″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 22 lbs. |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 45kva / 205-230v / 3-Phase |
| Overall Dimensions: 110″ X 143″ x 111″ High |
| Weight: 16000 lbs |
