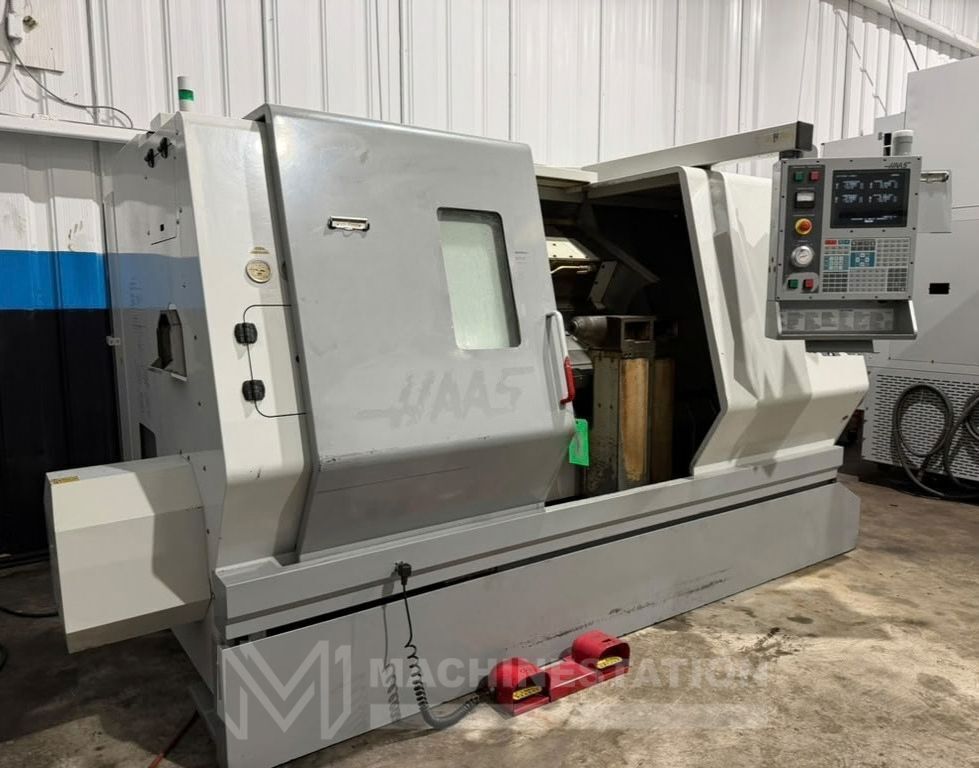

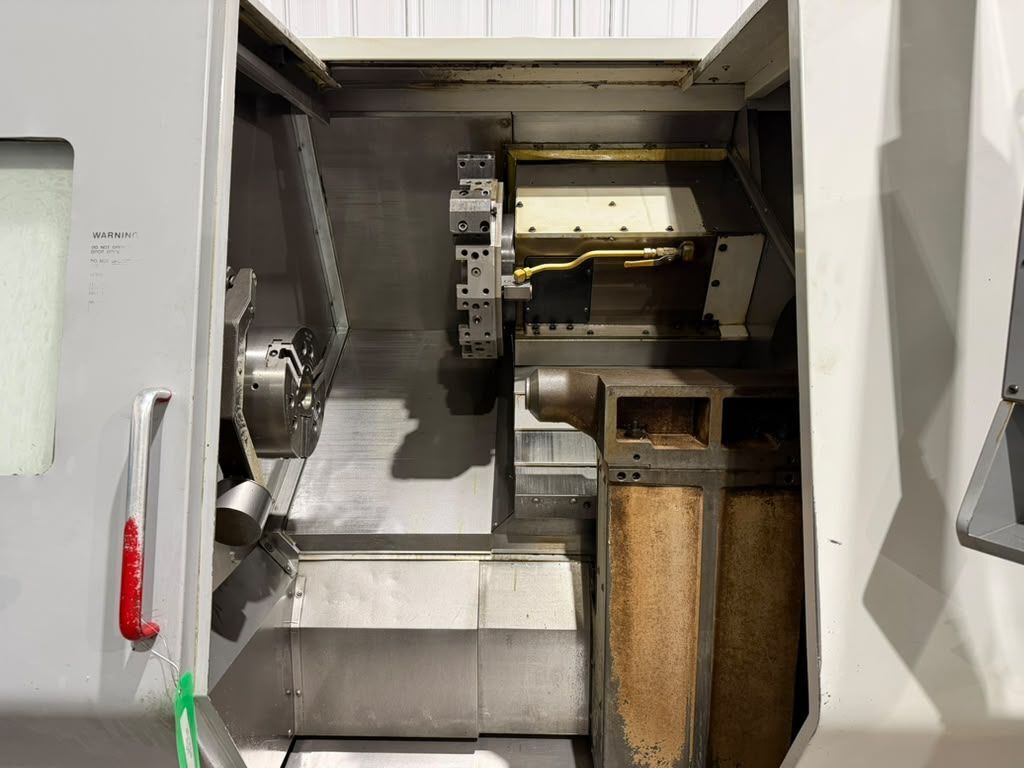

Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
Location
Lake Elsinore, CA
SKU
113683
Make
HAAS
Model
SL-30T
Year
2001
Condition
Used
Cutting Time

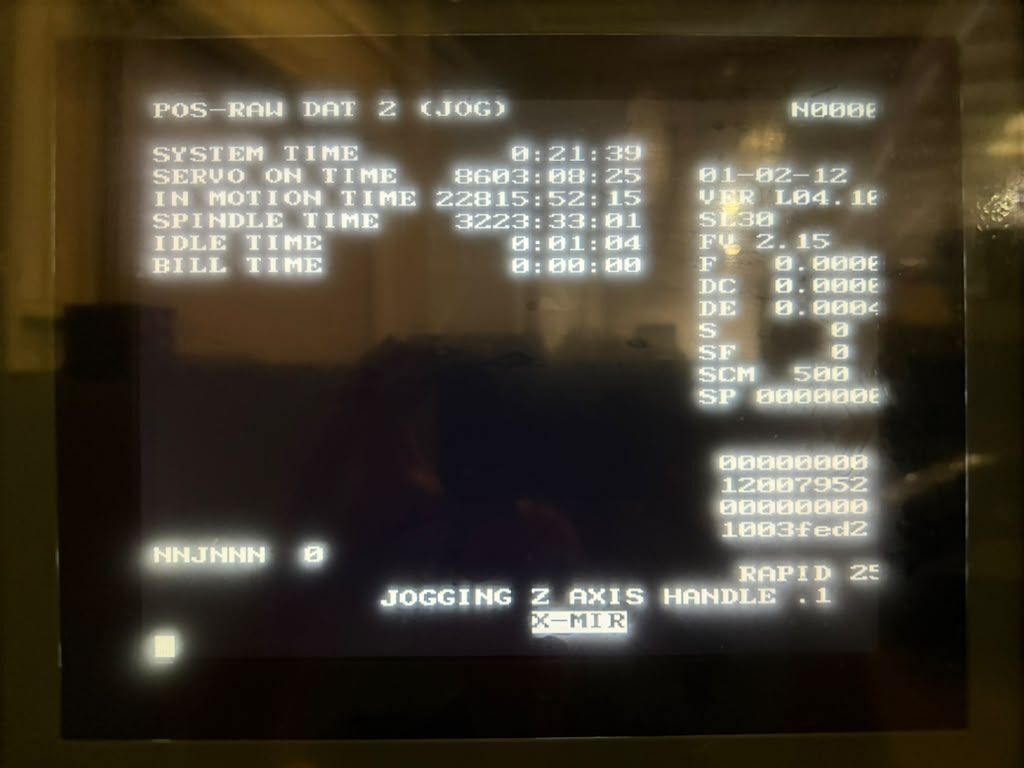

3,223 Hours Spindle Time
Video
On Request
In stock
| Location: | Lake Elsinore, CA |
| SKU: | 113683 |
| Make: | HAAS |
| Model: | SL-30T |
| Year: | 2001 |
| Condition: | Used |
| Cutting Time: | 3,223 Hours Spindle Time |
| Video: | On Request |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | Haas |
| Model: | SL-30T |
| Year: | 2001 |
| Features: |
|---|

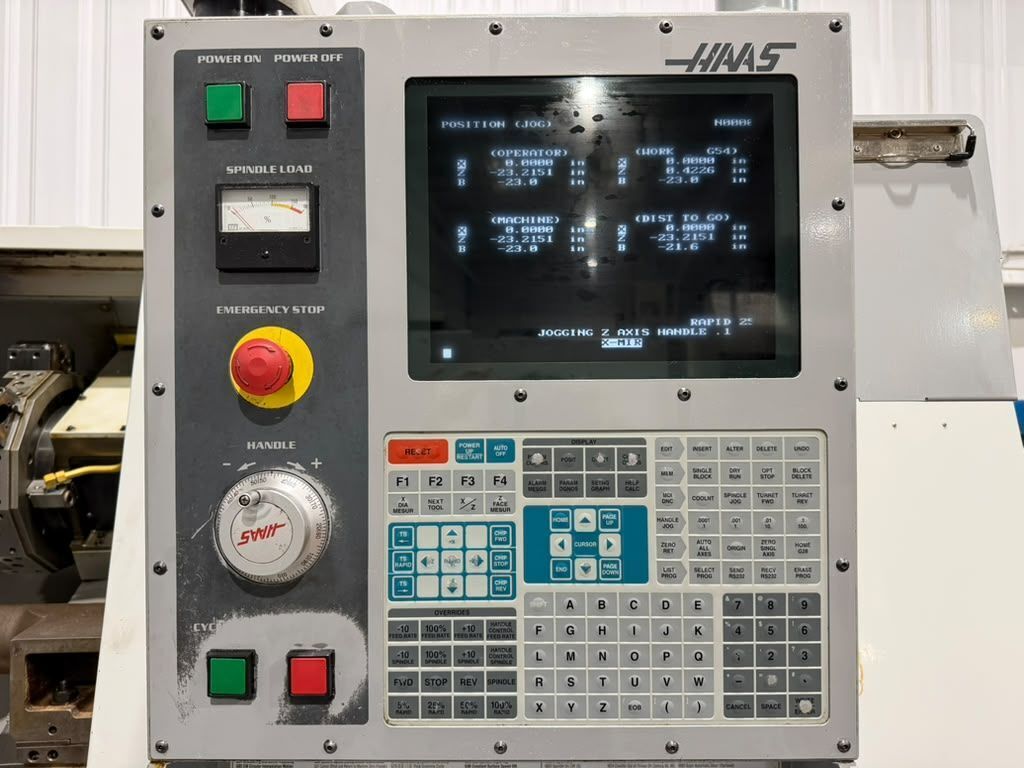

| Haas CNC Control |

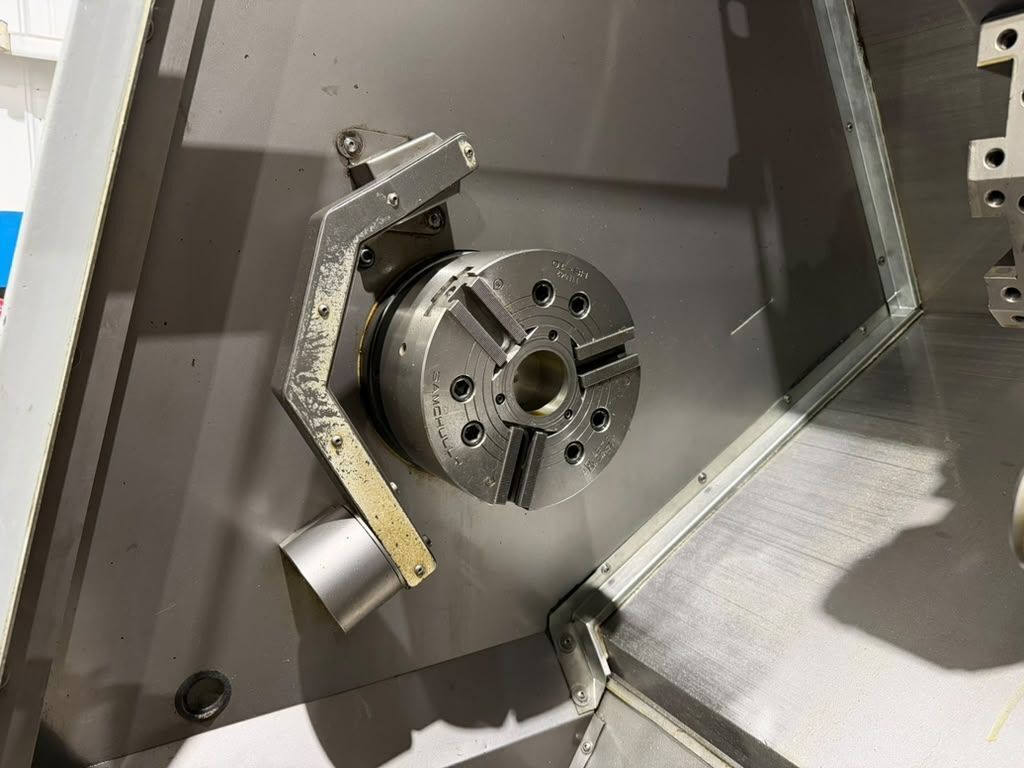

| 10″ 3-Jaw Samchully SH-10 Chuck |

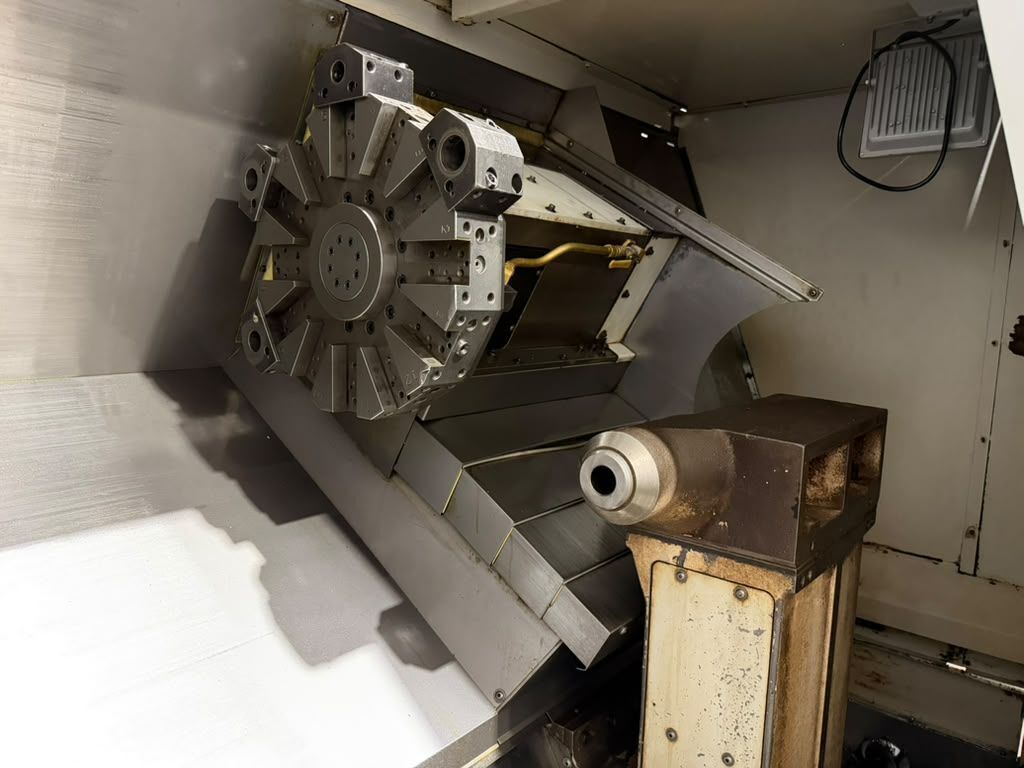

| 12-Station Bolt-On Turret |

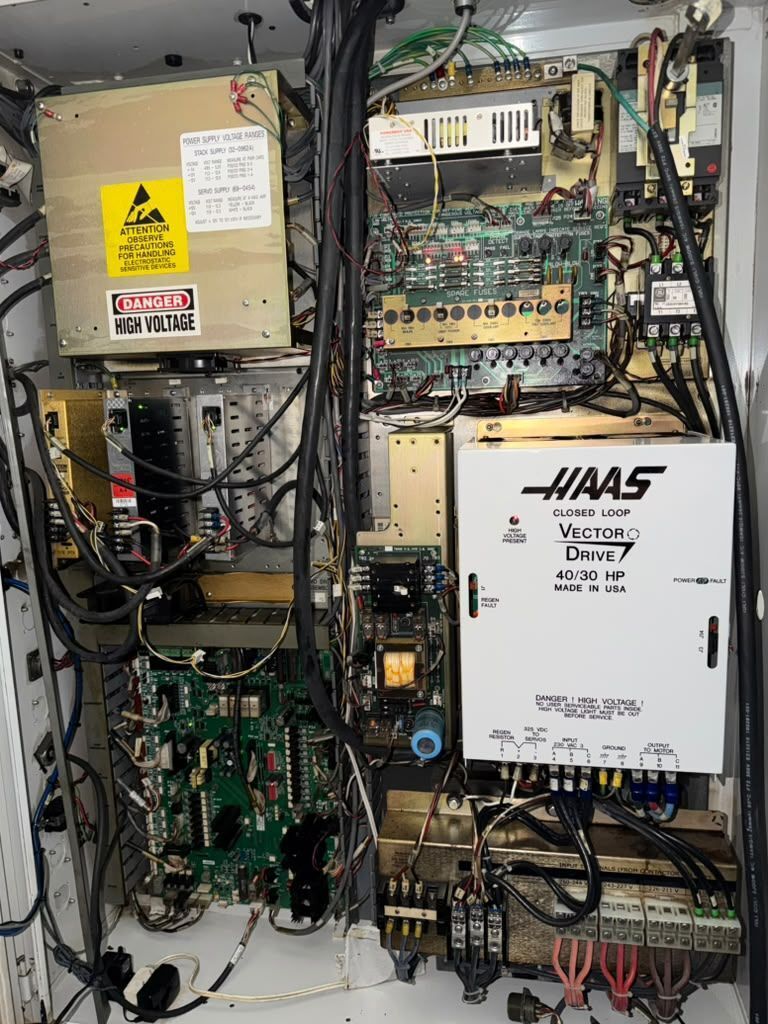

| 30 HP Vector Dual Drive |
| A2-6 Spindle |
| Tool Presetter |
| 3.5″ Big Bore Spindle |
| Programmable Tailstock |
| Coolant Tank |

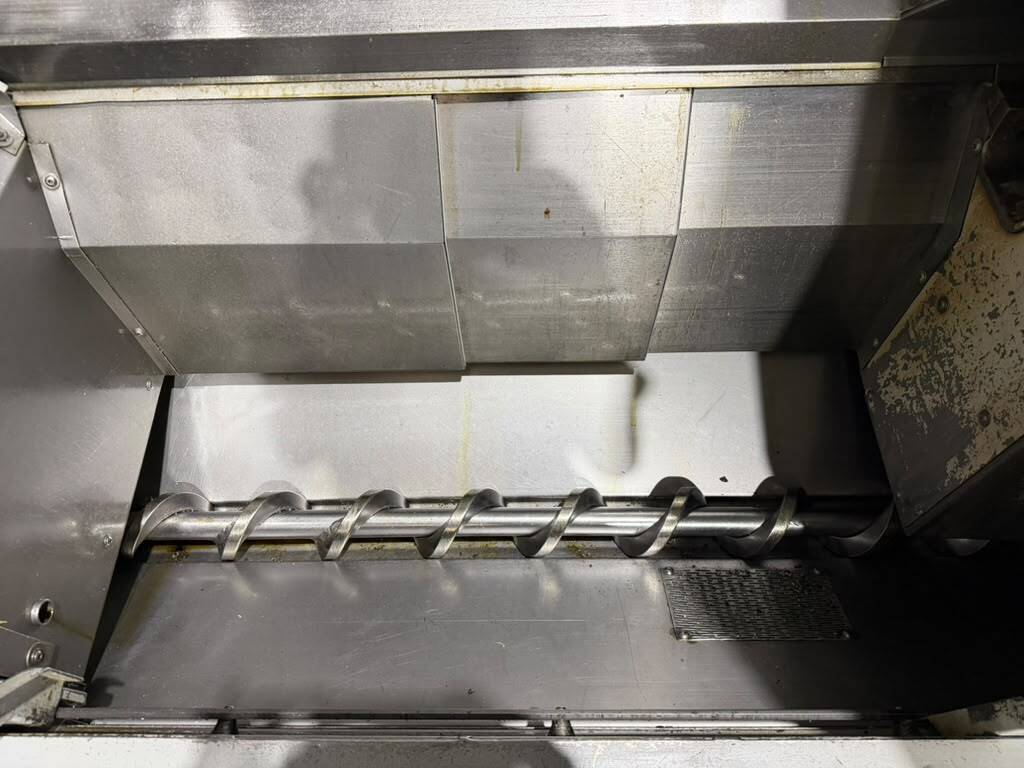

| Chip Auger |
| Foot Switch |
| Leveling Pads |
| (4) Boring Tool Holders Mounted on Turret (As Shown in the Images) |
| Capacity: |
|---|
| Maximum Turning Diameter: 15.0″ |
| Maximum Swing Over Bed: 21.0″ |
| Maximum Turning Length: 34.0″ |
| Maximum Bar Capacity: 3.0″ |
| Travels: |
|---|
| X-Axis Travel: 9.4″ |
| Z-Axis Travel: 32.5″ |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 710 IPM |
| Rapid Traverse Z-Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3,400 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Type: Bolt-On Turret |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Type: Programmable |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

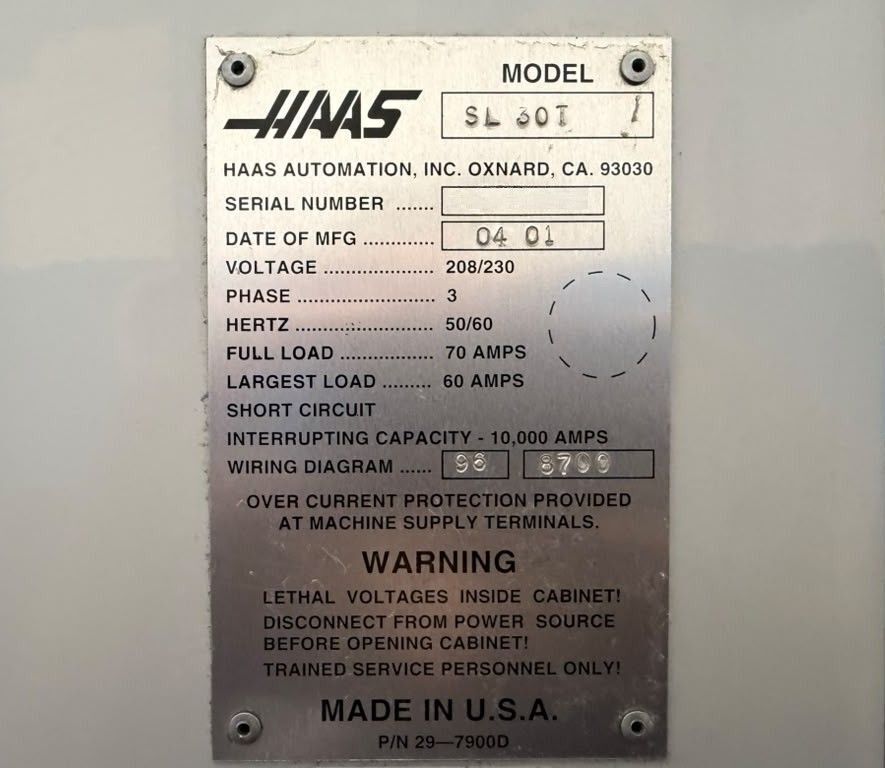

| Power Source: AC 220V / 230V / 3-Phase / 50/60 Hz |
| Machine Dimensions: 170″ × 90″ × 98″ High Approx. |
| Machine Weight: 11,000 lbs Approx. |
| Capacity: |
|---|
| Maximum Turning Diameter: 381 mm |
| Maximum Swing Over Bed: 533 mm |
| Maximum Turning Length: 864 mm |
| Maximum Bar Capacity: 76 mm |
| Travels: |
|---|
| X-Axis Travel: 239 mm |
| Z-Axis Travel: 826 mm |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 710 IPM |
| Rapid Traverse Z-Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 89 mm |
| Spindle Speed: 3,400 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Type: Bolt-On Turret |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Type: Programmable |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power Source: AC 220V / 230V / 3-Phase / 50/60 Hz |
| Machine Dimensions: 4,318 mm × 2,286 mm × 2,489 mm High Approx. |
| Machine Weight: 11,000 lbs Approx. |
| Make | Haas |
|---|---|
| Model | SL-30T |
| Categories | CNC Lathes & Turning Centers |
- Haas CNC Control
- 254 mm 3-Jaw Samchully SH-10 Chuck
- 12-Station Bolt-On Turret
- 30 HP Vector Dual Drive
- A2-6 Spindle
- Tool Presetter
- 89 mm Big Bore Spindle
- Programmable Tailstock
- Coolant Tank
- Chip Auger
- Foot Switch
- Leveling Pads
- (4) Boring Tool Holders Mounted on Turret (As Shown in the Images)
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
