*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

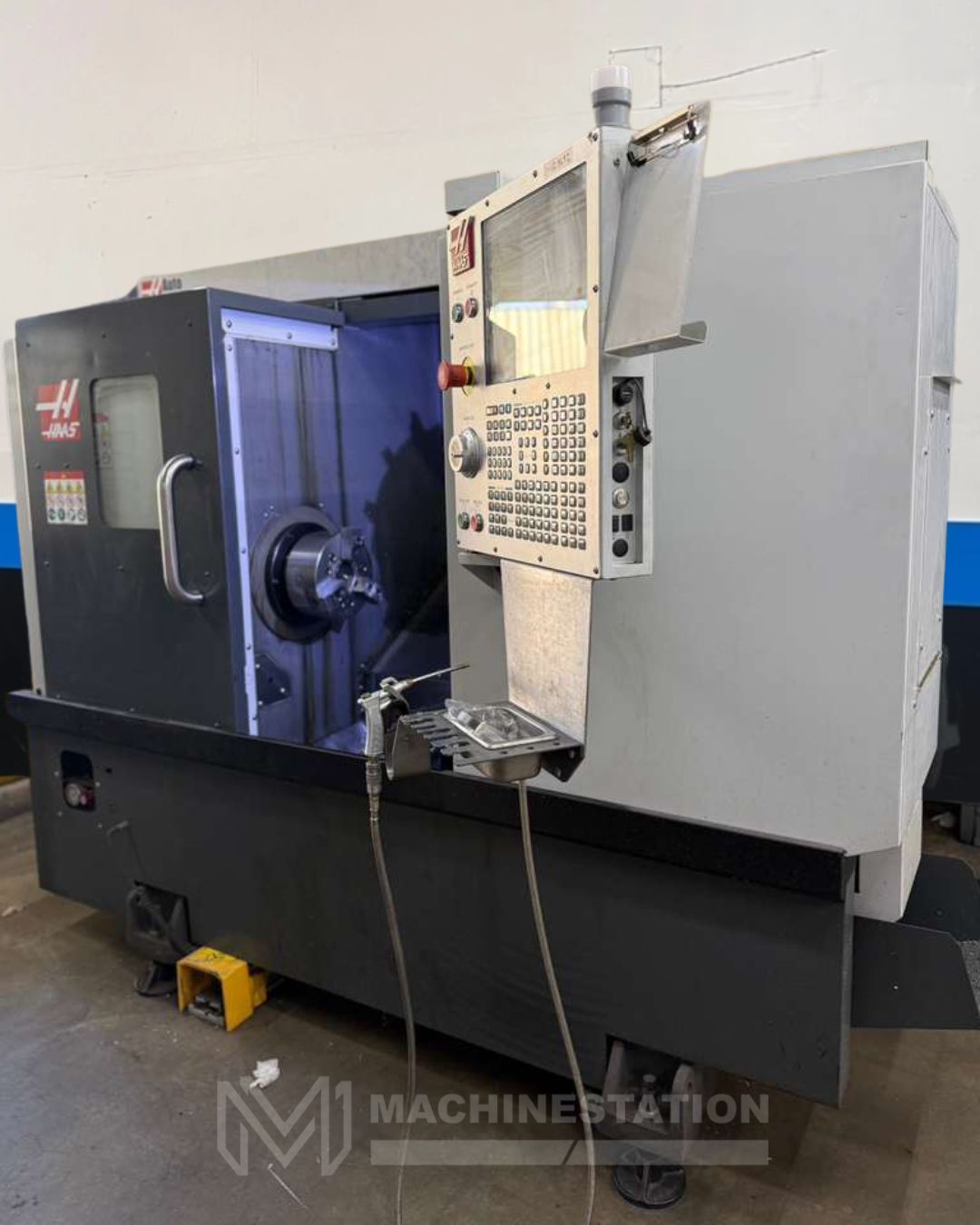

| Make: | Haas |

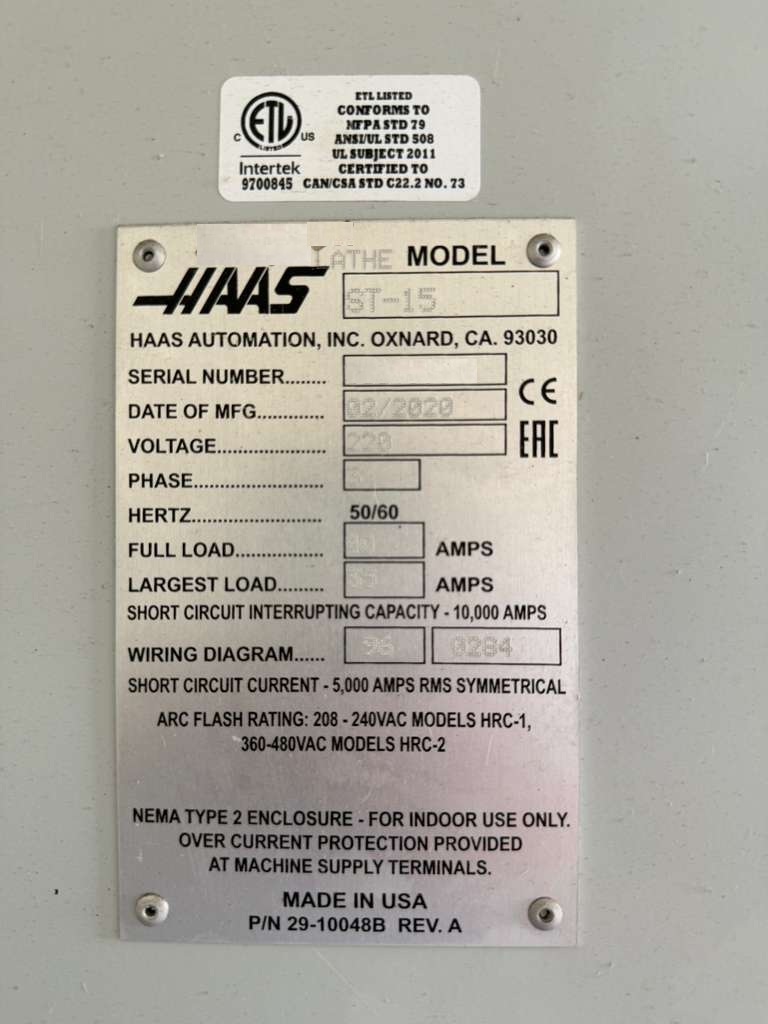

| Model: | ST-15 |
| Year: | 2020 |
| Equipped With: |
|---|

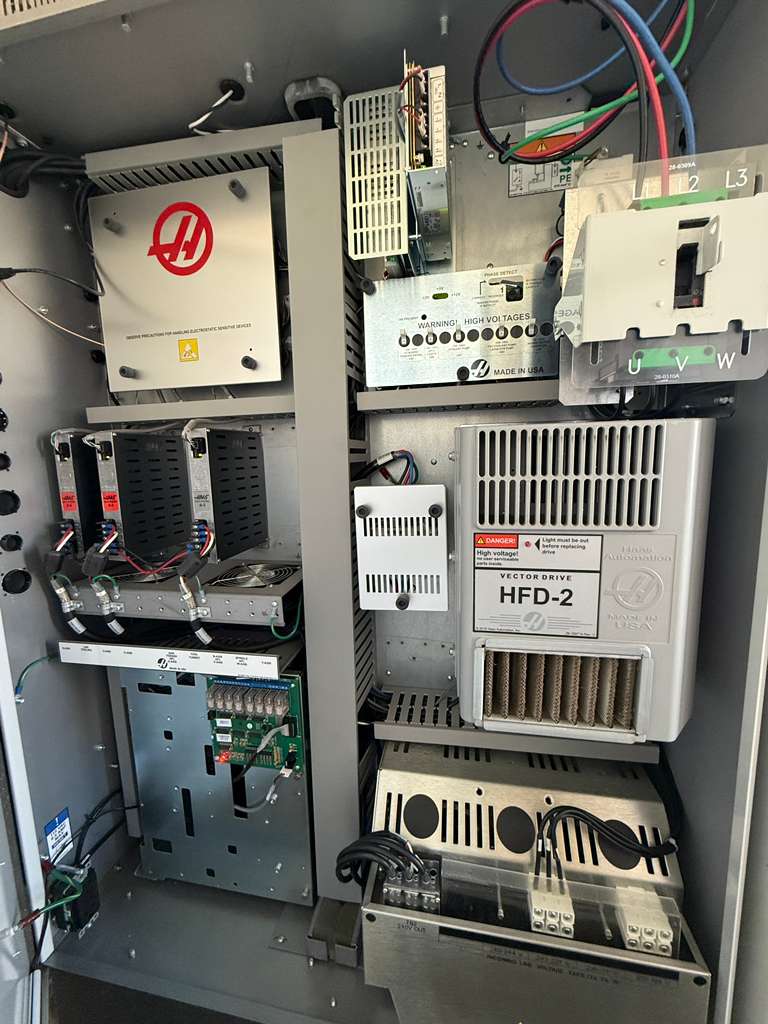

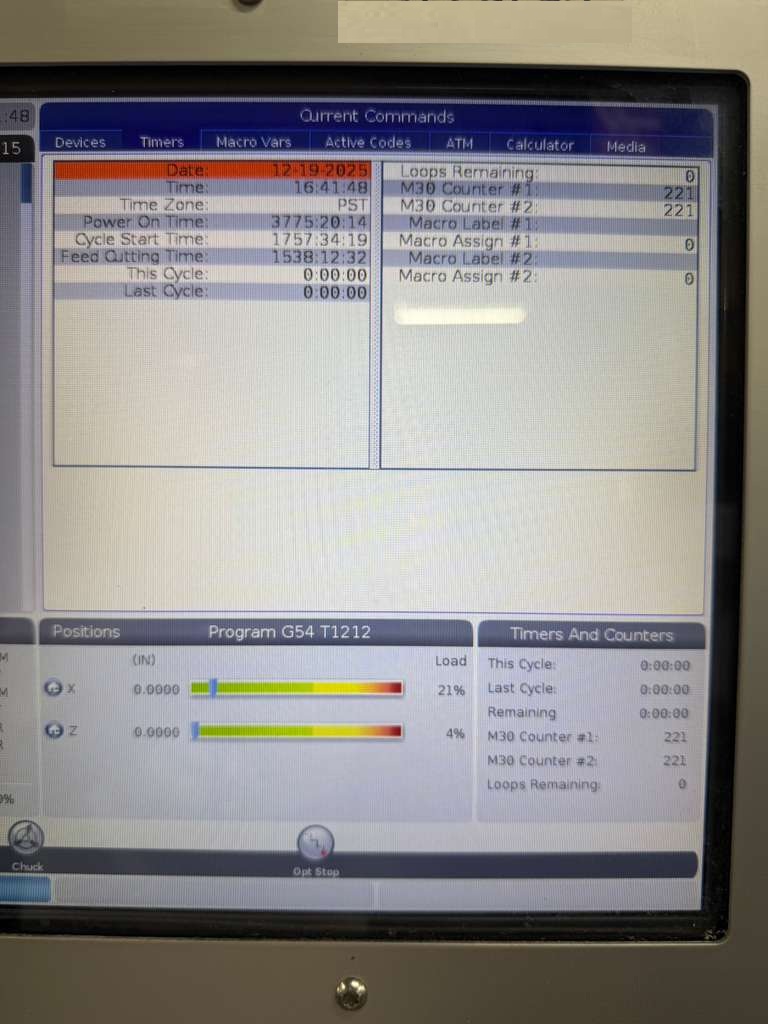

| Haas CNC Control |

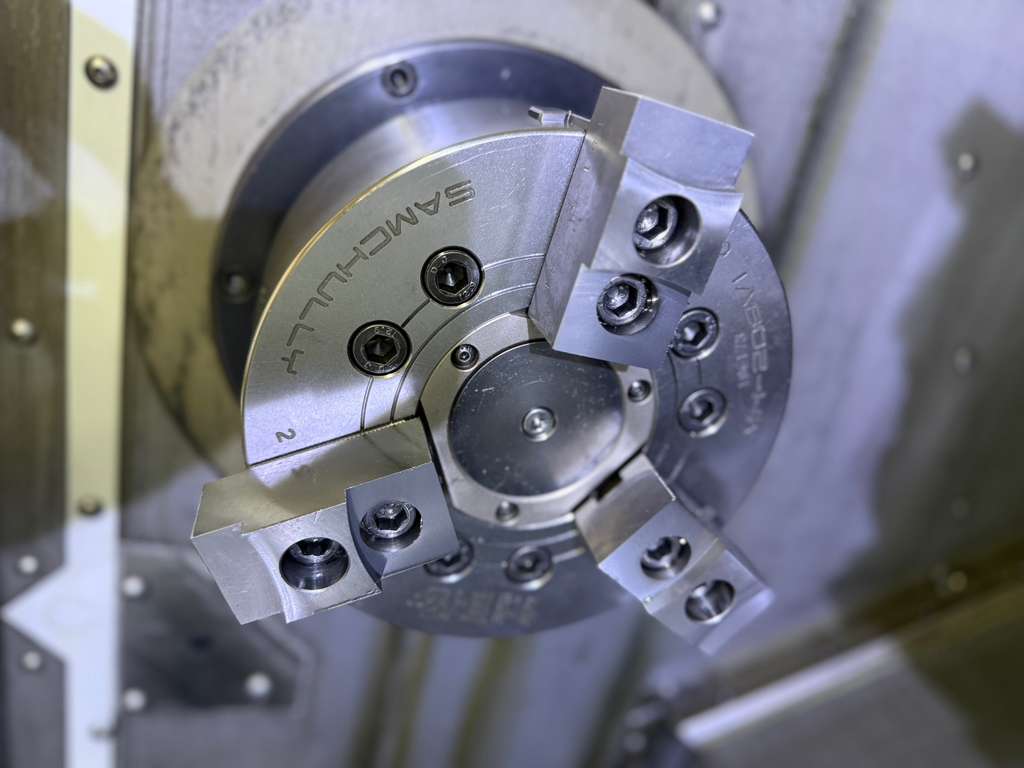

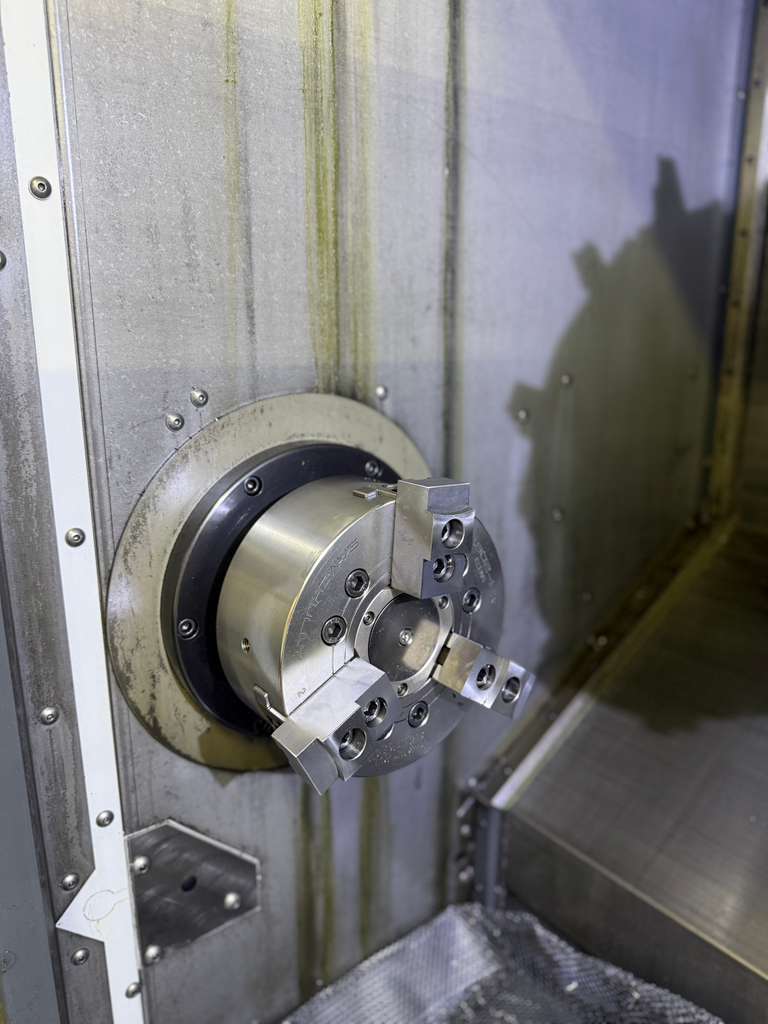

| 8″ 3-Jaw Samchully MH-208vi Chuck (Upgraded $2,956 value Included) |

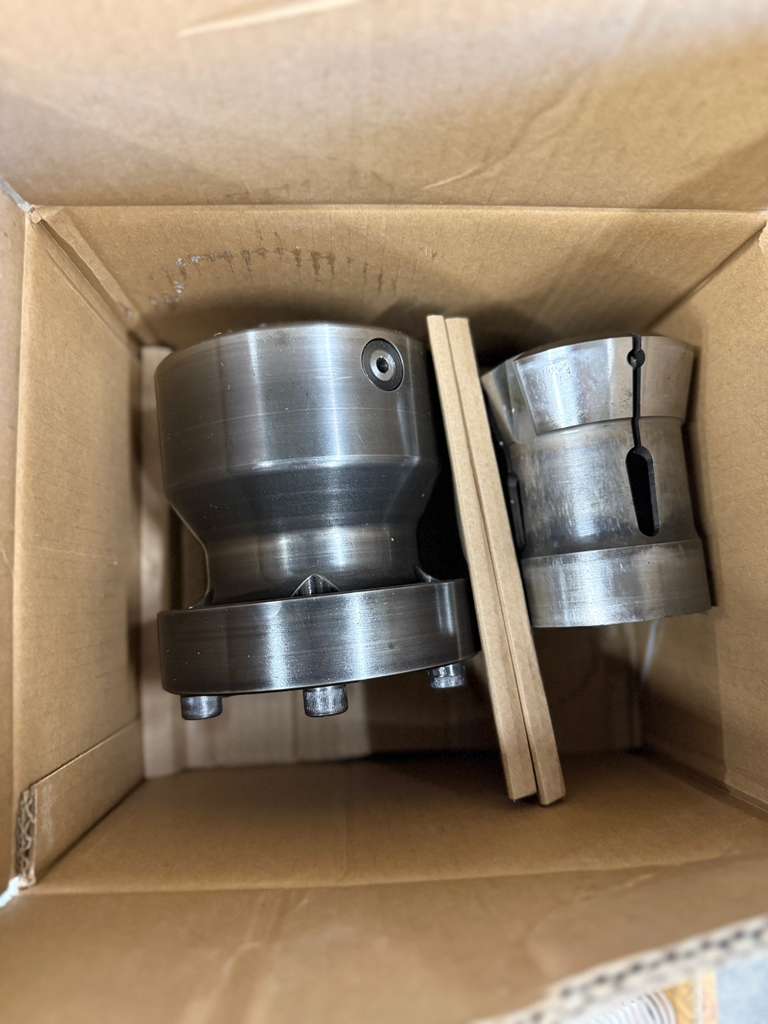

| Collet Chuck |
| 4000 RPM, A2-6 Spindle |
| 20 HP Spindle Drive |
| Auto Door (Upgraded $2,395 value Included) – Opens and Closes the machine doors automatically via M-code |

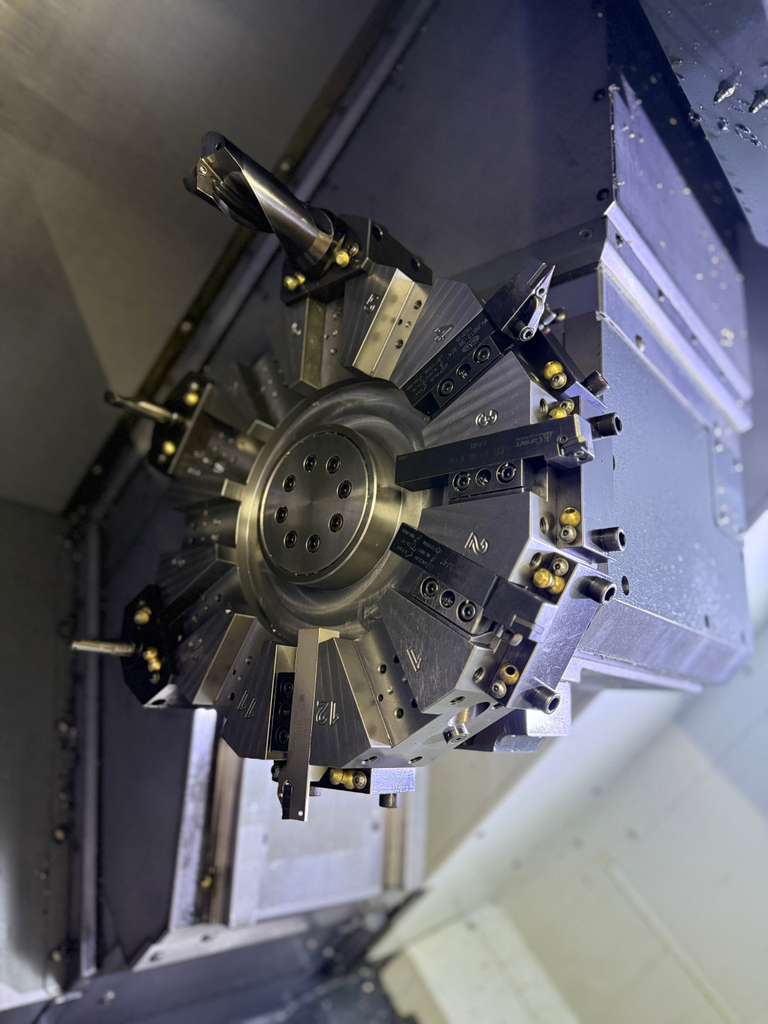

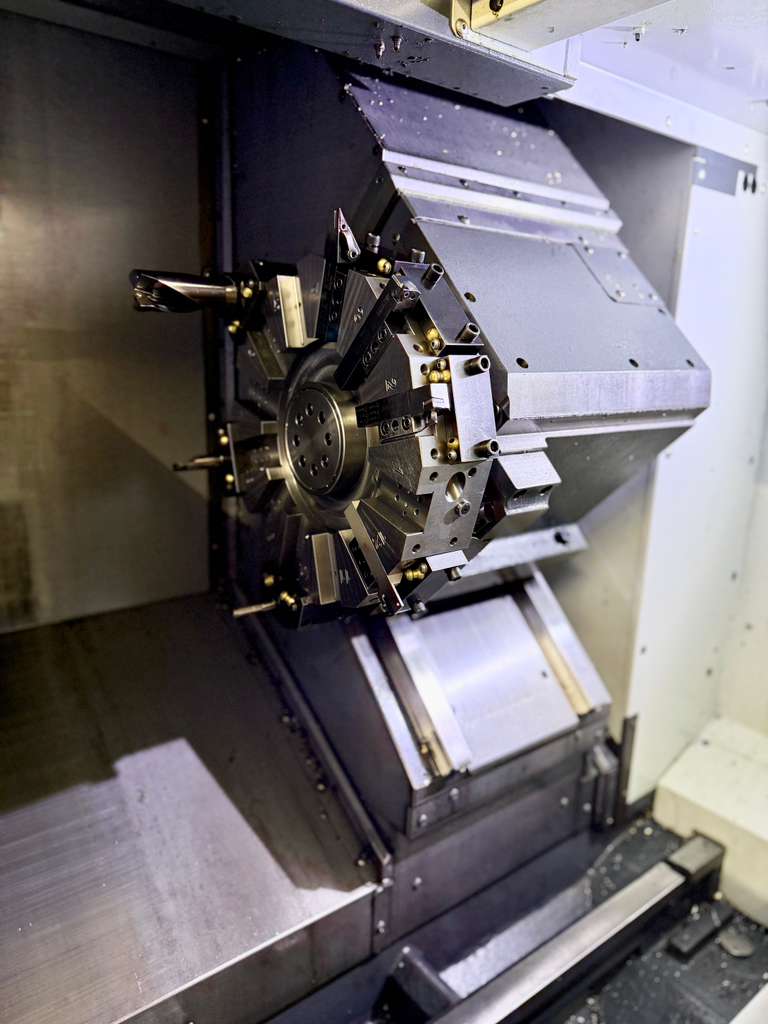

| 12-Station Bolt-On Tool Turret |
| Media Display |

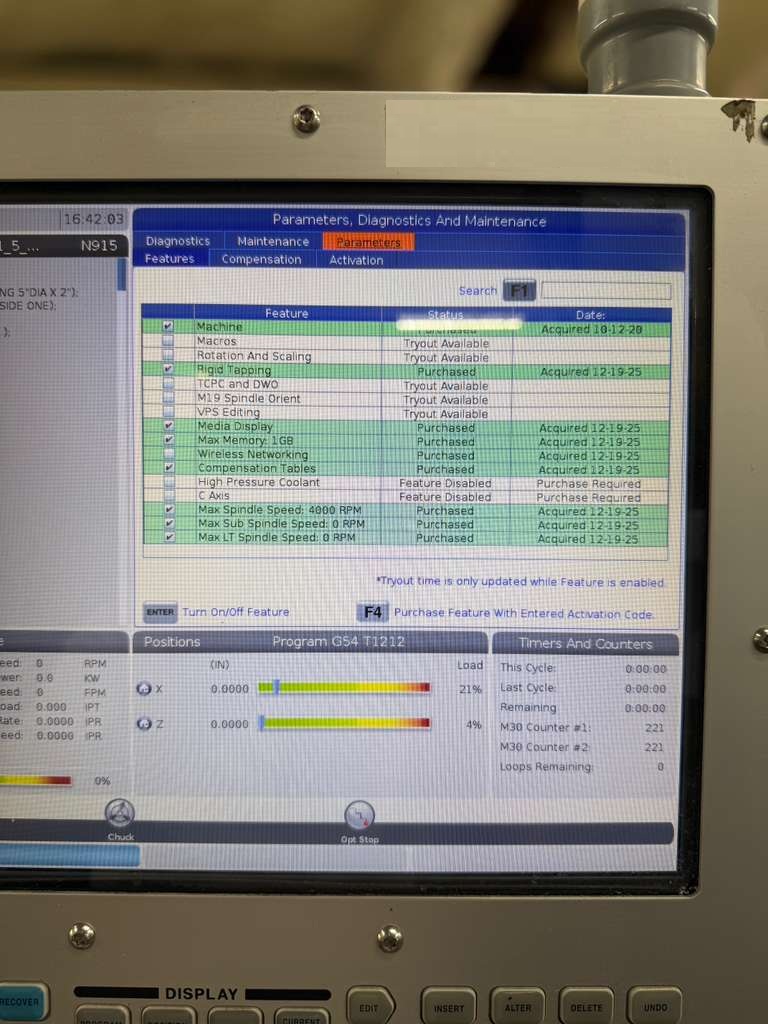

| Compensation Tables |
| Rigid Tapping |
| 1GB Memmory |
| Coolant System |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter : 12.0″ |
| Max Swing Over Bed : 16.5″ |
| Max Turning Length: 16.0″ |
| Max Bar Capacity : 2.5″ |
| Travels: |
|---|
| X Axis Travel : 7.88″ |
| Z1 Axis Travel : 16.00″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1200 IPM |
| Rapid Traverse Z Axis: 1200 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Holder Type: Bolt-On Tool Turret |
| General: |
|---|

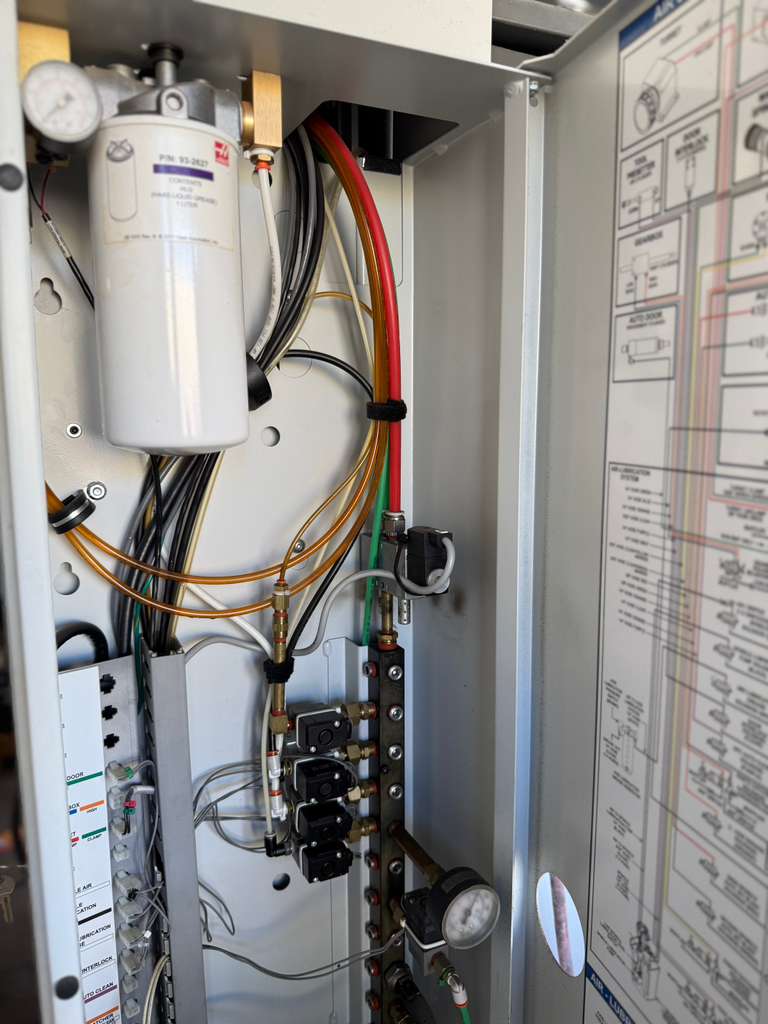

| Air Requirement: 4 scfm @ 100 psi |
| Machine Dimensions: 126″ x 70.0″ x 81.0″ High |
| Machine Weight:7,900 lbs Approx. |
