*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

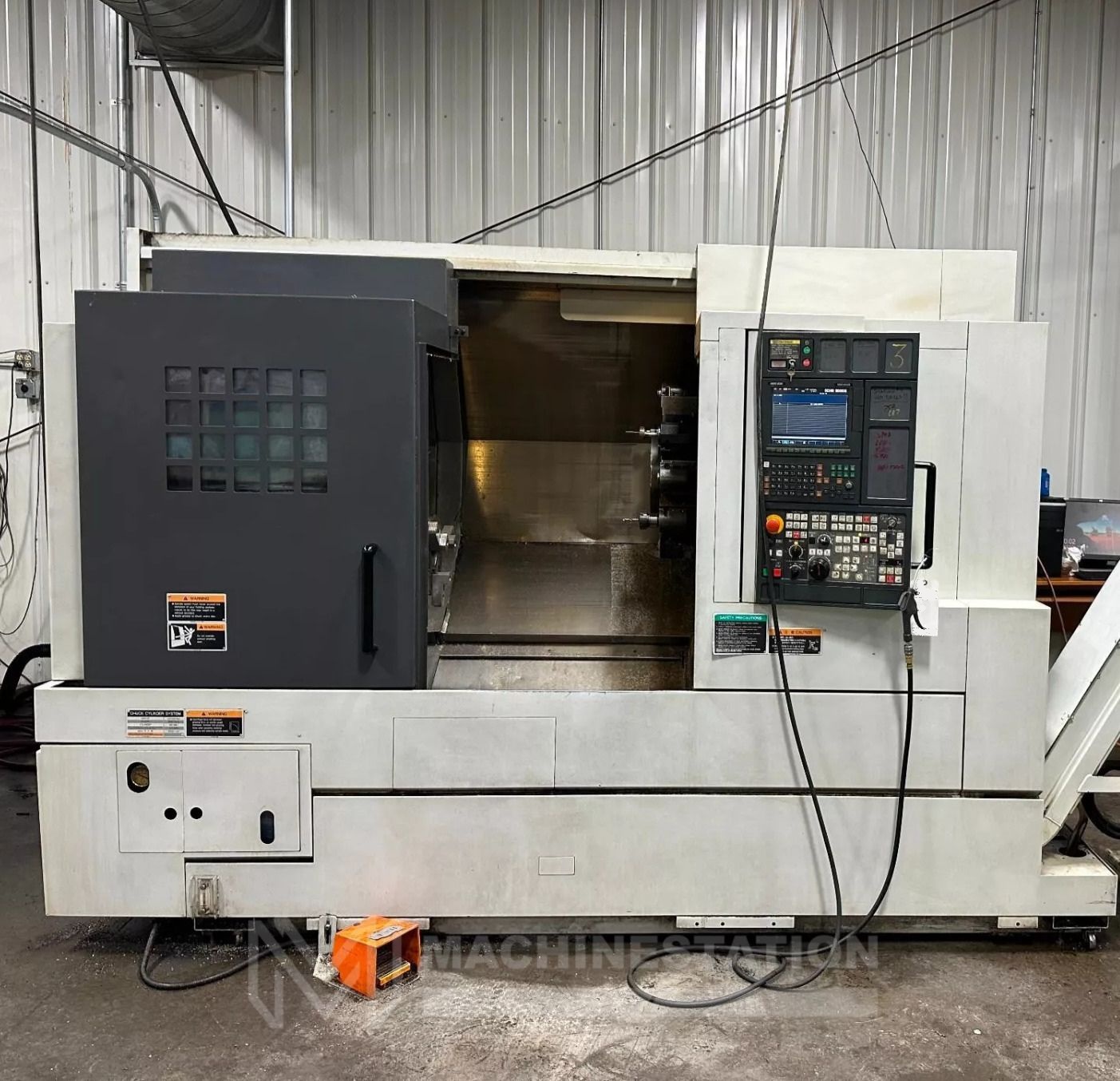

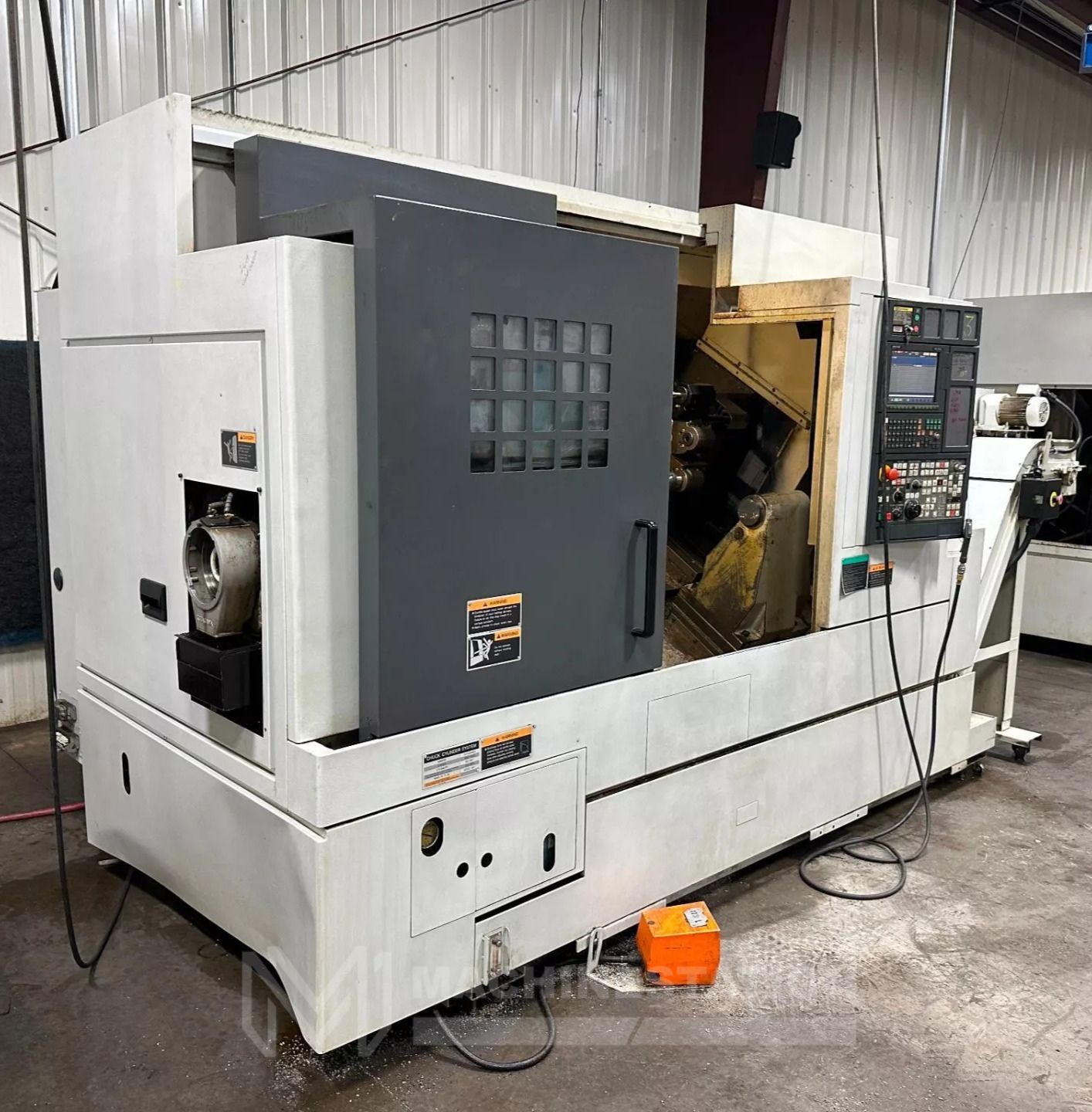

| Make: | Mori Seiki |
| Model: | NL2500MC/700 |
| Year: | 2008 |
| Equipped With: |
|---|

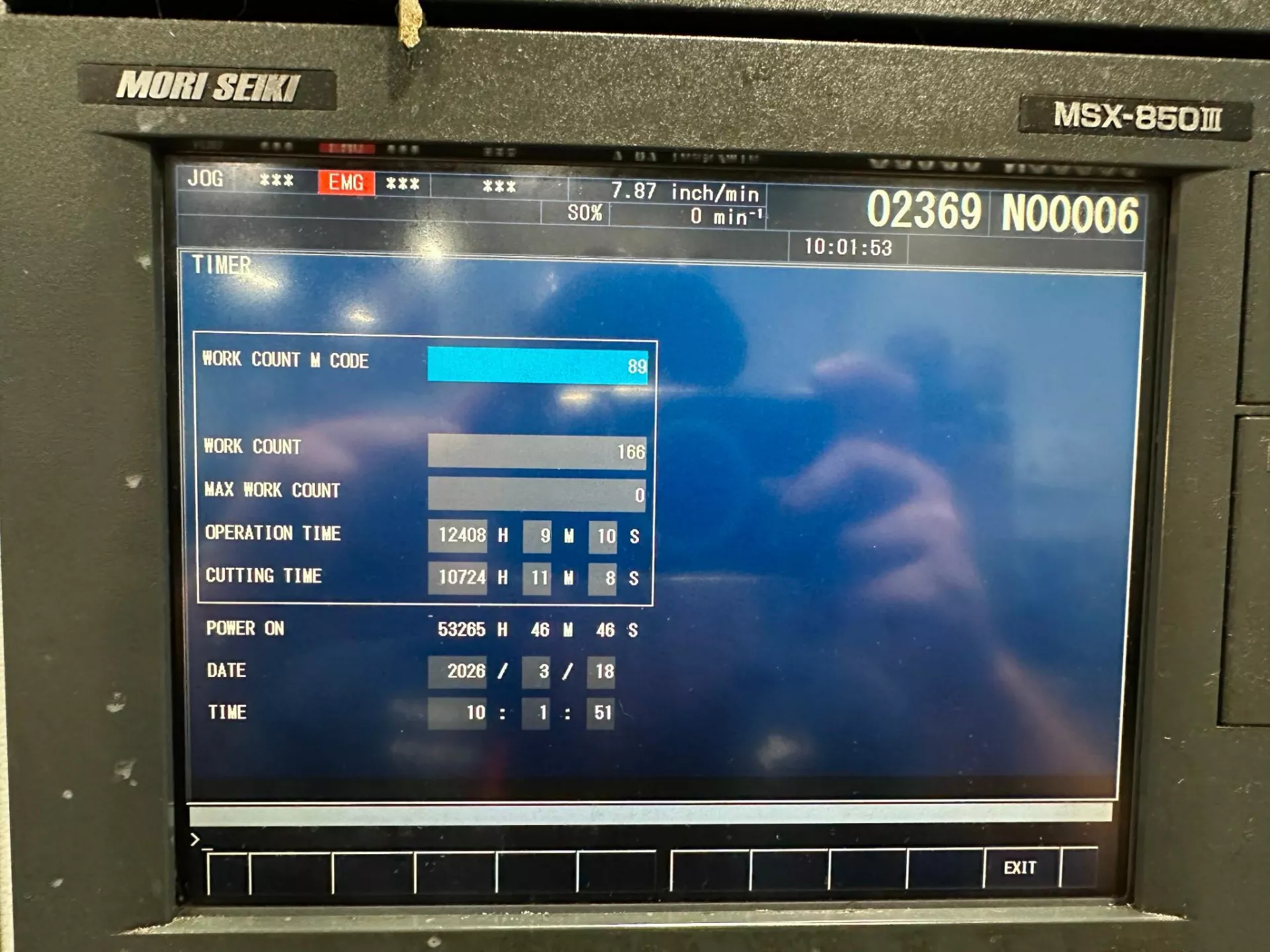

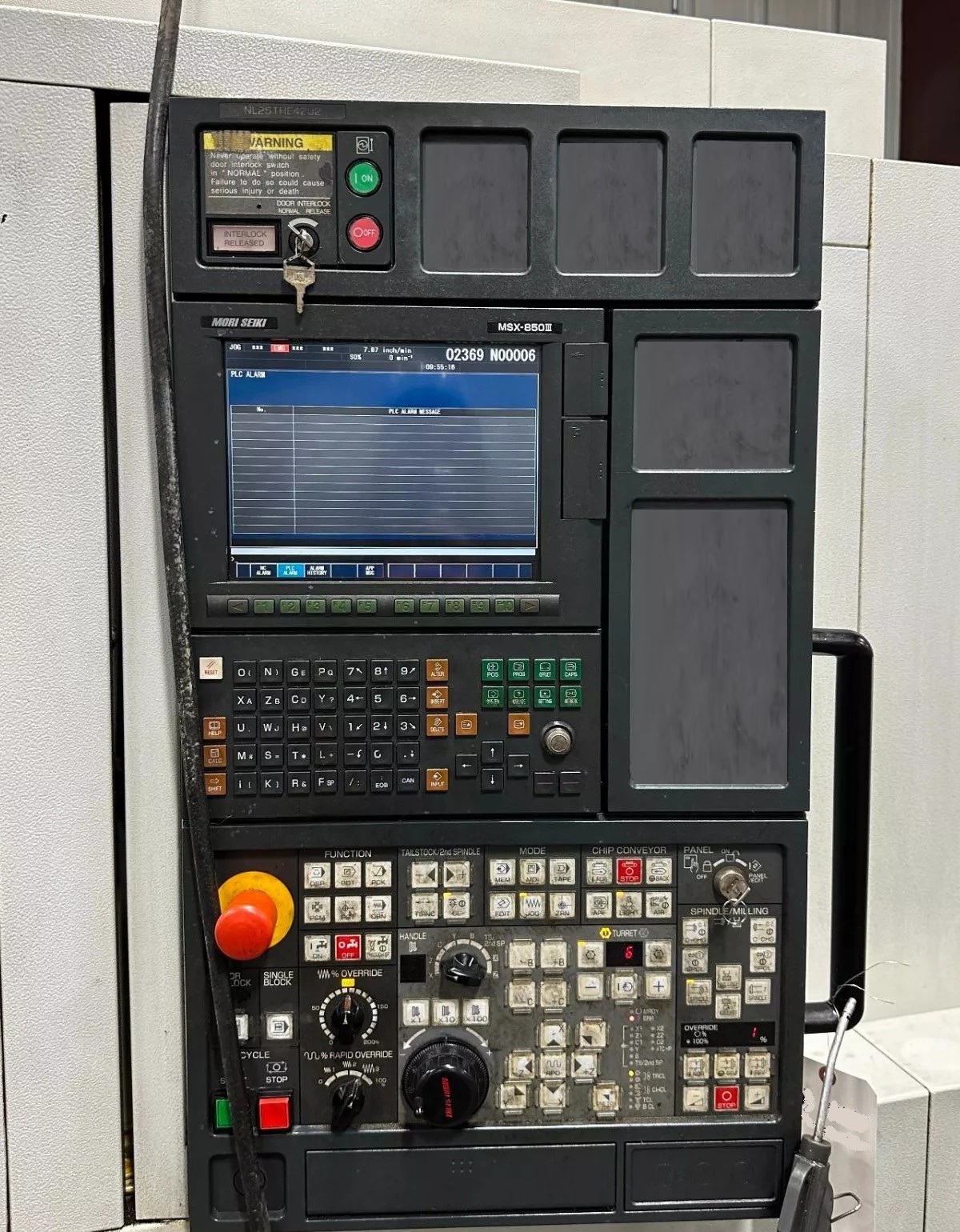

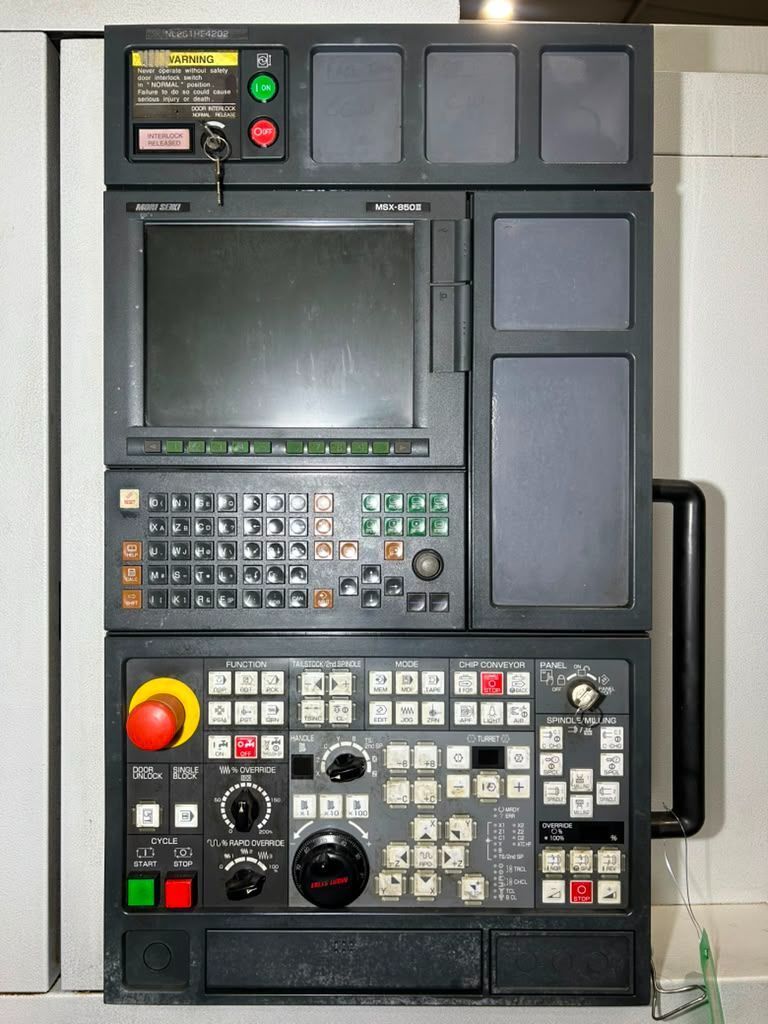

| Mori Seiki MSX-850III CNC Control |

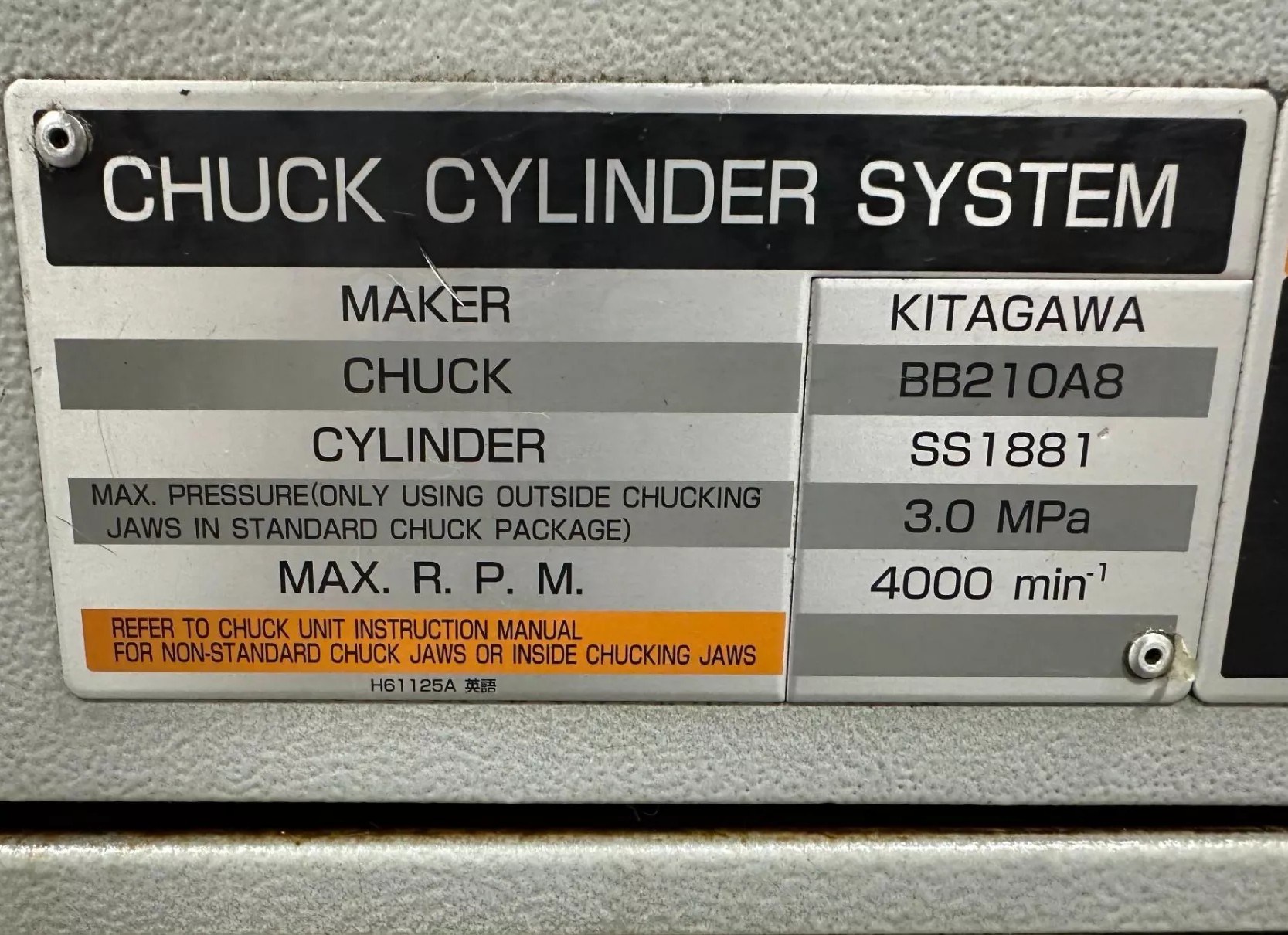

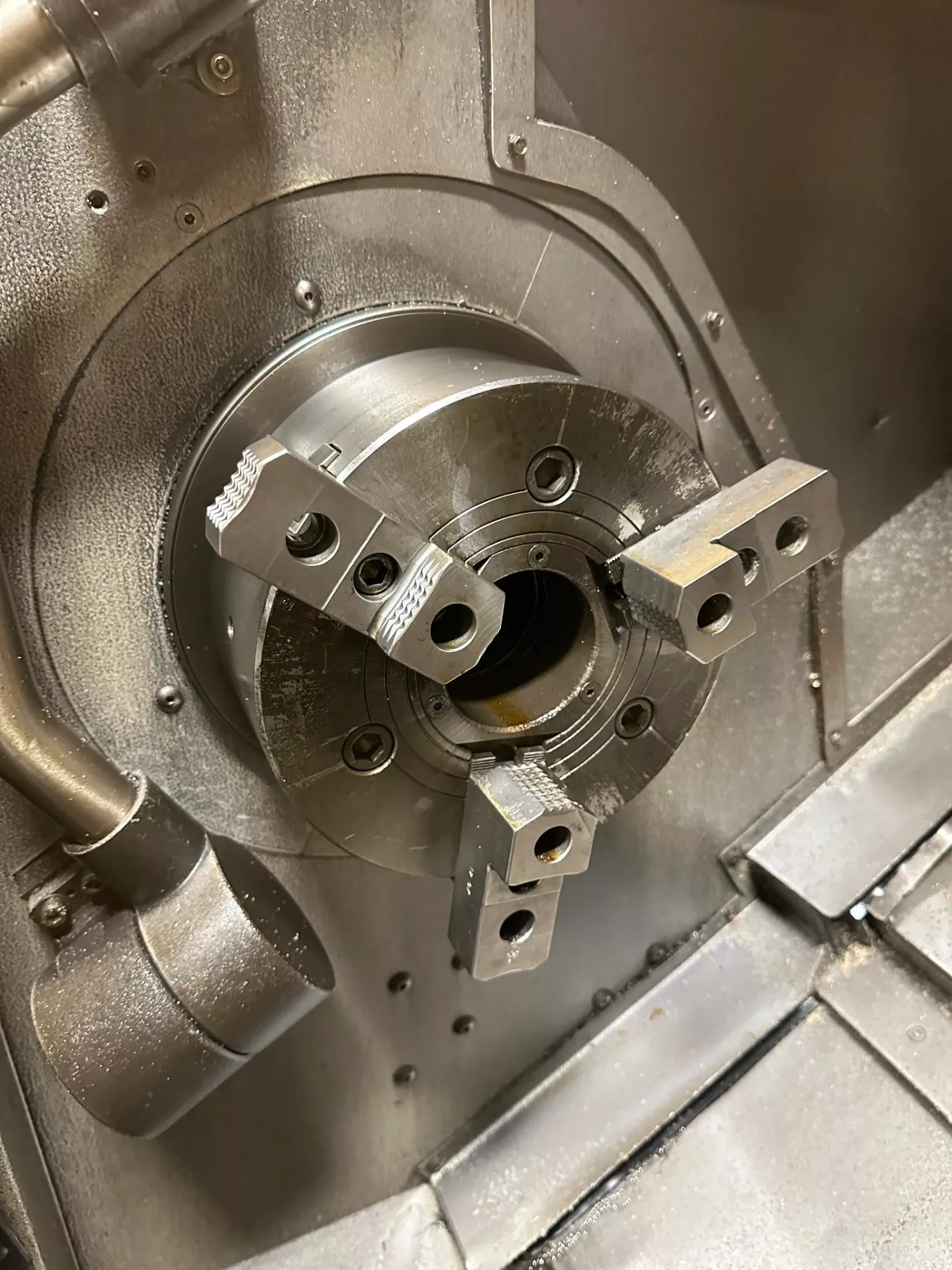

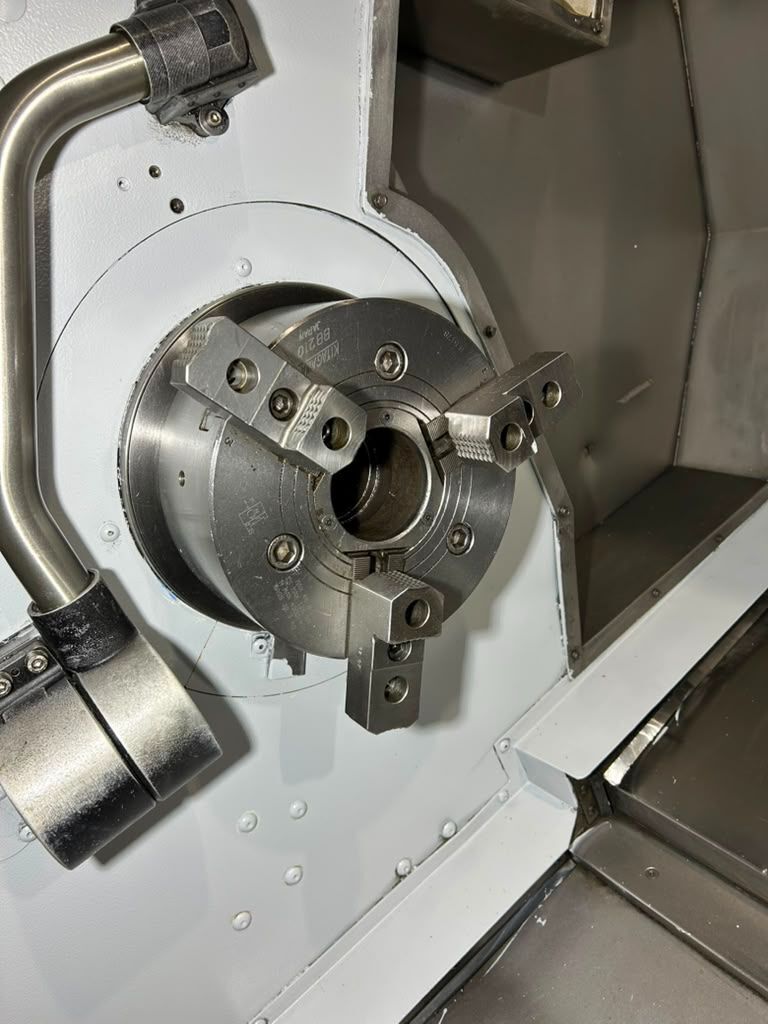

| 10″ 3-Jaw Kitagawa BB210 Hydraulic Chuck |
| Servo Controlled Full C Axis On Spindle |
| A2-8 Spindle Nose, 4000 RPM Spindle |

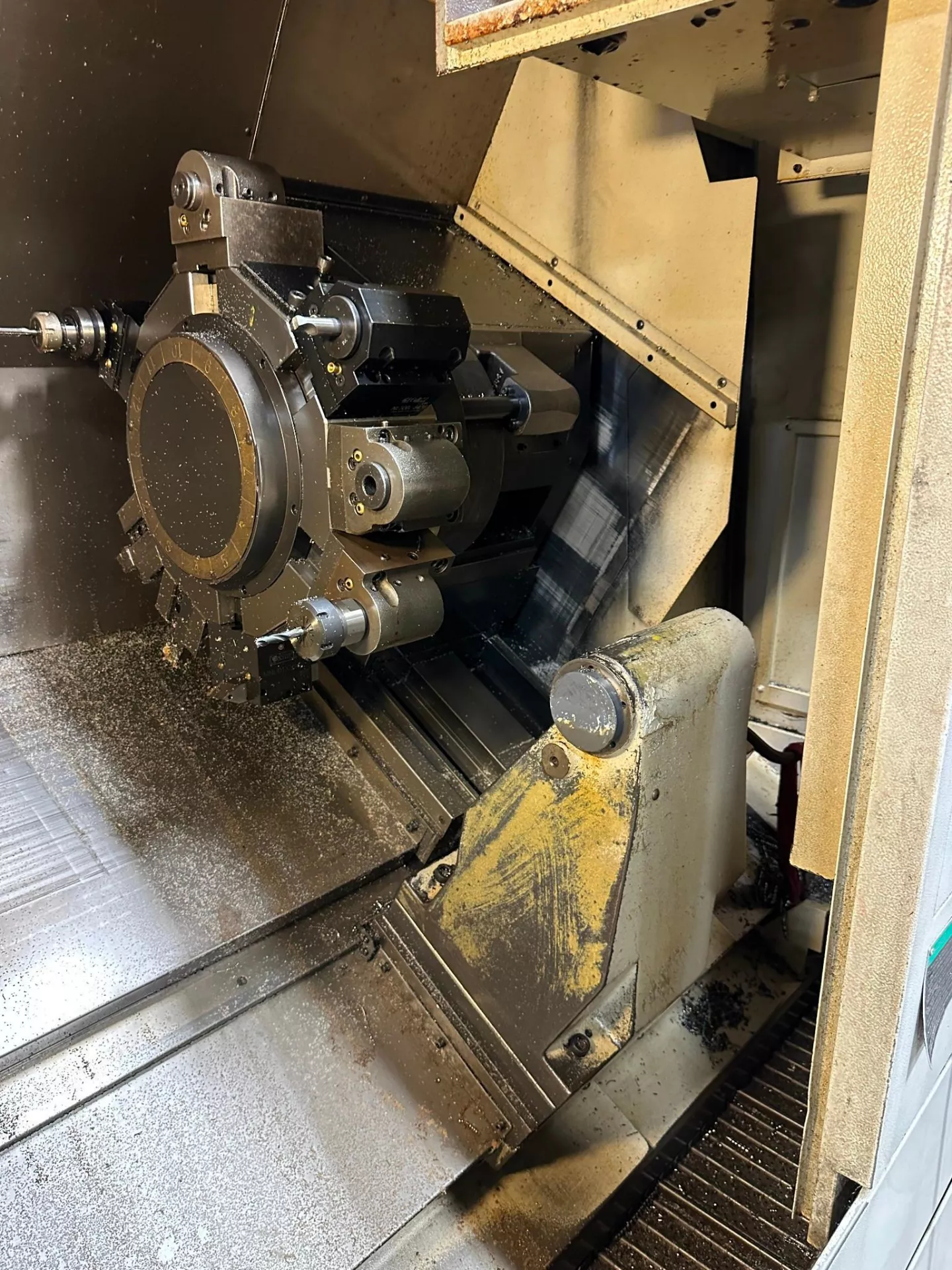

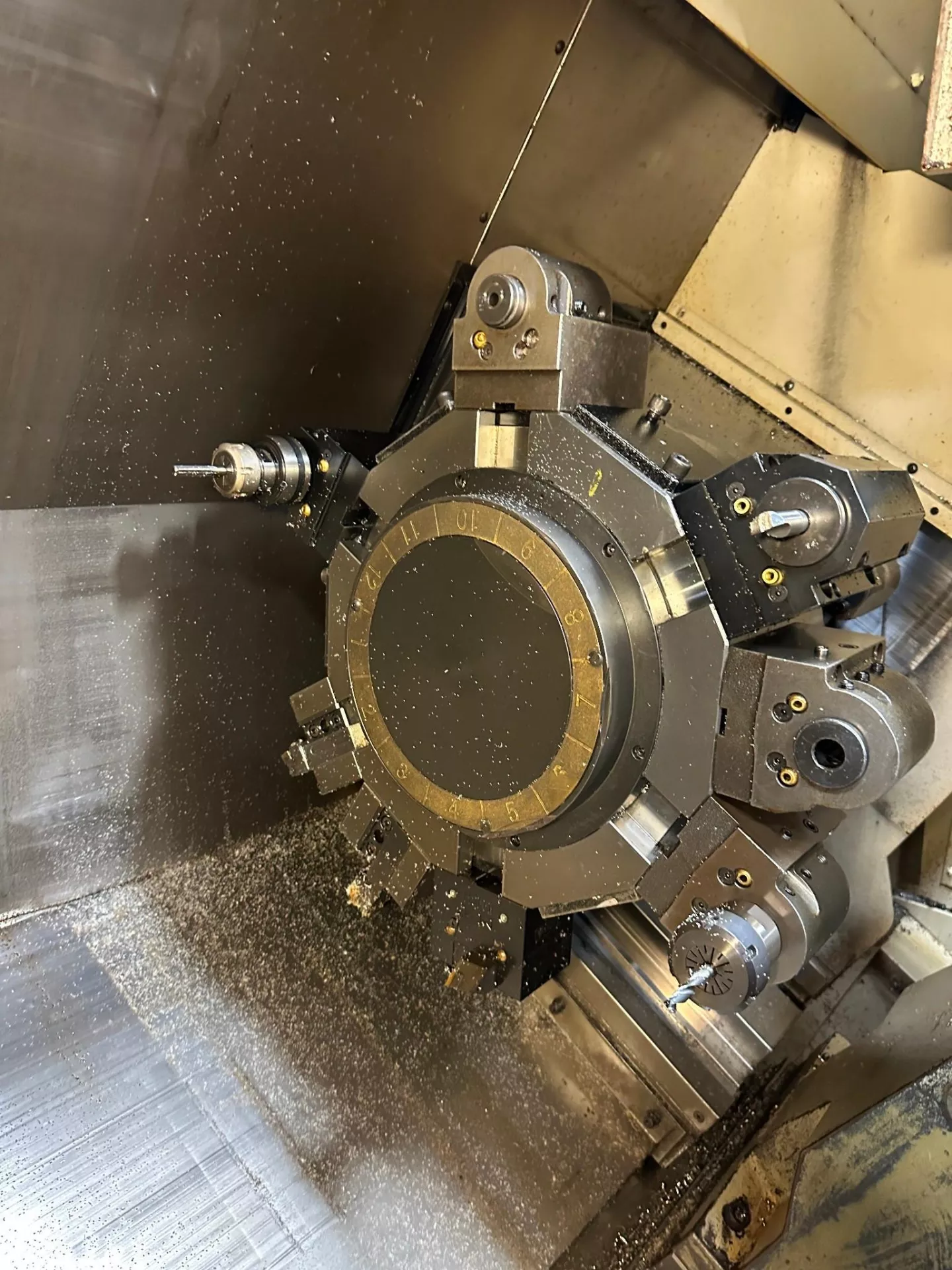

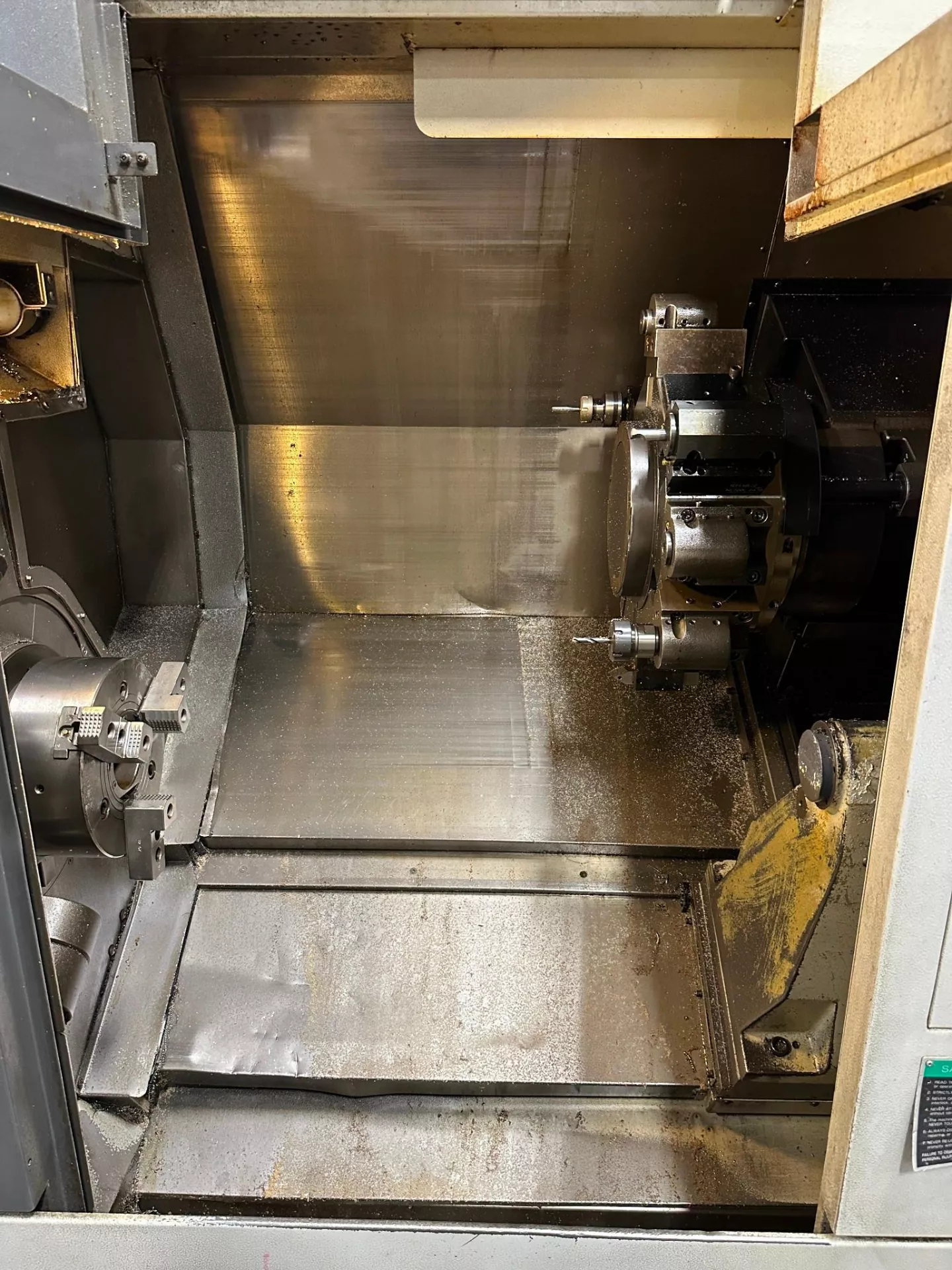

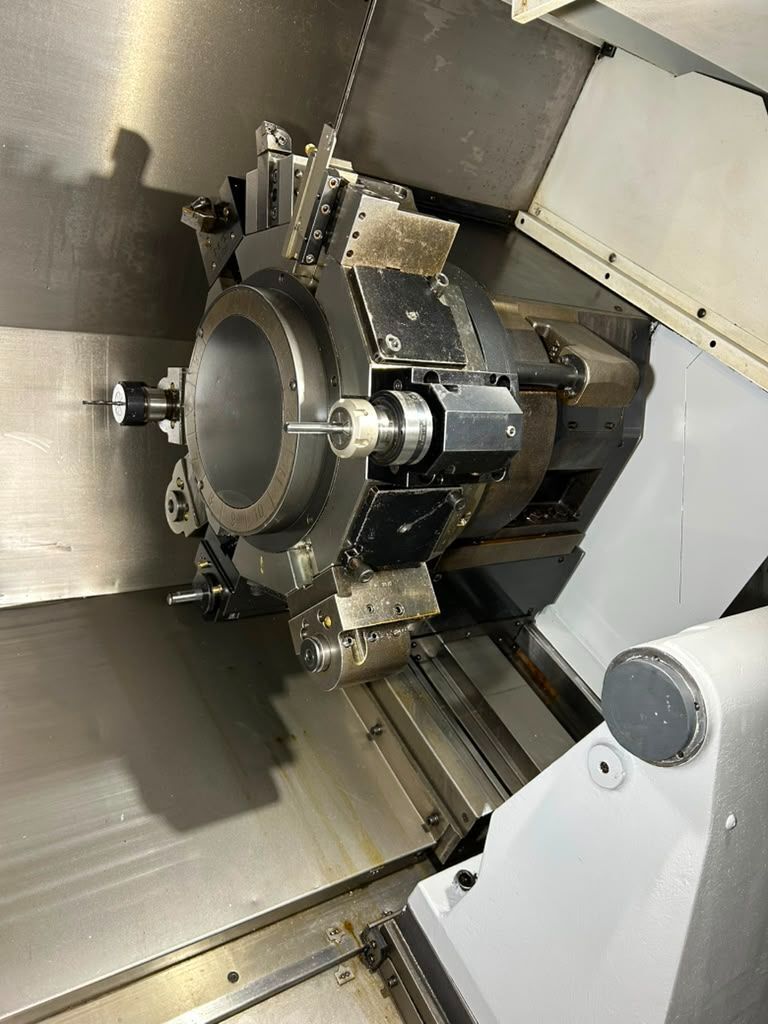

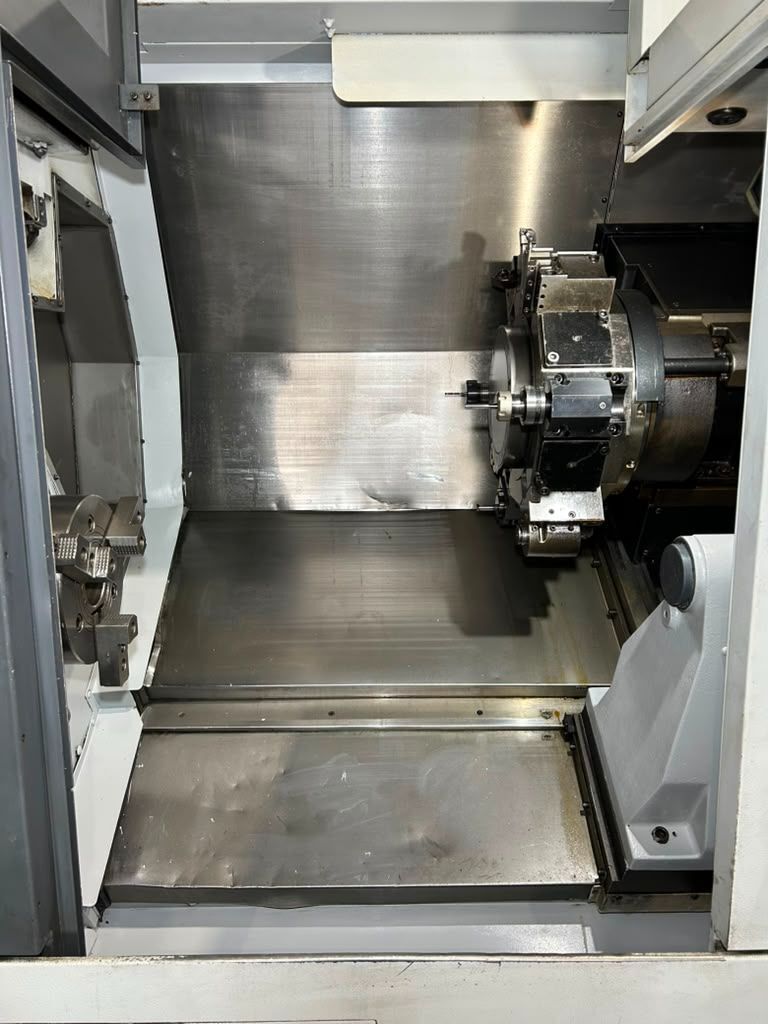

| 12 Station Live Tool Turret |
| Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Coolant Tank |

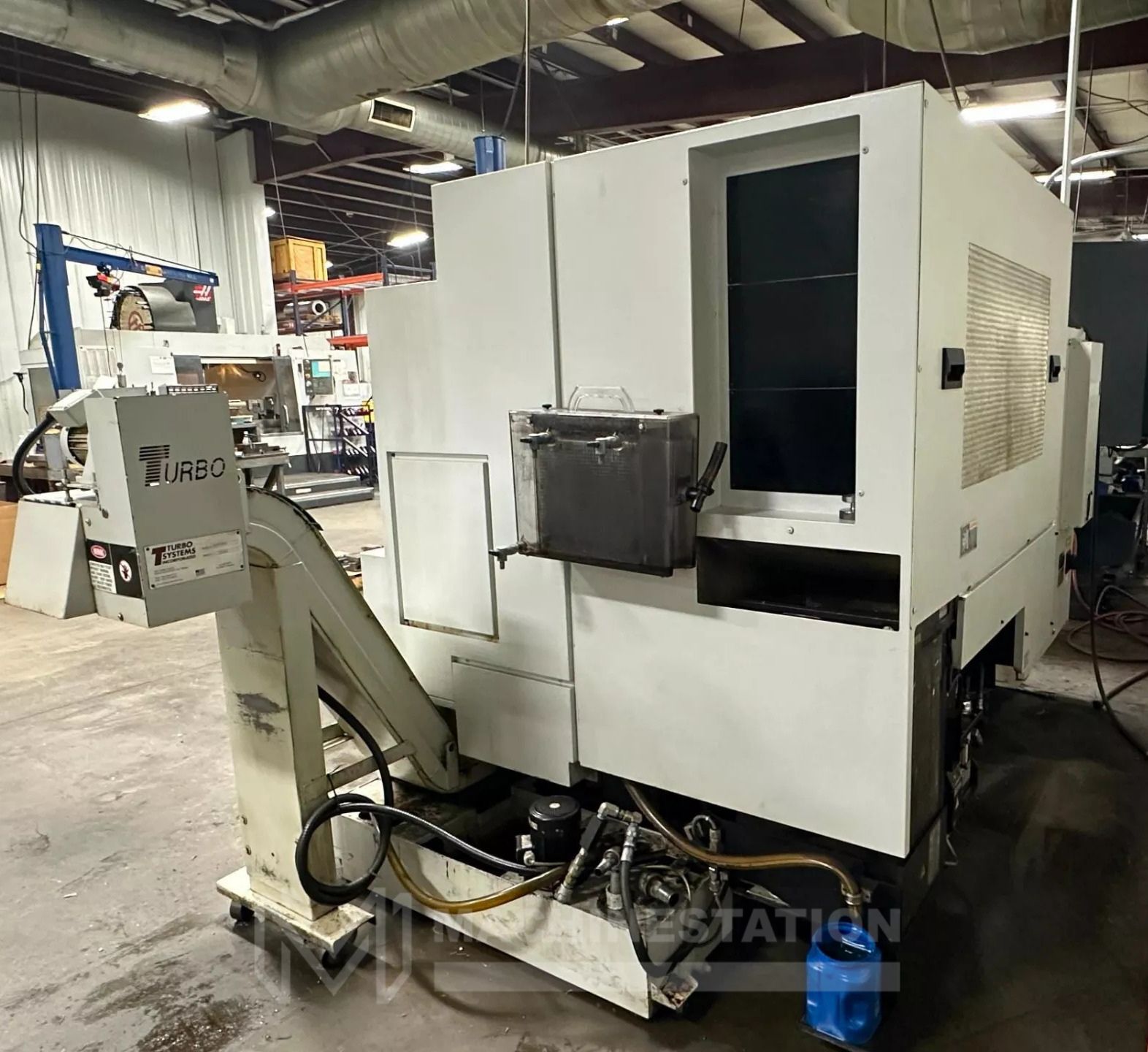

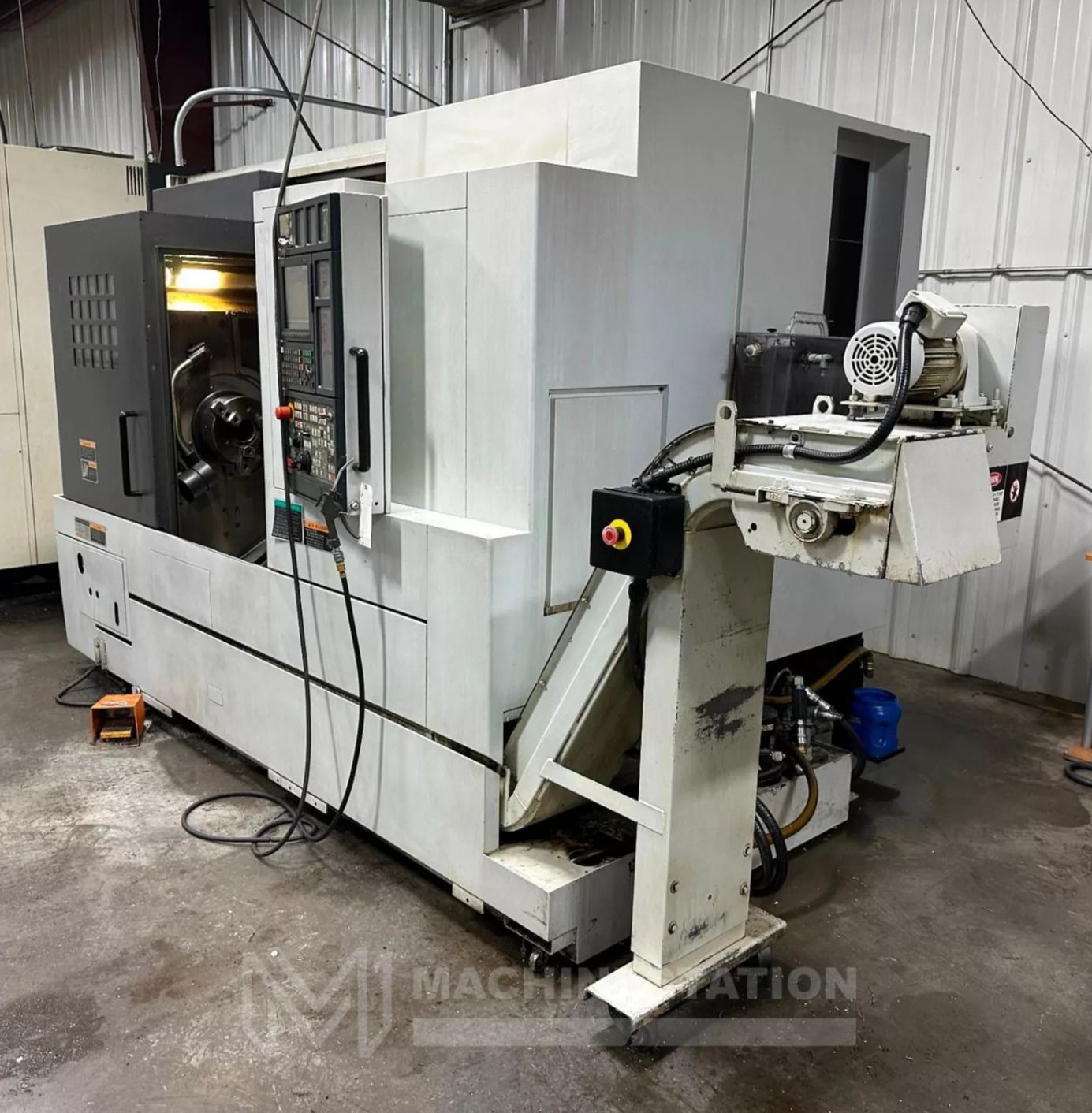

| Chip Conveyor |
| Foot Switch |
| Misc. Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.0″ |
| Max Turning Length: 27.7″ |
| Swing Over Cross Slide: 29.7″ |
| Max Bar Capacity: 3.1″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.3″ |
| C Axis: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Tool Holders Type: Bolt Mounted |
| Tailstock: |
|---|
| Tailstock Tapper: MT-5 |
| Tailstock Body Travel: 28.9″ |
| General: |
|---|

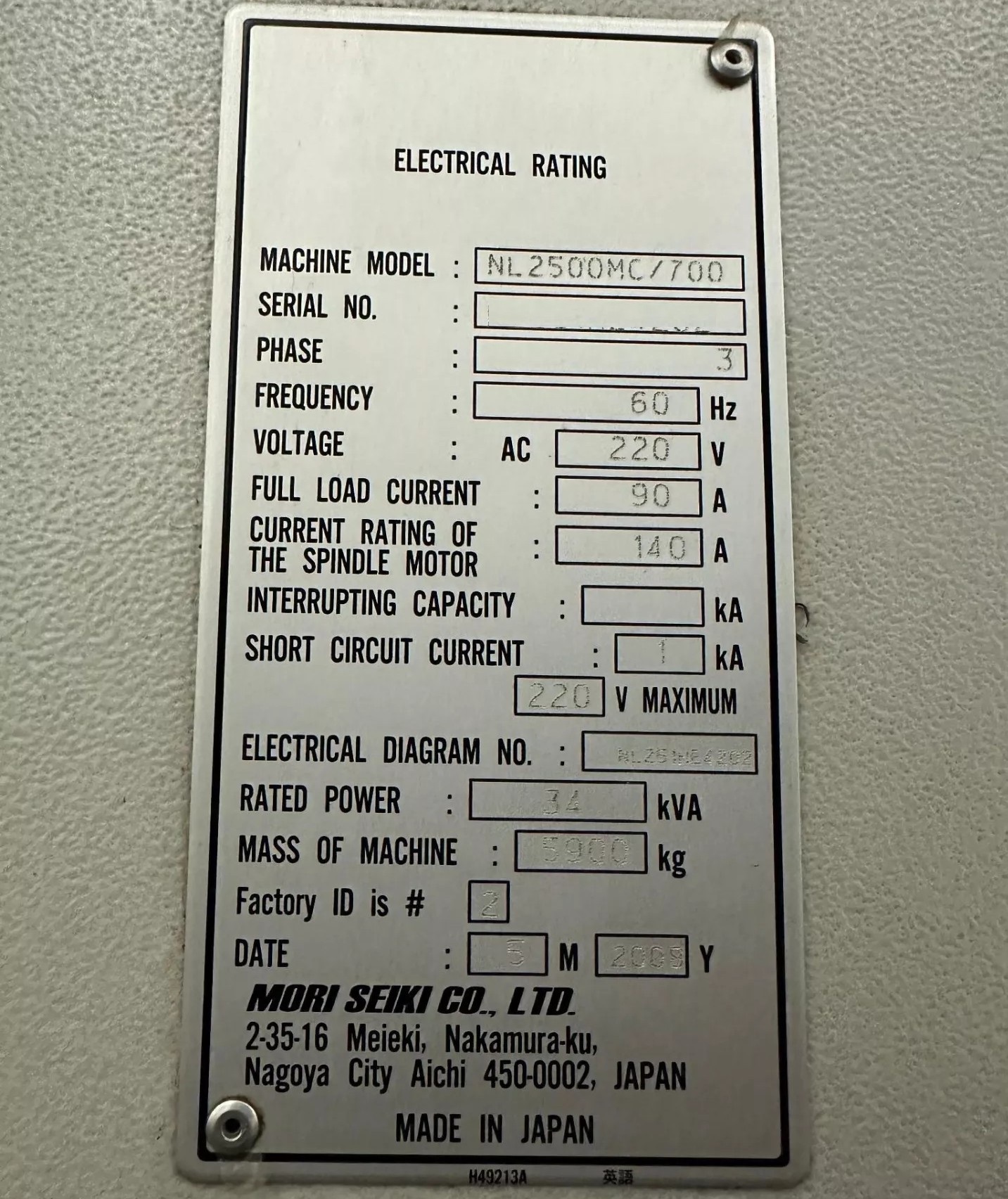

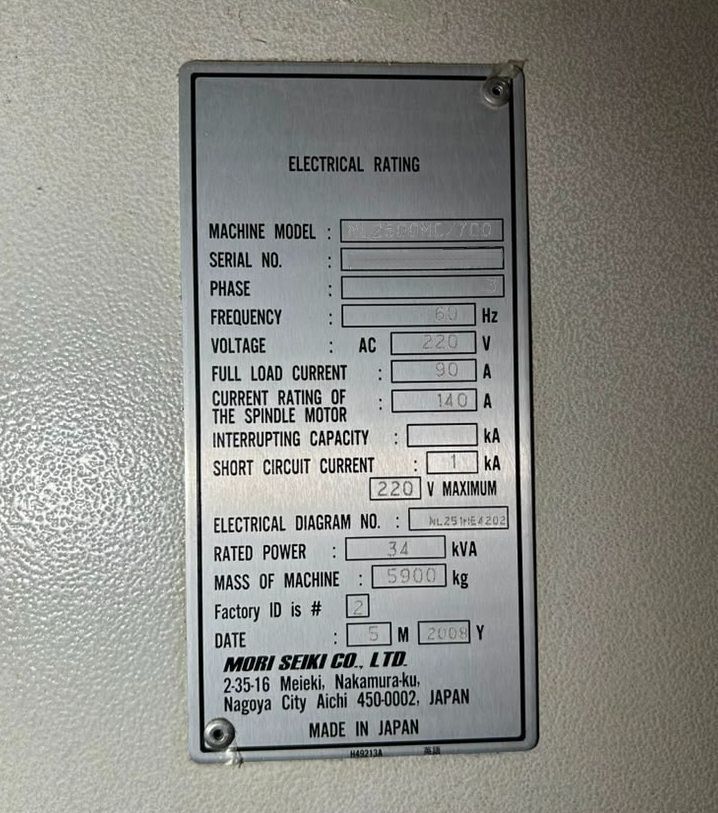

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 34 kva |
| Overall Dimensions: 122″ x 76 ″ x 83″ High Apporx. |
| Weight : 13,000 lbs Approx. |
