*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

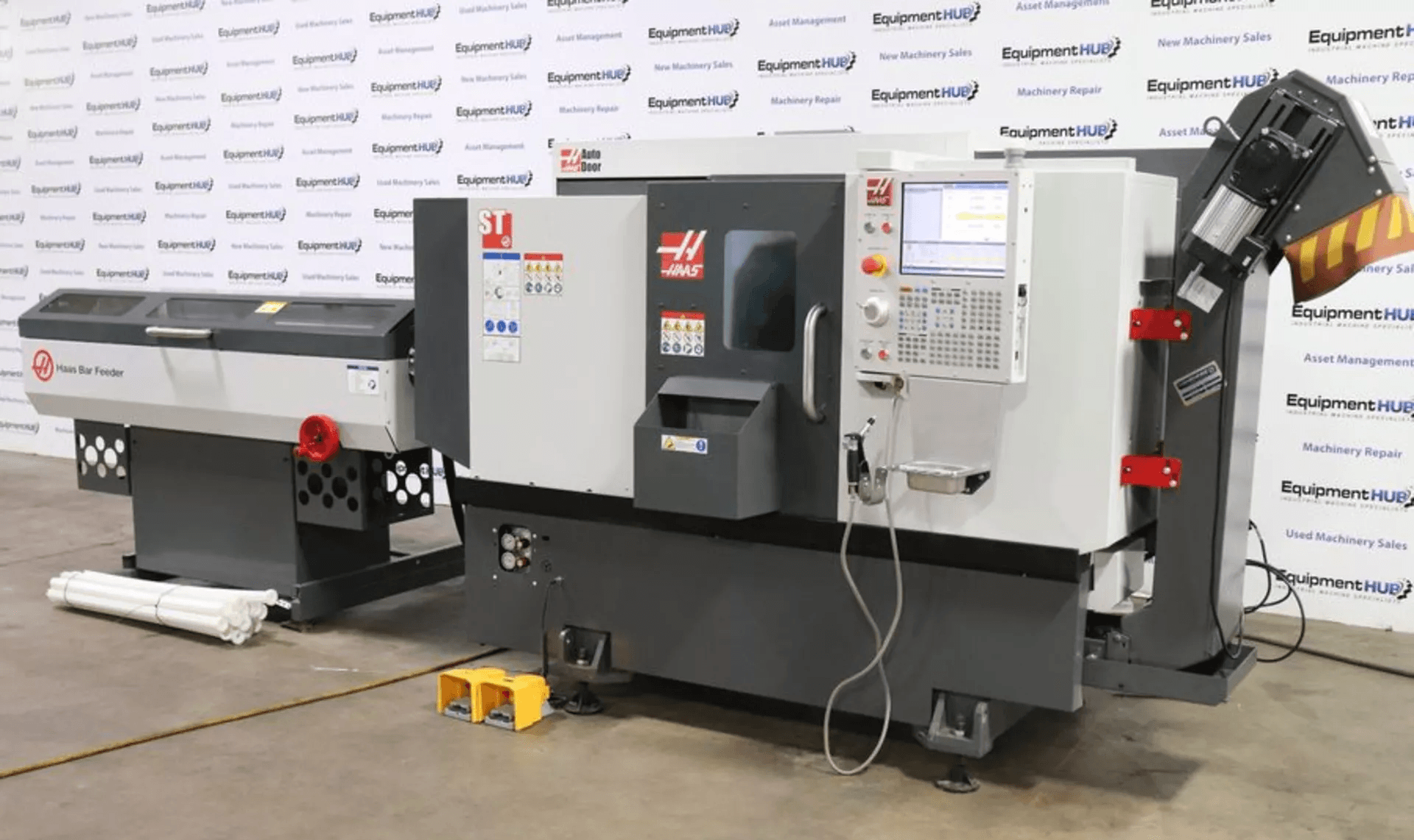

| Make: | Haas |
| Model: | ST-15Y |
| Year: | 2020 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center with Y-Axis |

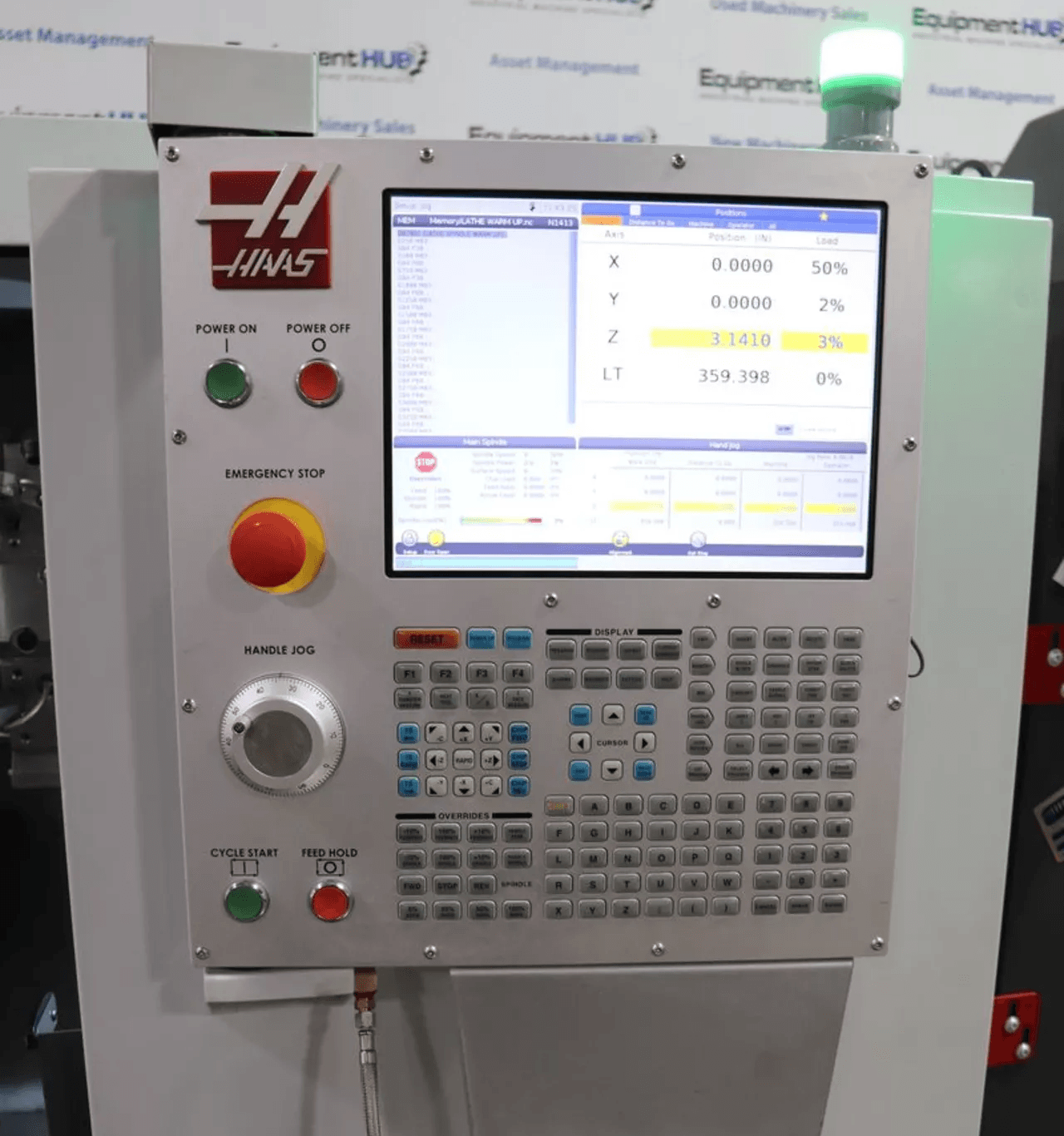

| Control: | Haas NGC Touch Screen CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Haas Bar Feeder |
| Haas NGC Touch Screen CNC Control |

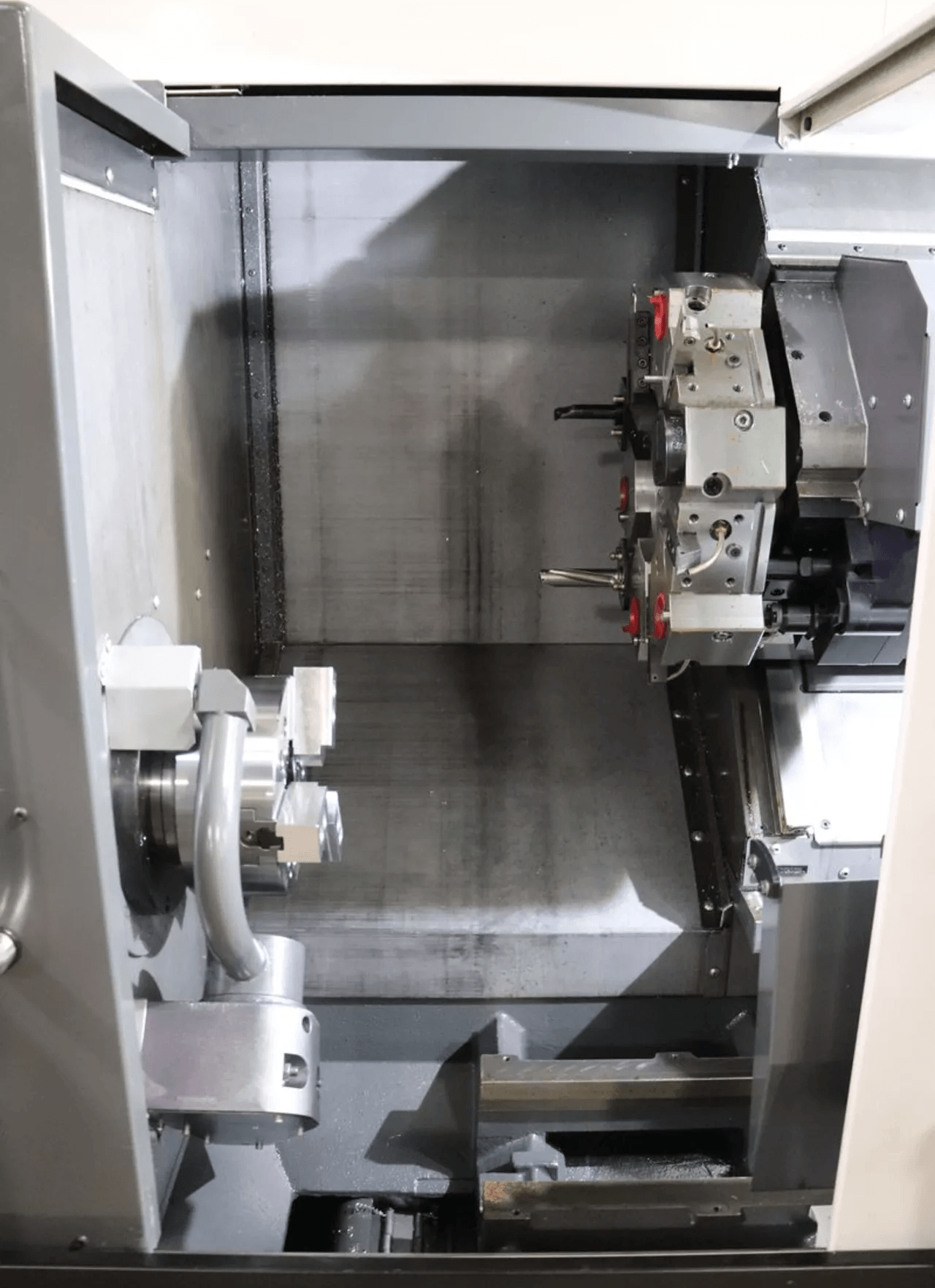

| 12 Station BOT/VDI Hybrid Turret |
| Automatic Tool Presetter |
| Belt-Type Chip Conveyor |
| 30 Gallon Integrated Coolant Tank |
| Rigid Tapping |
| 8.3″ 3-Jaw Hydraulic Chuck |
| Parts Catcher |
| Manual Tailstock with Hydraulic Quill |
| C-Axis |
| Y-Axis Capability |
| Full Enclosure |
| Capacity: |
|---|
| Max Part Swing: 16.5″ |
| Max Cutting Diameter: 11″ |
| Max Cutting Length: 16.0″ |
| Bar Capacity: 2.50″ |
| Chuck Size: 8.3″ |
| Travels: |
|---|
| X-Axis Travel: 7.88″ |
| Y-Axis Travel: ± 2.0″ |
| Z-Axis Travel: 16.00″ |
| Rapid Feedrate X & Y: 472 IPM |
| Rapid Feedrate Z: 1,200 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Max Spindle Power: 20 HP |
| Max Spindle Speed: 4,000 RPM |
| Max Spindle Torque: 150 ft-lbf @ 500 RPM |
| Spindle Bore Diameter: 3.50″ |
| C-Axis: |
|---|
| C-Axis Max Rating: 5 HP |
| C-Axis Max Speed: 60 RPM |
| C-Axis Positioning Accuracy: ±0.01° |
| Tailstock: |
|---|
| Tailstock Taper: MT3 |
| Hydraulic Quill Travel: 3.8″ |

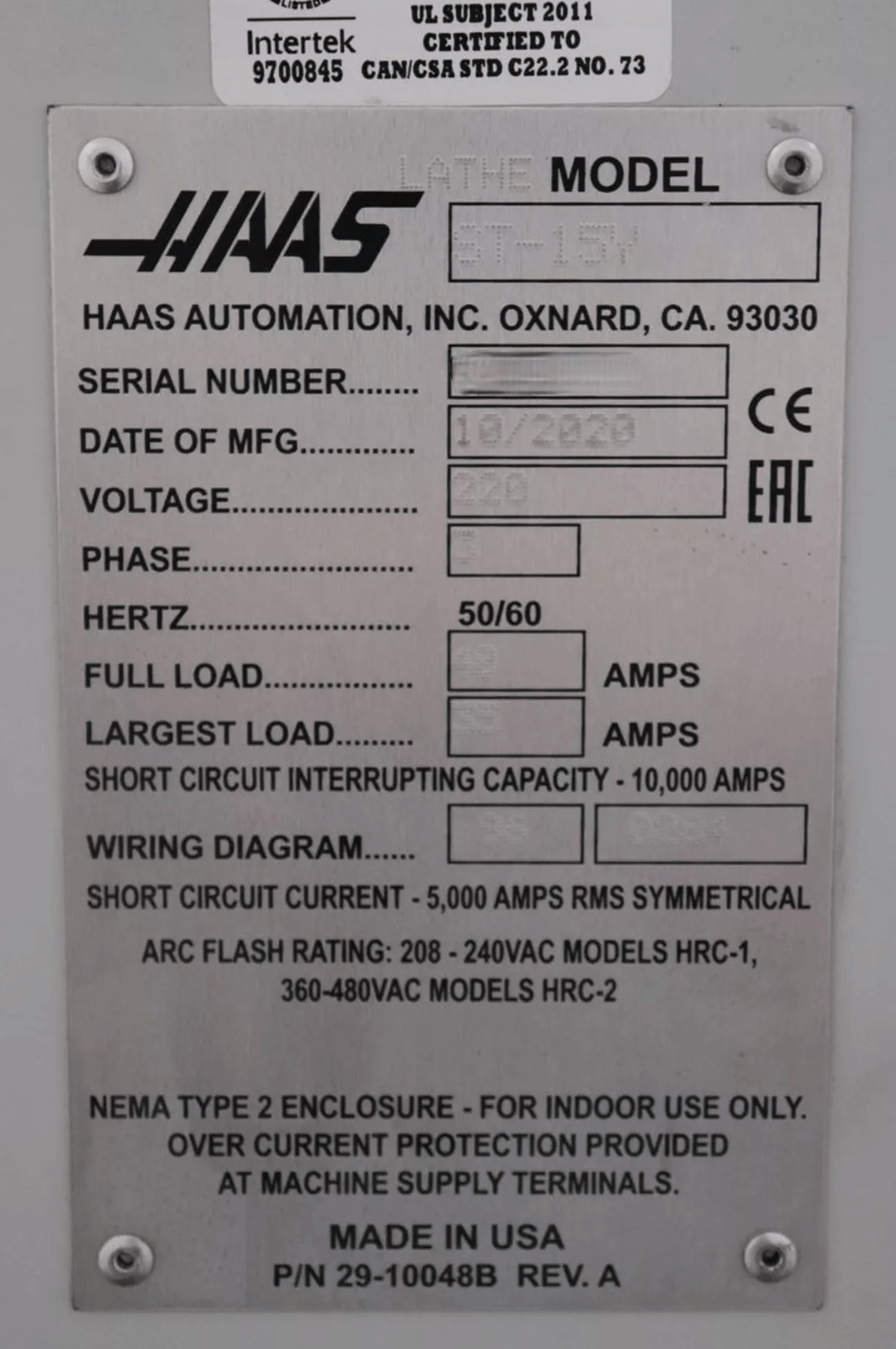

| Electrical: |
|---|
| Voltage: 240V |
| Phase: 3 Phase |
| Dimensions & Weight: |
|---|
| Approximate Weight: 9,000 Lbs. |
| Approximate Dimensions: 17′ L x 6′ W x 7′ H |
