*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | ST-20 |
| Year: | 2018 |
| Machine Type: | Y-Axis CNC Turning Center |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| Y-Axis Capability |
| C-Axis Capability |
| Live Tooling |
| 12-Station Turret |
| BMT65 Tooling |
| 8.3″ Hydraulic Chuck |
| Programmable Tailstock |
| Automatic Tool Presetter |
| High-Pressure Coolant |
| Chip Conveyor |
| 55-Gallon Coolant System |
| Rigid Tapping |
| Spindle Orientation |
| Enclosed Work Area |
| Remote Handwheel |
| Parts Catcher |
| 3 Driven Toolholders Visible |
| Tooling and Accessories as Shown |
| Capacity: |
|---|
| Maximum Part Swing: 21.0″ |
| Maximum Cutting Diameter: 11.75″ |
| Maximum Cutting Length: 22.5″ |
| Bar Capacity: 2.0″–2.5″ |
| Chuck Size: 8.3″ |
| Spindle Bore: 3.50″ |
| Travels: |
|---|
| X-Axis Travel: 8.4″ |
| Y-Axis Travel: ±2.0″ |
| Z-Axis Travel: 22.5″ |
| Feedrates: |
|---|
| X-Axis Rapid: 472 IPM |
| Y-Axis Rapid: 472 IPM |
| Z-Axis Rapid: 945 IPM |
| Spindle: |
|---|
| Spindle Motor: 20 HP |
| Maximum Spindle Speed: 4,000 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.50″ |
| Maximum Spindle Torque: 150 ft-lb @ 500 RPM |
| Turret: |
|---|
| Turret: 12-Station |
| Turret Type: BMT65 |
| Boring Bar Rear Clearance: 4.0″ |
| General: |
|---|

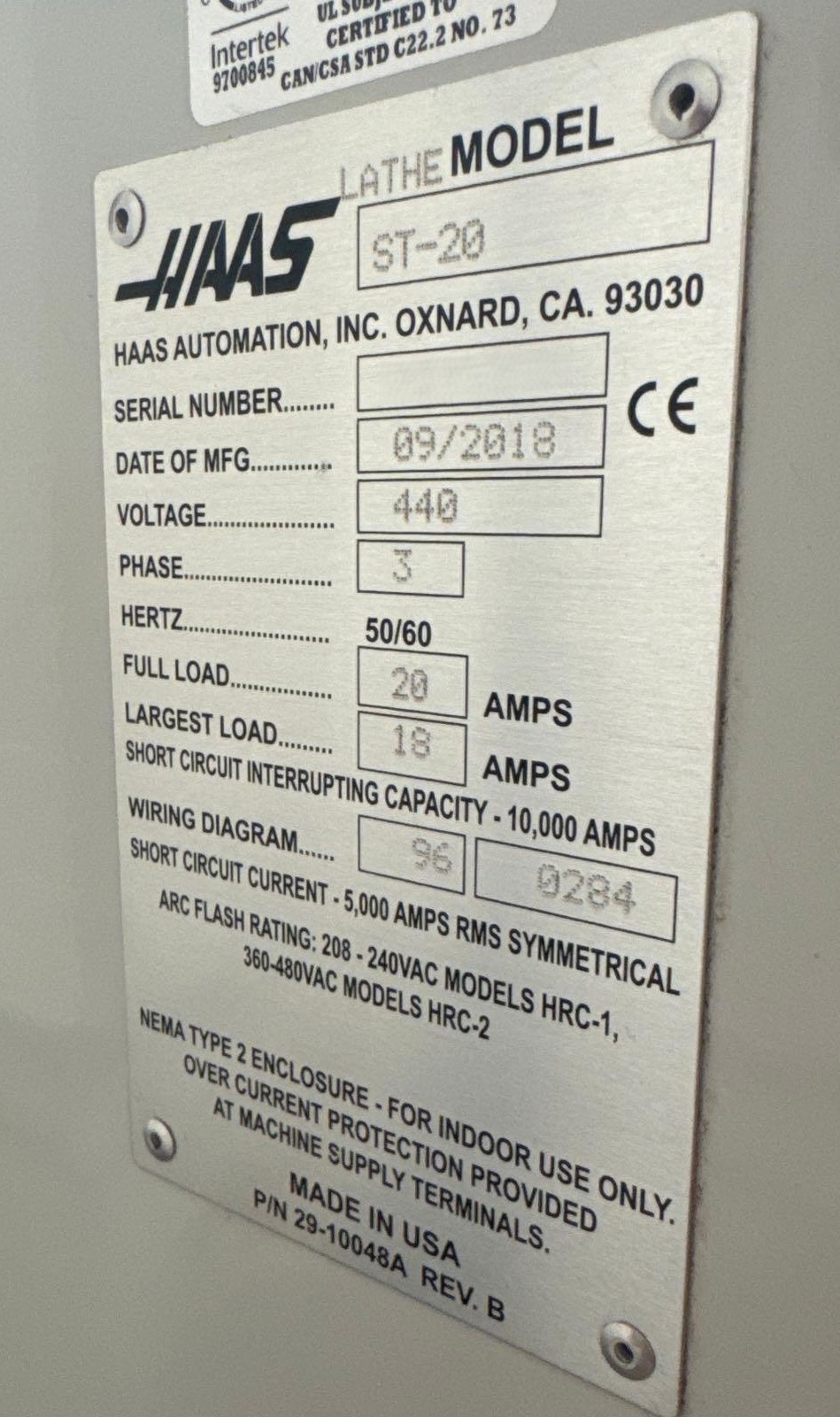

| Power Source: 440V / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 10,480 lbs. |
| Shipping Dimensions (Approx.): 143″ L × 90″ W × 92″ H |
