*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | ST-40 |
| Year: | 2020 |
| Machine Type: | 2-Axis CNC Lathe |
| CNC Control: | Haas CNC Control |
| Cutting Time: | 2,692 Hours |
| Equipped With: |
|---|
| Haas CNC Control |
| 15″ Samchully 3-Jaw Hydraulic Chuck |
| 12-Station Tool Turret |
| 40 HP Spindle Motor |
| 2,400 RPM Spindle |
| A2-8 Spindle Nose |
| 2-Speed Gearbox |
| Chip Conveyor |

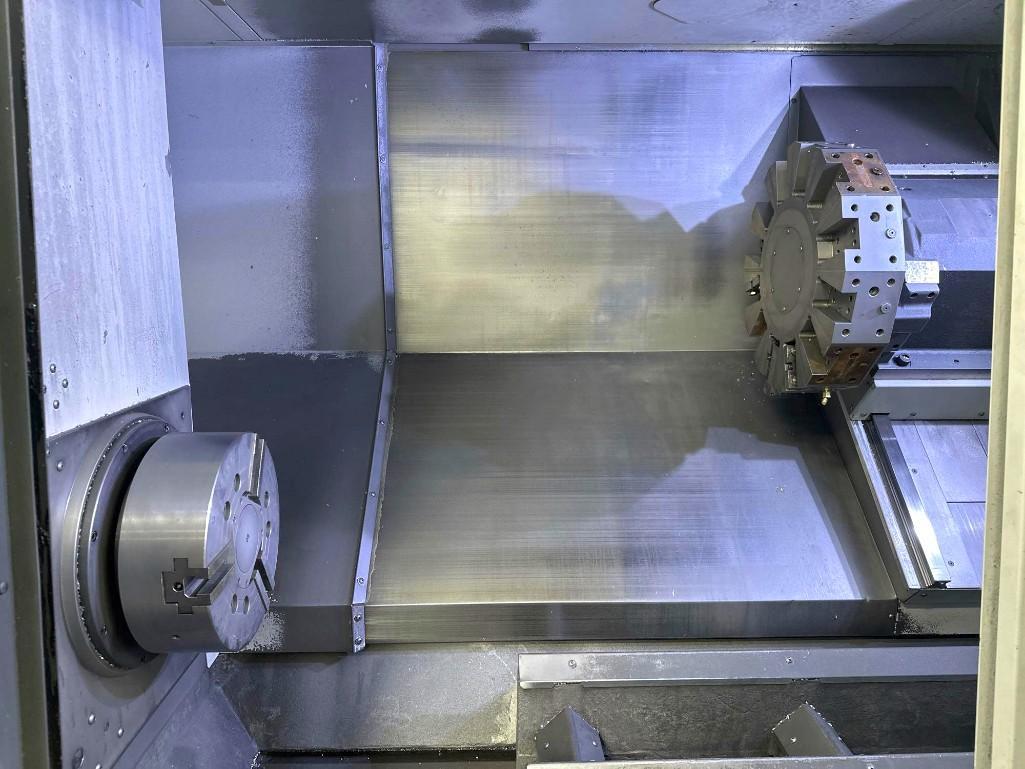

| Fully Enclosed Machining Area |
| Hydraulic Chucking System |
| Programmable CNC Control |
| High-Intensity Work Area Lighting |
| Capacity: |
|---|
| Maximum Swing: 34.5″ |
| Maximum Turning Diameter: 25.5″ |
| Maximum Machining Length: 44.02″ |
| Bar Capacity: 4.0″ |
| Chuck Size: 15″ |
| Spindle Bore: 4.62″* |
| Over Cross Slide: 25.5″* |
| Travels: |
|---|
| X-Axis Travel: 17″ |
| Z-Axis Travel: 44″ |
| Rapid Traverse X: 710 IPM* |
| Rapid Traverse Z: 710 IPM* |
| Spindle: |
|---|
| Maximum Spindle Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Spindle Drive: 2-Speed Gearbox |
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″* |
| Maximum Torque: 1,400 ft-lb @ 150 RPM* |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Bolt-On Tool Turret |
| General: |
|---|
| Air Requirement: Approx. 4 SCFM @ 100 PSI* |

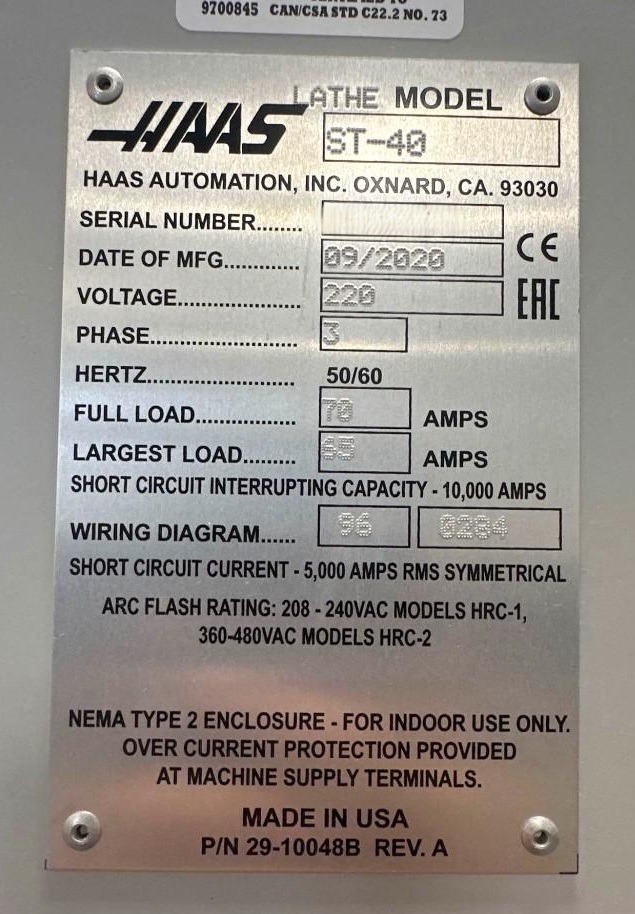

| Power Source: 220V / 3-Phase / 50/60 Hz |
| Shipping Dimensions (Approx.): 212″ L × 96″ W × 105″ H* |
| Machine Weight (Approx.): 25,500 lbs.* |
