*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

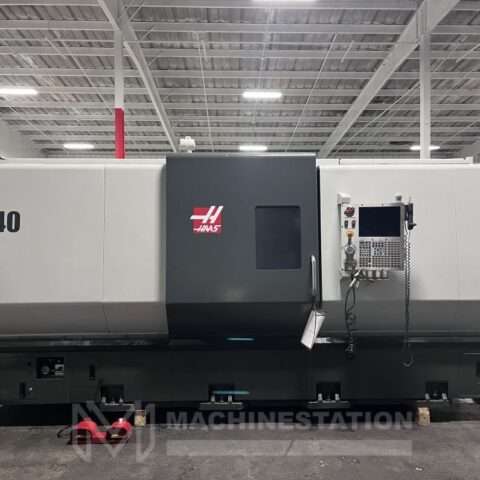

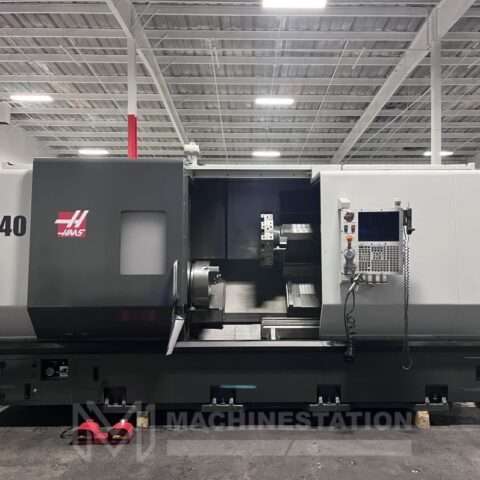

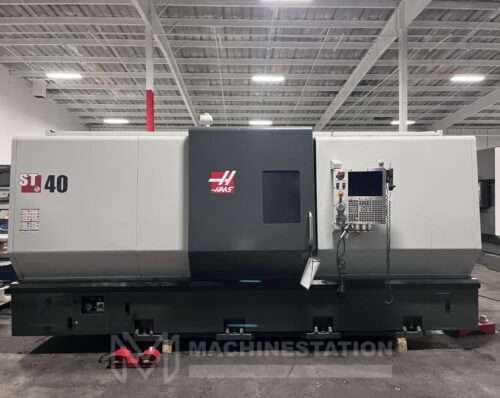

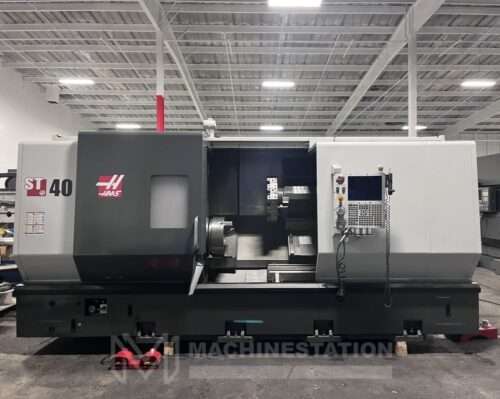

Make: | Haas |
Model: | ST-40 |
Year: | 2012 |
Condition: | Used – Good |
Equipped With: |
---|

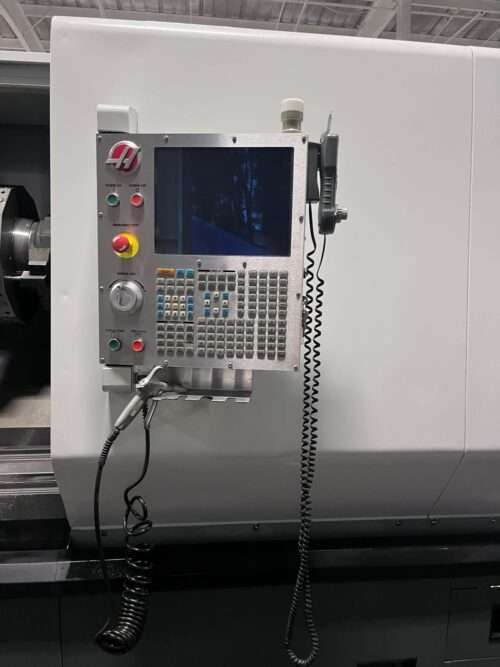

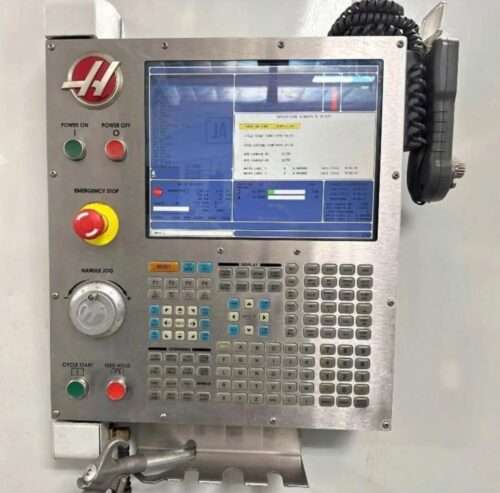

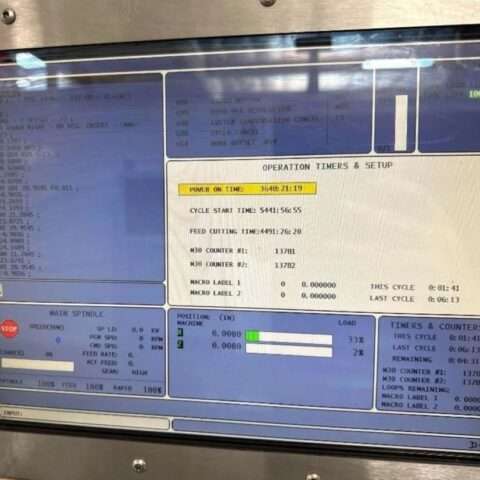

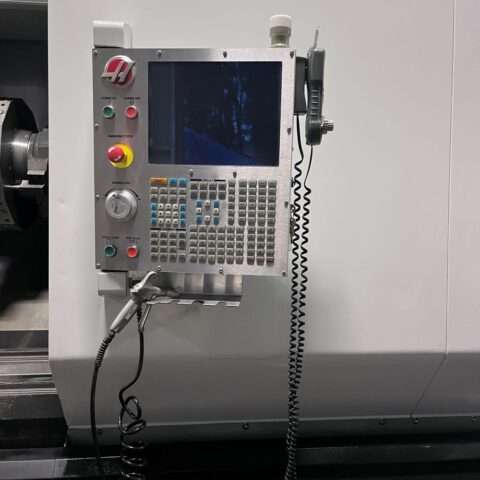

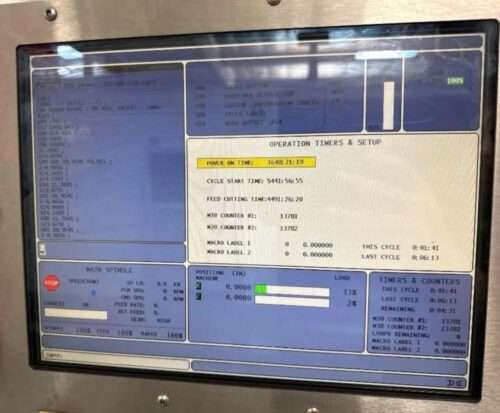

Haas CNC Control |

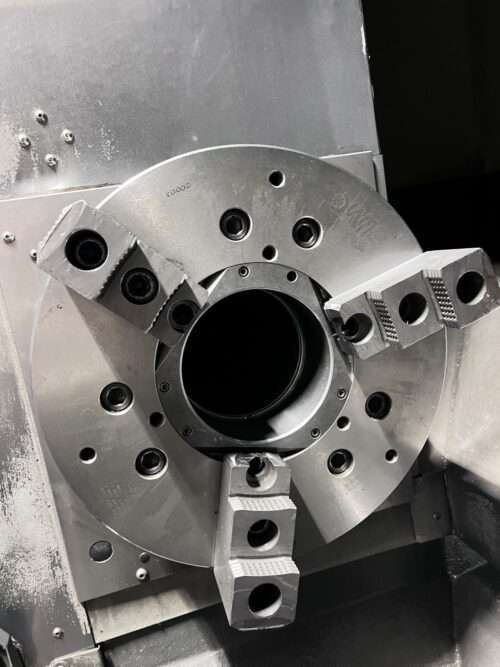

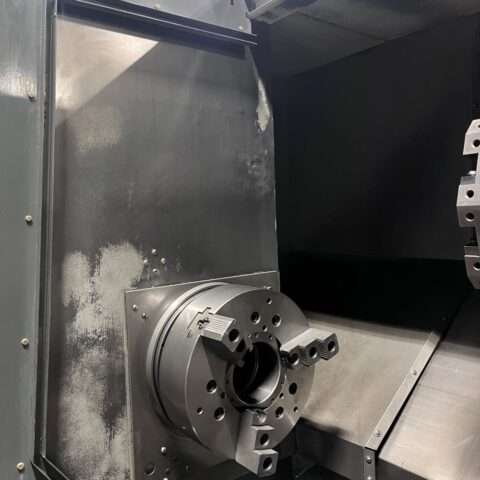

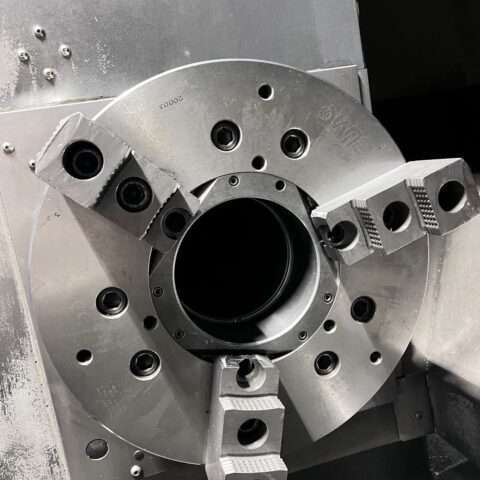

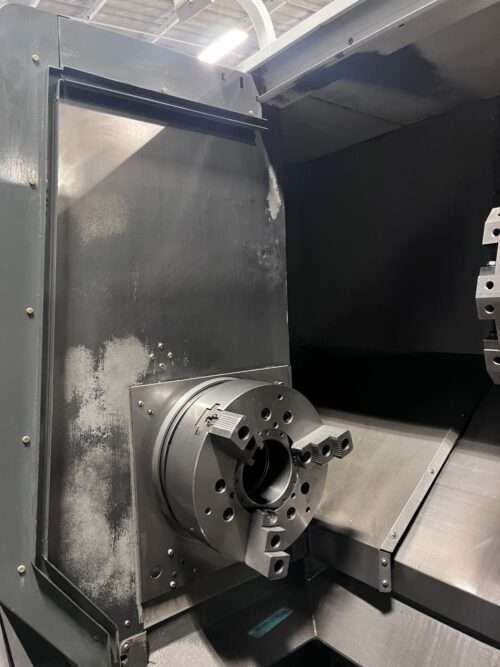

15″ 3-Jaw Hydraulic Chuck |
6.5″ Big Bore Spindle |
A2-8 Gear Head Spindle |

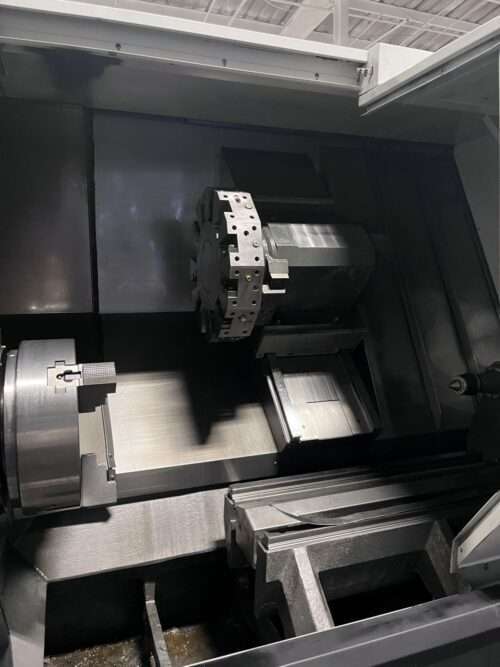

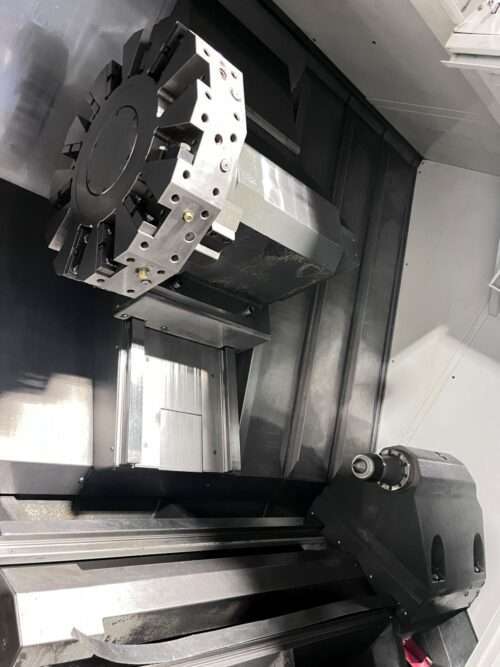

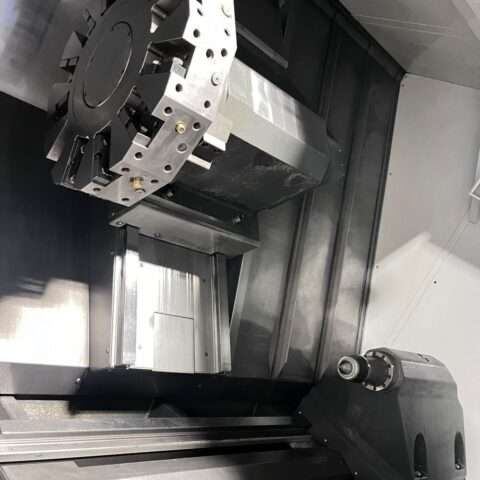

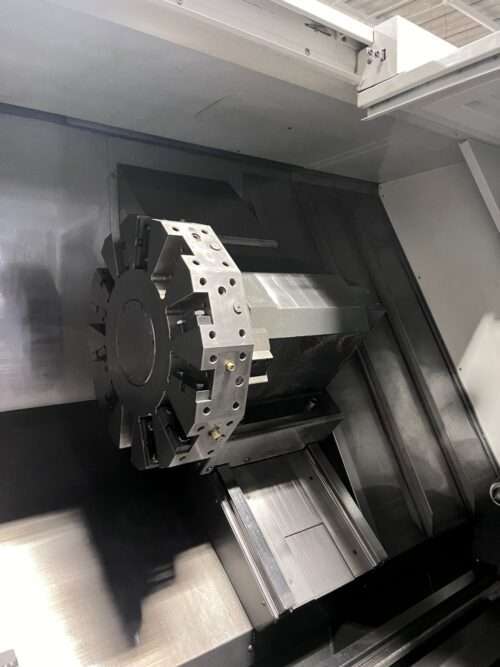

12 Station Automatic Turret |
Programmable Servo Tailstock |

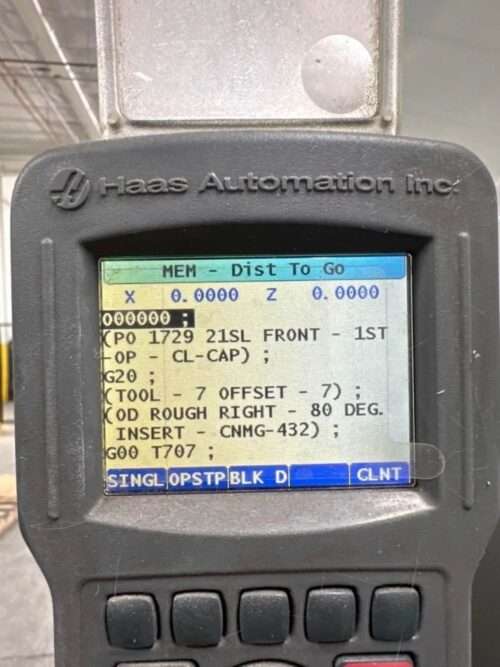

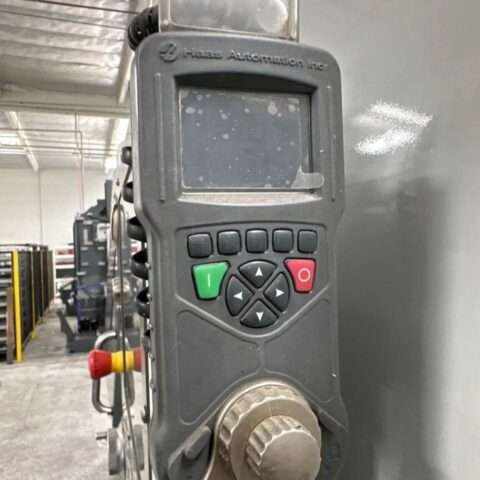

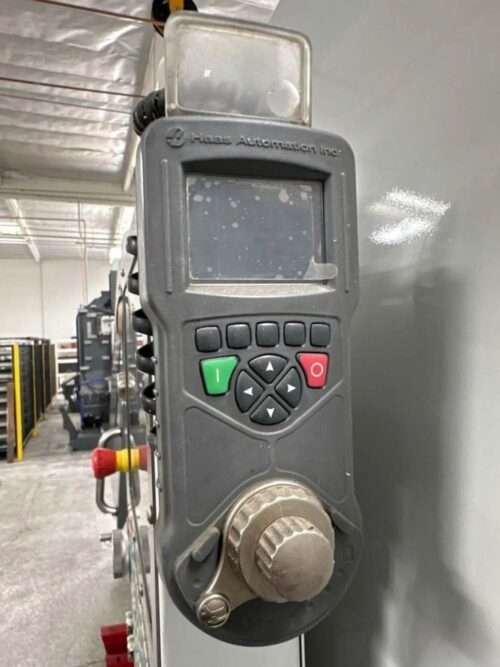

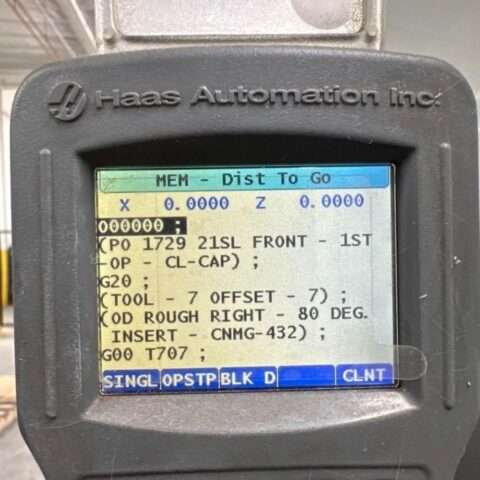

Remote Jog Handle |
Rigid Tapping |
Coolant System |
Chip Conveyor (Upgraded $6295 value Included) |
Automatic Lubrication system |
Foot Switches |
Chip Conveyor |
Note: *Door Repairs Needed* |
Capacity: |
---|
Max Turning Diameter : 30.0″ |
Max Swing Over Bed : 34.5″ |
Max Swing Over Cross Slide : 25.5″ |
Max Swing Over Tailstock : 25.5″ |
Max Turning Length: 44.0″ |
Max Bar Capacity : 6.0″ |
Travels: |
---|
X Axis Travel : 20″ |
Z1 Axis Travel : 44.0″ |
Feedrate: |
---|
Rapid Traverse X Axis: 710 IPM |
Rapid Traverse Z Axis: 710 IPM |
Spindle: |
---|
Spindle Nose: A2-8 |
Spindle Bore: 6.5″ |
Spindle Speed: 2400 RPM |
Spindle Motor: 40 HP |
Turret: |
---|
Turret Capacity: 12 Stations |
Turret Index Time: 1 Second |
Tailstock: |
---|
Tailstock Type: Programmable |
Tailstock Taper: MT-5 |
Tailstock Travel: 42″ |
General: |
---|

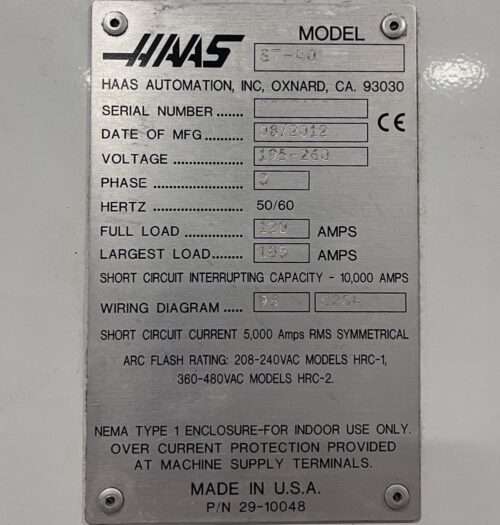

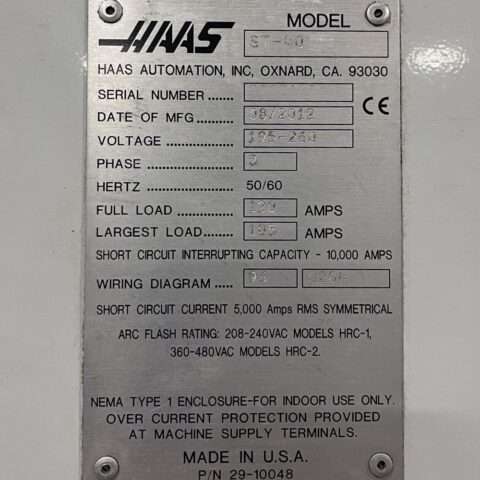

Power Source: AC 220v / 3-Phase / 60 Hz |
Machine Dimensions: 216″ x 95″ x 110″ High |
Machine Weight: 21,740 lbs Approx. |
