*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

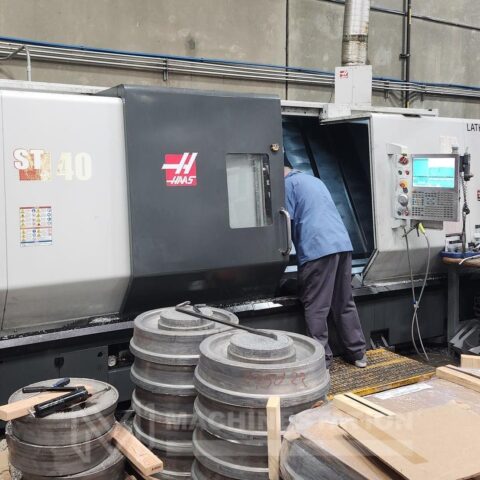

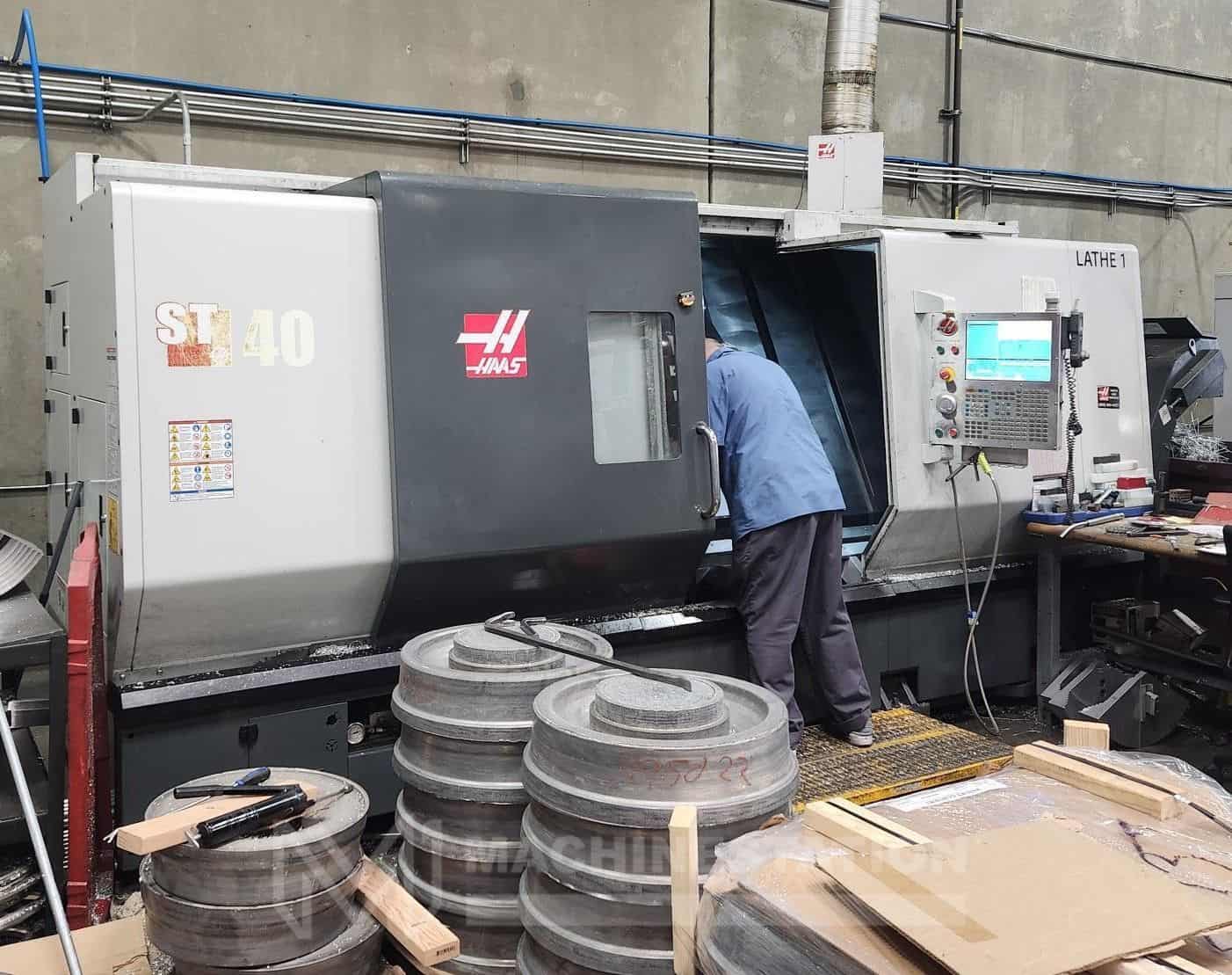

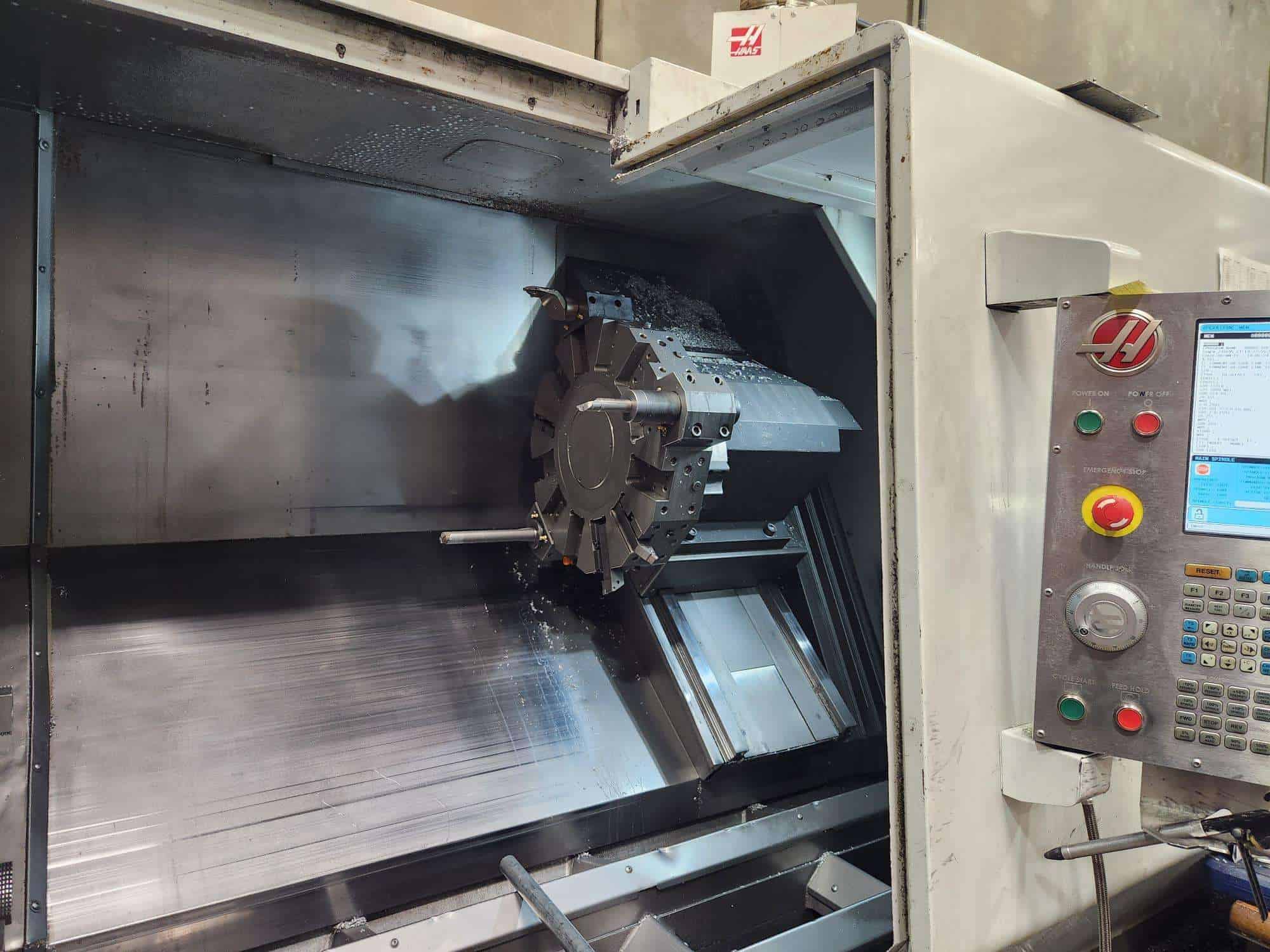

| Make: | Haas |
| Model: | ST40 |
| Year: | 2015 |
| Equipped With: |
|---|
| Haas CNC Control |

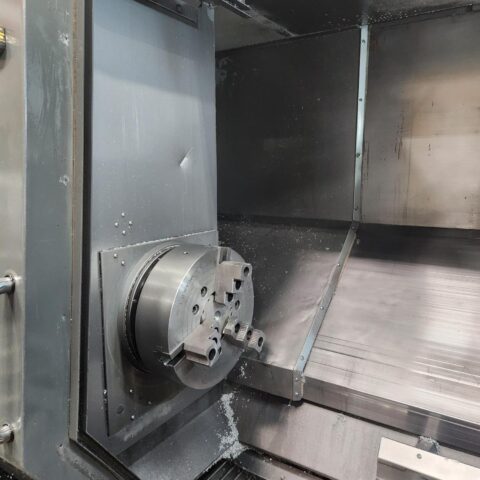

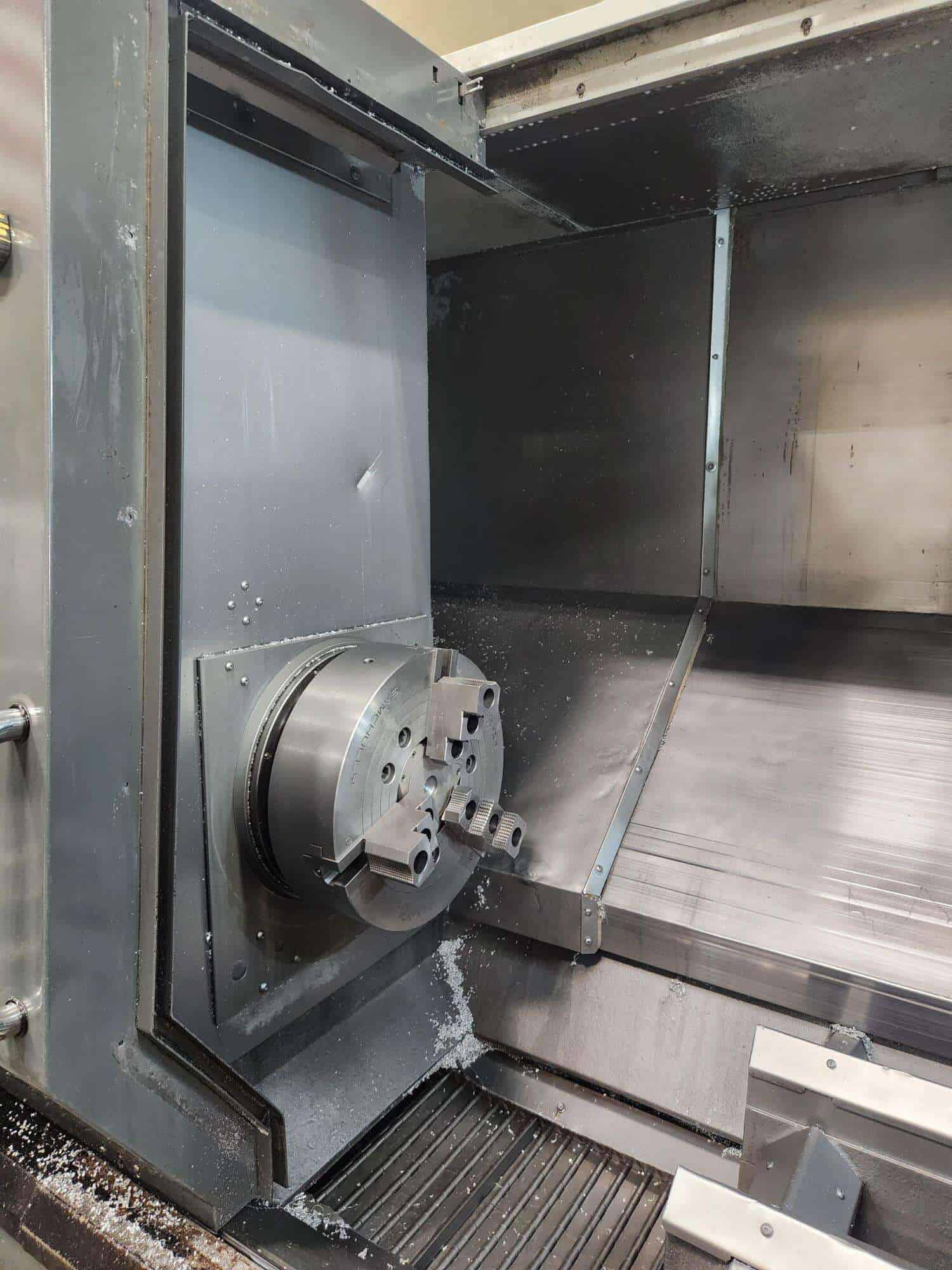

| 15″ 3-Jaw Hydraulic Chuck |
| 4.62″ Bore Spindle |
| A2-8 Gear Head Spindle |

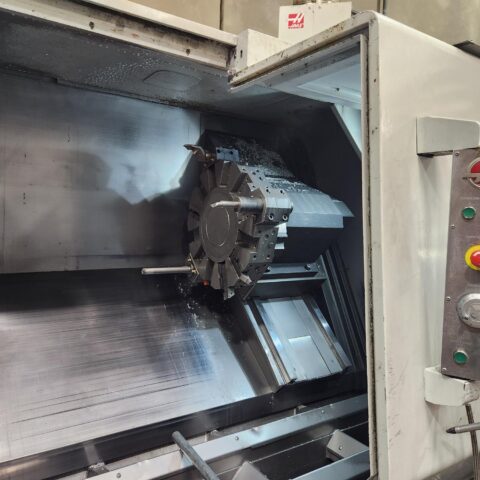

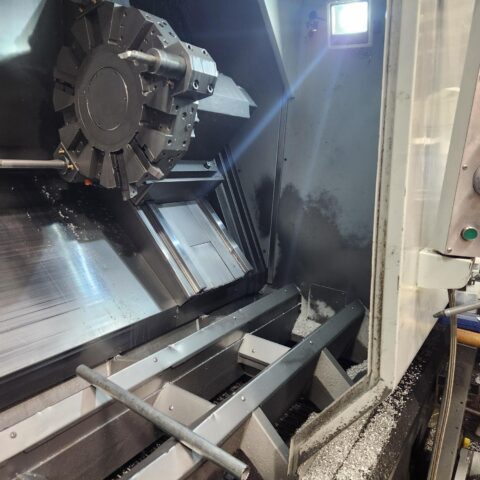

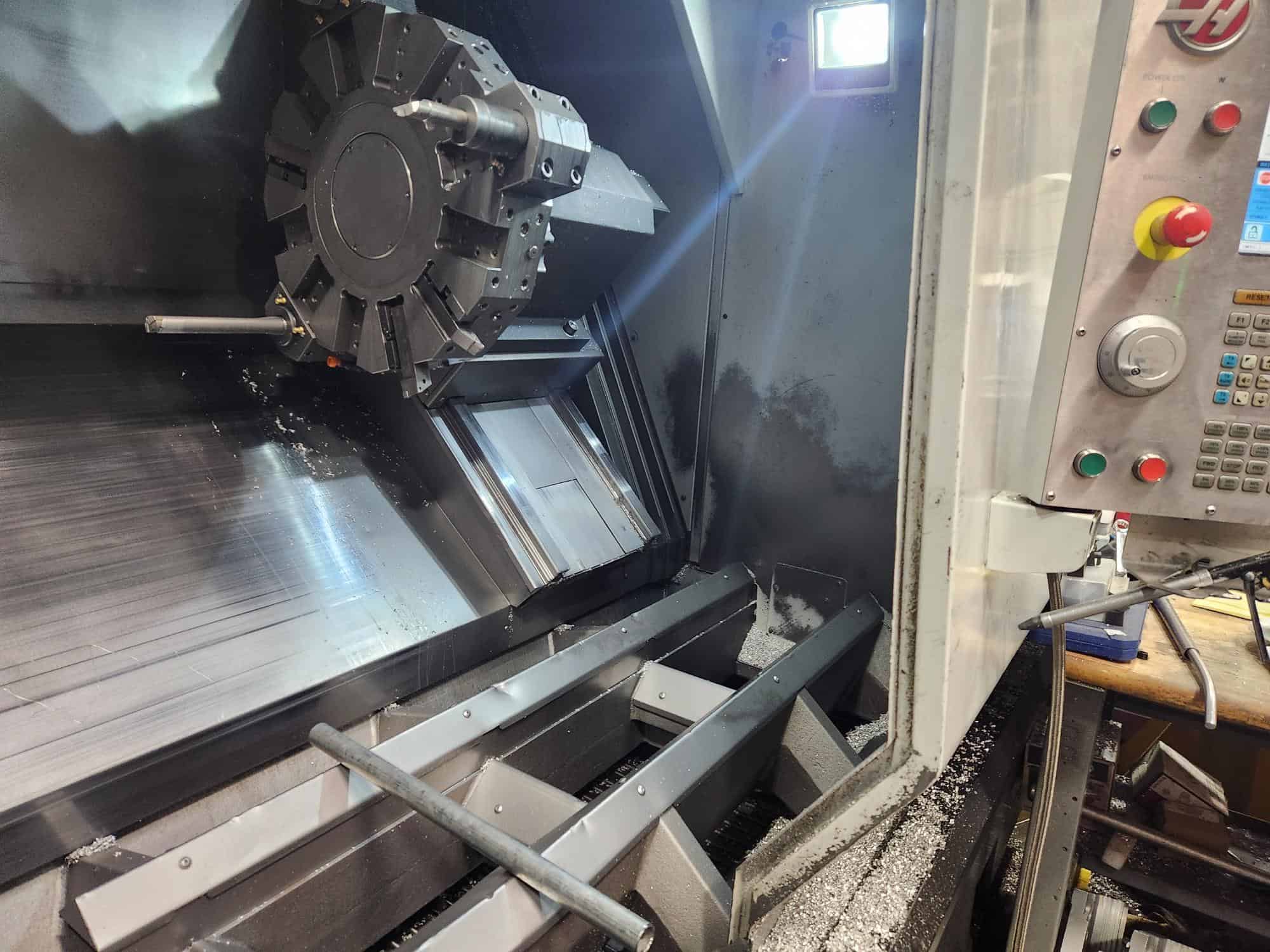

| 12 Station Automatic Turret |
| Remote Jog Handle |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor (Upgraded $6,695 value Included) |
| Automatic Lubrication system |
| Capacity: |
|---|
| Max Turning Diameter : 30.0″ |
| Max Swing Over Bed : 34.5″ |
| Max Swing Over Cross Slide : 25.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 4.0″ |
| Travels: |
|---|
| X Axis Travel : 20″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tool Holders Type: BMT |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 216″ x 95″ x 110″ High |
| Machine Weight: 21,740 lbs Approx. |
