*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | ST-40L |
| Year of Manufacture: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center (Long Bed) |

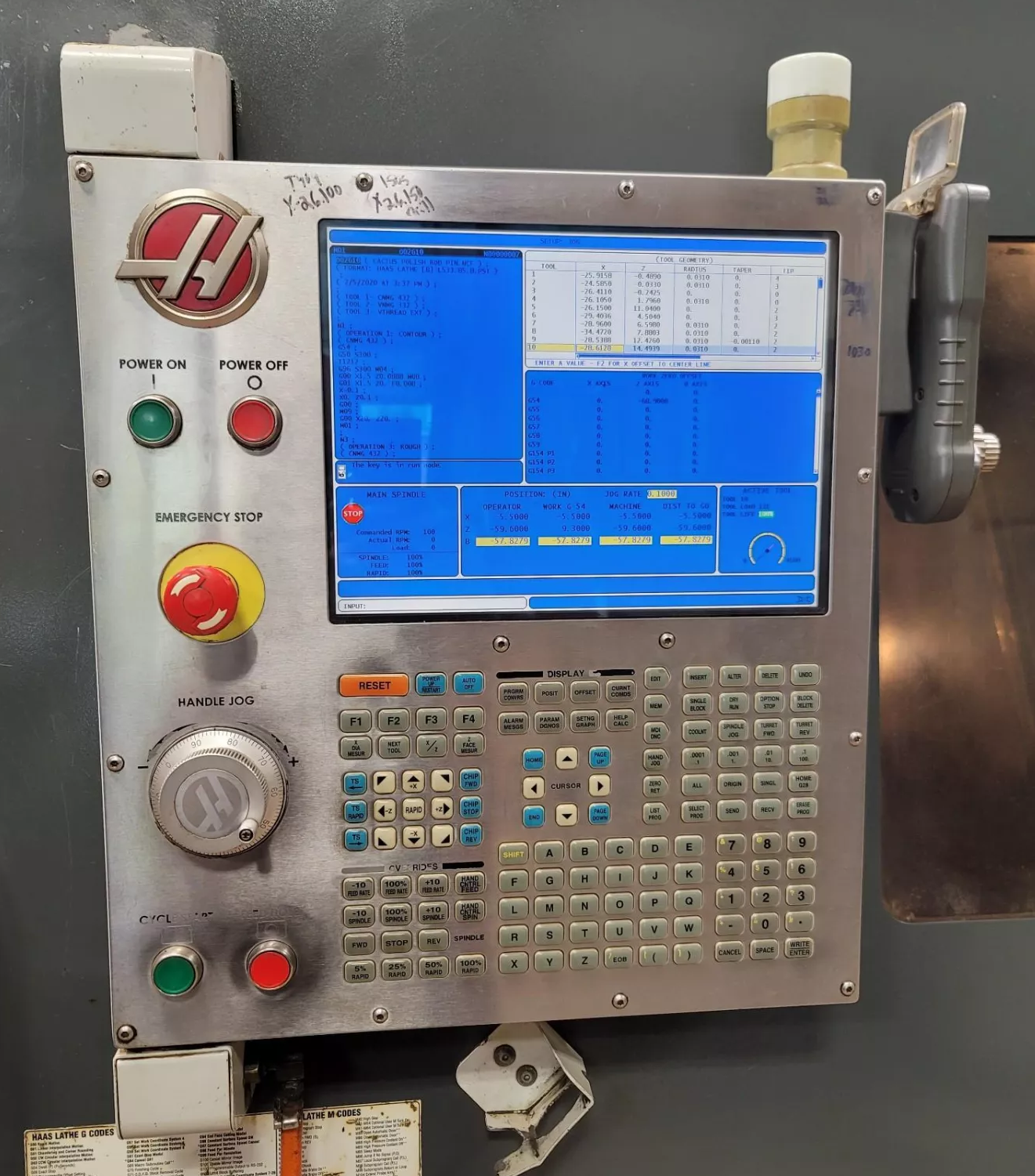

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| 15″ Hydraulic Chuck |
| 12-Station Turret |
| Tailstock |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Swing Over Bed: 39″ |
| Max Turning Diameter: 25.5″ |
| Max Turning Length: 80″ |
| Bar Capacity: 4″ |
| Travels: |
|---|
| X-Axis Travel: 17″ |
| Z-Axis Travel: 80″ |
| Spindle: |
|---|
| Spindle Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Spindle Nose: A2-8 |
| Spindle Bore: 4.12″ |
| Tooling: |
|---|
| Turret Capacity: 12 Stations |
| Tooling Type: Bolt-On |
| Feed Rates: |
|---|
| Rapid Traverse (X): 710 IPM |
| Rapid Traverse (Z): 710 IPM |
| General: |
|---|
| Power Source: AC 220/480 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 200″ x 90″ x 100″ |
| Machine Weight: 18,500 lbs Approx. |
