*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model: |
Super VF-3SS |
| Year: |
2007 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis CNC Vertical Machining Center |

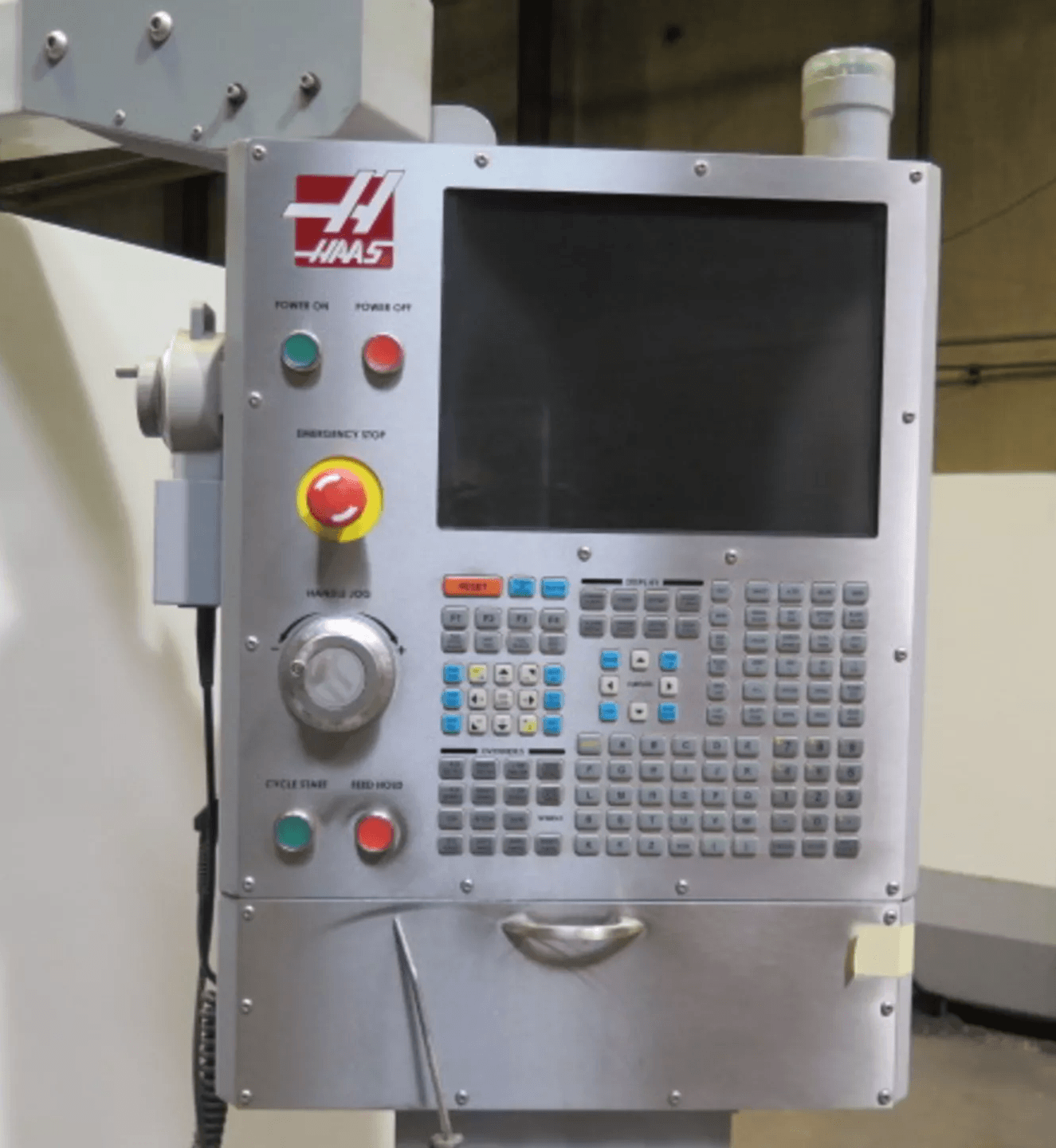

| CNC Control: |
Haas CNC Control |
| Country of Origin: |
USA |
| Equipped With: |
| Haas CNC Control |
| 24-Station Side Mount Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 12,000 RPM Inline Direct Drive Spindle |
| Through Spindle Coolant (TSC) |
| Haas VOP-D |
| High Speed Tool Changer |
| High Speed Machining |
| Brushless A & B Axes |
| Rigid Tapping |
| Coordinate Rotation & Scaling |
| Macros |
| M19 Spindle Orientation |
| 16MB Expanded Memory |
| Second MOCON Board |
| VQCPS Probing System |
| Renishaw Probe |
| Intuitive Programming System |
| Chip Auger |
| Coolant System |
| Electronic Handwheel |
| Full Enclosure |
| Capacity: |
| Table Size: 54″ x 18″ |
| Max Table Load: 3,500 Lbs |
| Travels: |
| X-Axis Travel: 40″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 25″ |
| Spindle: |
| Spindle Taper: CAT-40 |
| Spindle Speed: 12,000 RPM |
| Spindle Type: Inline Direct Drive |
| Spindle Motor: 30 HP Vector Drive |
| Tool Changer: |
| Tool Changer Capacity: 24 Tools |
| Tool Changer Type: Side Mount High Speed ATC |
| 5-Axis Features: |
| Brushless A & B Axes |
| Coordinate Rotation & Scaling |
| High Speed Machining |
| Rigid Tapping |
| Feed Rates: |
| Rapid Traverse Rate (X/Y/Z): 1,400 IPM |

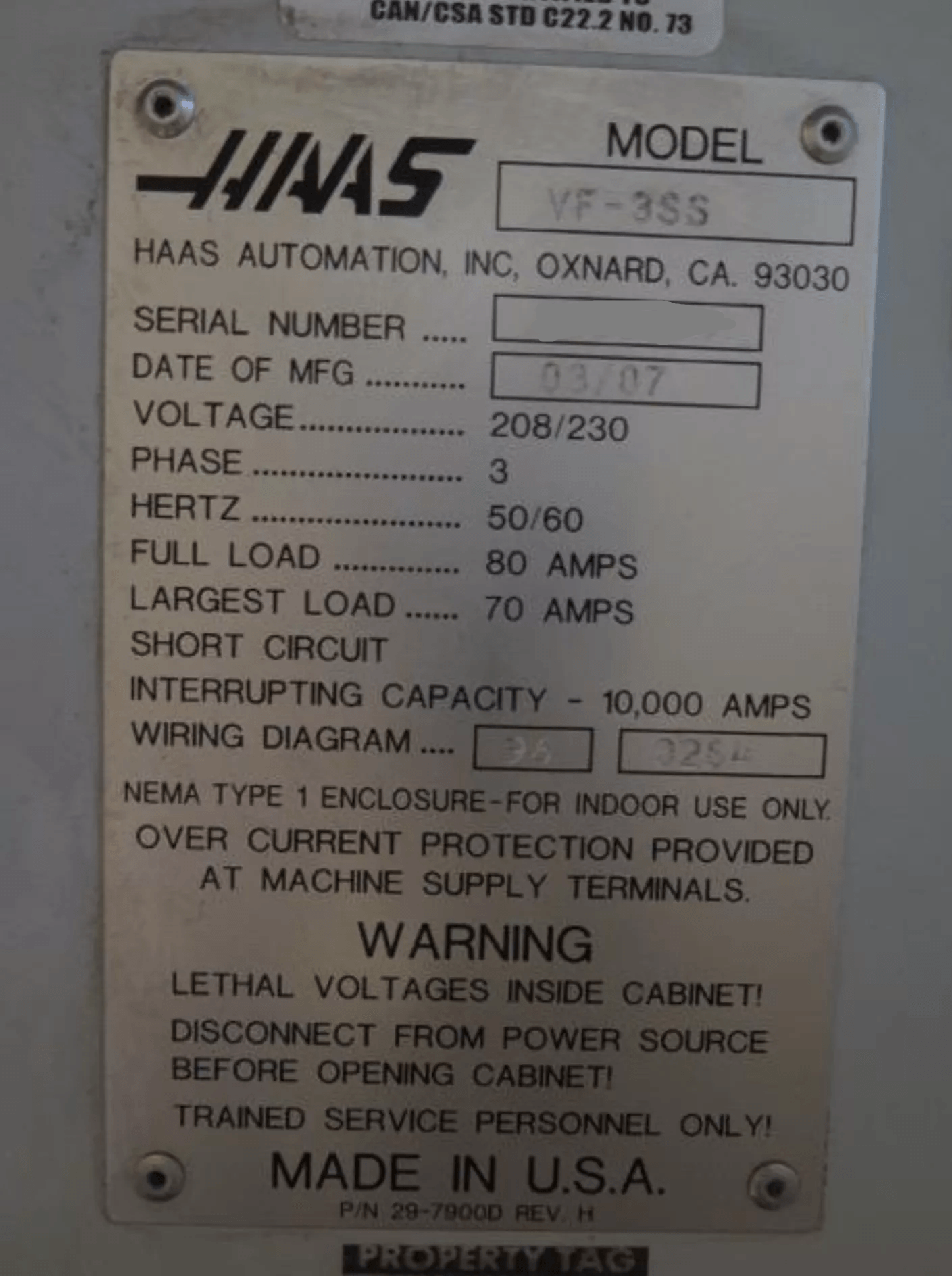

| Electrical: |
| Voltage: 208/230V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| General: |
| Approximate Weight: 12,500 Lbs |
| Country of Origin: USA |
